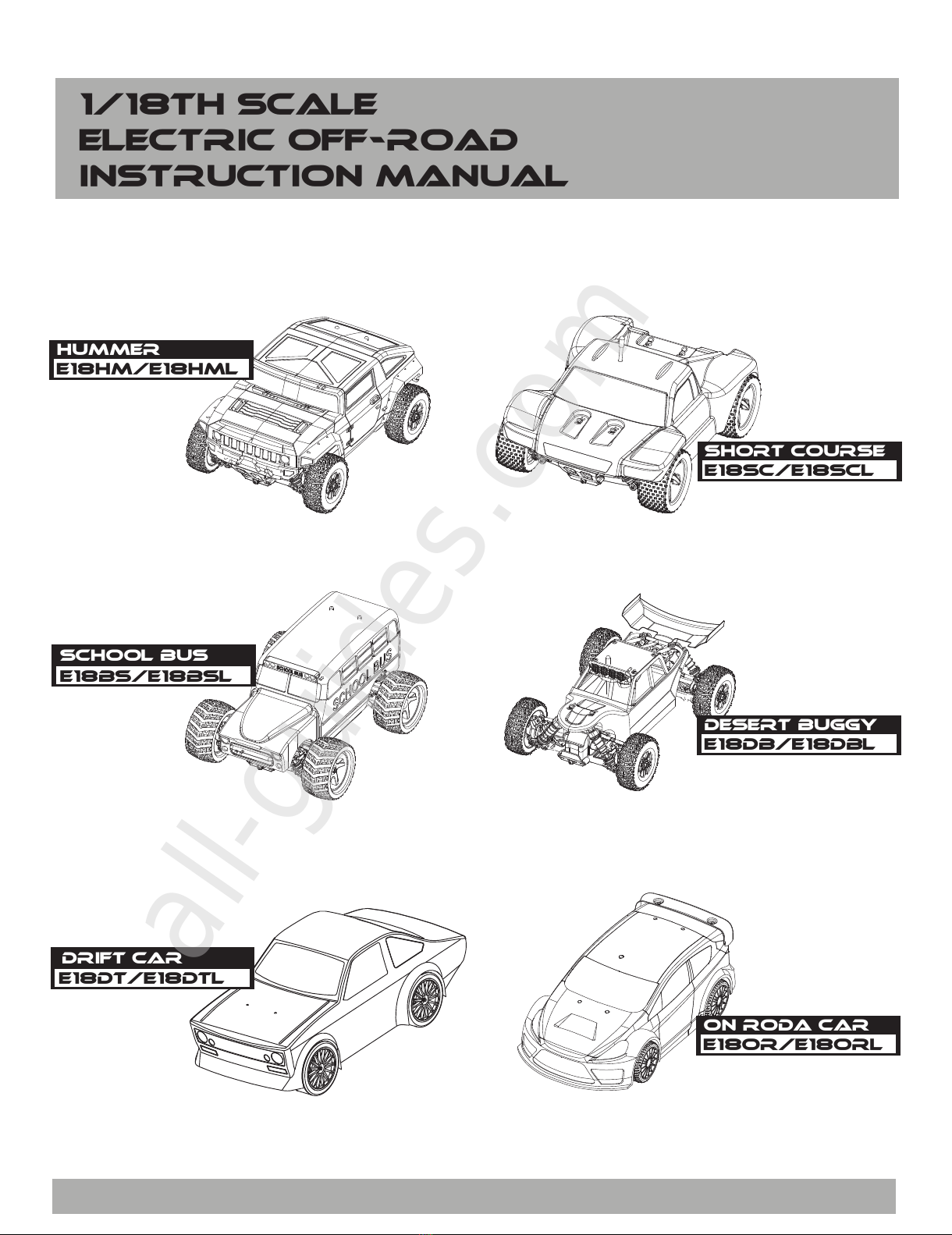

Himoto HUMMER User manual

1/18TH SCALE
ELECTRIC off-road
instruction manual
E18BS/E18BSL
school bus
ON RODA Car
E18or/E18orL
short course
E18SC/E18SCL
desert buggy
E18DB/E18DBL
hummer
E18HM/E18HML
E18DT/E18DTL
drift car
All manuals and user guides at all-guides.com
all-guides.com

18
01
All manuals and user guides at all-guides.com

02
Do not mix alkaline batteries, standard(carbon-zinc) or rechargeable(Nickel-Cadmium) batteries.
4
All manuals and user guides at all-guides.com

03
MT-201T
Operating
RF
6.0~8.4V( )
6.0~7.4V(Li-poly 2s)
MT-201RE
MT-201
Antenna (Built in)
Steering Dual Rate
Lever (D/R)
Steering Trim
Lerer (CH1)
Working Station
Indicator
Connects to the steering servo
Switch
Battery connector
Motor connector
LED Indicator
Antenna Wire
Installing the Transmitter Batteries
System Specifications
Open the battery holding
tray to expose the empty
battery slots.
Insert 4 AA batteries
into the marked spaces.
Please note the correct
direction of the batteries
Incorrect battery insertion
could damage the transmitter
2.4Ghz technology has done
away with the need for long
extendable aerials. The Aerial
on your transmitter is located
internally
Installing the battery pack
You need to insert the
battery pack in the open
section for the battery.
Use the chassis cut-out
for corner wiring if
needed. Use the straps
provided to secure the
battery in place.
Once fastened and secured
please connect the battery
plug into the speed controller
plug noting correct polarity.
Red to red, black to black.
1
All manuals and user guides at all-guides.com

CH1(Steering)Trim

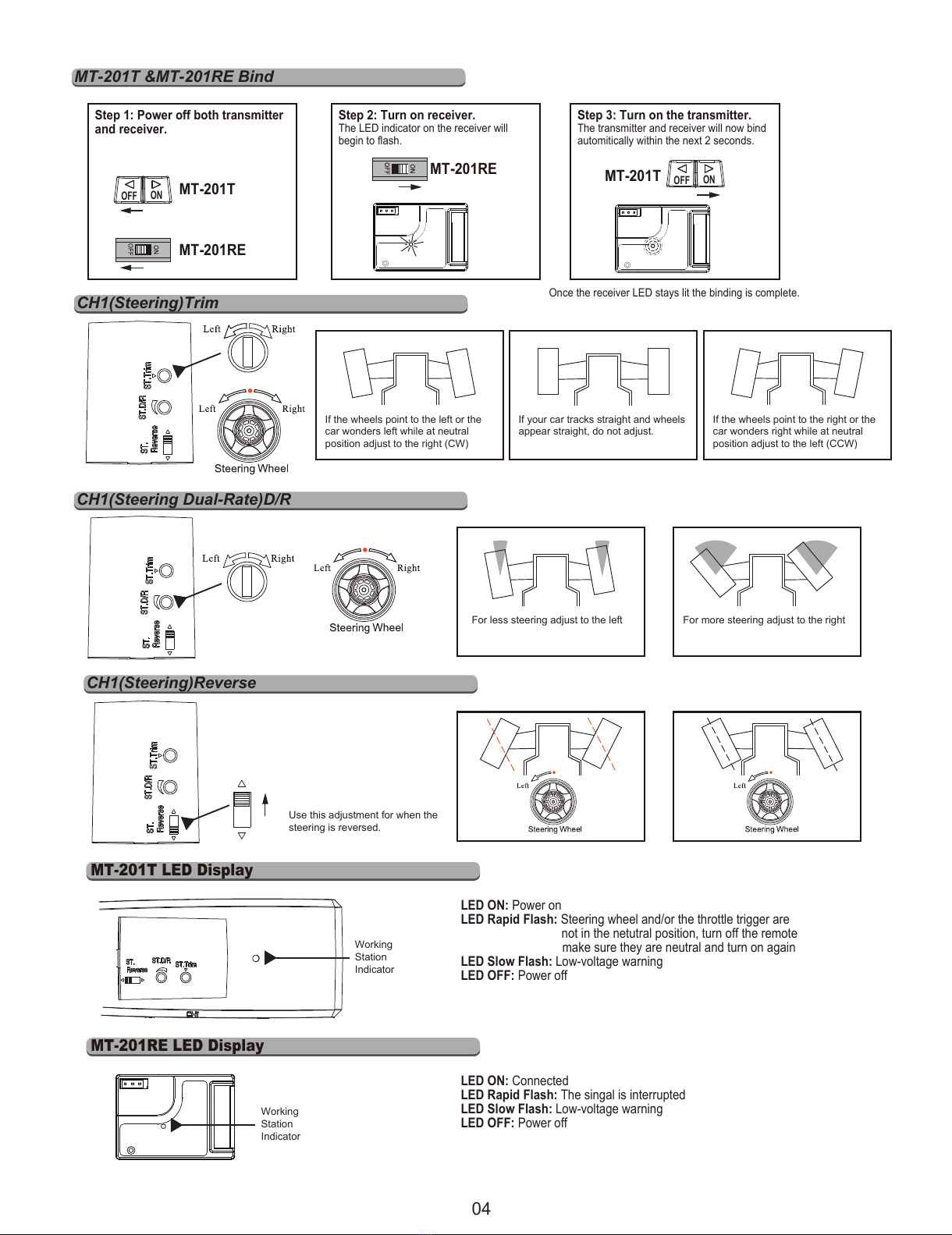

MT-201T &MT-201RE Bind
CH1(Steering Dual-Rate)D/R
LED ON: Power on
LED Rapid Flash: Steering wheel and/or the throttle trigger are
not in the netutral position, turn off the remote
make sure they are neutral and turn on again
LED Slow Flash: Low-voltage warning
LED OFF: Power off
LED ON: Connected
LED Rapid Flash: The singal is interrupted
LED Slow Flash: Low-voltage warning
LED OFF: Power off
Once the receiver LED stays lit the binding is complete.
CH1(Steering)Reverse
MT-201T LED Display
MT-201RE LED Display
MT-201T
MT-201RE
OFF ON
MT-201RE MT-201T
OFF ON
Working
Station
Indicator
Working
Station
Indicator
Step 1: Power off both transmitter
and receiver.
Step 2: Turn on receiver.
The LED indicator on the receiver will
begin to flash.
Step 3: Turn on the transmitter.
The transmitter and receiver will now bind
automitically within the next 2 seconds.
If the wheels point to the left or the
car wonders left while at neutral
position adjust to the right (CW)
If your car tracks straight and wheels
appear straight, do not adjust.
If the wheels point to the right or the
car wonders right while at neutral
position adjust to the left (CCW)
For less steering adjust to the left For more steering adjust to the right
Use this adjustment for when the
steering is reversed.
04
All manuals and user guides at all-guides.com

05
All manuals and user guides at all-guides.com
all-guides.com

06

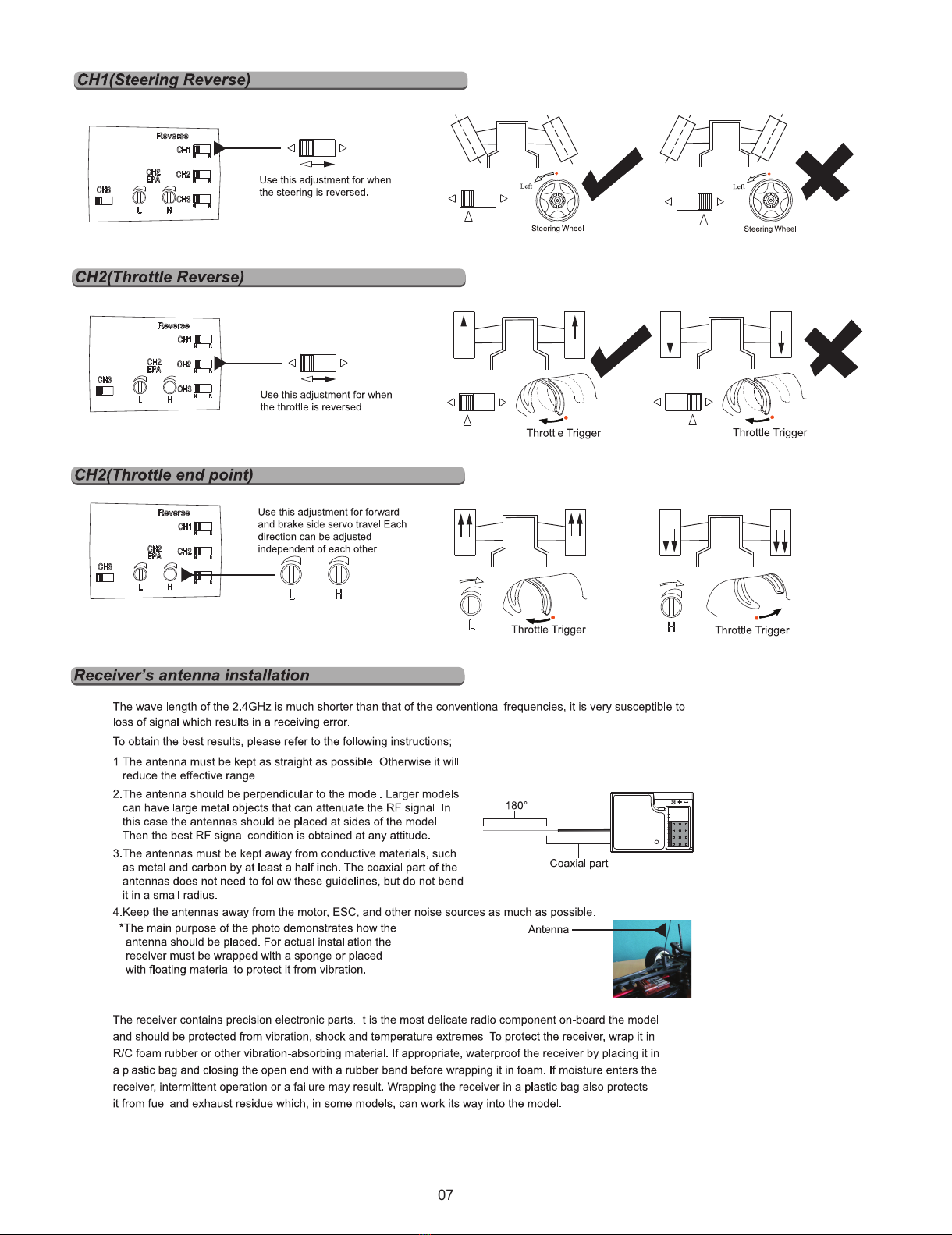

All manuals and user guides at all-guides.com

07
All manuals and user guides at all-guides.com

HTX-243S
28605
28605
28675
23638
23638
28675
23602
23646
23646
Body 28660 (BLACK) 28717 (RED) 28718 (BLUE) 28660CL(CLEAR)
23610
23644
23611
23617
23602
23618
23629
23602 23612 23624
23630
23624
23623
23605
23627 23628
23615
23629
23621
23620
23617
23609
23643
23643
23619 23624
23617
23623
28658
28658
23641
23626
23626
23623
23627
23608
23616
23616
23610
23646
23613
23629
23615
23602
23624
23604
23628
23627
23606
23607
23617
23622
28659
23641
28659
23641
23625
28603
28603
23623
23603
23623
23608
23623
23623
23623
23617
23601
23607
23606
23615
23629 23618
23641
23623S
Explode Diagram of the Short Course (SC/SCL)
28654
23625
08
BL:Brushless RE:Brush Version
ESC RE:MT-201RE BL:21805
(BL:28674)
3X3 (BL Only)
RE:23614 BL:28602
2X8
2X8
Motor RE:28026 BL:21870
Battery RE:28020 BL:LP7415
All manuals and user guides at all-guides.com

23602
23610
28680
28666
28679
28665
23644
23646
23617
23602
23641
23618
23629
23602
23612 23624
23630
23624
23623
23605
23627 23628
23615
23629
23621
28681
23617
23609
23643
23643
23619 23624
23617
23623
23623
23627
23608
23616
23616
23610
23646
23613
23629
23615
23602
23641
23641
23624
23604
23628
23627
23606
23607
23617
23622
23625
23641
28668
28668
28667
28669
Body 28670N (Black) 28671N (Red) 28672N (Blue) 28670NCL(Clear)
28669
28669
28603
28603
23623
23603
23623
23608
23623
23623
23623
28657
23617
23601
23607
23606
23615
23629 23618
23623S
Explode Diagram of the Desert Buggy (DB/DBL)
23638
28655
23638
28655
23622
23625
09
23646
ESC RE:MT-201RE BL:21805
HTX-243S
28605
28605
28675
23638
23638
28675
BL:Brushless RE:Brush Version
(BL:28674)
3X3 (BL Only)
RE:23614 BL:28602
Motor RE:28026 BL:21870
Battery RE:28020 BL:LP7415
All manuals and user guides at all-guides.com

23602
Body 28700R (Orange) 28700G (Green) 28700Y (Yellow) 28700CL (Clear)
23646
23610
23644
23611
23617
23602
28654
28669
23641
23625
23618
23629
23602 23612 23624
23630
23624
23623
23605
23627 23628
23615
23629
23621
23620
23617
23609
23643
23643
23619 23624
23617
23623
23641
23623
23627
23608
23616
28706
28706
23616
2X8
28705
23610
23646
23613
23629
23615
23602
23624
23604
23628
23627
23606
23607
23617
23622
23641
23625
28603
28603
23623
23603
23623
23608
23623
23623
23623
23617
23601
23607
23606
23615
23629 23618
23641
23623S
23646
Explode Diagram of the Hummer (HM/HML)
10
28669
28669
2X8
28668
28668
28667
28705
HTX-243S
28605
28605
28675
23638
23638
28675
BL:Brushless RE:Brush Version
ESC RE:MT-201RE BL:21805
(BL:28674)
3X3 (BL Only)
RE:23614 BL:28602
Motor RE:28026 BL:21870
Battery RE:28020 BL:LP7415
All manuals and user guides at all-guides.com
all-guides.com

23602
23646
Body 28699 (Yellow) 28699CL (Clear)
23610
23644
23611
23617
23602
28654
28663
23641
23625
23618
23629
23602 23612 23624
23630
23624
23623
23605
23627 23628
23615
23629
23621
23620
23617
23609
23643
23643
23619 23624
23617
23623
28662
23641
23626
23623
23627
23608
23616
28697
23616
23610
23646
2X8
28696
23613
23629
23615
23602
23624
23604
23628
23627
23606
23607
23617
23622
28663
23641
2X8
23625
28603
28603
23623
23603
23623
23608
23623
23623
23623
23617
23601
23607
23606
23615
23629 23618
23641
28662
23626
23623S
23646
Explode Diagram of the School Bus (BS/BSL)
11
2X8
28696
HTX-243S
28605
28605
28675
23638
23638
28675
BL:Brushless RE:Brush Version
ESC RE:MT-201RE BL:21805
(BL:28674)
3X3 (BL Only)
RE:23614 BL:28602
Motor RE:28026 BL:21870
Battery RE:28020 BL:LP7415
All manuals and user guides at all-guides.com

Body 28691 (Black) 28692 (Red) 28693 (Blue) 28691CL(Clear)
12
2X8
2X8
2X8
2.5x6
HTX-243S
28605
28605
28675
23638
23638
28675
ESC RE:MT-201RE BL:21805
BL:Brushless RE:Brush Version
(BL:28674)
3X3 (BL Only)
RE:23614 BL:28602
I
Motor RE:28026 BL:21870
23623S
Battery RE:28020 BL:LP7415
(OR/ORL)
All manuals and user guides at all-guides.com

13
23638
28605
28605
28675
28675
23638
BL:Brushless RE:Brush Version
ESC RE:MT-201RE BL:21805
(BL:28674)
3X3 (BL Only)
RE:23614 BL:28602
I
Motor RE:28026 BL:21870
23623S
Battery RE:28020 BL:LP7415
28707
28708
28708
28714
28713
28713
28713
23646
(DT/DTL)
Body 28715R (Red) 28715G (Green) 28715B (Blue) 28715CL (Clear)
Body 28733R (Red) 28733G (Green) 28733Y (Yellow) 28733CL (Clear)
All manuals and user guides at all-guides.com

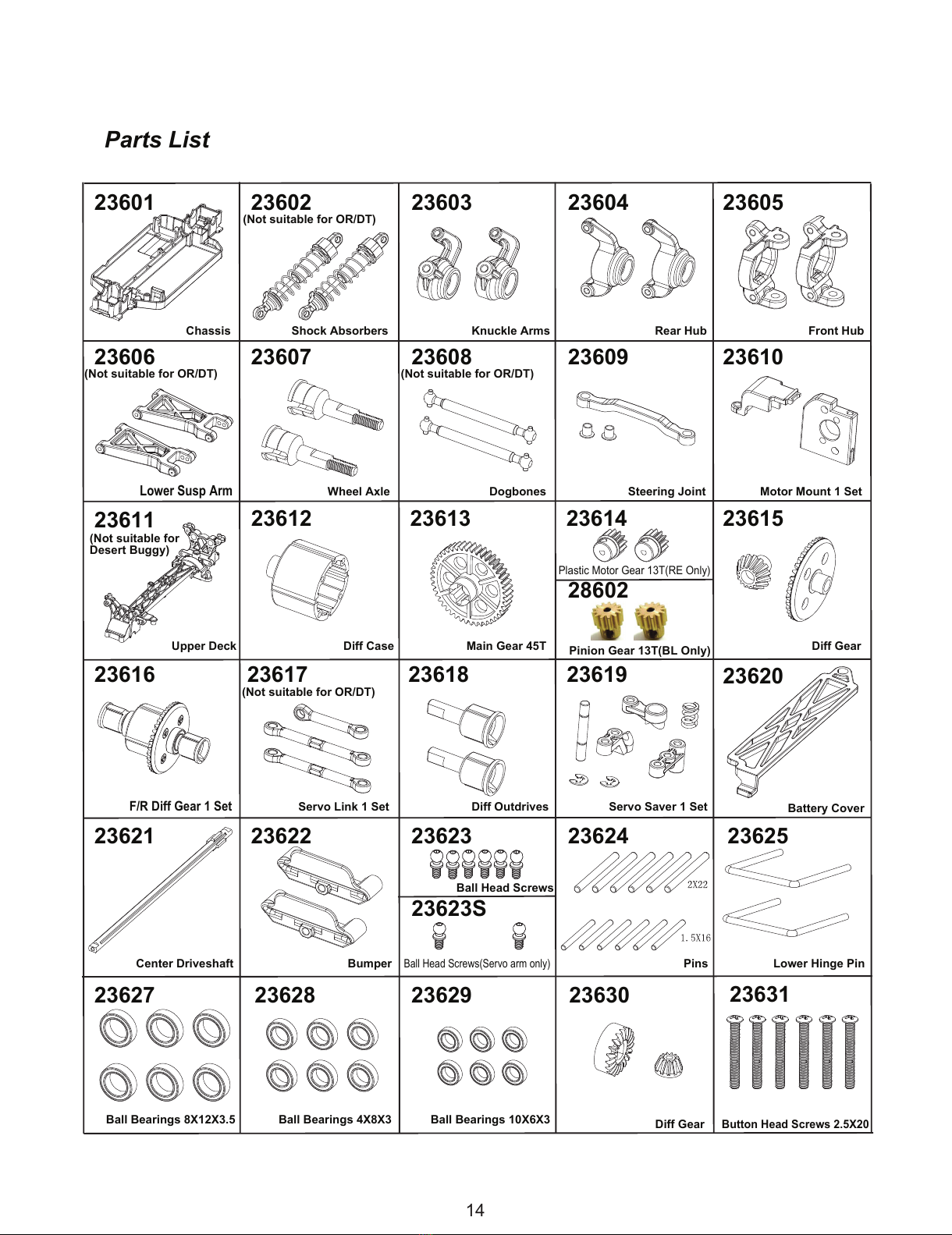

Parts List
23601 23602 23603 23604 23605
23606 23607 23608 23609 23610
Shock Absorbers Knuckle Arms Rear Hub Front Hub
Lower Susp Arm Wheel Axle Dogbones Steering Joint
23615
Diff Gear
23616 23617 23618 23619
F/R Diff Gear 1 Set Servo Link 1 Set Diff Outdrives Servo Saver 1 Set
23620
Battery Cover
Motor Mount 1 Set
23611 23612 23613 23614
Diff Case Main Gear 45T
Plastic Motor Gear 13T(RE Only)
Upper Deck
23621 23622 23623
23623S
23624
Center Driveshaft Ball Head Screws(Servo arm only)
Ball Head Screws
Bumper Pins
23625
Lower Hinge Pin
Chassis
23627 23628 23629
Ball Bearings 8X12X3.5 Ball Bearings 4X8X3 Ball Bearings 10X6X3
23630
Diff Gear
14
23631
Button Head Screws 2.5X20
(Not suitable for OR/DT)
(Not suitable for OR/DT)
(Not suitable for
Desert Buggy)
(Not suitable for OR/DT)
(Not suitable for OR/DT)
28602
Pinion Gear 13T(BL Only)
All manuals and user guides at all-guides.com

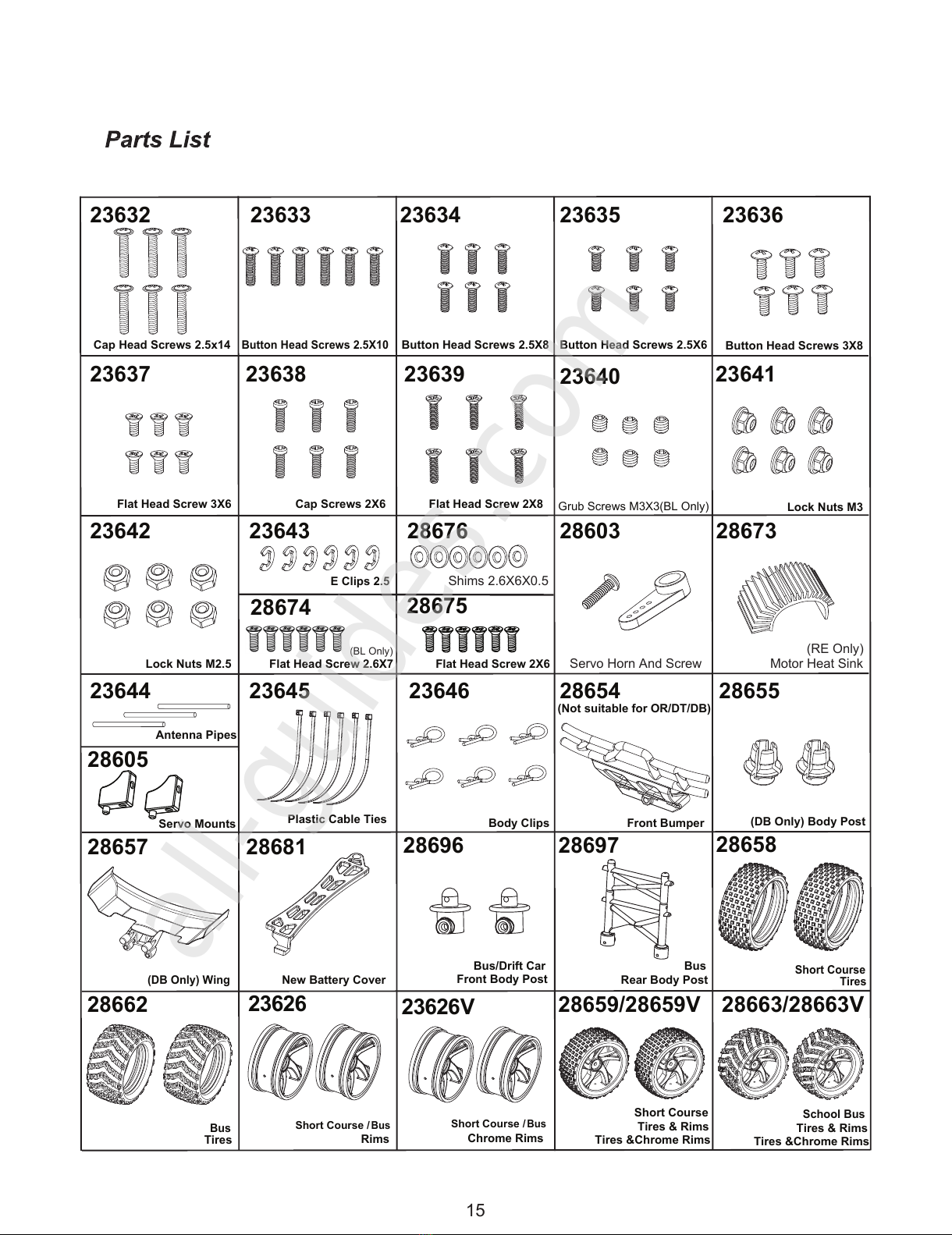

23636
Button Head Screws 3X8
23638 2363923637
Flat Head Screw 3X6 Cap Screws 2X6 Flat Head Screw 2X8
23640
Grub Screws M3X3(BL Only)
23641
Lock Nuts M3
23642
Lock Nuts M2.5
23643
E Clips 2.5
28654
Front Bumper
(Not suitable for OR/DT/DB)
28655
(DB Only) Body Post
28657
(DB Only) Wing
23645
Plastic Cable Ties
23646
Body Clips
23632 23633 23634
Button Head Screws 2.5X10 Button Head Screws 2.5X8
23635
Button Head Screws 2.5X6Cap Head Screws 2.5x14
15
23644
Antenna Pipes
286732860328676
Motor Heat Sink
(RE Only)
Shims 2.6X6X0.5
(BL Only)
Servo Horn And Screw
28681
New Battery Cover
28659/28659V
Short Course
Tires & Rims
Tires &Chrome Rims
Tires & Rims
Tires &Chrome Rims
28658
Tires
Short Course
Tires
Bus
28662
School Bus
28663/28663V
23626
Rims
23626V
Chrome Rims
Short Course / Bus
Short Course / Bus
28605
Servo Mounts
28674
Flat Head Screw 2.6X7
28675
Flat Head Screw 2X6
28696 28697
Front Body Post
Bus/Drift Car
Rear Body Post
Bus
All manuals and user guides at all-guides.com
all-guides.com

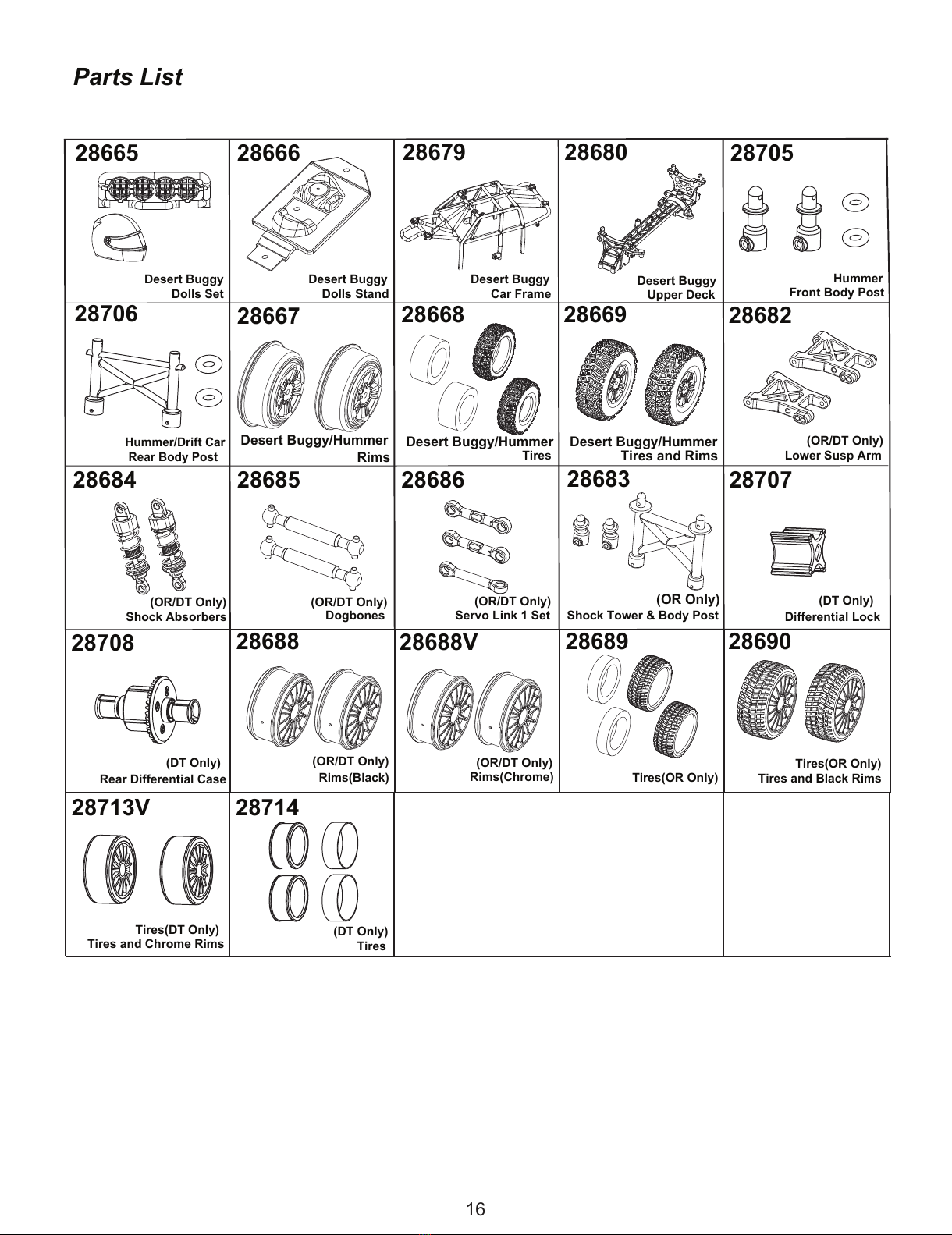

Parts List
16
28665
Desert Buggy
Dolls Set
28679
Desert Buggy
Car Frame
28666
Desert Buggy
Dolls Stand
28680
Desert Buggy
Upper Deck
Hummer
Front Body Post
Hummer/Drift Car
Rear Body Post
28667
Rims
Desert Buggy/Hummer Desert Buggy/Hummer Desert Buggy/Hummer
28668
Tires
28669
Tires and Rims
28705
28706 28682
Lower Susp Arm
(OR/DT Only)
(OR/DT Only)
28684
Shock Absorbers
(OR/DT Only) (OR/DT Only)
28685
Dogbones
28686
Servo Link 1 Set
28683
Shock Tower & Body Post
(OR Only)
28707
Differential Lock
(DT Only)
28708
Rear Differential Case
(DT Only) (OR/DT Only)
28688
Rims(Black)
(OR/DT Only)
28688V
Rims(Chrome)
28689
Tires(OR Only)
28690
Tires and Black Rims
Tires(OR Only)
28713V 28714
Tires
(DT Only)
Tires and Chrome Rims
Tires(DT Only)
All manuals and user guides at all-guides.com

Optional Parts List
M601
F/R Alum Diff Case
M602 M603
Alum Knuckle Arms
M604
Alum Rear Uprights
M605
Alum Front Hub Carrier
M606
Alum Lower Susp Arm Alum Front Bumper
M608
Alum Dogbones
Alum Dogbones
M609
Alum Center Driveshaft
M610
Alum Motor Mount
M611
Alum Servo Saver
M612
Alum Servo Mount
M613
Alum Diff Outdrives
M614
Alum Steering Joint
M615
Carbon Fiber Battery Cover
M616
28601
Pinion Gear 14T
17
(Not suitable for OR/DT)
(Not suitable for OR/DT) (Not suitable for OR/DT)
(Not suitable for OR/DT)
(Not suitable for
DB/OR/HM/DT/MC)
(Not suitable for OR/DT)
Alum Shock Absorbers
Alum Rims
E18MST
E18MST-S1 E18MST-S2
M602
Alum Shock Absorbers 4P
M602
M608
M613
Alum Shock Absorbers 4P
Alum Dogbones 4P
Alum Diff Outdrives 4P
M617
M613
M619
Alum Shock Absorbers 4P
Alum Dogbones 4P M603
Alum Knuckle Arms 2P
M604
Alum Rear Uprights 2P
M605
Alum Front Hub Carrier (L/R) 2P
M606
Alum Lower Susp Arm 4P
M618
Alum Lower Susp Arm
M617
Alum Shock Absorbers
M619
Alum Dogbones
(OR/DT Only)(OR/DT Only)
(OR/DT Only)
(OR/DT Only)
Diff Gear
Alum Diff Outdrives 4P
Alum
(Parts of 23615)
28600
M607
All manuals and user guides at all-guides.com

Electronics List
Li-Po Battery Charger
Li-Po Battery Charger Li-Po Battery Charger
A3AU
(AU Standard) (EU Standard)
A3EU
(UK Standard)
A3UK
(US Standard)
A3US
03027
Charger/battery Wire
Connector
7.2V Ni-MH Battery
(800mAH)
28020
High Power RC 370 Motor
28026
NI-MH Battery Charger
(UK Standard)
E020 E021 E022
(EU Standard) (AU Standard)(US Standard)
NI-MH Battery Charger NI-MH Battery Charger NI-MH Battery Charger
E023
HTX-243S
Mini Servo
21805
Brushless ESC
Brushless Version
21870
Brushless Motor
LP7415
7.4V Li-Po Battery
MT-301TXMT-301
2.4G Radio Set 2.4G Transmitter
MT-301RX
2.4G Receiver
MT-202 MT-202T MT-202RE
Mini 2.4Ghz Radio Set Mini 2.4Ghz Radio Mini 2in1 ESC/Receiver
HTX-243S
Mini Servo
18
MT-201RE
Mini 2in1 ESC/Receiver
MT-201T
2.4Ghz Radio
MT-201
2.4Ghz Radio Set
All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com
