Himoto VIPER X2S User manual

VIPER X2SVIPER X2S
Monster Truck
BUGGY
mega p mtr-2smega p mtr-2s
mega p mtr-3
mega p mtr-3
mega p mxb-2s
mega p mxb-2s
mega p mxb-3
mega p mxb-3
TRUGGY

1/10 4WD NITRO-POWERED OFF-ROAD TRUGGY
HI903T 2-Speed Transmissions
HI933T Three Differential Case
MEGA P MTR-2S
MEGA P MTR-3
1/10 4WD NITRO-POWERED OFF-ROAD MONSTER TRUCK
VIPER X2S
HI908T 2-Speed Transmissions
1/10 4WD NITRO-POWERED OFF-ROAD BUGGY
MEGA P MXB-2S
MEGA P MXB-3
HI905T 2-Speed Transmissions
HI935T Three Differential Case
01
Features
- 4WD Drive System.
- 18CXP powerful SH engine with two valve needles and slide carb.
- Waterproof dustproof sealed gearbox.
- Sealed superduty plastic driveshaft.
- Fast easy assembly and disassembly receiver and battery cover.
- Quality differential with four bevel gear.
- Blue anodized 6061T chassis.
- Sealed gearbox waterproof durable and stable,
- Adjustable threaded long Oil-filled shock absorber.
- Fuel tank 75CC.
- Precise sealed ball bearing for the whole model.
Instruction Manual
Length Width Height Wheelbase Tires size EngineModel no
453mm 320mm 183mm 305mm 100*51mm 18cxp25mm
450mm 320mm 210mm 305mm 100*51mm 18cxp25mm
HI908T
HI905T
HI935T
410mm 320mm 165mm 305mm 100*51mm 18cxp25mm
HI903T
HI933T
Ground
clearance

Warning!
Do not use a power screw driver to install screws into nylon or plastic materials. The fast
locking may heat up the screws being installed that may break the molded parts or strip
the threads during installion.
IMPORTANT!!!
Check all the screw are tight before playing the car!
Use thread lock on all screws that work loose.
02

03

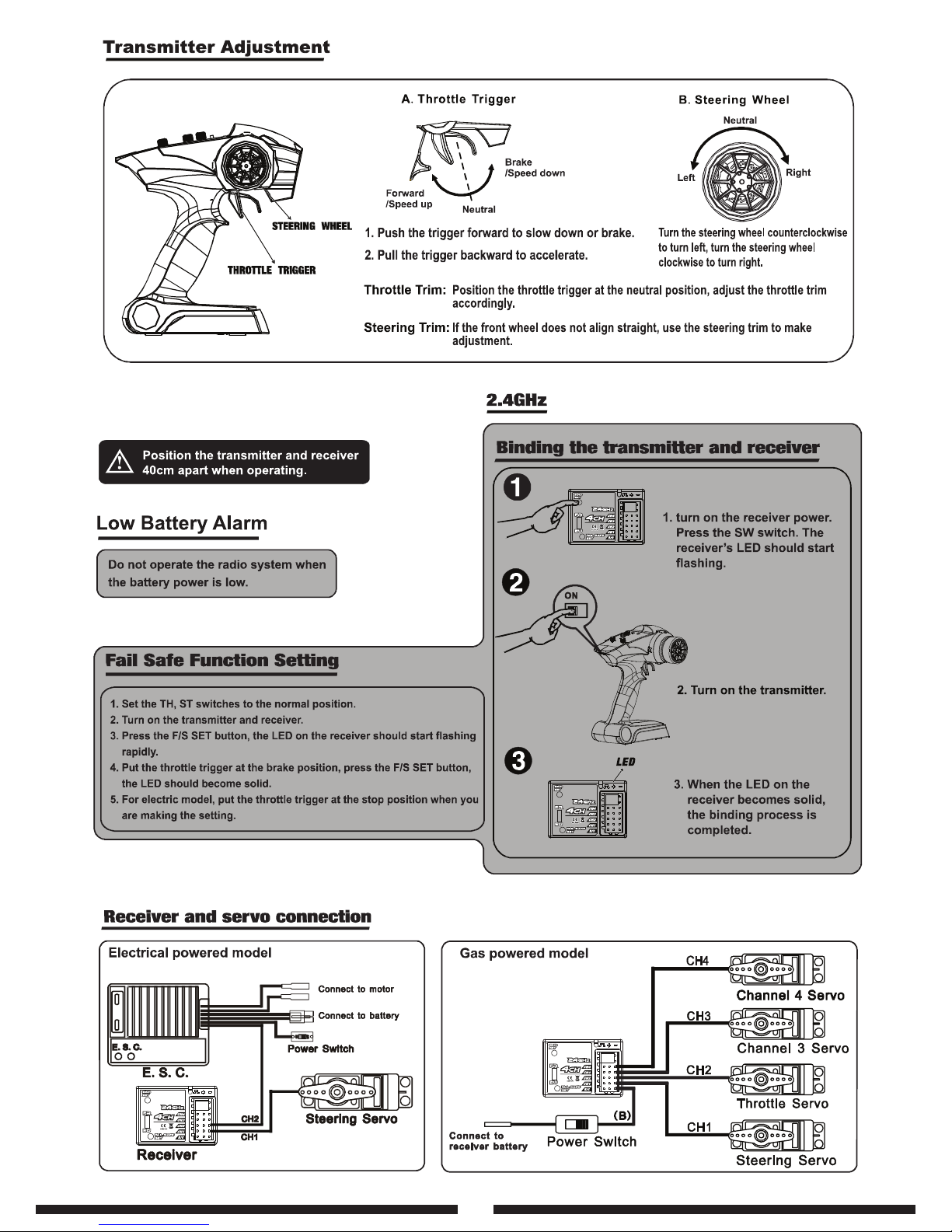

(Not Included)
HTX-242
HTX-RX

04

05

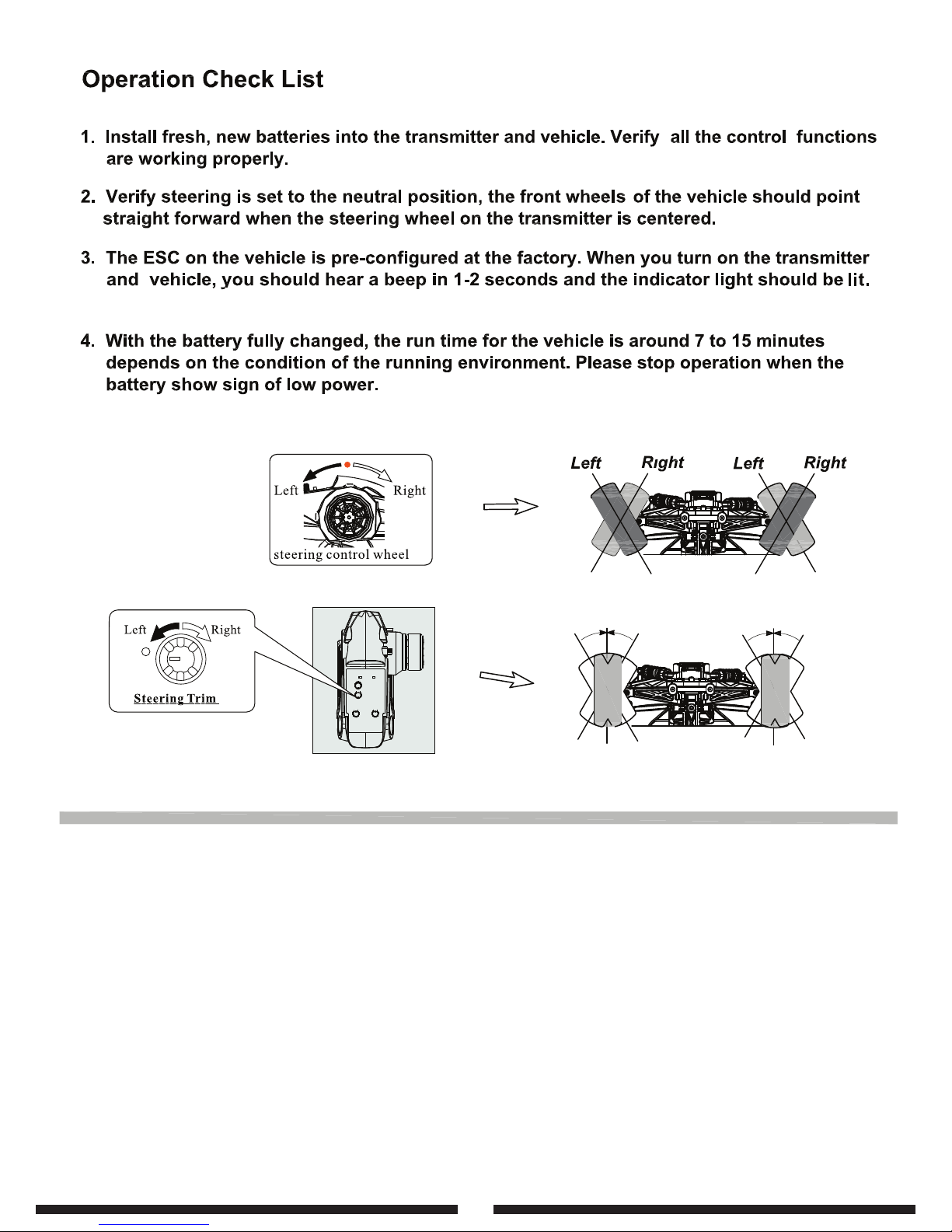

RC Operating Procedures
1. Load the battery on the transmitter.
2. Install the charged battery on the car.
3. Turn on the power switch before turning on the receiver.
4. Please raise the tires off the ground and check if the control is responding.
5. Hold the throttle trigger to let the car run. If it doesn’t work, please adjust the throttle
servo and trim.
6. Please replace the battery when the speed drops down.
7. When you finish the racing, please switch off the receiver first, and then the transmitter.
8. Please make sure the battery is disconnected and remove it after racing.

High-speed Needle
The “high-speed” needle is sticking up from the carburetor, This controls
the fuel air mixture of the carburetor. The needle is pre-set for break-in
from the factory at 2-1/2 turns out from fully closed,. Once the engine is
broken-in, the high speed needle would typically run from 2 to 2-1/2 turns
out from closed, depending on the weather, humidity and altitude above
sea level.
To richen the mixture turn the needle counterclockwise, To learn it, turn the
needle clockwise.
The Low- Speed Needle (For 18# engine)
The low-speed needle is the screw in the carb body opposite the throttle arm. It controls the fuel to
air mixture at low throttle settings, There is a simple way of adjusting the low-speed needle correctly
called the ‘pinch test’. With the engine at idle , pinch the fuel line and listen to how the engine speeds
up or slow down. If the engine increases its speed for about 2 or 3 seconds and then loses speed,
The needles is set correctly. If the engine loses RPM quickly, it is set too lean and the lowspeed
needle needs to be opened (counterclockwise) to richen the mixture. Pinch again to check the
mixture. If the engine takes longer than 4 seconds to slow down, lean (clockwise) the low-speed
needle and then pinch again to check the mixture.
Important
To insure long life and good performance from your engine, you MUST break-in the engine. The
break-in period is critical for long life of the internal parts of the engine. This should be done over
the first 5 tanks of fuel.
Starting the Engine
IMPORTANT! Your radio system must ALWAYS be turned on and the transmitter antenna fully
extended when running the engine.
1. Fill th fuel tank.
2. Prepare to start the engine while it is cool, place your finger over the tuned pipe’s exhaust hole
and pull the recoil gently several times. Do not over-prime! Stop when you see fuel in the fuel
line at the crab.
3. Install a “C” alkaline into the glow starter and attach the starter to the glow plug.
4. With the throttle at idle, start the engine by pulling the recoil using short, quick pulls. Do NOT pull
the recoil starter’s string to the end. You only need 10 to 12 inches of pull to start the engine with
the throttle at idle.
Sometimes it is helpful to start the engine at around half throttle. When the engine Starts, immediately
return the throttle to idle. If this is not done the engine can overheat and cause engine damage.
ldle Stop Screw
The ‘idle stop’ screw is located on the backside of the carburetor. This
increases or decreases the idle speed without changing the fuel mixture.
The barrel should be approximately 1mm from fully closed.
Engine Tuning Guide
IRunning The Engine
06

STOPPING THE ENGINE
Pinch the fuel line that runs to the carburetor. Pinching this line will restrict fuel flow and the
engine will quit within a few seconds. Never place your finger over the exhaust to stop the engine.
This could result in serious burns on your finger. It also causes fuel to back up in the engine,
making it harder to start the next time you run your truck,.
IMPORTANT! FIXING A FLOODED ENGINE
If the engine is difficult to turn over with the recoil starter, especially if it is brand new, loosen
the glow plug a half turn before starting the engine. This allows some compression to escape ,
but the engine will still start. Make sure you tighten the glow plug after the engine has started.
If the recoil starter is still difficult to pull, the engine is flooded-there is too much fuel inside the engine.
Remove the glow plug, then turn the buggy upside down and pull the recoil 5 or 6 times. This will
clear the engine of fuel, and you will notice the recoil pulls easier. Place the glow plug and repeat
the starting procedure.
BREAK IN PROCEDURE
SOMETHINGS TO REMEMBER DURING BREAK-IN
1. Run with the body off. This will keep the engine cooler.
2. Keep the air cleaner on at ALL time.
3. Run on a smooth, hard surface. An empty parking lot is Perfect.
4. Use the same fuel that you will use for normal running.
5. Resist the urge to accelerate and decelerate quickly.
6. Break-in puts stress on the glow plug or two on hand.
7. DO NOT overheat the engine. You can check the head temperature
by using one of the temperature gauges.
TANK 1
Your first tank of fuel should be running the truck at a very rich needle valve setting. This allows the
fuelto carry as much oil as possible into the engine to properly lubricate the internal parts during
the break-in.
1. Open the high speed needle valve 4-1/2 turns from fully closed (counterclockwise).
This is factory set already . But check it to make sure. When closing the high-speed needle,
close until you feel some resistance. DO NOT Overtighten it will damage the engine.
2. Fill the fuel tank and start the engine.
3. Run the buggy on smooth surface with the body off.
4. Run back and forth at medium speeds accelerating and decelerating the car.
5. Run the buggy until the tank is almost out of the fuel. Do not allow the tank to run out of fuel
during break-in. This leans out the engine and can cause overheating.
6. Stop the engine and allow it too cool. This noumally takes around 10-15 minutes.
NOTE: if your engine does not stay running consistently, increase the idle speed by turning the idle
stop screw clockwise.
TANK 2
Lean the high-speed needle 1/2 from ‘tank 1’ Run the car for the complete tank and then let it cool.
07

TANK 3
Lean the high-speed needle another 1/52 turn from ‘tank 2’setting . Run the car for the complete tank
and then let it cool.
TANK 4
Lean the high-speed needle another 1/2 turn from “tank3” setting. Run the car for the complete tank
and then let it cool. You should notice the engine running much better at this point.
TANK 5
Lean the high-speed needle another 1/2 turn from “tank 4” setting. Run the car for the complete tank
and then let it cool. The engine is now ready for tuning.
Important! At this point, the engine is likely to run at a faster idle than needed. (This is typical after
break-in) Adjust the idle stop screw to lower the idle speed so that the wheels do not stop, or just
barely rotate when you lift the car off the ground.
TUNING TIPS
After break-in, run the truck where you plan to do most of your driving (grass, street, track,etc). Tune
the high speed needle so the engine makes good power without overheating. Using a temperature
gauge to tune the engine so that it will consistently stay under 270F (132C). Keep in mind, RC
engines usually take a minute or two to warm up. It is common not to reach full power right away.
Never tune a cold engine.
ENGINE CARE
Never store your car with fuel in the tank. We recommend that after the final run of the day, empty
the fuel tank and then run the engine at idle until all the fuel is out of the fuel lines and engine.
Remove air filter and glow plug, then place two drops of the After Run Engine Oil in the carburetor
and two into the cylinder to help preventing corrosion . Pull the recoil a few times to circulate the oil.
10 WAYS TO ENSURE LONG LIFE FROM YOUR ENGINE
1. Keep your engine and air filter clean. Dirt will act insulation on an engine, it will not be able to shed
heat as easily. Clean and re-oil the element often.
2. Do not over-lean your engine.
3. Do not run your engine with little or no load. Don’t throttle up the engine to full throttle when the
wheels are not in contact with the ground.
4. Do not overheat the engine.
5. Do not use a fuel with a low oil content. Make sure uses a model car fuel from a reputable manufacturer,
such as O’Donnell Fuels.
6. Avoid using old fuels in the engine.
7. Do not use a fuel with a nitromethane (often called niteo) content over 20%.
8. Do not scratch the piston or cylinder sleeve. Avoid jamming something into the exhaust port when
removing or re-installing the clutch or flywheel. Use a special tool called the Ultimate Flywheel
Wrench to keep the crankshaft from moving.
9. Do not use silicone sealer on the engine joints. Silicone sealer contains acetic acid, which is
corrosive if it get inside your engine.
10. Do not allow any water to get inside the engine. This sounds easy, but temperature changes can
cause condensation inside the engine. This is good reason to use an after-running oil. Store
your engine inside the house, not in a garage or shed where the temperature extrenes.
08

09
MPO-01
Wheel Hex Set Stainless Steel
C Hub, C Hub Pin,
Stainless Steel Knuckle Arm Set
Rear Hub Set Stainless Steel Shock Stay Mount
MPO-02 MPO-03 MPO-04 MPO-05
Steel Brake Disk Stainless Steel
Special Brake Pads
Stainless Steel Brake Post
MPO-08 MPO-09 MPO-10 MPO-11
Steering Rod Stainless Steel
MPO-06
MPO-07
Front Suspension Mount
Rear Front Suspension
Engine Mount 1P Slipper System Hard Anodize Aluminum Shock 2P
MPO-12 MPO-13 MPO-14 MPO-16
Steel Spur Gear 39T
B7026-008
Back Plate 1P
OPTION PARTS

COMMOM PARTS
10
903-003
Shock Absorber Unit
(Plastic) Brace 1P Body Clip 6P Upper Susp. Arm Set 2P
Suspension Arm Mount
Block 2P
903-005 903-007 903-008 903-010
903-011
Upper Susp. Arm
Mount-Fr/Rr 2P Rim Hub W/Pin 2*10 4P Axle W/Pin 2P Ball Bearing 6*12*4 2P Fr/Rr Steering Arm 2P
903-012 903-013 903-014 903-015
903-016
Ball Bearing 10*15*4 2P Fr/Rr C-Carrier W/Screw Fr.Lower Susp.Arm (L/R) 2P
Transverse Driver Shaft
Set 2P Diff. Gearbox Unit 1P
903-017 903-018 903-019 903-020
903-021
AntiRoll Bar Set
M4 SelfLock Nut
W/Washer O-Washer 8P
Front Suspension Arm Pin
(Short) 4P
Suspension Arm Pin
(Long) 4P
903-022 903-023 903-024 903-025
903-026
Fr. Chassis 1P
Lower Susp. Mount
Block-Fr/Rr 2P Anti-Roll Bar Fixation Set 1P Steering Linkage Set 2P Servo Saver Unit 1P
903-028 903-029 903-030 903-031

11
903-032
Upper Deck-Fr 1P Battery Case 1P Switch 1P
Receiver/Battery Case
Cover Handle 1P
903-033 903-034 903-035 903-036
903-037
Steering Servo Horn And
Linkage
Steering Servo
Mount-A/B 2P Upper Deck-Center 1P Upper Deck Mount 2P Chassis 1P
903-038 903-039 903-040 903-042
903-043
Side Guard Plate (L/R)
Throttle Servo
Mount-A/B 2P
903-044
Engine Mount 2P
903-049
Engine Flywheel W/Pin 1P
903-050
Fuel Pipe 1P
COMMOM PARTS
Rear Hub 2P
903-058
Fuel Tank Unit 75C.C 1P
903-057
Exhaust Pipe Coupler 1P
903-055
Rr.Lower Susp.Arm (L/R) 2P
903-059 903-060 903-061
Rear Suspension Arm
Pin-Short 4P
903-053
Clutch Bell 18T 1P
Flat Cross Screw
(TPF2.6*10) 12P
903-065
Engine Crankshaft W/E-Clip
903-051 903-052
Clutch Shoe W/Spring Exhaust Manifold 1P
903-054
Fuel Pipe 1P
903T/905T

12
Flat Cross Screw
(ISO3*10) 12P
903-070
B-Head Cross Screw
(BT3*16) 12P
903-075
Cap Head Hexagon Screw
(HM3*25) 6P
903-080
Cap Head Hexagon Screw
(HM3*10) 6P Diff. Outdrive A 1P Diff. Outdrive B 1P
903-081 903-082 903-083
Exhaust Fixation Set
903-085
COMMOM PARTS
B-Head Cross Screw
(BT2.6*6) 12P
903-071 903-072 903-073
B-Head Cross Screw
(BT3*14) 12P
903-074
B-Head Cross Screw
(BT3*8) 12P
B-Head Cross Screw
(BT3*12) 12P
B-Head Cross Screw
(BT4*8) 12P
903-078 903-079
B-Head Cross Screw
(BM3*10) 12P
903-077903-076
B-Head Cross Screw
(BT3*20) 12P
Ball Bearing 5*10*4 2P
903-086
Ball Bearing 12*18*4 2P E-Clip 4*0.6 12P
903-087 903-088 903-089
Pin 2*9.5 12P Pin 2*12.5 12P
903-090
Flat Cross Screw
(TPF3*16) 12P
903-069903-068
Flat Cross Screw
(TPF3*14) 12P
Flat Cross Screw
(TPF3*8) 12P
903-066
Flat Cross Screw
(TPF3*10) 12P
903-067
903-091
Washer A (5.2*10*0.2) 12P
B-Head Cross Screw
(BT2.6*10) 12P

13
COMMOM PARTS
Set Screw M4*8 6P
903-096
Diff. Gearbox
Diff. Gearbox Bulkhead-
Upper/Lower 1P
903-097 903-098 903-104
Diff. Unit 1P
Driving/Driven Gear,
Diff.Gear/Bevel Gears
903-105
Screw Pin M3*9.5 12P
903-106
Antenna Mount 3P
903-107 903-109
Outdrive Cups (Longer) Outdrive Cups (Shorter)
903-110
Motor Washer 4P Screw,
4P Washer
903-112
Set Screw M4*4 12P
903-095903-094
Double Way Ball End (7*8) 6P Washer B (4.2*8*0.2) 12P
903-092 903-093
Nylon SelfLock Nut
(M4*4) 6P
Nylon Nut M3 5P
901-066
Screw BT3*10 12P
902-051
Antenna Pipe W/Cap 3P
901-067
902-031
Air Filter W/Insert 1PTire Unit (Chromed) 2P
MPO-015
Aluminum Exhaust Pipe
SH18 Slide Carburetor
Taiwan Engine
02060SH18B
SH18 Pullstart
TS1A-3
SERVO3KG
3Kg Servo Unit
Clutch Bell (15T) 1P
908T /933T /935T
933-011
Two Button 2.4 Ghz Radio Set 4channels 2.4G Receiver 1P
HTX-242 HTX-RX

14
903T 905T 908T 2speed
933T 935T 3 DIFF
933-001
933-002
903-027
Center Drive ShaftFr. 1P
Throttle Servo Horn And
Linkage Set
Center Drive ShaftRr 1P Center Gearbox Unit 1P Throttle Linkage Set 1P
903-045 903-046 903-047 903-048
903-056
Upper DeckRear 1P
Gearbox Bulkhead-Fr./Rr.
(Same As Rc-009F) 1P
Spur Gear 39T/Spring/Nylon
SelfLocknut
Pinion Gear-18T/19T/Pin Brake Set
903-099 903-100 903-101 903-102
903-103
Gear-40T/37T 1P
903-114
933-006
Center Diff. Box 1P
933-007 933-008 933-009 933-010
Bulkhead Center Diff. 2P Cover Center Diff. 1P Front Brake Set Rear Brake Set
Center Drive Shaft-Fr. 1P
Center Drive Shaft-Rr. 1P
933-003 933-004 933-005
Upper Deck-Rr 1P Throttle Linkage Set Center Diff. Unit 1P
933-012
Spur Gear 39T 1P
Rear Brake Set

15
monster truck only
908-007
Rear Dumper Bottom
Bracket 1P
1:10 Truck Body 1P
908-002
Monster Truck Body 1P
10351L
Monster Truck Body 1P
10341L
Monster Truck Body 1P
10352L
905-001
Rear Chassis 1P
Rollcage Beam-A/B/C
905-002
Tail Wing Mount
905-003
Rollcage Post Set
905-004
Rollcage Set
905-005
905-006
Tail Wing 1P
Fr/Rr Body Mount 2P
801-008
Exhaust Fixation Set
908-003
Front Dumper Upper
Bracket 1P
Rear Dumper Upper
Bracket 1P
Front Dumper Bottom
Bracket 1P
908-004 908-005 908-006
truggy
only
buggy
only
buggy/
truggy
Buggy Body 1P
10514
Buggy Body 1P
10515
Truggy Body 1P
10712
Truggy Body 1P
10713
Rear Bumper 1P
903-062 903-002
Tire Unit (Chromed) 2P
Fr. Bumper 1P
903-009
903-006
Fr/Rr Body Mount 2P
Body Front Mount/Screw
905-008

908t SPARE PARTS LIST
16
801-008
901-066
Fr/Rr Body Mount ( for 908T only)
901-067
Nylon Nut M3 5P
902-031
Antenna Pipe W/Cap 4P
Air Filter W/Insert 1P
902-051 Screw BT3*10 12P
903-003 Shock Absorber Unit (Plasc) 2P
903-005 Brace 1P
903-007 Body Clip 6P
903-008 Upper Susp. Arm Set 2P
903-010 Suspension Arm Mount Block 2P
903-011 Upper Susp. Arm Mount-Fr/Rr 2P
903-012 Rim Hub W/Pin 2*10 4P
903-013 Axle W/Pin 2P
903-014 Ball Bearing 6*12*4 2P
903-015 Fr/Rr Steering Arm 2P
903-016 Ball Bearing 10*15*4 2P
903-017 Fr/Rr C-Carrier W/Screw
903-018 Fr.Lower Susp.Arm (L/R) 2P
903-019 Transverse Driver ShaSet 2P
903-020 Diff. Gearbox Unit 1P
903-021 AnRoll Bar Set
903-022 M4 SelfLock Nut W/Washer
903-023 O-Washer 8P
903-024 Front Suspension Arm Pin (Short) 4P
903-025 Suspension Arm Pin (Long) 4P
903-026 Fr. Chassis 1P
903-027 Center Drive ShaFr. 1P
903-028 Lower Susp. Mount Block-Fr/Rr 2P
903-029 An-Roll Bar Fixaon Set 1P
903-030 Steering Linkage Set 2P
903-031 Servo Saver Unit 1P
903-032 Upper Deck-Fr 1P
903-033 Baery Case 1P
903-034 Switch 1P
903-035 Receiver/Baery Case Cover
903-036 Handle 1P
903-037 Steering Servo Horn And Linkage
903-038 Steering Servo Mount-A/B 2P
903-039 Upper Deck-Center 1P
903-040 Upper Deck Mount 2P
903-042 Chassis 1P
903-043 Side Guard Plate (L/R)
903-044 Throle Servo Mount-A/B 2P
903-045 Throle Servo Horn And Linkage Set
903-046 Center Drive ShaRr 1P
903-047 Center Gearbox Unit 1P
903-048 Throle Linkage Set 1P
903-049 Engine Mount
903-050 Engine Flywheel W/Pin 1P
903-051 Engine CrankshaW/E-Clip
903-052 Clutch Shoe W/Spring
903-054 Exhaust Manifold 1P
903-056 Upper DeckRear 1P
903-057 Fuel Tank Unit 75C.C 1P
903-058 Rear Hub 2P
903-059 Rr.Lower Susp.Arm (L/R) 2P
903-060 Fuel Pipe 1P
903-061 Rear Suspension Arm Pin-Short 4P
903-065 Flat Cross Screw (TPF2.6*10) 12P
903-066 Flat Cross Screw (TPF3*8) 12P
903-067 Flat Cross Screw (TPF3*10) 12P
903-068 Flat Cross Screw (TPF3*14) 12P
903-069 Flat Cross Screw (TPF3*16) 12P
903-070 Flat Cross Screw (ISO3*10) 12P
903-071 B-Head Cross Screw (BT2.6*6) 12P
903-072 B-Head Cross Screw (BT3*8) 12P
903-073 B-Head Cross Screw (BT3*12) 12P
903-074 B-Head Cross Screw (BT3*14) 12P
903-075 B-Head Cross Screw (BT3*16) 12P
903-076 B-Head Cross Screw (BT3*20) 12P
903-078 B-Head Cross Screw (BT4*8) 12P
903-079 B-Head Cross Screw (BM3*10) 12P
903-080 Cap Head Hexagon Screw (HM3*25) 6P
903-081 Cap Head Hexagon Screw (HM3*10) 6P
903-082 Diff. Outdrive A 1P
903-083 Diff. Outdrive B 1P
903-085 Exhaust Fixaon Set
903-086 Ball Bearing 5*10*4 2P
903-087 Ball Bearing 12*18*4 2P
903-088 E-Clip 4*0.6 12P
903-089 Pin 2*9.5 12P
903-090 Pin 2*12.5 12P
903-091 Washer A (5.2*10*0.2) 12P
903-092 Washer B (4.2*8*0.2) 12P
903-093 Nylon SelfLock Nut (M4*4) 6P
903-094 Double Way Ball End (7*8) 6P
903-095 Set Screw M4*4 12P
903-096 Set Screw M4*8 6P
903-097 Diff. Gearbox
903-098 Diff. Gearbox Bulkhead-Upper/Lower 1P
903-099 Gearbox Bulkhead-Fr./Rr. (Same As Rc-009F) 1P
903-100 Spur Gear 39T/Spring/Nylon SelfLocknut
903-101 Pinion Gear-18T/19T/Pin
903-102 Brake Set
903-103 Gear-40T/37T 1P
903-104 Diff. Unit 1P
903-105 Driving/Driven Gear, Diff.Gear/Bevel Gears
903-106 Screw Pin M3*9.5 12P
903-107 Antenna Mount 3P
903-109 Outdrive Cups (Longer)
903-110 Outdrive Cups (Shorter)
903-112 Motor Washer 4P Screw, 4P Washer
903-114 Spur Gear 39T 1P
908-002 Tire Unit (Chromed) 2P
908-003 Exhaust Fixaon Set
908-004 Front Dumper Upper Bracket 1P
908-005 Rear Dumper Upper Bracket 1P
908-006 Front Dumper Boom Bracket 1P
908-007 Rear Dumper Boom Bracket 1P
933-011 Clutch Bell (15T) 1P
MPO-15 Aluminum Exhaust Pipe

903t, 933T SPARE PARTS LIST
17
901-066 Nylon Nut M3 5P
901-067 Antenna Pipe W/Cap 4P
902-031 Air Filter W/Insert 1P
902-051 Screw BT3*10 12P
903-002 Tire Unit (Chromed) 2P
903-003 Shock Absorber Unit (Plasc) 2P
903-005 Brace 1P
903-006 Fr/Rr Body Mount 2P
903-007 Body Clip 6P
903-008 Upper Susp. Arm Set 2P
903-009 Fr. Bumper 1P
903-010 Suspension Arm Mount Block 2P
903-011 Upper Susp. Arm Mount-Fr/Rr 2P
903-012 Rim Hub W/Pin 2*10 4P
903-013 Axle W/Pin 2P
903-014 Ball Bearing 6*12*4 2P
903-015 Fr/Rr Steering Arm 2P
903-016 Ball Bearing 10*15*4 2P
903-017 Fr/Rr C-Carrier W/Screw
903-018 Fr.Lower Susp.Arm (L/R) 2P
903-019 Transverse Driver ShaSet 2P
903-020 Diff. Gearbox Unit 1P
903-021 AnRoll Bar Set
903-022 M4 SelfLock Nut W/Washer
903-023 O-Washer 8P
903-024 Front Suspension Arm Pin (Short) 4P
903-025 Suspension Arm Pin (Long) 4P
903-026 Fr. Chassis 1P
903-027 Center Drive ShaFr. 1P (For 903T Only)
903-028 Lower Susp. Mount Block-Fr/Rr 2P
903-029 An-Roll Bar Fixaon Set 1P
903-030 Steering Linkage Set 2P
903-031 Servo Saver Unit 1P
903-032 Upper Deck-Fr 1P
903-033 Baery Case 1P
903-034 Switch 1P
903-035 Receiver/Baery Case Cover
903-036 Handle 1P
903-037 Steering Servo Horn And Linkage
903-038 Steering Servo Mount-A/B 2P
903-039 Upper Deck-Center 1P
903-040 Upper Deck Mount 2P
903-042 Chassis 1P
903-043 Side Guard Plate (L/R)
903-044 Throle Servo Mount-A/B 2P
903-045
Throle Servo Horn And Linkage Set (For 903T Only)
903-046 Center Drive ShaRr 1P (For 903T Only)
903-047 Center Gearbox Unit 1P (For 903T Only)
903-048 Throle Linkage Set 1P (For 903T Only)
903-049 Engine Mount
903-050 Engine Flywheel W/Pin 1P
903-051 Engine CrankshaW/E-Clip
903-052 Clutch Shoe W/Spring
903-053 Clutch Bell 18T 1P (For 903T Only)
903-054 Exhaust Manifold 1P
903-055 Exhaust Pipe Coupler 1P
903-056 Upper DeckRear 1P (For 903T Only)
903-057 Fuel Tank Unit 75C.C 1P
903-058 Rear Hub 2P
903-059 Rr.Lower Susp.Arm (L/R) 2P
903-060 Fuel Pipe 1P
903-061 Rear Suspension Arm Pin-Short 4P
903-062 Rear Bumper 1P
903-065 Flat Cross Screw (TPF2.6*10) 12P
903-066 Flat Cross Screw (TPF3*8) 12P
903-067 Flat Cross Screw (TPF3*10) 12P
903-068 Flat Cross Screw (TPF3*14) 12P
903-069 Flat Cross Screw (TPF3*16) 12P
903-070 Flat Cross Screw (ISO3*10) 12P
903-071 B-Head Cross Screw (BT2.6*6) 12P
903-072 B-Head Cross Screw (BT3*8) 12P
903-073 B-Head Cross Screw (BT3*12) 12P
903-074 B-Head Cross Screw (BT3*14) 12P
903-075 B-Head Cross Screw (BT3*16) 12P
903-076 B-Head Cross Screw (BT3*20) 12P
903-077 B-Head Cross Screw (BT2.6*10) 12P
903-078 B-Head Cross Screw (BT4*8) 12P
903-079 B-Head Cross Screw (BM3*10) 12P
903-080 Cap Head Hexagon Screw (HM3*25) 6P
903-081 Cap Head Hexagon Screw (HM3*10) 6P
903-082 Diff. Outdrive A 1P
903-083 Diff. Outdrive B 1P
903-085 Exhaust Fixaon Set
903-086 Ball Bearing 5*10*4 2P
903-087 Ball Bearing 12*18*4 2P
903-088 E-Clip 4*0.6 12P
903-089 Pin 2*9.5 12P
903-090 Pin 2*12.5 12P
903-091 Washer A (5.2*10*0.2) 12P
903-092 Washer B (4.2*8*0.2) 12P
903-093 Nylon SelfLock Nut (M4*4) 6P
903-094 Double Way Ball End (7*8) 6P
903-095 Set Screw M4*4 12P
903-096 Set Screw M4*8 6P
903-097 Diff. Gearbox
903-098 Diff. Gearbox Bulkhead-Upper/Lower 1P
903-099
Gearbox Bulkhead-Fr./Rr. (Same As Rc-009F) 1P (For 903T Only)
903-100
Spur Gear 39T/Spring/Nylon SelfLocknut (For 903T Only)
903-101 Pinion Gear-18T/19T/Pin (For 903T Only)
903-102 Brake Set (For 903T Only)
903-103 Gear-40T/37T 1P (For 903T Only)
903-104 Diff. Unit 1P
903-105 Driving/Driven Gear, Diff.Gear/Bevel Gears
903-106 Screw Pin M3*9.5 12P
903-107 Antenna Mount 3P
903-109 Outdrive Cups (Longer)
903-110 Outdrive Cups (Shorter)
903-112 Motor Washer 4P Screw, 4P Washer
903-114 Spur Gear 39T 1P (For 903T Only)
933-001 Center Drive Sha-Fr. 1P (For 933T Only)
933-002 Center Drive Sha-Rr. 1P (For 933T Only)
933-003 Upper Deck-Rr 1P (For 933T Only)
933-004 Throle Linkage Set (For 933T Only)
933-005 Center Diff. Unit 1P (For 933T Only)
933-006 Center Diff. Box 1P (For 933T Only)
933-007 Bulkhead Center Diff. 2P (For 933T Only)
933-008 Cover Center Diff. 1P (For 933T Only)
933-009 Front Brake Set (For 933T Only)
933-010 Rear Brake Set (For 933T Only)
933-011 Clutch Bell (15T) 1P (For 933T Only)
933-012 Spur Gear 46T Center Diff. 1P (For 933T Only)
MPO-15 Aluminum Exhaust Pipe

905t, 935T SPARE PARTS LIST
18
901-066 Nylon Nut M3 5P
901-067 Antenna Pipe W/Cap 4P
902-031 Air Filter W/Insert 1P
902-051 Screw BT3*10 12P
903-002 Tire Unit (Chromed) 2P
903-003 Shock Absorber Unit (Plasc) 2P
903-005 Brace 1P
903-006 Fr/Rr Body Mount 2P
903-007 Body Clip 6P
903-008 Upper Susp. Arm Set 2P
903-009 Fr. Bumper 1P
903-010 Suspension Arm Mount Block 2P
903-011 Upper Susp. Arm Mount-Fr/Rr 2P
903-012 Rim Hub W/Pin 2*10 4P
903-013 Axle W/Pin 2P
903-014 Ball Bearing 6*12*4 2P
903-015 Fr/Rr Steering Arm 2P
903-016 Ball Bearing 10*15*4 2P
903-017 Fr/Rr C-Carrier W/Screw
903-018 Fr.Lower Susp.Arm (L/R) 2P
903-019 Transverse Driver ShaSet 2P
903-020 Diff. Gearbox Unit 1P
903-021 AnRoll Bar Set
903-022 M4 SelfLock Nut W/Washer
903-023 O-Washer 8P
903-024 Front Suspension Arm Pin (Short) 4P
903-025 Suspension Arm Pin (Long) 4P
903-026 Fr. Chassis 1P
903-027 Center Drive ShaFr. 1P (For 905T Only)
903-028 Lower Susp. Mount Block-Fr/Rr 2P
903-029 An-Roll Bar Fixaon Set 1P
903-030 Steering Linkage Set 2P
903-031 Servo Saver Unit 1P
903-032 Upper Deck-Fr 1P
903-033 Baery Case 1P
903-034 Switch 1P
903-035 Receiver/Baery Case Cover
903-036 Handle 1P
903-037 Steering Servo Horn And Linkage
903-038 Steering Servo Mount-A/B 2P
903-039 Upper Deck-Center 1P
903-040 Upper Deck Mount 2P
903-042 Chassis 1P
903-043 Side Guard Plate (L/R)
903-044 Throle Servo Mount-A/B 2P
903-045
Throle Servo Horn And Linkage Set (For 905T Only)
903-046 Center Drive ShaRr 1P (For 905T Only)
903-047 Center Gearbox Unit 1P (For 905T Only)
903-048 Throle Linkage Set 1P (For 905T Only)
903-049 Engine Mount
903-050 Engine Flywheel W/Pin 1P
903-051 Engine CrankshaW/E-Clip
903-052 Clutch Shoe W/Spring
903-053 Clutch Bell 18T 1P (For 905T Only)
903-054 Exhaust Manifold 1P
903-055 Exhaust Pipe Coupler 1P
903-056 Upper DeckRear 1P (For 905T Only)
903-057 Fuel Tank Unit 1P
903-058 Rear Hub 2P
903-059 Rr.Lower Susp.Arm (L/R) 2P
903-060 Fuel Pipe 1P
903-061 Rear Suspension Arm Pin-Short 4P
903-065 Flat Cross Screw (TPF2.6*10) 12P
903-066 Flat Cross Screw (TPF3*8) 12P
903-067 Flat Cross Screw (TPF3*10) 12P
903-068 Flat Cross Screw (TPF3*14) 12P
903-069 Flat Cross Screw (TPF3*16) 12P
903-070 Flat Cross Screw (ISO3*10) 12P
903-071 B-Head Cross Screw (BT2.6*6) 12P
903-072 B-Head Cross Screw (BT3*8) 12P
903-073 B-Head Cross Screw (BT3*12) 12P
903-074 B-Head Cross Screw (BT3*14) 12P
903-075 B-Head Cross Screw (BT3*16) 12P
903-076 B-Head Cross Screw (BT3*20) 12P
903-077 B-Head Cross Screw (BT2.6*10) 12P
903-078 B-Head Cross Screw (BT4*8) 12P
903-079 B-Head Cross Screw (BM3*10) 12P
903-080 Cap Head Hexagon Screw (HM3*25) 6P
903-081 Cap Head Hexagon Screw (HM3*10) 6P
903-082 Diff. Outdrive A 1P
903-083 Diff. Outdrive B 1P
903-085 Exhaust Fixaon Set
903-086 Ball Bearing 5*10*4 2P
903-087 Ball Bearing 12*18*4 2P
903-088 E-Clip 4*0.6 12P
903-089 Pin 2*9.5 12P
903-090 Pin 2*12.5 12P
903-091 Washer A (5.2*10*0.2) 12P
903-092 Washer B (4.2*8*0.2) 12P
903-093 Nylon SelfLock Nut (M4*4) 6P
903-094 Double Way Ball End (7*8) 6P
903-095 Set Screw M4*4 12P
903-096 Set Screw M4*8 6P
903-097 Diff. Gearbox
903-098 Diff. Gearbox Bulkhead-Upper/Lower 1P
903-099
Gearbox Bulkhead-Fr./Rr. (Same As Rc-009F) 1P (For 905T Only)
903-100
Spur Gear 39T/Spring/Nylon SelfLocknut (For 905T Only)
903-101 Pinion Gear-18T/19T/Pin (For 905T Only)
903-102 Brake Set (For 905T Only)
903-103 Gear-40T/37T 1P (For 905T Only)
903-104 Diff. Unit 1P
903-105 Driving/Driven Gear, Diff.Gear/Bevel Gears
903-106 Screw Pin M3*9.5 12P
903-107 Antenna Mount 3P
903-109 Outdrive Cups (Longer)
903-110 Outdrive Cups (Shorter)
903-112 Motor Washer 4P Screw, 4P Washer
903-114 Spur Gear 39T 1P (For 905T Only)
905-001 Rear Chassis 1P
905-002 Rollcage Beam-A/B/C
905-003 Tail Wing Mount
905-004 Rollcage Post Set
905-005 Rollcage Set
905-006 Tail Wing 1P
905-008 Body Front Mount/Screw
933-001 Center Drive Sha-Fr. 1P (For 935T Only)
933-002 Center Drive Sha-Rr. 1P (For 935T Only)
933-003 Upper Deck-Rr 1P (For 935T Only)
933-004 Throle Linkage Set (For 935T Only)
933-005 Center Diff. Unit 1P (For 935T Only)
933-006 Center Diff. Box 1P (For 935T Only)
933-007 Bulkhead Center Diff. 2P (For 935T Only)
933-008 Cover Center Diff. 1P (For 935T Only)
933-009 Front Brake Set (For 935T Only)
933-010 Rear Brake Set (For 935T Only)
933-011 Clutch Bell (15T) 1P (For 935T Only)
933-012 Spur Gear 46T Center Diff. 1P (For 935T Only)
MPO-15 Aluminum Exhaust Pipe

19
engine
Item No.:02060SH18B
SH18 Slide Carburetor Taiwan Engine
