Hitachi RAS-DX24CHK User manual

< >
19/10/07, 9:44 AM1
: A
E4340B
安装前请详细阅读正确的安装方法。
经销商请按照说明书详细向顾客说明操作方法。
安装工程必须准备的工具
标记是专用工具
螺丝起子
卷 尺 刀 子
锯 子 切管器六角扳 手
电 钻
真空泵 扳手或活动扳手
钳 子
泵结合器 喇叭口扩管工具 气体验漏检知器
歧管阀 加注软管
使用前请详细阅读［安全上的注意事项］，以正确的使用机体。
在此所示的注意事项，记载着有关安全性上的重要内容，因此以下的注意事项需特别加以注意。
警告 .............安装错误时，可能会造成死亡或重伤的严重后果。 禁止标记。
注意 .............安装不恰当时，也可能会造成严重后果。
安装工作完毕后，请确认运转正常。请向顾客解释使用说明书上的使用及维护方法。请交代顾客把安装说明书及使用说明
书一起保存。
安全上的注意事项
警告
安装时，请给经销商或专门技术人员安装。自己安装可能会造成漏水、触电及火 。
安装工程进行时，请依安装说明书确实进行。安装不完全时，可能会造成漏水、触电及火 。
安装时，请确实将机体安装在能完全耐住机体重量的场所。否则，会有机体落下来的危险。
电气工程时，请依电气设备的规定及安装说明书所示的方法来施工。务必使用专用电路。如电路容量不足或施工不完备, 会引起短路或火 。
室内、外机间的配线需用指定的连接电线确实接续，电线插入端子台后，请确认插入是否确实。插入和固定不完全时，可能会造成过热及火 。
安装工程所需的零件，请务必要用指定的零件。否则，可能会造成机体落下、漏水、触电、火 及更强的震动。
请务必使用所指定的 冷煤配管。否则，可能会造成铜管破裂及故障。
当安装或迁移机体时，除了指定的 冷煤勿让空气或湿气进入冷冻循环内。如果空气等混入后, 会使冷冻循环回路内出现 常高压, 引起破裂或致人负伤。
工程进行时，请确定周围的空气必须流通，若冷煤泄漏而接触到火时，将产生有毒气体。
安装工程完成后，请确定冷煤有无泄漏。若冷煤泄漏在室内而接触到风扇内推动发热器，供热器等的火花时，将产生有毒气体。
未经许可的修改将造成危险。若发生故障，请通知冷气或电器的专门技术人员。不适当的维修可能会造成漏水、触电及火 等。
进行制冷剂回收(抽空)作业时, 要在卸下制冷剂配管之前先停止压缩机。如在运转压缩机, 检修阀处於开放状态下卸下制冷配管, 会吸引空气等, 使冷冻循
环回路内出现 常高压, 引起破裂或致人负伤。
进行安装作业时, 在运转压缩机之前要可靠地安装制冷剂配管。未安装制冷剂配管, 在检修阀处於开放状态下运转压缩机, 会吸引空气等, 使冷冻循环回路
内出现 常高压, 引起破裂或致人负伤。
從電源線到室外機和室外室內機之間確保要使用接地線。請勿將接地線連接到煤氣管、水管、避雷針或電話之地線等場所。不適當的連接接地線可能
會造成觸電事故
注意
依设置场所状况，有必要安装漏电断电器，室外机的电源线必须安装一个触点间隔 以上的主开关。如未安装漏电断电器，会有触电的危险。
不可安装於有易燃性气体的场所，因为万一气体泄漏在室外机周围的话，可能会发生火 。
安装排水管时，请确认水可否顺利的流出。不正确的安装可导致家具湿透。
請使用IEC認證合格的電源線。
安装场所的选定 (下列几点注意事项，请先得到顾客的同意再安装。)
警告
本机体要安装在支撑充分，不产生振动，强固稳定的地方 。
注意
附近不要有热源，吹出口附近不可有障碍物。
机体的上、左、右方要留有下图 印之尺寸的间隔。
排水要方便，且可以和室外机配管接续在一起的地方。
请勿安装在有易燃性气体泄漏及有蒸气、油烟的场所。
否则有可能引发火苗、引起爆炸或造成树脂的恶化、破损。
为了避免杂讯的影响，请将机体及遥控器，远离电视、收音
机等 以上。
为了避免遥控器有误动作发生，请将遥控器远离高周波机器
及高出力的无线机器。
如有电子点亮型的照明器具, 则信号接收距离有可能会缩
短, 有时还可能接收不到信号。
安装高度离地板至少 。
警告
室外机要安装在能非常耐重的场所，否则噪音和震动会增加。
注意
不要安装於易淋雨或阳光直射得到的地方， 要维持通风良好。
吹出来的风不要正对着动物或植物的地方。
机体的上、左、右、前、后方要留有下图 印之尺寸的间隔，且
至少要留有两面以上是开放的地方。
所吹出来的风和噪音不要成为邻居的困扰。
强风不会吹到的场所
尤其是在大楼楼顶上，风力很强，有可能使室外风扇破损。
请勿安装在有易燃性气体泄漏及有蒸气、油烟的场所。
排水要顺畅的地方。
室外机和连接电线要与电视机、收音机、呼叫机和电话等天线、信
号线和电源线等保持 以上的距离否则有可能因杂声而受影响。
室外机请勿设置在小动物会藏身的地方否则, 小动物进入后,碰触到
内部的电气部件时, 有可能引起故障、冒烟和起火。另外, 请要求
用户保持周围的清洁。
安装室内机 (吹出口) 时, 请将其与火 报警器之间保持m
以上的距离。
室
内
机
室
外
机
( 4 . 1 x 3 2 )
1
10
1
2
3
4
5
1
1
AAA
2
( : mm)
1
1.
2.將螺孔塞塞進墻洞。
（如下圖所示）
3
ø 65mm
2~5mm
2
“ ”
5mm
15cm
15cm
本室内机在结构设计上, 排水管可以安装在左右任一边。安装室内机时, 安装板
的固定位置应保持水平, 或将安装排水管的一侧稍微向下倾斜一些。如安装排
水管的一侧向上方倾斜, 有可能会出现漏水, 请务必注意。
横拉背面
配管可 用个方向, 即向
后直拉、左 右下拉、左
右横拉。
00mm
200mm
200mm
约300nm
2300mm
安装室外机时，机组安装处应有至少两个以上方
向是敞开的。
排水管 排水管
用螺丝锁紧在位置上，尽可能接近室内机悬 的上下勾子。
用 粒或以上的螺丝稳定安装板。
将冷媒配管的前端与有“ ”标记的位置对齐。
用横拉方式等穿过室内
的配管, 请在其上包裹保冷
用隔热材料。
冷冻机油不耐水, 所以请避免
水分进入循环回 路内。
室内机和室外机的高度差请在
以内.
配管不论是细口径或粗口径
都要使用隔热材，表面请用
胶带卷起来。若不用胶带卷起
来，隔热材会提早劣化。
附有隔热材之排水管的接续
用横拉方式等穿过室内的部
分, 要使用带隔热材料的排水
管(市售品)。
内径
3.用4.1×32的螺絲把安裝
板釘在墻上。
（如下圖所示）
連接電線安裝時，
請勿與墻壁內的金
屬網相碰，若墻壁
內為中空有被老鼠
咬破的可能，而造
成危險，因此請務
必使用保護管。
7
300mm
100mm
1.2m
5
0.4m
1
2
5
RAS-DX24CHK + RAC-DX24CHK
2
1
9
10
排水管
斷熱材
20
堵水塞
防震橡膠
請因應需要安裝防震橡膠於室外機
安裝腳。
12
320
299
500
792
340

1
2
3
19/10/07, 9:46 AM1
配管
電氣箱
電源線
排水管 配管和排水管的放置圖
連接電線
配管
排水管
電源線
如圖箭頭指示方向按住下護蓋的下側裡面
正確安裝連接電線可以防止下護蓋
安裝後夾住電源線。
警告
警告
请用缆线固定带固定连接电线
否则雨水会进到电器而造成漏电。此外，不要让
连接电线的部份受到外力而可能会造成发热及火
。
施工后务必装上卸除了的端子座护盖
室外机的接续方法
取下侧盖板与电器箱盖板即可进行。
重要
保险丝
延迟时间保险丝
2
(1)
(2)
(3)
2 ~ 3
U
13
•
•
注意
連接電線
將連接電線穿過電線壓板固定
右橫拉配管時的圖示
安全牢固的連接電源線及連接電線，不能輕動否側易脫落。
.2 1.6N m(12 16kgf cm)
過大的緊固力矩可能會損壞導線內部。
室內機連線後，請務必安裝端子蓋
’
連接電線
配管的切割与扩口
用管子割刀切断，並去掉毛刺。
铜管
整形器
注意
去毛刺
不去掉毛刺, 会引起气体泄漏。
除毛边时，铜管应朝下实施，以避免铜屑进入管内。
配管的接续
从室内机的配管上拆下扩口螺母。这时, 要一边用扳手固定单头活接头
(阳螺纹侧), 一边用扳手拆下扩口螺丝 (阴螺纹侧)。
弯管加工时请注意不要压扁配管。
在连接部涂上冷媒机油,並对准中心用手拧紧扩口螺母, 然后用扭矩扳手
可靠收紧。
铜管
硬模
A
硬模
请使用冷媒R410的专用工具。
拧紧扭矩的大小请根据下表。
扳手 扭矩扳手
扩口螺母
单头活接头
阴螺纹侧
阳螺纹侧
请在插入扩口螺母后, 进行扩口加工。
请让球阀始终处於全开状态。
空气的排出及气体泄漏检查
注意
当拆除室内机的扩口螺母, 首先拆除小口径的螺丝帽。否则大口径的扩口螺母将会冲出。
连接时要防止水分进入。
收紧扩口螺母时务必使用扭矩扳手, 並使用指定的收紧扭矩。
否则会过分收紧扩口螺母, 经过较长时间后, 扩口螺母会开裂, 引起冷媒剂泄漏。
使用控制阀时, 请确认密封圈有否老化, 使用时要避免将手柄拧得过紧。
否则检修阀有可能出现气体泄漏。
出 环保的目的, 希望 用真空抽吸泵进行气洗。 卸下检修阀的盖形螺母。
卸下阀芯的盖形螺母, 接上充
填软管。
将真空 泵接合器与 真空 泵连
接，之后将
充气管 与连合器
连接。
阀心帽
将小口径检修阀的阀轴旋松 圈, 过 秒钟后再
迅速拧紧。这时请对连接部进行气体泄漏检查。
卸下检修阀的加注软管。
将两边的检修阀的阀轴朝逆时针
方向旋转, 直至其轻轻顶住, 打
开冷媒剂通路。(不需要用力旋
转。)
按原样拧紧盖形螺母。最后, 请
进行气体泄漏检查, 确认无气体
泄漏。
关闭歧管阀的手柄 , 将 全开, 运转真空泵
(适配器电源 )。
真空 泵运转约分钟， 然后再把旋钮 全开，
停止真空
泵运转 ( 适配器电源 )
真空抽吸时, 请确认真空
压力两用表的指示值为
。
闭
开始抽真空时，请将粗配管扩口螺母稍
为松开，确认空气是否被吸进去，然后
再将扩口螺母锁紧。
复合压力机
歧管阀
真空 泵
球阀
真空 泵接合器
加注软管
球阀
阀
检修阀本体
六角形扳手
大口径边
检修
阀
的阀头帽
阀心帽
盖形螺母
小口径边 检修
阀
的
控制阀
盖形螺母
气体泄漏检查
右图部份是使用验漏器来确认
冷媒有无从扩口螺母的接续部
份泄出。
泄漏时请增加旋紧度以防止
泄漏。
(请确定使用 验漏器)
出於环保的目的, 设置场所变动时或拆卸时, 请进行制冷剂
的回收 (抽空)。
以强制制冷运转方式进行5分钟左右的预备运转。
将小口径检修阀的阀轴朝顺时针方向旋转后关闭。
在这一状态下进行 分钟的强制制冷运转, 然后将大
口径检修阀的阀轴朝顺时针方向旋转后关闭。
停止强制制冷运转。
连接电线的连续方法 连接电线切口的细节
室内连接电线的方法
連接室內機前，要取下面框下護蓋和端子蓋
取下端子蓋後，用螺釘固定連接電線。
注意
注意
端子标 记 端子座护盖
1 2 3
缆线固定带
25A
警告
更换损坏的电缆时，必须使用制造商或维修人员所提供的特许电缆（制造商维修零件）。
连接电线需露出 的芯线，且被覆部要确实压入，然后拉拔各个电线确认有无问题，否则插入不完全时，可能
会使端子台烧损。
务必使用冷气机专用的电路。
请参阅连接电线的安装与电器设备有关的技术基准。
在连接电线留些空间以便方便修理 用缆线固定带固定电线。
启动电源时，AC电压会在1 2( )端子台之间，因此，在维修保养时，请确保将插头拆离插座。
用缆线固定带固定时, 要从连接电线的外侧包覆部上方进行可靠固定。 否则连接电线的连接部受到外
力时, 会引起发热或火 等。
< > : A
E4340B
•
外径
()
工具
工具
12.7 (1/2”)
6.35 (1/4”)
配管的外径 扭矩
小口径
大口径
小口径
大口径
阀心帽
检修阀 12.7(1/2”)
12.7(1/2”)
6.35(1/4”)
6.35(1/4”)
44.1-53.99 (450~550)
29.4 - 300~350) 34.3 (
1 2 3
1
2
1
2
3
3
31 )N(2
TEMPORARY
SWITCH
端子蓋
螺釘
端子蓋
端子蓋
螺釘
端子蓋
螺釘
端子蓋
電信壓板
絕緣板
螺釘
N
2(N)
2(N)
请将室外机安装於牢固的地方，以避免震动及噪音的增大。
请大略整理配管类后，决定其位置。
拉出侧面护盖时，请抓住捏手，朝下方移动，使端部的卡
钩脱开，然后拉出。装上护盖时步骤相反。 注意
请勿碰触室外机
的吸气口、底面
和铝质散热片。
故障可导致受伤。
注意
请勿在关闭检修阀阀轴的状态下运转5分钟以上。
TEMPORARY
SWITCH
9
100mm
底盘
约
出水孔
10
室外排水嘴
压入 压入
出水孔
9
室外机冷凝水处理
往下拉
下护盖安取方法
设置场所变动时或拆卸时的作业方法
堵水塞
堵水塞
除去電線套
除去
電線套
除去
電線套
連接電線 連接電線
綠 + 黃
（地線）
綠 + 黃
連接電線
強製製冷運轉
暫時運轉開關（強製製冷）開關
（按住5秒鍾後，暫時運轉會開始。
要停止時，請再次按下開關或者用
遙控器停止運轉。）
在強製製冷運轉中，定時指示燈會閃爍。
請在開故障診斷或在室外機上回收製冷媒時用此操作。
按住室內機的暫時運轉開關5秒後，強製製冷運轉就會開始。
要停止強製製冷運轉時，請再次按暫時運轉開關，或者通過
遙控器停止運轉。
室外机请尽量水平安装, 以确保冷凝水能顺利排出。
将冷凝水引导到排水口等处时, 请将其放在平地安装座或承座上,
安装位置要离地面100mm以上,並按图示接上排水管。其他放水孔
请用堵水塞塞住。请将机体在安装后, 如图所示将堵水塞放在排水
孔上並将堵水塞的两边推进而稳固在孔内。
室外機的底座有冷凝水出水孔。
如要連接排水管，請確認堵水套未浮離基座或脫落。

Carefully read through the procedures of proper
installation before starting installation work.
The sales agent should inform customers regarding
the correct operation of installation.
THE CHOICE OF MOUNTING SITE (Please note the following matters and obtain permission from customer before installation).
The unit should be mounted at stable, non-vibratory location which can provide
full support to the unit.
TINUROODNI
Figure showing the Installation
of Indoor and Outdoor Unit.
TINUROODTUO
Indoor Unit Outdoor Unit
19/10/07, 9:44 AM1
WARNING
SAFETY PRECAUTION
•
Read the safety precautions carefully before operating the unit.
•
The contents of this section are vital to ensure safety. Please pay special attention to the following sign.
WARNING...... Incorrect methods of installation may cause death or serious injury. This sign indicates prohibition.
CAUTION....... Improper installation may result in serious consequence.
Be sure that the unit operates in proper condition after installation. Explain to customer the proper operation and maintenance of the unit
as described in the user’s guide. Ask customers to keep this installation manual together with the instruction manual.
The Length of Indoor Unit
Power Cord
Do not alter the power cord.
Direction of Piping
about 1.2m
about
0.4m
Cut away shaded
portion, and finish
the edge of the
opening so that
there is no burr.
No nearby heat source and no obstruction near the air outlet is allowed.
The installation height should be at least 2.3m or more from the floor.
The air blown out of the unit should not point directly to animals or plants.
Do not install at a location where there is flammable gas, steam, oil and smoke.
Dimension of Mounting Stand
of the outdoor unit
(unit : mm)
Screw for Mounting Plate
(4.1x32)
Names of Indoor Components
AAA Size Battery
Mounting Plate
QtyNo Component’s Name
1
2
Remote Controller
1
2
3
41
10
Horizontally
backward
Piping configuration may be
in six different directions:
direct rear piping, left or right
downward piping and left
or right sideways piping.
200mm
For outdoor unit installation, allow at least
2 sides of space around the unit to ensure
ventilation flue.
Installation of Mounting Plate, Wall Penetration and Installation of Protection Pipe
1
Direct Mounting On The Wall
Please use hidden beams in the wall to hold the mounting plate.
Wall Penetration and Installation of Protection Pipe
Drill a ø 65mm hole on wall
which is slightly tilted
towards the outdoor side.
Drill the wall at a small angle.
Cut the protection pipe
according to the wall
thickness.
Empty gap in the sleeve of
protection pipe should be
completely sealed with putty
to avoid dripping of rain
water into the room.
Procedures of Installation and Precautions
Procedures to fix the mounting plate.
1.Drill holes on wall.
(As shown below)
Installation of the Indoor Unit
2
VERTICALLY DOWNWARD PIPING
Preparation
Connect power cord.
Pull out the pipe, power cord and drain hose.
Installation
The upper part of the indoor unit is hanged
on the mounting plate.
The projection at the lower part of the indoor
unit is hooked onto the mounting plate.
Please pull the lower part
of the indoor unit
outwards to check if the
unit is hooked onto the
mounting plate. Improper
installation may cause
vibration and noise.
HORIZONTAL PIPING
Preparation
Change of Drain Hose and Installation Procedures.
Exchange the location of drain hose and drain cap during horizontal piping as shown
in figure below. Be sure to plug in the drain hose until the insulating material folds upon
itself.
Please use pliers to pull out the drain cap.
(This is an easier way to remove the drain cap).
HORIZONTAL & DOWNWARD PIPING – MAKING OPENINGS
During horizontal or downward piping, use a knife to cut
openings as shown in figure. Then smoothen the edges
of openings with a file.
INSTALLATION OF COOLANT PIPES AFTER CONNECTION
The coolant pipes should be adjusted to fit into the
hole on the wall and then ready for further connection.
The terminals of 2 connected pipes must be covered
with insulator used for terminal connection.
Connect the power cord.
After adjustment, fit the power cord and pipes into
the space available under the indoor unit.
The rubber strap used for
fixing the insulator should
not be tied with great force.
Otherwise, this will damage
heat insulation and causes
water condensation.
THE CONNECTION OF COOLANT PIPE DURING THE
INSTALLATION OF INDOOR UNIT
Preparation To Install Coolant Pipes
Please fix in the plastic
core after flaring to avoid
plastic chips entering the
pipes.
CAUTION
You are free to choose the side (left or right) for the installation of drain
hose. Please ensure the smooth flow of condensed water of the indoor
unit during installation. (Carelessness may result in water leakage.)
Be sure that the
drain hose is not
loosely connected
or bent.
Be sure that the wire is not
in contact with any metal
in the wall. Please use the
protection pipe as wire
passing through the hollow
part of the wall so as to
prevent the possibility of
damaged by mouse.
Coolant pipes and power cord must be tied together.
The front part of the coolant pipes are at locations
marked with “ ” symbol.
Installation of Drain Hose
3
Pull this to the front
during the connection
of coolant pipes to
ease task.
Installation
Hang the indoor unit onto the mounting plate. Use the temporary
stand at the back of the indoor unit to push its lower part 15cm
forwards.
Place the drain hose through the hole on the wall.
Insulate the connecting portion of coolant pipe with insulator.
Connect the power cord.
After adjustment, the power cord and coolant pipes are placed
into the space available under the indoor unit.
The projection of indoor unit must hook to the mounting
plate.
TINUROODNI
Pipe
Power cord
Drain hose
Pipe Rubber strap tied with great force
Pipe
below
5mm
Please bend at a small
radius to form an arc
about 15cm
Projection
Temporary stand
Hook
Power cord
Protection
pipe
Drain
hose
Connected
terminals
of coolant
pipes
Coolant pipes
Power cord
Heat insulation
pipe
Bending
upwards
Stagment
water
Drain Stagment
water
Drain cap
Please insert
until here
Drain hose
Please insert
until here
Mounting Plate
Hook
Coolant pipe
Power Cord
Drain Hose
Protection
Pipe
Lift the body
of the unit
upwards and
then force
it downwards.
Mounting
Plate
Projection
Power line, pipe and
drain hose must be
tied together with
plastic tape.
2~5mm
Protection
pipe
Outdoor
Indoor
Seal with
putty
Sleeve of
protection
pipe
WALL
Remove the cap for drain hose installation
Drain cap
Drain hose
Condensed water may leak out if not inserted properly.
Pipe
support
Pull up the pipe after
bending downward
Transform the piping while holding down the lower portion
of pipe-support by hand.
CAUITON
CAUITON
CAUITON
CAUITON
CAUITON
CAUITON
CAUITON
The drain hose can be installed from the lefe or right of the indoor unit.When installing
the indoor unit,the mounting board must be fixed horizontally or slightly tilted down
towards the side of drain hose.If it is tilted above the side of the drain hose,condensed
water may overflow.
2.Push plug into the holes.
(As shown below)
3.Fix the hanger on wall with
4.1 x 32 screw.
(As shown in figure below)
1 Hanger
2 Screw
Wall
above 50mm
4.1 x 32 screw
Ceiling
Plug
Drain HoseDrain cap
Openings
1.0m
Match the end of the refrigerating pipes with the
locations marked with “ V” symbol.
Drain hose Drain hose
Wall hole Wall hole
6
< > : A
E4340B
7 00mm
100mm
300mm
5m????
5
RAS-DX24CHK + RAC-DX24CHK
2
Drain pipe
1
9
10
20
INDOOR UNIT
INSTALLATION MANUAL
HITACHI SPLIT-UNIT AIR CONDITIONER
Remote controller holder
Drain cap
12
320
299
500
792
340

Valve head cap
for the service
valve at small
diameter side
Valve head
cap for the
service valve
at large
diameter side
Cap of valve core
TINUROODTUO

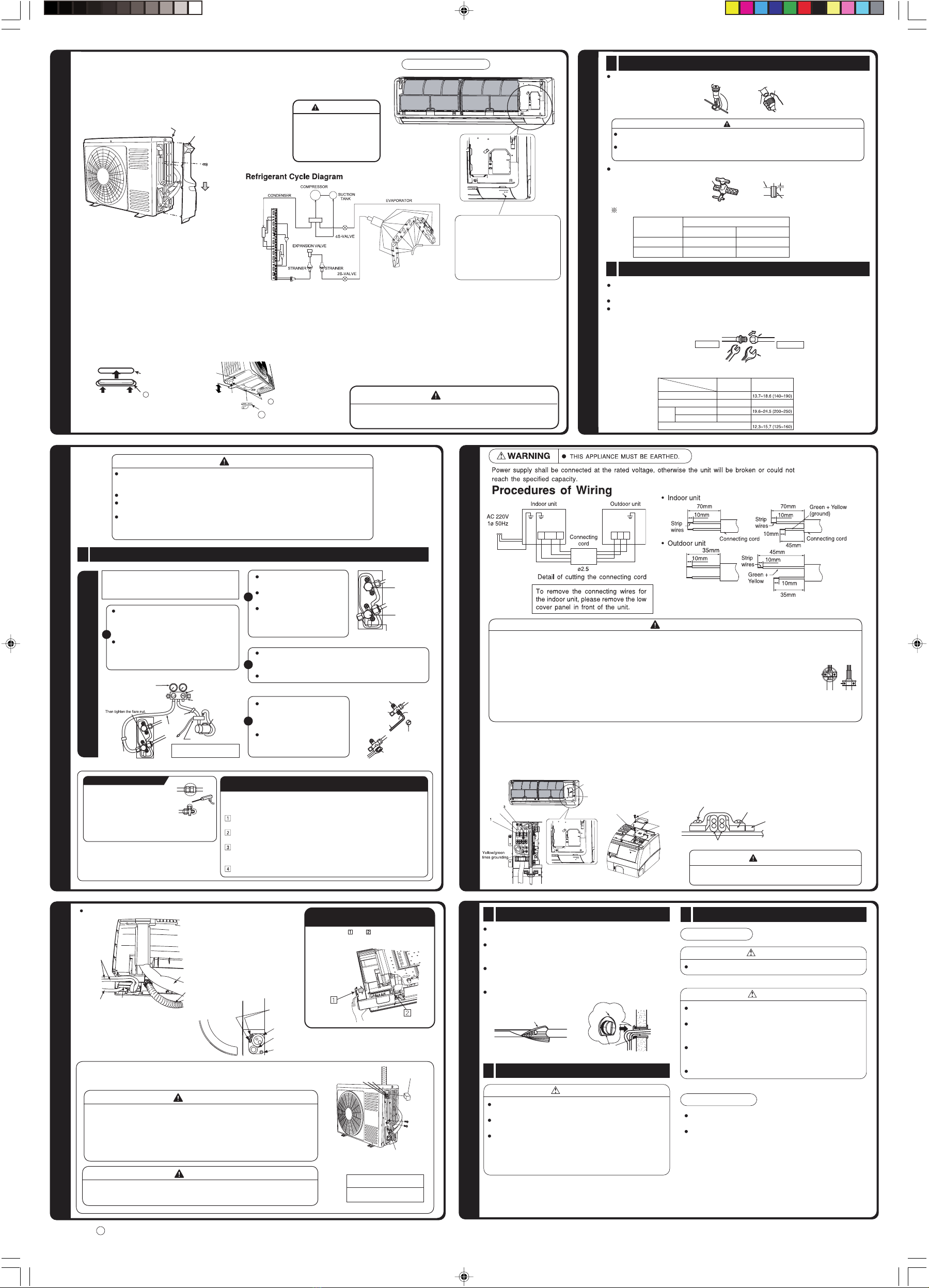

Removal Of Air From The Pipe And Gas Leakage Inspection
Preparation of Pipe
1
Pipe Connection
2
VOMERRIADNASEPIPTNALOOCFONOITALLATSN LAI
3
Insulation And Maintenance Of Pipe Connection
1
The connected terminals should be completed sealed with
heat insulator and then tied up with rubber strap.
Please tie the pipe and power line together with plastic tape
as shown in the figure of installation of both the indoor and
outdoor units. Then fix their position with holders.
To enchance the heat insulation and to prevent water
condensation, please cover the outdoor part of the drain hose
and pipe with insulation pipe.
Completely seal any gap with putty.
Earth Line And Circuit Breaker
2
Power Source And Operation Test
3
The earth line terminal of the outdoor unit is below the
service valve.
To avoid short circuit, it is necessary to install circuit breaker
depending on the mounting location of the unit.
Do not place earth line near the following objects:
(1) Water pipe
(2) Gas pipe — There is danger of catching fire.
(3) The earth line of lightning conductor and telephone —
short circuit may occur during lightning.
Power Source
Do not make extension to the power cord.
Please use a new socket. Accident may occur due to the
use of old socket because of poor contact.
Please plug in and then remove the plug for 2 – 3 times.
This is to ensure that the plug is completely plugged into
the socket.
Keep additional length for the power cord and do not render
the plug under external force as this may cause poor
contact.
Do not fix the power cord with U-shape nail.
Operation Test
Please ensure that the air conditioner is in normal operating
condition during the operation test.
Explain to your customer the proper operation procedures
as described in the user’s manual.
Insulation material for pipe connection
Sleeve of
protection
pipe
Putty
Wiring Of The Indoor Unit
19/10/07, 9:46 AM1
CAUITON
WARNING
CAUTION
Wrench Torque wrench
Flare nut
Half union
Female side
Male side
Use a pipe cutter to cut the pipe and remove burr.
CAUTION
Remove burr
If burr is not removed, it may cause leakage.
Point the side to be trimmed downwards during trimming to prevent copper
chips from entering the pipe.
Remove the flare nut from the pipe of the indoor unit by removing the flare nut (female
side)
with a spanner while holding down the half union (male side) with a spanner.
Do not crush the pipe while bending it.
Apply refrigerant oil on the connection part. After carrying out the center alignment
and
manual tightening of the flare nut, tighten the flare nut securely with a torque
wrench (spanner).
Copper pipe
Trimming tool
Before flaring,please put on the flare nut.
Copper pipe
Die
A
Die
Please use exclusive tool for refrigerant R410.
When removing flare nut of the indoor unit, first remove the nut of small diameter
side.
Prevent water from entering into the piping when connecting.
Be sure to tighten the flare nut to the specified torque with a torque wrench.
If the flare nut is overtightened, it may split after sometime and may cause refrigerant leak.
When using a control valve, make sure that the packing is not deteriorated and
avoid excessive tightening of the handle. Otherwise, gas may leak from the service
valve.
* Tightening torque must be as shown in the table below.
From the viewpoint of global environment
protection, air purge type should be vacuum
pump method.
1
Remove the valve head cap
of the service valve.
Remove the cap of valve core
and
connect the charge hose.
Connect the vacuum pump
adapter to the vacuum pump
and connect the charge hose
to the adapter.
Loosen the spindle of the service valve with small diameter
by 1 / 4 turn and tighten the spindle immediately after 5 to 6
seconds.
Remove the charging hose from the service valve.
Unscrew the spindle of both the
service valves in anticlockwise
direction to allow the flow of
refrigerant (unscrew halfway).
Tighten the cap of valve head.
Check and make sure that there
is no gas leakage.
Fully tighten the “ Hi ” shuttle of the
manifold valve and completely unscrew
the “Lo” shuttle. Run the vacuum pump.
(Adapter is switched on)
Make sure the meter
reaches -0.1MPa (-76cmHg)
during pumping.
Closed
When pumping starts, slightly loosen
the flare nut to check if air sucked in.
Meter showing pressure
R410A Manifold valve
Vacuum pump
Ball valve
Vacuum pump adapter
Charge hose
Ball valve
Valve
Please leave the ball valve fully
open at all times.
3
4
2
Body of service valve
Hexagonal
wrench key
Cap of valve
head
Cap of valve
head
Cap of
valve core
From the viewpoint of global environment protection, refrigerant
should be recovered (pumped down) when the air conditioner is
transferred or removed.
Perform force-cooling operation for about 5 minutes as a
preliminary operation.
Tighten the spindle of the service valve at small diameter side in
clockwise direction.
Continue the force-cooling operation for another 1-2 minutes, and
then tighten the spindle of the service valve at large diameter side
in clockwise direction.
Stop the force-cooling operation.
Gas Leakage Inspection
Please use gas leakage detector
to check if leakage occurs at
connection of Flare nut as shown
on the right.
If gas leakage occurs , further tighten the
connection to stop leakage. (Be sure to use
R410A detector.)
After pumping for about 10 -15 minutes,
completely loosen the “ Lo ” shuttle and
switch off the vacuum pump . (Adapter is
switched off)
Otherwise the nut of big diameter side will fly out.
WARNING
Detail of Cutting the Connecting Cord
• If the supply cord is damaged, it must be replaced by a special cord (Maker’s service parts) available from the manufacturer
or its service agent.
• The naked part of the wire core should be 10mm fix it to the terminal tightly. Then try to pull the individual wire to check if the
contact is tight. Improper insertion may burn the terminal.
• Be sure to use only wire specified for the use of air-conditioner.
• Please refer to the manual for wire connection, the wiring technique should meet the standard of the electrical
installation.
• Leave some space in the connecting cord for maintenance purpose and be sure to secure it with the cord band.
• Secure the connecting cord along the coated part of the wire using the cord band. Do not exert pressure on the wire as this
may cause overheating or fire.
• There is a AC voltege of 220V between the 1 and 2(N) terminals. Therefore, before servicing, be sure to remove the plug from
the AC outlet.
CAUTION
•For wire connection of the Indoor unit, you need to remove the front cover, the low cover
under the body of the unit and terminal cover.
•Remove the cover from the terminal base and screw the cable.
ScrewInsulating plate
Cord band
Connecting cord
Securely screw in the power cord and connecting cord so that it will not get
loose or disconnect.
Tightening torque reference value: 1.2 to 1.6 N·m (12 to 16 kgf·cm)
Excessive tightening may damage the interior of the cord requiring replacement.
When putting two connecting cords
through the band.
WARNING
After wiring the indoor unit, make sure to reattach the
terminal cover.
Wiring of the Outdoor Unit
Please remove the side cover and terminal cover for wiring connection.
WARNING
• The connecting cord must be fix with cord band
Otherwise rain water may enter and cause short circuit. Besides, an external
forcemay apply to the connection part of the connecting cord and could result
in heat and fire.
• The terminal cover and side cover must be installed after work is
done.
erminal cover
Terminal marking
Cord band
IMPORTANT
Fuse Capacity
CAUTION
• Outdoor supply cords shall not be lighter than polychloroprene
sheathed flexible cord with code designation 60245 IEC 57.
Wiring for the horizontal piping from the right side.
Not to interfere with the
drain hose, fold the cable at
the drain hose side of the
electric box as shown in the
left figure, and pass the
cable just over the electric
box and pull it out.
Cable
Pipe
Drain
Power cord
Electric box
Cable
Power
cord
Pipe
Drain
hose
Form the cable properly so that the
low cover won’ t touch the cable in
installation.
Piping and drain hose layout
•Pull at the and in the directionsas
shown by arrows to remove the cover.
Method to remove the low cover
25A time-delay fuse
1 2 3
• Please mount the Outdoor unit of stable ground to prevent vibration and increase
of noise level.
• Decide the location for piping after sorting out the different types of pipe available.
•When removing side cover, please pull the handle after undoing the hook by pulling
it downward. Reinstall the side cover in the reverse order of the removal.
Pull downward
Please face this side (suction side)
of the unit to the wall.
Please remove side cover
when connecting the piping
and connecting cord.
CAUTION
Do not operate the unit for more than 5 minutes while the
spindle of the service valve is closed.
< > : A
E4340B
Outer Diameter A (mm) Rigid Flaring Tool
(ø) For R410A tool For R22 tool
6.35 (1/4
”
) 0~0.5 1.0
Outer diameter Torque N•m
)mc•fgk( )ø( epip fo
Small diameter side
Large diameter side
Small diameter side
Large diameter side
Valve core cap
Valve
head
cap
12.7 (1/2”)
0~0.5 1.0
12.7(1/2”)
12.7(1/2”)
6.35(1/4”)
6.35(1/4”)
44.1-53.99 (450~550)
29.4 - 300~350) 34.3 (
sWhen the temporary switch of the indoor unit is pressed for
more than 5 seconds, the force-cooling operation starts.
Use this mode when performing the failure diagnosis or
collecting refrigerant into the outdoor unit.
sPress the temporary switch again or use the remote controller
to stop the force-cooling operation once this operation is
completed.
sThe Timer lamp flashes when force-cooling is in operation.
Force-cooling operation
1 2 3
1
2
1
2
3
3
2(N)1 3
TEMPORARY
SWITCH
Terminal cover
Screw
Terminal cover
Terminal cover
Screw
Terminal cover
Screw
Terminal
cover
2(N)
2(N)
TEMPORARY
SWITCH
CONDENSED WATER DISPOSAL OF OUTDOOR UNIT
•There is holes on the base of Outdoor unit for condensed water to exhaust.
•In order to flow condensed water to the drain, the unit is installed on a stand or a
block so that the unit is 100mm above the ground as shown figure. Join the drain
pipe to one hole.
•Cover the drain hole with a drain cap. To install the drain cap, put it on the drain hole
After installation, check whether the drain pipe and drain cap cling to the base firmly.
•Install the outdoor unit horizontally and make sure that condensate drains away.
DRAIN PIPE
DRAIN CAP DRAIN HOLE
above
100mm
Push Push
BASE
DRAIN HOLE
DRAIN CAP
Temporary switch
(Force-cooling operation starts
when the switch is pressed for
more than 5 seconds.
Press the switch again and use
the remote controller to stop the
operation.)
9
10
9
CAUTION
•Do not touch the suction
port, bottom surface, or
aluminum fin of the outdoor
unit.
Failure to do so may cause
an injury.
•
NOITALLATSNIFOEGATSLANIF
DROCREWOPFONOITCENNOC VOMERRIADNASEPIPTNALOOCFONOITALLATSN LAI
LAVOMERRIA
DROCREWOPFONOITCENNOC
Works to be done when transferring or removing air conditioner
as shown in the figure and press the both sides of the drain cap to fit into the hole.
