Hitachi AF-BCK-01 User manual

BOILER COMBINATION KIT
ENGLISH
ESPAÑOL
FRANÇAIS
INSTALLATION AND OPERATION MANUAL
MANUAL DE INSTALACIÓN Y FUNCIONAMIENTO
MANUEL D’INSTALLATION ET DE FUNCTIONNEMENT
Read and understand this manual before using this air conditioner. Keep this manual for future reference.
Lea cuidadosamente este manual antes de poner en marcha el equipo de aire acondicionado. Guarde este manual en un lugar seguro por si
necesita consultarlo en el futuro.
Lire attentivement ce manuel avant taute utilization du climatiseur, et le conserver pour référence ultérieure

Specications in this manual are subject to change without notice in order that HITACHI
may bring the latest innovations to their customers.
Whilst every effort is made to ensure that all specications are correct, printing errors are
beyond Hitachi’s control; Hitachi cannot be held responsible for these errors.

ATTENTION:
This product shall not be mixed with general house waste at the end of its life and it shall be retired according to the
appropriated local or national regulations in a environmentally correct way.
Due to the refrigerant, oil and other components contained in Air Conditioner, its dismantling must be done by a
professional installer according to the applicable regulations.
Contact to the corresponding authorities for more information.
ATENCIÓN:
Éste producto no se debe eliminar con la basura doméstica al nal de su vida útil y se debe desechar de manera
respetuosa con el medio ambiente de acuerdo con los reglamentos locales o nacionales aplicables.
Debido al refrigerante, el aceite y otros componentes contenidos en el sistema de aire acondicionado, su desmontaje debe
realizarlo un instalador profesional de acuerdo con la normativa aplicable.
Para obtener más información, póngase en contacto con las autoridades competentes.
ATTENTION:
Ne doit pas être mélangé aux ordures ménagères ordinaires à la n de sa vie utile et qu’il doit être éliminé conformément à
la réglementation locale ou nationale, dans le plus strict respect de l’environnement.
En raison du frigorigène, de l’huile et des autres composants que le climatiseur contient, son démontage doit être réalisé
par un installateur professionnel conformément aux réglementations en vigueur.

DANGER – Immediate hazard which WILL result in severe injury or death.
PELIGRO – Riesgos inmediatos que PRODUCIRÁN lesiones personales graves e incluso la muerte.
DANGER – Dangers instantanés de blessures corporelles sévères ou de mort.
WARNING – Hazards or unsafe practices which COULD result in severe personal injuries or death.
AVISO – Riesgos o prácticas poco seguras que PODRÍAN producir lesiones personales e incluso la muerte.
ATTENTION – Utilisation dangereuse ou sans garantie de sécurité qui PEUT provoquer de sévères blessures
personnelles ou la mort.
CAUTION – Hazards or unsafe practices which COULD result in minor personal injury or product or property
damage.
PRECAUCIÓN – Riesgos o prácticas poco seguras que PODRÍAN provocar lesiones personales de menor
importancia o daños en el producto u otros bienes.
PRECAUTION – Utilisation dangereuse ou sans garantie de sécurité qui PEUT provoquer des blessures mineures
ou des dommages au produit ou aux biens.
NOTE – When installing the AquaFREE module, use only the manuals that appear inside the AquaFREE box. Do
not use the manual inside the Outdoor Unit.
NOTA – Cuando instale el módulo AquaFREE, use sólo los manuales que se incluyen en la caja del AquaFREE. No
emplee los manuales de la unidad exterior.
REMARQUE – Lors de l’installation du module AquaFREE, n’utilisez que les manuels qui se trouvent dans sa boîte.
N’utilisez pas le manuel qui se trouve dans le Groupe Extérieur.





INDEX ÍNDICE
1. GENERAL
2. SAFETY SUMMARY
3. TECHNICAL DATA
4. UNITS DESCRIPTION
5. INSTALLATION
6. ELECTRICAL CONNECTIONS
7. CONTROL SYSTEM OF BCK
(BLOCK DIAGRAMS LOGICS)
8. SETTINGS
1. GENERAL
2. RESUMEN DE SEGURIDAD
3. DATOS TÉCNICOS
4. DESCRIPCIÓN DE LAS UNIDADES
5. INSTALACIÓN
6. CONEXIONES ELÉCTRICAS
7. SISTEMA DE CONTROL PARA EL BCK
(DIAGRAMAS)
8. AJUSTES
INDEX ÍNDICE
1. GÉNÉRALITES
2. SOMMAIRE DES DISPOSITIFS DE SECURITE
3. DONNÉES TECHNIQUES
4. DESCRIPTION DES UNITES
5. INSTALLATION
6. BRANCHEMENTS ÉLECTRIQUES
7. SYSTÈME DE COMMANDE POUR BCK
(SCHÉMAS)
8. AJUSTES

7
ENGLISH
General
1 GENERAL
1.1. CONCEPT
New feature for the AquaFREE system is the capability of being combined with a “conventional boiler” heating system (gas, gas-oil,
etc…) by using part of the hydraulic system together with the “Boiler Combination Kit” (AF-BCK-01) control kit.
There are three operation modes:
“Automatic” (Heating mode only)
“Boiler only” (Heating mode only)
“AquaFREE only” (Heating & Cooling mode (refreshing oor/Fan Coil))
1.1.1. AUTOMATIC
The control selects between AquaFREE unit or Boiler unit. (Normally installed before than the AquaFREE system).
Controlled by “Outdoor Temperature Setting”:
The system is going to choose between the AquaFREE unit or the Boiler unit depending on the setted outdoor
temperature. If outdoor temperature is higher than “outdoor setting temperature”, the AquaFREE will run. If contrary, the
AquaFREE is going to change to “stand by” (Compressor Thermo OFF), and after some time AquaFREE Water pump
stops (because AquaFREE protection), and Boiler start running.
Controlled by “Time Setting”:
By using this setting the end user choose the operation time if having special tariff contracted with the electricity supplier
company (tariff depending on “pick time” or “valley time” electricity demand). Boiler Combination Kit can be programmed
by the internal timer (eld supplied std. timer) in order to use the AquaFREE unit or conventional Boiler unit.
1.1.2. BOILER ONLY
The control forces the system to use only the Boiler unit.
1.1.3. AQUAFREE ONLY
The control forces the system to use only the AquaFREE unit.
In case of Cooling Mode (refreshing oor / Fan Coil application) this mode is mandatory.
 NOTE:
In each case, AquaFREE Room Thermostat, is used for controlling room setting temperature.



−
−




8
1.2. BOILER COMBINATION KIT DIAGRAM
CAUTION
Do not connect voltage input to the control system before
preparation for test run has been correctly completed.
Read this manual carefully before performing installation
work.
Read this in order to congure Boiler Combination Kit.
WARNING
Do not install Boiler Combination Kit in places like:
With vapour, oil or dispersed liquids.
WIth heat sources nearby (sulphuric surroundings).
Where accumulation, generation or leaks of inammable
gases has been detected.
That are near the sea, in saline, acid or alkaline
surroundings.
-
-
-
-
WARNING
Install Boiler Combination Kit away from possible sources of
electromagnetic disturbances.
Respect local electrical standards.
Use a power circuit that is not subject to peak demands
UTOPIA INVERTER
AQUAFREE
RECEIVER REMOTE EJP OT
Control Boiler
Control Water Pump
Control AquaFREE
Contact for special electric price
Outdoor thermostat
RADIATORS
BOILER
2. SAFETY SUMMARY
Safety summary

9
ENGLISH
Safety summary
PART I: INSTALLATION DATA

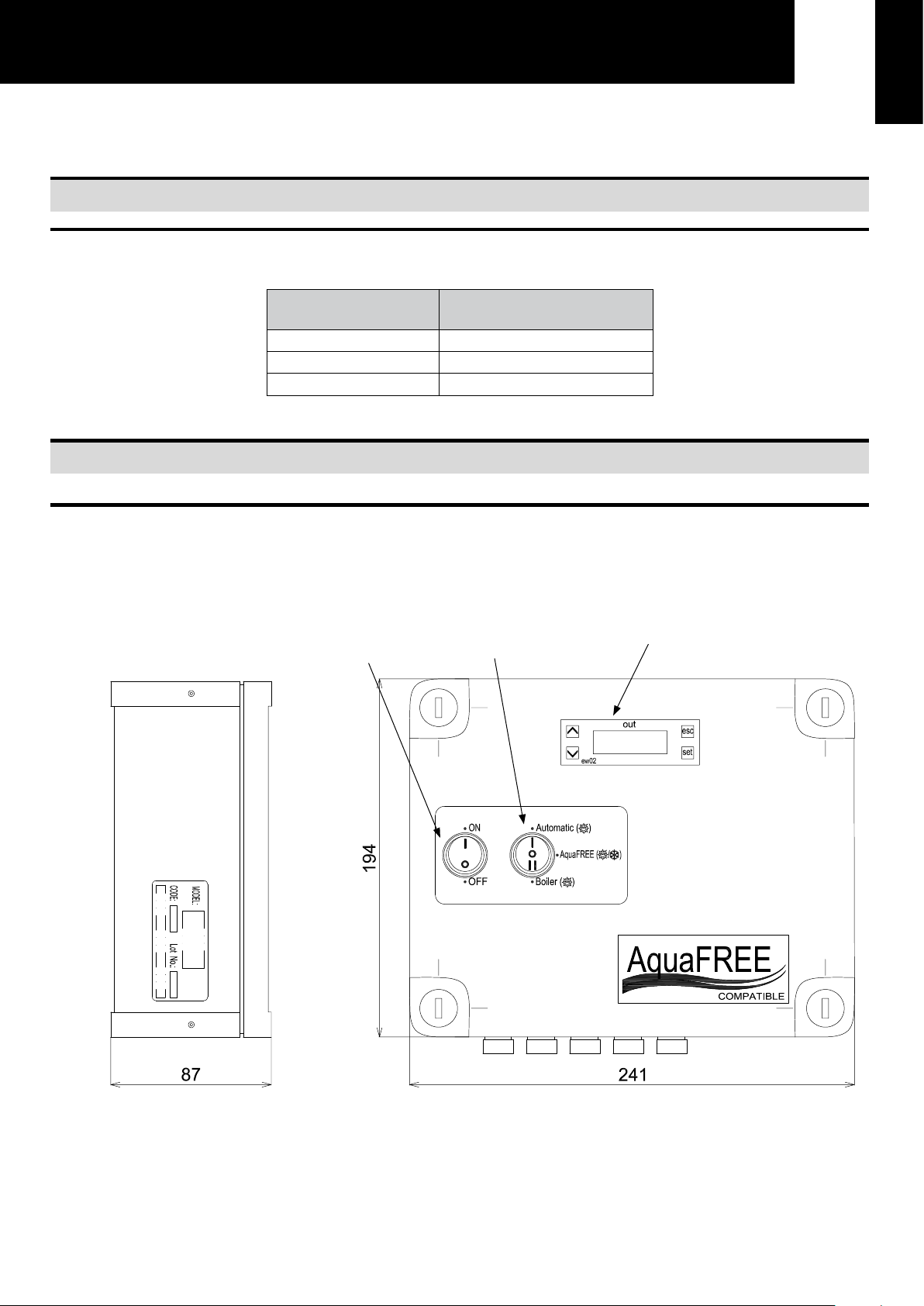

3. TECHNICAL DATA
3.1. GENERAL DATA
Model AF-BCK-01
Power Source 1~230V 50 Hz.
Ext. Dimension (mm) 241x194x87
Net Weight (Kg) 1.3
4. UNITS DESCRIPTION
4.1. NAME OF PARTS AND GENERAL DIMENSIONS
Outside view
Selector
Thermostat
Switch

10

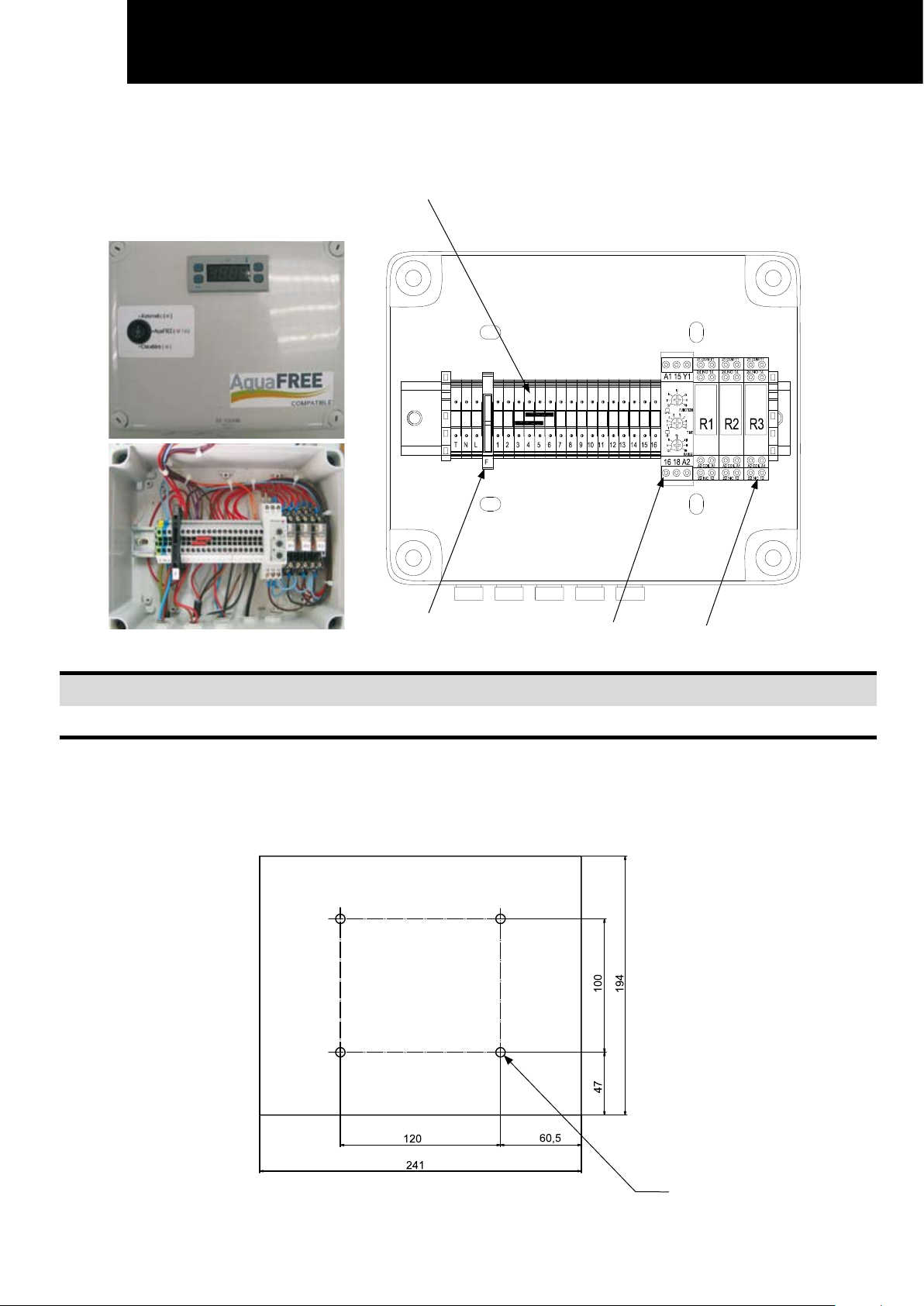

Inside view
5. INSTALLATION
5.1. FASTENING
Fixing onto wall (view from front side)


Terminal board
Fuse Timer Relay
Safety summary
4-Ø5

11
ENGLISH

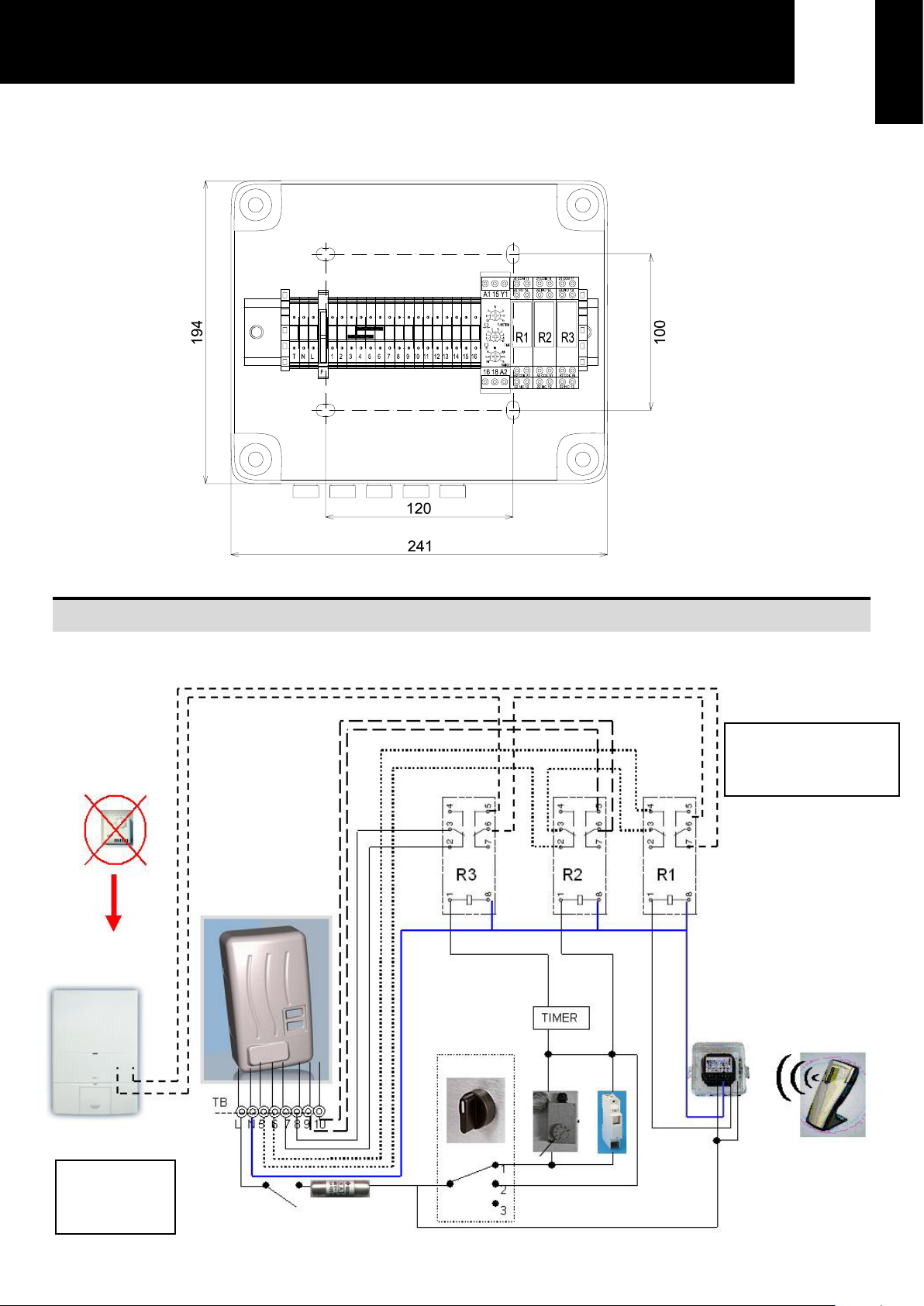

Fixing onto wall
6. ELECTRICAL CONNECTIONS
Esquematic wire for BCK


Installation
L/N - Power
5/6 - ON/OFF W.M
7/8 - Water Pump
9/10 - WFS
TB LEGEND
R1 - ON/OFF (BCK)
R2 - AquaFREE OFF
R3 - Disc pump & connect boiler
Part name

12
6.1. GENERAL CHECK
1. Ensure that the eld-supplied electrical components (mains power switches, circuit breakers, wires, connectors and wire
terminals) have been properly selected according to the electrical data indicated. Make sure that they comply with national
and regional electrical codes.
2. Check to ensure that the power supply voltage is within +/-10% of the rated voltage.
3. Check to ensure that power supply has an impedance low enough to warranty not reduce the starting voltage more than
85% of the rated voltage.
4. Check to ensure that the ground wire is connected.
5. Connect a fuse of specied capacity.
 DANGER:
Do not connect of adjust any wiring or connections unless the main power switch is OFF.
Check that the earth wire is securely connected, tagged and locked in accordance with national and local codes.
 NOTE:
Check and test to ensure that if there is more than one source of power supply, that all are turned OFF.
-
-
-
Electrical connections

13
ENGLISH
6.2. ELECTRICAL WIRING CONNECTION FOR BOILER COMBINATION KIT
The electrical wiring connection for the Boiler Combination Kit system is shown in gure below:
Terminal Board Layout:
 NOTE:
All elds supplied cables.
AF-TB: AquaFREE-Terminal board
AF-RC: AquaFREE-Receiver

Electrical connections
Terminal board
mark
Connection
Function Remarks
TEarth
N
Power supply AC230 - 50Hz
L
1AF-RC Nº 2 ON/OFF for all system
(controlled by room
thermostat)
2AF-RC Nº 3
3
BCK Thermostat Bridge
Electronic Outdoor
Thermostat no available
(Only EJP control)
4
5Contacts for especial
electric price To connect EJP (Timer)
6
7Thermo ON/OFF
AF-TB Nº5 Thermos ON/OFF
(AquaFREE)
8Thermo ON/OFF
AF-TB Nº6
9
Boiler control If ON, the Boiler will start
running
10
11 Water ow switch bridge
AF-TB Nº: 7 Bridge WFS when Boiler is
running.
12 Water ow switch bridge
AF-TB Nº: 8
13 Pump control
AF-TB Nº: 9 Disconnect Pump after time
14 Pump control
AF-TB Nº: 10
15
Ambient Thermostat
16

14

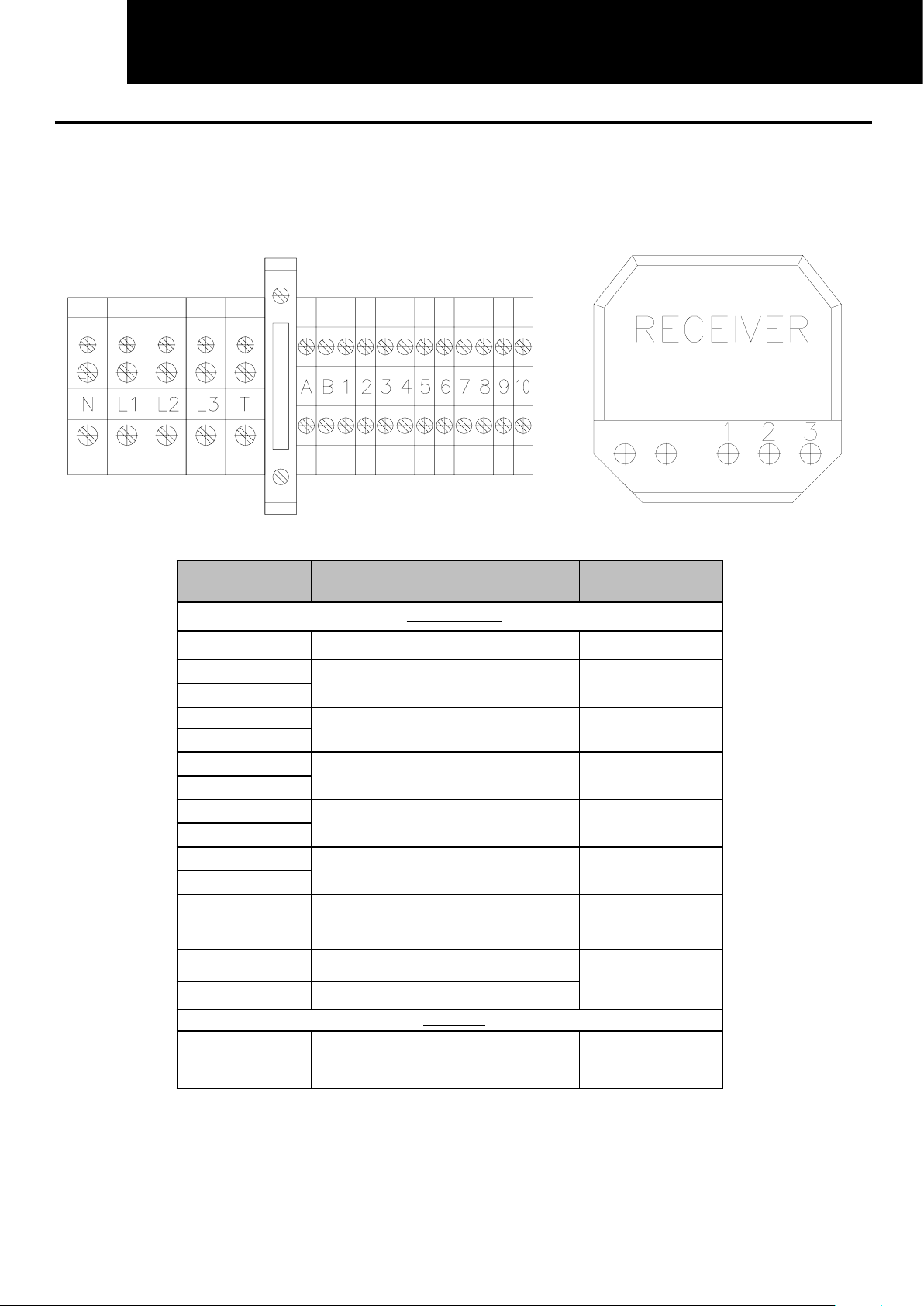

6.3. ELECTRICAL WIRING CONNECTION FOR AQUAFREE
The electrical wiring connection for the indoor unit (AquaFREE) is shown in gure below:
Terminal Board Layout:

Electrical connections
Terminal Board
Mark Connection Function Remarks
Terminal board AF
T Earth
NPower Supply (230V)
(for Water pump and Electric heater 1~) AC230~400 - 50Hz
L1/L2/L3
ARemote control switch (PC-P1HE/PC-P2HTE)
(Internal wiring)
B
1
Transmision (H-Link) Control cable (5V)
2
3
Outdoor Thermistor Thermistor for AquaFREE
4
5Thermo ON/OFF
BCK-TB Nº:7,8
Thermo ON/OFF
(AquaFREE)
6
7Water ow switch connection
BCK-TB Nº:11 Bridge WFS when Boiler is
running.
8Water ow switch connection
BCK-TB Nº:12
9Pump control
BCK-TB Nº:13 Disconnect Pump after time
10 Pump control
BCK-TB Nº:14
Receiver AF
2Receiver ON/OFF
AF-TB Nº: 1 ON/OFF for all system
(controlled by room
thermostat)
3Receiver ON/OFF
AF-TB Nº: 2
 NOTE:
BCK-TB: Boiler Combination Kit-Terminal board
Receiver Layout:

15
ENGLISH
6.4. COMMON WIRING
CAUTION:
All the eld wiring and electrical components must comply with local codes.
Single phase connection:
Electrical connections
6.4.1. ELECTRICAL WIRING BETWEEN AQUAFREE
AND BOILER COMBINATION KIT.
Connect the electrical wires between the AquaFREE, the Boiler
Combination Kit and the Boiler, as shown in the next diagram.
Follow local codes and regulations when performing electrical wiring.
Use twist pair wire (more than 0.75 mm²) for operation wiring
between AquaFREE and Boiler Combination Kit.
Use 2-core wire for the operating line (Do not use wire with more
than 3 cores).
Use shielded wires for intermediate wiring to protect the units from
noise obstacle at length of less than 300m and size complied with
local code.
−
−
−
−
−
The recommended breaker sizes are shown in Table of electrical
data and recommended Wiring, Breaker
Size/1 O.U.
In the case that a conduit tube for eld-wiring is not used, x rubber
bushes with adhesive on the panel.
All the eld wiring and equipment must comply with local and
international codes.
−
−
−
Indoor unit (AquaFREE) Outdoor Unit
Boiler BCK

16
Symbol Description
Components
TB Terminal board
CB Circuit Breaker
ELB Earthleakage Breaker
Internal Wiring
Factory supplied
Field wiring supplied
Field supplied
THM1,2 Ambient outdoor thermistor
EJP Contacts for especial
electric price
BCK Boiler combination kit
RC Receiver
PCH Remote control
Symbol Description
Indoor unit (AquaFREE)
A,B Remote control switch
1,2 H-Link communication
3,4 Outdoor Thermistor connection
5,6 Thermo ON/OFF connection
7,8 Water Flow Switch bridge
9,10 Pump control
RC: 2,3 Receiver connection
Symbol Description
Boiler Combination Kit
1,2 Receiver ON/OFF
3,4 Thermostat Bridge
5,6 EJP
7,8 Thermo ON/OFF
9,10 Control Boiler
11,12 Water Flow Switch bridge
13,14 Pump control
15,16 Outdoor Thermistor connection
Three phase connection:
Electrical connections
 NOTE:
Power supply must be connected to outdoor and indoor unit separately.
ATTENTION:
Remove jumper between terminals 9 and 10 in AquaFREE terminal board when installing the Boiler Combination Kit.
AquaFREE and Boiler working as a whole, if disconnect AquaFREE, Boiler doesn’t run (Both use the same thermostat).
Indoor unit (AquaFREE) Outdoor Unit
Boiler BCK

17
ENGLISH
Recomended minimum sizes for eld provided wires:
Model Power Source Max. Current
Power Source
Cable Size
Transmitting
Cable Size
EN60 335-1

EN60 335-1

AF-BCK-01 1N~ 230V 50Hz 1 A 0.75 mm² 0,75 mm²
The above wire sizes marked with  are selected at the maximum current of the unit according to the European Standard, EN60 335-1.
Selection according to
EN60 335-1
Current i (A) Wire Size (mm²)
I ≤ 6 0.75
6 < i ≤ 10 1
10 < i ≤ 16 1.5
16 < i ≤ 25 2.5
25 < i ≤ 32 4
32 < i ≤ 40 6
40 < i ≤ 63 10
NOTE:
Follow local codes and regulations when selecting eld wires, Circuit breakers and Earth Leakage breakers
Use the wires which are not lighter than the ordinary polychloroprene sheathed exible cord (code designation H05RN-F)
7. CONTROL SYSTEM OF BCK (BLOCK DIAGRAMS LOGICS)
Basic general control:


Control system of Boiler Combination Kit
PART II: OPERATION DATA

18
Subroutines control:
Control system of Boiler Combination Kit

19
ENGLISH
8. SETTINGS
8.1. SELECTOR SETTING FOR OPTIONS MODE
8.2. TIMER SETTING
8.3. ELECTRONIC THERMOSTAT SETTING
Settings
± Setting temperature
Exit application
For modify setting
temperature
Electronic thermostat
layout
Example:
a) Pump stop after 2 minuts:
Function: Op
Time Setup: 2 (multiply factor)
Range Setup. 60 s (scale)
Time = 2x60 = 120 s. (2 minuts)
b) Pump stop after 1 hour:
Function: Op
Time Setup: 1 (multiply factor)
Range Setup. 1 h (scale)
Time = 1x1 h = 1 h. (1 hour)
