Hitachi DH 30PC User manual

POWER TOOLS
TECHNICAL DATA
AND
SERVICE MANUAL
HAMMER DRILL
DH 30PC/DH 30PB
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
LIST No. DH 30PC: E466
DH 30PB: E465
May 2002
D
MODELS
DH 30PC
DH 30PB

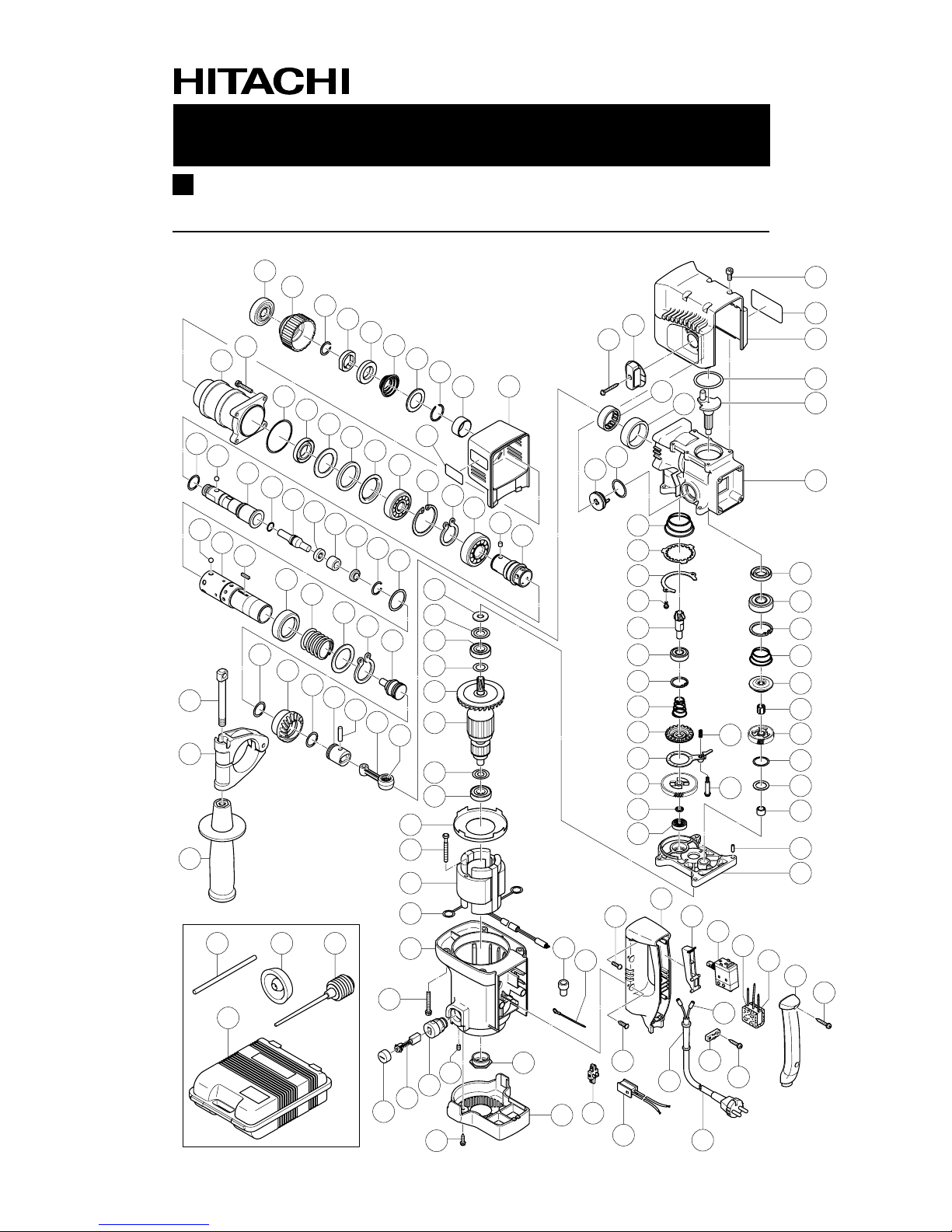

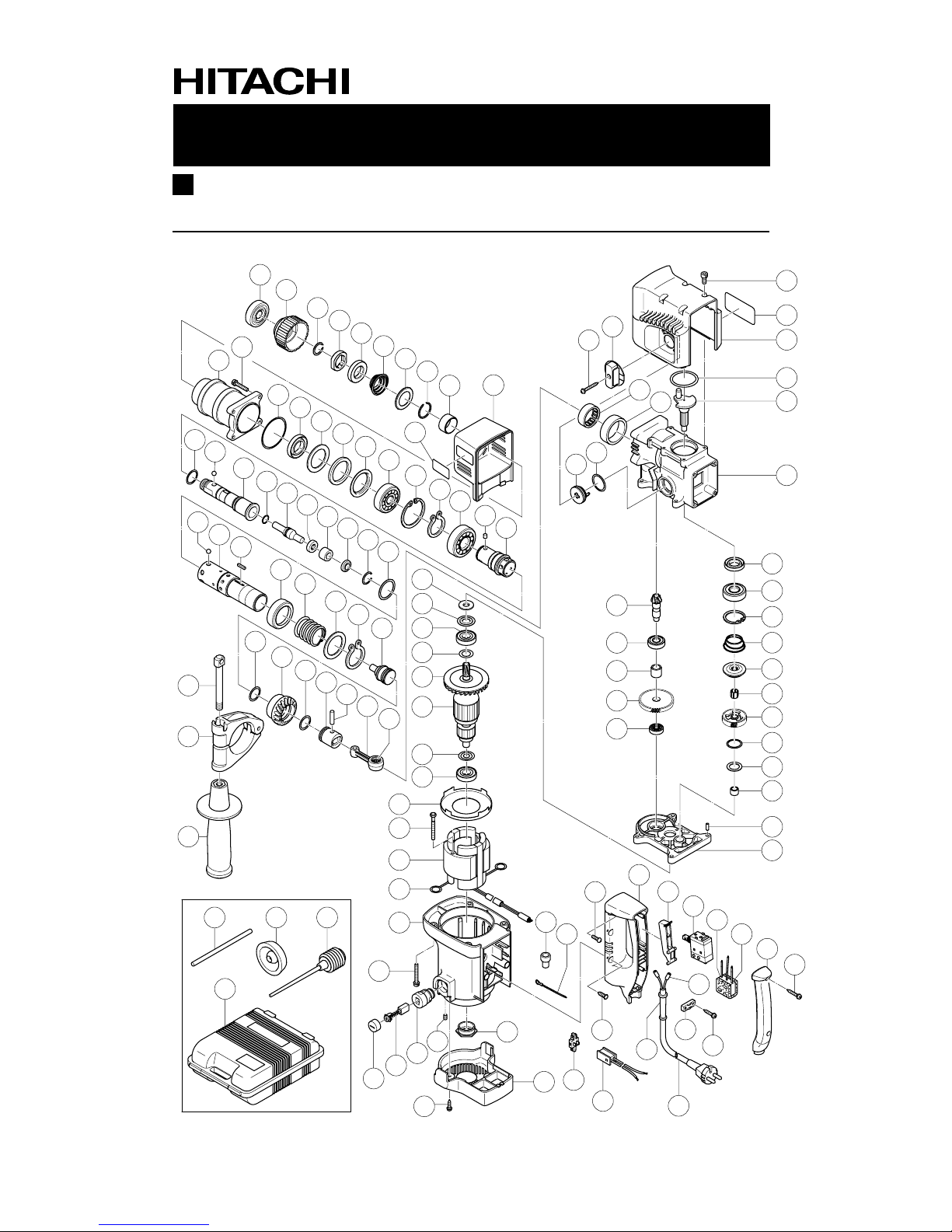

ELECTRIC TOOL PARTS LIST
LIST NO.
ROTARY HAMMER
Model DH 30PC
2002
•
5
•
30
(E1)
E466
1
2
345678
910
11
12 13
14 15 16 17 18 19
20 21 22
23 24
25 26
29 30
31
32
33
34
35
36
37
38
39
40
41
42
44
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
64 65
66 67 68 69 70 71
74 75
76
77
78 79
81
82
83 84
87
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105 106
107
109
110 111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
501 502 503
504
27 28
43
45
62
72
80
85
88
43
108
126
63
65
73
81
86
89
127

*ALTERNATIVE PARTS
--- 2 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
PARTS
5 -- 02
DH 30PC
1 318-028 FRONT CAP 1
2 320-352 GRIP 1
3 306-340 STOPPER RING 1
4 320-349 HOLDER SLEEVE 1
5 320-353 BALL HOLDER 1
6 320-351 HOLDER SPRING 1
7 320-354 SPRING HOLDER (B) 1
8 676-432 RETAINING RING 1
9 320-350 SLEEVE 1
10 320-355 CYLINDER CASE COVER 1
11 HITACHI LABEL 1
12 320-323 CYLINDER CASE 1
13 992-253 HEX. SOCKET HD. BOLT (W/FLANGE) M5X25 4
14 990-067 O-RING (1AS-50) 1
15 320-324 OIL SEAL 1
16 320-344 WASHER (B) 1
17 320-325 DAMPER (B) 1
18 320-326 DAMPER WASHER (B) 1
19 600-5T2 BALL BEARING 6005T2X3CN 1
20 948-227 RETAINING RING FOR D47 HOLE 1
21 948-310 RETAINING RING FOR D30 SHAFT 1
22 690-6T2 BALL BEARING 6906T2CN 1
23 320-343 NEEDLE 3
24 320-330 RETAINER SLEEVE (B) 1
25 307-028 TAPPING SCREW (W/FLANGE) D4X25 (BLACK) 1
26 320-360 CHANGE LEVER 1
27 320-307 NEEDLE BEARING 1
28 320-972 BEARING BUSHING 1
29 320-358 SHIFT LEVER 1
30 320-359 O-RING (B) 1
31 320-308 PLATE SPRING 1
32 320-309 LOCK PLATE 1
33 320-310 PLATE HOLDER 1
34 993-982 SEAL LOCK SCREW (W/SP. WASHER) M4X6 2
35 320-311 THIRD PINION 1
36 690-1DD BALL BEARING 6901DDC3PS2-L (EC) 1
37 983-748 RETAINING RING FOR D24 HOLE 1
38 320-313 CLUTCH SPRING (B) 1
39 320-314 CLUTCH (B) 1
40 320-361 SHIFT PLATE 1
41 320-315 SECOND GEAR 1
42 320-316 SLEEVE (B) 1
43 608-VVM BALL BEARING 608VVC2PS2L 2
44 320-363 SHIFT SPRING 1
45 320-362 SHIFT GUIDE 1
46 878-356 SEAL LOCK HEX. SOCKET HD. BOLT M4X10 4
47 NAME PLATE 1
48 320-356 CRANK CASE COVER 1
49 314-030 O-RING 1
50 320-318 CRANK SHAFT 1
51 320-368 CRANK CASE ASS’Y 1 INCLUD.27,28

*ALTERNATIVE PARTS --- 3 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
PARTS
5 -- 02
DH 30PC
52 981-851 OIL SEAL (B) 1
53 600-2VV BALL BEARING 6002VVCMPS2L 1
54 948-001 RETAINING RING FOR D32 HOLE 1
55 320-320 CLUTCH SPRING (A) 1
56 320-321 CLUTCH (A) 1
57 320-932 NEEDLE CAGE 1
58 320-322 FIRST GEAR 1
59 320-317 THRUST BALL BEARING 1
60 320-319 WASHER (A) 1
61 670-714 NEEDLE BEARING (HK0810) 1
62 949-756 PIN D4X12 (10 PCS.) 1
63 320-365 GEAR COVER 1
64 320-340 O-RING 1
65 959-156 STEEL BALL D7.0 (10 PCS.) 8
66 320-329 RETAINER SLEEVE (A) 1
67 311-819 O-RING (B) 1
68 320-331 SECOND HAMMER 1
69 320-332 HAMMER HOLDER 1
70 320-333 DAMPER 1
71 320-334 DAMPER HOLDER 1
72 320-335 STOPPER RING 1
73 320-341 WASHER (A) 1
74 320-328 CYLINDER 1
75 982-696 FEATHER KEY 3X3X15 2
76 320-336 PUSHING RING 1
77 320-337 SPRING (A) 1
78 320-338 WASHER (C) 1
79 320-339 RETAINING RING FOR D34 SHAFT 1
80 320-346 STRIKER 1
81 320-347 O-RING 2
82 320-345 THIRD GEAR 1
83 320-348 PISTON 1
84 319-581 PISTON PIN 1
85 982-647 CONNECTING ROD ASS’Y 1 INCLUD.86
86 956-406 NEEDLE BEARING (NTN 8Q-HK08 10D) 1
87 313-080 HANDLE BOLT 1
88 320-357 HANDLE HOLDER 1
89 313-078 SIDE HANDLE 1
90 320-366 FELT PACKING 1
91 320-367 PACKING WASHER 1
92 600-1DD BALL BEARING 6001DDCMPS2L 1
93 971-736 WASHER (B) 1
94 319-930 FAN 1
* 95 360-561U ARMATURE ASS’Y 110V-120V 1 INCLUD.43,92-94,96
* 95 360-561E ARMATURE ASS’Y 220V-230V 1 INCLUD.94
* 95 360-561F ARMATURE ASS’Y 240V 1 INCLUD.94
96 982-631 WASHER (A) 1
97 980-931 FAN GUIDE 1
98 953-121 HEX. HD. TAPPING SCREW D5X50 2
* 99 340-507H STATOR ASS’Y 110V-120V 1 INCLUD.100
* 99 340-507J STATOR ASS’Y 220V-230V 1 INCLUD.100

*ALTERNATIVE PARTS
--- 4 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
PARTS
5 -- 02
DH 30PC
* 99 340-507K STATOR ASS’Y 240V 1 INCLUD.100
* 99 340-507G STATOR ASS’Y 110V-120V 1 INCLUD.100 FOR USA,CAN
100 930-703 BRUSH TERMINAL 2
101 319-590 HOUSING ASS’Y 1 INCLUD.105,106
102 319-589 HEX. SOCKET HD. BOLT (W/FLANGE) M5X35 4
103 945-161 BRUSH CAP 2
104 999-073 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) 2
105 958-900 BRUSH HOLDER 2
106 938-477 HEX. SOCKET SET SCREW M5X8 2
107 307-811 TAPPING SCREW (W/FLANGE) D4X16 (BLACK) 2
108 310-111 BEARING BUSHING (B) 1
109 319-587 TAIL COVER 1
110 959-140 CONNECTOR 50091 (10 PCS.) 1
* 111 981-500 INTERNAL WIRE 1 EXCEPT FOR USA,CAN
112 307-294
MACHINE SCREW (W/WASHERS) M5X16 (BLACK) 4
113 319-597 HANDLE 1
114 319-594 TRIGGER 1
* 115 319-592 SWITCH (B) (2P PILLAR TYPE) W/O LOCK 1
* 115 319-593 SWITCH (A) (2P PILLAR TYPE) W/O LOCK 1 FOR GBR (110V),USA,CAN
* 116 994-273 NOISE SUPPRESSOR 1 EXCEPT FOR USA,CAN
* 117 317-492 SUPPORT (B) 1 FOR NOISE SUPPRESSOR
118 319-598 HANDLE COVER 1
119 301-653 TAPPING SCREW (W/FLANGE) D4X20 (BLACK) 2
* 120 981-373 TUBE (D) 2 FOR CORD
121 937-631 CORD CLIP 1
122 984-750 TAPPING SCREW (W/FLANGE) D4X16 2
123 305-558 TAPPING SCREW (W/FLANGE) D5X25 (BLACK) 2
* 124 953-327 CORD ARMOR D8.8 1
* 124 938-051 CORD ARMOR D10.1 1
* 125 500-390Z CORD 1 (CORD ARMOR D8.8)
* 125 500-439Z CORD 1 (CORD ARMOR D8.8) FOR AUS
* 125 500-446Z CORD 1
(CORD ARMOR D10.1) FOR HKG,GBR (230V)
* 125 500-454Z CORD 1 (CORD ARMOR D8.8) FOR GBR (110V),SAF,YEN
* 125 500-391Z CORD 1 (CORD ARMOR D10.1) FOR SUI
* 125 500-249Z CORD 1 (CORD ARMOR D8.8) FOR USA,CAN
* 125 500-457Z CORD 1 (CORD ARMOR D8.8) FOR CHN
126 313-092 PLUG (A) 1
* 127 319-595 PLUG (B) 1
* 127 319-596 PLUG (B) 1 FOR USA,CAN

*ALTERNATIVE PARTS --- 5 ---
STANDARD ACCESSORIES
OPTIONAL ACCESSORIES
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
5 -- 02
DH 30PC
501 320-973 STOPPER ROD 1
502 971-787 DUST CUP 1
503 318-085 SYRINGE (BELLOWS TYPE) 1
504 319-599 CASE 1
601 944-460 TAPER SHANK DRILL BIT D11X100 1
602 944-461 TAPER SHANK DRILL BIT D12.3X110 1
603 993-038 TAPER SHANK DRILL BIT D12.7X110 1
604 944-462 TAPER SHANK DRILL BIT D14.3X110 1
605 944-500 TAPER SHANK DRILL BIT D14.5X110 1
606 944-463 TAPER SHANK DRILL BIT D17.5X120 1
607 944-464 TAPER SHANK DRILL BIT D21.5X140 1
608 303-617 TAPER SHANK ADAPTER (SDS PLUS) NO.1 1
609 303-618 TAPER SHANK ADAPTER (SDS PLUS) NO.2 1
610 303-619 A-TAPER SHANK ADAPTER (SDS PLUS) 1
611 303-620 B-TAPER SHANK ADAPTER (SDS PLUS) 1
612 944-477 COTTER 1
613 302-976
ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L 1
614 302-975 ANCHOR SETTING ADAPTER A (SDS+)W5/16X260L 1
615 303-621
ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L 1
616 302-974 ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L 1
617 302-979 ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L 1
618 302-978
ANCHOR SETTING ADAPTER B (SDS+)W5/16X260L 1
619 303-622 ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L 1
620 302-977 ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L 1
621 971-794
ANCHOR SETTING ADAPTER A W1/4" (MANUAL) 1
622 971-795 ANCHOR SETTING ADAPTER A W5/16" (MANUAL) 1
623 971-796 ANCHOR SETTING ADAPTER A W3/8" (MANUAL) 1
624 971-797
ANCHOR SETTING ADAPTER A W1/2" (MANUAL) 1
625 971-798 ANCHOR SETTING ADAPTER A W5/8" (MANUAL) 1
626 971-799 ANCHOR SETTING ADAPTER B W1/4" (MANUAL) 1
627 971-800
ANCHOR SETTING ADAPTER B W5/16" (MANUAL) 1
628 971-801 ANCHOR SETTING ADAPTER B W3/8" (MANUAL) 1
629 971-802 ANCHOR SETTING ADAPTER B W1/2" (MANUAL) 1
630 971-803
ANCHOR SETTING ADAPTER B W5/8 " (MANUAL) 1
631 982-672 CORE BIT (A) 25MM 1

*ALTERNATIVE PARTS
--- 6 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
OPTIONAL ACCESSORIES
5 -- 02
DH 30PC
Printed in Japan
(020530N)
632 982-673 CORE BIT (A) 29MM 1
633 982-674 CORE BIT (A) 32MM 1
634 982-675 CORE BIT (A) 35MM 1
635 982-676 CORE BIT (A) 38MM 1
636 982-677 CORE BIT (B) 45MM 1
637 982-678 CORE BIT (B) 50MM 1
638 982-679 CORE BIT (B) 65MM 1
639 982-680 CORE BIT (B) 80MM 1
640 982-681 CORE BIT (B) 90MM 1
641 982-684 CENTER PIN (A) 109L FOR CORE BIT D32-38 1
642 982-685 CENTER PIN (B) 104L FOR CORE BIT D45-90 1
643 303-625 CORE BIT SHANK (SDS PLUS) 25-38MM 105L 1
644 303-626 CORE BIT SHANK (SDS PLUS) 25-38MM 300L 1
645 303-627 CORE BIT SHANK (SDS PLUS) 45-90MM 300L1
646 315-921 ADAPTER (A) FOR HAMMER DRILL 1
647 320-859 SYRINGE (BLOW-OUT BULB TYPE) 1
648 303-046
BULL POINT (SDS+) 250MM (ROUND SHANK TYPE) 1
649 303-044 CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L 1
650 303-045
CHEMICAL ANCHOR ADAPTER (SDS+)19.0MMX100L 1
651 950-275 DRILL CHUCK 13VLR 1 INCLUD.652,654
652 930-515 CHUCK WRENCH 10G 1
653 950-272 DRILL CHUCK 13VLA 1 INCLUD.652
654 981-122 SPECIAL SCREW M6X22 1
655 986-802 DUST COLLECTOR ASS’Y 1 INCLUD.656-662
656 986-803 DUST COVER 1
657 986-804 SEAL COVER 1
658 948-310 RETAINING RING FOR D30 SHAFT 1
659 958-063 WASHER 1
660 959-150 STEEL BALL D6.35 (10 PCS.) 19
661 986-805 OUTER RACE 1
662 986-806 SOCKET 1
663 303-820
DRILL CHUCK AND ADAPTER SET (SDS PLUS) 1 INCLUD.651,654,665
664 303-624 CHUCK ADAPTER (D) (SDS PLUS) 1
665 303-623 CHUCK ADAPTER (G) (SDS PLUS) 1
666 971-511Z + DRIVER BIT (A) NO.2 25L 1
667 971-512Z + DRIVER BIT (A) NO.3 25L 1
668 980-927
GREASE FOR HAMMER.HAMMER DRILL (500G) 1
669 308-471 GREASE FOR HAMMER.HAMMER DRILL (70G) 1
670 981-840
GREASE (A) FOR HAMMER.HAMMER DRILL (30G) 1
671 990-912 DUST COLLECTOR (FOR IMPACT DRILL C) 1
672 963-558 ADAPTER 1

ELECTRIC TOOL PARTS LIST
LIST NO.
ROTARY HAMMER
Model DH 30PB
2002
•
5
•
30
(E1)
E465
1
2
345678
910
11
12 13
14 15 16 17 18 19
20 21 22
23 24
25 26
29
501 502 503
504
31
32
33
34
36
37
38
39
40
51
54 55
56
57 58 59 60 61
64 65
66
67
68 69 70
71
72
73 74
77
80
81
82
83
84
85
86
87
88
89
90
91
92
93 94 95 96
97
100 101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
27 28
30
35
41
52
62
75
78
35
98
116
42
43
44
45
46
47
48
49
50
53
55
63
71
76
79
99
117

*ALTERNATIVE PARTS
--- 2 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
PARTS
5 -- 02
DH 30PB
1 318-028 FRONT CAP 1
2 320-352 GRIP 1
3 306-340 STOPPER RING 1
4 320-349 HOLDER SLEEVE 1
5 320-353 BALL HOLDER 1
6 320-351 HOLDER SPRING 1
7 320-354 SPRING HOLDER (B) 1
8 676-432 RETAINING RING 1
9 320-350 SLEEVE 1
10 320-355 CYLINDER CASE COVER 1
11 HITACHI LABEL 1
12 320-323 CYLINDER CASE 1
13 992-253 HEX. SOCKET HD. BOLT (W/FLANGE) M5X25 4
14 990-067 O-RING (1AS-50) 1
15 320-324 OIL SEAL 1
16 320-344 WASHER (B) 1
17 320-325 DAMPER (B) 1
18 320-326 DAMPER WASHER (B) 1
19 600-5T2 BALL BEARING 6005T2X3CN 1
20 948-227 RETAINING RING FOR D47 HOLE 1
21 948-310 RETAINING RING FOR D30 SHAFT 1
22 690-6T2 BALL BEARING 6906T2CN 1
23 320-343 NEEDLE 3
24 320-330 RETAINER SLEEVE (B) 1
25 307-028 TAPPING SCREW (W/FLANGE) D4X25 (BLACK) 1
26 320-360 CHANGE LEVER 1
27 320-307 NEEDLE BEARING 1
28 320-972 BEARING BUSHING 1
29 320-305 SHIFT LEVER 1
30 320-359 O-RING (B) 1
31 320-301 THIRD PINION 1
32 690-1DD BALL BEARING 6901DDC3PS2-L (EC) 1
33 320-303 SLEEVE (C) 1
34 320-302 SECOND GEAR 1
35 608-VVM BALL BEARING 608VVC2PS2L 2
36 878-356 SEAL LOCK HEX. SOCKET HD. BOLT M4X10 4
* 37 NAME PLATE 1
38 320-304 CRANK CASE COVER 1
39 314-030 O-RING 1
40 320-318 CRANK SHAFT 1
41 320-368 CRANK CASE ASS’Y 1 INCLUD.27,28
42 981-851 OIL SEAL (B) 1
43 600-2VV BALL BEARING 6002VVCMPS2L 1
44 948-001 RETAINING RING FOR D32 HOLE 1
45 320-320 CLUTCH SPRING (A) 1
46 320-321 CLUTCH (A) 1
47 320-932 NEEDLE CAGE 1
48 320-322 FIRST GEAR 1
49 320-317 THRUST BALL BEARING 1
50 320-319 WASHER (A) 1
51 670-714 NEEDLE BEARING (HK0810) 1

*ALTERNATIVE PARTS --- 3 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
PARTS
5 -- 02
DH 30PB
52 949-756 PIN D4X12 (10 PCS.) 1
53 320-365 GEAR COVER 1
54 320-340 O-RING 1
55 959-156 STEEL BALL D7.0 (10 PCS.) 8
56 320-329 RETAINER SLEEVE (A) 1
57 311-819 O-RING (B) 1
58 320-331 SECOND HAMMER 1
59 320-332 HAMMER HOLDER 1
60 320-333 DAMPER 1
61 320-334 DAMPER HOLDER 1
62 320-335 STOPPER RING 1
63 320-341 WASHER (A) 1
64 320-328 CYLINDER 1
65 982-696 FEATHER KEY 3X3X15 2
66 320-336 PUSHING RING 1
67 320-337 SPRING (A) 1
68 320-338 WASHER (C) 1
69 320-339 RETAINING RING FOR D34 SHAFT 1
70 320-346 STRIKER 1
71 320-347 O-RING 2
72 320-345 THIRD GEAR 1
73 320-348 PISTON 1
74 319-581 PISTON PIN 1
75 982-647 CONNECTING ROD ASS’Y 1 INCLUD.76
76 956-406 NEEDLE BEARING (NTN 8Q-HK08 10D) 1
77 313-080 HANDLE BOLT 1
78 320-357 HANDLE HOLDER 1
79 313-078 SIDE HANDLE 1
80 320-366 FELT PACKING 1
81 320-367 PACKING WASHER 1
82 600-1DD BALL BEARING 6001DDCMPS2L 1
83 971-736 WASHER (B) 1
84 319-930 FAN 1
* 85 360-561U ARMATURE ASS’Y 110V-120V 1 INCLUD.35,82-84,86
* 85 360-561E ARMATURE ASS’Y 220V-230V 1 INCLUD.84
* 85 360-561F ARMATURE ASS’Y 240V 1 INCLUD.84
86 982-631 WASHER (A) 1
87 980-931 FAN GUIDE 1
88 953-121 HEX. HD. TAPPING SCREW D5X50 2
* 89 340-507H STATOR ASS’Y 110V-120V 1 INCLUD.90
* 89 340-507J STATOR ASS’Y 220V-230V 1 INCLUD.90
* 89 340-507K STATOR ASS’Y 240V 1 INCLUD.90
* 89 340-507G STATOR ASS’Y 110V-120V 1 INCLUD.90 FOR USA,CAN
90 930-703 BRUSH TERMINAL 2
91 319-590 HOUSING ASS’Y 1 INCLUD.95,96
92 319-589 HEX. SOCKET HD. BOLT (W/FLANGE) M5X35 4
93 945-161 BRUSH CAP 2
94 999-073 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) 2
95 958-900 BRUSH HOLDER 2
96 938-477 HEX. SOCKET SET SCREW M5X8 2
97 307-811 TAPPING SCREW (W/FLANGE) D4X16 (BLACK) 2

*ALTERNATIVE PARTS
--- 4 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
PARTS
5 -- 02
DH 30PB
98 310-111 BEARING BUSHING (B) 1
99 319-587 TAIL COVER 1
100 959-140 CONNECTOR 50091 (10 PCS.) 1
* 101 981-500 INTERNAL WIRE 1 EXCEPT FOR USA,CAN
102 307-294
MACHINE SCREW (W/WASHERS) M5X16 (BLACK) 4
103 319-597 HANDLE 1
104 319-594 TRIGGER 1
* 105 319-592 SWITCH (B) (2P PILLAR TYPE) W/O LOCK 1
* 105 319-593 SWITCH (A) (2P PILLAR TYPE) W/O LOCK 1 FOR GBR (110V),USA,CAN
* 106 994-273 NOISE SUPPRESSOR 1 EXCEPT FOR USA,CAN
* 107 317-492 SUPPORT (B) 1 FOR NOISE SUPPRESSOR
108 319-598 HANDLE COVER 1
109 301-653
TAPPING SCREW (W/FLANGE) D4X20 (BLACK) 2
* 110 981-373 TUBE (D) 2 FOR CORD
111 937-631 CORD CLIP 1
112 984-750 TAPPING SCREW (W/FLANGE) D4X16 2
113 305-558 TAPPING SCREW (W/FLANGE) D5X25 (BLACK) 2
* 114 953-327 CORD ARMOR D8.8 1
* 114 938-051 CORD ARMOR D10.1 1
* 115 500-390Z CORD 1 (CORD ARMOR D8.8)
* 115 500-439Z CORD 1 (CORD ARMOR D8.8) FOR AUS
* 115 500-446Z CORD 1 (CORD ARMOR D10.1) FOR HKG,GBR (230V)
* 115 500-454Z CORD 1 (CORD ARMOR D8.8) FOR GBR (110V),SAF
* 115 500-391Z CORD 1 (CORD ARMOR D10.1) FOR SUI
* 115 500-249Z CORD 1 (CORD ARMOR D8.8) FOR USA,CAN
* 115 500-457Z CORD 1 (CORD ARMOR D8.8) FOR CHN
116 313-092 PLUG (A) 1
* 117 319-595 PLUG (B) 1
* 117 319-596 PLUG (B) 1 FOR USA,CAN

*ALTERNATIVE PARTS --- 5 ---
STANDARD ACCESSORIES
OPTIONAL ACCESSORIES
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
5 -- 02
DH 30PB
501 320-973 STOPPER ROD 1
502 971-787 DUST CUP 1
503 318-085 SYRINGE (BELLOWS TYPE) 1
504 319-599 CASE 1
601 944-460 TAPER SHANK DRILL BIT D11X100 1
602 944-461 TAPER SHANK DRILL BIT D12.3X110 1
603 993-038 TAPER SHANK DRILL BIT D12.7X110 1
604 944-462 TAPER SHANK DRILL BIT D14.3X110 1
605 944-500 TAPER SHANK DRILL BIT D14.5X110 1
606 944-463 TAPER SHANK DRILL BIT D17.5X120 1
607 944-464 TAPER SHANK DRILL BIT D21.5X140 1
608 303-617
TAPER SHANK ADAPTER (SDS PLUS) NO.1 1
609 303-618
TAPER SHANK ADAPTER (SDS PLUS) NO.2 1
610 303-619 A-TAPER SHANK ADAPTER (SDS PLUS) 1
611 303-620 B-TAPER SHANK ADAPTER (SDS PLUS) 1
612 944-477 COTTER 1
613 302-976
ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L 1
614 302-975 ANCHOR SETTING ADAPTER A (SDS+)W5/16X260L 1
615 303-621
ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L 1
616 302-974 ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L 1
617 302-979 ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L 1
618 302-978
ANCHOR SETTING ADAPTER B (SDS+)W5/16X260L 1
619 303-622 ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L 1
620 302-977 ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L 1
621 971-794
ANCHOR SETTING ADAPTER A W1/4" (MANUAL) 1
622 971-795 ANCHOR SETTING ADAPTER A W5/16" (MANUAL) 1
623 971-796 ANCHOR SETTING ADAPTER A W3/8 " (MANUAL) 1
624 971-797
ANCHOR SETTING ADAPTER A W1/2 " (MANUAL) 1
625 971-798 ANCHOR SETTING ADAPTER A W5/8 " (MANUAL) 1
626 971-799 ANCHOR SETTING ADAPTER B W1/4 " (MANUAL) 1
627 971-800
ANCHOR SETTING ADAPTER B W5/16" (MANUAL) 1
628 971-801 ANCHOR SETTING ADAPTER B W3/8 " (MANUAL) 1
629 971-802 ANCHOR SETTING ADAPTER B W1/2 " (MANUAL) 1
630 971-803
ANCHOR SETTING ADAPTER B W5/8 " (MANUAL) 1
631 982-672 CORE BIT (A) 25MM 1

*ALTERNATIVE PARTS
--- 6 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
OPTIONAL ACCESSORIES
5 -- 02
DH 30PB
632 982-673 CORE BIT (A) 29MM 1
633 982-674 CORE BIT (A) 32MM 1
634 982-675 CORE BIT (A) 35MM 1
635 982-676 CORE BIT (A) 38MM 1
636 982-677 CORE BIT (B) 45MM 1
637 982-678 CORE BIT (B) 50MM 1
638 982-679 CORE BIT (B) 65MM 1
639 982-680 CORE BIT (B) 80MM 1
640 982-681 CORE BIT (B) 90MM 1
641 982-684 CENTER PIN (A) 109L FOR CORE BIT D32-38 1
642 982-685 CENTER PIN (B) 104L FOR CORE BIT D45-90 1
643 303-625 CORE BIT SHANK (SDS PLUS) 25-38MM 105L 1
644 303-626 CORE BIT SHANK (SDS PLUS) 25-38MM 300L 1
645 303-627 CORE BIT SHANK (SDS PLUS) 45-90MM 300L 1
646 315-921 ADAPTER (A) FOR HAMMER DRILL 1
647 320-859 SYRINGE (BLOW-OUT BULB TYPE) 1
648 303-046
BULL POINT (SDS+) 250MM (ROUND SHANK TYPE) 1
649 303-044 CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L 1
650 303-045 CHEMICAL ANCHOR ADAPTER (SDS+)19.0MMX100L 1
651 950-275 DRILL CHUCK 13VLR 1 INCLUD.652,654
652 930-515 CHUCK WRENCH 10G 1
653 950-272 DRILL CHUCK 13VLA 1 INCLUD.652
654 981-122 SPECIAL SCREW M6X22 1
655 986-802 DUST COLLECTOR ASS’Y 1 INCLUD.656-662
656 986-803 DUST COVER 1
657 986-804 SEAL COVER 1
658 948-310 RETAINING RING FOR D30 SHAFT 1
659 958-063 WASHER 1
660 959-150 STEEL BALL D6.35 (10 PCS.) 19
661 986-805 OUTER RACE 1
662 986-806 SOCKET 1
663 303-820
DRILL CHUCK AND ADAPTER SET (SDS PLUS) 1 INCLUD.651,654,665
664 303-624 CHUCK ADAPTER (D) (SDS PLUS) 1
665 303-623 CHUCK ADAPTER (G) (SDS PLUS) 1
666 971-511Z + DRIVER BIT (A) NO.2 25L 1
667 971-512Z + DRIVER BIT (A) NO.3 25L 1
668 980-927
GREASE FOR HAMMER.HAMMER DRILL (500G) 1
669 981-840 GREASE (A) FOR HAMMER.HAMMER DRILL (30G) 1
670 308-471 GREASE FOR HAMMER.HAMMER DRILL (70G) 1
671 990-912 DUST COLLECTOR (FOR IMPACT DRILL C) 1
672 963-558 ADAPTER 1
Printed in Japan
(020530N)
