Hitachi S 18SA Manual

POWER TOOLS
TECHNICAL DATA
AND
SERVICE MANUAL
DISC SANDERS
S 15SA, S 18SA
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
LIST Nos. S 15SA: 0349
S 18SA: 0350 Sep. 1999
S
MODELS
S 15SA
S 18SA

REMARK:
Throughout this TECHNICAL DATA AND SERVICE MANUAL, a symbol(s)
is(are) used in the place of company name(s) and model name(s) of our
competitor(s). The symbol(s) utilized here is(are) as follows:
Symbol Utilized Competitor
Company Name Model Name
MAKITA 9218 SB
C-2
S 18SA
Symbol Utilized Competitor
Company Name Model Name
MAKITA 9215 SB
C-1
S 15SA

Page
CONTENTS
1. PRODUCT NAME •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 1
2. MARKETING OBJECTIVE •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 1
3. APPLICATIONS •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
1
4. SELLING POINTS ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 1
4-1. Selling Point Descriptions ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 2
5. SPECIFICATIONS ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 4
6. COMPARISONS WITH SIMILAR PRODUCTS •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 5
6-1. Specification Comparisons ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 5
6-2. Practical Test Data •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 6
7. PRECAUTIONS IN SALES PROMOTION ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 7
7-1. Handling Instructions •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 7
7-2. Cautions on Name Plate ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 7
7-3. Precautions on Usage •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 7
8. PRECAUTIONS IN DISASSEMBLY AND REASSEMBLY ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 8
8-1. Disassembly of the ArmatureAss'y and the Lock Lever Ass'y •••••••••••••••••••••••••••••••••••••••••••••••••••• 8
8-2. Disassembly of the Stator Ass'y •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 9
8-3. Disassembly of the First Gear and the Ball Bearing •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 9
8-4. Reassembly •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 10
8-5. Tightening Torque •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 10
8-6. Wiring Diagrams •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 10
8-7. Insulation Tests •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 11
8-8. No-Load Current Values ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 11
9. STANDARD REPAIR TIME (UNIT) SCHEDULES ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••12
[ Appendix ]

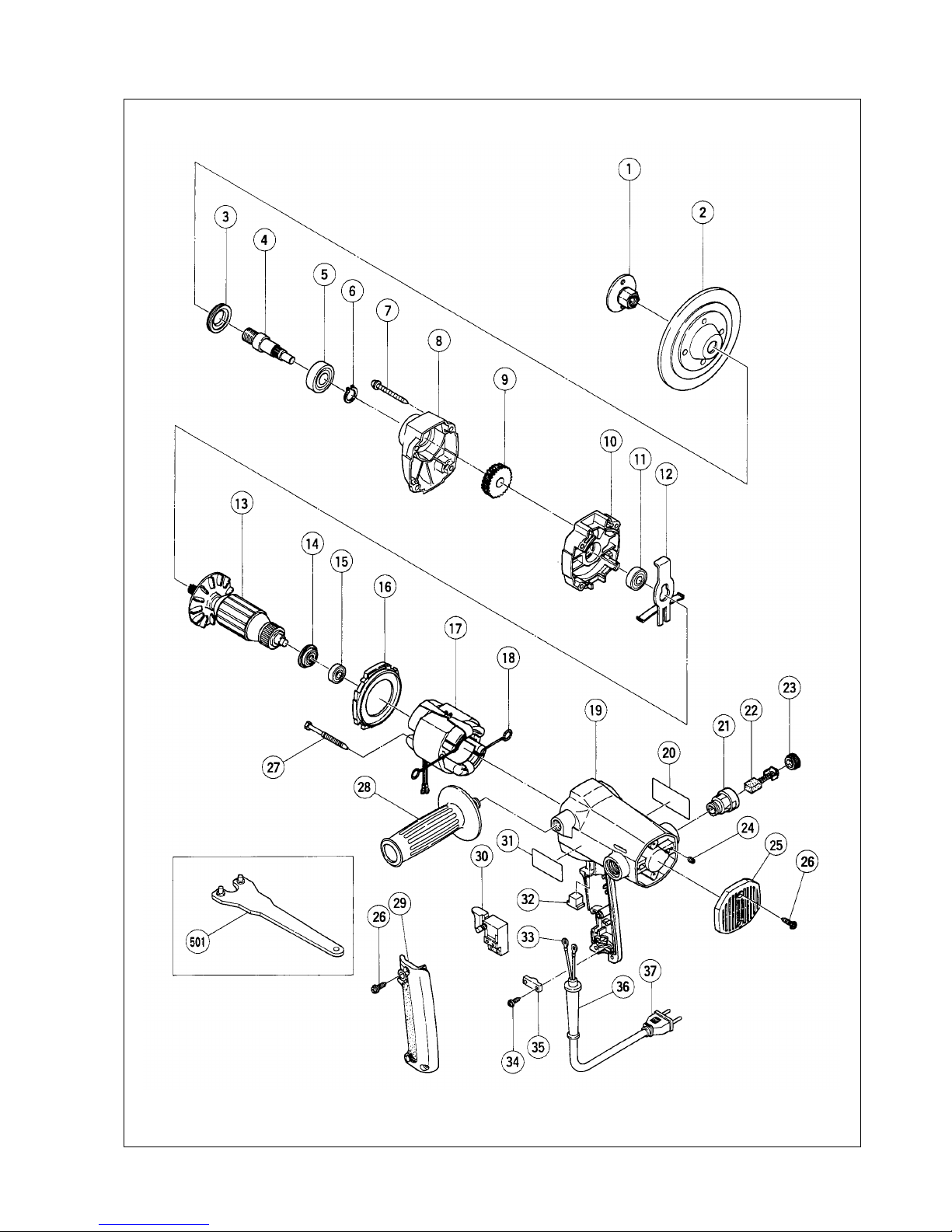

Assembly Diagram for S 15SA ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 13
Assembly Diagram for S 18SA ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 16

--- 1 ---
1. PRODUCT NAME
Hitachi Disc Sanders, Models S 15SA [150 mm (6")]
S 18SA [180 mm (7")]
2. MARKETING OBJECTIVE
The Models S 15SA and S 18SA are high-power and double-insulated disc sanders with a stand-up design
specially developed to meet customer demands in European and Asian markets.
These disc sanders will make it possible to exploit new markets because they are the first products in our disc
sander line to satisfy this range of demands.
The Models S 15SA and S 18SA have the following features.
1) High-power motor
2) Convenient spindle lock
3) Dust-proof bearing-chamber
3. APPLICATIONS
•Sanding of metal and stone surfaces.
•Preliminary sanding of metal surfaces before painting, rust removal, removing old paint before repainting.
•Finishing of wood surfaces, and reducing projections of joints or assemblies.
•Preliminary sanding of wood surfaces before painting.

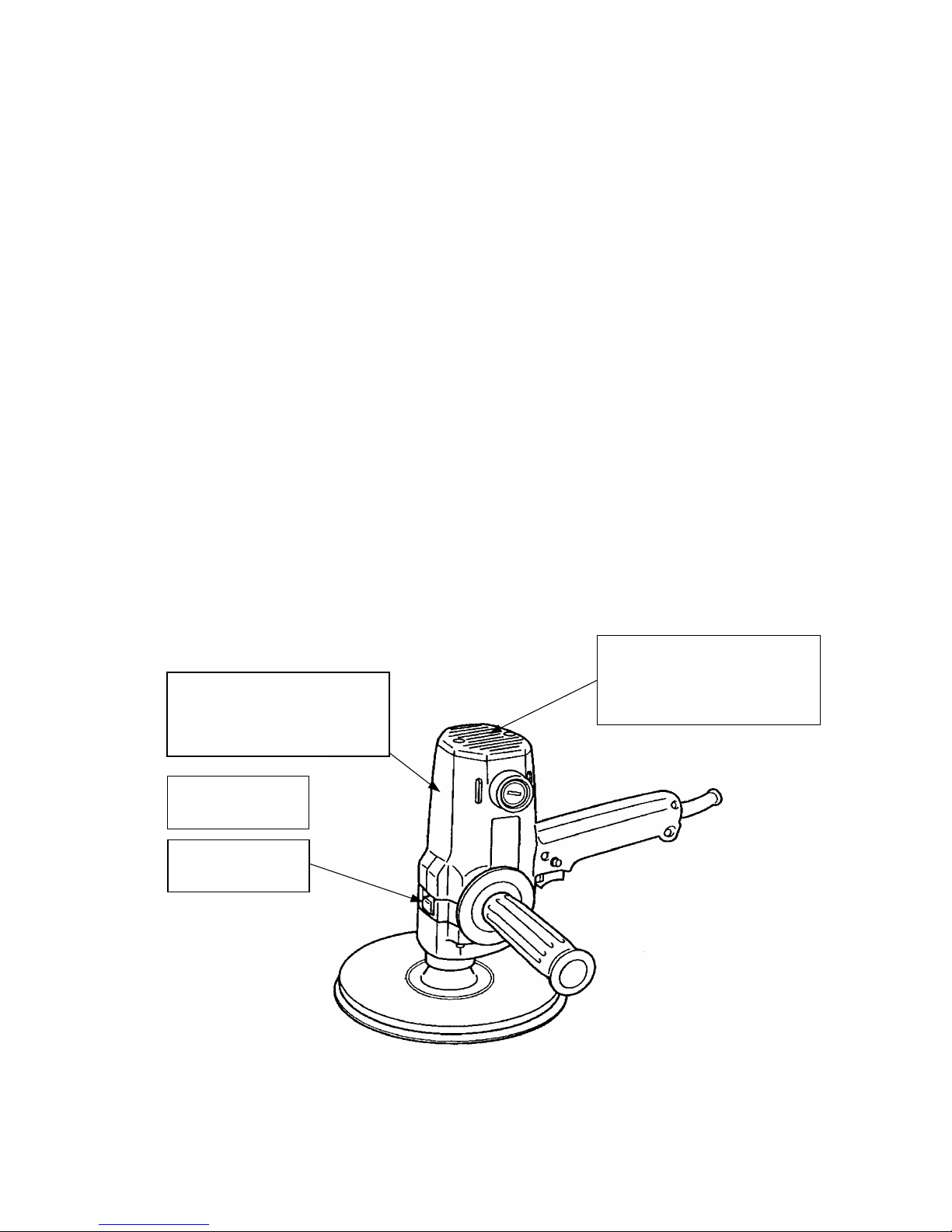

4. SELLING POINTS
New dust seal
Efficiently prevents dust from
entering the ball bearing on the
commutator side
Excellent overload
durability
Convenient spindle
lock
High-power motor
Max. output:
220 --- 230 V: 940 W (1.3 hp)
110 --- 115 V: 810 W (1.1 hp)

--- 2 ---
4-1. Selling Point Descriptions
1) High-power motor
The Models S 15SA and S 18SA are equipped with high-power motors and are more powerful than similar
products.
We could say that the ratio of the motor's maximum output to the product weight defines its performance.
Compared with typical competitor's models C-1 and C-2 in terms of this indicator, the Models S 15SA and
S 18SA prove to have the higher performance as shown in Table 1.
Table 1 Comparison of max. output and product weight (220 --- 230 V)
Max. output *1(W) 940 (1.26 hp) 660 (0.88 hp) 940 (1.26 hp) 660 (0.88 hp)
Actual product weight *2(kg) 2.73 (6.02 lbs) 2.58 (5.69 lbs) 2.84 (6.26 lbs) 2.72 (6.00 lbs)
Max. output/product weight (W/kg) 344 (0.21 hp/lb) 256 (0.15 hp/lb) 331 (0.20 hp/lb) 243 (0.15 hp/lb)
Capacity
Maker
Model
Item
150 mm 180 mm
HITACHI C-1 HITACHI C-2
S 15SA S 18SA
*1Max. output may vary depending on the market
*2Actual product weight is a measured weight and excludes cord.
(Maximum output may vary depending on market area.)
Tighten
Push
Loosen
Lock lever
Wrench
Fig. 1
2) Convenient spindle lock
The Models S 15SA and S 18SA are the first disc sanders in the disc sander industry equipped with a
convenient spindle-lock mechanism.
Thanks to this mechanism, tools can be easily replaced as shown in Fig. 1.

--- 3 ---
3) Excellent overload durability
The Models S 15SA and S 18SA provide excellent overload durability thanks to the improved cooling fan and
cooling air passage design as well as the high-power motor.
Overload durability is defined as the amount of thrust force required to raise the stator coil temperature by 200
K, and the ratio of these models to similar products C-1 and C-2 is indicated in Table 2. Comparing these data,
the Models S 15SA and S 18SA prove to have the excellent overload durability against C-1 and C-2.
Table 2 Comparison of overload durability
Maker HITACHI C-1 / C-2
Model S 15SA / S 18SA
Overload durability ratio 1.2 1
4) New dust seal
Newly-designed dust seals are adopted in the bearing chamber on the commutator side. This ensures better
dust-resistance of the ball bearing in comparison with C-1 and C-2. The key features of the new dust seal are
as follows.
(1) Width is increased to 6.5 mm (C: 2 mm)
(2) 2-step side construction is provided and each step has labyrinth grooves.
Fig. 2
Labyrinth grooves Labyrinth grooves
2 mm 6.5 mm
C-1 / C-2 HITACHI
S 15SA / S 18SA

--- 4 ---
5. SPECIFICATIONS
Item Model S 15SA S 18SA
150 mm (6") 180 mm (7")
AC single phase 50 or 60 Hz
* Weight excludes cord.
Capacity
Power source
Voltage, current and
power input
Rotation speed (no-load)
Type of motor
Type of switch
Enclosure
Catalog Net*
Weight Actual Net*
Gross
Packaging
Standard accessories
4,000 /min
AC single-phase commutator motor
Trigger switch
Material: Housing
Handle cover •••••Glassfiber reinforced polyamide resin (green)
Tale cover
Gear cover •••••Aluminum alloy die casting
Inner cover
Painting: Gear cover •••••Metallic silver
Inner cover
2.7 kg (6.0 lbs) 2.7 kg (6.0 lbs)
2.7 kg (6.0 lbs) 2.8 kg (6.2 lbs)
3.4 kg (7.5 lbs) 3.5 kg (7.7 lbs)
Corrugated cardboard box
Rubber pad 150 mm (6") ••••••••••••••••••• 1 Rubber pad 180 mm (7") ••••••••••••••••••• 1
Side handle •••••••••••••••••••••••••••••••••••••• 1 Sanding disc (grit: #P50 or #P16)
Wrench •••••••••••••••••••••••••••••••••••••••••••• 1 180 mm (7") •••••••••••••••••••••••••••••••••• 1
Side handle •••••••••••••••••••••••••••••••••••••• 1
Wrench •••••••••••••••••••••••••••••••••••••••••••• 1
Voltage (V) Current (A) Power input (W)
110 6.3
115 6.0 650
220 3.1
230 3.0

--- 5 ---
Maker HITACHI C-1 / C-2
Model S 15SA / S 18SA
Capacity mm 150 (6") / 180 (7") 150 (6") / 180 (7")
Power input W 650 570
Power output W 390 (0.5 hp) 340 (0.5 hp)
Max. power output ( 220 --- 230 V / 110 --- 115 V ) W 940 (1.3 hp) / 810 (1.1 hp) 660 (0.9 hp) / 630 (0.8 hp)
No-load speed /min 4,000 4,000
No-load noise level dB/A 85 82
Spindle lock Equipped NA *1
Side handle mounting location 1 1
Catalog 2.7 (6.0 lbs) 2.7 (6.0 lbs)
Weight *2Actual kg 2.7/2.8 2.6/2.7
(6.0 lbs / 6.2 lbs) (5.7 lbs / 6.0 lbs)
Catalog H mm 225 (8-7/8") 225 (8-7/8")
H mm 227 (8-15/16") 227 (8-15/16")
Dimensions Actual L mm 237 (9-11/32") 236 (9-1/4")
W mm 105 (4-1/8") 98 (3-27/32")

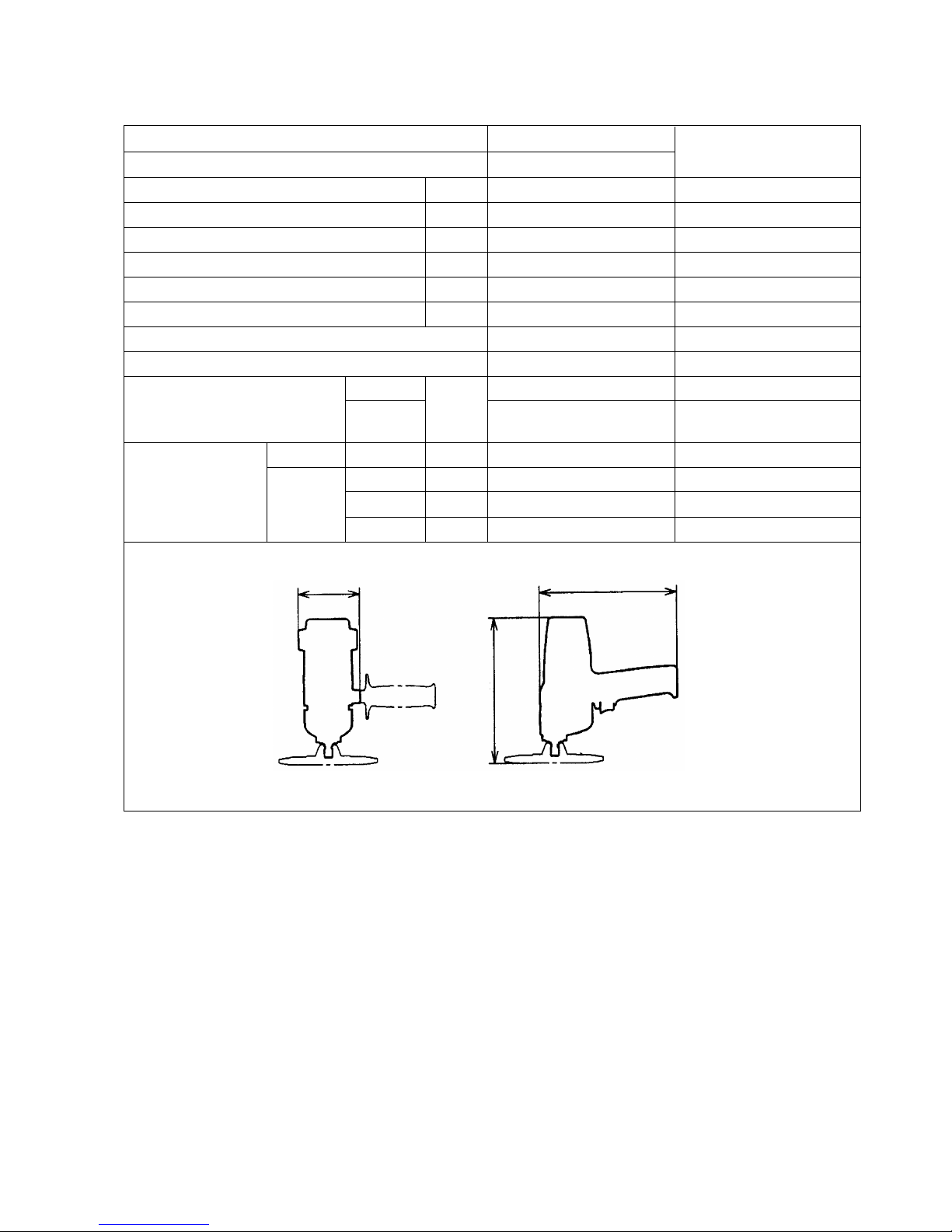

6. COMPARISONS WITH SIMILAR PRODUCTS
6-1. Specification Comparisons
WL
H
*1NA: Not applicable
*2Weight without cord

--- 6 ---
6-2. Practical Test Data
1) Comparisons in load vs. rotation speed and stator coil temp. rise
The graph below shows the relationship between the rotation speed and the stator coil temperature rise while
varying loads.
The temperature rise of the Model S 18SA (the Model S 15SA is similar) is lower than that of the similar
product C-2.
And the rotation speed of the Model S 18SA (the Model S 15SA is similar) is higher than that of C-2.
This means that the overload durability and efficiency of the Model S 18SA are superior to C-2.
HITACHI
S 18SA
Stator coil tamp. rise
: Burn-out point
Load
HITACHI
S 18SA
Rotation speed of spindle
Rotation speed of spindle (/min)
Stator coil temp. rise (K)
C-2
C-2
0
1000
2000
0
200
400
3000
4000
5000
2) Comparisons in sanding performance
The graph below shows the sanding performances comparing produced particle weight production 15 minutes
of operation.
The sanding performance of the Model S 18SA (the Model S 15SA has a similar level) is higher than that of
C-2.
This means that the efficiency of the Model S 18SAis superior to C-2.
HITACHI
S 18SA
C-2
Sanding amount (grams)
0 5 10 15 20 25 30
123 % against C-2
[Test conditions]
•Sandpaper: Grit #C-P36 •Material sanded: Mild steel
•Thrust force: Empty weight + 1.5 kg

--- 7 ---
7. PRECAUTIONS IN SALES PROMOTION
In the interest of promoting the safest and most efficient use of the Models S 15SA and S 18SA Disc Sanders by
all of our customers, it is very important that at the time of sale, the salesperson carefully ensures that the buyer
seriously recognizes the importance of the contents of the Handling Instructions, and fully understands the
meaning of the precautions listed on the Name Plate attached to each tool.
7-1. Handling Instructions
Although every effort is made in each step of design, manufacture, and inspection to provide protection against
safety hazards, the dangers inherent in the use of any electric power tool cannot be completely eliminated.
Accordingly, general precautions and suggestions for the use of the Disc Sander are listed in the Handling
Instructions to enhance the safe, efficient use of the tool by the customer. Salespersons must be thoroughly
familiar with the contents of the Handling Instructions to be able to offer appropriate guidance to the customer
during sales promotion.
7-2. Cautions on Name Plate
The following basic precautions are listed on the Name Plate attached to the main body of each tool.
1) S 15SA
(1) For Taiwan
-- WARNING --
To reduce the risk of injury, the user must read and understand instruction manual.
AVERTISSEMENT
Afin de rèduire le risque de blessures, l'utilisateur doit lire et bien comprendre le
mode d'emploi.
(1) For the U.S.A. and Canada
2) S 18SA
CAUTION
Read thoroughly HANDLING INSTRUCTIONS before use.
(1) For China
7-3. Precautions on Usage
Never press the lock lever while the spindle is rotating:
If the lock lever is pressed while the spindle is rotating, the spindle will stop immediately. In such a case, there is
a danger that the wheel washer may be loosened so that the rubber pad and sanding disc fly off unexpectedly to
cause possible serious injury.

--- 8 ---
8. PRECAUTIONS IN DISASSEMBLY AND REASSEMBLY
The [Bold] numbers in the descriptions below correspond to the item numbers in the Parts List and exploded
assembly diagram for S 15SA and the <Bold> numbers to those in the Parts List and exploded assembly diagram
for S 18SA.
8-1. Disassembly of the Armature Ass'y and the Lock Lever Ass'y
(1) Loosen the two Brush Caps [23] <23>, and take out the Carbon Brushes [22] <22>.
(2) Remove the four Tapping Screws D5 x 45 [7] <7>, and remove the Gear Cover [8] <8>, and related parts.
The Armature Ass'y [13] <13> can then be taken out together with the Inner Cover [10] <10>, the Lock Lever
[12] <12>, and related parts.

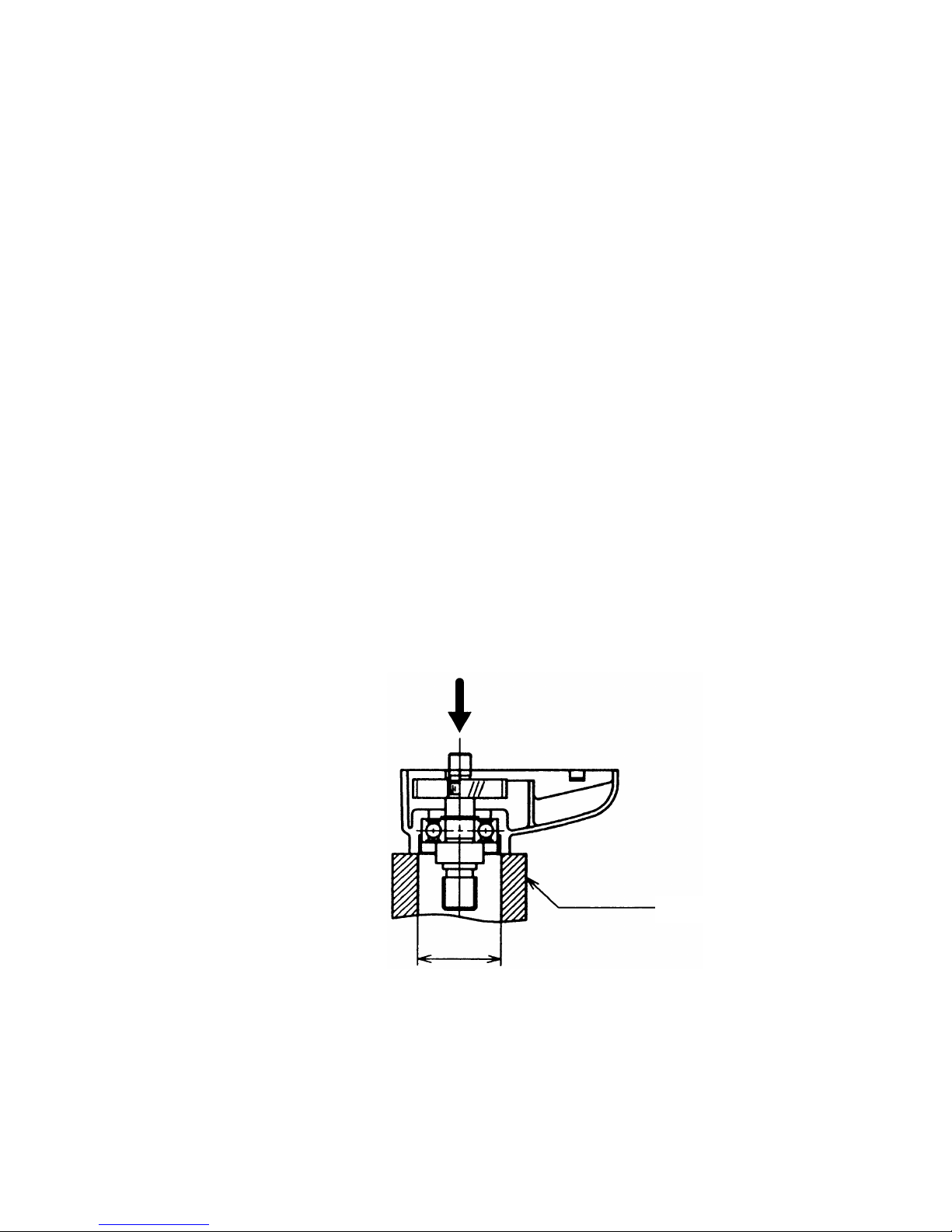

(3) As illustrated in Fig. 3, the Inner Cover [10] <10>, and related parts can be removed from the Armature Ass'y
[13] <13>, and related parts by utilizing a J-130 sleeve (special repair tool, Code No. 970907) and a J-131
plate (special repair tool, Code No. 305711).
(4) The Ball Bearing [11] <11> can be removed from the Armature Ass'y [13] <13> by utilizing the J-30 bearing
puller ass'y (special repair tool, Code No. 970804).
After the Ball Bearing has been removed, the Lock Lever [12] <12> can be easily taken off.
(5) As illustrated in Fig. 4, the Ball Bearing [15] <15> can also be removed from the ArmatureAss'y [13] <13> by
utilizing the J-130 sleeve (special repair tool, Code No. 970907) and a J-204 bearing puller (special repair tool,
Code No. 970982).
After the Ball Bearing has been removed, the Dust Seal [14] <14> can be easily taken out.
Push Push the rear of the
armature shaft
J-131 plate
(Code No. 305711)
J-130 sleeve
(Code No. 970907)
J-130 sleeve
(Code No. 970907)
J-204 bearing puller
(Code No. 970982)
Fig.3 Fig.4

--- 9 ---
8-2. Disassembly of the Stator Ass'y
(1) After taking off the Armature Ass'y [13] <13>, loosen the five Tapping Screws D4 X 20 [26] <26> and remove
the Tail Cover [25] <25>, the Handle Cover [29] <29> and the Fan Guide [16] <16>.
(2) Disconnect the lead wires of the Stator Ass'y [17] <17> from Switch (C) [30] <33>.
Then, disconnect the lead wires of Noise Suppressor <30>.
(3) Disconnect the Brush Terminals [18] <18> from the Brush Holders [21] <21>.
(4) Loosen the two Hex. Hd. Tapping Screws [27] <27>, and remove the lead wire of the Noise Suppressor <30>.
And pull out the lead wires of the Stator Ass'y [17] <17> from the Housing Ass'y [19] <19>.
Then, the Stator Ass'y can be taken out of the Housing Ass'y [19] <19>. If the Stator Ass'y [17] <17> cannot
be easily taken out of the Housing Ass'y [19] <19>, disassembly can be facilitated by heating the Housing
Ass'y to a temperature of approximately 60 ˚C (140 ˚F) in an appropriate heating oven.
8-3. Disassembly of the First Gear and the Ball Bearing
(1) Loosen the four Tapping Screws D5 x 45 [7] <7>, and remove the Gear Cover [8] <8>, together with the
Spindle [4] <4>, the First Gear [9] <9>, and the related parts as a single unit.
(2) Remove the Bearing Caps [3] <3> with the J-21 wrench.
(3) As illustrated in Fig. 5, support the tip of the Gear Cover [8] <8> with a cylindrical jig of inside diameter 35 mm
or more, and push the rear portion of the Spindle [4] <4>.
At this time, the First Gear [9] <9> will come off of the Spindle.
(4) Remove the D12 Retaining Ring [6] <6> from the Spindle [4] <4>, and the Ball Bearing [5] <5> can be
removed from the Spindle [4] <4> with the J-30 bearing puller ass'y (special repair tool, Code No. 970804).
Push
Cylindrical jig
35 mm dia.
Fig. 5

--- 10 ---
8-4. Reassembly
Reform reassembly in the reverse order of disassembly while ovserving the given precautions and taking care of
the following points.
(1) After disassembly, thoroughly remove old grease from the inside of the Gear Cover [8] <8>, and insert 15 g of
new grease (Nippeco JF-375, Code No. 930036, is recommended) prior to reassembly. When inserting
grease, apply it to the pinion gear teeth surfaces, and to the needle bearing inside the Inner Cover [10] <10>.
(2) When replacing the Ball Bearing [15] <15> on the commutator side of the Armature Ass'y [13] <13>, be very
careful to ensure that the Dust Seal [14] <14> is assembled in the proper direction. The Dust Seal [14] <14>
plays an important role in protecting the ball bearing against dust, and must be replaced with a new one if
disassembled.
8-5. Tightening Torque
D4 Tapping Screw (W/Flange) [26] <26> [34] <37> •••••••••••••••• 2.0 0.5 N•m (20 5 kgf•cm, 1.5 0.4 ft-lbs)
D5 Tapping Screw [7] <7> •••••••••••••••••••••••••••••• 2.9 0.5 N•m (30 5 kgf•cm, 2.2 0.4 ft-lbs)
D5 Hex. Hd. Tapping Screw [27] <27>
8-6. Wiring Diagrams
For the U.S.A., Canada and Asian countries (except China)
Armature
Ass'y [13] <13>
White or blue
StatorAss'y
[17] <17> Yellow
Switch (C) [30] <33>
Cord [37] <40>
Black or brown
White or blue
43
21
For European countries and China
Armature
Ass'y [13] <13>
Blue
Stator Ass'y
[17] <17>
Yellow
Switch (C) [30] <33>
Cord [37] <40>
Brown
Blue43
21
Noise
Suppressor <30>
Black
Black
Silver
Choke coil

--- 11 ---
8-7. Insulation Tests
On completion of reassembly after repair, measure the insulation resistance and conduct the dielectric strength
test.
Insulation resistance: 7 MΩor more with DC 500V Megohm Tester
Dielectric strength: AC 4,000 V for 1 minute, with no abnormalities •••••••••••••• 220 V ---230 V
AC 2,500 V for 1 minute, with no abnormalities •••••••••••••• 110 V ---127 V
8-8. No-Load Current Values
After no-load operation for 30 minutes, the no-load current value should be as follows.
Voltage (V)
Current (A) max.
110 115 220 230
2.3 2.4 1.3 1.3

--- 12 ---
9. STANDARD REPAIR TIME (UNIT) SCHEDULES
MODEL 10 20 30 40 50 60 min.
Fixed Variable
G 15SA Work Flow
Switch
Cord Housing Ass'y
Stator
Armature Ass'y
Ball Bearing
(6000DD)
Ball Bearing
(608VV)
Dust Seal
Inner Cover
General Assembly
Gear Cover
First Gear
Ball Bearing
(6201DD)
Spindle
Bearing Cap
G 18SA

--- 13 ---
Assembly Diagram for S 15SA

--- 14 ---
PARTS
S 15SA
: ALTERNATIVE PARTS
ITEM
NO. CODE NO. DESCRIPTION NO. USED
REMARKS
1 953-381 WASHER NUT 1
2 935-652 RUBBER PAD 1
3 944-005 BEARING CAP 1
4 317-895 SPINDLE 1
5 620-1DD BALL BEARING 6201DDCMPS2L 1
6 939-542 RETAINING RING FOR D12 SHAFT (10 PCS.) 1
7 316-321 TAPPING SCREW (W/FLANGE) D5X45 4
8 318-017 GEAR COVER 1
9 997-707 FIRST GEAR 1
10 317-891 INNER COVER 1
11 600-0DD BALL BEARING 6000DDCMPS2L 1
12 317-890 LOCK LEVER 1
13 360-499U ARMATURE ASS’Y 110V-115V 1 INCLUD.11,14,15
14 317-889 DUST SEAL 1
15 608-VVM BALL BEARING 608VVC2PS2L 1
16 317-888 FAN GUIDE 1
17 340-446C STATOR ASS’Y 110V 1 INCLUD.18
18 930-703 BRUSH TERMINAL 2
19 317-896 HOUSING ASS’Y 1 INCLUD.21,24
20 NAME PLATE 1
21 958-900 BRUSH HOLDER 2
22 999-043 CARBON BRUSH (1 PAIR) 2
23 945-161 BRUSH CAP 2
24 938-477 HEX. SOCKET SET SCREW M5X8 2
25 317-894 TAIL COVER 1
26 302-086 TAPPING SCREW (W/FLANGE) D4X20 (BLACK) 5
27 953-174 HEX. HD. TAPPING SCREW D5X55 2
28 937-981 SIDE HANDLE FOR M14 1
29 317-892 HANDLE COVER 1
30 302-477 SWITCH (C) (1P SCREW TYPE) W/LOCK 1
31 HITACHI LABEL 1
32 317-893 DUST PACKING 1
33 980-063 TERMINAL 2
34 984-750 TAPPING SCREW (W/FLANGE) D4X16 2
35 960-266 CORD CLIP 1
36 938-051 CORD ARMOR D10.1 1
37 930-051 CORD 1 (CORD ARMOR D10.1)
*5
----
99

--- 15 ---
STANDARD ACCESSORIES
S 15SA
ITEM
NO. CODE NO. DESCRIPTION NO. USED
REMARKS
501 937-913Z WRENCH 1
: ALTERNATIVE PARTS
*
601 314-073 SANDING DISCS 150MM C-P16 (10 PCS.) 1
602 314-074 SANDING DISCS 150MM C-P20 (10 PCS.) 1
603 314-075 SANDING DISCS 150MM C-P24 (10 PCS.) 1
604 314-076 SANDING DISCS 150MM C-P30 (10 PCS.) 1
605 314-077 SANDING DISCS 150MM C-P36 (10 PCS.) 1
606 314-078 SANDING DISCS 150MM C-P40 (10 PCS.) 1
607 314-079 SANDING DISCS 150MM C-P50 (10 PCS.) 1
608 314-080 SANDING DISCS 150MM C-P60 (10 PCS.) 1
609 314-081 SANDING DISCS 150MM C-P80 (10 PCS.) 1
610 314-082 SANDING DISCS 150MM C-P100 (10 PCS.) 1
611 314-083 SANDING DISCS 150MM C-P120 (10 PCS.) 1
OPTIONAL ACCESSORIES
ITEM
NO. CODE NO. DESCRIPTION NO. USED
REMARKS
5
----
99
Printed in Japan
(990510 N)

--- 16 ---
Assembly Diagram for S 18SA

--- 17 ---
PARTS
S 18SA
: ALTERNATIVE PARTS
ITEM
NO. CODE NO. DESCRIPTION NO. USED
REMARKS
* 1 953-381 WASHER NUT 1
* 1 953-246Z WASHER NUT M14 1 FOR ITA,FRG,FRA,ESP
* 1 953-254P WASHER NUT 5/8"-11UNC 1 FOR USA
* 2 953-255 RUBBER PAD (D16 HOLE) 1
* 2 953-247Z RUBBER PAD (D14 HOLE) 1 FOR ITA,FRG,FRA,ESP
3 944-005 BEARING CAP 1
* 4 317-895 SPINDLE 1
* 4 317-902 SPINDLE 1 FOR ITA,FRG,FRA,ESP
* 4 317-903 SPINDLE 1 FOR USA
5 620-1DD BALL BEARING 6201DDCMPS2L 1
6 939-542 RETAINING RING FOR D12 SHAFT (10 PCS.) 1
7 316-321 TAPPING SCREW (W/FLANGE) D5X45 4
8 318-017 GEAR COVER 1
9 997-707 FIRST GEAR 1
10 317-891 INNER COVER 1
11 600-0DD BALL BEARING 6000DDCMPS2L 1
12 317-890 LOCK LEVER 1
* 13 360-499U ARMATURE ASS’Y 110V-115V 1 INCLUD.11,14,15
* 13 360-499E ARMATURE 220V-230V 1
14 317-889 DUST SEAL 1
15 608-VVM BALL BEARING 608VVC2PS2L 1
16 317-888 FAN GUIDE 1
* 17 340-446C STATOR ASS’Y 110V 1 INCLUD.18
* 17 340-446E STATOR ASS’Y 220V-230V 1 INCLUD.18
* 17 340-446H STATOR ASS’Y 220V-230V 1 INCLUD.18 FOR ITA,FRG,FRA,ESP,CHN
18 930-703 BRUSH TERMINAL 2
19 317-896 HOUSING ASS’Y 1 INCLUD.21,24
20 NAME PLATE 1
21 958-900 BRUSH HOLDER 2
22 999-043 CARBON BRUSH (1 PAIR) 2
23 945-161 BRUSH CAP 2
24 938-477 HEX. SOCKET SET SCREW M5X8 2
25 317-894 TAIL COVER 1
26 302-086 TAPPING SCREW (W/FLANGE) D4X20 (BLACK) 5
27 953-174 HEX. HD. TAPPING SCREW D5X55 2
28 937-981 SIDE HANDLE FOR M14 1
29 317-892 HANDLE COVER 1
* 30 994-273 NOISE SUPPRESSOR 1 FOR ITA,FRG,FRA,ESP,CHN
* 31 311-741 TERMINAL 2 FOR NOISE SUPPRESSOR
* 32 959-144 TERMINAL 50051 (10 PCS.) 1 FOR NOISE SUPPRESSOR
33 302-477 SWITCH (C) (1P SCREW TYPE) W/LOCK 1
34 HITACHI LABEL 1
35 317-893 DUST PACKING 1
36 980-063 TERMINAL 2 FOR CORD
37 984-750 TAPPING SCREW (W/FLANGE) D4X16 2
38 960-266 CORD CLIP 1
39 953-327 CORD ARMOR D8.8 1
* 40 500-234Z CORD 1 (CORD ARMOR D8.8)
* 40 500-455Z CORD 1 (CORD ARMOR D8.8) FOR CHN,THA
* 40 500-423Z CORD 1 (CORD ARMOR D8.8) FOR SIN
* 40 500-237Z CORD 1 (CORD ARMOR D8.8) FOR HKG
*5
----
99
