Adres producenta/ Adresse des Herstellers/ Manufacturer’s Address/ Адрес производителя
GTV Poland Sp. z o.o. Sp. k., ul. Przejazdowa 21, 05-800 Pruszków

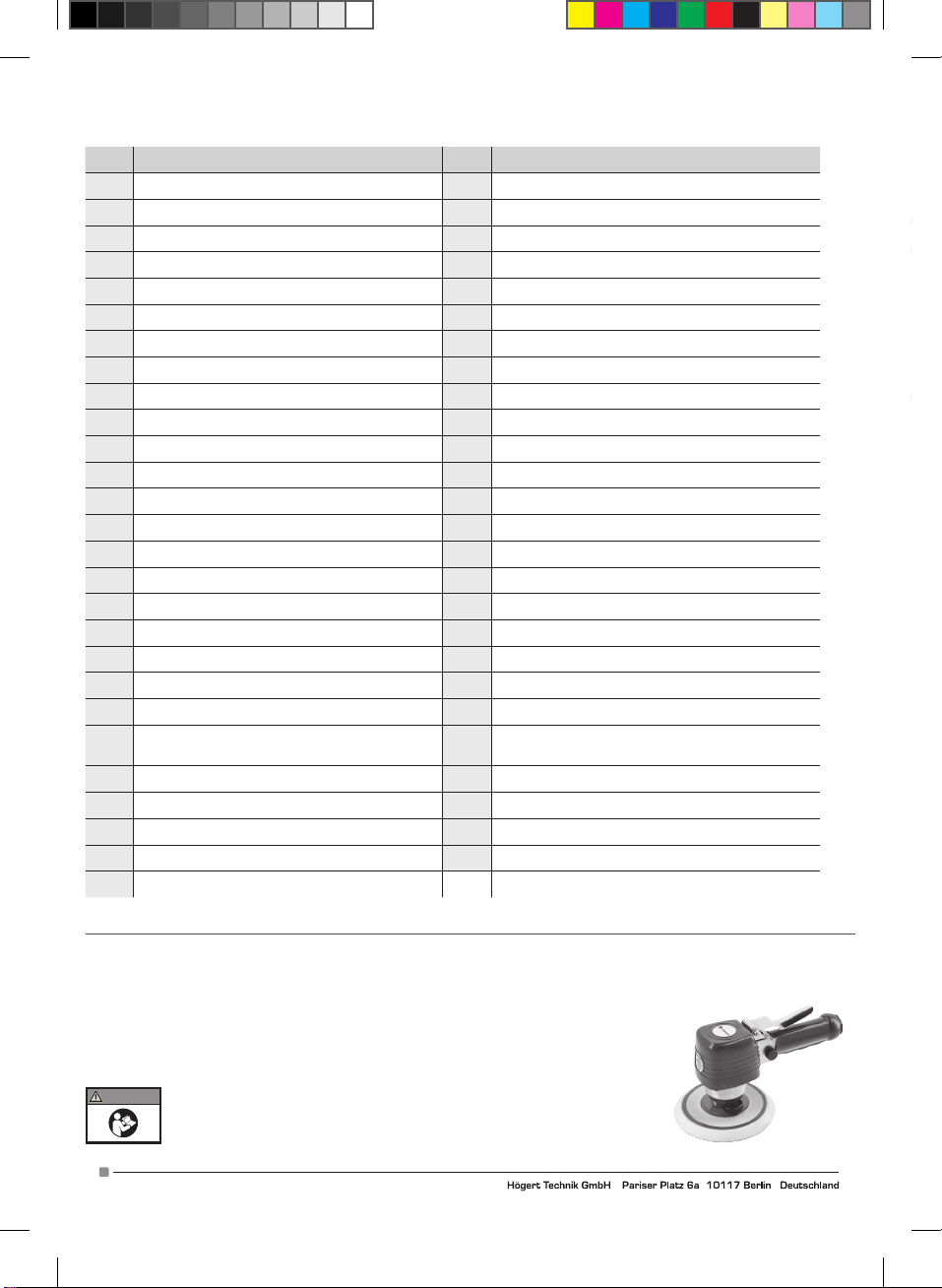

No. Opis No. Opis
1GEHÄUSE 28 ANTRIEBSWELLE
2GUMMITÜLLE 29 SCHEIBENFEDER
3FEDER 30 VORDERE GEHÄUSEDICHTUNG
4O-RING 31 FRONTGEHÄUSE
5VENTILSTIFT 32 SCHRAUBE (M5x40)
6O-RING (3,3 x 1,5 mm) 33 SCHRAUBE (M5x14)
7O-RING (8,4 x 2 mm) 34 FEDERSCHEIBE
8O-RING (8,8 x 1,6 mm) 35 Sechskantmutter (1/4 ")
9VENTILKÖRPER 36 FEDERSCHEIBE
10 AUSLÖSEKÖRPER 37 EXZENTER
11 SCHRAUBE (M4x35) 38 SCHRAUBE
12 SECHSKANTMUTTER (M4) 39 VENTILBUCHSE
13 AUSLÖSER 40 GEWICHT
14 FEDERSCHEIBE 41 UNTERLEGSCHEIBE
15 SECHSKANTMUTTER (M10) 42 UNTERLEGSCHEIBE
16 REGLER 43 SCHRAUBE (1/4 ")
17 E-RING 44 SICHERUNGSRING
18 O-RING (21,2 x 2,4 mm) 45 LAGER (6201-ZZ)
19 LUFTEINLASS 46 HALTERING
20 E-RING 47 HALTERING
21 LAGER (6200-ZZ) 48 LAGERKÖRPER
22 RÜCKSEITENPLATTE 49 PTC / 150A DA PAD für STICK-ON DISCS
148mm 5/16 "UNF
23 ZYLINDER 50 HANDGRIFF
24 STIFT (3 x 6) 51 O-RING (4,7 x 1,8)
25 O-RING (7,8 x 1,6) 52 HINTERE ENDPLATTE
26 ROTOR 53 STIFT (3 x 10)
27 ROTORBLATT
EN
USER'S MANUAL
AIR SANDER RANDOM ORBITAL HT4R651
Thank you for purchasing our Product. Manufactured to a high standard this product will,
if used according to these instructions andproperly maintained, give you years of trouble
free performance.
WARNING IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE
SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE
PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL
INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FU-
TURE USE.
1. 1. SAFETY
Follow all workshop Health & Safety rules, regulations, and conditions when using tool
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered
to when using this equipment.
WARNING! Disconnect from air supply before changing accessories or servicing.
- Maintain the sander in good condition (use an authorised service agent).
- Replace or repair damaged parts. Use genuine parts only. Non-authorised parts may be dangerous and
will invalidate the warranty.
- Use in suitable clean and tidy working area, free from unrelated materials and ensure there is adequate lighting.
- Before each use check abrasive discs and backing pads for condition. If worn or damaged replace immediately.
- Ensure the backing pad rating is the same as, or, greater than the RPM rating of the sander.
- Ensure there are no flammable or combustible materials near the work area.
WARNING! Always wear approved eye or face and hand protection when operating the sander.
- Use face, dust, or respiratory protection in accordance with COSHH regulations.
- Depending on the task, sander noise level may exceed 85dB in which case wear safety ear defenders.
- Remove ill fitting clothing. Remove ties, watches, rings, other loose jewellery, and contain and/or tie back long hair.
- Wear appropriate protective clothing and keep hands and body clear of working parts.
- Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
- Keep children and unauthorised persons away from the working area.
- Check moving parts alignment on a regular basis.
- Ensure workpiece is secure before operating the sander. Never hold a workpiece by hand.
- Check the workpiece to ensure there are no protruding screws, bolts, nuts, nails, stones, etc.
- Avoid unintentional starting.

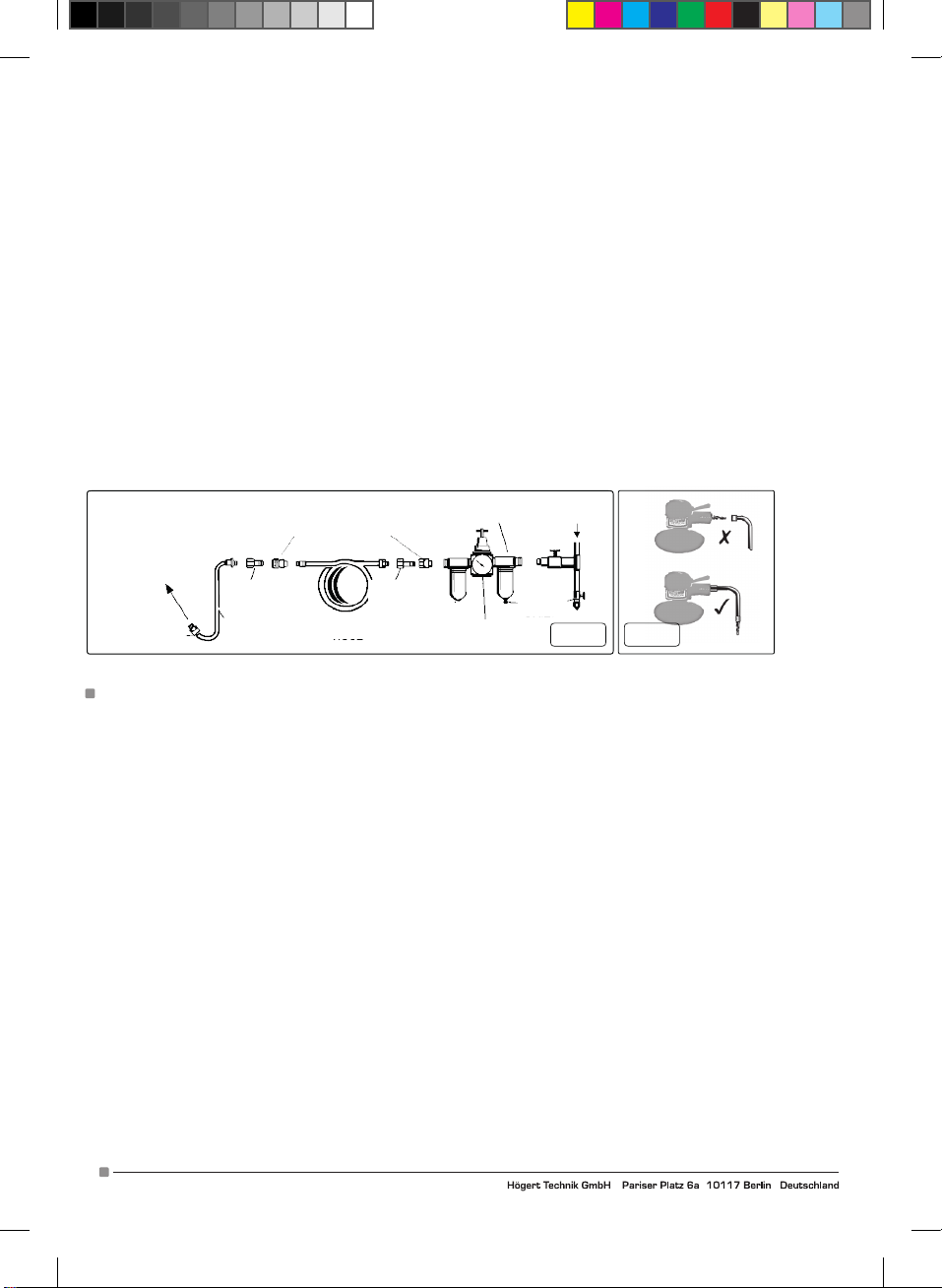

WARNING! Ensure correct air pressure is maintained and not exceeded. Recommended pressure 70-90PSI.
- Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure
that all connections are secure.
- Prolonged exposure to vibration from this sander poses a health risk. It is the operator’s responsibility to correctly
assess the potential hazard and issue guidelines for safe periods of use and offer suitable protective equipment.
- DO NOT use the sander for a task it is not designed to perform.
- DO NOT operate sander if any parts are damaged or missing as this may cause failure and/or personal injury.
WARNING! DO NOT sand any materials containing asbestos.
- DO NOT carry the sander by the hose, or yank the hose from the air supply.
- DO NOT force, or apply heavy pressure to the sander, let the sander do the work.
- DO NOT place attachments close to your face and do not point at other persons or animals.
- DO NOT operate sander when you are tired, under the influence of alcohol, drugs or intoxicating medication.
- DO NOT use sander where there is flammable liquids, solids or gases such as paint solvents and including
waste wiping or cleaning rags etc.
- DO NOT carry the sander with your finger on the power lever.
- DO NOT direct air from the air hose at yourself or others.
- When not in use disconnect from air supply and store in a safe, dry, childproof location.
2. INTRODUCTION
Durable, lightweight body with moulded handle, reducing chill effects and providing extra control.
Fitted with dual exhaust ports and air control valve. Supplied with Ø150mm hook-and-loop pad.
Ideal for the DIY enthusiast and light garage use.
3. SPECIFICATION
Model no: HT4R651
thread Size: 5/16” UNF
Free Speed: 1000 rpm
