Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention
to the safety instructions. If you have any questions or comments about the device,
please contact the customer line.
󹘯󹘰󹘱󹘲󹘳www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz
Product List
Before using this product, please carefully check that all the following items are included
in the product package. If any items are missing, please contact Hohem Customer
Service or your local distributor.
•iSteady Mobile+
•Tripod
•Type C Charging Cable
•Quick Start Guide
•Storage Bag
•Warranty Card
•Magnetic Fill Light
(Item Included Only in the Kit)

4

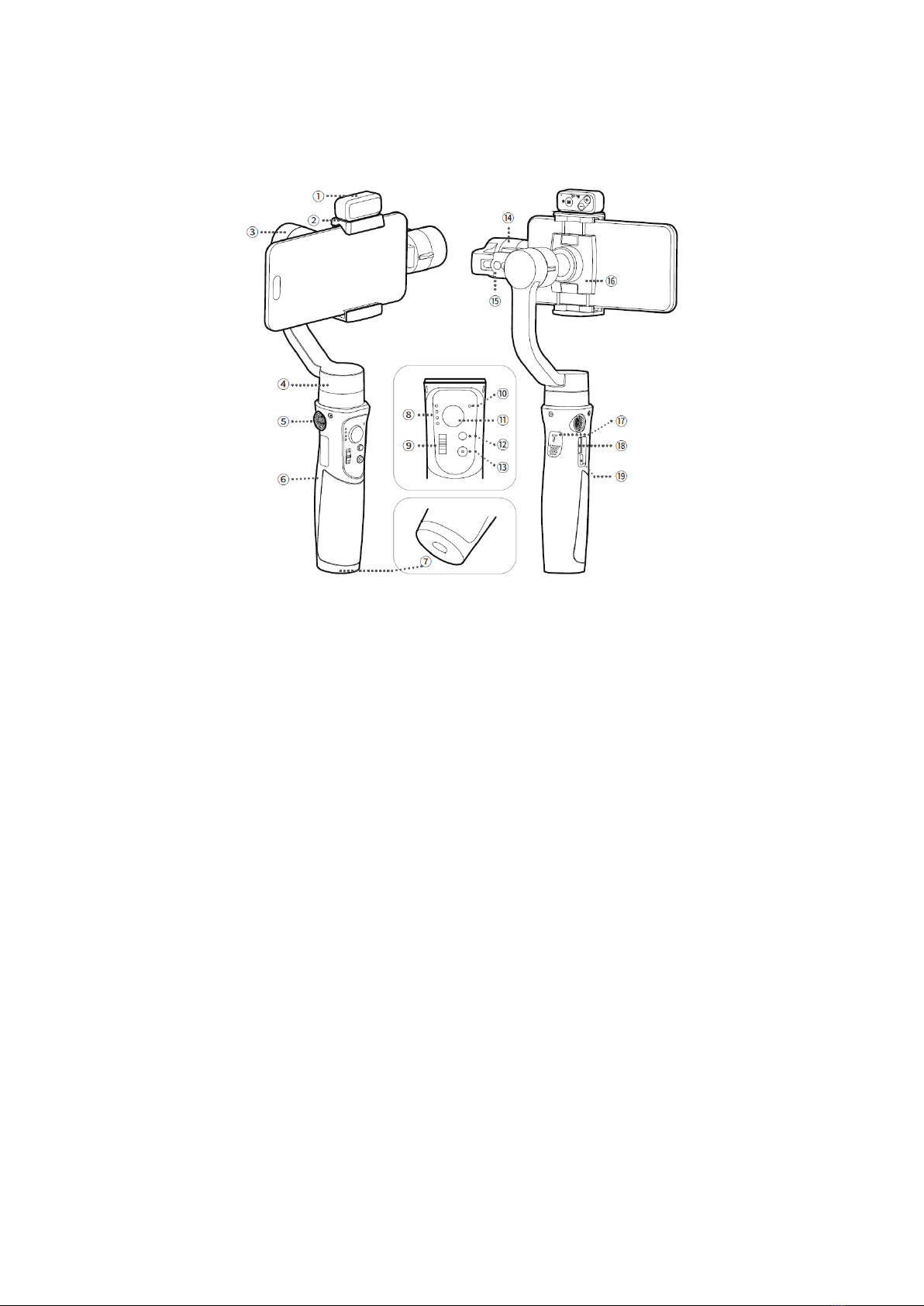

Device Overview
1. Magnetic Fill Light (Item Included
Only in the Kit)
2. Magnetic Contact
3. Roll Motor
4. Pan Motor
5. ¼ Inch Extension Screw Hole
6. Handle (Battery Inside)
7. ¼ Inch Extension Screw Hole
8. Mode Indicator
9. Zoom/Focus Slider
10. Bluetooth Indicator
11. Joystick
12. Mode Button
13. ON/OFF (Shutter Button)
14. Tilt Motor
15. Balancing Knob
16. Rotatable Phone Holder
17. Trigger
18. USB Output
19. Type-C Input

5
Battery and Charging
Before use, please ensure that the iSteady Mobile+has sufficient battery power.
Charging Method
To charge the iSteady Mobile+, connect a USB adapter (not included, choose a 5V-2A
adapter for better results) to the charging port using the provided USB-C charging cable.
Battery Display
Tap the power button to check the battery status.
Charging:
•4 LED lights on: 100% (fully charged)
•3 LED lights on: 75%
•2 LED lights on: 50%
•1 LED light on: 25%
Reverse Charging (DC out charging for smartphones):
•Android: Charge with the provided USB-C to USB-C cable.
•iOS: Charge with a USB-C to Lightning cable (Not Included).
Tips: When the Gimbal is switched off, press the power button once to start reverse
charging your smartphone.
Download the Hohem Joy App
Scan the QR code or search "Hohem Joy" in App Store or Google Play to download. The
app Hohem Joy requires iOS 11.0 or later, Android 6.0 or later.
Caution:
•Items marked "*" are optional accessories and are sold separately.
•Mount your phone before powering on the iSteady Mobile+.

6
•If no mobile phone is detected or the motor is overloaded due to improper
phone balance, the Gimbal will shut down after a warning beep.
First Use
Scan the QR code to watch the tutorials.
Caution:
•Smartphones with 6.7-inch or larger screens, such as iPhone 15 Pro Max, should
be mounted almost level with the floor.
•If your phone case is bulky, we recommend that you remove it before
installation.
Horizontal Mode
•Pull the phone clamp and mount the phone.
•Push the phone to the rightmost to get close to the motor.
•Loosen the knob and slide the arm to balance the Gimbal. Left Small phone e.g.,
iPhone 15 (6.1 inches) Right Large phone e.g., iPhone 15 Pro Max (6.7 inches)
•Tighten the knob.
•Long-press the power button to turn on. At least for three seconds.
Vertical Mode
•Loosen the knob, slide the arm to the leftmost, and tighten the knob.
•Rotate the phone clamp 90 degrees.
•Pull the phone clamp and mount the phone. Adjust the phone up or down to
roughly balance the Gimbal.
•Once the phone is roughly balanced, long-press the power button to turn on. At
least for three seconds.
Caution: Do not rotate the phone clamp while the Gimbal is powered on.
Quick Switch to Portrait Mode: After switching to portrait mode, the joystick only
controls the phone to rotate left and right.
The following scenarios do not support quick switching:
•In POV mode
•When the handle is perpendicular

7
•When the app setting of the left/right joystick is roll
Ultra-Wide-Angle Shot
•Capture stunning Ultra-Wide-Angle Shot by pressing the trigger four times. The
roll motor will move in front of the phone screen, providing unobstructed views.
•Default Mode has no obstruction in front of the phone screen.
Note: Ultra-Wide-Angle Shot can only be switched while shooting horizontally.
Magnetic Attachment
•Position the fill light close to magnetic contact (with the "hohem" logo facing
upward). The magnet on the fill light will automatically attract and attach to the
Gimbal.
Operation
Adjust the brightness of Cold Light, Warm Light, and Natural White Light with 10-level
adjustable settings.
1. M Button (Turn ON/OFF fill light)
Press and hold for three seconds: Turn on/off the fill light.
Single press: Switch between Cold, Warm, and Natural White light.
2. Plus "+" Button
Single press: increases the brightness in ten levels.
3. Minus "-" Button
Single press: decrease the brightness in ten levels.
4. Fill Light Indicator
"C" indicator lighting alone: Cold light in use.
"W" indicator lighting alone: Warm light in use.
"C&W" indicators both lighting: Natural white light in use
5. Power Indicator
Flashes red: Charging.
Solid red: Fully Charged.

8
Buttons and Indicators
1. Joystick
Push Up/Down: Tilt Control.
Push Left/Right: Pan Control.
2. Mode Indicator
PF: Pan Follow.
PTF: Pan & Tilt Follow.
L: All Locked.
POV: All Follow & Inception.
3. Zoom Slider (Available in the Hohem Joy / Android 10.0 or later, please
ensure Bluetooth pairing.)
Push up: Zoom in.
Push down: Zoom out.
4. Bluetooth Indicator
Solid green: Gimbal is connected with phone Bluetooth.
Solid red: Gimbal abnormality.
Flashing red: Low battery (auto shutdown) Overload (beep warning).
Alternating yellow and green: Remote pairing.
Flashing yellow: The remote control is in use.
Note: Remote control is a non-standard purchase. For remote control pairing and
instructions, please see the user manual of the remote control or FAQs.
5. Mode Button
Single press: Switch between Gimbal modes.
Triple press: 600° Auto inception (press mode button to stop the
rotation).
Press five times: Auto calibration.
6. Power Button/Shutter Button
Press and hold: Power on/off
Single press: Take a photo and start/end video (Please ensure Bluetooth
is connected).

9
Double press: Switch photo/video modes (Only available in the Hohem Joy
/ Android 10.0 or later, please ensure Bluetooth pairing).
Triple press: Switch front/rear cameras (Only available in the Hohem Joy /
Android 10.0 or later, please ensure Bluetooth pairing).
7. Trigger Button
Press on: Sport mode.
Single press, and then press and hold: L (All locked).
Double press: Recenter the Gimbal.
Press four times: Switch to Ultra-Wide-Angle Shot.
Gimbal Modes
Scan the QR code to watch the tutorials.
•PF (Pan Follow): Default mode, tilt & roll axis both locked, camera is able to
move to the left or right smoothly.
•PTF (Pan & Tilt Follow): Roll axis locked, camera is able to move to the left/right,
and tilt up/down.
•L (All Locked): The camera stays in its current orientation.
•POV (All Follow & Inception): All Follow - Tilt axis, roll axis, and pan axis all
follow the movement of the Gimbal. Inception - Hold the Gimbal horizontally and
push the joystick to the left or right
Press the button to switch
between different working
modes with the light on.

10

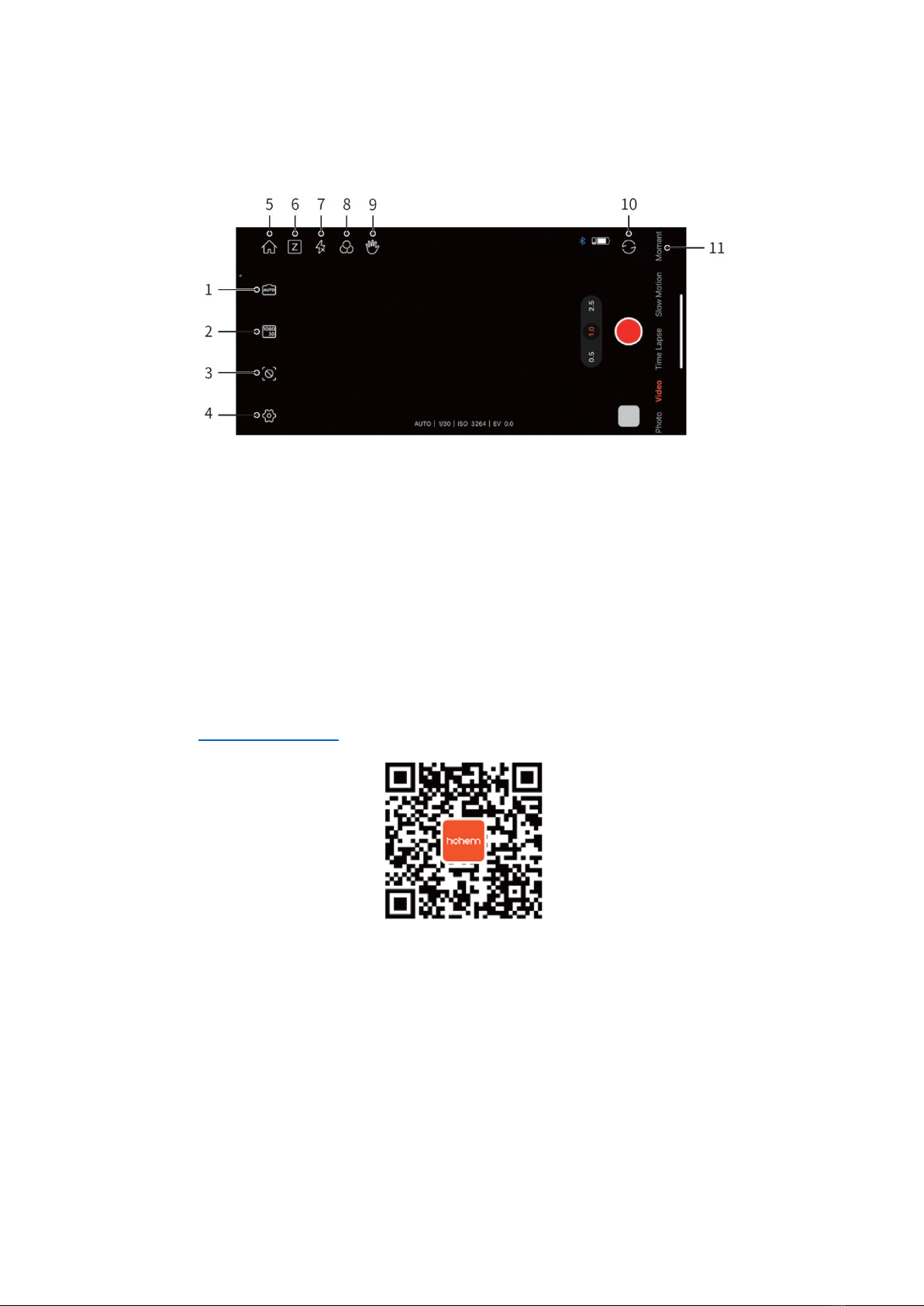

Hohem Joy App Features
1. Exposure Settings
2. Resolution/Frame Rate
3. Smart Tracking
4. Parameter Setting
5. Home
6. Focus/Zoom
7. Flash
8. Beauty and Filters
9. Gesture Control
10. Front/Rear
11. Moment Templates
Note: For more details on the "Hohem Joy" app features, please visit the official website
of Hohem (www.hohem.com) and watch iSteady Mobile+video tutorials.
Scan the QR code to watch the tutorials.

11
Auto Calibration and Firmware Update
Calibration Reasons and How to Calibrate
Auto calibration can reduce drift or slight deviation caused by nearby magnetic
interference or human error.
Follow these steps for auto calibration:
•Place the Gimbal on a flat surface using a tripod.
•Double press the trigger button to recenter the Gimbal.
•Press the mode button five times to start the auto calibration. Please avoid
touching the Gimbal during calibration.
•Two beeps indicate that the calibration is completed. The Gimbal will recenter
and automatically return to normal operation.
Note:
•If the Gimbal is not placed on a flat surface for calibration (e.g., hand-held
calibration in the car), it may cause calibration failure.
•When the calibration fails, the Gimbal will make a beep sound, and all four mode
lights will flash, entering sleep mode. Single press any button (except the joystick)
to wake up the Gimbal and follow the above steps to try again
Firmware Update
If a new firmware update is available, you will be prompted in the Hohem Joy app.
Follow the on-screen instructions in the app to update the firmware.
FAQs
Why does the Gimbal automatically power off?
•The Gimbal will automatically power off if no phone is installed or the phone is
not properly balanced, causing motor overload. A warning "beep" sound will be
emitted before the shutdown. Ensure correct phone installation and balance
before turning on the Gimbal, as detailed in the First Use section.

12
How can I connect my phone's Bluetooth to the Gimbal if the app can't find the
device?
Clear the Bluetooth connection and attempt reconnection:
•Push the zoom lever upward and simultaneously long-press the M button for five
seconds.
•When the Bluetooth indicator flashes green five times, it indicates that the
Bluetooth connection has been cleared.
•Follow the Bluetooth connection steps to reconnect.
How do I connect the remote controller?
Note: The remote controller is an optional accessory and needs to be purchased
separately.
•Switch the remote to "OFF."
•Press the M button seven times to enter the remote controller pairing mode
(Bluetooth indicator alternating between yellow and green).
•Switch the remote to "ON," and it will automatically connect to the Gimbal.
•When pressing buttons on the remote controller, if the Gimbal's Bluetooth
indicator flashes yellow, it signifies successful pairing.
To exit remote controller pairing: Press the mode button once.
To clear remote controller pairing: Double-press the M button during remote
controller pairing.

13
Specification
Gimbal
Weight
474g include battery
Folded Size
294×120×47mm
Main Material
High preformance composite
Payload
280g
Mobile Width Supported
58-89mm
Power Rating
1.0W
Battery Capacity
18650li-ion 7.4V/1800mAh/13.32Wh
Battery Life
Up to 13 hours (under ideal conditions
with the Gimbal fully balanced)
Charging Time
2 hours (5V 2A)
Mechanical Range
Panning: 600° Rolling: 320° Tilting:320°
Working Temperature
-10-45° C
Motors Protection
Gimbal will be powered off automatically
due to improper operation of motors
Fill Light
Weight
16g
Battery Capacity
3.7V/300mAh
Power Rating
1W
Battery Life
1 Hour
Lights
Cold Light (6500k)
Warm Light (3000k)
Natural White Light (5500k)

14
Warning and Disclaimer
Thank you for purchasing Hohem iSteady Mobile+. By using this product, you confirm
that you have carefully read and understood this disclaimer and warning. Additionally,
you agree to comply with the terms and conditions outlined herein. You acknowledge
your sole responsibility for your actions while interacting with this product and the
resulting consequences. It is agreed that you will use this product for proper purposes
and in accordance with all applicable laws, rules, regulations, as well as the terms,
precautions, practices, policies, and guidelines provided by Hohem.
Hohem assumes no liability for any damage, injury, or legal responsibility arising directly
or indirectly from the use of this product. Users are expected to adhere to safe and
lawful practices, including those specified in this document.
Please note that this document and all accompanying documents are subject to change
at the sole discretion of Hohem. For the latest product information, visit
www.hohem.com and navigate to the product page for iSteady Mobile+.

15
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you
need repair or other services during the warranty period, contact the product seller
directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for
which the claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended
or failing to follow the instructions for maintenance, operation, and service of the
product.
•Damage to the product by a natural disaster, the intervention of an unauthorized
person or mechanically through the fault of the buyer (e.g., during transport,
cleaning by inappropriate means, etc.).
•Natural wear and aging of consumables or components during use (such as
batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,
electrostatic discharge voltage (including lightning), faulty supply or input voltage and
inappropriate polarity of this voltage, chemical processes such as used power
supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or
adaptation to change or extend the functions of the product compared to the
purchased design or use of non-original components.

16
EU Declaration of Conformity
This equipment is in compliance with the essential requirements and other relevant
provisions of EU directives.
WEEE
This product must not be disposed of as normal household waste in accordance with
the EU Directive on Waste Electrical and Electronic Equipment (WEEE - 2012/19 / EU).
Instead, it shall be returned to the place of purchase or handed over to a public
collection point for the recyclable waste. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of
this product. Contact your local authority or the nearest collection point for further
details. Improper disposal of this type of waste may result in fines in accordance with
national regulations.

17
Vážený zákazníku,
Děkujeme vám za zakoupení našeho produktu. Před prvním použitím si prosím pečlivě
přečtěte následující pokyny a uschovejte si tento návod k použití pro budoucí použití.
Zvláštní pozornost věnujte bezpečnostním pokynům. Pokud máte k přístroji jakékoli
dotazy nebo připomínky, obraťte se na zákaznickou linku.
󹘯󹘰󹘱󹘲󹘳www.alza.cz/kontakt
✆[phone]
Dovozce Alza.cz a. s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz
Seznam produktů
Před použitím tohoto výrobku pečlivě zkontrolujte, zda jsou v balení obsaženy všechny
následující položky. Pokud některé položky chybí, obraťte se na zákaznický servis
společnosti Hohem nebo na místního distributora.
•iSteady Mobile+
•Stativ
•Nabíjecí kabel typu C
•Stručný návod k použití
•Úložná taška
•Záruční list
•Magnetické plnicí světlo
(Položka je pouze součástí sady)

18
Přehled zařízení
1. Magnetické plnicí světlo (položka
je pouze součástí sady)
2. Magnetický kontakt
3. Rolovací motor
4. Pánevní motor
5. ¼ palcový otvor pro prodlužovací
šroub
6. Rukojeť (baterie uvnitř)
7. ¼ palcový otvor pro prodlužovací
šroub
8. Indikátor režimu
9. Posuvník zoomu/zaostření
10. Indikátor Bluetooth
11. Joystick
12. Tlačítko režimu
13. ON/OFF (tlačítko závěrky)
14. Naklápěcí motor
15. Vyvažovací knoflík
16. Otočný držák telefonu
17. Spouštěč
18. Výstup USB
19. Vstup typu C

19
Baterie a nabíjení
Před použitím se ujistěte, že je zařízení iSteady Mobile+dostatečně nabité.
Způsob nabíjení
Chcete-li nabíjet zařízení iSteady Mobile+, připojte adaptér USB (není součástí dodávky,
pro lepší výsledky zvolte adaptér 5 V-2 A) k nabíjecímu portu pomocí dodaného
nabíjecího kabelu USB-C.
Zobrazení baterie
Klepnutím na tlačítko napájení zkontrolujte stav baterie.
Nabíjení:
•Svítí 4 kontrolky LED: 100 % (plně nabité)
•Svítí 3 kontrolky LED: 75 %
•Svítí 2 kontrolky LED: 50 %
•1 rozsvícená LED dioda: 25 %
Reverzní nabíjení (nabíjení smartphonů stejnosměrným proudem):
•Android: Nabíjejte pomocí přiloženého kabelu USB-C na USB-C.
•iOS: Nabíjejte pomocí kabelu USB-C na Lightning (není součástí balení).
Tipy: Když je gimbal vypnutý, stiskněte jednou tlačítko napájení, abyste zahájili zpětné
nabíjení smartphonu.
Stáhněte si aplikaci Hohem Joy
Pro stažení naskenujte QR kód nebo vyhledejte "Hohem Joy" v App Store nebo Google
Play. Aplikace Hohem Joy vyžaduje iOS 11.0 nebo novější, Android 6.0 nebo novější.
Upozornění:
•Položky označené "*" jsou volitelné příslušenství a prodávají se samostatně.
•Před zapnutím zařízení iSteady Mobile+nasaďte telefon.

20
•Pokud není detekován žádný mobilní telefon nebo je motor přetížen v důsledku
nesprávného vyvážení telefonu, gimbal se po varovném pípnutí vypne.
První použití
Naskenujte QR kód a podívejte se na výukové programy.
Upozornění:
•Chytré telefony s 6,7palcovou nebo větší obrazovkou, jako je iPhone 15 Pro Max,
by měly být namontovány téměř na úrovni podlahy.
•Pokud je pouzdro telefonu objemné, doporučujeme jej před instalací odstranit.
Horizontální režim
•Vytáhněte svorku telefonu a nasaďte telefon.
•Stiskněte telefon úplně vpravo, abyste se přiblížili k motoru.
•Uvolněte knoflík a posuňte rameno, abyste gimbal vyvážili. Doleva malý telefon,
např. iPhone 15 (6,1 palce) Doprava velký telefon, např. iPhone 15 Pro Max (6,7
palce)
•Utáhněte knoflík.
•Dlouhým stisknutím tlačítka napájení se zapne. Alespoň na tři sekundy.
Vertikální režim
•Uvolněte knoflík, posuňte rameno úplně doleva a knoflík utáhněte.
•Otočte svorku telefonu o 90 stupňů.
•Vytáhněte svorku telefonu a nasaďte telefon. Nastavte telefon nahoru nebo dolů,
aby byl gimbal přibližně vyvážen.
•Jakmile je telefon zhruba v rovnováze, dlouhým stisknutím tlačítka napájení jej
zapněte. Alespoň na tři sekundy.
Upozornění: Neotáčejte svorku telefonu, pokud je gimbal zapnutý.
Rychlé přepnutí do režimu na výšku: Po přepnutí do režimu na výšku joystickem
ovládáte pouze otáčení telefonu doleva a doprava.
Následující scénáře rychlé přepínání nepodporují:
•V režimu POV
•Když je rukojeť kolmá
