Hoist Fitness LeMond ELITE Series User manual

L-15900 (ELITE)
OWNER’S MANUAL

2
11900 Community Road
Poway, CA 92064 USA
Telephone: [phone]
Fax: [phone]
© 2017 HOIST Fitness Systems, Inc. and LeMond are registered trademarks.
HOIST® LeMond® Series ELITE
Visit our website at
www.HOISTtness.com

3
CONGRATULATIONS!
CONGRATULATIONS
You have just become a valued HOIST Fitness customer. Our team is committed to making your cycling
experience fun and rewarding — oering you detailed product information, expert tness advice, and
direct customer support you can depend on. I want to thank-you for purchasing an exciting HOIST®
LeMond® Series ELITE indoor group cycle.
This HOIST® LeMond® Series ELITE Owner’s Manual will help you get the most enjoyment from your
new indoor group cycle. It not only explains all the important features and safety considerations of the
HOIST® LeMond® Series ELITE, it also includes great workout tips and exercise principles. If at any time
you have questions about this information, please call us at [phone] and we will be happy to help
you. To help us answer your questions quickly, we recommend that you have the serial number of your
bike ready when you call us. The serial number of your bike is located on the bottom frame tube.
Greg LeMond, three-time Tour de France Champion, is the force behind the inspiration and design of
this remarkable indoor bike. Greg’s story is one of courage and heroic accomplishment. In 1986, Greg
became the rst American to win the longest and most physically demanding event in the world — the
Tour de France. Only nine months later in April of 1987, he narrowly escaped death when he was ac-
cidentally shot in a hunting accident. During a long and painful rehabilitation, he set a goal that many
considered inconceivable: to once again win the Tour de France. In 1989, he achieved that goal and then
proved it was no mere stroke of luck by winning the Tour a third time in 1990.
A legendary athlete, Greg introduced many cycling innovations during his racing career. Just as aero
bars are now commonplace, the HOIST® LeMond® Series ELITE is the new standard in indoor group
cycles. The HOIST® LeMond® Series ELITE combines Greg’s passion for cycling with exceptional
product innovation. Built to deliver an incredible workout, every component of the HOIST® LeMond®
Series ELITE has been designed to be more innovative, more user friendly and more comfortable than
any other indoor group cycle you have ridden. Whether you are a beginning tness enthusiast or a
highly conditioned athlete, you will immediately feel the dierence.

4
FEATURES
FEATURES
• 16 levels of adjustments for seat height, 13 levels for handlebar height, and micro adjustments
fore/aft on handlebars and seat for a completely customizable t
• Locking knobs for easy and secure adjustments
• Rear y wheel design provides the feel of a traditional road bike
• Built-in LCD computer monitor with the following output setting:
- Multi-color CaloriePUMP
TM
- Time
- Distance
- Calories
- RPM
- Watts
- Heart Rate
- Average RPM
- Average Watts
- Average Heart Rate
• Built-in generator powers computer so you never need to replace batteries
• Poly V-belt provides continuous resistance that requires little to no maintenance
• Magnetic Resistance System means a smoother, quieter ride, and minimal maintenance
• Positive detent“click” when you adjust levels, selected level also easily visible on the console
• Extra sturdy steel frame
• Two water bottle holders seamlessly built-into handle bars for easy access
Please review the rest of this Owner’s Manual carefully before you start using your new HOIST®
LeMond® Series ELITE. The information enclosed here will help you get the most enjoyment out of
your workout and includes valuable operating, service, safety, and trouble-shooting information, as well
as guidelines for an eective exercise program.

5
TABLE OF CONTENTS
WARRANTY .................................................................. 6
SAFETY GUIDELINES ......................................................... 7
OVERVIEW ................................................................... 9
ASSEMBLY AND INSTALLATION INSTRUCTIONS ............................. 10
GUIDELINES FOR SAFE OPERATION ......................................... 17
OPERATING INSTRUCTIONS ................................................. 18
DISPLAY CONSOLE OPERATING INSTRUCTIONS .............................. 21
RECORDING EXERCISE DATA VIA BLUETOOTH LE ............................. 23
GENERAL EXERCISE GUIDELINES ............................................. 24
MAINTENANCE INSTRUCTIONS ............................................. 26
TROUBLESHOOTING ....................................................... 28
SPECIFICATIONS ........................................................... 29
EXERCISE LOGS ........................................................... 31
EXPLODED DIAGRAMS ................................................... 35

6

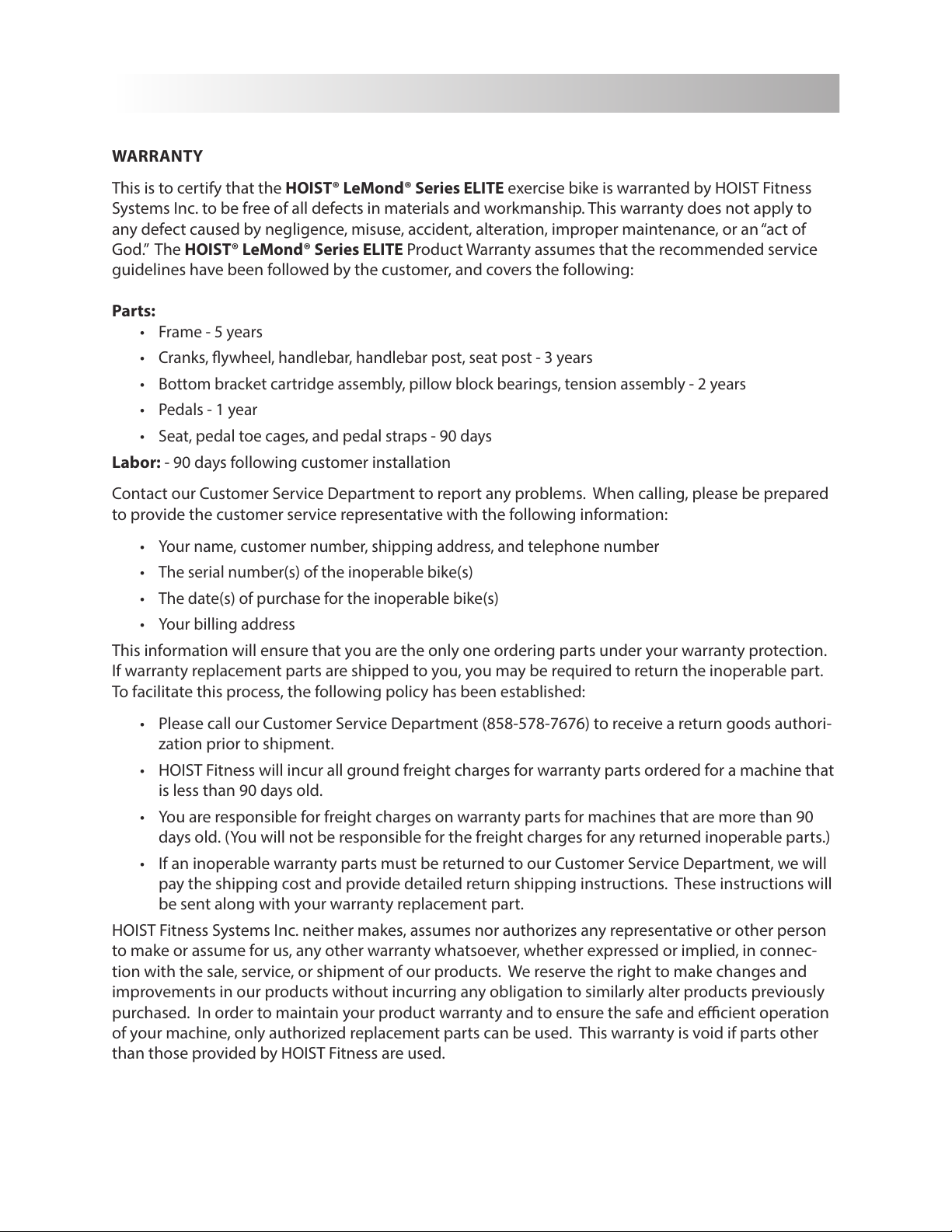

WARRANTY
WARRANTY
This is to certify that the HOIST® LeMond® Series ELITE exercise bike is warranted by HOIST Fitness
Systems Inc. to be free of all defects in materials and workmanship. This warranty does not apply to
any defect caused by negligence, misuse, accident, alteration, improper maintenance, or an “act of
God.” The HOIST® LeMond® Series ELITE Product Warranty assumes that the recommended service
guidelines have been followed by the customer, and covers the following:
Parts:
• Frame - 5 years
• Cranks, ywheel, handlebar, handlebar post, seat post - 3 years
• Bottom bracket cartridge assembly, pillow block bearings, tension assembly - 2 years
• Pedals - 1 year
• Seat, pedal toe cages, and pedal straps - 90 days
Labor: - 90 days following customer installation
Contact our Customer Service Department to report any problems. When calling, please be prepared
to provide the customer service representative with the following information:
• Your name, customer number, shipping address, and telephone number
• The serial number(s) of the inoperable bike(s)
• The date(s) of purchase for the inoperable bike(s)
• Your billing address
This information will ensure that you are the only one ordering parts under your warranty protection.
If warranty replacement parts are shipped to you, you may be required to return the inoperable part.
To facilitate this process, the following policy has been established:
• Please call our Customer Service Department (858-578-7676) to receive a return goods authori-
zation prior to shipment.
• HOIST Fitness will incur all ground freight charges for warranty parts ordered for a machine that
is less than 90 days old.
• You are responsible for freight charges on warranty parts for machines that are more than 90
days old. (You will not be responsible for the freight charges for any returned inoperable parts.)
• If an inoperable warranty parts must be returned to our Customer Service Department, we will
pay the shipping cost and provide detailed return shipping instructions. These instructions will
be sent along with your warranty replacement part.
HOIST Fitness Systems Inc. neither makes, assumes nor authorizes any representative or other person
to make or assume for us, any other warranty whatsoever, whether expressed or implied, in connec-
tion with the sale, service, or shipment of our products. We reserve the right to make changes and
improvements in our products without incurring any obligation to similarly alter products previously
purchased. In order to maintain your product warranty and to ensure the safe and ecient operation
of your machine, only authorized replacement parts can be used. This warranty is void if parts other
than those provided by HOIST Fitness are used.

7
SAFETY GUIDELINES
This symbol appearing throughout this manual means:
Attention! Be Alert! Your saftey is involved.
The following denition applies to the word “WARNING” found throughout this manual:
WARNING
Used to call attention to POTENTIAL hazards that could result in personal injury or loss of life.
READ ALL INSTRUCTIONS BEFORE USING THIS EXERCISE EQUIPMENT.
1. The HOIST® LeMond® Series ELITE indoor group cycle is intended for cardiovascular tness train-
ing and may be used in group or individual settings. Use this equipment only for its intended use
as described in this manual. Do not attempt to ride this bike at high pedal speeds or in a standing
position until you have practiced and are comfortable riding at slower pedal speeds.
2. This unit is NOT equipped with a freewheel system. If the ywheel is in motion, the pedals will be in
motion. Do not attempt to stop the unit by applying reverse pressure to the pedals as knee injury
may occur. Do not attempt to remove your feet from the pedals while they are in motion as serious
injury may occur from the spinning pedals.
3. Wait for the ywheel to coast to a stop. If you want to quickly stop the ywheel, apply rm down-
ward pressure to the brake lever. Do not attempt to dismount the HOIST® LeMond® Series ELITE
unless the pedals and the ywheel are at a complete stop.
4. Injury or death may occur from improper use or over-training. Consult a medical doctor or qualied
tness instructor to determine an exercise program appropriate to your level of tness.
5. Never attempt to turn the pedal crank arms by hand. Do not expose ANY part of your body or
clothing to the drive mechanism as possible injury could occur.
6. In commercial settings, the HOIST® LeMond® Series ELITE should always be used in a supervised
environment with qualied instructors.
7. In a home setting, keep unsupervised children away from the unit when not in use. Keep children
and pets away from the unit while in use.
8. Do not perform push-up type movements on the handlebars.
9. Never drop or insert any object into any opening on the exercise equipment.
10. Make sure “HOIST Elite Bike”has been properly leveled (using adjustable feet) to ensure a safe/
stable ride.
IMPORTANT SAFETY INSTRUCTIONS

8
SAFETY GUIDELINES
11. Follow the instructions for safe use of the equipment including proper seat position, handlebar
position, and use of the foot positioning system of the pedals. Never adjust the handlebars or seat
post past the minimum safe insertion depth marked with the word “STOP”.
12. For safe operation, allow for at least 1 foot (30cm) of free space to either side of the unit and 2 feet
(60cm) of free space to the rear of the unit.
13. DO NOT attempt to make fore or aft handlebar or seat adjustments while sitting or standing on the
bike.
14. Users, agents, and anyone directing the use of this equipment shall be responsible for determin-
ing the suitability of the product for its intended use as outlined in this manual, including regular
maintenance tasks. Said parties are put on notice that they assume all risk and liability in connec-
tion herewith.
15. Rider capacity of the HOIST® LeMond® Series ELITE is 350lb (159.1 kg).
The safety level of this equipment can only be maintained by following the guidelines in this manual and
examining the equipment regularly for damage and wear. Damaged or inoperable components should
be replaced immediately and the equipment should not be used until it is repaired.
Failure to follow all guidelines above may compromise your exercise experience, expose you and others
to injury, and reduce the longevity of the equipment.
SAVE THESE INSTRUCTIONS
Your comments and suggestions are welcome.
Congratulations, and thank you for buying the HOIST® LeMond® Series ELITE.
Your HOIST Fitness:
Dealer: _____________________________________________________________________________
Phone: _____________________________________________________________________________
Your Serial Number:
____________________________________________________________________________________

9
OVERVIEW
HOIST® LeMond® Series ELITE
DELIVERY
Your HOIST® LeMond® Series ELITE will arrive packed in 1 carton. Upon arrival fully inspect the carton
for damage. Point out any damage to the delivery person and have the delivery person record the
damage on the delivery paperwork. Contact the Customer Service Department at 858-578-7676 to
report any damage.
Please follow these detailed instructions and you will nd that your bike can be assembled with ease.

10
ASSEMBLY INSTRUCTIONS

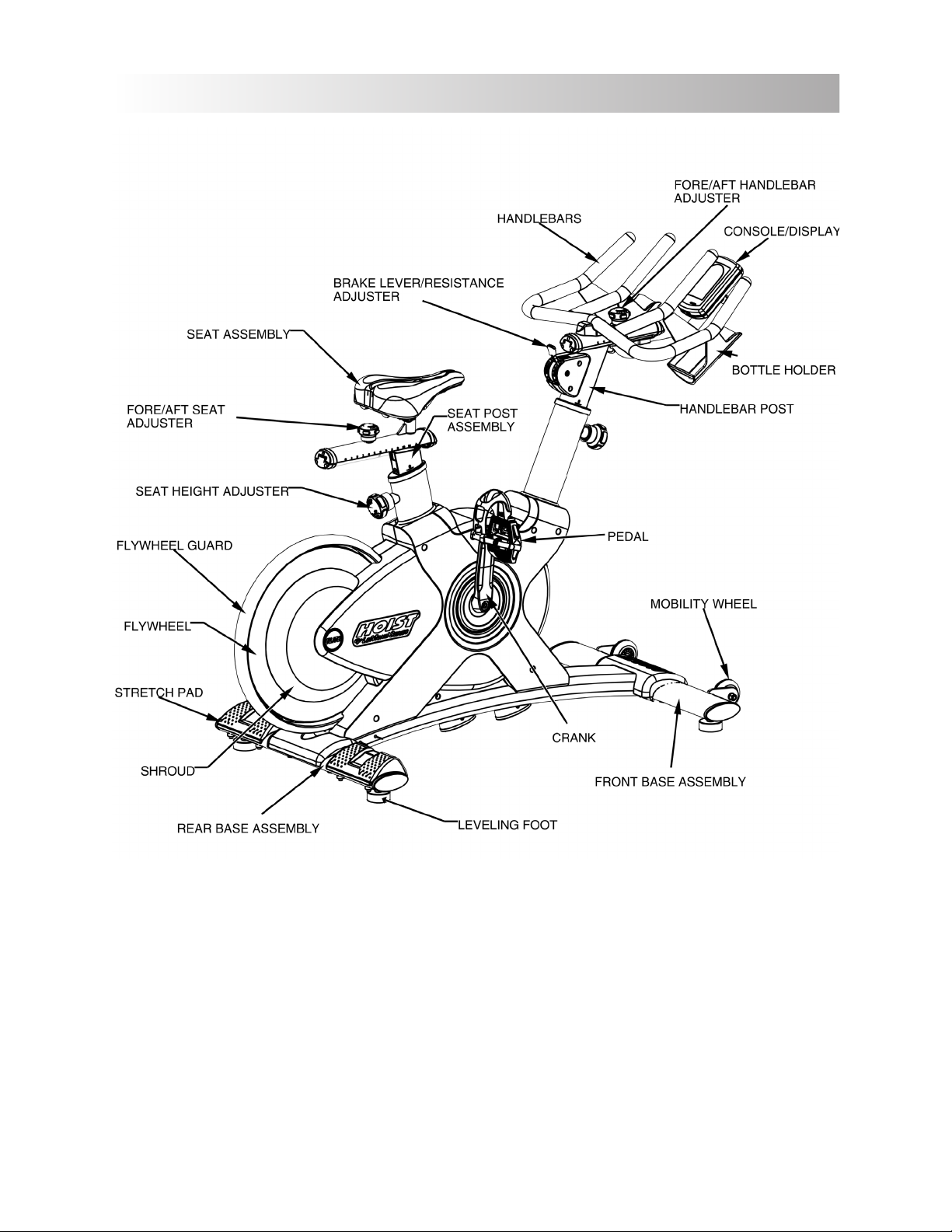

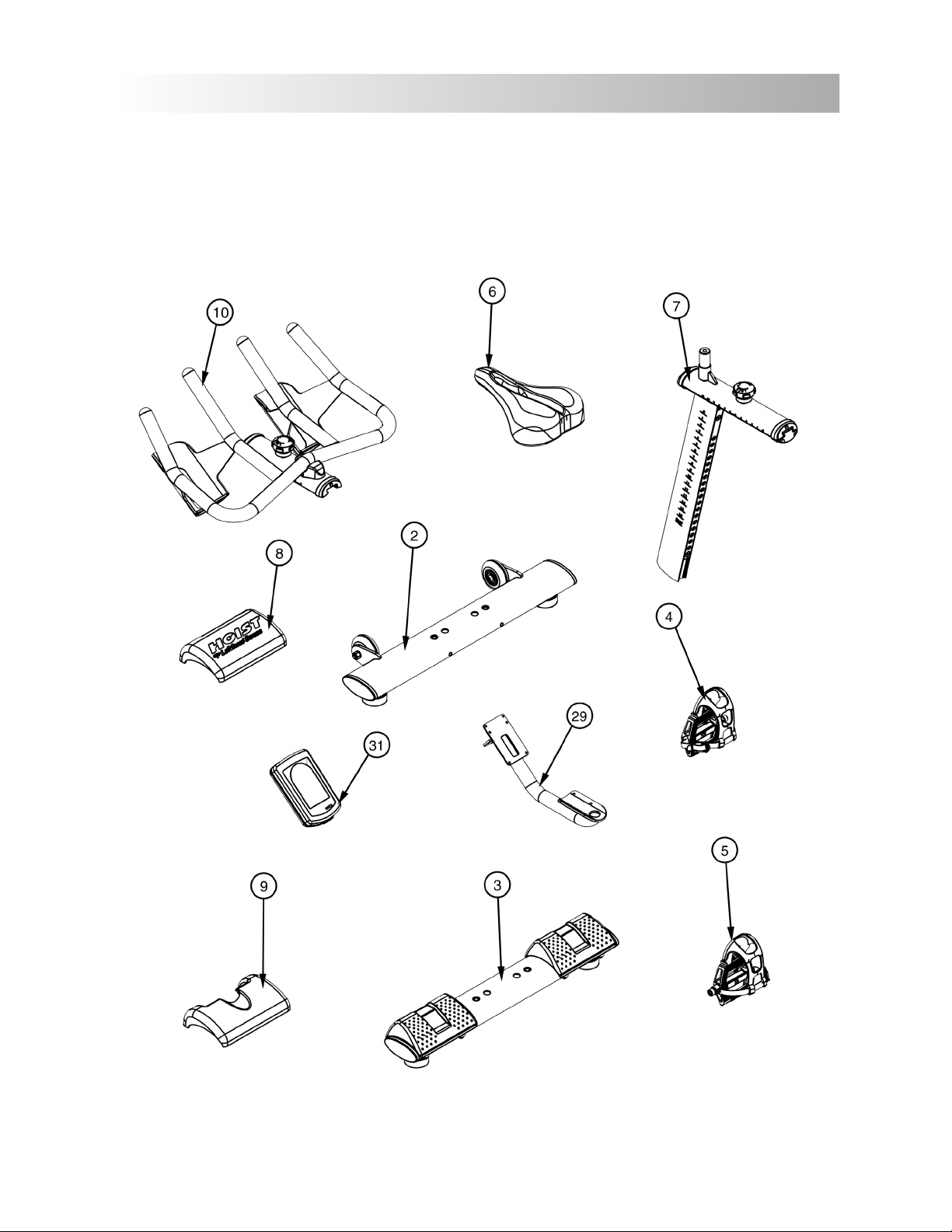

ASEEMBLED PARTS OVERVIEW

11
ASSEMBLY

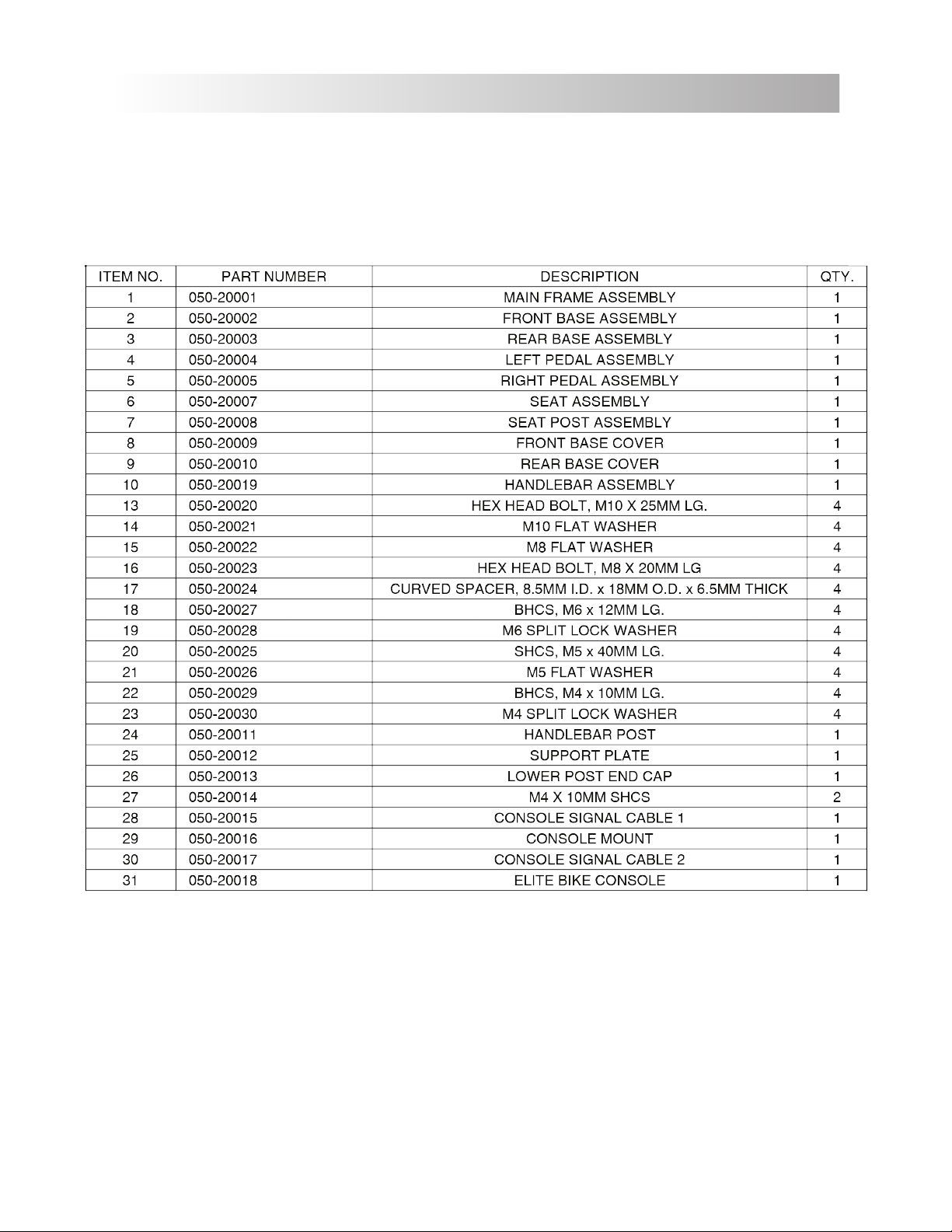

1. Attach the Front Base Assembly (2) to the Main Frame Assembly (1) using 2X – M10 x 25mm Hex
Head bolts (13), 2X – M10 Flat Washer (14), 2X – M8 x 20mm Hex Head bolts (16), 2X – M8 Flat
Washer (15) , and 2X – Curved Spacers (17) and wrench tighten.
2. Attach the Rear Base Assembly (3) to the Main Frame Assembly (1) using 2X – M10 x 25mm Hex
Head bolts (13), 2X – M10 Flat Washer (14), 2X – M8 x 20mm Hex Head bolts (16), 2X – M8 Flat
Washer (15), and 2X – Curved Spacers (17) and wrench tighten.
ASSEMBLY INSTRUCTIONS

12
ASSEMBLY INSTRUCTIONS

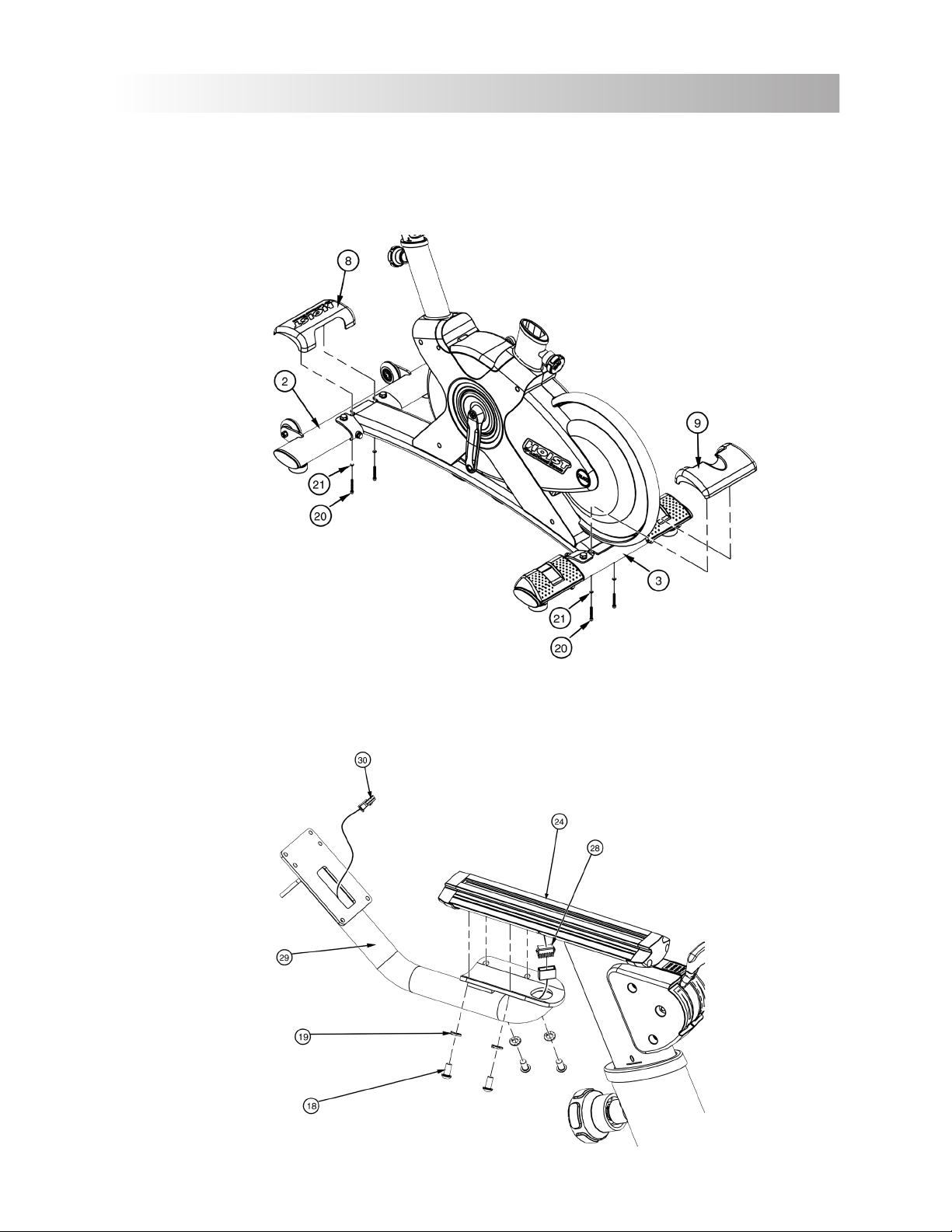

3. Attach the Front Base Cover (8) to the Front Base Assembly (2) using 2X – M5 x 40mm SHCS (20) and
2X – M5 Flat Washer (21) and wrench tighten. Then attach the Rear Base Cover (9) to the Rear Base
Assembly (3) using 2X – M5 x 40mm SHCS (20) and 2X – M5 Flat Washer (21) and wrench tighten.
4. Attach the female plug of Signal Cable 2 (30) to the male plug of Signal Cable 1 (28). Then attach
the Console Mount (29) using 4X – M6 x 12mm BHCS (18) and 4X – M6 Split Lock Washer (19) and
wrench tighten.

13
5. Plug the male end of Signal Cable 2 (30) into the Elite Bike Console (31). Then attach the Elite Bike
Console (31) to the Console Mount (29) using 4X – M4 x 10mm BHCS (22) and 4X – M4 Split Lock
Washer (23) and wrench tighten.
6. In order to install the Handle Bar Assembly (10) you must rst loosen and remove 2X – M4 x 10mm
SHCS (27), Handle Bar Post End Cap (26), and Support Plate (25) located at the back of the Handle-
bar Post (24) as shown.
ASSEMBLY INSTRUCTIONS

14
ASSEMBLY INSTRUCTIONS
7. Slide the Handle Bar Assembly onto the Handlebar Post as shown. *PLEASE NOTE: Take extra care to
ensure that the bottom of the adjuster is oriented as shown in the detail view*
8. Attach the Left Pedal Assembly (4) onto the crank and wrench tighten. Repeat operation for oppo-
site side Right Pedal Assembly (5). *PLEASE NOTE: The Left Pedal Assembly (4) has reverse threads*

15
9. Attach the Seat Assembly (6) onto the Seat Post Assembly (7) and wrench tighten. To install the
Seat Post Assembly (7) into the Main Frame (1) loosen the seat height adjuster and pull the adjuster
outward. While the adjuster is pulled outward insert the Seat Post Assembly (7) and release the
knob and re-tighten.
ASSEMBLY INSTRUCTIONS

16
ASSEMBLY INSTRUCTIONS
ASSEMBLY OVERVIEW PARTS LIST
NOTE: Some of these parts may come pre-installed.

17
GUIDELINES FOR SAFE OPERATION
WARNING
THESE GUIDELINES ARE DIRECTED TO YOU, AS THE OWNER OF THIS EXERCISE EQUIPMENT.
YOU SHOULD INSIST THAT ALL USERS FOLLOW THE SAME GUIDELINES. YOU SHOULD MAKE
THIS MANUAL AVAILABLE TO ALL USERS.
1. Obtain a complete physical examination from your medical doctor and enlist a health/tness pro-
fessional’s aid in developing an exercise program suitable for your current health status.
2. When working out for the rst time, start out slowly for a minimum of ve minutes. After your
muscles are warmed up, gradually increase the pedaling rate and/or resistance to a speed that
allows you to attain your target heart rate zone.
3. The speed and duration of your exercise program should always be subject to how you feel. Never
permit peer pressure to exceed your personal judgment while exercising.
4. Overweight or severely unconditioned individuals should be particularly cautious when using the
equipment for the rst time. Even though such individuals may not have histories of serious physi-
cal problems, they may perceive the exercise to be far less intense than it really is, resulting in the
possibility of overexertion or injury.
5. Although all equipment manufactured by HOIST Fitness Systems, Inc. has been thoroughly in-
spected at the manufacturing facility prior to shipment, proper installation and regular mainte-
nance are required to ensure safety. Maintenance is the sole responsibility of the owner.
GUIDELINES FOR SAFE OPERATION

18
ADJUSTING THE FIT
Take a moment to learn how to properly t your HOIST® LeMond® Series ELITE to your body; it will
make your workouts a more pleasant and safer experience. The HOIST® LeMond® Series ELITE has each
adjustment numbered so you can quickly return the adjustments to your specic settings. Making full
use of these features will give you the most comfortable ride possible and allow you to exercise e-
ciently. Using the bike when it is incorrectly adjusted can result in unnecessary discomfort and increase
your risk of injury.

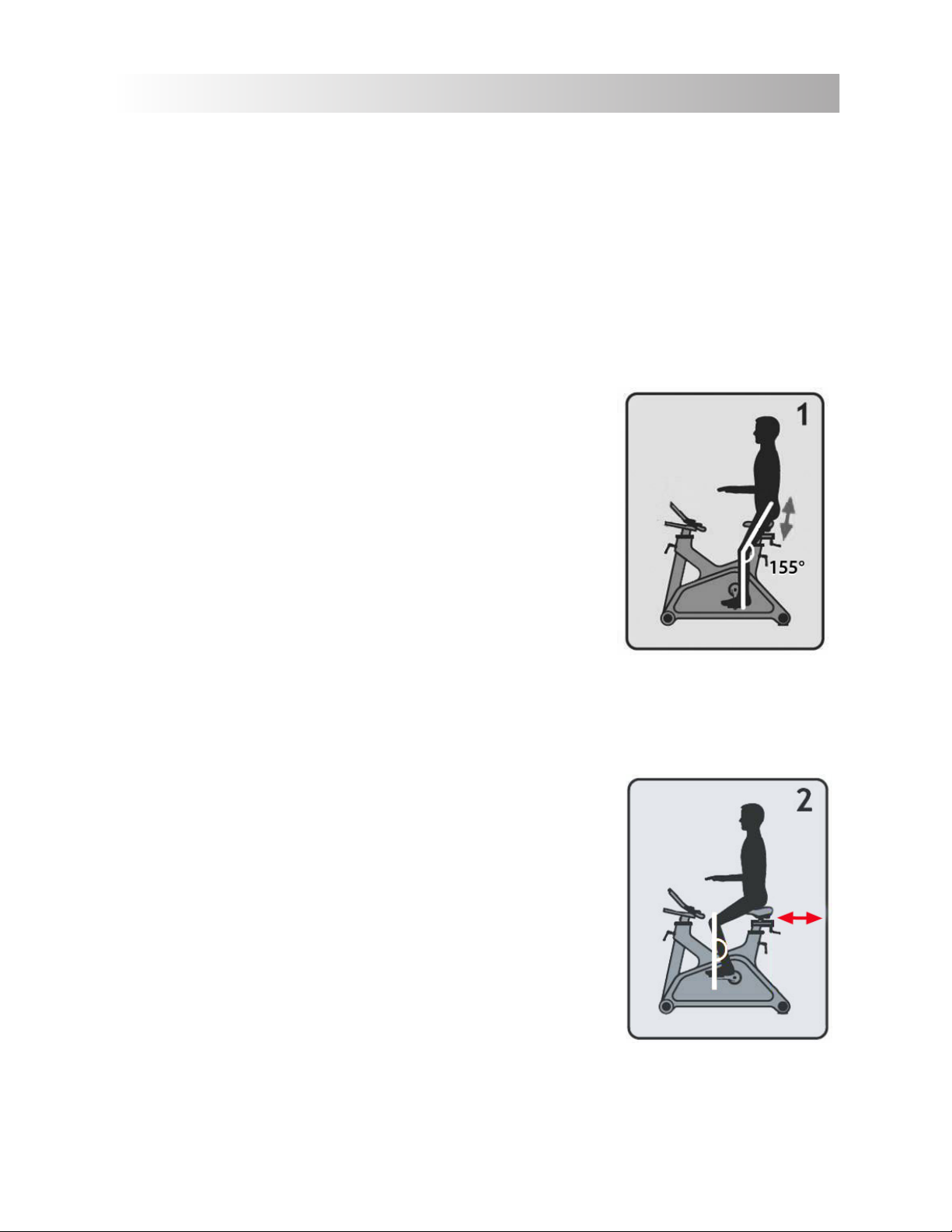

Seat Adjustment:
Adjusting the Seat’s Height
1. Stand next to the seat post and adjust the seat to hip height.
2. Rotate the crank so that the pedals are in the vertical, 12 and
6 o’clock, position.
3. Place your foot in the toe cage of the pedal closest to the oor
and mount the bike. Ensure that the ball of your foot is over
the center of the pedal. Your leg should be slightly bent at
the knee (155° extension), as shown in the picture to the right.
4. If your leg is too straight or your foot cannot touch the pedal
you will need to lower the seat. If your leg is bent too much
you will need to raise the seat.
5. Dismount the bike and pull up on the seat post cam clamp
lever. Once loosened, slide the seat post up or down as nec-
essary.
6. When the seat is in the desired position, push the cam clamp lever
down to the locked position to secure the seat post.
7. Note the nal position mark on the seat post for future reference.
Adjusting the Seat’s Forward/Aft Position
1. Sit on your bike with the cranks in the 3 and 9 o’clock positions.
A proper forward/aft position of the seat is achieved when the
small bump at the top of the shin of your forward leg, directly
below the knee cap (tibial tuberosity), is above the pedal axle.
2. Dismount to adjust the seat forward or aft for a better t.
Loosen the seat adjustment knob and slide the seat forward or
backward as desired; then tighten.
3. Note the nal position mark under the seat for future refer-
ence. (Repeat steps for seat height if necessary.)
OPERATING INSTRUCTIONS
*Diagram does not reect
actual product
*Diagram does not reect
actual product

19
Handlebar Adjustment:
Adjusting the Handlebar Height
1. Handlebar height is a matter of preference. Start with the han-
dlebars at the same height as the seat. Adjusting the handle-
bars higher will give the rider a more upright position; lowering
them will result in a more prone position.
2. Dismount the bike to adjust the handlebars. Raise or lower the
handlebars by pulling up on the handlebar post cam clamp
lever and sliding the handlebar post up or down as desired.
Push the cam clamp lever down to the locked position to
secure the handlebar post.
3. Note the nal position mark on the handlebar post for future
reference.
Adjusting the Handlebar’s Forward/Aft Position
1. Dismount the bike and loosen the handlebar forward/aft
adjustment knob and slide the handlebars either forward of
backward as desired. The forward/aft position should be set
to allow the rider to comfortably grasp the handles with a
slight bend at the elbow.
2. Tighten the adjustment lever clockwise to secure the handle-
bar assembly. Note the nal position mark for future refer-
ence.
Pedal strap adjustment:
1. Place the ball of each foot on the pedal and in the toe cage such that the ball of the foot is centered
over the pedal spindle and under the strap.
2. Rotate the cranks until one foot is in a position closest to you.
3. To tighten the strap, pull up on the end of the strap until it ts snugly over your shoe. Make sure
that the strap is secure, but not overly tight or pressing uncomfortably on your foot.
4. Repeat for the other foot.
5. To loosen he pedal strap, press down on the clip that holds the strap secure, and pull slightly
outward.
6. Release the clip to lock the strap into place.
OPERATING INSTRUCTIONS
*Diagram does not reect
actual product
*Diagram does not reect
actual product

20
BASIC OPERATION
Now that you have established a riding position, take a few minutes to ride the bike and determine that
your position is comfortable. Start pedaling at a slow pace with your toes and knees pointed directly
forward. Hold the grips lightly and in a position that allows your shoulders and upper body to relax.
Pedal easily, at a low resistance, until you feel condent that you could ride in that position for the dura-
tion of your workout.
WARNING
IF AT ANY TIME DURING YOUR WORKOUT, YOU FEEL CHEST PAIN, EXPERIENCE SEVER
MUSCULAR DISCOMFORT, FEEL FAINT, OR ARE SHORT OF BREATH, STOP EXERCISING
IMMEDIATELY. IF THE CONDITION PERSISTS, YOU SHOULD CONSULT YOUR MEDICAL
DOCTOR IMMEDIATELY.
1. Pedaling resistance is controlled by the tension lever located beneath the handlebar. Resistance
may be changed at any time by rotating the tension lever; downward for more resistance, or
upward for less resistance.
2. To apply the emergency brake, press downward on the tension knob.
3. Before dismounting, apply the emergency brake to stop the ywheel, or increase the resistance and
let the ywheel come to a stop.
4. To dismount the bike, rst loosen each toe cage strap and remove your feet from the pedals, then
step o the bike.
OPERATING INSTRUCTIONS
