Home Essentials Norton XK089MH User manual

Assembly Instructions - Please keep for future reference
Width - 90.0cm
Single Pedestal Desk
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 01709 534123
Please turn to back page for important information when contacting Customer Helpline.
Dimensions
Depth - 44.0cm
Height - 70.0cm
Rev A - 30.05.17
021 xx 7667
MADE IN
GREAT BRITAIN

Important - Please read these instructions fully before starting assembly
Safety and Care Advice
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and seperate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Do not stand or put weight on
the product, this could cause
damage.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
Parts of the assembly will be
easier with 2 people.
We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
Care and maintenance
Always lift furniture when
moving it (do not drag)
otherwise the joints may be
damaged.
From time to time check that
there are no loose screws on
this unit.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
1
Dust surfaces with a soft, dry,
lint free cloth.
More stubborn marks can be
removed using a damp
(not wet) cloth. Wipe the
surface dry immediately
using a soft lint free cloth.
Do not use detergents, abrasive
cleaning products or cleaning
products that contain ammonia,
solvents or silicone as these
may damage the surface finish.
To protect the furniture,
position the furniture out of
direct sunlight and away from
direct heat sources such as
radiators and fires.
Do not place the furniture in
excessively dry and humid
conditions.
Do not place hot or cold
objects on the surface, always
use protective mats to avoid
marking the furnture.
Clean spills up immediately
Dispose of all packaging
carefully and responsibly
when assembly complete.
Do Not dispose of packaging
until assembly complete.

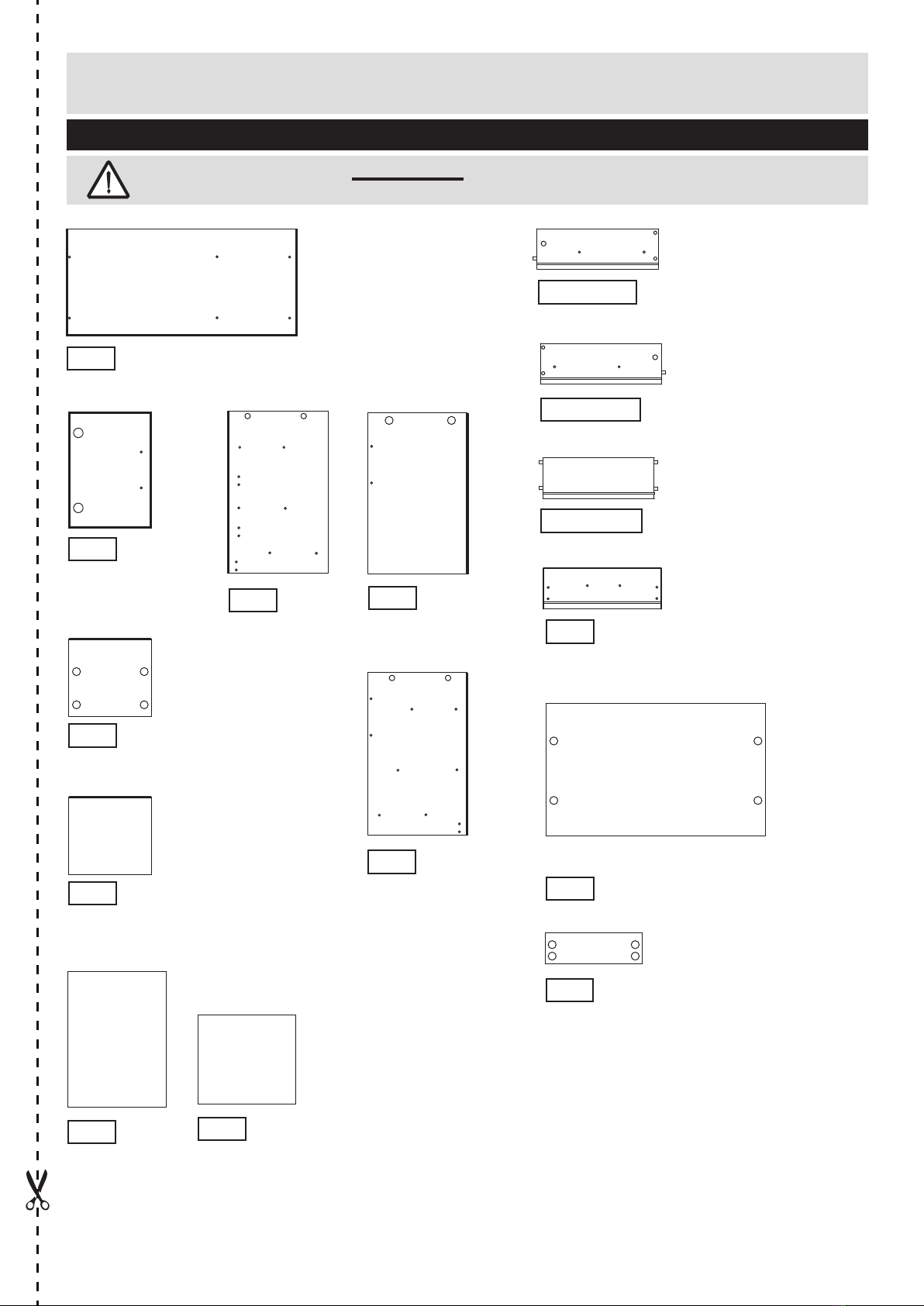

Please check you have all the panels listed below
Components -Panels
2
Important - Thick lines indicate finished edges
Top Panel (90.0x44.0cm)
0856
Back Rail (54.1x35.0cm)
9669
Rail (30.9x7.6cm)
8546
Right End Panel
(68.4x35.0cm)
0858
Draw Front
(30.5x15.7cm)
9387
Left drawer side (30x10cm)
Drawer back (27.6x10cm)
Right drawer side (30x10cm)
622xx7002
624xx7003
623xx7002
Drawer Bottom
(28.7x29.8cm)
4883
Back Panel
(60.4x33.5cm)
9677
Left End Panel
(68.4x35.0cm)
0857
Divider
(68.4x35.0cm)
0859
Door
(43.8x30.5cm)
0860
Bottom
(30.9x33.3cm)
9675
Shelf
(30.9x33.3cm)
9676

3
70 80 90 100 110 120
010 20 30 40 50 60
mm
130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws

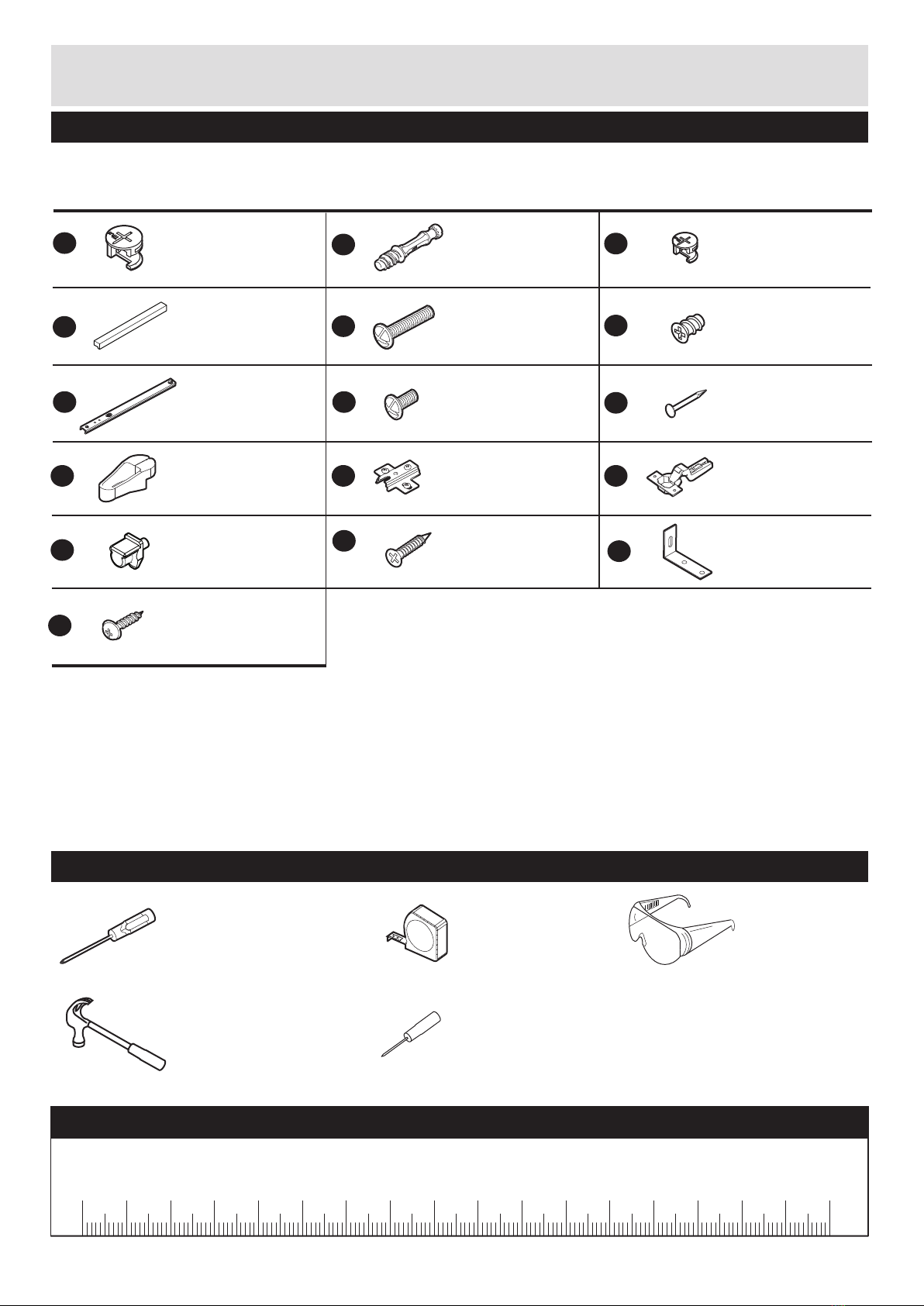

Please check you have all the fittings listed below
Components - Fittings
Note: The quantities below are the correct amount to complete the assembly, In some case more
fittings may be supplied than are required.
Tools required
If you have damaged or missing components, call the
Customer Helpline: 01709 534123 Please turn to back page
for important information when contacting Customer Helpline.
Cross headed screwdriver
(Small, medium and large)
Small Hammer
Tape Measure
Eye protection
(when using a
hammer)
Large cam x 18
Code 760001103
Metal dowel x 20
Code 760003004
ABC
E
DF
H
G
Small cam x 2
Code 760003005
20mm bolt x 4
Code 700002006
8mm screw x 4
Code 700003510
Runner x 2
Code 760001040
9mm bolt x 2
Code 690001078
I
JK L
N
Panel pin x 20
Code 760001012
Panel pin guide x 1
Code 684004501
Handle x 2
Code 643005527
Shelf stud x 4
Code 681003001
Hingeplate x 2
Code 653006000
26mm hinge x 2
Code 652001120
Screw x 4
Code 690001008
P
Bradawl
Q
R
12mm screw x 2
Code 690001099
Support bracket x 1
Code 760001901

9677

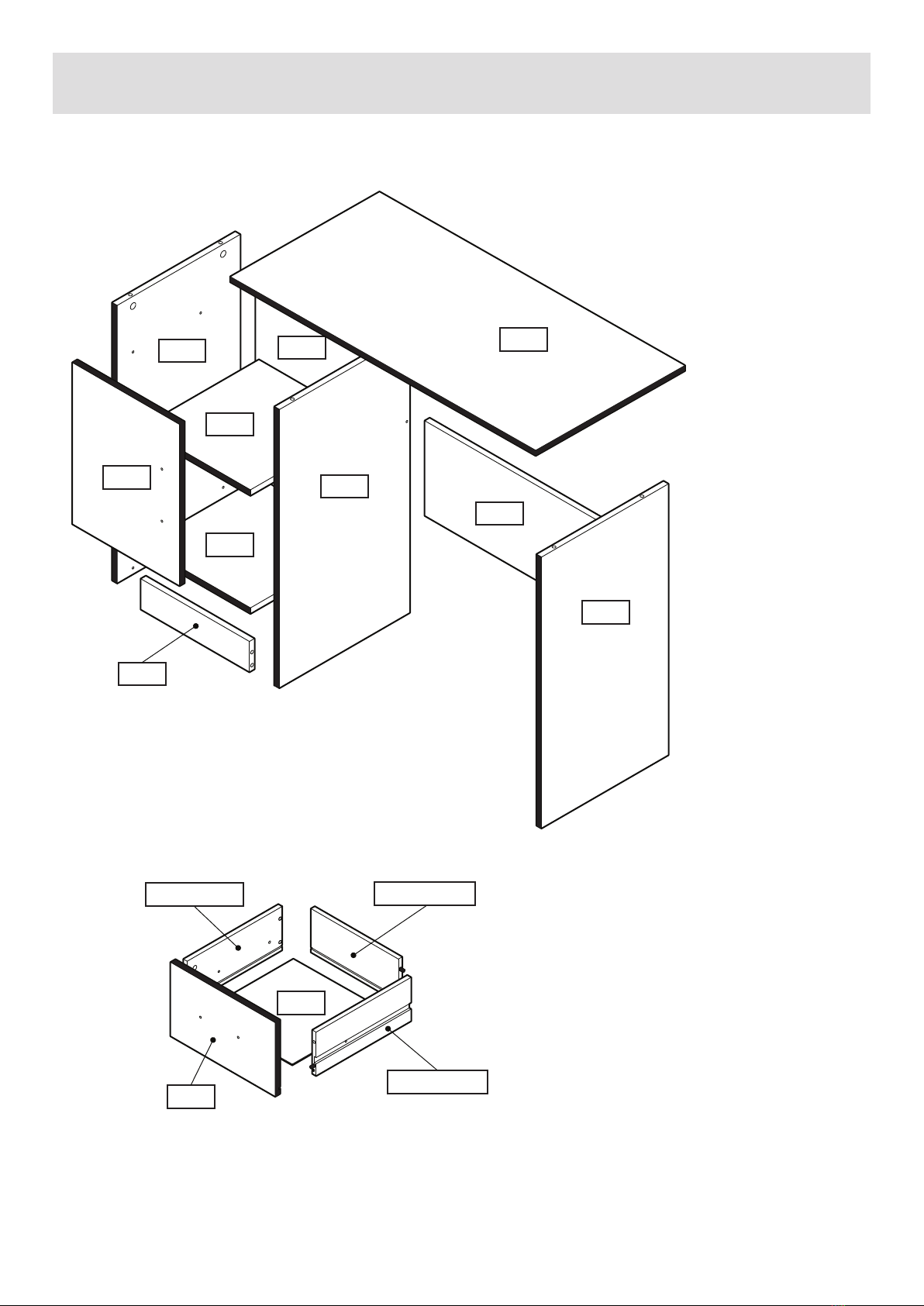

Exploded View
4
9669
8546
9675
9676
0859
0857
0860
0858
622xx7002
623xx7002
624xx7003
9387
4883
Drawer
0856

A
A

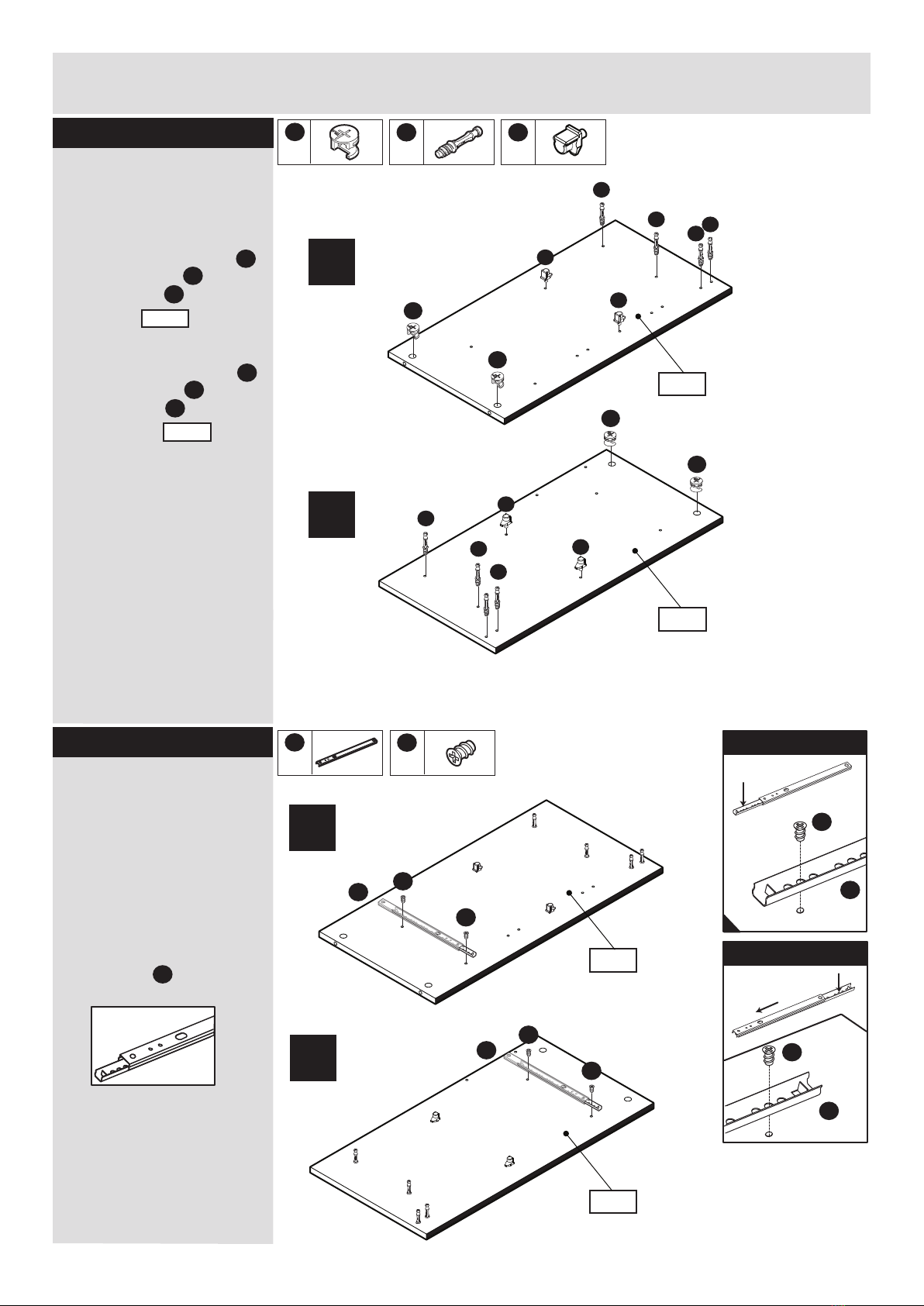

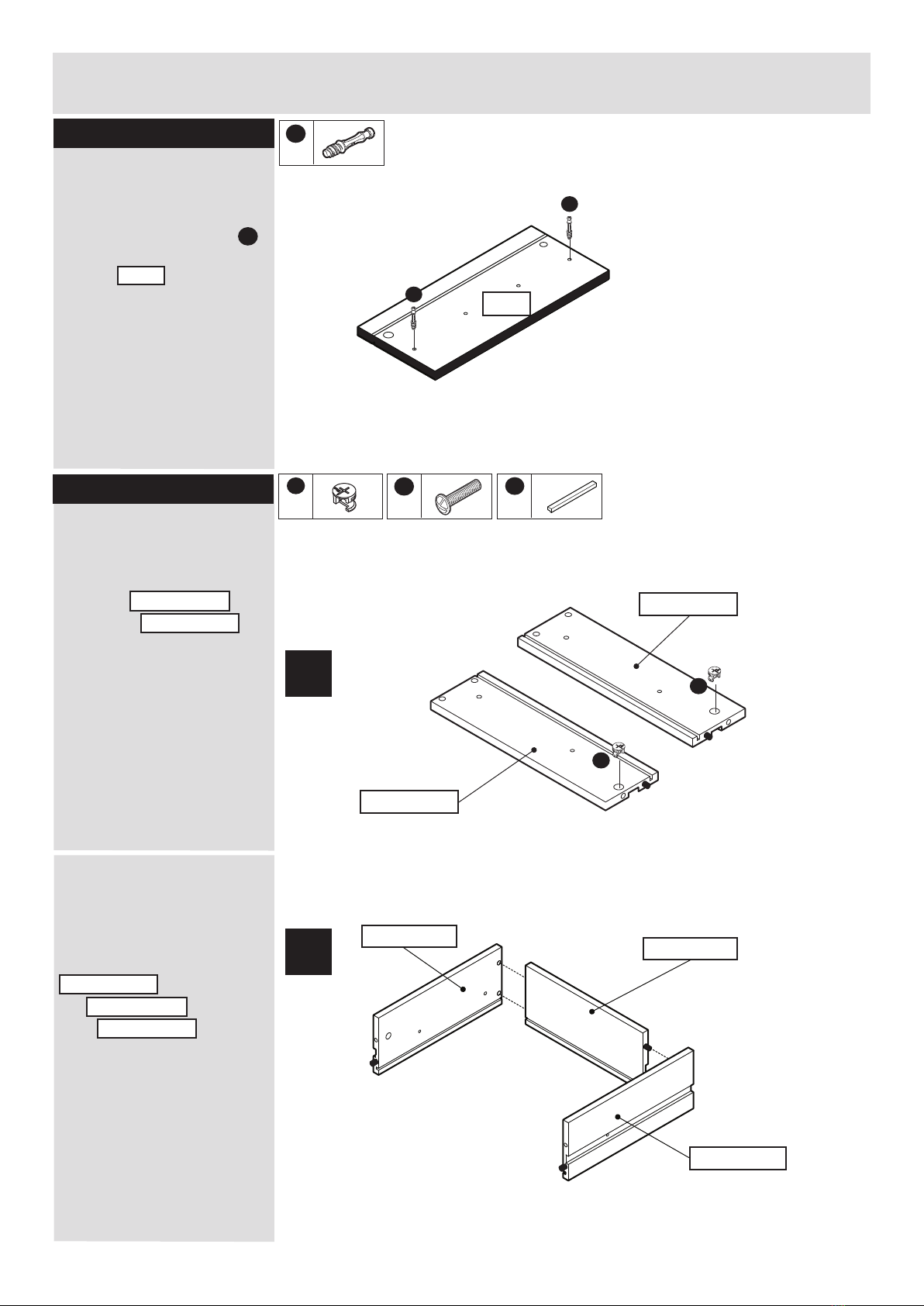

Step 1
Assembly Instructions
5
B
x6
B
A
x12
Fitting dowels to top
panel.
Step 2
B
A
A
A
Fitting cams to the
plinth, back rail and
bottom panels.
9669
Insert 6 metal dowels
into the top panel 0856
A
Insert 4 cams into the
back rail panel
Note: Tighten metal
dowels up fully against
the panel.
Do not over tighten.
9669
0856
B
B
B
B
B
B
AA
8546
AA
A
A
A
A
9675
A
Insert 4 cams into the
plinth panel .
8546
A
Insert 4 cams into the
bottom panel 9675

Assembly Instructions
6
Step 3
Step 4
G
G
F
F
Front of Runner
Back of Runner
N
Fitting cams , dowels
and shelf studs to the
lh end & divider panels.
B
A: Insert 2 metal cams
4 metal dowels and
2 shelf studs into left
end panel .
0857
A
N
B
B: Insert 2 metal cams
4 metal dowels annd
2 shelf studs into left
divider panel .
A
0859
B
x8
N
x4
A
A
A
A
B
0857
0859
A
B
A
x4
B
B
B
B
B
B
N
N
N
N
A
B
G
G
G
x2
F
x4
Attaching runners to
the lh end and divider
panels.
Position the runner so
that the second hole
from the front of the
runner lines up with the
pre-drilled hole nearest
to the edge of the panel.
Use screws to secure
the runner.
Slide the runner forward
revealing the back of the
runner. The second hole
to the back of the runner
will now line up with
the second pre-drilled
hole.
F
Front of runner
F
F
F
F
A
B
0857
0859

Assembly Instructions
7
B
B
0858

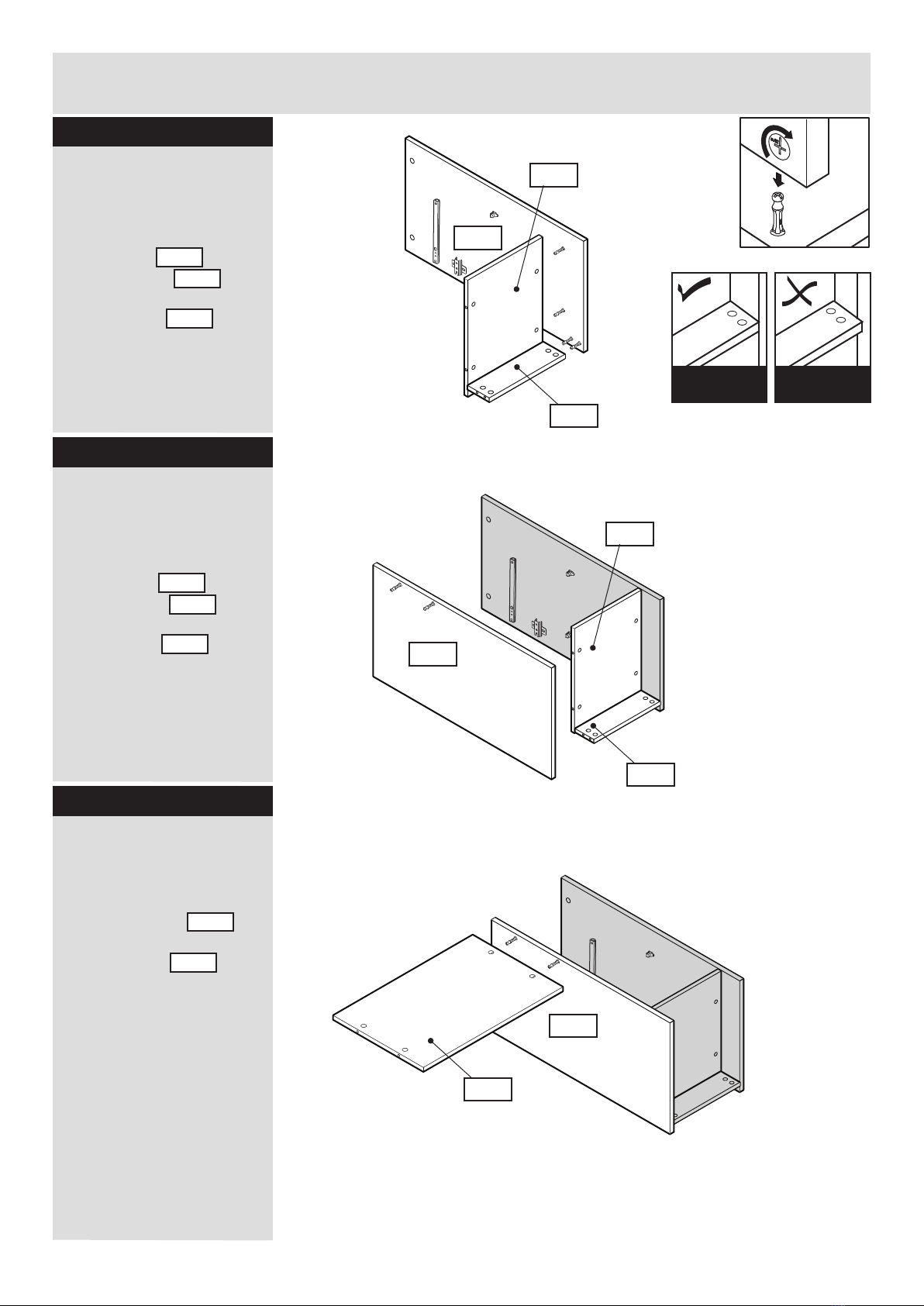

Step 6
Step 7
Insert 2 hinge plates
into the left end panel
.
K
0857
Fitting hingeplates
to left end.
K
x2
K
K
0857
Step 5
B
B
0859
Insert 2 metal dowels
into the reverse side of
the divider panel .
B
0859
B
x2
Fittings in reverse side.
We suggest using the
cardboard packaging
to place under this
panel to prevent
damage to your floor.
Now, turn the divider
panel over.
A
A
B
x2
A
x2
Fitting cams and dowels
rh end panel.
B
Insert 2 metal cams
2 metal dowels and
right end panel .
0858
A

Assembly Instructions
8
Step 7
Step 7
c: Secure hinges to
doors using screws .
Step 8
Attach hinges to the
door
a: Insert hinges
into holes, ensure
the hinge is straight
(90 degree angle).
b: Before securing the
hinges , we recommend
you pre - mark the doors
using a bradawl.
L
L
L
x2
P
P
P
P
P
x4
A
B
L
L
L
0860
9419
C
d: Secure handle to
the door with bolts
D
E
D
D
x2
E
x1
D
P
Bradawl
90
Correct
98
Incorrect
EE
0860
0860
0860

Assembly Instructions
9
Step 9
Step 10
B
A
Left hand side
Right hand side
622xx7002
623xx7002
622xx7002
623xx7002
C
C
B: Insert wooden dowels
in drawer back
into holes in
left
right hand
drawer sides.
Right hand side
Left hand side Drawer Back
624xx7003
622xx7002
623xx7002
623xx7002
624xx7003
622xx7002
A: Insert small cams
into left
and right
drawer sides.
Note: Ensure cam arrow
points towards the edge
with hole.
9387
Fitting dowels to the
drawer front.
B
Insert 2 metal dowels
into the the drawer
fronts .
Repeat on the remaining
drawer fronts.
9387
x2
B
B
B
x2
C
E
x2
D
x1
Assemble the drawer

Assembly Instructions
10
Step 10 Continued
D
E
D:Locate the metal
dowels (already inserted)
in the drawer front into the
small cams in the left and
right hand drawer sides.
Ensure drawer sides are
pressed against drawer
front.
Turn the cam 180 degrees
to lock.
E: Fit bolts through
the pre-drilled holes in
the drawer front
and connect to the handle
.
E
9387
H
D
D
9387
E
E
9387
Repeat on remaining
drawers
C
9387
4883
Foil surface facing upwards.
Plain chipboard surface
to underside.
C: Sit drawer bottom
into groove on
drawer front .
Ensure foil on the
drawer bottom is facing
upwards.
9387
4883

Assembly Instructions
11

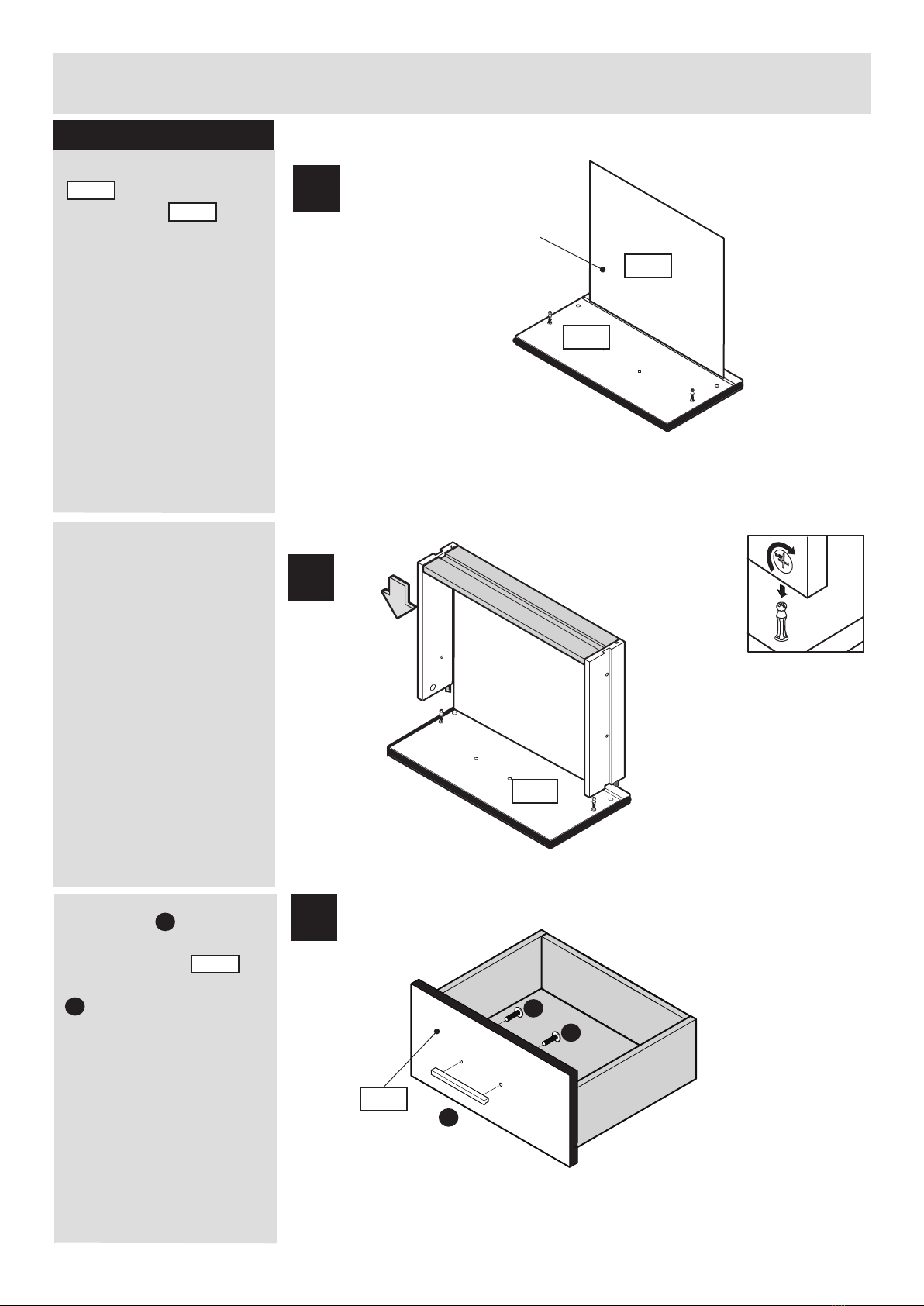

Step 11
Connect the plinth and
bottom panels to the
lh end panel.
Connect the cams in the
plinth panel and
bottom panel to
the metal dowels in the
lh end panel .
Ensure that finished
edges are facing the floor.
8546
9675
0857

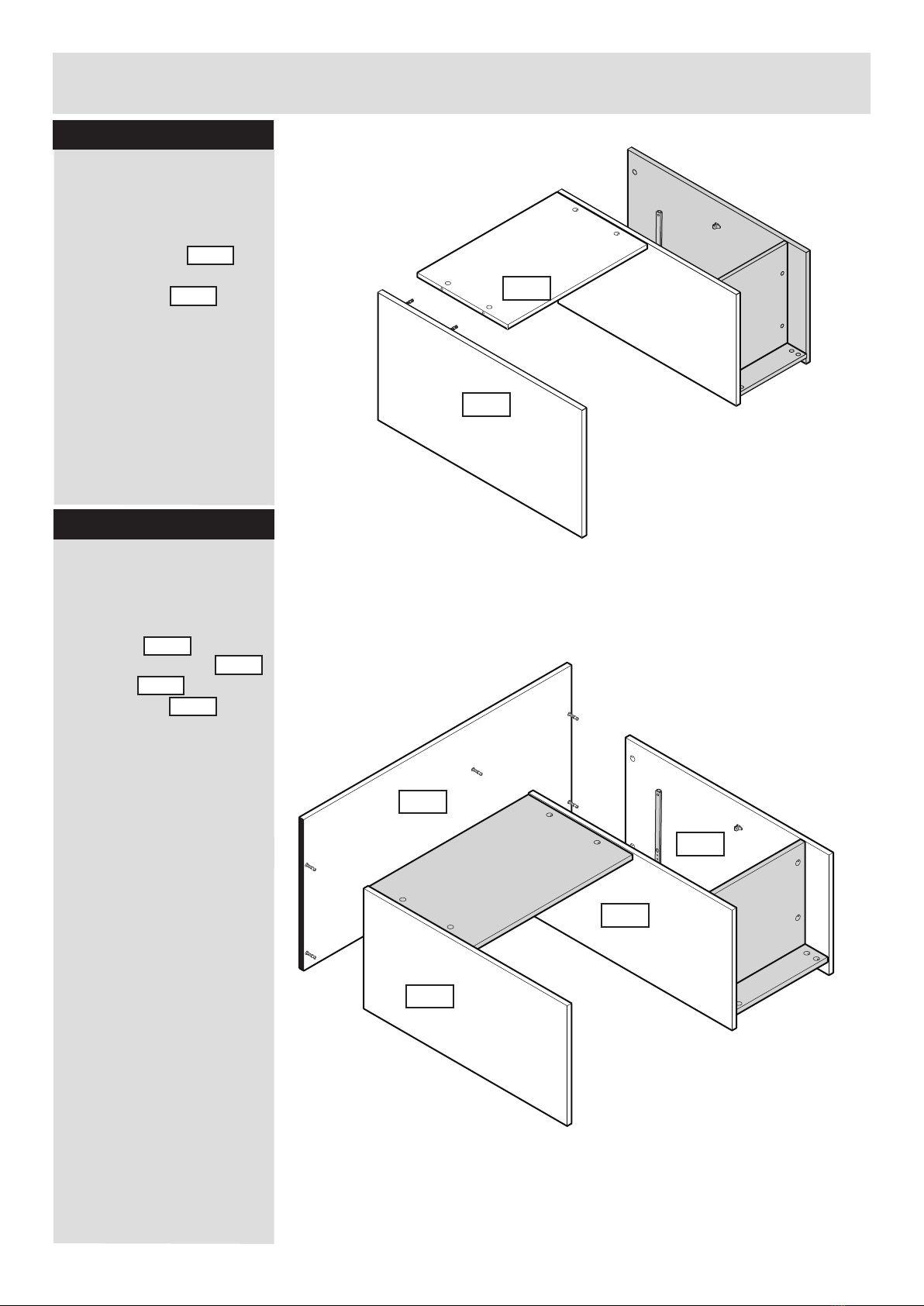

Step 12
Step 13
Connect the back rail
to the divider panel.
Connect the cams in the
back rail panel to
the metal dowels in the
divider panel .
An additional person will
be required to hold and
provide support to the
back rail before moving
onto the next step.
0859
9669
Connect the plinth and
bottom panels to the
divider panel.
Ensure plinth is
not overhanging.
Ensure plinth sits
flush.
8546
0857
9675
8546
0859
9675
Connect the cams in the
plinth panel and
bottom panel to
the metal dowels in the
divider panel .
Ensure that finished
edges are facing the floor.
8546
9675
0859
Turn the cam 180 degrees
to lock.
Turn the cam 180 degrees
to lock.
Turn the cam 180 degrees
to lock.
0859
9669

Assembly Instructions
12
0858
0858
0856
0859
0857
9669

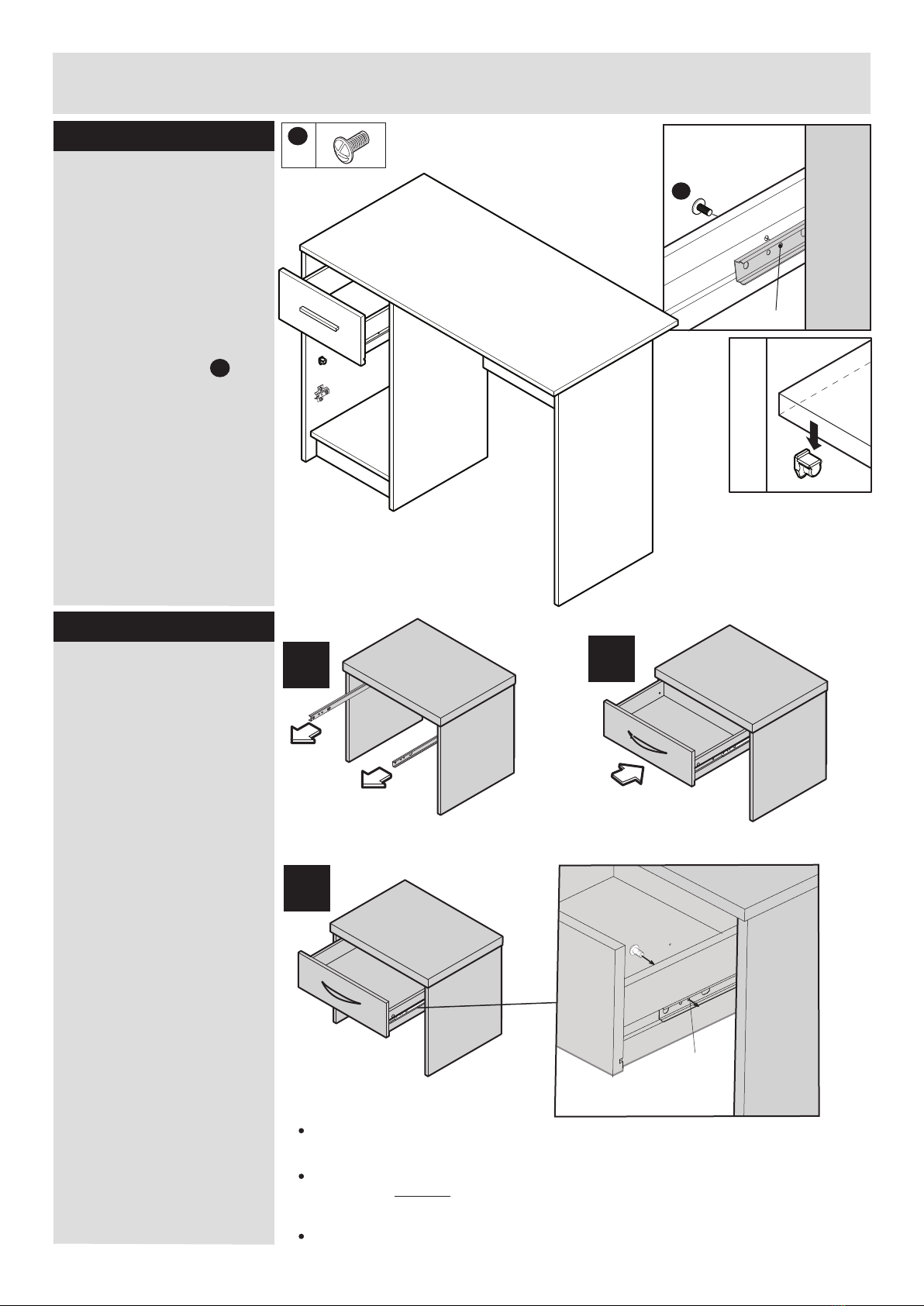

Step 14
Connect the rh end to
the back rail
Connect the cams in the
back rail panel to
the metal dowels in the
rh end panel .
0858
9669
Turn the cam 180 degrees
to lock.
Turn the cam 180 degrees
to lock.
Step 15
Connect the top panel
the end and divider
panels.
Connect the dowels in the
top panel to the
cams in the left end
right end and
divider panel .
0856
0587
0588
0589

Assembly Instructions
13
Step 14
Step 16

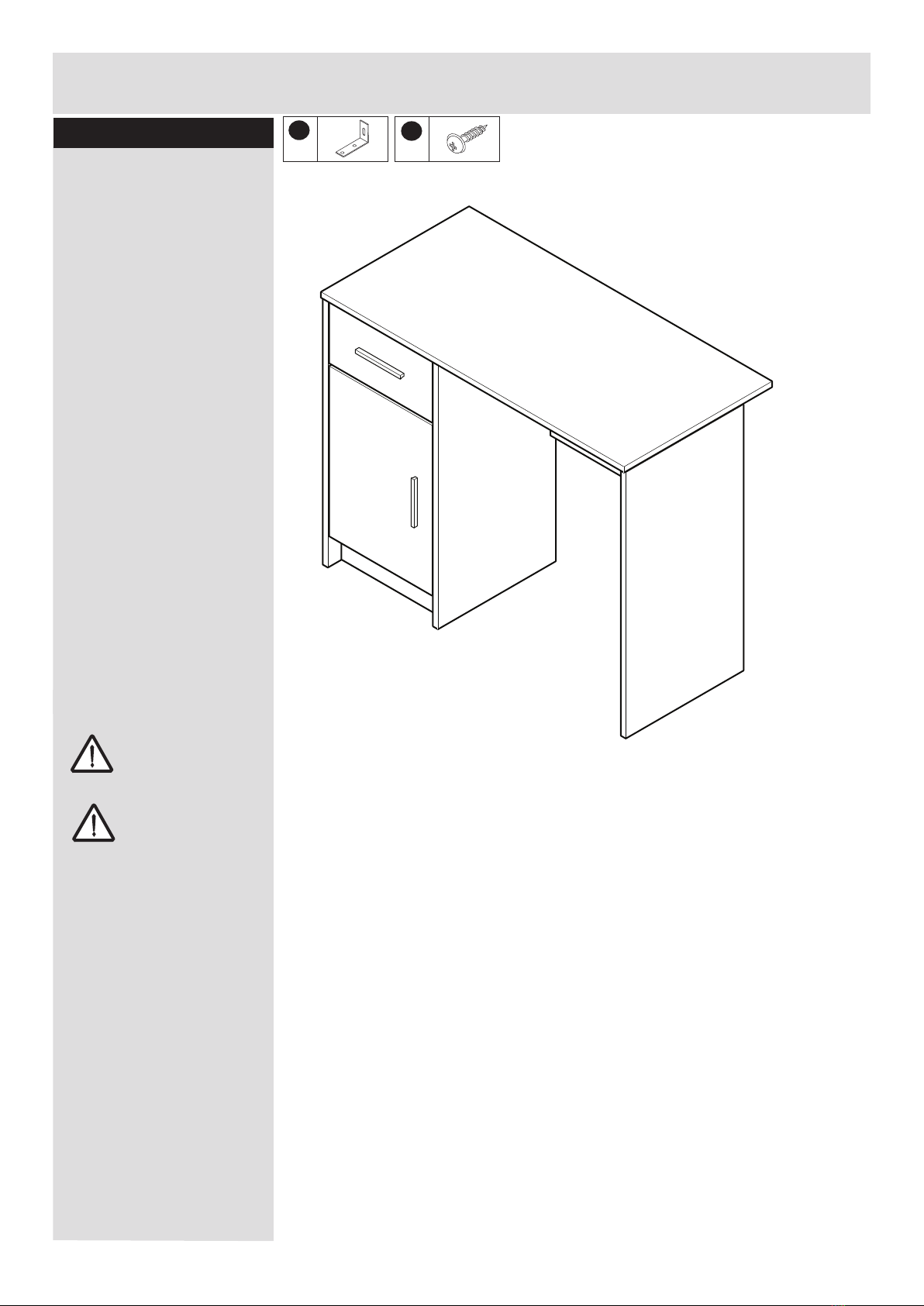

Squaring up the unit.
IMPORTANT!
Before securing the back
it is necessary to square
up the unit.
You can do this by
measuring between
XX - XX and YY - YY
ensuring these are the
same (DIAG 1).
If they are not (DIAG 2)
Apply slight pressure as
indicated (DIAG 3) until
they are the same.
Ensure a tape
measure is used
to square unit up.
Step 16
DIAG 1 DIAG 2 DIAG 3
XX
XX
XX
YY
YY
YY
YY
XX
XX
YY
YY
XX
XX
YY
YY
XX
Step 17
Fixing back panel in
place.
I
I
I
x20
J
J
x1
Use the panel pin guide
when locating the panel
pins .
This will hold the
panel pins vertical and
ensure the correct
distance from the edge.
Stand the unit upright
once this step is
complete (2 people).
9677
Plain chipboard surface
to this side.

Assembly Instructions
14
Step 18
Step 19
Fit the drawer.
For this step we
recommend you follow
the helpful hints below.
2nd Hole
H
x2
H
Sit the shelf on top of
the shelf supports .
Locating shelf onto
shelf supports.
N
PULL SLIDING PART OF DRAWER RUNNERS
OUT SO THEY ARE FULLY EXTENDED. LOCATE DRAWER ONTO RUNNERS
WHILST KEEPING RUNNERS EXTENDED.
LINE UP THE FRONT HOLE IN THE DRAWER SIDE WITH THE 2ND THREADED
HOLE IN THE RUNNER.
WHILE PUSHING THE RUNNER AGAINST THE DRAWER SIDE, SCREW THE
BOLT FROM THE INSIDE OF THE DRAWER, THROUGH THE HOLE IN THE DRAWER SIDE
AND INTO THREADED HOLE IN THE RUNNER.
REPEAT ON OPPOSITE DRAWER SIDE
2nd HOLE
C
AB
Fit the drawer
helpful hints.

Assembly Instructions
15
Step 20
B
B
B
Underside view
Ensure the underside of screw
B slides into slot on hingeplate.
Hinge correctly attached to
hingeplate.
Hinge incorrectly attached to
hingeplate.
Diagram 1
Diagram 2
Diagram 3
a: With help, slot door
hinges onto hinge plates.
Ensure screw on hinge
slides into the slot on
hingeplate.
See Diagrams 1, 2 and 3.
Hanging door
b: Tighten screw shown
to lock hinges in
position.
See ‘Hinge adjustment’
page if the doors
need adjusting.
AB

Assembly Instructions
16
Step 22
Step 21
Step 21
a: To move doors up
or down: loosen screws
shown and move doors
to suit.
Re-tighten screws.
Hinge adjustment
b: To move doors in or
out: loosen screw
shown and move doors
to suit.
Re-tighten screws.
c: To move doors left
or right: loosen or
tighten screw as shown.
Be careful not to fully
unscrew.
A
B
C

Assembly Instructions
17
Step 22
We recommend that this
unit is fixed to a suitable
wall to prevent possible
overbalancing. We have
included a fixing bracket
for this. No fixing screws
are provided as they will
need to suit the wall
type, and the length of
screw will depend on
the distance from the
back of the unit to the
wall. Please ensure
fixings used are
appropriate to your wall
type. Locate the bracket
to the top panel or to the
end panel as close to
top as possible. We do
not specify exact
location for the bracket,
this is left to the
customer’s discretion.
Fixing to wall
Please take care when
drilling into the wall,
avoiding any pipes and
wires. Wear safety
goggles when drilling.
The use of residual
current device (RCD) is
recommended when
working with tools.If in
doubt consult a
qualified person.
Warning:
2 people to lift.
Lift with care.
With help move the
unit into position.
Warning:
x1 x2
QR

Assembly Instructions
Congratulations! Your unit is complete.
Important Information
If you need help or have damaged or missing parts, call the Customer Helpline:
01709 534123 8am - 4.30pm (Monday toThursday)
8am - 2.30pm (Fridays)
Please have the following information to hand:
>> Unit Description
>> Product Code
>> Product Colour
>> Place of Purchase
>> Catalogue Ref. No.
>> Item Code
>> Assembly Instructions
You can also e-mail your requests to us at:
customer[email protected]
Alternatively, you can write to us at: Customer Service Department, Addspace Furniture Limited,
Braithwell Way, Hellaby Industrial Estate, Hellaby, Rotherham, SouthYorkshire, S66 8QY.
We do have an answer machine should you contact us out of office hours, so in addition to
the above information could you leave your name, address, daytime telephone number and
the nature of your call on the answerphone. All calls will be actioned asap.
(by contacting the customer service line your statutory rights are not affected)

Notes;
