Homecrest NF-16 User manual

2021 crystal fire & crystal fire PlUs bUrner
fire table manual

2 | www.homecrest.com
DANGER
NOTICE
CAUTION
WARNING
DANGER
NOTICE
CAUTION
WARNING
DO NOT DISCARD THIS MANUAL.


IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE.


 
 
 
 

DANGER
NOTICE
CAUTION
WARNING
HOT! DO NOT TOUCH. SEVERE BURNS MAY RESULT. CLOTHING IGNITION MAY RESULT.


CAREFULLY SUPERVISE



USER MANUAL FOR:


DANGER
NOTICE
CAUTION
WARNING


DANGER
NOTICE
CAUTION
WARNING






Fire Table Manual | 3
DECORATIVE OUTDOOR
GAS-FIRED FIREPLACE
42W4
Model: All Crystal Fires
ANSI Z21.97-2017 and CSA 2.41-
2014 for Canada. Installation must
conform with local codes or in the
absence of local codes, ANSI
Z223.1 * NFPA 54 National Fuel
Gas Code – Natural gas and
propane installation code, CSA
B149.1 – or propane storage and
handling code CSA B149.2
Type of Gas: Natural
Gas, Propane Gas
The Outdoor GreatRoom Company
2015 Silver Bell Road, #195
Eagan, MN 55122
WARNING: Must Not Be Used For Cooking.
WARNING: For Outdoor Use Only. If stored indoors, detach and leave cylinder
outdoors.
MINIMUM CLEARANCES: Top: 6 Ft. (72”) Sides: 2 Ft. (24”) Bo om: 8 In.
Minimum clearance from sides and back of unit to adjacent combus
construc on below top of unit is 8 inches from sides and 8 inches from back.
Minimum horizontal clearance from sides and back of unit to adjacent ver cal
combus ble construc on extending above top of unit is 24 inches from sides and 24
inches from back.
WARNING: Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage. Refer to the
owner’s information manual provided with this appliance. For
assistance or additional information consult a qualified installer, service
agency or the gas supplier.
Model Orifice Size Max input BTU
LP NG LP NG
·CF-20
·NF-16 #43 #31 55331 51706
·CF-1224
·NF-719 #43 #31 55331 51706
·CF-2424
·NF-1919 #36 #17 79229 107465
·CF-1242
·NF-737 #31 #21 100588 90776
·CF-1264 #31 #21 100588 90776
·CF-12120 #31(2) #21(2) 100588 (per half) 90776 (per half)
MFG. DATE XX/XX SERIAL # XXXX DATE DE FAB. XX/XX
CF-UL Rev B 7-28-2017
READ THIS MANUAL BEFORE INSTALLING OR OPERATING THIS APPLIANCE.
PLEASE RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE.
congratulations








Homeowner Reference Information






We recommend that you record the following
pertinent information about your appliance.

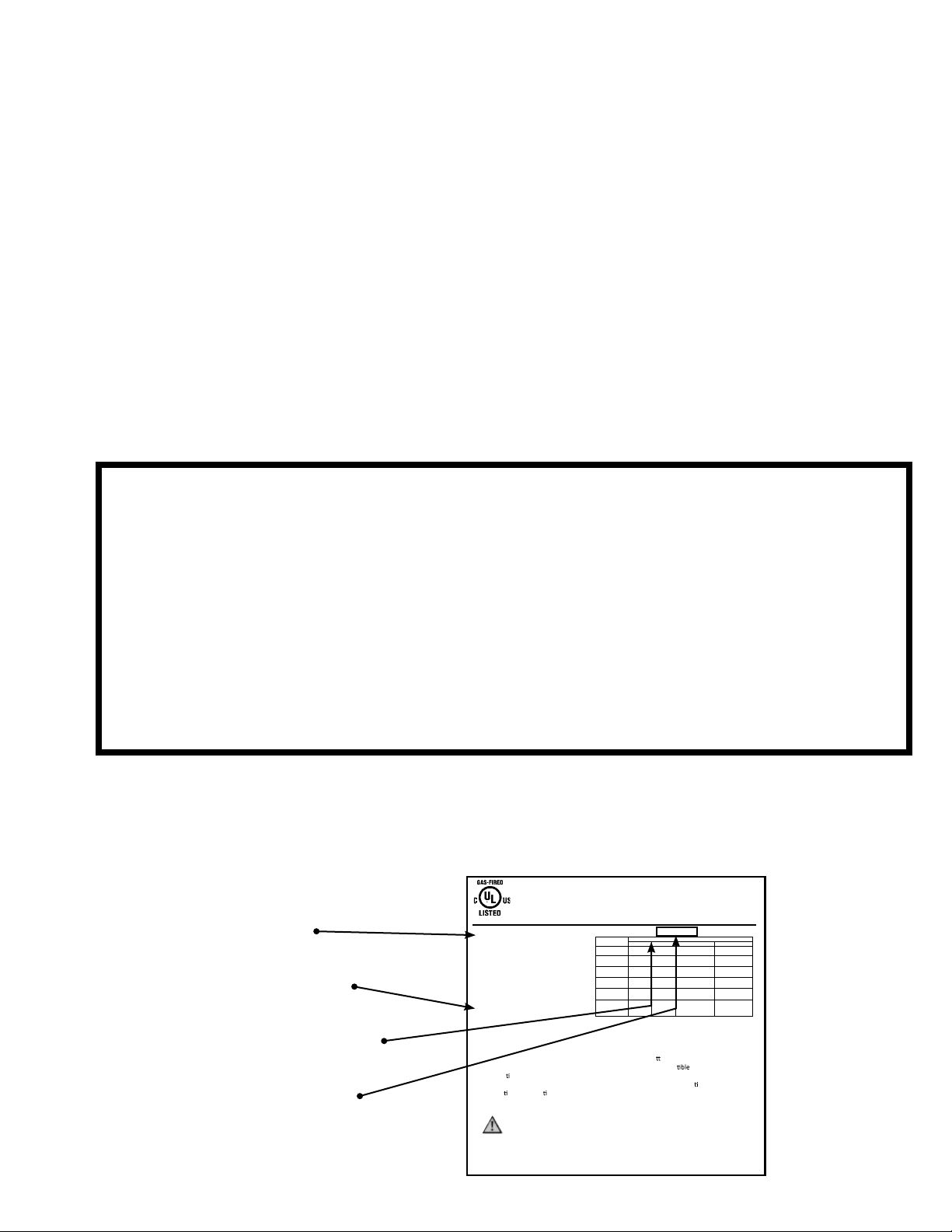

LISTING LABEL INFORMATION/LOCATION:


MODEL
FUEL TYPE
ORIFICE SIZE
SERIAL NO.

4 | www.homecrest.com

Fire Table Manual | 5
table of contents
1: listing & code approvals
 6
 6
2: getting started
 7
 7
3: setting up the burner
8
 8
4: gas hook-up & information
9
9
9

 
 
5: lighting & operation
 
6: troubleshooting
 
7: service & maintenance
 
8: reference materials & accessories

 



cf-12










Note: Use of the riser is required.
cfp20/nf-16










Note: Use of the riser is required.
HOMECREST GLASS GUARD
THIS MANUAL DEMONSTRATES THE SET UP FOR THE FOLLOWING BURNERS:
cfp1224/nf-719










Note: Use of the riser is required.

6 | www.homecrest.com
a. appliance certification
MODEL: 
LABORATORY: 
TYPE:
STANDARD: 




b. btu specifications
MODEL
ORIFICE SIZE MAX INPUT (BTU)
LP GAS NATURAL GAS LP GAS NATURAL GAS
    

    

    
1listing & code approvals

Fire Table Manual | 7
OUTDOOR
USE ONLY MUST NOT



DO NOT

a. tools & supplies required












b. inspect the appliance & components




DANGER
NOTICE
CAUTION
WARNING
ASPHYXIATION RISK:




DANGER
NOTICE
CAUTION
WARNING
DO NOT



DANGER
NOTICE
CAUTION
WARNING
SHARP EDGES:


DANGER
NOTICE
CAUTION
WARNING
DO NOT
DANGER
NOTICE
CAUTION
WARNING


DO NOT


DANGER
NOTICE
CAUTION
WARNING








ANY SUCH ACTION MAY CAUSE A FIRE HAZARD.
2
getting started

8 | www.homecrest.com
a. burner assembly
All Models:






ON/OFF

LP Gas Models:

USE WITH TYPE 1

ON/OFF




b. glass installation

DO NOT BURN WITHOUT GLASS OR OTHER SUBSTRATE IN BURNER. MEDIA CANNOT BE PRESENT INSIDE IGNITER WIND
GUARD. GLASS MEDIA CAN COVER IGNITION WIND GUARD COVER. SEE IMAGE BELOW FOR PROPER MEDIA COVERAGE.
3setting up the burner
THE METAL RISER USED ON ALL FIRE PIT BURNERS IS REQUIRED TO PROTECT THE TOP SURFACE FROM HEAT DAMAGE.
Spread Media Evenly
Across Burner Surface
Media Can Be Placed on
Ignition Wind Guard Cover
No Media Inside Ignition
Wind Guard Opening
gas hook-up & information

Fire Table Manual | 9
a. fuel

b. gas pressure



PRESSURE NATURAL GAS PROPANE
  
  




c. gas connection
Note: Have the gas supply installed in accordance with local building codes, if any. If not, follow ANSI 223.1. Installation should be done
by a qualified installer approved and/or licensed as required by the locality. (In the Commonwealth of Massachusetts installation must
be performed by a licensed plumber or gas fitter.)
Note: A listed (and Commonwealth of Massachusetts approved) 3/8” T-handle manual shut-off valve and flexible gas connector are
connected to the 3/8” control valve inlet. If substituting for these components, please consult local codes for compliance.

DANGER
NOTICE
CAUTION
WARNING
FIRE RISK.
EXPLOSION RISK:




4
gas hook-up & information

10 | www.homecrest.com
c. gas connection (continued)


DANGER
NOTICE
CAUTION
WARNING
FIRE RISK.
EXPLOSION RISK:




DANGER
NOTICE
CAUTION
WARNING
CHECK FOR GAS LEAKS.
FIRE RISK.
EXPLOSION RISK.
ASPHYXIATION RISK:






d. lp gas supply












IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION SERVICES, OR MAINTENANCE CAN CAUSE INJURY OR PROPERTY
DAMAGE. REFER TO AND UNDERSTAND THIS MANUAL. FOR ASSISTANCE OR ADDITIONAL INFORMATION CONSULT A
QUALIFIED INSTALLER, SERVICE AGENCY, LICENSED TECHNICIAN, OR THE GAS SUPPLIER.
4gas hook-up & information







Note: This step is not applicable to the CF-12 burners.
CANNOT
CAN

CHECK ENTIRE SYSTEM FOR LEAKS BEFORE OPERATING.
4
f. set-up for natural gas: cfp1224 & cfp20 burners (see insert for cf-12 burner)





















Note: This step is not applicable to the CF-12 burners.
CANNOT
CAN

CHECK ENTIRE SYSTEM FOR LEAKS BEFORE OPERATING.
Fire Table Manual | 11
Flare Fitting Adaptor
Propane Regulator Hose
Low-rate Bypass Tube
Remove Propane
Valve Orice &
Replace with Supplied
Natural Gas Orice
Remove Propane Burner
Orice & Replace with
Natural Gas Orice
Air Shutter
Flex-line & Valve Connection
Flex-line & Burner
Orice Connection Regulator Hose
& Valve Connection
Flex-line & Valve Connection
Flex-line & Burner
Orice Connection Regulator Hose
& Valve Connection
e. set-up for liquid propane (lp): cfp1224 & cfp20 burners (see insert for cf-12 burner)
gas hook-up & information

12 | www.homecrest.com
DANGER
NOTICE
CAUTION
WARNING
FOR YOUR SAFETY, READ BEFORE LIGHTING.
IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY
DAMAGE, PERSONAL INJURY, AND/OR LOSS OF LIFE.



What to Do if You Smell Gas:
 DO NOT 
 DO NOTDO NOT
 
 


 DO NOT



lighting instructions

TO EXTINGUISH: TURN CONTROL VALVE TO “OFF” POSITION. CLOSE VALVE ON PROPANE TANK WHILE NOT IN USE.
Initial Break-in Procedure: 

5lighting & operation
DANGER
NOTICE
CAUTION
WARNING
FIRE RISK – HIGH TEMPERATURES:

DO NOT
DO NOT

DO NOT 


Fire Table Manual | 13
6
troubleshooting
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTIONS





 



  
 



 



 







 



 



 





 



  








14 | www.homecrest.com
7service & maintenance



Note: The use of a vinyl fire table cover is highly recommended to keep your fire table and burner looking new and ensure extended
trouble-free operation.
maintenance & service tasks
For service calls: 

INSPECT MAINTENANCE TASKS



 

 


 

 

 
6



 
 
  

DANGER
NOTICE
CAUTION
WARNING
RISK OF INJURY OR PROPERTY DAMAGE. BEFORE SERVICING:


DANGER
NOTICE
CAUTION
WARNING
ANNUAL INSPECTION BY QUALIFIED TECHNICIAN RECOMMENDED.
CHECK:





RISK OF:






Fire Table Manual | 15
8reference materials & accessories
service parts list
# DESCRIPTION OF PART PART NUMBER QTY.
  
 
   

  

  
   
6
  
7
  

Note: Lazy susans can be purposed as a fire burner cover. Be sure to specify the frame finish color when ordering the metal lazy susan and the color name when ordering the Stonegate lazy susans.

1 LB HOSE & REGULATOR KIT

Use for in-store demonstrations
 
HORIZONTAL LP TANK

Use with all 19” height fire
pits, sold separately
12.25” BURNER COVER

Smooth Aluminum

accessories
14.5" GLASS GUARD


Use in windy conditions
24" LAZY SUSAN


Stonegate Pebble
24" LAZY SUSAN


Stonegate Boulder
24" LAZY SUSAN


Stonegate Midnight
22” LAZY SUSAN


Smooth Aluminum
54” COVER


Use Ripstop Polyester
Cover with 54" Round
42” COVER


Use Ripstop Polyester
Cover with 42" Square
42” COVER


Use Ripstop Polyester
Cover with 42" Round
22.5" GLASS GUARD


Use in windy conditions
15.5" x 28.5" GLASS GUARD


Use in windy conditions
36” x 60” COVER


Use Ripstop Polyester
Cover with 36" x 60" Rectangle
32” x 52” COVER


Use Ripstop Polyester
Cover with 32" x 52" Rectangle
14” x 26.25” BURNER COVER

Smooth Aluminum
22” BURNER COVER

Smooth Aluminum






