HoMedics PDM-100A User manual

PDM-100A
Hip & Pocket
Pedometer
Instruction Manual and
Warranty Information
GUARANTEE
1 YEAR

21
Hip & Pocket
Pedometer
To Monitor Your Daily Activity
Dual-Axis Technology for
Reliable Accuracy

2
TABLE OF CONTENTS
BASIC INFORMATION:
Introduction.......................................... 3
Name/Function of Each Part ............... 3
Installing the Battery........................... 4
Pedometer Modes................................ 6
Calculating Stride Length ................... 8
Setting the Time................................... 9
Setting User Information................... 11
OPERATING THE PEDOMETER:
Time Mode.......................................... 13
Steps Mode ........................................ 13
Distance Mode ................................... 14
Calories Mode.................................... 14
Average Speed Mode ........................ 14
Exercise Time Mode .......................... 15
Memory Mode .................................... 15
Care, Maintenance & Cleaning ......... 17
Specifications .................................... 19
Default Settings ................................. 19
1 Year Limited Warranty .................... 20

43
INTRODUCTION
This digital pedometer displays steps taken,
distance traveled, calories burned, aver-
age speed, total exercise time, and 7-day
memory storage. Please read this manual
carefully before using this pedometer. We
suggest you keep this manual for future
reference.
For promoting good health, including
weight-loss, it is recommended that adults
should walk 10,000 steps a day.*
When you start to walk or run, this pedom-
eter will automatically begin displaying your
steps taken, distance traveled, calories
burned, average speed, and exercise time.
NAME/FUNCTION OF EACH PART
MO D E
R
E
S
E
T
T
E
S
MASTER
RESET
Reset
Button
Mode
Button
Set
Button
*American Heart Association

4
Master
Reset
Button
Clip Battery
Compartment
INSTALLING THE BATTERY
1. The battery cover is
located on the back of the
pedometer. Unscrew the
battery compartment and
remove the cover. Fig. A
2. Place the battery according
to the polarity indications
inside the compartment.
Battery Type: 1 3V
Lithium CR2032 battery
(included). Fig. B
Fig. A
Fig. B

65

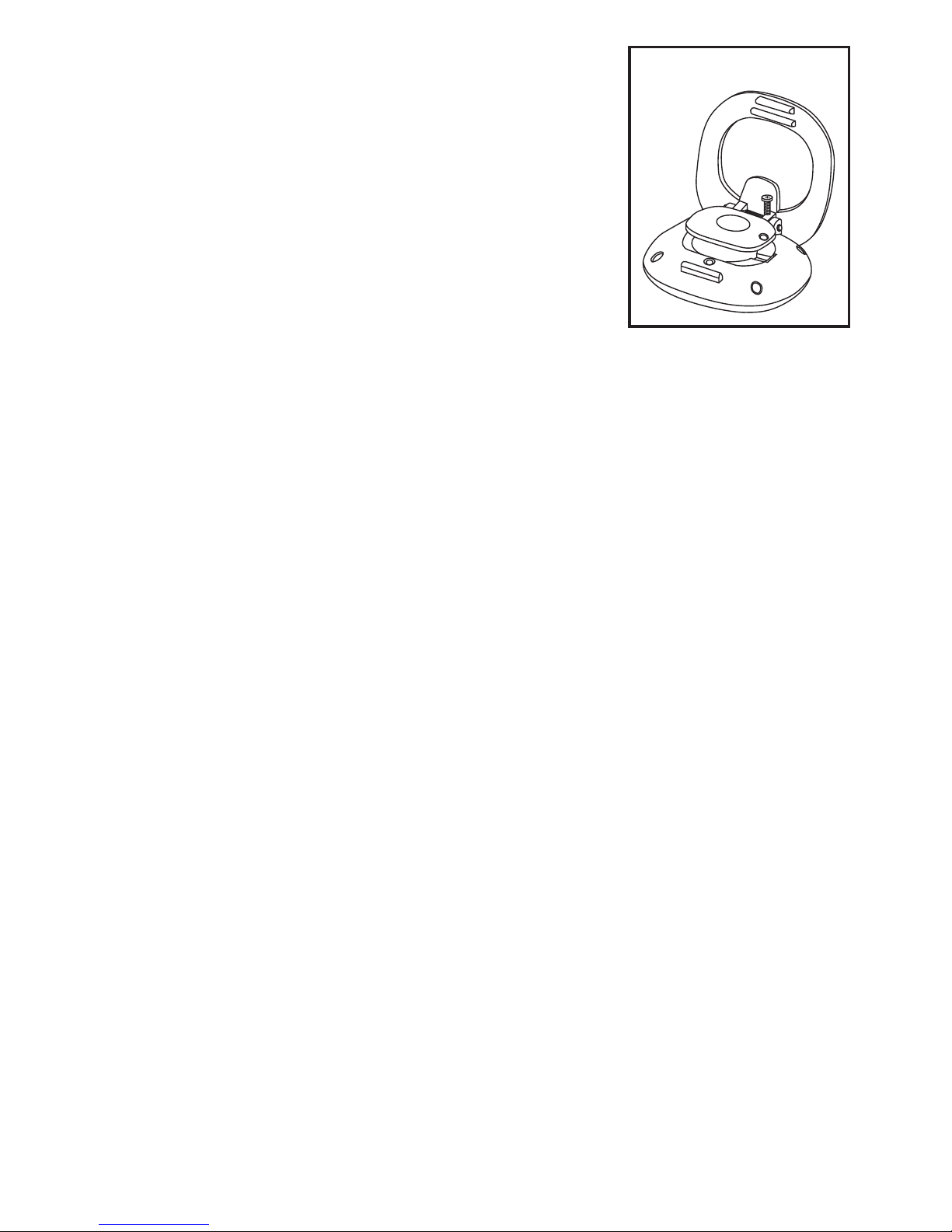

3. Replace the battery
compartment cover and
fasten the screw. Fig. C
Important Notes:
• Replacethebatterywhenscreen
is dark.
• Batteriesarehazardouswaste.Do
not dispose of them together with the
household garbage.
Use only CR2032 Lithium batteries for this
pedometer. Remove the battery when the
unit is not in use for extended periods of
time. All user info, including the time, will
need to be reset if the battery is removed
or replaced. Clean contact on battery and
in battery compartment with a soft dry cloth
each time you install batteries.
Fig. C

6
PEDOMETER MODES
This pedometer has 7 operational modes
and are in the following sequence:
Press Mode button to scroll through modes:
•Time Mode: Displays the time of the day.
•Steps Mode: Displays the number of steps
taken that day.
•Distance Mode: Displays the number of
miles or kilometers traveled that day.
•Calories Mode: Displays the number of
Calories burned that day.
•Average Speed Mode: Displays the daily
average speed while walking and running.
•Exercise Time Mode: Displays the amount
of time you were active for that day.
•Memory Mode: Displays the number of
steps taken, distance traveled, Calories
burned, average speed, and exercise time
for the past 7 days.

87
TIME MODE
A
TIME
STEPS MODE
Step
DISTANCE MODE
Mile
CALORIES MODE
Kcal
AVERAGE SPEED MODE
SPEED
Mile/H
MEMORY MODE
Step
DAY
EXERCISE TIME MODE
TIMER

CALCULATING STRIDE LENGTH
In order to display accurate DISTANCE
traveled, you need to measure and input
your stride length in inches.
How to calculate your Stride Length:
To properly calculate your stride length, take
10 steps at a normal pace. Once completed,
use a measuring device to measure the
distance you traveled in feet, and divide by
10 (the number of steps you had taken).
Convert this number into inches.
Example:
If you walked a distance of 15 feet by taking
only 10 steps, the stride length is 1½ feet =
18 inches.
Formula:
Conversion:
1 foot = 12 inches
8
distance traveled (in feet)
# of steps taken = stride length (in feet)
Please write your stride length here for future reference:
_______________________________________________

109

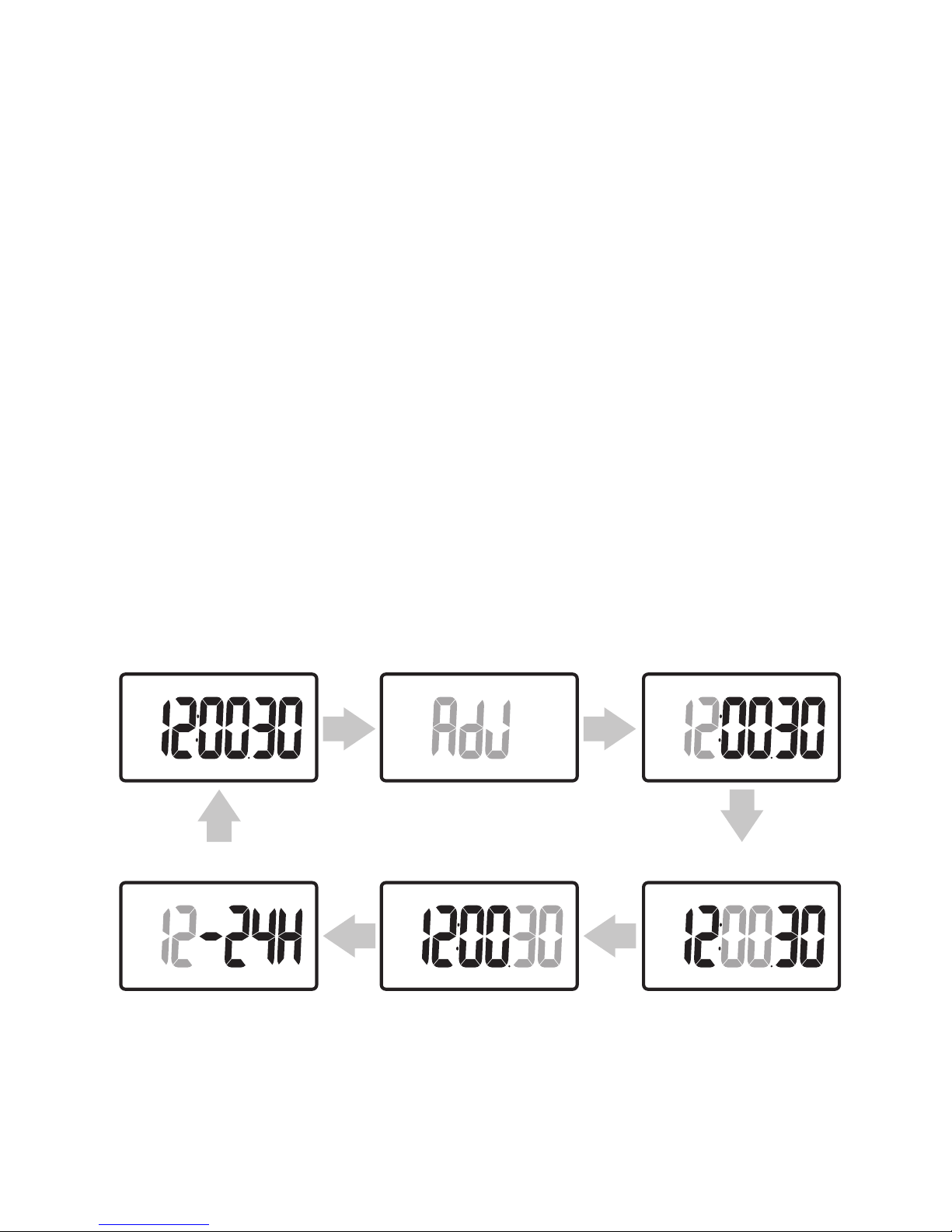

SETTING THE TIME
Note: To start, please install the battery. For
more information, refer to the INSTALLING
THE BATTERY section of this manual.
The pedometer will turn ON and will show
full LCD segments for 2 seconds and then
will automatically display the TIME. If the
pedometer does not automatically display
this mode, press the MODE button until
the time is displayed.
1. While in TIME mode, press and hold
down the SET button for 3 seconds.
The HOUR should be blinking.
2. To increase the HOUR, press the
RESET button. Each press will increase
the number by one in a cycling manner.
Pressing the MODE button will confirm
the entry.
3. Change the MINUTE, SECOND and 12
or 24 HOUR MODES as described in
step 2 above, using the RESET button
to increase the selection and the MODE
button to confirm the entries.

10
Notes:
• IftheSECONDSislessthan30and
the RESET button is pressed, the
SECONDS will go back to 00. If the
SECONDS is greater than 30 and
the RESET button is pressed, the
SECONDS will go to 00 and the
MINUTE will increase by one.
• Ifafter30secondsnodatahasbeen
entered, the display will automatically
switch back to the last used mode.
TIME MODE
A
TIME
HOUR
A
TIME
12/24 HOUR FORMAT SECOND
A
TIME
MINUTE
A
TIME

1211
SETTING USER INFORMATION
1. Press the MODE button until you reach
STEP mode.
2. Press and hold the SET button until UNIT
displays on the screen, and a blinking MILE
or KM.
3. To change the measurement, press the
RESET button. Each press will change the
selection in a cycling manner. Pressing the
MODE button will confirm the entry.
Note:
By selecting MILE, all information will be
displayed in Imperial format. By selecting
KM, all information will be displayed in
Metric format.
4. To change the WEIGHT, press the RESET
button to increase the number by one in a
cycling manner. Pressing the MODE button
will confirm the entry.
5. To change the STRIDE LENGTH, press the
RESET button to increase the selection
and the MODE button to confirm the entry.

Notes:
• Ifafter30secondsnodatahasbeen
entered, the display will automatically
switch back to the last mode used.
• Resettinganyoneofthefollowing
features will result in clearing all of the
following features: STEPS TAKEN,
DISTANCE TRAVELED, CALORIES
BURNED, AVERAGE SPEED, or EXER-
CISE TIME.
• Ifafter5minutesnobuttonsare
pressed, the display will return to TIME
mode.
12
STEPS MODE
Step
UNIT
Mile
STRIDE LENGTH
STRIDE
WEIGHT
WEIGHT
lbinch

1413
• ToresetALL INFORMATION on the
pedometer, use a paperclip to press
the MASTER RESET button on the
back of the pedometer. After the button
is pressed, the display will show full
LCD segments for 2 seconds and then
automatically display the TIME. If the pe-
dometer does not automatically display
this mode, press the MODE button until
the TIME is displayed.
OPERATING THE PEDOMETER
Press the MODE button to scroll through
the different modes of the pedometer.
TIME MODE
Displays the time in the 12 or 24 Hour
Format. (HH:MM.SS)
STEPS MODE
In this mode, a running total of the amount
of steps taken per day will be displayed.
Note:
• Thisinformationautomaticallyresetsat
midnight.

14
• PressandholdtheRESET button to
clear the data.
DISTANCE MODE
This mode will display how far you have
walked or ran each day.
Note:
• Thisinformationautomaticallyresetsat
midnight.
• PressandholdtheRESET button to
clear the data.
• PresstheSET button to toggle between
Kilometers and Miles.
CALORIES BURNED MODE
This mode will display the amount of
Calories burned.
Note:
• Thisinformationautomaticallyresetsat
midnight.
• PressandholdtheRESET button to
clear the data.
AVERAGE SPEED MODE
This mode displays the average speed

1615
at which you have walked or ran during
each day.
Note:
• Thisinformationautomaticallyresetsat
midnight.
• PressandholdtheRESET button to
clear the data.
• PresstheSET button to toggle between
Km/H and Mile/H.
EXERCISE TIME MODE
In this mode, you can see the length of
time you were active per day.
• Exercisetimeautomaticallystartswhen
you begin activity.
• Thisinformationautomaticallyresetsat
midnight.
• PressandholdtheRESET button to
clear the data.
MEMORY MODE
After midnight, the information recorded
during the day will be stored into this
device for up to 7 days. In this mode,
you can review your activity from the past
week.

16
Note:
• PresstheRESET button to scroll
through the days. Day 7 is the most
recent day, day 6 is the second most
recent, and this pattern continues 7
days back.
• Whileviewingtheinformationfrompast
days, press the SET button to review
other information such as CALORIES
BURNED, DISTANCE TRAVELED,
AVERAGE SPEED and EXERCISE TIME.
• WhileinMEMORYMode,pressandhold
the RESET button to clear the data.
• Whenthe7daysofmemoryisfull,the
pedometer will automatically delete
day 7 (7 days in the past) and continue
doing so each day the memory is full.

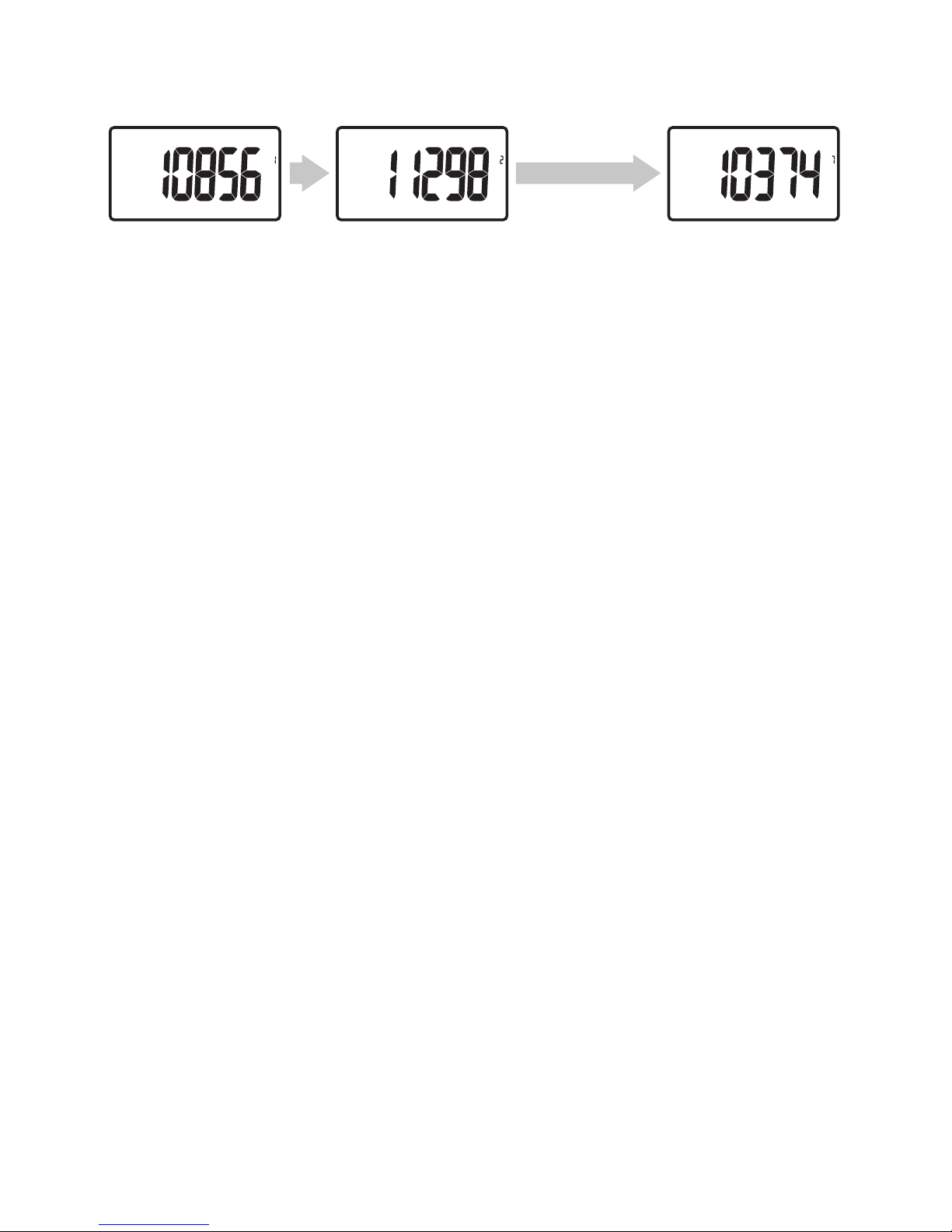

THE FIRST DAY
Step
DAY
THE SECOND DAY
Step
DAY
THE SEVENTH DAY
Step
DAY

1817
CARE, MAINTENANCE & CLEANING
•Do not disassemble the pedometer. If
in need of repair, refer to the warranty
section of this manual.
•Do not subject the device to extreme
shocks (do not drop on the floor).
•Do not subject the device to extreme
temperatures humidity, moisture, or
direct sunlight. Protect from dust.
•Do not expose the device to strong
chemicals such as gasoline, cleaning
solvents, acetone, alcohol, or insect
repellents, as they may damage the
device’s seal, case, or finish.
•Leakybatteriescandamagetheunit.
Remove the battery when the unit will not
be used for a long time.
•Followlocalordinancesandrecycling
instructions regarding disposal or
recycling of the device and device
components, including batteries.

•Iftheunitisstorednearfreezing,allowit
to acclimate to room temperature before
use.
•Do not immerse the unit in water, as this
will result in damage to the unit.
•Thisdevicemaynotmeetits
performance specifications if stored or
used outside of these temperature and
humidity ranges:
18
•Storage/
Transportation
Environment
Temperature:
41°F~95°F
(5°C~35°C)
Humidity:
less than 70%
•Operating
Environment
Temperature:
32°F~122°F
(0°C~50°C)
Humidity:
less than 90%

19
SPECIFICATIONS
Step Range: 0 – 999,999 Steps
Weight Range: 44 – 441 lbs (20 – 200kg)
Stride Length: 12 – 71” (30 – 180 cm)
Distance Range: 0 – 9,999.99 Mile / km
Calories Range: 0 – 99,999.9 kcal
DEFAULT SETTINGS
Time: AM 12:00.00, 12Hr Mode
Step: 0
Weight: 110 lb
Stride Length: 20 inch
Calorie: 0.0 Kcal
Distance: 0.00 Mile
Speed: 0.00 Mile/H
Timer: 0:00.00
