HomeKing DWI600 User manual

USER MANUAL FOR YOUR
DWI600
60 cm Fully
integrated full height electronic
dishwasher
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
JW 26/07/12

2
Contents
Environmental note 3
Important safety information 4 – 6
Specifications 7 – 10
Product and aperture dimensions 7
Product specifications 8
Electricaldetails 8
Description of the appliance 9
Controlpanel 10
Usingyourdishwasher 10 - 27
Before first use 10
Filling with dishwasher salt 10 – 11
Setting the water softener level 12
Fillingwithrinseaid 13
Settingtherinseaidlevel 14
Filling with dishwasher detergent 15 – 16
Loading the upper basket 16
The knife rack 17
Thecupshelves 17
Adjusting the upper basket 18
Loadingthelowerbasket 19
The cutlery basket 19 - 20
Loading dishes and cutlery 20 - 22
Program tables 22-24
Setting a wash program 24 – 25
Changingawashprogram 25
Addingmoredishes 25
At the end of a wash program 25 - 26
Delay start function 26 – 27
3 in 1 function 27
Saving energy using your dishwasher 27 - 28
Cleaning and maintenance 28 – 31
Aftereverywash 28
Doorseals 28
Cleaning the control panel 28
Cleaningthedoor 28-29
The filter system 29
Cleaning the filters 30
Cleaningthesprayarms 31
Error code failure system 32 – 34
General troubleshooting 34 – 37
Installation 37 - 48
Aperture requirements 37 – 38
Installationstages 38
Preparing and connecting the furniture door 39 – 41
Adjusting the tension of the door spring 42
Connecting to the mains water supply 43
Connecting to the water outlet 43 - 44
Connecting to the power supply 44
Applying the condensationstrip 45
Positioningthedishwasher 46
Levelling the appliance 47
Securing the dishwasher 48
Installing the decorative plinth 48
Before first use 49
Technicaldata 50
Contact details 52

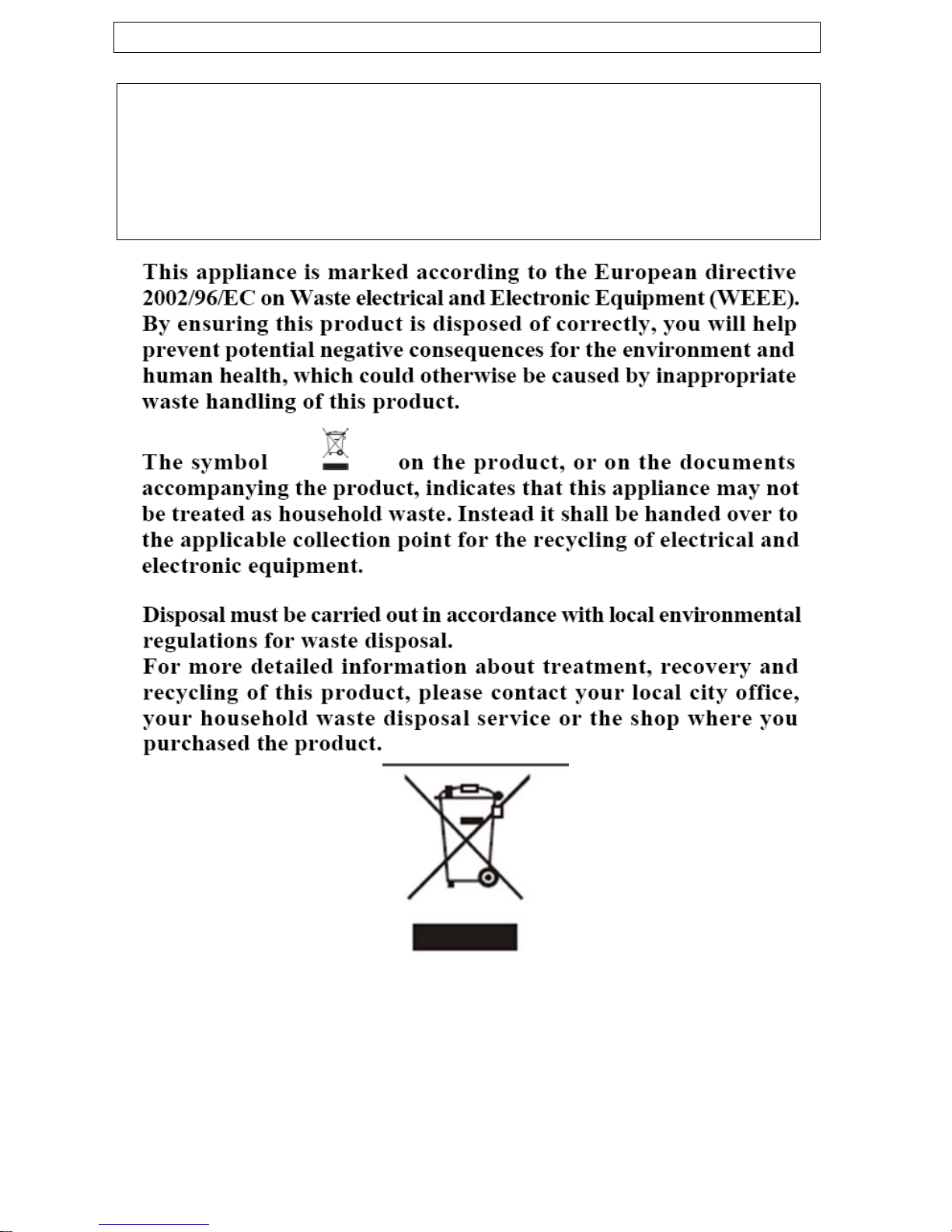

ENVIRONMENTAL NOTE
Note : Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
oThe packaging materials that we use are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
3

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost inmportance to us. Please
make sure that you read this instruction booklet before
attempting to install or use the appliance. If you are
unsure of any of the information contained in this
booklet, please contact the Advice Line.
General Safety
oRepairs to your appliance must only be carried out by a
registered engineer or one of our authorised service agents. Any
attempt by an inexperienced person to repair the appliance,
could result in injury or damage to your dishwasher.
oIf you notice that the mains cable is damaged, the appliance
must not be used. The same applies if you notice that the
worktop, control panel or base area is damaged as this could
allow access to the internal components of the machine.
oThe appliance should be turned off and isolated from the mains
supply, before either cleaning or maintenance work is attempted.
oThe mains cable must not be used to pull the plug out of the
electrical socket.
oThe machine should not be sprayed with water.
oThe external surface of the appliance may become hot whilst
your dishwasher is in use.
oIt is possible for small animals to chew either mains cables or
water hoses, which could cause an electric shock hazard.
Installation
oThe installation instructions contained within this user manual
should be followed.
oIt is obligatory for the completed installation to comply with all
relevant building regulations and local water authority
requirements.
oBefore the first use of the appliance, you should follow the
steps listed in the “Before first use” section on page 10
and page 48 of this manual.
4

5
oCare should be taken not to trap the power supply cable
underneath the appliance whilst installing it.
oNo attempt should be made to alter or modify the specifications
of this appliance.
In daily use
oThis appliance is only designed to wash normal domestic
washloads. If you use your dishwasher in any other way or it is
incorrectly used, then the manufacturer accepts no liability for
any damage that might be caused and any guarantee will be
void.
oIt is recommended that the appliance is unplugged and the
water supply is turned off after the machine is used.
oThe detergents, rinse aid and salt that you place in this appliance
should be suitable for automatic dishwashers. With regards to
dosage levels, the detergent manufacturer’s recommendations
should be followed.
oSharp knives or ones with long blades are a potential safety
hazard when placed in an upright position in the cutlery basket.
We would recommend that these items are placed horizontally in
the upper basket or on the knife rack.
oYou should not wash any items that have come into contact
with corrosive, acidic or alkaline chemicals, paint, petrol, iron or
steel debris.
oYou should not open the door whilst the appliance is set on a
wash program. Depending on which stage that the wash
program is at, hot water could escape the machine.
oYou should not leave the door of the appliance open, unless
you are loading or unloading the dishwasher.
oYou should not stand or sit on the door when it is open.
Child Safety
oYour dishwasher should only be used by adults. You should not
allow children in the area of the machine unsupervised. You
should not let them touch the controls or play with the appliance.
oIt could be possible for a child or pet to gain access to the
dishwasher if the door is left open. Therefore please check the
inside of the appliance before setting it on a wash cycle.

6
oAny packaging that is removed from the machine should be kept
away from children.
oAll detergents should be kept out of children’s reach in a safe
place.
oSome water will remain inside the dishwasher when it has
completed a wash cycle. This water is not suitable for drinking
and may contain residues from the detergents that are used in
the appliance.
Declaration of conformity
This appliance complies with the following European Directives:
-73/23 dated 19/02/1973 Low Voltage Directive and subsequent
modifications.
-89/336 dated 03/05/1989 Electromagnetic Compatibility
Directive and subsequent modifications.
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate of your dishwasher is
located on the right hand side of the drop down door.
Model Number …………………………………….
Serial Number …………………………………….
Date of Purchase …………………………………….

Specifications
Product dimensions
Height: 820 – 870 mm
Width: 596 mm
Depth: 550 mm
Aperture dimensions
Height: 820 – 870 mm (MIN)
Width: 600 mm
Depth: 600 mm
7

8
Product specifications
o12 Place settings
o7 programs: Normal
Intensive
Economy
Rapid
Glass
Rinse
Soak
o6 temperatures: 40°C, 45°C, 50°C, 55 °C, 65°C, 70°C
oLED display
oWater consumption (normal program): 14 litres/cycle
oNoise level: 55 dB
oDelay start
o3 in 1 function
oResidual drying
oConcealed heating element
oSelf-cleaning stainless steel micro-filter
oAnti-leak device
oAnti-flood device
oHeight adjustable upper basket
oAdjustable feet
Energy efficiency details
Energy efficiency class: A
Washing performance class: A
Drying performance class: A
Power consumption
Off mode: 0.00 kWh
Left on mode: 0.75 kWh
Electrical details
Rated voltage: 220 - 240 Vac 50 Hz
Supply connection: 13 A (double pole switched fused outlet
with 3 mm contact gap)

Description of the appliance
A) Upper basket
B) Lower basket
C) Middle spray arm
D) Cutlery basket
E) Lower spray arm
F) Salt container
G) Filter assembly
H) Detergent and rinse aid dispenser
I) Water inlet hose
J) Drain hose
K) Power supply cord
L) Top spray arm
9

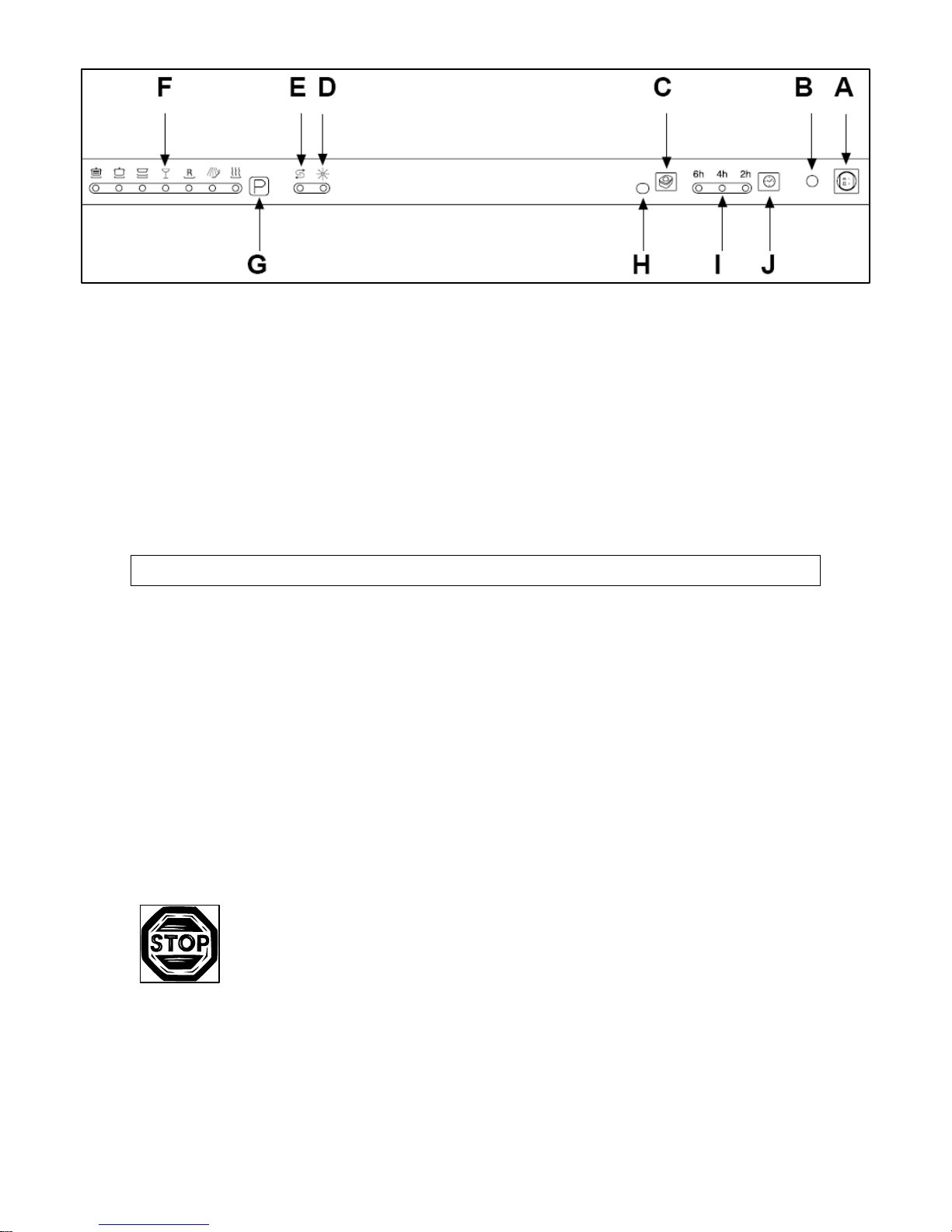

Control panel
A) ON/OFF button
B) Power indicator
C) 3 in 1 button
D) Rinse aid indicator
E) Salt indicator
F) Program indicators
G) Program button
H) 3 in 1 indicator
I) Delay start indicator
J) Delay start button
Using your dishwasher
Before first use
oInstall the appliance as per the installation instructions contained
within this booklet.
oIf you are filling the salt container for the first time, fill it with
tap water and then fill with specialist dishwasher salt. After this
you should set the water softener level.
oFill the rinse aid dispenser and then set the rinse aid dosage.
Filling with dishwasher salt
IMPORTANT: You should only use salt that is specially
designed for use in a dishwasher. If any other type of
salt is used in the appliance (in particular table salt),
it will damage the water softener.
oIdeally you should fill the water softener with salt and then run a
wash program. This will help to clear any salt that may have
overflowed from the water softener during the salt filling process
and therefore prevent the formation of rust.
10

oOpen the door of the dishwasher and then remove the lower
basket. The basket should be empty when you remove it.
oUnscrew and remove the cap from the water softener.
oFill the container with water.
IMPORTANT: It is only necessary to do this when you fill
the container with salt for the first time.
oPour salt into the water softener, using the funnel that is
supplied with the appliance. You should add approximately 2 kg
of salt into the water softener.
oIt is perfectly normal for a small amount of water to come out of
the water softener, whilst you are filling it with salt. This does
not mean that the water softener is filled with the correct
amount of salt.
oRefit and fully tighten the water softener cap.
oThe salt indicator light (E) will go out shortly
after you have filled the water softener with
salt. When the salt indicator (E) lights on the
control panel, then you should follow the
filling with dishwasher salt procedure again.
oIt is recommended that you run a RAPID program, without any
dishes loaded into the dishwasher, after filling with salt to
remove any spilt or excess salt.
oIMPORTANT: You do not need to pour water into the
container when you subsequently fill the water softener
with salt.
11

Setting the water softener level
It is possible to regulate the amount of salt that the water softener will
release during a wash cycle. The water softener should be set to a
level that is appropriate for the hardness of your water (please refer to
the table below).
WATER HARDNESS
° dH ° fH Mmol/L Selector
knob
position
Salt
consumption
(grams/cycle)
Usage
(cycles/2
kg)
0-10 0-17 0-1.7 / 0 /
10-25 18-44 1.8-4.4 “-” 20 60
25-50 45-89 4.5-8.9 MED 40 40
>50 >89 >8.9 “+” 60 25
oThe default setting of the water softener is “-”.
oIMPORTANT: If you are using 3 in 1 dishwasher tablets and live
in a medium or hard water area, then you should still fill the
water softener with salt.
oIf you are using multifunctional tablets e.g. 3 in 1, you should fill
the salt container and set the adjuster to “-”. However, if the
hardness of your water is greater than 60°fH, set the adjuster to
“+”.
To alter the amount of salt that is released by the water softener, you
should:-
oUnscrew the cap from the water softener.
oThere is a ring on the container with an arrow on it as shown in
the drawing above.
oRotate the ring in an anticlockwise direction to the required
setting based on the hardness of the water being used.
oWhen the ring is in the correct position, replace the cap on the
water softener and fully tighten it.
12

Filling with rinse aid
The rinse aid is released during the final rinse and it helps
to prevent water from forming droplets on your dishes.
These droplets will lead to spots and streaks being left on
items after the wash program has completed.
oYour dishwasher is designed to utilise liquid rinse aid.
oThe rinse aid dispenser is located inside the drop down door,
next to the detergent dispenser.

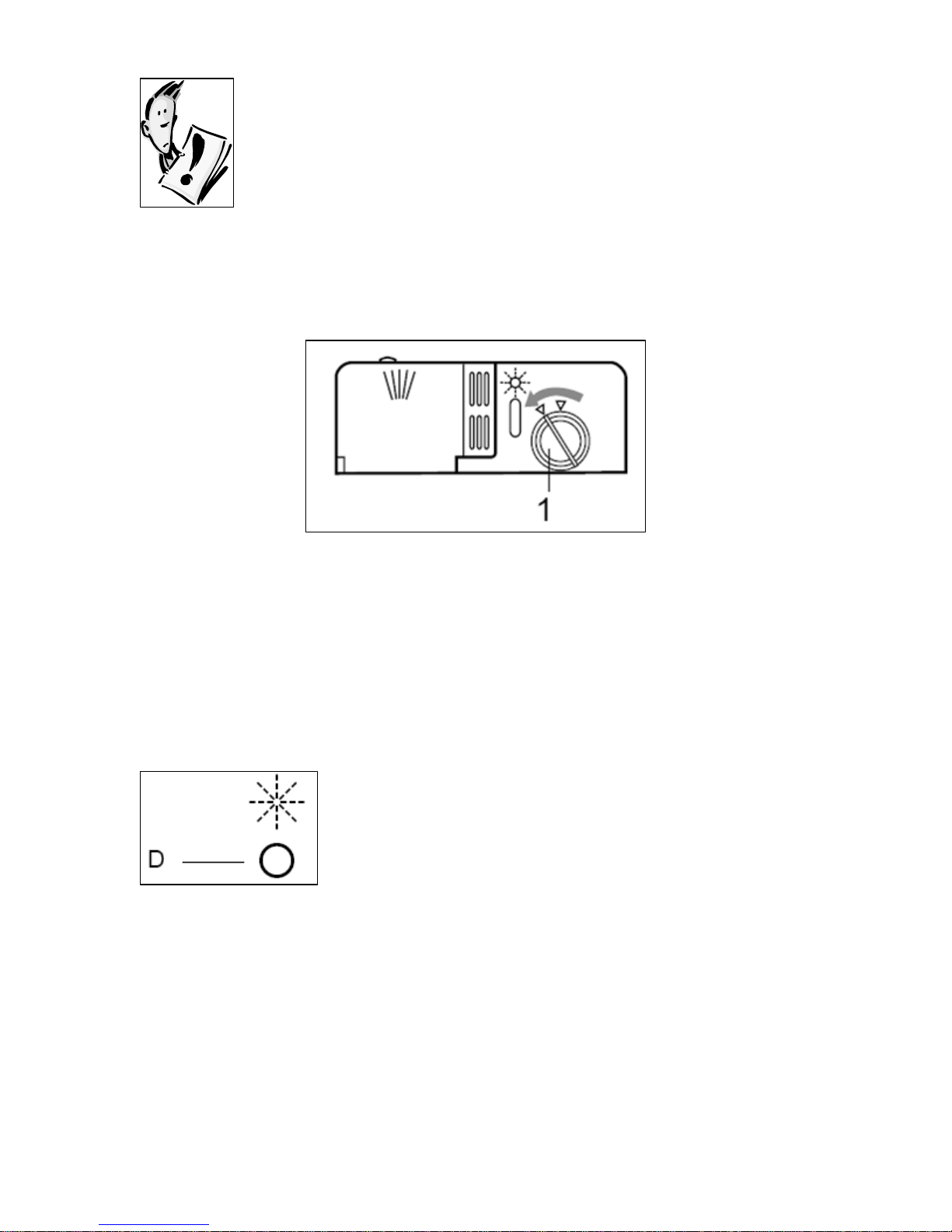

oTo open the rinse aid dispenser, turn the cap (1) in an
anticlockwise direction to allow access to the dispenser.
oPour in the rinse aid. Be careful not to overfill the dispenser, as
this could cause oversudsing when a wash program is selected.
Wipe away any rinse aid excess or spillages with a damp cloth.
oReplace the cap and turn it clockwise until it is fully tightened.
oYou should refill the rinse aid dispenser
when the rinse aid indicator (D) lights on
the control panel.
oIMPORTANT: If you are using 3 in 1 dishwasher tablets then
you should still fill the rinse aid dispenser.
13

Setting the rinse aid level
The amount of rinse aid that the dishwasher requires also depends on
the hardness of your water. You should experiment with the rinse aid
setting, until you find a level that gives the best results.
oOpen the rinse aid dispenser by turning the cap (1) in an
anticlockwise direction.
oThe amount of rinse aid used for each cycle can be regulated by
turning the dose adjustor (2), located beneath the dispenser
cap, with an appropriate screwdriver.
oThere are 6 different settings to choose from. On the first wash
cycle, we would recommend that the rinse aid level is set to
number 3.
oIf you get water spots and poor drying performance, then you
should turn the arrow anticlockwise and increase the setting to
the next number.
oYou should continue to adjust the rinse aid level upwards until
you get no water spots.
oIf you get cloudiness or streaking on your dishes, the rinse aid
level is set too high and it is causing foaming during the wash
cycle. Turn the arrow clockwise and lower the setting to the next
number.
14

Filling with dishwasher detergent
oThe detergent dispenser must be refilled at the start of each
wash cycle.
oAlways add the detergent just before starting the wash program,
otherwise the detergent could get damp and not dissolve
properly.
oOpen the lid (3) that closes over the detergent dispenser by
pushing the release button (4). Place the detergent inside of the
dispenser.
oThe section marked (5) in the diagram is for the main wash
cycle detergent. Only one detergent tablet should be placed in
the dispenser at any one time. If you are using detergent
powder or liquid, you should follow the detergent manufacturer’s
recommendations.
oThe section marked (6) in the diagram can have separate
detergent placed in it for any wash cycle that has a pre-wash
element to it, however this is optional. This must be a liquid or
powder detergent, not another detergent tablet.
15

oAfter the detergent has been placed in the dispenser, close the
cover and press it down until it clicks into place.
oIMPORTANT: To enable the lid to close securely, remove any
excess detergent on the edges of the dispenser before closing it.
oAt the beginning of a wash cycle the clip will open and the
tablet/powder/liquid will enter the dishwasher.
oIMPORTANT: Multifunctional tablets, such as 3 in 1, should not
be used for the RINSE, RAPID or SOAK programs.
Loading the upper basket
The upper basket is most suited to washing delicate and light
dishware, such as glasses, coffee and tea cups, saucers, plates, bowls
and shallow pans (that are not heavily soiled).

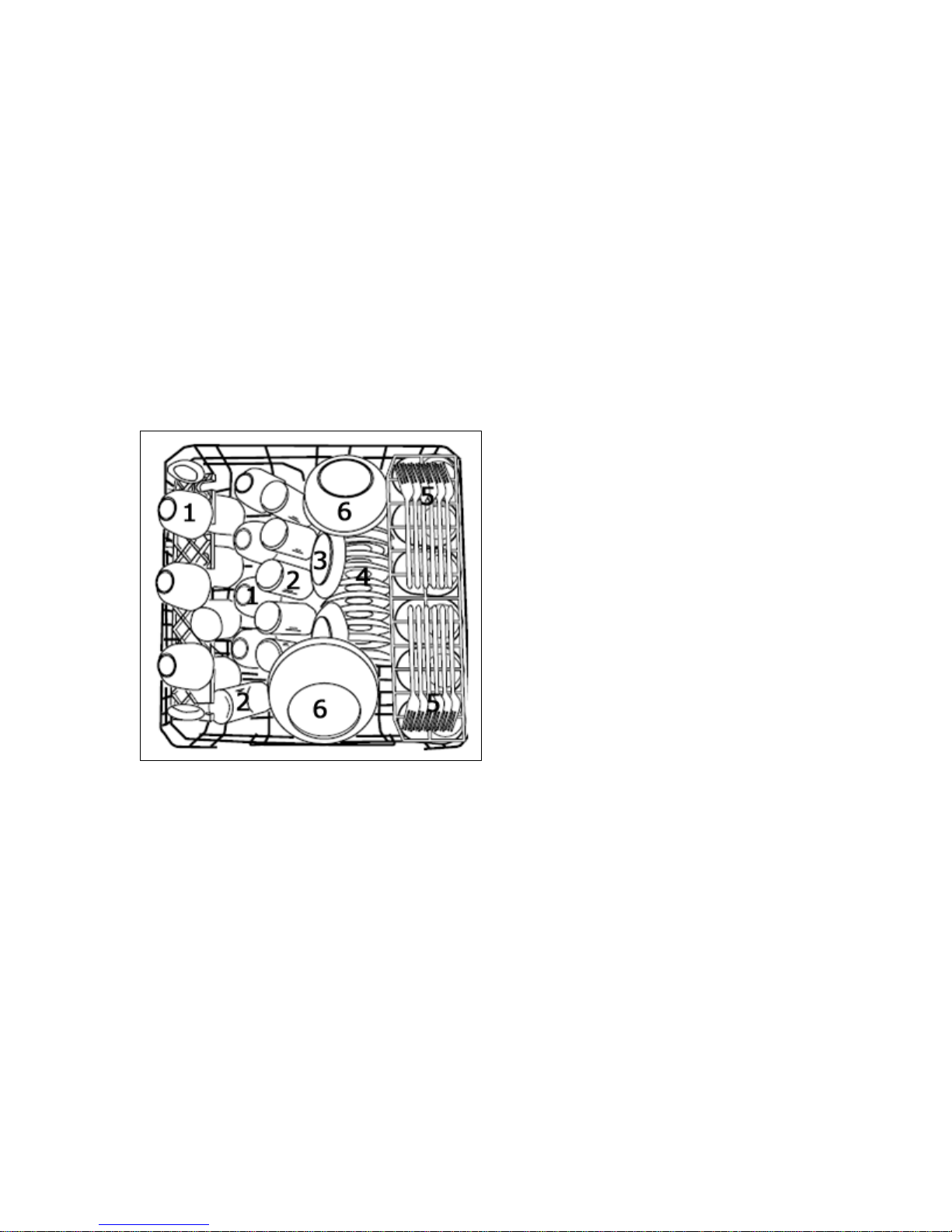

1) Cups
2) Glasses
3) Small plates
4) Saucers
5) Forks / knives
6) Small bowls
oYou should position the dishes and cookware in such a way that
they are not moved by the spray of water during the wash cycle.
oUse the diagram above as a guide to the most appropriate way
to load the upper basket.
IMPORTANT: Care should be taken when placing long stemmed
glassware, such as champagne glasses in the upper basket. If they are
not positioned correctly, then there is a risk that they may topple over
when the upper basket is pushed in or pulled out.
16

The knife rack
oThe knife rack clips
onto the side of the
top basket, allowing
you to wash your large
sharp knives
separately and safely.
The cup shelves
oLean tall glasses and those
with long stems against the
cup shelves and not against
other items to be washed to
help avoid damage.
oGlasses, cups and small bowls
can be placed on the cup
shelves to provide more space
in the upper basket.
oThe cup shelves can be folded back when not in use to allow
room for larger items in the top basket.
oIMPORTANT: Care should be taken to make sure that the
spray arms can move freely when items have been loaded
into the baskets.
17

Adjusting the upper basket
Your dishwasher has an adjustable upper basket which you can alter to
the most suitable position for the items you are going to wash in the
upper and lower baskets.
oThe height of the upper basket can be adjusted by placing the
wheels on a different height of the rails. Long items such as
cutlery, salad servers and knives should be placed on the knife
rack so they do not obstruct the rotation of the spray arms.
oIMPORTANT: The upper basket must be empty when you are
removing it from the guide supports.
oTo place the upper basket in the higher position, first open the
stopper at the end of the guide supports (1) and remove the
basket from the dishwasher.
oLift the basket up so that the lower wheels can slot onto the
guide supports (2).
oPosition the lower wheels securely onto the guide supports (3)
and close the stopper to secure the basket in place (4).
18

Loading the lower basket
The lower basket is most suited to washing larger and more heavily
soiled items, such as saucepans, saucepan lids and serving dishes. You
can also load bowls and a variety of plates into the lower basket.
7) Dinner plates
8) Soup dishes
9) Dessert plates
10) Bowls
11) Cutlery basket
12) Serving platter
oUse the diagram above as a guide to the most appropriate way
to load the lower basket.
oSaucepans and serving bowls must always be placed with their
bases upwards.
oDeep saucepans should be slanted, to allow water to run off.
The cutlery basket
Cutlery should be placed inside of the cutlery basket, separately from
each other. You should take care to ensure that cutlery items are not
tightly loaded as this may result in a poor wash performance.
oThe cutlery basket can be split in half for when there are only a
small number of cutlery items to be washed, as shown in the
diagram on the next page.
oBy only using half of the cutlery basket, this will create more
space for additional pots and pans. The cutlery basket can also
be placed in the upper rack when it is half the size.
19

Loading dishes and cutlery
Household cloths, sponges or any other object that
may absorb water SHOULD NOT be washed in a
dishwasher.
oRemove leftovers and soften the remnants of burnt food in pans,
prior to loading dishes in the appliance.
oOnce the dishwasher has been loaded, check that the spray arms
can move freely. If the spray arm comes into contact with any
item, then you should rearrange the wash load.
oCups, glasses, pans etc should all be loaded with their bases
upwards, so that water does not collect inside of them.
oCutlery and dishes should not cover each other; otherwise you
may get poor wash results.
oDo not allow glasses to touch inside the dishwasher, otherwise
damage may occur.
oSmall objects can be placed inside of the cutlery basket.
20
