HomeMatic HmIP-eTRV-2-UK User manual

Mounting instruction and
operating manual
Radiator Thermostat UK p. 1
HmIP-eTRV-2-UK
Package contents
Quantity Description
1 Homematic IP Radiator Thermostat UK
3 Adapters Danfoss (RA, RAV and RAVL)
1 Danfoss RAV spigot extension
1 Support ring
1 Nut M4
1 Cylinder head screw M4 x 12 mm
2 1.5 V LR6/mignon/AA batteries
1 Operating manual
Documentation © 2017 eQ-3 AG, Germany
All rights reserved. Translation of the original version in German.
This manual may not be reproduced in any format, either in
whole or in part, nor may it be duplicated or edited by electronic,
mechanical or chemical means, without the written consent of
the publisher.
Typographical and printing errors cannot be excluded. However,
the information contained in this manual is reviewed on a regular
basis and any necessary corrections will be implemented in the
next edition. We accept no liability for technical or typographical
errors or the consequences thereof.
All trademarks and industrial property rights are acknowledged.
Printed in Hong Kong
Changes may be made without prior notice as a result of techni-
cal advances.
151305
Version 1.0 (02/2017)
2
1
A
C
D
E
B
F
G
L
J
K
M
H
I
Bevollmächtigter des Herstellers:
Manufacturer’s authorised representative:
eQ-3 AG
Maiburger Straße 29
26789 Leer / GERMANY
www.eQ-3.de
Free download of the Homematic IP app!

3
4
5
6
P
N
O
R
8
7

1
Table of contents
1 Information about this manual.................................... 2
2 Hazard information........................................................ 2
3 Function and device overview .................................... 4
4 General system information ........................................ 6
5 Start-up ............................................................................ 6
5.1 Teaching-in........................................................................... 6
5.2 Mounting ............................................................................... 8
5.2.1 Mounting the radiator thermostat....................... 9
5.2.2 Adapter for Danfoss ..............................................11
5.2.3 Support ring ............................................................15
5.3 Adaption run ........................................................................15
6 Operation....................................................................... 16
7 Replacing batteries .......................................................17
8 Troubleshooting ........................................................... 19
8.1 Weak batteries.................................................................... 19
8.2 Command not confirmed................................................ 19
8.3 Duty cycle ..........................................................................20
8.4 Error codes and flashing sequences ..............................21
9 Restore factory settings..............................................23
10 Maintenance and cleaning.........................................24
11 General information about radio operation...........25
12 Technical specifications..............................................26

2
Information about this manual
1 Information about this manual
Please read this manual carefully before beginning op-
eration with your Homematic IP components. Keep the
manual so you can refer to it at a later date if you need
to.
If you hand over the device to other persons for use,
please hand over this manual as well.
Symbols used:
Aenon!
This indicates a hazard.
Note.
This section contains important additional infor-
mation!
2 Hazard information
Do not open the device. It does not contain any
parts that can be maintained by the user. In the
event of an error, please have the device checked
by an expert.
For safety and licensing reasons (CE),
unauthorized change and/or modification of the
device is not permitted.

3
Hazard information
The device may only be operated in dry and
dust-free environment and must be protected
from the eects of moisture, vibrations, solar or
other methods of heat radiation, cold and me-
chanical loads.
The device is not a toy; do not allow children to
play with it. Do not leave packaging material ly-
ing around. Plastic films/bags, pieces of polysty-
rene, etc. can be dangerous in the hands of a
child.
We do not assume any liability for damage to
property or personal injury caused by improper
use or the failure to observe the hazard informa-
tion. In such cases any claim under warranty is
extinguished! For consequential damages, we
assume no liability!
The device may only be operated within residen-
tial buildings.
Using the device for any purpose other than that
described in this operating manual does not fall
within the scope of intended use and shall in-
validate any warranty or liability.

4
Function and device overview
3 Function and device overview
With the Homematic IP Radiator Thermostat you can
conveniently regulate the room temperature via the
Homematic IP smartphone app according to individu-
ally tailored heating phases. According to your personal
needs, you can create three dierent heating profiles
with up to 6 heating phases per day.
In the climate control solution, the radiator thermostat
can simply be connected to the Homematic IP Access
Point. In connection with the Homematic IP Window /
Door Contact, the temperature is automatically reduced
during ventilation. For precise regulation of the room
temperature, the Homematic IP Wall Thermostat with
Humidity Sensor can measure the actual temperature of
a room and transmit the data to the radiator thermostat.
This ensures that the temperature is measured at the
right place in the room.
The radiator thermostat fits to all common radiator
valves and is easy to mount - without having to drain any
water or intervene in the heating system. With the addi-
tional boost function, cool rooms can be heated within
short by opening the heating valve.

5
Function and device overview

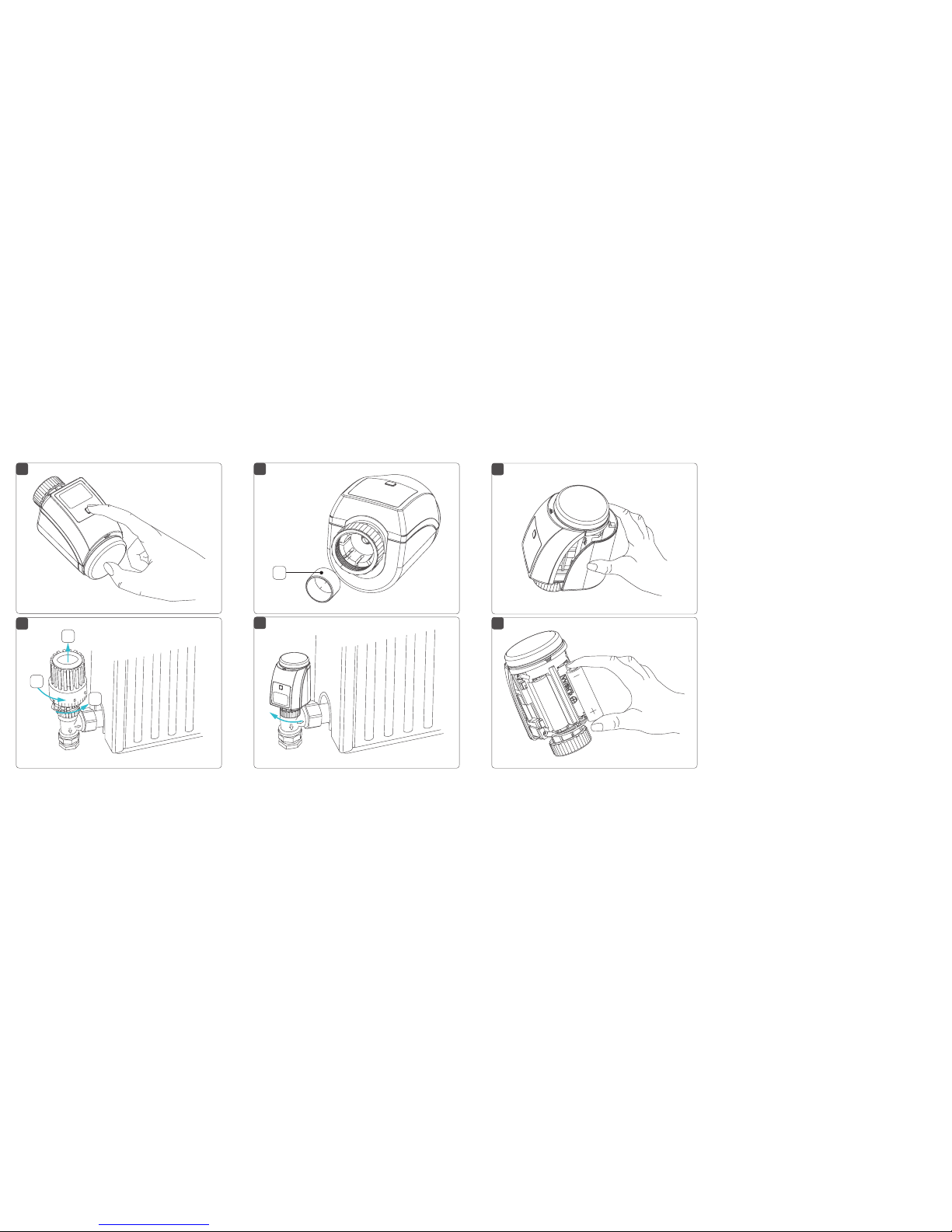

Device overview (see figure 1):
(A) Control wheel/boost button
(B) Battery compartment cover
(C) System button (teach-in button and LED)
(D) Display
(E) Metal nut

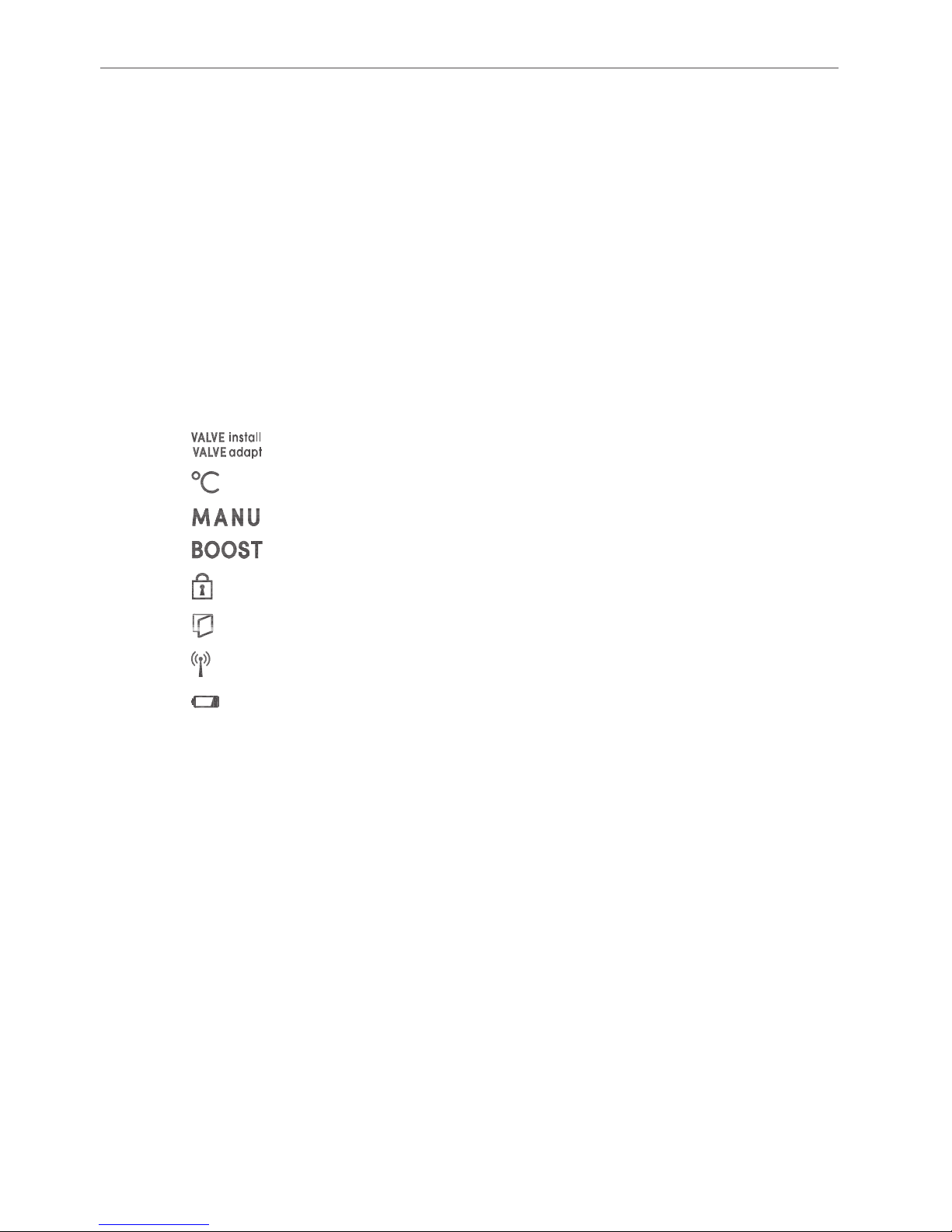

Display overview (see figure 2):
(F) Valve information
(G) Setpoint temperature
(H) Manual operation
(I) Boost mode
(J) Operating lock
(K) Open window symbol
(L) Radio transmission
(M) Battery symbol

6
General system information
4 General system information
This device is part of the Homematic IP smart home
system and works with the Homematic IP radio pro-
tocol. All devices of the system can be configured
comfortably and individually with the Homematic IP
smartphone app. Alternatively, you can operate the
Homematic IP devices via the Homematic Central
Control Unit CCU2 or in connection with various part-
ner solutions. The available functions provided by the
system in combination with other components are
described in the Homematic IP User Guide. All cur-
rent technical documents and updates are provided at
www.eQ-3.de.
5 Start-up
5.1 Teaching-in
Please read this enre secon before starng
the teach-in procedure.
First set up your Homematic IP Access Point via
the Homematic IP app to enable operation of
other Homematic IP devices within your system.
For further information, please refer to the oper-
ating manual of the Access Point.
To integrate the radiator thermostat into your system
and enable it to communicate with other Homematic IP

7
Start-up
devices, you must teach-in the device to your Home-
matic IP Access Point first.
To teach-in the radiator thermostat, please proceed as
follows:
• Open the Homematic IP app on your smartphone .
• Select the menu item “Teach-in device”.
• Remove the insulation strip from the battery
compartment (B) of the radiator thermostat.
Teach-in mode remains activated for 3 minutes.
You can manually start the teach-in mode for
another 3 minutes by pressing the system button
(C) shortly (see figure 3).
• Your device will automatically appear in the
Homematic IP app.
• To confirm, please enter the last four digits of the
device number (SGTIN) in your app or scan the
QR code. Therefore, please see the sticker sup-
plied or attached to the device.
• Please wait until teach-in is completed.
• If teaching-in was successful, the LED lights up
green. The device is now ready for use.
If the LED lights up red, please try again.
• Please select, in which application (e.g. climate
control) you would like to use the device.

8
Start-up
• Allocate the device to a room and give the de-
vice a name.
5.2 Mounting
Please read this enre secon before starng
to mount the device.
The Homematic IP Radiator Thermostat is easy to in-
stall, and can be done without draining heating water or
intervening in the heating system. No special tools are
required, nor does the heating have to be switched o.
The metal nut (E) attached to the radiator thermostat
can be used universally and without accessories for all
valves with a thread size of M30 x 1.5 from the most
popular manufacturers such as
• Heimeier
• MNG
• Junkers
• Landis&Gyr (Duodyr)
• Honeywell-Braukmann
• Oventrop
• Schlösser
• Comap
• Valf Sanayii
• Mertik Maxitrol

9
Start-up
• Watts
• Wingenroth (Wiroflex)
• R.B.M
• Tiemme
• Jaga
• Siemens
• Idmar
By means of the adapters in the delivery, the device can
also be installed on radiator valves of type Danfoss RA,
Danfoss RAV and Danfoss RAVL (see „5.2.2 Adapter for
Danfoss“ on page 11).
5.2.1 Mounting the radiator thermostat
In case of visible damage of the existing radiator,
valve or heating pipes, please consult a specialist.
Remove the old thermostat dial from your radiator valve.
• Rotate the thermostat dial to the maximum value
(N) anti-clockwise (see figure 4). The thermostat
dial then no longer presses against the valve
spindle, making it easier to remove.
There are dierent ways of fixing the position of the
thermostat dial:
• Union nut: Unscrew the union nut in an anti-
clockwise direction (O). The thermostat head
can then be removed (P).

10
Start-up
• Snap-on fastenings: Thermostat dials that are
fastened this way can be detached by turn-
ing the fastener/union nut a little bit counter-
clockwise (O). The thermostat dial can then be
removed (P).
• Compression fitting: The thermostat dial is
held in place by a mounting ring which is held
together with a screw. Loosen this screw and
remove the thermostat dial from the valve (P).
• Threaded connection with set screw: Loosen
the set screw and remove the thermostat dial (P).
After removing the old thermostat dial you can mount
the Homematic IP Radiator Thermostat with the metal
nut (E) to the radiator valve (see figure 6).
If required, you can use one of the supplied adapters for
Danfoss valves (see „5.2.2 Adapter for Danfoss“ on page
11) or the supplied support ring (see „5.2.3 Support
ring“ on page 15).

11
Start-up
5.2.2 Adapter for Danfoss
One of the provided adapters is needed to attach to
Danfoss valves. The assignment of the suitable adapter
to the relevant valve can be found in the following il-
lustrations.
Please ensure that you do not trap your fingers
between the two halves of the adapter!
The RA and RAV adapters have been manufactured
with pre-tension in order to provide a better seat. Use
a screwdriver during installation if necessary, and bend
it open slightly in the vicinity of the screw (see follow-
ing figures).

12
Start-up
Danfoss RA
The Danfoss valve bodies have elongated notches (1)
around their circumference, which also ensure that the
adapter is properly seated when it snaps on.
During installation, please ensure that the pins
inside the adapter (2) are lined up with the
notches (1) on the valve. Ensure that a suitable
adapter for the valve is properly clipped on.
After clipping onto the valve body, please attach the
adapter using the provided screw and nut.
1
2

13
Start-up
Danfoss RAV
The Danfoss valve bodies have elongated notches (1)
around their circumference, which also ensure that the
adapter is properly seated when it snaps on.
During installation, please ensure that the pins
inside the adapter (2) are lined up with the
notches (1) on the valve. Ensure that a suitable
adapter for the valve is properly clipped on.
The lifter extension (3) must be fitted to the valve pin of
RAV valves prior to installation.
2
3
1

14
Start-up
Danfoss RAVL
The Danfoss valve bodies have elongated notches (1)
around their circumference, which also ensure that the
adapter is properly seated when it snaps on.
During installation, please ensure that the pins
inside the adapter (2) are lined up with the
notches (1) on the valve. Ensure that a suitable
adapter for the valve is properly clipped on.
The adapter RAVL does not have to be screwed.
2
1

15
Start-up
5.2.3 Support ring
The valves from dierent manufacturers may have tol-
erance fluctuations that make the radiator thermostat
more loosely seated on the valve. In this case, the pro-
vided support ring (R) should be placed into the flange
before mounting the radiator thermostat (see figure 5).
5.3 Adaption run
Once the batteries have been inserted, the motor
reserves. Meanwhile, “ ” and the activity
symbol ( ) are displayed.
After the radiator thermostat has been mounted suc-
cessfully, an adaption run ( ) has to be per-
formed in order to adapt the device to the valve. To do
this, proceed as follows:
• As soon as “ ” is displayed, press the con-
trol wheel/boost button (A) to start the adaption run.
Now the actuator performs an adaption run. “ ” and
the activity symbol ( ) are displayed. During this time,
no operation is possible. After the adapting run has been
successful, the display returns back to normal.
If the adapter run has been initiated prior to mount-
ing or if an error message (F1, F2, F3) is displayed,
press the control wheel/boost button (A) and the
motor reverses to the “ ” position.

16
Operation
6 Operation
After teaching-in and mounting have been performed,
simple operations are available directly on the device.
If the radiator thermostat is in standby mode,
please press the control wheel (A) once before
operation to activate the device.
• Temperature: Turn the control wheel (A) to the
right or to the left to manually change the tem-
perature of the radiator. In automatic mode, the
manually set temperature will remain the same
until the next point at which the profile changes.
Afterwards, the defined heating profile will be
activated again. During manual operation, the
temperature remains activated until the next
manual change.
• Manual and automatic mode: Press and hold
down the control wheel (A) to switch between
manual and automatic mode. In automatic
mode, the defined heating profile of the Home-
matic IP app is active. In manual operation, the
temperature can be set directly on the device or
via the app and will remain active until the next
manual change.
• Boost function: Press the control wheel (A)
shortly to activate the boost function for heat-
ing up the radiator quickly and briefly by opening

17
Replacing batteries
the valve. There will be a pleasant room temper-
ature right away because of the radiated heat.
The operating lock of the radiator thermostat
can be activated and deactivated via the Home-
matic IP app. Tap on the menu symbol in the top
left of the screen of your app and select the
menu item “Device overview”. Select your radia-
tor thermostat to switch the operating lock “ON”
or “OFF”.
7 Replacing batteries
If the symbol for empty batteries ( ) appears in the dis-
play or in the app, please replace the used batteries by
two new LR6/mignon/AA batteries. You must observe
the correct battery polarity.
To insert the batteries into the radiator thermostat,
please proceed as follows:
• Push the battery compartment cover (B) to the
back and downwards to remove it from the de-
vice (see figure 7).
• Remove the (old) batteries.
• Insert two new 1.5 V LR6/mignon/AA batteries
into the battery compartment, making sure that
you insert them the right way round (see figure
8).
• Close the battery compartment (B).

18
Replacing batteries
• Please pay attention to the flashing signals of the
device LED while inserting the batteries (see „8.4
Error codes and flashing sequences“ on page
21).
Once the batteries have been inserted, the radiator ther-
mostat will perform a self-test (approx. 2 seconds). Af-
terwards, initialisation is carried out. The LED test display
will indicate that initialisation is complete by lighting up
orange and green.
Never recharge standard batteries. Do not throw
the batteries into a fire. Do not expose batteries
to excessive heat. Do not short-circuit batteries.
Doing so will present a risk of explosion.
Used batteries should not be disposed of with
regular domestic waste! Instead, take them to
your local battery disposal point.
