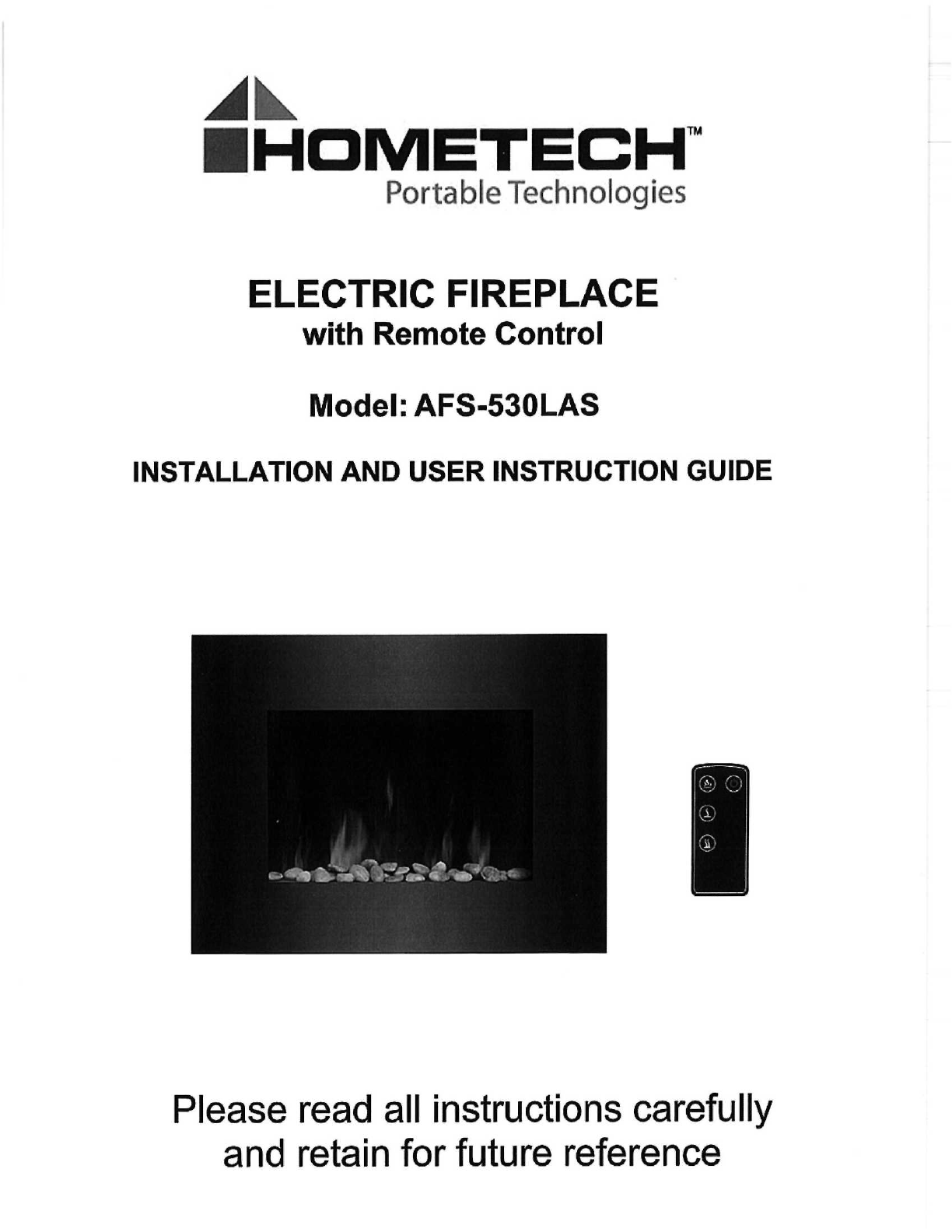

ELECTRIC FIREPLACE
with Remote Control
Model: AFS-530LAS
INSTALLATION AND USER INSTRUCTION GUIDE
Please read all instructions carefully
and retain for future reference

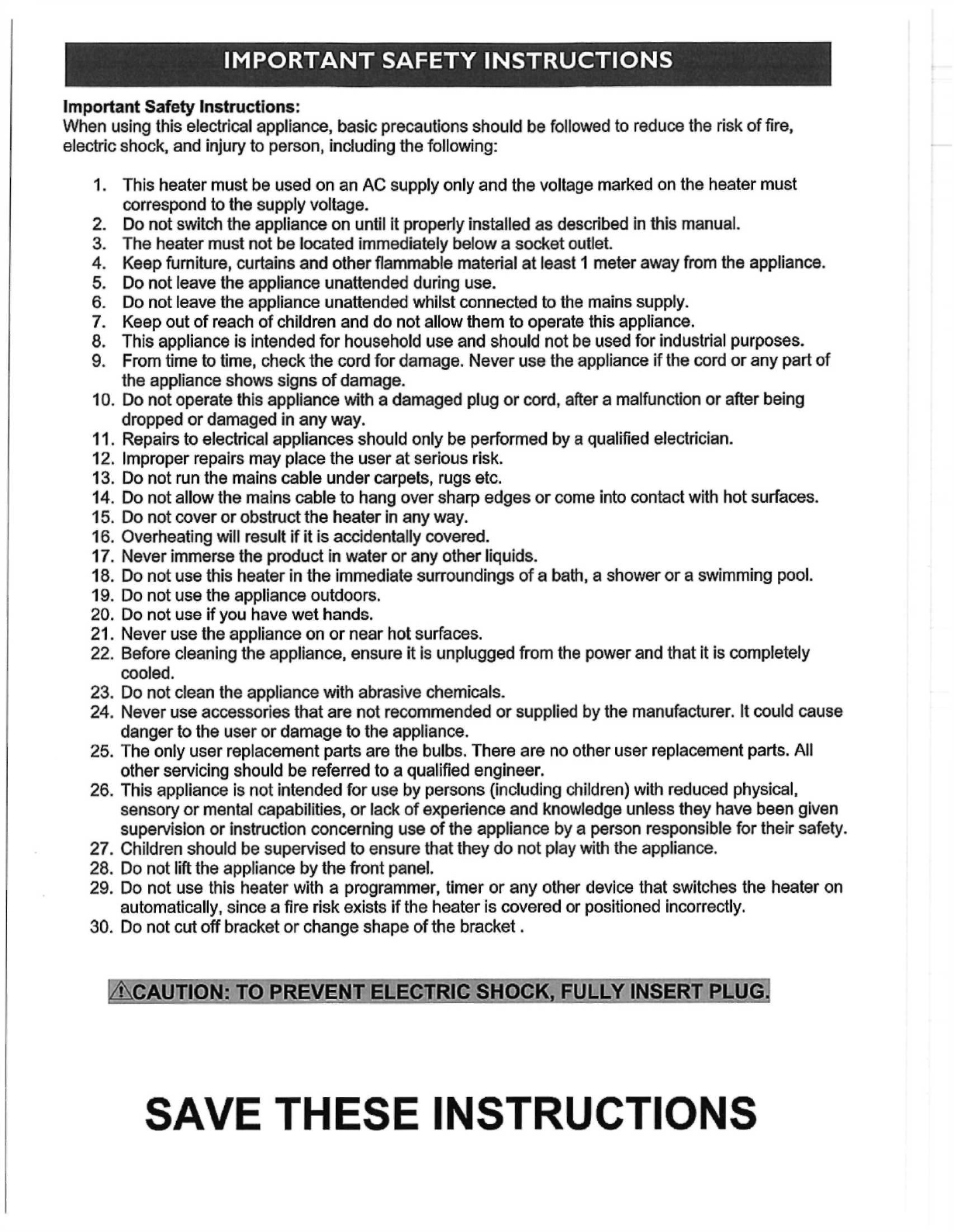

IMPORTANT SAFETY INSTRUCTIONS
Important Safety Instructions:
When using this electrical appliance, basic precautions should be followed to reduce the risk of fire,
electric shock, and injury to person, including the following:
1. This heater must be used on an AC supply only and the voltage marked on the heater must
correspond to the supply voltage.
2. Do not switch the appliance on until it property installed as described in this manual.
3. The heater must not be located immediately below a socket outlet.
4. Keep furniture, curtains and other flammable material at least 1 meter away from the appliance.
5. Do not leave the appliance unattended during use.
6. Do not leave the appliance unattended whilst connected to the mains supply.
7. Keep out of reach of children and do not allow them to operate this appliance.
8. This appliance is intended for household use and should not be used for industrial purposes.
9. From time to time, check the cord for damage. Never use the appliance if the cord or any part of
the appliance shows signs of damage.
10. Do not operate this appliance with a damaged plug or cord, after a malfunction or after being
dropped or damaged in any way.
11. Repairs to electrical appliances should only be performed by a qualified electrician.
12. Improper repairs may place the user at serious risk.
13. Do not run the mains cable under carpets, rugs etc.
14. Do not allow the mains cable to hang over sharp edges or come into contact with hot surfaces.
15. Do not cover or obstruct the heater in any way.
16. Overheating will result if it is accidentally covered.
17. Never immerse the product in water or any other liquids.
18. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
19. Do not use the appliance outdoors.
20. Do not use if you have wet hands.
21. Never use the appliance on or near hot surfaces.
22. Before cleaning the appliance, ensure it is unplugged from the power and that it is completely
cooled.
23. Do not clean the appliance with abrasive chemicals.
24. Never use accessories that are not recommended or supplied by the manufacturer. It could cause
danger to the user or damage to the appliance.
25. The only user replacement parts are the bulbs. There are no other user replacement parts. All
other servicing should be referred to a qualified engineer.
26. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
27. Children should be supervised to ensure that they do not play with the appliance.
28. Do not lift the appliance by the front panel.
29. Do not use this heater with a programmer, timer or any other device that switches the heater on
automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
30. Do not cut off bracket or change shape of the bracket.
^CAUTION: TO PREVENT ELECTRIC SHOCK, FULLY INSERT PLUG.
SAVE THESE INSTRUCTIONS

GETTING TO KNOW YOUR HEATER
Getting started
1. Remove the appliance from the box.
2. Remove any packaging from the product.
3. Place the packaging inside the box and either store or dispose of safely.
Contents of carton
1. Electric Fireplace
2. Wall fixing bracket
3. Fixing screws and wall plugs
4. Remote control
5. Instruction manual
Helpful advice before fitting
1. Please retain all packaging until you have checked and counted all the parts and the contents of
the fixing pack against the parts list.
2. The fixing pack contains small items which should be kept away from young children
3. We suggest that you open the fixing pack and place all the contents into a container, therefore
reducing the risk of losing any small pieces
INSTALLATION
1. Do not connect the appliance until properly fixed to the wall and the instructions is read fully
2. The minimum distances must be observed.
3. For installation of the appliance, care must be taken not to damage concealed cables.
4. Please be careful while drilling the holes.
5. This appliance is designed to be permanently fixed to a wall at a minimum height of 300mm. The
wall bracket must be fitted horizontally and the cable routed to the bottom right of the appliance.
6. A height of 600mm from bottom of appliance to floor is recommended for optimum viewing of fuel
bed. Keep top of appliance at least 1 meter away from ceiling or other object for optimum heat
ventilation. (For recommend fixing dimensions, see Fig. 1 of the diagram below)
7. For optimum viewing, mark the top four screws fixing positions on wall in accordance with the
recommend fixing dimensions (see Fig.2).
8. Drill top holes with a depth of 40mm using an 8mm drill bit. Clean holes from dust and insert one
plug in each hole. Make sure the edge is flush with the surface.
9. Fix the wall bracket using the plug and screws provided
10. Carefully lift the appliance and hook it to the wall bracket (see Fig.2 in circle). Do not let the
appliance go until you are sure it is safely engaged to the bracket.
11. Gently bring the heater level with the wall.
12. Mark the bottom holes position (see Fig.3). Carefully remove the appliance from the bracket.
13. Drill bottom holes with a depth of 40 mm using an 8 mm drill bit. Clean holes from dust and insert
one plug in each hole. Make sure the edge is flush with the surface.
14. Refit the appliance to the wall fixing bracket and rotate the bottom fixing bracket down again and
use the screw provided to permanently fix the heater in place.
15. Place the front panel over the front of the Fireplace aligning the slots in the brackets at each side
of the panel with the lugs on the sides of the fire (see Fig. 4). Again two people will be required for
this operation.

DIAGRAM FOR MODEL: AFS-530LAS

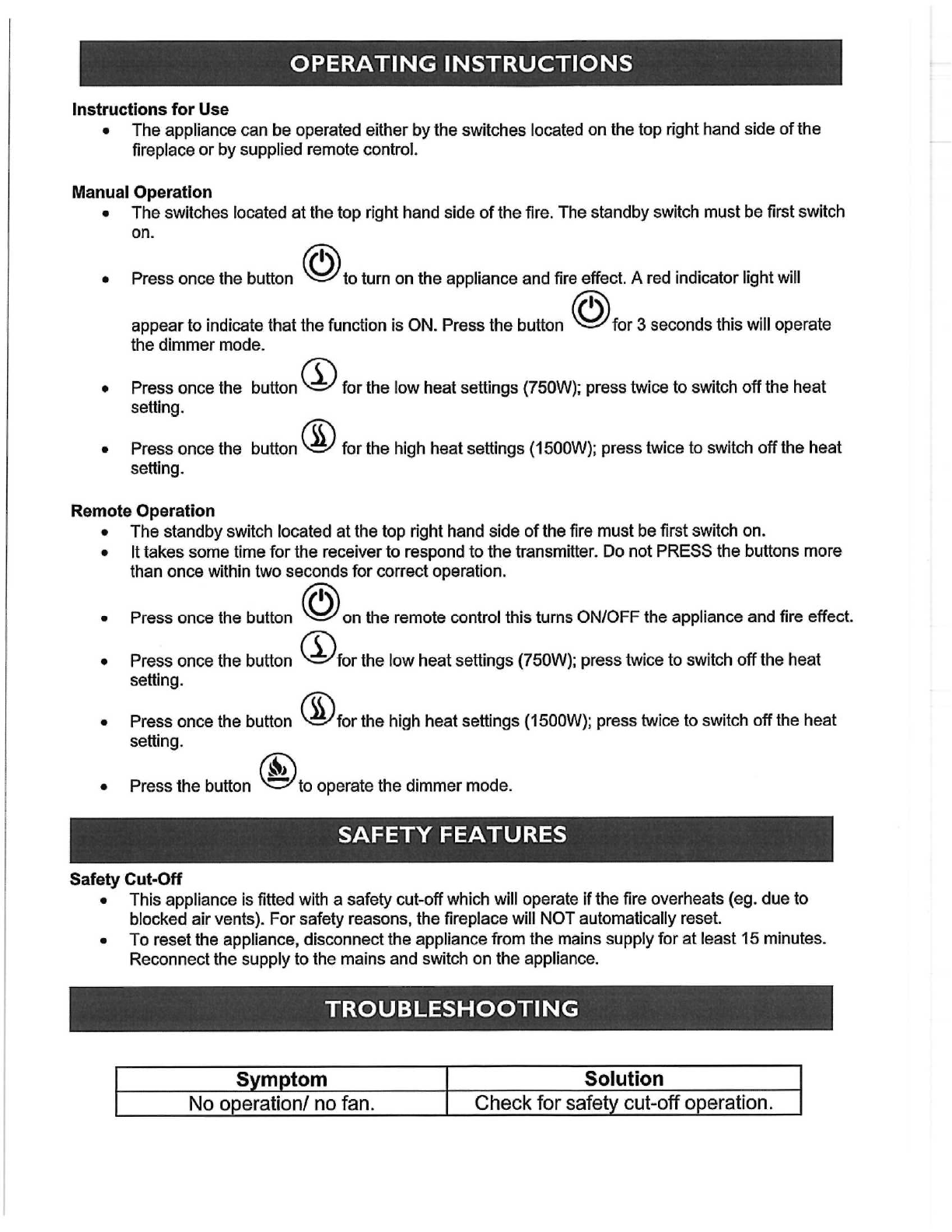

OPERATING INSTRUCTIONS
Instructions for Use
• The appliance can be operated either by the switches located on the top right hand side of the
fireplace or by supplied remote control.
Manual Operation
• The switches located at the top right hand side of the fire. The standby switch must be first switch
on.
Press once the button to turn on the appliance and fire effect. A red indicator light will
©
appear to indicate that the function is ON. Press the button for 3 seconds this will operate
the dimmer mode.
Press once the button for the low heat settings (750W); press twice to switch off the heat
setting.
• Press once the button for the high heat settings (1500W); press twice to switch off the heat
setting.
Remote Operation
• The standby switch located at the top right hand side of the fire must be first switch on.
• It takes some time for the receiver to respond to the transmitter. Do not PRESS the buttons more
than once within two seconds for correct operation.
Press once the button on the remote control this turns ON/OFF the appliance and fire effect.
Press once the button ^)for the low heat settings (750W); press twice to switch off the heat
setting.
Press once the button vi^for the high heat settings (1500W); press twice to switch off the heat
setting.
Si
• Press the button ^—' to operate the dimmer mode.
SAFETY FEATURES
Safety Cut-Off
• This appliance is fitted with a safety cut-off which will operate if the fire overheats (eg. due to
blocked air vents). For safety reasons, the fireplace will NOT automatically reset.
• To reset the appliance, disconnect the appliance from the mains supply for at least 15 minutes.
Reconnect the supply to the mains and switch on the appliance.
TROUBLESHOOTING
Symptom Solution
No operation/ no fan.
Check for safety cut-off operation.

CLEANING
Warning; Always disconnect from the power supply before cleaning heater.
• For general cleaning use a soft clean duster-never use abrasive cleaners. The glass viewing
screen should be cleaned carefully with a soft cloth. DO NOT use proprietary glass cleaners.
TECHNICAL SPECIFICATIONS
Supply: 120V- 60Hz
Rated power: 1500W
Lighting: LED Bulbs
