ELECTRIC CURVED PANEL FIREPLACE HEATER
OWNERS MANUAL
Model Numbers: WS-G-03-2 &WS-G-03-2-Mini
Only use this heater as described in this manual. Any other use is not recommended
by the manufacturer, and may cause fire,electric shock, or other personal injury.
WARNING! Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could result in fire,
electric shock, serious personal injury, or death.
WARNING! INDOOR use only! NEVER use this heater outdoors!
SAVE THESE INSTRUCTIONS!
CAUTION! Keep this owner’s manual for future reference.If you sell or give this product
away, make sure this manual accompanies this product.

2
IMPORTANT SAFETY INFORMATION!
WARNING
1.ALWAYS keep electric cords,home furnishings,drapes,clothing,papers, or other
combustibles at least 3 feet (0.9m) away from the front of this heater, and away from the
bottom, sides, and rear of this heater.
2.DO NOT place the heater near a bed because objects such as pillows or blankets can fall off
the bed and be ignited by the heater.
3.DO NOT COVER this heater or block the air vents at all. Doing so could cause a fire.
4.AVOID fire or electric shock! NEVER insert or allow any foreign objects to enter the
ventilation or exhaust openings of this heater.
5.Prevent Fire! Keep all flammable liquids, like gasoline or paint, away from this heater. This
heater produces arcing sparks that could ignite flammable liquids.
6.DO NOT cover this heater in any manner. Doing so could block the air flow and cause the unit
to overheat, or could ignite the material covering the heater.
7.NEVER run the power cord under carpet, rugs, runners, or any other covering. Doing so could
cause the cord or materials covering the cord to overheat.
8.AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other
blockage. Unplug the unit and clean with a vacuum ONLY.DO NOT rinse or get wet.
WARNING
1.For residential use only! NOT for commercial use! NEVER use this fireplace for other than
its intended purpose.
2.ALWAYS HANG UNIT BEFORE USE.DO NOT turn on or use while the unit is sitting on the
floor, ground, or other surface.
3.The wall mount system is designed for use ONLY with this product. NEVER use a wall
mount system from another manufacturer.
4.Use extreme caution if using this heater near children, or where children may be present.
5.NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
6.This heater is hot when in use.AVOID INJURY! DO NOT TOUCH hot surfaces, or attempt
to move this heater while it is hot.
7.ALWAYS turn this heater off before unplugging it from the outlet.
8.AVOID INJURY! Keep the cord from crossing traffic areas to avoid tripping.
9.NEVER modify this fireplace. Doing so could result in personal injury or property damage.
Modification of this fireplace completely voids all warranties.
10.Discontinue use if this fireplace malfunctions or is dropped or damaged in any manner.
11.ALWAYS store this heater in a dry location. NEVER use the fireplace if it has become wet.

3
WARNING
1.Risk of electric shock!DO NOT OPEN! No user-serviceable parts inside!
2.ALWAYS disconnect this unit from the power supply before performing any assembly or
cleaning, before replacing the light bulb, or before relocating the electric fireplace.
3.NEVER use this heater in bathrooms, laundry rooms, or any other location where the heater
could fall into a bathtub or pool,become damp or come in contact with water.
4.NEVER hang this unit on a wall directly below an electrical outlet.
5.NEVER operate this heater if the power cord or plug has become damaged, or if the
grounding pin is damaged or missing.
6.Place the heater near a wall outlet so an extension cord is not needed.Always plug heaters
directly into a wall outlet/receptacle.Never use with an extension cord or relocatable power
tap(outlet/power strip).
7.Avoid hazards due to resetting of the thermal cut-off switch. NEVER control this unit with a
timer, or allow it to be on a circuit regularly switched off by the utility.
8.ONLY use this heater on a 120 Volt 15 Amp grounded circuit.NEVER overload the circuit.
If this heater trips the circuit breaker, unplug all other appliances on the same circuit before the
next use. Avoid plugging other appliances into the same circuit as this heater.
9.NEVER plug this heater into an outlet that is old,cracked, or has any loose wires or
connections. Plugging this heater into a faulty outlet could result in electric arcing within the
outlet that could cause the outlet to overheat or catch fire.
10.ALWAYS check your heater cord and plug connections with each use!
i) MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it
has not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or faceplate is HOT!
iv) If the outlet or faceplate is HOT,discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.
The cord supplied with the heater has a
plug with two blades (live and neutral) and
one round pin (ground). If a 3-slot
receptacle is not available, an adapter
MUST be used. The adapter MUST be
properly grounded to the outlet box (see
figure at right).

4
Preparation
This product includes a GLASS! Always use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts
and assembly steps are grouped for free-standing or wall-hanging use. Check the parts list to make
sure nothing is missing. Dispose of packaging materials properly. Please recycle whenever possible.
You will need the following tools (not included): Phillips screwdriver; stud finder; level; tape
measure; electric drill; 1/4” wood drill bit, 1/16” wood drill bit, and a hammer.
Parts and Hardware
A– Fireplace ( 1 )
B– Wood Screws ( 3 ) C– Drywall anchors ( 3 )
D– ST4x8 Metal Screws (2) RC – Remote Control
E- Wall Bracket (1)
F - Decorative Glass
G - TV bracket（2pcs）
H-ST5x10 Screws (8) I - M6x15 screws for TV
bracket（4pcs）-WS-G-03-2
J-Glass Tray（1）K- M6x15 screws for TV
bracket（6pcs）-WS-G-03-2-
Mini

5
Installation and Assembly
Wall mounted installation
Rear View of Fireplace
Step 1. Find a safe location.
Minimum clearance on each side: 19.7”
(50 cm).
Minimum clearance below: 59.1”
(150 cm).
Minimum clearance above: 39.4”
(100 cm).
Minimum clearance from the front and
sides: 3 feet (90 cm).
Choose a location near an outlet so an
extension cord is not required.
DO NOT position the unit directly below
a power outlet.
See Safety Information on pages 2 and
3for warnings about safe placement,
safe installation, and proper use of this
product.
NOTICE
The wall mount fasteners included with this fireplace are for use ONLY with a
wood-framed wall covered in drywall (sheet rock). For concrete walls, cinder
blocks, or other wall types, consult a professional for the best attachment methods.
ALWAYS unplug this fireplace heater before assembly or cleaning, or before
relocating. Failure to do so could result in electric shock,fire, or personal injury.
STEP 2. A. Locate the wall studs using an electronic stud-finder. B. The two outer screws should
be screwed into a wall stud, and the center screw into a drywall anchor. C. If only one stud is
available, the center screw MUST be screwed directly into it, and the two outer screws may be
19.7”
(50 cm)
Minimum 39.4”
(100 cm)
Drywall
Studs
Minimum 59.1”
(150 cm)
19.7”
(50 cm)

6
screwed into the drywall anchors. D. Mark the hole locations with a pencil. The holes should be 8”
(20.3 cm) apart, and level. The minimum height from the surface below must be 59.1” (150 cm).
AVOID INJURY and DAMAGE! The center screw must be screwed directly into a wall
stud. The two additional screws may be screwed into the drywall anchors.
STEP 3. Drill a pilot hole into each mark using a 1/4” wood drill bit for the drywall anchors, and a
1/16” wood drill bit for the wall studs. With a hammer, tap the drywall anchor(s) (C) carefully into
the hole(s) until they are flush with the drywall surface. Use care to avoid damaging the drywall with
the hammer.
STEP 4. Align the holes in the wall bracket (E) with the pilot holes and drywall anchors. Thread
three wood screws (B) through the holes in the wall bracket and directly into the wall studs and
drywall anchor(s). Make sure the bracket is level. Tighten all screws securely with a screwdriver.
ALWAYS unplug this fireplace heater before assembly or cleaning, or before
relocating. Failure to do so could result in electric shock,fire, or personal injury.
C
C
C
B
B
B
B
B
B
E
E

7
NOTE: We recommend that two capable adult perform this procedure.
STEP 5A. With the help of a capable adult, lift the fireplace and align the two hooks on the back of
the fireplace with the slots on the wall bracket. Carefully set the hooks into the slots.
STEP 5B. Secure the fireplace to the wall bracket with two ST4x8 metal screws (D), one on each
side. Thread the screws through the fireplace and into the wall bracket side tabs. Tighten both
screws with a Phillips screwdriver.
A
A
E
D

8
Tabletop installation
This next step involves GLASS! ALWAYS use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
ALWAYS keep the decorative glass OUT OF REACH OF CHILDREN! Leave no glass
pieces where children can find them. Failure to do so could cause a choking hazard.
WS-G-03-2 4pcs M6x15(I) WS-G-03-2-Mini 6pcs M6x15(K)
STEP 1.Place the bracket (G)symmetrically on the mounting holes,fix two sides with M6x15
screws(I).
STEP 2.Put the fireplace on a soft surface flatly,see the drawing above,locate the bracket to the
bottom mounting holes,fix the baseboard with 8pcs ST5x10 screws(H)

9
NOTE: We recommend that two capable adult perform this procedure.
STEP 6A. With you or someone holding the glass panel, remove the two screws at the top edge of
the fireplace with a Phillips (+) screwdriver.
STEP 6B. Together, carefully remove the front glass panel upward and set it aside on a clean soft
surface.
STEP 6C. Remove the screws at the two sides of the log,Put the log away in order to use next
time.Place the glass tray (J) to the fireplace slot, then place the decorative pebbles (F) on the
fireplace ledge in any desired position.
STEP 6D. Align the tabs of the glass panel with the holes on the top edge of the fireplace. Thread
the screws back into the holes and tighten them both with a Phillips screwdriver.
Operation
Read and understand this entire owner’s manual, including all safety information,
before plugging in or using this product. Failure to do so could result in electric shock,
fire, serious injury, or death.
Power
Make sure the ON/OFF switch, located on the left side panel, is in the OFF position. Plug the power
cord into a 120 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages
2 and 3). Make sure the outlet is in good condition and that the plug is not loose. NEVER exceed the
maximum amperage for the circuit. DO NOT plug other appliances into the same circuit.
Methods of Operation

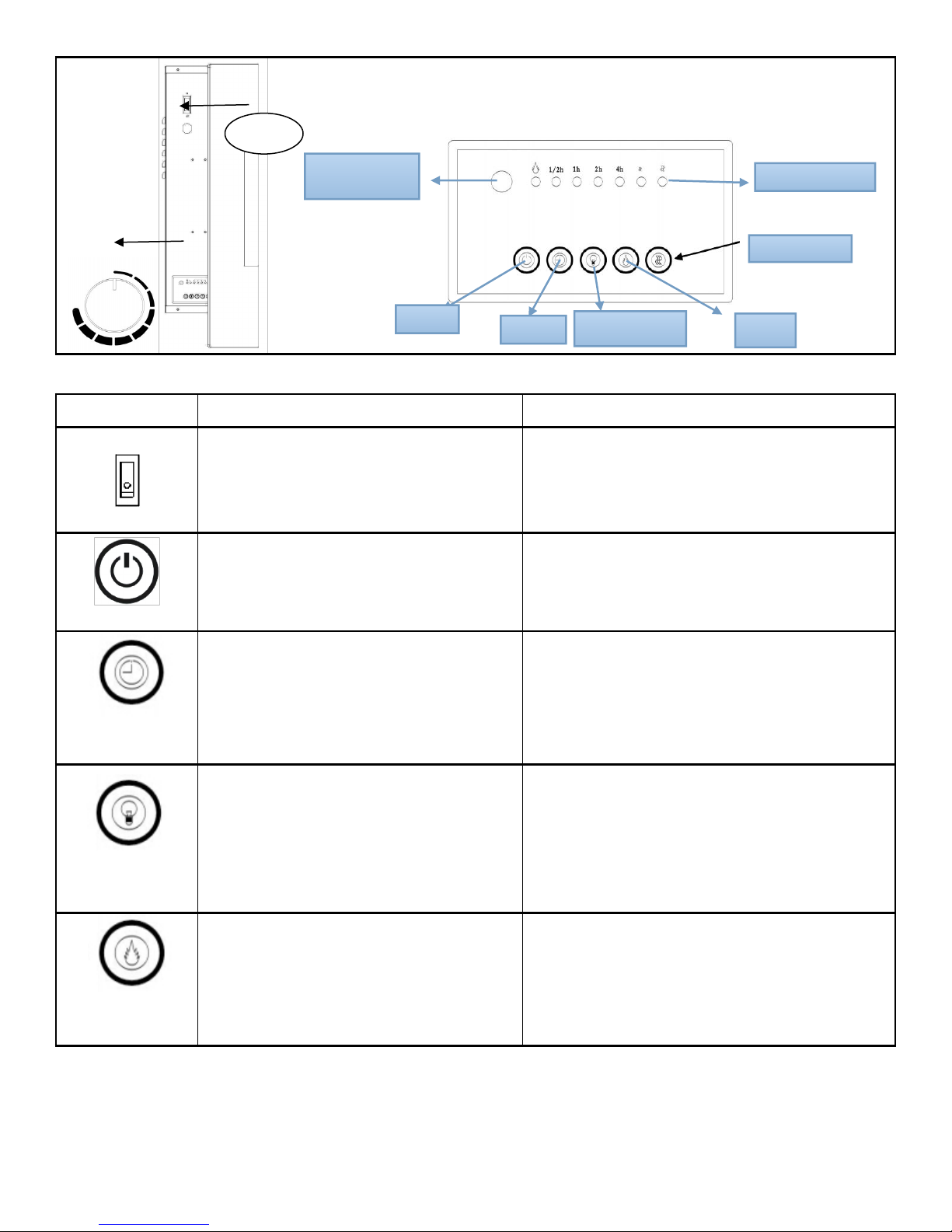

This electric fireplace can be operated by the CONTROL PANEL, located on the left side panel of the
fireplace (see figure below), or by the battery-powered REMOTE CONTROL.
Before operating, please review the IMPORTANT SAFETY INFORMATION on Pages 2 and 3, and
heed all warnings.
F

10
Side View
Control Panel Operation
BUTTON FUNCTION ACTION & INDICATION
ON
OFF
ON (l). Enables all functions.
OFF (O). Turns off all functions on
control panel and remote control.
1. Press ON (l). Power turns on. All
functions are enabled.
2. Press OFF (O). Power, flame effect, and
all functions turn off.
POWER
ON: Enables touch panel functions
and remote control. Turns on flame
effect.
OFF: Disables touch panel functions
and remote control. Turns off flame
1. Press once. Indicator light turns on.
Power turns on. All functions enabled.
2. Press again. Flame effect turns off.
Power and all functions turn off.
TIMER
TIMER button: Controls timer
settings to turn off fireplace at
selected time.
Settings range from 0.5 hours to 7.5
hours.
1. Press once. Indicator light turns on.
Timer is set to 0.5 hours.
2. Press again until desired setting is
reached. Indicator lights show setting.
COLOR
COLOR button: Makes the color
flame effect changing.
NOTE: color effect stays on until
power button is turned off. Color
flame effect must be on for heater to
turn on.
1. Press once. Flame color effect gets
changing circularly. Press again until
desired setting is reached.total 10 colors
（yellow,red,green,blue,red+blue,blue+yello
w.red+green+yellow,blue+red+yellow,blue+
green+yellow,red+blue+green+yellow)
FLAME
FLAME button: Makes the flame
effect dimmer and brighter
NOTE: Flame effect stays on until
power button is turned off. Flame
effect must be on for heater to turn
on.
1. Press once. Flame effect gets brighter.
Press again until desired setting is reached.
2. Press again.Flame effect gets dimmer.
Press again until desired setting is reached
Power
ON / OFF
LED Indicators
Remote control
Sensor Signal
Power
Timer
Heat Control
Color changing
Flame

11
HEATER
HEATER button: Turns heater on
and off.
NOTE: The heater only works when
the flame effect is on. If the flame
effect is off, the heater will not turn
on.
NOTE: To prevent overheating, the
heater blows cool air for 10 seconds
1. Press once. Indicator lights up.
Fan blows cool air for 10 seconds. 750W
heater turns on and blows warm air.
2. Press again. Indicator lights up.
1500W heater turns on and blows hot air.
3. Press again. Heaters turn off.
The fan blows cool air, then turns off.
THERMOSTAT
THERMOSTAT SETTING: Heater must be on for thermostat settings to work.
Turn the knob to set the temperature of the heater ranging from about 48 F
(9 C) to about 86 F (30 C). There is 9 levels of temperature
adjustment.Settings will vary with room size, insulation, etc. The thermostat will
turn the heater on and off to maintain the set temperature. When the set
temperature is lower than the ambient temperature,the heater will work;When
the set temperature is higher than the ambient temperature,the heater will stop
working.
TROUBLES
HOOTING
If the Heater function is not working, try the following steps:
· After making sure the unit is properly turned on, turn the Thermostat Knob to
the maximum setting. This step should turn the heater on. If the heater is still
not turning on, try the step indicated below.

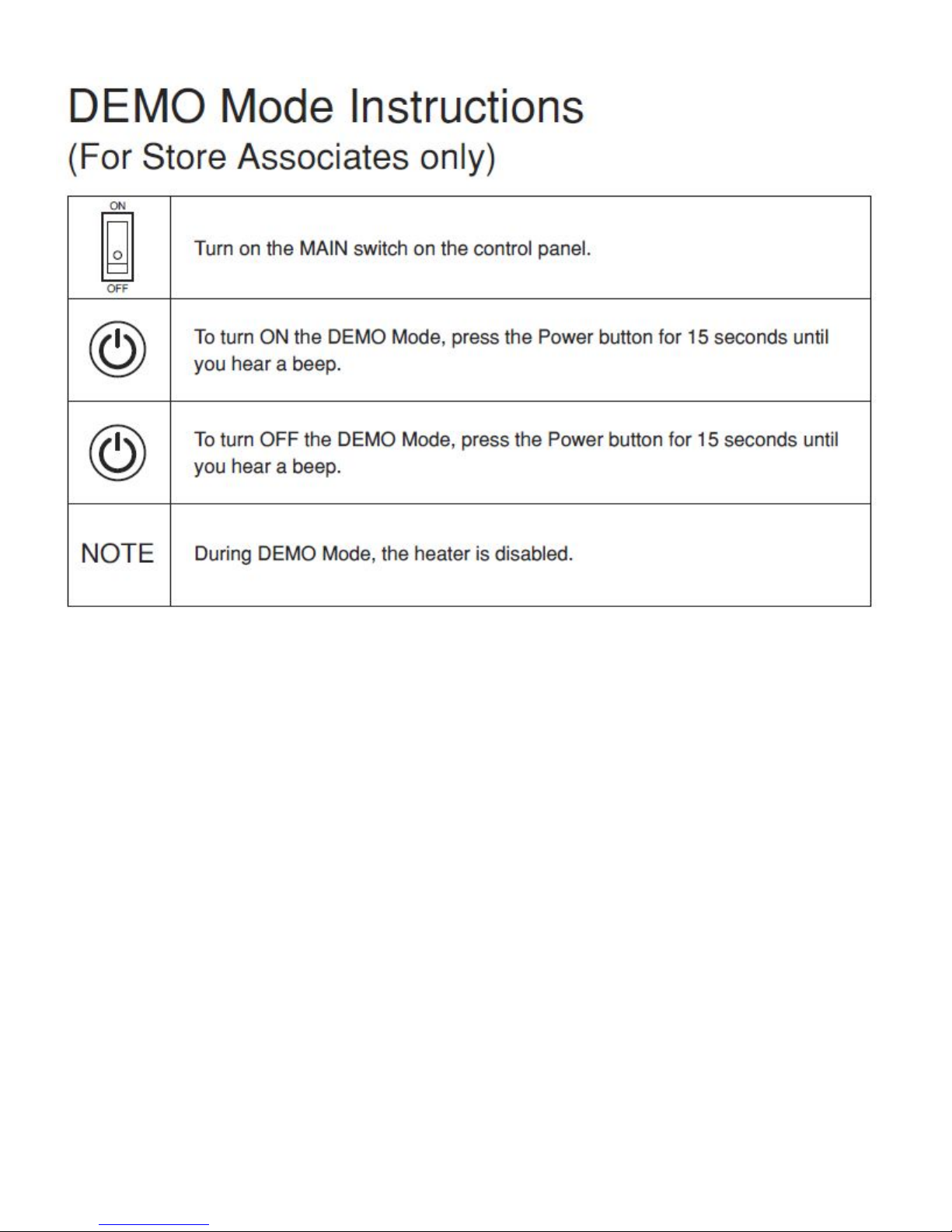

· The unit’s Demo mode may have been enabled. Demo mode is for
demonstration purposes only at the store. Please note that when the unit is on
a Demo mode, the heater is disabled. To disable the Demo mode, press the
Power button on the control panel for 15 seconds until you hear a beep.
The beep will signal that the Demo mode has been turned off. You may now
try to turn on the heater function of the unit again.
NOTICE
When the heater is first turned on, a slight odor may be present. This is normal and
should not occur again unless the heater is not used for a long period of time.
NOTICE
To improve operation, aim the remote control at the front of the fireplace. DO NOT
press the buttons too quickly. Give the unit time to respond to each command.
Remote Control (Control panel POWER switch must be ON to use remote control.)
BUTTON FUNCTION ACTION & INDICATION
POWER
ON: Enables touch panel functions and
remote control. Turns on flame effect.
OFF: Disables touch panel functions and
remote control. Turns off flame effect.
1. Press once. Indicator light turns on.
Power turns on. All functions enabled.
2. Press again. Flame effect turns off. Unit
goes to standby. All functions turn off.

12
TIMER
TIMER button: Controls timer settings to
turn off fireplace at selected time.
Settings range from 0.5 hours to 7.5 hours.
1. Press once. Indicator light turns on.
Timer is set to 0.5 hours.
2. Press again until desired setting is
reached. Indicator lights show setting.
FLAME
FLAME button: Makes the flame effect
dimmer and brighter
NOTE: Flame effect stays on until power
button is turned off. Flame effect must be
on for heater to turn on.
1. Press once. Flame effect gets brighter.
Press again until desired setting is reached.
2. Press again.Flame effect gets dimmer.
Press again until desired setting is reached
COLOR
COLOR button: Makes the color flame
effect changing.
NOTE: color effect stays on until power
button is turned off. Color flame effect
must be on for heater to turn on.
1. Press once. Flame color effect gets
changing. Press again until desired setting
is reached.total 10 colors.
（yellow,red,green,blue,red+blue,blue+yello
w.red+green+yellow,blue+red+yellow,blue+
green+yellow,red+blue+green+yellow)
HEATER
HEATER button: Turns heater on and off.
NOTE: The heater only works when the
flame effect is on. If the flame effect is off,
the heater will not turn on.
NOTE: To prevent overheating, the heater
fan will blow cool air 10 seconds before
the heater turns on, and after it turns off.
1. Press once. Indicator lights up.
Fan blows cool air for 10 seconds. 750W
heater turns on and blows warm air.
2. Press again. Indicator lights up.
1500W heater turns on and blows hot air.
3. Press again. Heaters turn off.
The fan blows cool air, then turns off.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe
temperature (212 F / 100 C), the heater will automatically turn OFF. To reset:
1. Unplug the power cord from the outlet.
2. Turn the ON/OFF switch on the CONTROL PANEL to OFF.
3. Wait 5 minutes.
4. Inspect the fireplace to make sure no vents are blocked, or clogged with dust or lint. If they are,
use a vacuum to clean the vent areas.
5. With the POWER switch in the OFF position, plug the power cord back into the outlet.
6. If the problem continues, have your outlet and wiring inspected by a professional.
Remote Control Battery Information
This remote control use two AAA battery (Not included).
Instructions for battery installation are on the Remote Control battery compartment.
NEVER dispose of batteries in fire. Failure to observe this precaution may result in an
explosion. Dispose of batteries at your local hazardous material processing center.

13
Care and Maintenance
Cleaning
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
NEVER immerse in water or spray with water. Doing so could result in electric shock,
fire, or personal injury.
Metal:
Buff using a soft cloth, slightly dampened with a citrus oil-based product.
DO NOT use brass polish or household cleaners as these products will damage the metal trim.
Glass:
Use a good quality glass cleaner sprayed onto the cloth or towel. Dry thoroughly with a paper
towel or lint-free cloth.
NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Vents:
Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
Plastic:
Wipe gently with a slightly damp cloth and a mild solution of dish soap and warm water.
NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Maintenance
Risk of electric shock!DO NOT OPEN any panels other than the bulb replacement
plate! No user-serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
Electrical and Moving Parts:
The fan motors are lubricated at the factory and will not require lubrication.
Electrical components are integrated in the fireplace and are not serviceable by the consumer.
Storage:
Store heater in a clean dry place when not in use.

14
