Hommie P60 User manual

[e-mail]

Content
English....................................................................................... 1
Français.....................................................................................8
Italiano.................................................................................... 15
Español....................................................................................22
日本語......................................................................................29

1
Component
The picture is only for reference, please make the object as the
standard.
Limit Combs
3-6-9-12mm
USB Charging Cable
Ceramic Blade
with Acute Angle
5-Length
Adjustable Ring
Switch
Working Indicator
The Battery
Cleaning Brush

2
Parameters
Specific Adapter
Input: 100V-240V 50/60Hz
Output: AC 5V
Use the Rechargeable Mode
Hair Clipper
For the
Professional
Electric
Motor
Working Voltage: 3V
Axis Material: Wearable Brass
Battery
High-performance
Environmental-friendly Battery
Charging Time: 3-6 Hours
Operable Time in Full-power:
60 Minutes
1.Insert the cable into the tail of clipper, and connect to the
power to start charging.
2.When the charging indicator lights up, it starts charging.
And the light will not change when the battery is fully
charged.
3.The indicator light will turn on if operating the clipper.

3
Fixed-length Function
1.To determine the length of haircut.
2.To select the appropriate limit comb.
3mm 6mm 9mm 12mm
3.To fine-tune the cutter
A:Use of Limit Comb: Cropped Hair and Hair Trim
Feature: (3, 6, 9, 12mm) Four Lengths Adjustment, Control
the Hair Length.
B:Cutter Limit Adjustor: Five Lengths Adjustment Within
0.8mm-2mm.
Left or right rotate the adjusting
ring to adjust the cutter.
(0.8mm-2mm)
Mount the limit comb:
1.Align the limit comb with the
blade edge.
2.Slightly forward push to mount
it.
Disassemble the limit
comb: Just pull hard the
limit comb.

4
Cutter Assembly and Disassembly
Use thumb to press the
white moving blade to
the cutter.
Fine-tune the adjusting ring
to 2.0mm before assembling
the cutter.
Disassemble the Cutter
To avoid the dropping of
disassemble cutter, use
the other hand to hold it.
Assemble the Cutter
Align and insert the cutter (B)
into the clipper slot.
Press down the cutter until the
“Click Sound” is heard.

5
Cutter Cleaning and Maintenance
3.Press the moving head, and clean the hair trims between
the moving blade and static blade.
2.Disassemble and
clean the cutter.
1.Use brush to clean
the cutter.
Apply a few drops of lubrication
onto the black points as shown in
the left picture before or after
operating.
Cutter Cleaning
Cutter Maintenance
Static Blade
Moving
Blade
Moving
Blade
Frame

6

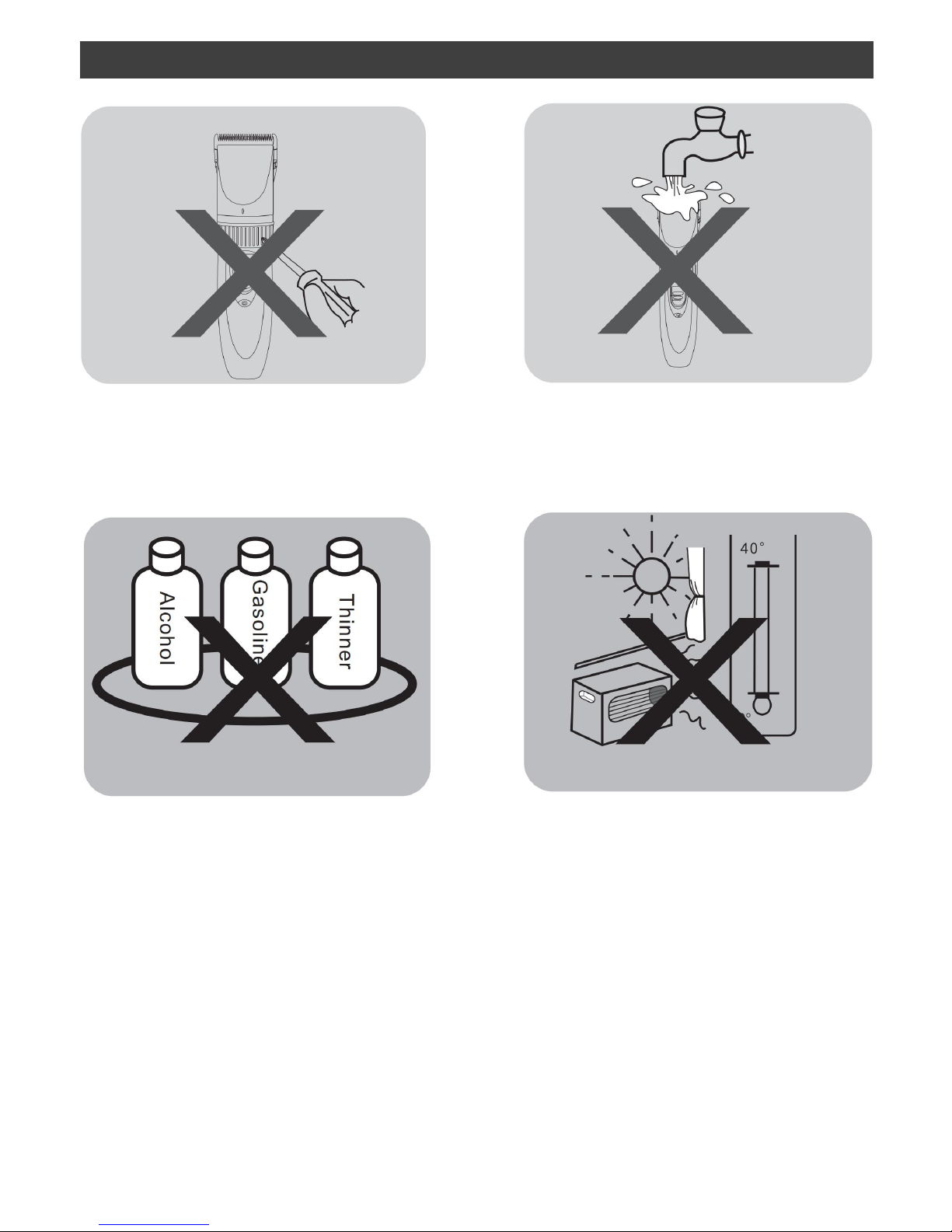

Note
1.Never willfully disassemble the product.
2.Not allowed to directly wash the clipper with water, and keep it
away from dampness while operating.
3.Only use a little wet cloth or neutral liquid soap to clean the
product.
4.Never charge the product above 40℃heat source or below
0℃environment.
* Slight heating during the operating or charging is normal case.
* After the battery life expires, take off and throw the battery in
safe manner into the designated recycling site. Never dump it
randomly.

7
Contact Us
If any questions, please feel free to contact us:
[email protected]m
Manufacturer: Ningbo Chao'er Electric Appliance Co., LTD
Address: No.1, Houwang North Road, Jishan Industrial Zone,
Xikou Town, Fenghua District, Ningbo City, Zhejiang Province

8
Pièces
L'image est pour référence seulement, veuillez vous référer au
produit réel.
Peigne limite
3-6-9-12mm
Câble de charge USB
Lame céramique à
angle aigu
5-Bague de
longueur réglable
Interrupteur
Indicateur
Batterie
Brosse à nettoyer
