Honar RC300 User manual

RC300
Instruction manual
GB
FR
P2M004STD-VER.1.1
Original Instruction

Table of Contents
Introduction
CAUTION: RISK OF FIRE!
FLAMMABLE REFRIGERANT R600a
Introduction................................................................................................................... 2.....................................................
Safety Tips..................................................................................................................................................................... 3~4
Installation: Location: Electrical......................................................................................................................................5~6
Cabinet and Controller Operation Instruction......................... ........................................................................................7~8
Door Gasket Removal and Replacement...........................................................................................................................9

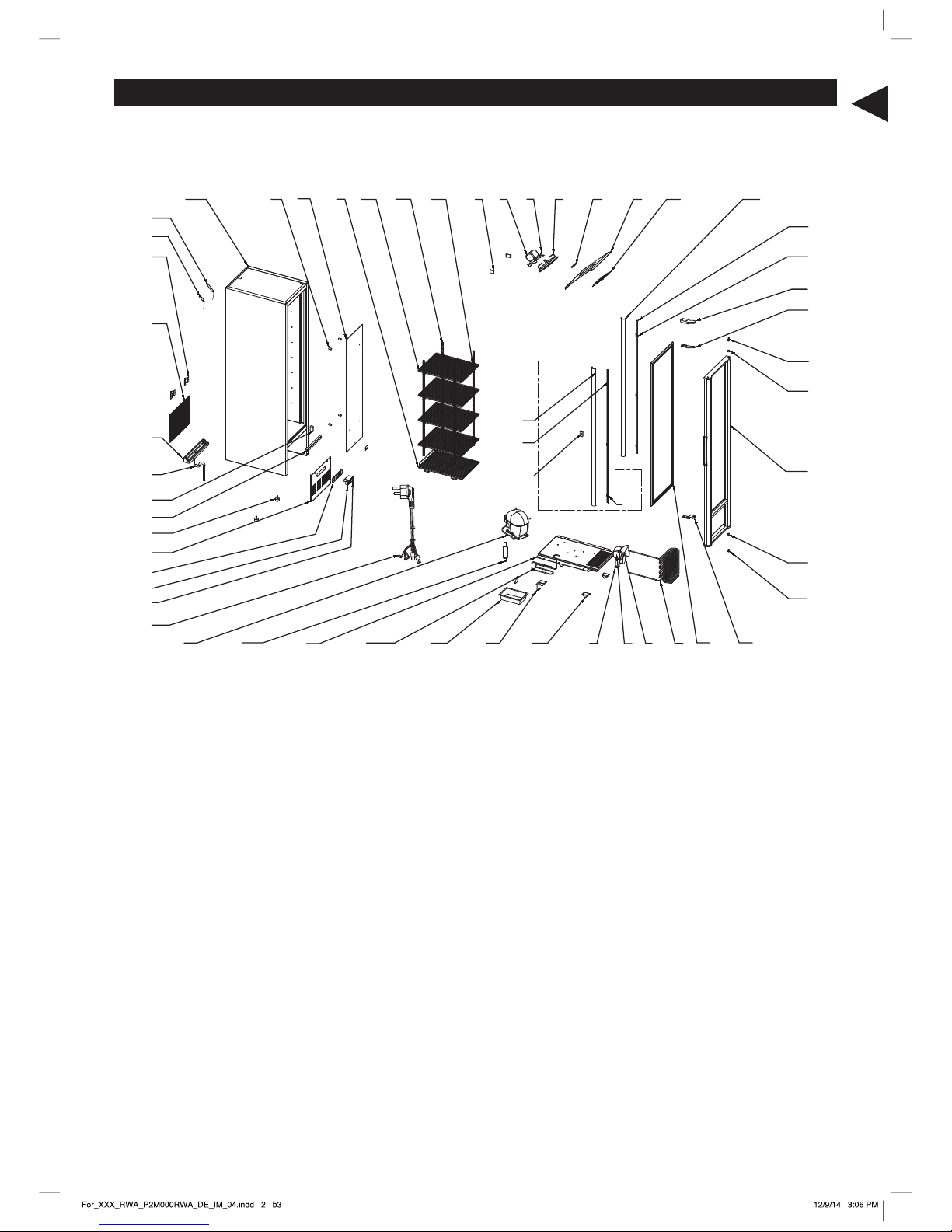

Cabinet Breakdown ....................................................................................................................................................10~11
General Maintenance............................................................. ..........................................................................................12
Technical Data..................................................................................................................................................................13
Circuit Diagrem.................................................................................................................................................................13
General Trouble Shooting............................................................................................................................................... 14
Disposal........................................................................................................................................................................... 15
Warranty........................................................................................................................................................................... 15
Fitting of the Shelves...........................................................................................................................................................9
Dear Customer:
We congratulate you on your purchase of one of the many appliances created for the commercial refrigeration
industry.
Like all of our products, this product has been developed on the basis of the latest technology and produced using
relisable commercial grade refrigeration and electrical components that have proven records of reliability throughout our
industry.
Please take a few minutes to read this manual prior to putting into service your new appliance.
Save these instructions in a safe place for further reference to its operation, service and spare parts advice for your tech-
nician.
We hope you are pleased with your new acquisition and it serves you for many years to come.
GB
ORIGINAL INSTRUCTION

GB
ORIGINAL INSTRUCTION

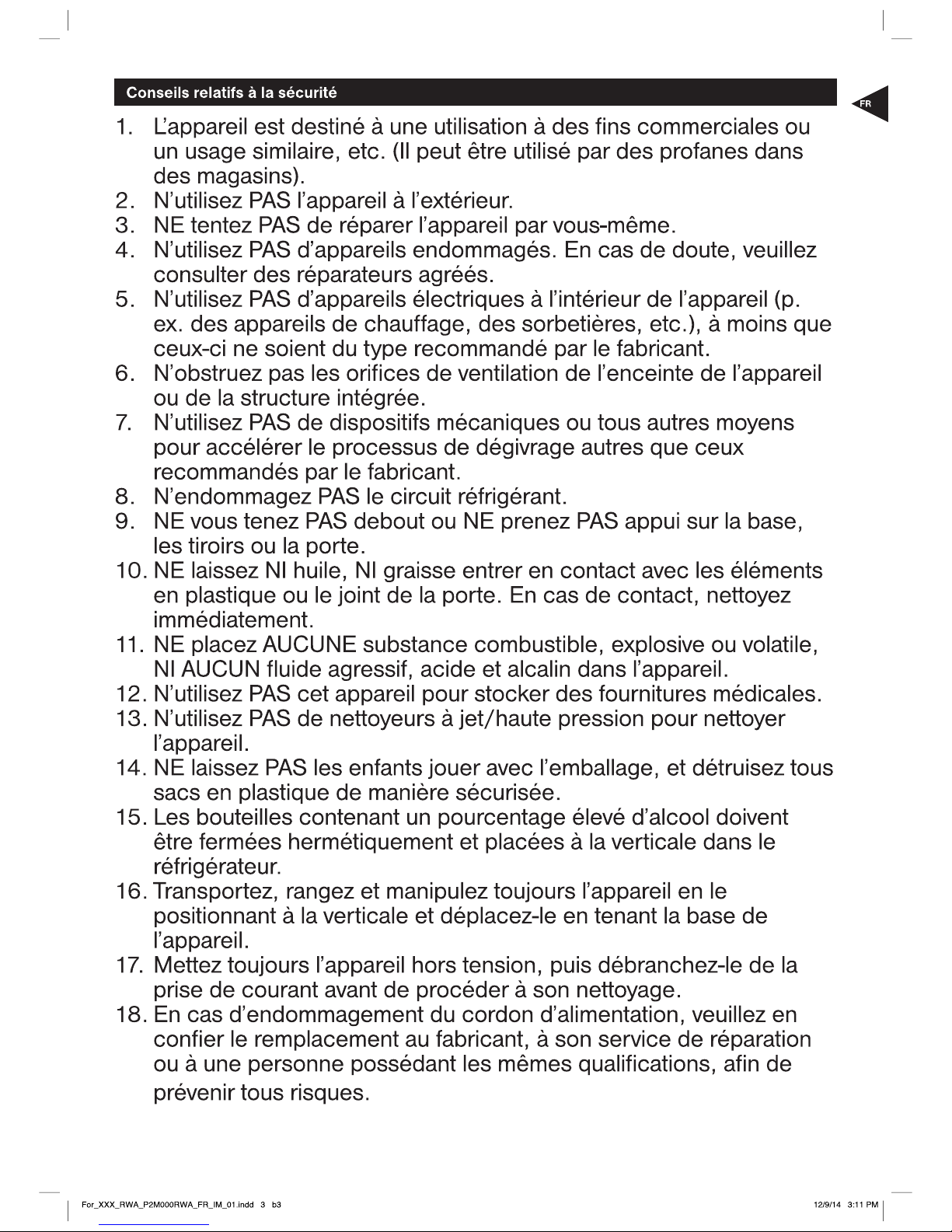

1. The appliance is intended for commercial use or similar use
(etc. to be used by a layman in shops).
2. DO NOT use the appliance outside.
3. DO NOT attempt to service the item yourself.
4. DO NOT use damaged appliances. If you are in any doubt,
consult service agent.
5. DO NOT use electrical appliances inside the appliance (e.g.
heaters, ice-cream makers etc.), unless they are of the type
recommended by the manufacturer.
6. Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
7. DO NOT use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
8. DO NOT damage the refrigerant circuit.
9. DO NOT stand or support yourself on the base, drawers or the
door.
10. DO NOT allow oil or fat to come into contact with the plastic
components or door seal.Clean immediately if contact occurs.
11. DO NOT place combustible, explosive or volatile articles,
corrosive acids or alkalis or liquids in the appliance.
12. DO NOT use this appliance to store medical supplies.
13. DO NOT use jet/pressure washers to clean the appliance.
14. DO NOT allow children to play with the packaging, and
destroy plastic bags safely.
15. Bottles that contain a high percentage of alcohol must be
sealed and placed vertically in the refrigerator.
16. Always carry, store and handle the appliance in a vertical
orientation and move by holding the base of the appliance.
17. Always switch off and disconnect the power supply to the unit
before cleaning.
18. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
3
Safety Tips

Safety TipsGB
ORIGINAL INSTRUCTION
4
19. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety (IEC603365-1).
20. Children should be supervised to ensure that they do not play
with the appliance. (IEC 60335-1)
21. This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance, Cleaning and user
maintenance shall not be made by children without
supervision.(EN 60335-1)
22. Keep the appliance and its cord out of reach of children less
than 8 years.
23. Any repairs and work on the appliance should only be carried
out by the customer service department.
24. Maximum loading of each shelf is 30 kg.
25. The key to the fridge/freezer should be kept out of the reach
of children and users.
26. If the cabinet is no longer in use and you wish to proceed with
disposal please read chapter ‘disposal’ of this instruction
manual. Please note that the blowing gases in products are
flammable.
27. Appliance is built to be working according to ISO climatic
classification class 4, meaning wherever the temperature
not exceeds 30oC and relative humidity not exceed 55%.
28. Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
29. When disconnected from the power, The removal of the plug
has to be such that an operator can check from any of the points
to which he has access that the plug remains removed.

GB
ORIGINAL INSTRUCTION
5
Installation: Location: Electrical
The cabinet is intended for connection to an alternating current. The connection voltage (V) and frequency (Hz) are
shown on the name plate in the cabinet. The power connection is made using a three-pin plug to a wall socket. Any
requirement for earthing from the local power supply must be met. The cabinet plug and wall socket should then give a
correct earthing. If you are in doubt, contact your local supplier or authorized electrician.
The colours of the wires in the mains lead of this appliance might not correspond with the coloured markings identifying
the terminals in your plug. Proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked“E”, marked
by the earth symbol or coloured green-and-yellow. The wire, which is coloured blue, must be connected to the terminal,
which is marked with the letter “N”, or coloured black. the wire which is coloured brown must be connected to the terminal
which is marked with the letter“L” or coloured red.
Warning - This appliance must be earthed
The flexible cord fitted to this appliance has three cores for use with a 3-pin 13 Amp plug.
If a B.S. 1363 (13 Amp) fused plug is used, it should be fitted with a 13 Amp fuse or a
moulded right-angled Schuko plug. Note the plate with a hole in it between and above the
two pins - this connects to French and Belgian sockets, which have an earth pin that sticks
out. Running in a slot coming from that plate is a continuation strip from the plate. Other
European countries use a socket with a scrolled metal connector emerging from the side
which mates with that strip. This ensures that the Schuko can be used in most mainland
European countries.
Important
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow: earth
Blue: neutral
Brown: live

GB
ORIGINAL INSTRUCTION
6

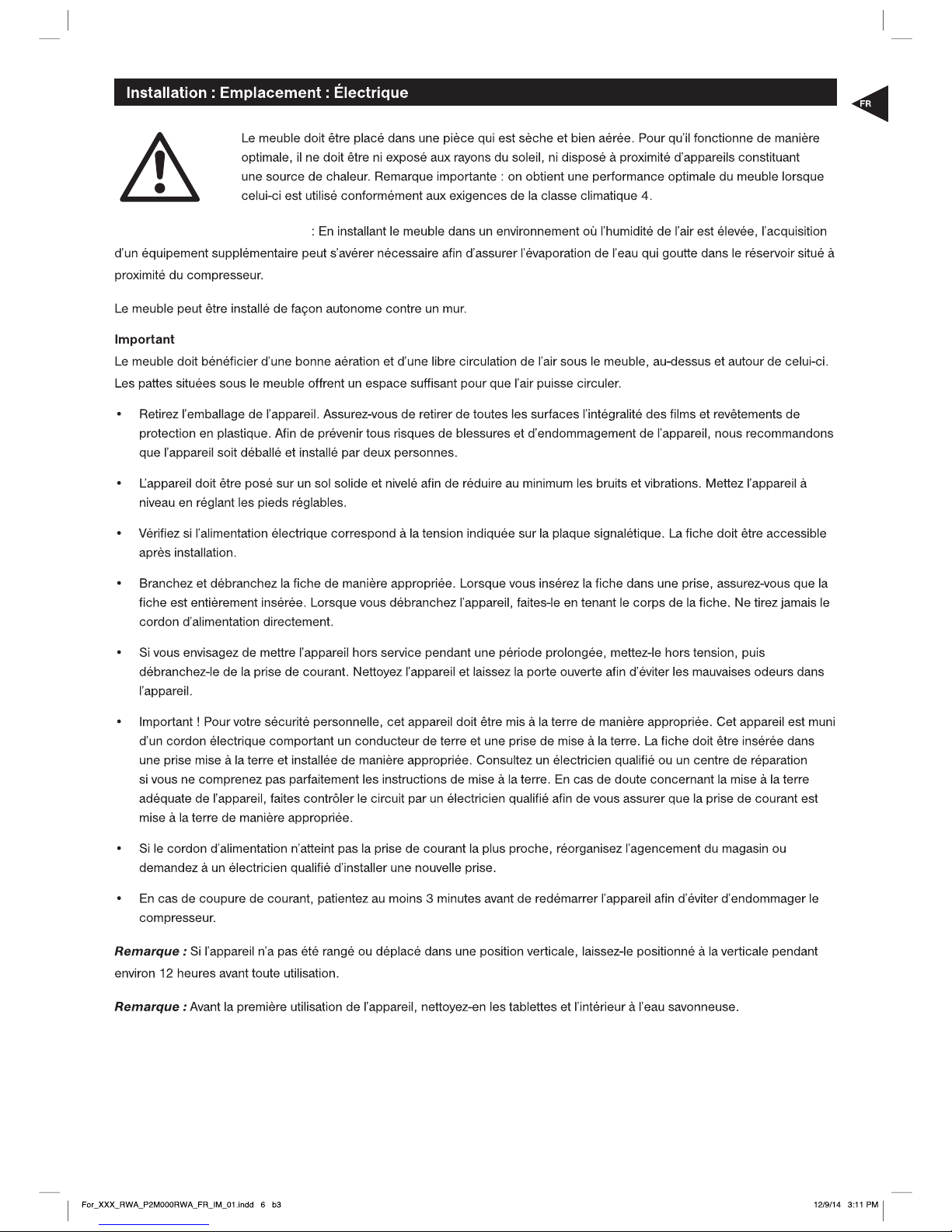

Installation: Location: Electrical
Slim cooler RC300: By placing the cabinet in an environment with high air humidity, it may be necessary to
acquire extra equipment for evaporation of the drip water in the pan near the compressor.
The cabinet can be installed freestanding against a wall.
Important
The cabinet must have sufficient ventilation and free air circulation beneath, above and behind the cabinet. The legs
under the cabinet will help ensure sufficient air space.
•Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly
removed from all surfaces. To prevent injury or damage to the unit, we recommend that the appliance should be
unpacked and set up by two people.
•The appliance should be placed on a solid level floor to reduce noise and vibration. Level the appliance by adjusting the
screw feet.
•Check that the power supply and voltage used comply with the details on the rating plate. The plug must be accessible
after installation
•Correctly connect and disconnect the plug. When inserting ensure the plug is fully engaged. When unplugging do so by
holding the body of the plug. Never pull the supply cord directly.
•If the appliance is to be shut down for long periods, switch it off and disconnect the plug from socket outlet. Clean the
appliance and leave the door open to prevent odour.
•Important! For your personal safety, this appliance must be properly grounded (earthed). This appliance is equipped
with a cord having a grounding wire with a grounding plug. The plug must be inserted into an outlet that is properly
grounded and installed. Consult a qualified electrician or service center if you do not completely understand the ground-
ing instructions. If doubt exits as to whether the appliance is properly grounded, have a qualified electrician check the
circuit to make sure the outlet is properly grounded.
•If the cable does not reach the nearest socket, either rearrange your store layout or ask a qualified electrician to fix a
new socket.
• If power is cut off, wait for at least 3 minutes before restarting the appliance to avoid damaging the compressor.
Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before
operation.
Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.
The cabinet should be placed in a room that is dry and sufficiently ventilated. To operate
efficiently it should not be positioned in direct sunlight or near warm appliances. Please note
that optimal cabinet performance is obtained at climate 4.

GB
ORIGINAL INSTRUCTION
7
Cabinet and Controller Operation Instruction
Storing food stuffs:
To get the best results from your appliance, please follow these instructions:
1: Only store foodstuffs in the appliance when it has reached the correct operating temperature.
2: Always close the door. when hot in use and appliance is switched on. The appliance has fan operating door switches
and WILL NOT cool when the door is open.
3: Do not place uncovered nonfood or liquid inside the appliance.
4: Wrap or cover food where possible.
5: Do not obstruct the fans inside the appliacnce.(Refrigerator)
6: Avoid opening the door for prolonged periods of time.
7. The maximum load for a shelf is 30Kg.
8: The food must be put into containers before being placed into cabinet or on the shelf. Food must not be placed
into food cabinet directly.
Turn on:
9: Close the door of the appliance.
10.Ensure the power switch is set to [O] and insert plug into socket.
11. Switch on the Power{I}. The current temperature within the appliance is displayed.
12: The on the display will flash for 3-min to indicate a delay between the motor compressor being stopped and then
restarted.
Temperature setting and control (Mechanical version)
• When you open the door, inside the cabinet, in the front top direction you can find the
thermostat control knob (as shown in Figure 1).
• To reduce the temperature within the cabinet, rotate the thermostat knob clockwise, while
rotating the thermostat anti-clockwise, will increase the temperature within the cabinet and
finally turn it off.
• The temperature displayed on the dial is the approximate cabinet temperature. ( As shown
in Figure 2 ).
WARNING: Do not turn the thermostat to its maximum (coldest) setting, as this may
cause the appliance to run continuously and ‘ice-up’. This will lead to a fault which
is excluded from the warranty

GB
ORIGINAL INSTRUCTION
8
Cabinet and Controller Operation Instruction

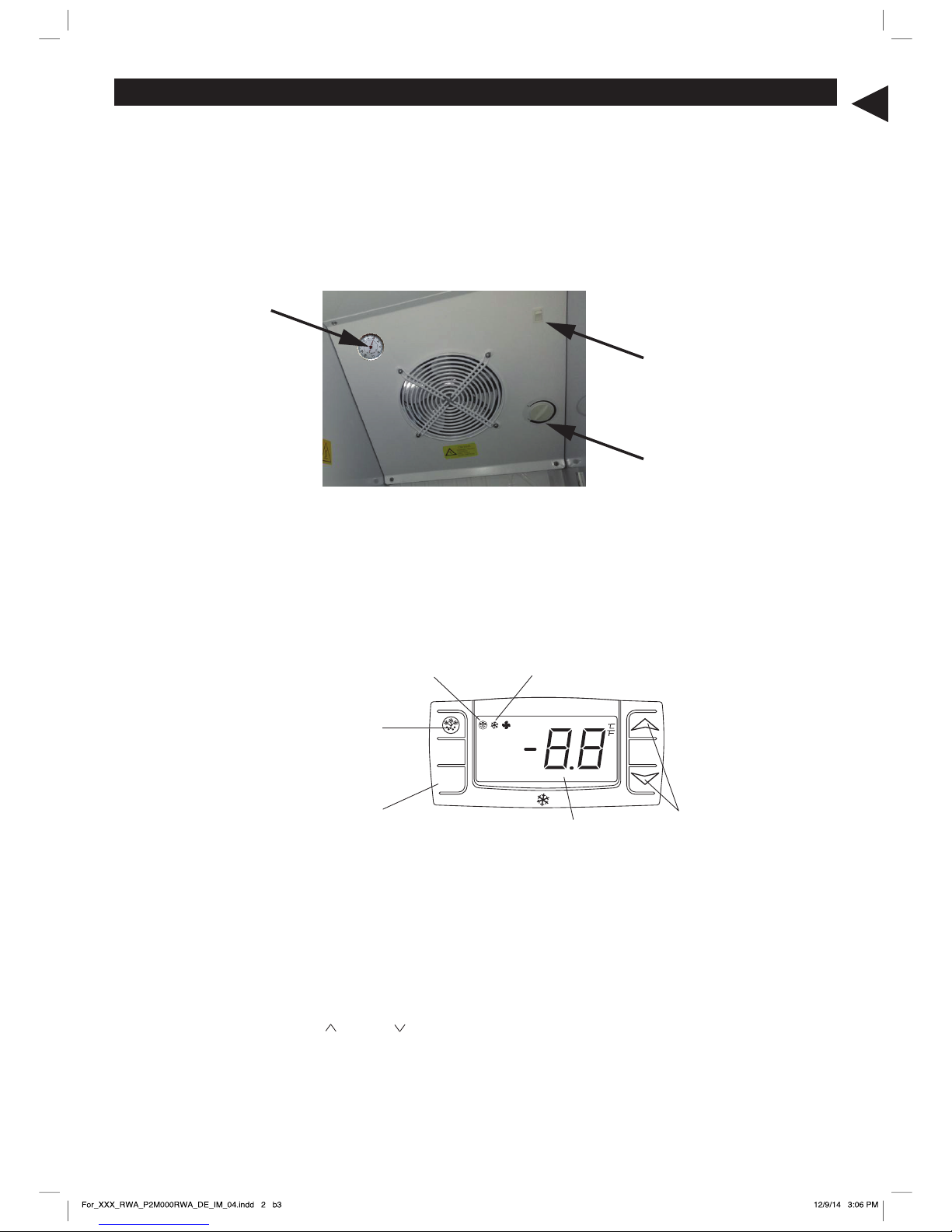

Temperature setting and control (Electronic version)
Thermostat display and control panel
•This appliance is equipped with durable, long lasting, power saving LED lights in the cabinet.
•The lighting may be switched on and off, using the switch. (As shown in Figure 3)
How to see the set point
Figure2
Figure3
Figure1
Push and immediately release the SET key, the set point will be showed;
Push and immediately release te SET key again or wait about 5s to return to normal visualization.
How to change the set point
Push the SET key for more than 2 seconds to chagne the set point value;
The value of the set point will be displayed and the “oC” start blinking ;
To change the set value push the “ ”(up) or “ ” (down)arrows within 10s.
To memorize the new set point values push the SET key again or wait 10s.
Further instructions:
Refer to manufactures instruction manual or a qualified service agent for modifications to the controller to your requirements.
SET
Defrost Cooling
Power
Manual Defrost
Digital Thermostat
Up/ Down

GB
ORIGINAL INSTRUCTION
9
Door Gasket Removal And Replacement
Fitting of the Shelves
• Fit the shelf support clips onto the shelf support strips, making sure that the four clips for each shelf are of the same
height and that they are securely engaged on the support strip.
• Unwrap each shelf carefully, to prevent damaging its protective coating.
• Position the shelves onto the clips.(refer to Figure 1)
• Before using the appliance for the first time, we recommend sanitization of the shelves and interior.

GB
ORIGINAL INSTRUCTION
10
Mechanical thermostat
Cabinet Breakdown
42
49
50
48
47
46
45
44
43
41
20
19
1817
161514
131211
10
7
6
5
4
40 39 38 37 36 35 34 33 32 31 30 29 28
27
26
25
23
24
21
22
9
8
3
21
20
19
18
46 OPTIONAL
2°LED
1 Assembled Body 1
2 Evaporator spacer 4
3 Evaporator 1
4 Bottom shelf 1
5 Shelf 4
6 Rail guide 4
7 Shelf support 16
8 Evaporator fan plate support 2
9 Evaporator fan 1
10 Evaporator fan blade 1
11 Evaporator fan support 1
12 Evaporator fan plate 1
13 Thermostat 1
14 Thermostat knob 1
15 Light swItch 1
16 Evaporator fan grid 1
17 Analogic thermometer 1
18 Light plastic frame 1
19 Light 1
20 Light clip 3
21 Upper hinge cover 1
22 Upper hinge 1
23 Upper hinge pivot 2
24 Upper hinge pivot insert 1
25 Door 1
26 Bottom hinge pivot insert 1
27 Bottom hinge pivot 1
28 Bottom hinge 1
29 Door gasket 1
30 Condenser 1
31 Condenser fan blade 1
32 Condenser fan 1
33 Condenser fan support 1
34 One-way roller 2
35 Water tray plate 2
36 Condenser water tray 1
37 High pressure pipe 1
38 Engine plate 1
39 Dry filter 1
40 Compressor 1
41 Power cord 1
42 Probe plate 1
43 Feet 2
44 Front panel 1
45 Front panel support 1
46 Transformer 1
47 Water tray pipe 1
48 Evaporator water tray 1
49 Background grid 1
50 Background spacer 2
Number Part Name Qty. Number Part Name Qty.

GB
ORIGINAL INSTRUCTION
11
Electronic thermostat
Cabinet Breakdown
Number Part Name Qty. Number Part Name Qty.
44
43
45
46
47
48
53
52
51
1816
1256
49
50
54
55
41
20
19
11
10
7
6
5
4
40 39 38 37 36 35 34 33 32 31 30 29 28
27
26
25
23
24
21
22
9
8
3
21
20
19
18
46 OPTIONAL
2°LED
1 Assembled Body 1
2 Evaporator spacer 4
3 Evaporator 1
4 Bottom shelf 1
5 Shelf 4
6 Rail guide 4
7 Shelf support 16
8 Evaporator fan plate support 2
9 Evaporator fan 1
10 Evaporator fan blade 1
11 Evaporator fan support 1
12 Evaporator fan plate 1
16 Evaporator fan grid 1
18 Light plastic frame 1
19 Light 1
20 Light clip 3
21 Upper hinge cover 1
22 Upper hinge 1
23 Upper hinge pivot 2
24 Upper hinge pivot insert 1
25 Door 1
26 Bottom hinge pivot insert 1
27 Bottom hinge pivot 1
28 Bottom hinge 1
29 Door gasket 1
30 Condenser 1
31 Condenser fan blade 1
32 Condenser fan 1
33 Condenser fan support 1
34 One-way roller 2
35 Water tray plate 2
36 Condenser water tray 1
37 High pressure pipe 1
38 Engine plate 1
39 Dry filter 1
40 Compressor 1
41 Power cord 1
43 Feet 2
44 Front panel 1
45 Front panel support 1
46 Transformer 1
47 Water tray pipe 1
48 Evaporator water tray 1
49 Background grid 1
50 Background spacer 2
51 Thermostat 1
52 Main switch 1
53 Thermostat holder 1
54 Evaporator Probe 1
55 Temperature Probe 1
56 Probes plate 1

GB
ORIGINAL INSTRUCTION
12
General Maintenance
Before cleaning, switch off the cabinet and disconnect from the mains.
This is best done with a vacuum cleaner and a brush.
The cabinet should be kept clean using a mild soap solution. Do not use abrasive cleansers. The plastic parts cannot
withstand boiling water(max. temperature +85 °C).
When regular cleaning is performed, be sure to wipe clean the rubber door gasket to ensure any sticky substances
are removed that would otherwise damage the gasket.
The condenser fan air outlet above the compressor must be free of leaves, paper etc. to ensure normal operation of
the cabinet.
Routine maintenance
Switch off and disconnect from the power supply before cleaning.
• Clean the enclosure and interior of the appliance as often as possible.
• Clean the unit with moist cloth. Never allow the switch, control panel, cable or plug to get wet.
• Do not use abrasive cleaning agents. These can leave harmful residues. Use only mild soapy water.
• Clean the door seal with water only.
• Ensure that no cleaning water penetrates into the electrical components.
• Must not be cleaned by a water jet.
•Always wipe dry after cleaning with soft cloth.
•Take care when cleaning the rear of the appliance.
•An agent or qualified technician must carry out repairs if required.
If the appliance is to be left inactive for long periods, unplug the appliance after having turned the switch to OFF
position, empty the refrigerating compartment and clean thoroughly. Please leave the door open to avoid the devel-
opment of odor and mildew.
Special maintenance: Periodic Operations: Qualified Persons Only
• Periodically clean the condenser using suitable tools (vacuum cleaner or soft brushes).
• Check that the electrical connections are not loose.
• Check that the thermostat and the sensor are in proper working order.
• Periodically cleaning the condenser can extend the life of the appliance.
• Recommend that an agent or qualified technician clean the condenser.
•The key to the electrical cabinet should be kept out of the reach of children and users.
• Only use the key to open the lock.

GB
ORIGINAL INSTRUCTION
13
Technical Data
MODEL
CLIMATE CLASS
EVAPORATION TEMPERATURE
TEMPERATURE RANGE
REFRIGERANT
REF. CHARGE
RATED POWER
RATED FREQ
INPUT POWER 50Hz
NET WEIGHT
GROSS WEIGHT
NET LITERS
SHELF MAX LOAD
NUMBER OF SHELF
EXTERNA
NOISE LEVEL 43 db
L DIMENSION(mm)
RC300
4
-10 oC
+2~+8 oC
R600a
90g
220V-240V
50Hz
300W
78Kg
90Kg
280L
30Kg
5
478x775x1980
Circuit Diagram
RC300 MECHANICAL VERSION
RC300 ELECTRONIC VERSION
P1
LS1
TH1
F1
F2
C1
QF1
R1
SQ1
T1
T2
L1
L2
POWER PLUG
LIGHT SWITCH
THERMOSTAT
EVAPORATOR FAN
CONDENSER FAN
COMPRESSOR
OVERLOAD
RELAY
TEMPERATURE PROBE
TRANSFORMER 1
TRANSFORMER 2
LED LIGHT 1
LED LIGHT 2
P1
LS1
TH1
F1
F2
C1
QF1
R1
SQ1
SQ2
T1
T2
L1
L2
POWER PLUG
LIGHT SWITCH
THERMOSTAT
EVAPORATOR FAN
CONDENSER FAN
COMPRESSOR
OVERLOAD
RELAY
ROOM TEMPERATURE PROBE
CONDENSER TEMPERATURE PROBE
TRANSFORMER 1
TRANSFORMER 2
LED LIGHT 1
LED LIGHT 2

GB
ORIGINAL INSTRUCTION
14
General Trouble Shooting
If your Refrigerator, Freezer appliance develop a fault, please check the following table.
ActionProbable CauseFault
The appliance is not working The unit is not switched on Check that the unit is plugged in
correctly and switched on
Plug and/or lead are damaged Call our agent or qualified
technician
Check power supplyPower supply
Call our agent or qualified
technician
Internal wiring fault
The appliance turns on, but the
temperature is too high/low
Too much ice on the evaporator Defrost the appliance
Condenser blocked with dust Clean the condenser thoroughly by
qualified technician
The door is not shut properly Check that the door is shut and seals are
not damaged
Appliance is located near a heat
source, or air flow to the
condenser is blocked
Move the refrigerator to a more
suitable location
Ambient temperature is too high Increase ventilation or move appliance to a
cooler position
Unsuitable foodstuffs are being stored
in the appliance
Remove any excessive hot
foodstuffs or blockages to the fan
Appliance is overloaded Reduce the amount of food stored
in the appliance
The appliance is leaking water
(Refrigerator)
The appliance is not properly levelled Adjust the screw feet to level the appliance
The discharge outlet is blocked Clear the discharge outlet
The water container is damaged Call our agent or qualifi ed technician
The appliance is unusually loud Check and tighten all nuts and screwsLoose nut/ screw
The appliance has not been installed in a
level or stable position
Check installation position and change if
necessary
Disposal
If the cabinet is no longer of use and you wish to dispose of it, remove doors to prevent any small child from be trapped
in the cabinet. Then plaese do in an environmentally correct way.
Contact a qualified service technician:
1. To recover all Freon/refrigerant
2. To remove the compressor or remove the oil from the compressor
3. To remove the fammable insulation blowing gases
Then the distributor/ retailer can contact their laca metal recycling center to pick up the remaining cabinet, shelves, etc.
There may be special requirements or conditions. You can obtain information on the disposa of refrigeration appliances
from:
- Your supplier
- Government authorities (The local council, Ministry of the Environment, etc.)
By law, disposal of hazardous wastes may be subject to fines and inprisonment under the provisions of the envirormental
regulations.

GB
ORIGINAL INSTRUCTION
15
Disposal
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household wastes throughout
the EU. To prevent possible harm to the environment or human health from uncotrolled waste disposal,
recycle it responsibly to promote the sustainable re-use of material resources. To return your used device,
please use collection systems or contact the retailer where the product was purchased. They can take this
product for environmental safe recycling.
Claims must be submitted immediately after their determination.
The right to guarantee claims expires upon any intervention of the purchaser or third parties. Damages caused by wrong
treatment or operation, by false placement or storage, improper connection or installation, as well as force or other
external influences are not covered by this guarantee. We recommend careful reading of the operating instructions as
it contains important information.
The purchaser must prove the right to guarantee claims by presentation of the purchase receipt.
Note:
1. In case this product does not function correctly, please firstly check if there are other reasons, e.g. interruption of the
power supply, or incorrect handling are the cause.
2. Please note that the following documents need to be submitted together with your faulty product:
- Purchase receipt
- Model description/Type/Brand
- Describe the fault and problem as detailed as possible.
In the case of a claim for guarantee or defects, please contact the seller personally.
Warranty

16
ATTENTION: Risque d'incendie!
INFLAMMABLE RÉFRIGÉRANT R600a
Montage des étagères/grilles
16
17~18
19~20
21~22
23
23
24~25
26
27
27
28
29
29

17

18

19

SLIM COOLER RC300
20
