Honeywell H18TFW User manual

H18TFW
H18TFS
18 Cubic Feet Refrigerator With Freezer
User Manual
Read and save these instructions before use

CONTENTS
DEAR CUSTOMER:
Thank you for buying this refrigerator. To ensure that you get the best results from your new refrigerator, please take time to
read through the simple instructions in this booklet. Please ensure that the packing material is disposed of in accordance
with the current environmental requirements. When disposing of any refrigerator equipment please contact your local waste
disposal department for advice on safe disposal. This appliance must be only used for its intended purpose.
1Safety Warnings
1.1 Warning
2Proper Use of Refrigerator
2.1 Installation
2.2 Door Handle Installation
2.3 Reversing the Door Swing
2.4 Leveling the Unit
2.5 Before Using Your Unit
2.6 Interior Accessories
2.7 Ice Maker Installation
2.8 Connecting Ice Maker to Water Supply
3Product Overview

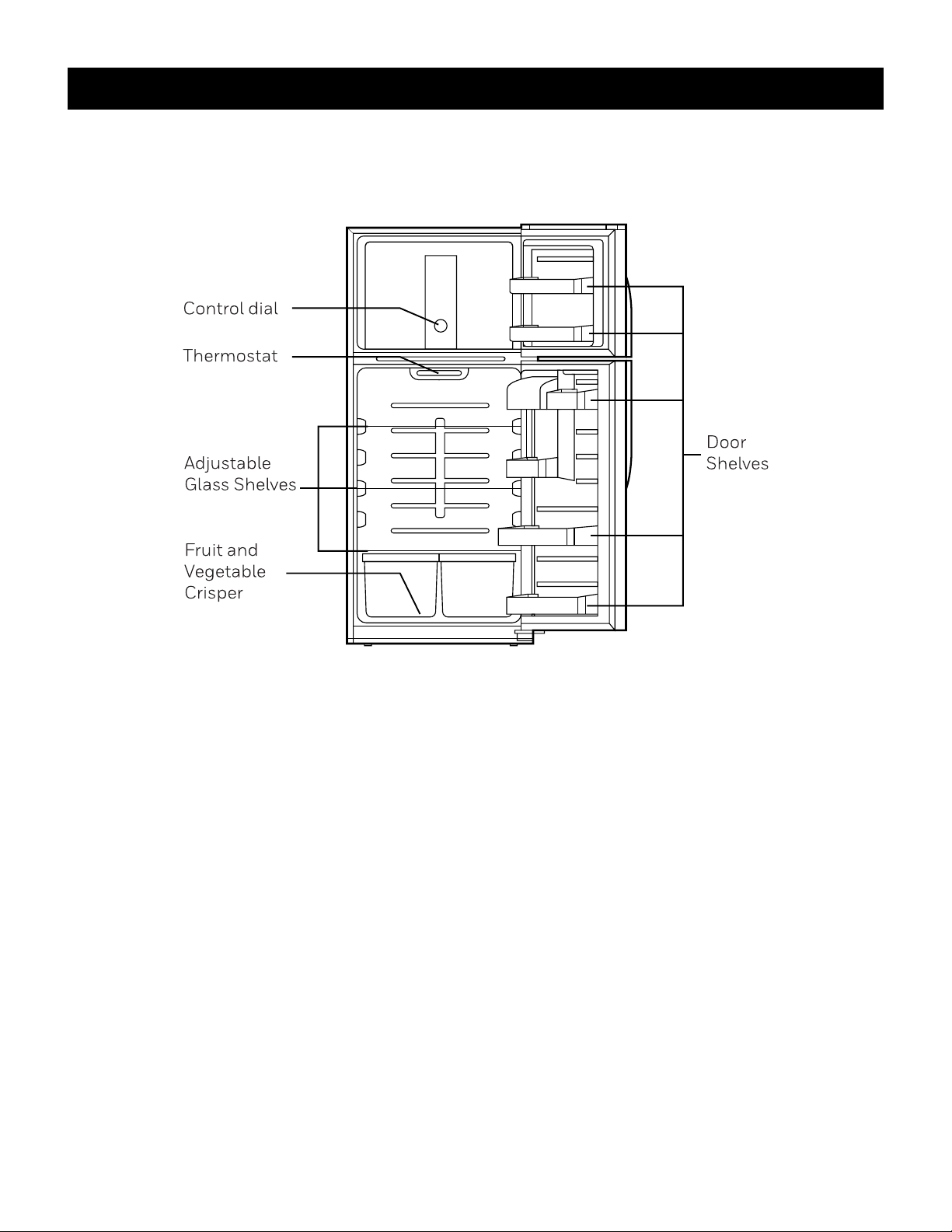

3.1 Key components
4Operation

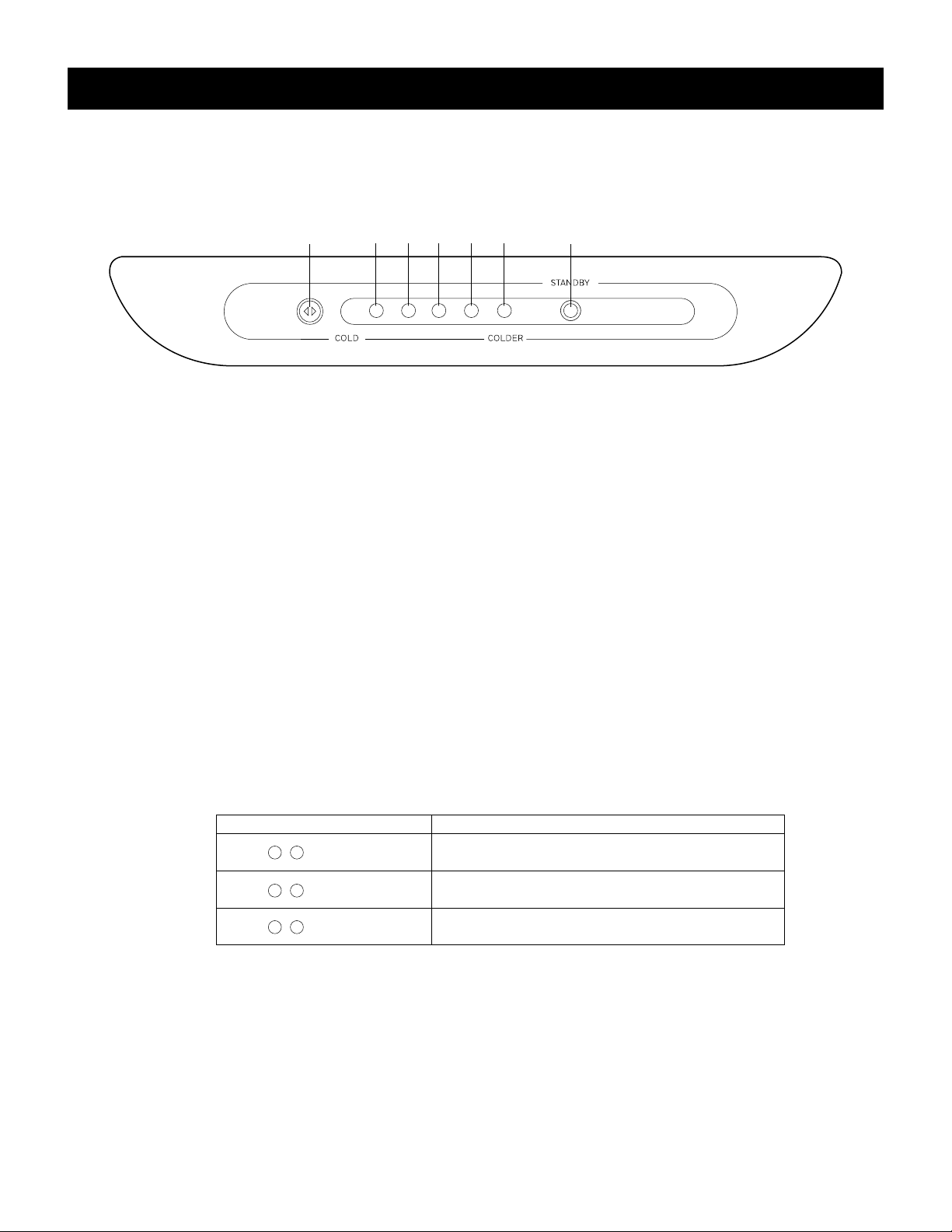

4.1 Display
4.2 Errors
4.3 Temperature Control Operation
5Cleaning
5.1 Defrosting
5.2 Cleaning the Interior and Exterior of the Unit
5.3 Condensation
6Maintenance
6.1 Changing the Internal Light
6.2 Care When Handling/Moving Your Unit
6.3 Servicing
6.4 Switching Off for Long Periods of Time
7Troubleshooting
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

1
1 SAFETY WARNINGS
1.1 Warning
This appliance is intended to be used in household, non-retail applications.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
The appliance has to be unplugged after use and before carrying out
user maintenance.
DO NOT use extension cords or ungrounded (two prong) adapters.
WARNING: Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments
of the appliance, unless they are the type recommended by the manufacturer.
WARNING: This refrigerator uses flammable blowing gas and refrigerant. Please
dispose of according to local regulators.
DANGER: Risk of child entrapment. Before disposing your old refrigerator or freezer:
• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.
Refrigerant and cyclopentane foaming material used for the appliance are
flammable. To prevent damage to the environment or any other harm, when the
appliance is scrapped, it shall be kept away from any fire source and be recovered
by a recovering company with corresponding qualification.
WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in
accordance with the instructions.
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORIZED SERVICE
PERSONNEL TO CARRY OUT REPAIRS. TO AVOID ELECTRICAL SHOCK, DO NOT
ATTEMPT REPAIRS YOURSELF.
1.1 Warning
WARNING: risk of fire / flammable materials

2
2 PROPER USE OF REFRIGERATOR
2.1 Installation
2.2 Door Handle Installation
2.3 Reversing the Door Swing
When selecting a position for your unit you should make sure the floor is flat and
firm, and the room is well ventilated.
Avoid placing your unit near a heat source.
Avoid direct sunlight as it may increase the electrical consumption.
Extremely cold temperatures may also cause the unit not to perform properly. This
unit is not designed for use in a garage or outdoor installation.
When installing the unit, ensure that 3 inch of free space is left at both sides, 1
inch at the rear and 1 inch at the top of the unit. This will allow cold air to circulate
around the refrigerator and improve the efficiency of the cooling process.
Note: The refrigerator must be disconnected from the source of electrical supply
before attempting the installation of accessory.

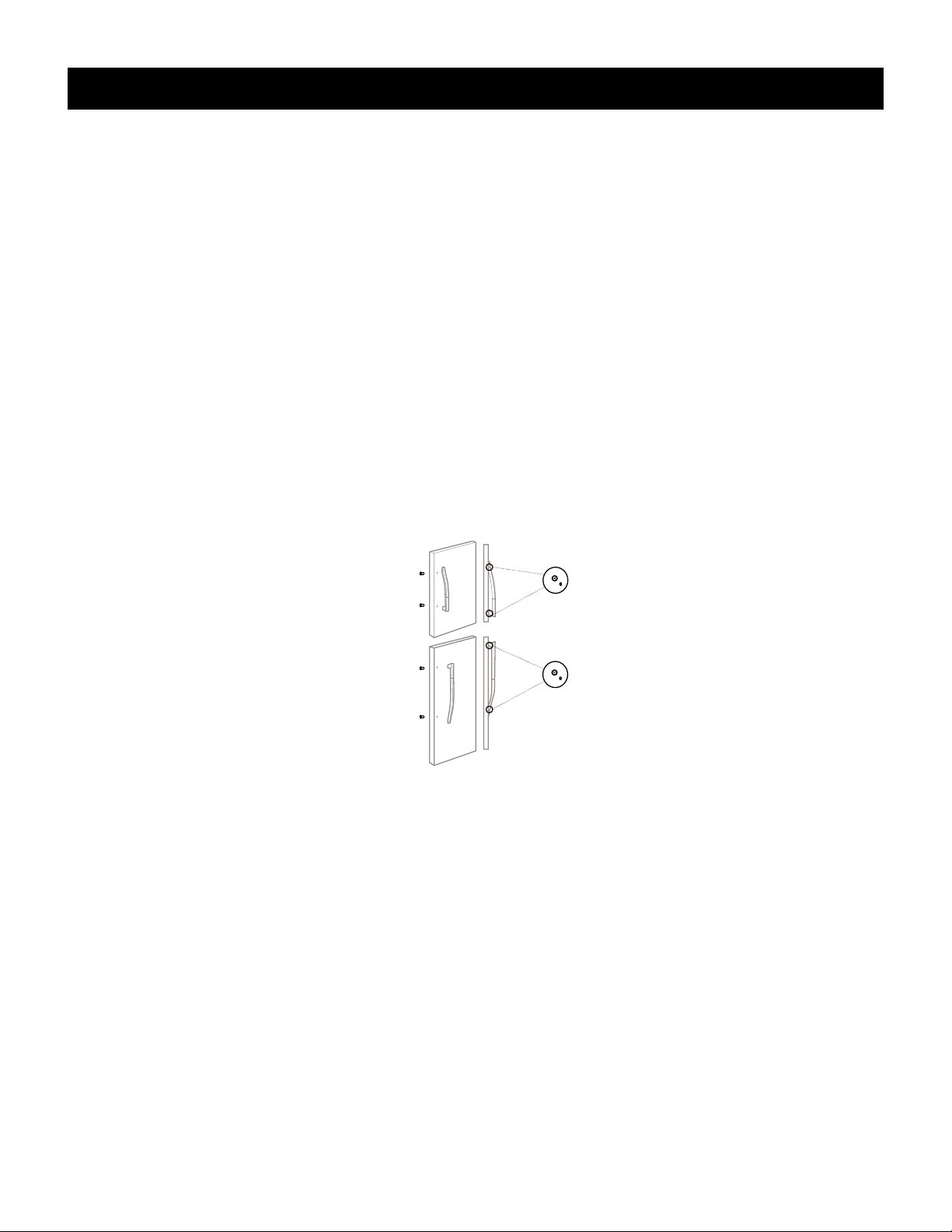

01 Please prepare the following tools in advance:
a. Tools: cross screwdriver, Allen key and straight screwdriver
b. Parts: refer to the components and parts in the accessory pouch
01 Take out the two cross screws, and install them into the door holes; turn the
screws till to the bottom
02 Aim at screws to install the handle
03 Place the screws in the hole at the side of the handle and turn the screws until
they are tight
04 Place screw caps on the screws

3

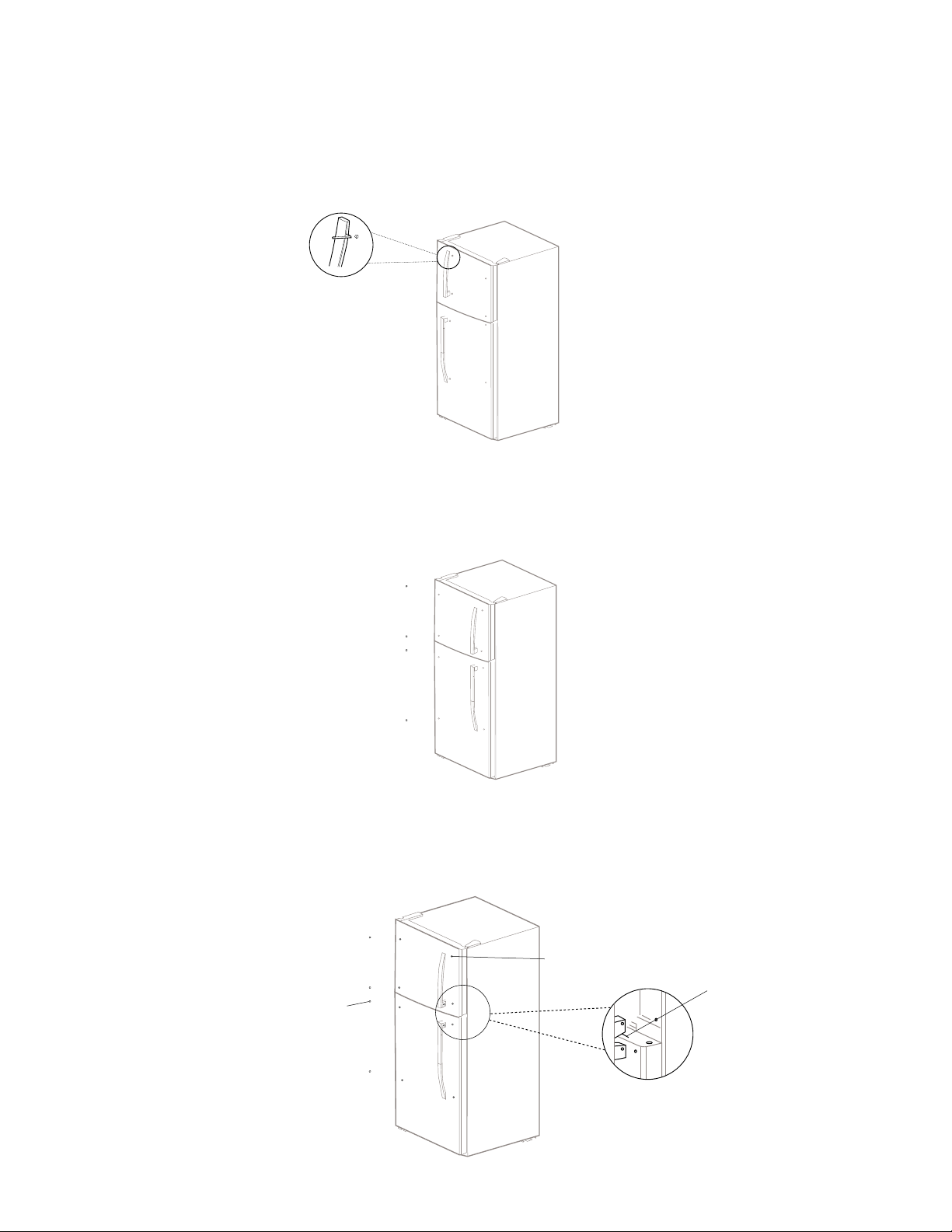

02 Removing the freezer door
Remove the hinge cover and cover plate. Then remove the upper hinge with a
cross head screwdriver. Raise the freezer door upward.
03 Removing the refrigerator door
Remove the middle hinge with a cross screwdriver. Raise the cold storage door
upward.
04 Replacing the bottom hinge
Remove the lower hinge with a cross screwdriver. Screw the bolt out of the lower
hinge and into the other side hold of lower hinge. Fit the lower hinge on the other
side of the refrigerator with screws.
Hinge Cover
Cover plate
Top Hinge
Middle Hinge
Hole Cap
Sleeve Pipe

4
05 Replacing the door accessories
Take out the top hinge and hinge shaft hole plate from the top of freezer and
refrigerator doors. Fit the top hinge on the other side of door. Remove the bottom
hinge, and fix it to the other side of the door with screws. Take the middle hinge, and
fix them to the left side of freezer door.
06 Fitting the refrigerator door
Fit the refrigerator door on the bottom hinge. Fix the left hinge to the refrigerator
with screws. Put the hinge shaft gasket into the hinge shaft.
07 Fitting the freezer door
Put the freezer door into the top hinge, and fix it on the top of the refrigerator with
screws. Cover with the hinge cover, then place the cover plate on the other side.
Middle Left Hinge
Top Hinge
Hinge Cover
Cover Plate
Hinge Shaft
Hole Plate
Bottom
Hinge
Middle
Hinge
Top
Hinge

5
08 Removing the handles
Remove the handle caps. Screw the handle fastening screws with an Allen key.
Remove the handle.
09 Fitting the handles
Remove the screws from the handles and fit them on the other side of the door.
Place the handle into the handle bolts and screw it tightly with the Allen key.
10 Fitting the accessories
Put the handle caps in, handle cover plate, hinge hole plug and middle beam pin in
place.
Plug the handle cap
Plug the handle
cover plate
Plug the hinge
shaft hole cap
Pin

6
11 Flipping the handle of the appliance doors
When the door is changed between left and right, the refrigerator handle (A) is
placed on the freezer, and the freezer handle (B) is placed on the refrigerator.
A
A
B
B
2.4 Leveling the Unit
To raise the appliance, turn the feet clockwise.
To lower the appliance, turn the feet counterclockwise.
Adjust the right and left feet based on the procedures above to a horizontal level.

7
Various glass or plastic storage shelves are included with your appliance -
different models have different combinations.
You should always slide one of the full size glass storage shelves into the lowest
set of guides, above the fruit and vegetable containers, and keep it in this position.
To do this, pull the storage shelf forward until it can be swiveled upwards or
downwards and removed.
Please do the same in reverse to insert each shelf at a different height.
2.5 Before Using Your Unit
2.6 Interior Accessories
Before plugging in
You must check that you have a socket which is compatible with the plug
supplied within the unit.
Before turning on
Do not turn on until two hours after moving the unit.
In order to make the full use of the volume of the fresh food storage
compartment and frozen-food storage compartment, the user can remove one
or more shelves or drawers, out of the appliance, according to your daily use.

8

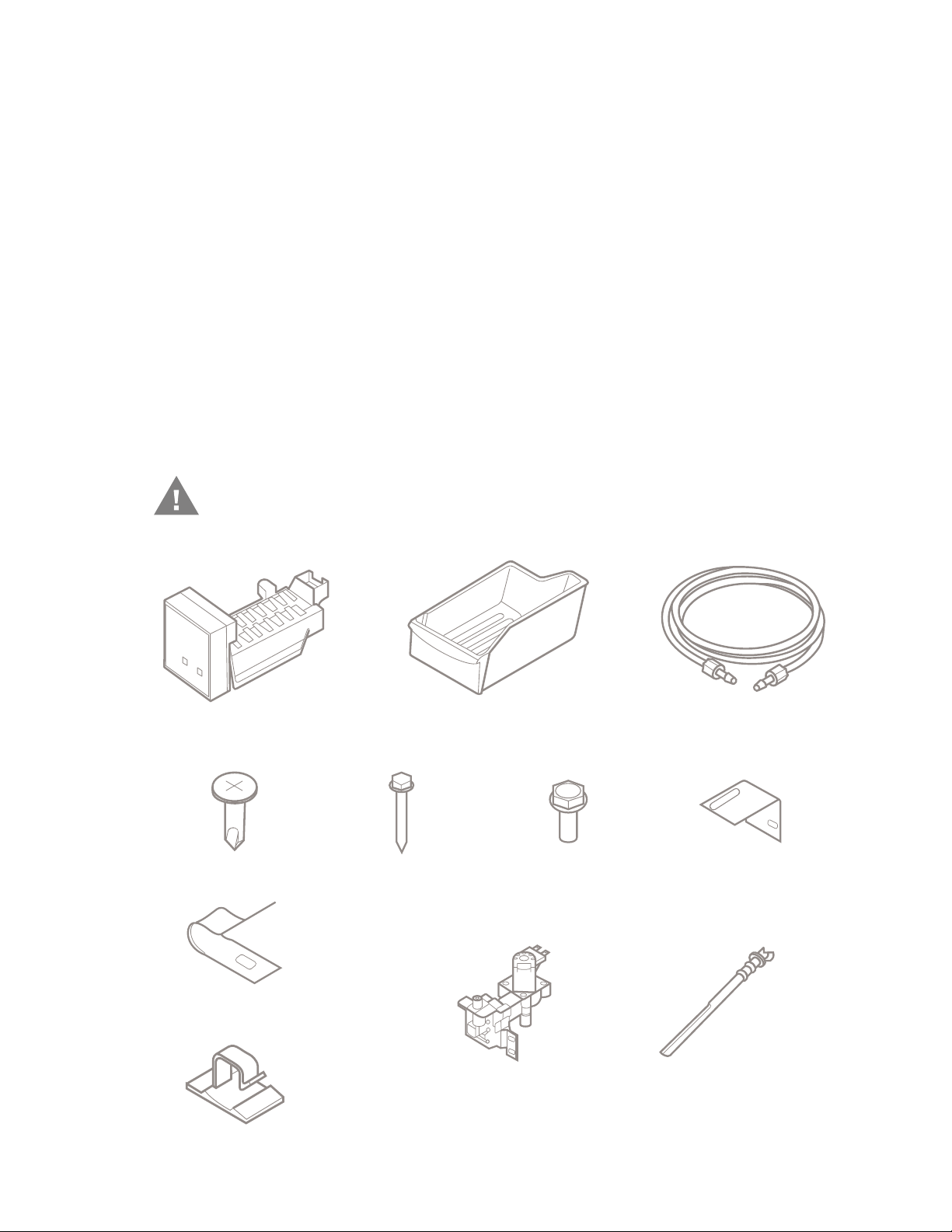

2.7 Ice Maker Installation
Tools Required:
• 1/4 inch copper supply line with shut off valve
• 1/4 inch brass compression nut and ferrule
The copper tubing and shut off valve are available in a kit from your local hardware
or plumbing supply store. Coil enough tubing at the back of the unit to allow
movement for cleaning.
Remove a protective cover before connecting the wire of the ice machine in the box.
Screws (x2)
Ice Maker
Steel Clamp (x1)
Plastic Clamp (x2)
Water Valve (x1) Water Inlet Tube (x1)
Screws (x2)
Ice Container
Leveling Bracket
Screw (x1)
Plastic Water
Supply Tubing
Leveling Bracket
(x1)
Unplug the appliance to eliminate the danger of electric shock during
installation, you must unplug the refrigerator from its electrical outlet.

9
Tools Required:
• Putty Knife
• Pliers
• 1/4 inch Socket Wrench
• Needle Nose Pliers or Nut Driver
• Adjustable Wrench
• Knife
01 Unplug the refrigerator from the wall outlet.
02 Remove the ice tray from the freezer.
03 Move the shelf to the next partition.
04 Remove plugs from the inside freezer compartment with putty knife.
05 Peel off label covering ice maker hole.
06 With needle nose pliers, remove foam from hole.

10

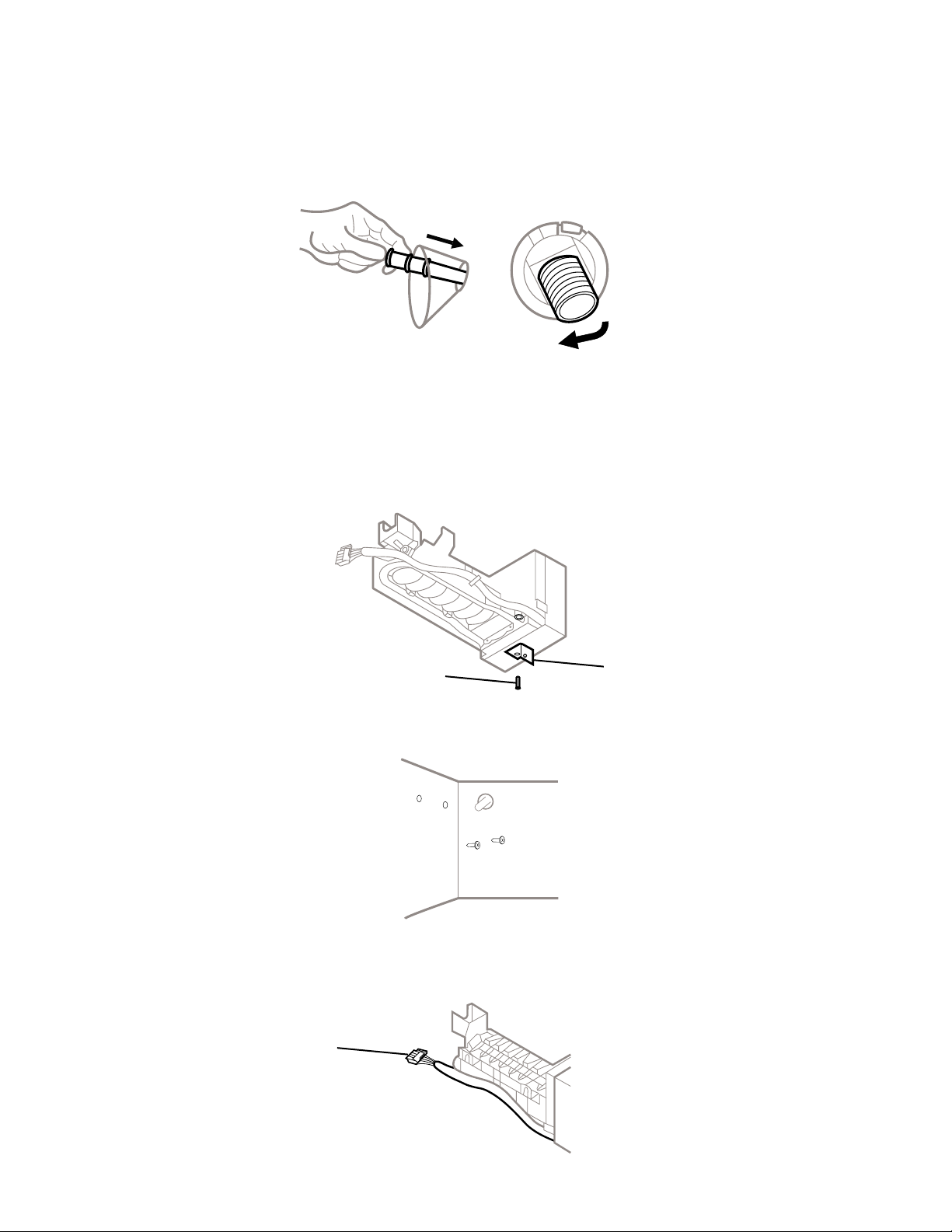

07 Push water inlet tube into small hole on the back of the refrigerator. Rotate
while inserting tube until flat surface of inlet tube is tight against the back of
the refrigerator.
08 Push plastic water supply tubing into water inlet tube as far as it will go
and manually tighten nylon compression nut onto threaded end of inlet tube.
Tighten another one half turn with a wrench.
09 Install adjustable leveling bracket on the bottom of the ice maker with
screw. DO NOT tighten bracket.
10 Put two ice maker mounting screws into freezer wall. Turn each screw five
times clockwise.
11 With ice maker in one hand, plug ice maker connector into connector
mounted on top of the freezer panel. Make sure the connection is tight.
Wiring Harness
Connector
Screw
Leveling
Bracket

11
12 Mount the ice maker onto the two screws you installed in step 10. Tighten
screws. Make sure water inlet tube is sitting inside the fill cup.
13 Adjust the leveling bracket to level ice maker. Ice maker is level when gap
between freezer wall and ice maker is the same at the top and bottom. Tighten
screw when level.
Leveling
Bracket
Ice Maker
Screw
Ice Container
14 Reinstall freezer shelf in lower position. Set ice container on shelf.

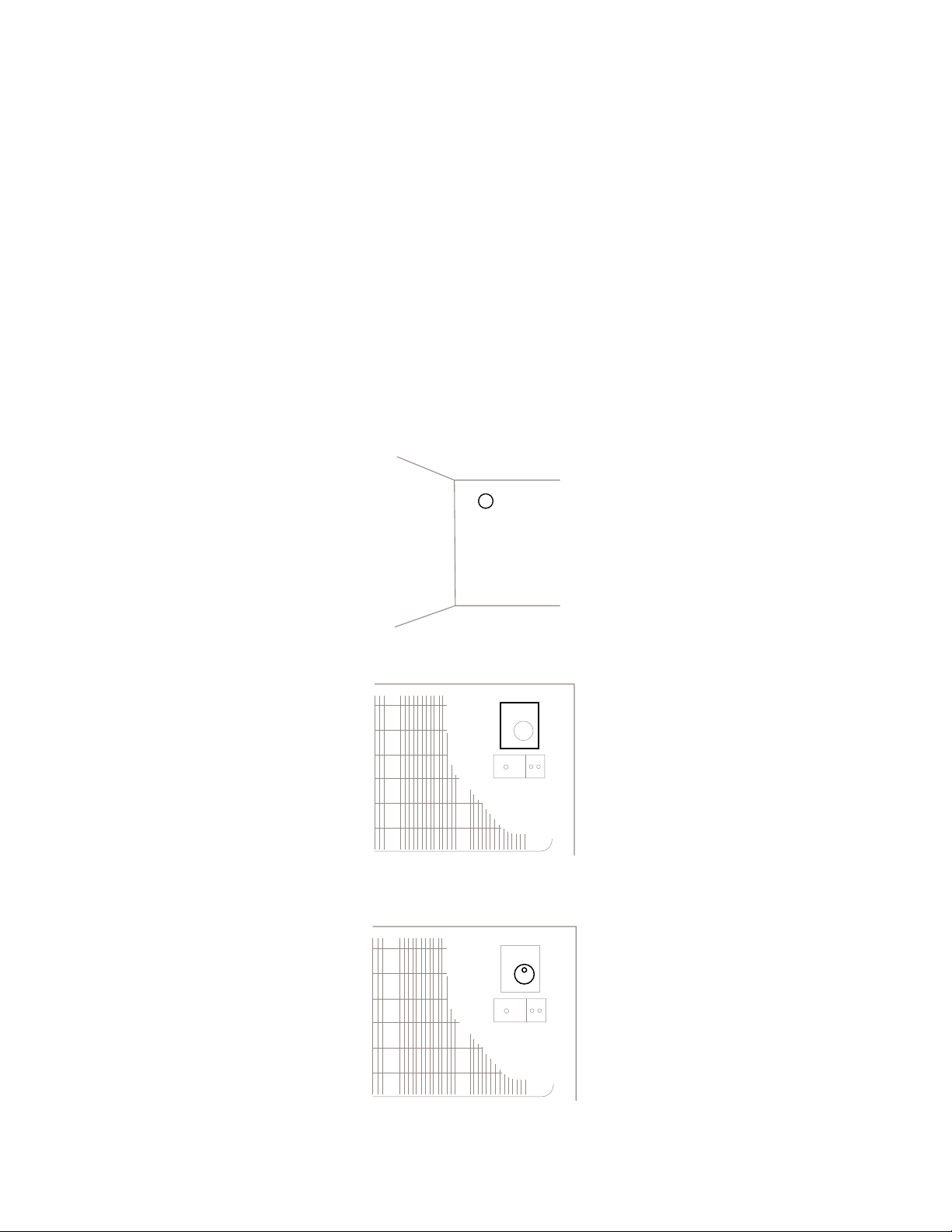

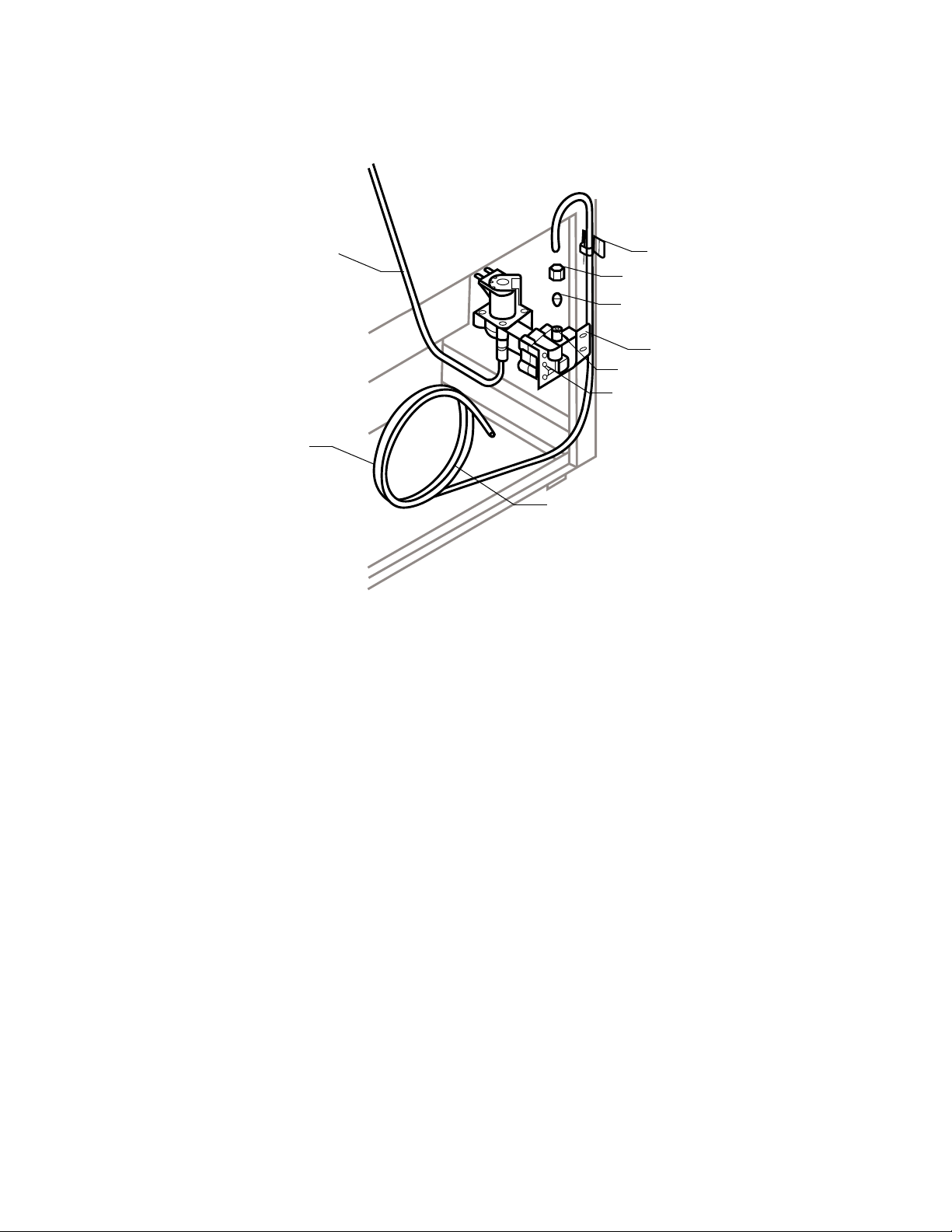

15 Locate the holes at the bottom right corner of the rear panel. Holes are only
drilled through cabinet liner. Align water valve bracket with holes. Use a power
drill with a cross screw head bit to drive the two screws through the bracket and
into the cabinet.

12
16 Connect wiring harness to water valve. Make sure connection is tight.
Wiring Harness
Water Valve
Nylon Nut
Plastic Water
Tubing
Plastic
Clamp
17 Push plastic water supply tubing into the bottom of the water valve as far
as it will go. Manually tighten the nylon nut onto the threaded end of the water
valve. Tighten another one half turn with wrench. DO NOT over tighten.
18 Secure plastic water tubing to the rear of the cabinet with two
plastic clamps.
NOTE: Clean the back of the cabinet with a commercial household cleaner,
ammonia or alcohol before applying clamps.
2.8 Connecting Ice Maker to Water Supply
To eliminate the danger of electric shock during installation, you must unplug the
refrigerator from its electrical outlet.
IMPORTANT: Ensure that your water supply line connections comply with all local
plumbing codes.

13
Before installing the water supply line, you will need:
• Basic tools: adjustable wrench, flat head screwdriver, and phillips screwdriver.
• Access to a household cold water line with water pressure between 20 and
120 psi.
• A water supply line made of 1/4 inch (6.4 mm) OD, copper tubing. To
determine the length of copper tubing needed, you will need to measure
the distance from the ice maker inlet valve at the back of the refrigerator
to your cold water pipe. Then add approximately 7 feet (2.1 meters), so the
refrigerator can be moved out for cleaning.
• A shutoff valve to connect the water supply line to your household water
system. DO NOT use a self-piercing shutoff valve.
• A compression nut and ferrule (metal ring) for connecting the water supply
line to the ice maker inlet valve.

14
To connect water supply line to ice maker inlet valve:
01 Disconnect refrigerator from electric power supply.
02 Place end of water supply line into sink or bucket. Turn ON water supply and
flush supply line until water is clear. Turn OFF water supply at shutoff valve.
03 Unscrew plastic cap from water valve inlet and discard it.
04 Slide brass compression nut, then ferrule (metal ring), onto water supply line,
as shown.
05 Push water supply line into water valve inlet as far as it will go (1/4 inch).
Slide ferrule (metal ring) into valve inlet and tighten compression nut onto valve.
Tighten another half turn with a wrench; DO NOT over tighten.
06 With steel clamp and screw, secure water supply line to rear panel of
refrigerator at location as shown.
07 Roll excess water supply line (about 2 1/2 turns) behind refrigerator as shown
and arrange coils so they do not vibrate or wear against any other surface.
08 Turn ON water supply at shutoff valve and tighten any connections that leak.
09 Reconnect refrigerator to electric power supply.
10 To turn ice maker on, lower wire signal arm. (See ice maker front cover for on/
off position of arm.)
IMPORTANT: It takes approximately 24 hours for the ice maker to begin producing
ice. Air in new plumbing lines may cause ice maker to cycle two or three times
before making a full tray of ice. New plumbing may cause ice to be discolored or
have poor flavor. Discard ice made during the first 24 hours.
2.8 Connecting Ice Maker to Water Supply
Plastic Water
Tubing Steel Clamp
Brass Compression Nut
Ferrule (metal ring)
Copper Water Line
(From Household Water Supply)
Include enough tubing in
loop to move refrigerator
out for cleaning
Water Valve Bracket
Water Valve
Water Inlet

15
3 PRODUCT OVERVIEW
3.1 Key Components

16
4 OPERATION
01 Buttons
Button (A): Press this button to shift between temperatures
Buttons (1-5): 1 is the warmest setting, 5 is the coldest setting
Button (B): When the fridge is running, press the standby button (B) for 3
seconds to put the refrigerator into standby mode. The standby indicator
light will turn on. When the freezer is in standby, press the button to put the
refrigerator into the normal state.
4.1 Display
A B
1 2 3 4 5
• Once initially powered on, the display screen will be on full display for 3s, and
then operates as the displayed middle temperature.
• In case of a failure, the appropriate LED light show the error code.
4.2 Errors
LED , lit
Error code Error description
Refrigerator temperature sensor circuit failure
Freezer defrost sensor failure
Ambient temperature sensor failure
LED , lit
LED , lit
1
1
1
2
3
4

17

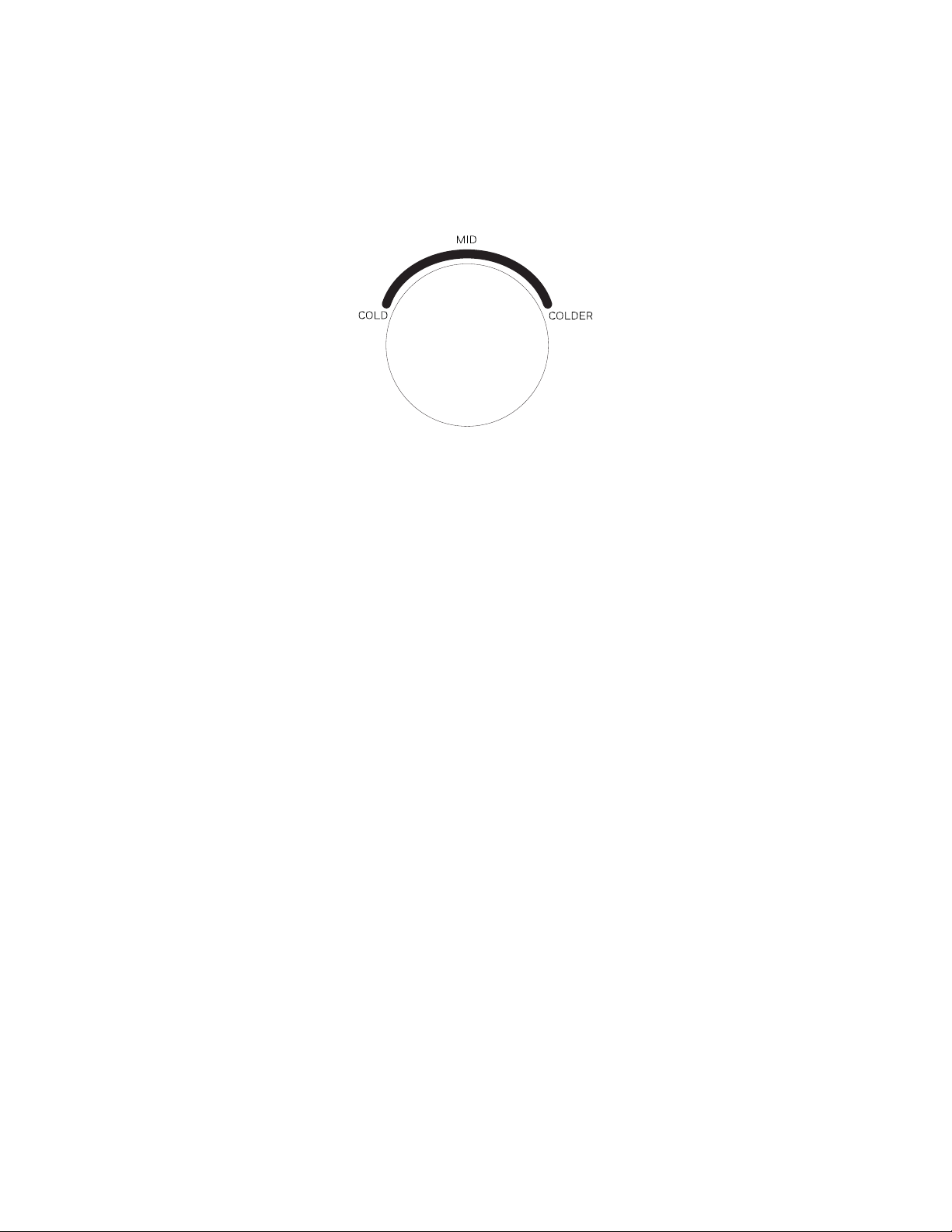

4.3 Temperature Control Operation
01 The freezer is automatically in the mid temperature setting.
02 If the freezer is in the COLDER position when the temperature is
lower than 10ºF. The fridge temperature will be automatically changed to the
4 or 5 temperature setting.
03 If the freezer is in the COLD position when the temperature is
lower than 40ºF. The fridge temperature will be automatically changed to the
1 or 2 temperature setting.
Tips: When the freezer is placed in COLDER position, the fridge can be rapidly
cooled, but if it is placed in COLDER position for too long, the temperature inside
the fridge may be reduced drastically.

18
5 CLEANING
5.1 Defrosting
5.2 Cleaning the Interior and the Exterior of the Unit
5.3 Condensation
Auto-defrost for frost-free refrigerator.
Condensation may appear on the outside of the unit. This may be due to a change
in room temperature. Wipe of any moisture residue. If the problem continues, please
contact a qualified technician for assistance.
• Remove all the shelves and the salad bin. To remove the salad bin, first remove
the lower door shelf.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then
rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry
before replacing the shelves and salad bin.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture
polish. Make sure that the door is closed to avoid the polish getting on the
magnetic door seal or inside the unit.
