Taylor 432 User manual

OPERATOR'S
MANUAL
Model 432 Tim Hortons
Slush Freezer
Original Operating Instructions
068462-M
10/8/10 (Original Publication)
Updated 1/23/15

Complete this page for quick reference when service is required:
Taylor Distributor:
Address:
Phone:
Fax:
E-mail:
Service:
Parts:
Date of Installation:
Information found on the data label:
Model Number:
Serial Number:
Electrical Specs: Voltage Cycle
Phase
Maximum Fuse Size: A
Minimum Wire Ampacity: A
2010 Carrier Commercial Refrigeration, Inc.
068462-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this
work may bea violationof Copyright Lawof theUnitedStates of America and other countries, couldresult
in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result
in further civil and criminal penalties. All rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

Model 432 Tim Hortons Table of Contents
Section1 TotheInstaller 1............................................
InstallerSafety 1........................................................
SitePreparation 1.......................................................
AirCooledUnits 2.......................................................
ElectricalConnections 2.................................................
BeaterRotation 2.......................................................
Refrigerant 3...........................................................
Section2 TotheOperator 4...........................................
Section3 Safety 5....................................................
Section 4 Operator Parts Identification 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
432ExplodedView 8....................................................

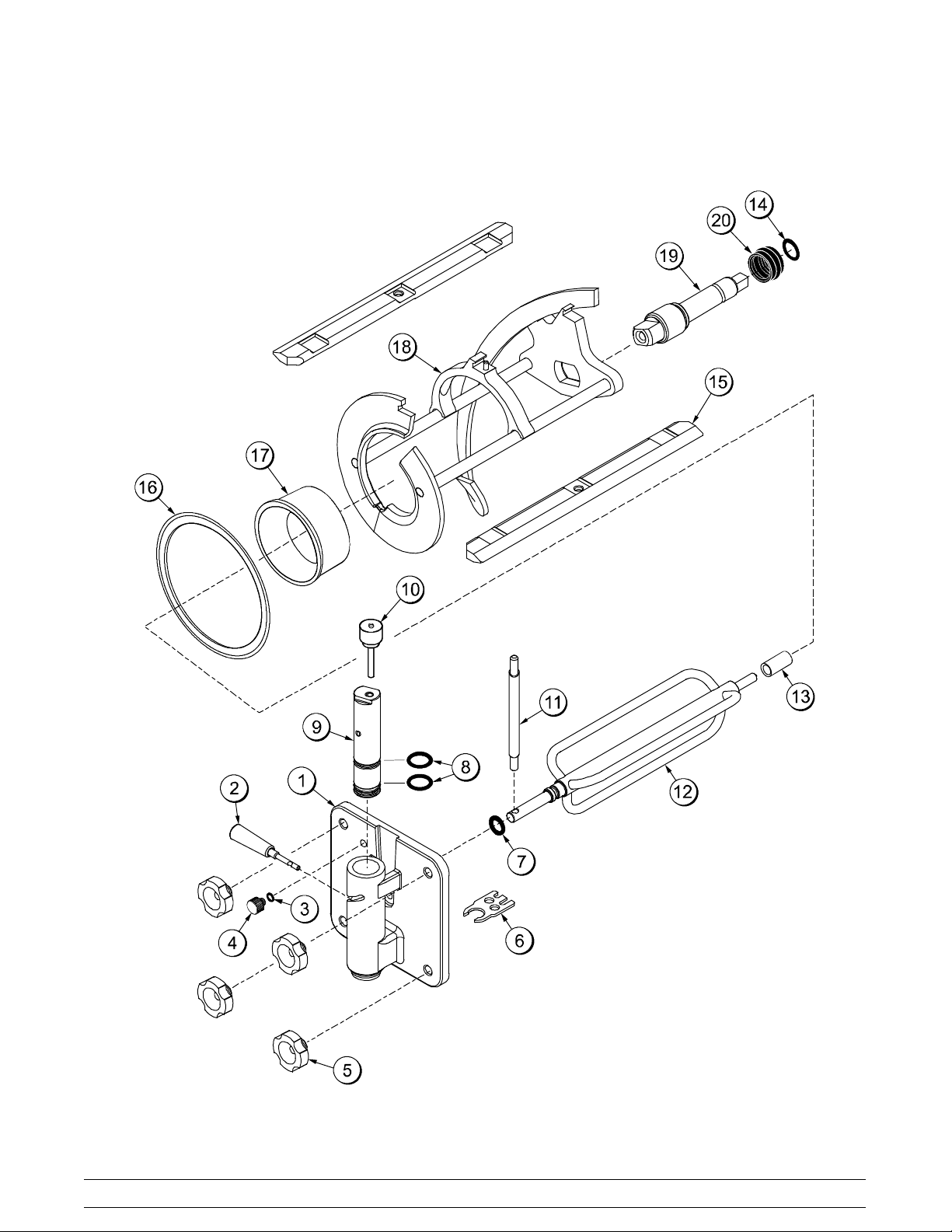

BeaterDoorAssembly 10.................................................
Accessories 12..........................................................
Section 5 Important: To the Operator 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PowerSwitch 14.........................................................
ResetButton 14.........................................................
DisplayLightSwitch 14...................................................
IndicatorLight-Spinner 14................................................
IndicatorLight-“AddMix” 14..............................................
IndicatorLight-“MixOut” 14..............................................
ViscosityAdjustment 14...................................................
Section 6 Operating Procedures 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Assembly 15............................................................
Sanitizing 20............................................................
Priming 21..............................................................
ClosingProcedure 21....................................................
Draining Product From The Freezing Cylinder 22. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rinsing 22..............................................................

Table of Contents Model 432 Tim Hortons
Table of Contents - Page 2
Cleaning 23.............................................................
Disassembly 23..........................................................
BrushCleaning 24.......................................................
Section 7 Important: Operator Checklist 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DuringCleaningandSanitizing: 25.........................................
Troubleshooting Bacterial Count: 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RegularMaintenanceChecks: 25..........................................
WinterStorage 26........................................................
Section 8 Troubleshooting Guide 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 9 Parts Replacement Schedule 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 10 Limited Warranty on Equipment 30. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 11 Limited Warranty on Parts 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WiringDiagram 35.......................................................
Note: Continuing research results in steady improvements; therefore, information
in this manual is subject to change without notice.
Note: Only instructions originating from the factory or its authorized translation
representative(s) are considered to be the original set of instructions.
2010 Carrier Commercial Refrigeration, Inc.
(Updated January, 2015)
068462-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this
work may bea violationof Copyright Lawof theUnitedStates of America andother countries, couldresult
in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result
in further civil and criminal penalties.
All rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

1
Model 432 Tim Hortons To the Installer
131125
Section 1 To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For
complete installation instructions, please see the
Installation Checklist.
Installer Safety
In all areas of the world, equipment should
be installed in accordance with existing local codes.
Please contact your local authorities if you have any
questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and
service of Taylor equipment.
Only authorized Taylor service personnel
should perform installation and repairs on
the equipment.
Authorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the
industry standards on lockout/tagout
procedures before beginning any installation
or repairs.
Authorized service personnel must ensure
that the proper PPE is available and worn
when required during installation and
service.
Authorized service personnel must remove
all metal jewelry, rings, and watches before
working on electrical equipment.
The main power supply(s) to the freezer
must be disconnected prior to performing any
repairs. Failure to follow this instruction may result in
personal injury or death from electrical shock or
hazardous moving parts as well as poor
performance or damage to the equipment.
Note: All repairs must be performed by an
authorized Taylor Service Technician.
This unit has many sharp edges that can
cause severe injuries.
Site Preparation
Review the area where the unit will be installed
before uncrating the unit. Make sure all possible
hazards to the user or equipment have been
addressed.
For Indoor Use Only: This unit is designed to
operate indoors, under normal ambient
temperatures of 70 -75 F (21 -24 C). The freezer
has successfully performed in high ambient
temperatures of 104 (40 C) at reduced capacities.
This unit must NOT be installed in an area
where a water jet or hose can be used. NEVER use
a water jet or hose to rinse or clean the unit. Failure
to follow this instruction may result in electrocution.
This unit must be installed on a level surface
to avoid the hazard of tipping. Extreme care should
be taken in moving this equipment for any reason.
Two or more persons are required to safely move
this unit. Failure to comply may result in personal
injury or equipment damage.
Uncrate the unit and inspect it for damage. Report
any damage to your Taylor Distributor.
This piece of equipment is made in the USA and has
USA sizes of hardware. All metric conversions are
approximate and vary in size.

2Model 432 Tim HortonsTo the Installer
Air Cooled Units
DO NOT obstruct air intake and discharge openings:
A minimum of 6” (152 mm) on both sides is required.
It is recommended to place the rear of the unit
against the wall. Failure to follow this instruction may
cause poor freezer performance and damage to the
machine.
Electrical Connections
This unit must be plugged into a properly grounded
receptacle. The cord and plug must be sized for 20A
usage. The voltage specifications are 208-230/60/1.
Follow specifications listed on your data plate.
FOLLOW YOUR LOCAL ELECTRICAL CODES!
In the United States, this equipment is intended to
be installed in accordance with the National
Electrical Code (NEC), ANSI/NFPA 70-1987. The
purpose of the NEC code is the practical
safeguarding of persons and property from hazards
arising from the use of electricity. This code contains
provisions considered necessary for safety.
Compliance therewith and proper maintenance
should result in an installation essentially free from
hazard!
In all other areas of the world, equipment should be
installed in accordance with the existing local codes.
Please contact your local authorities.
Each unit requires one power supply for each data
label on the unit. Check the data label(s) on the
freezer for branch circuit overcurrent protection or
fuse, circuit ampacity, and other electrical
specifications. Refer to the wiring diagram provided
inside of the electrical box for proper power
connections.
CAUTION: THIS EQUIPMENT MUST BE
PROPERLY GROUNDED! FAILURE TO DO SO
CAN RESULT IN SEVERE PERSONAL INJURY
FROM ELECTRICAL SHOCK!
This unit is provided with an equipotential
grounding lug that is to be properly attached to the
rear of the frame by the authorized installer. The
installation location is marked by the equipotential
bonding symbol (5021 of IEC 60417-1) on both the
removable panel and the equipment's frame.
Stationary appliances which are not
equipped with a power cord and a plug or
another device to disconnect the appliance
from the power source, must have an
all-pole disconnecting device with a contact
gap of at least 3 mm installed in the external
installation.
Appliances that are permanently connected
to fixed wiring and for which leakage
currents may exceed 10 mA, particularly
when disconnected or not used for long
periods, or during initial installation, shall
have protective devices such as a GFI, to
protect against the leakage of current,
installed by the authorized personnel to the
local codes.
Supply cords used with this unit shall be
oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or
other equivalent synthetic
elastomer-sheathed cord (Code designation
60245 IEC 57) installed with the proper cord
anchorage to relieve conductors from strain,
including twisting, at the terminals and
protect the insulation of the conductors from
abrasion.
If the supply cord is damaged, it must be
replaced by an authorized Taylor service
technician in order to avoid a hazard.
Beater Rotation
Beater rotation must be clockwise as viewed
looking into the freezing cylinder.
Note: The following procedures must be performed
by an authorized Taylor service technician.
To correct rotation on a single-phase unit, change
the leads inside the beater motor. (Follow the
diagram printed on the motor.)

3
Model 432 Tim Hortons To the Installer
131009
Refrigerant
In consideration of our environment, Taylor
uses only earth friendly HFC refrigerants. The HFC
refrigerant used in this unit is R404A. This
refrigerant is generally considered non-toxic and
non-flammable, with an Ozone Depleting Potential
(ODP) of zero (0).
However, any gas under pressure is potentially
hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with
liquid. Filling the cylinder to approximately 80% will
allow for normal expansion.
Use only R404A refrigerant that conforms
to the AHRI standard 700 specification. The use of
any other refrigerant may expose users and
operators to unexpected safety hazards.
Refrigerant liquid sprayed onto the skin may
cause serious damage to tissue. Keep eyes and skin
protected. If refrigerant burns should occur, flush
immediately with cold water. If burns are severe,
apply ice packs and contact a physician
immediately.
Taylor reminds technicians to be cautious of
government laws regarding refrigerant recovery,
recycling, and reclaiming systems. If you have any
questions regarding these laws, please contact the
factory Service Department.
WARNING: R404A refrigerant used in
conjunction with polyolester oils is extremely
moisture absorbent. When opening a refrigeration
system, the maximum time the system is open must
not exceed 15 minutes. Cap all open tubing to
prevent humid air or water from being absorbed by
the oil.

4Model 432 Tim HortonsTo the Operator
131125
Section 2 To the Operator
The freezer you have purchased has been carefully
engineered and manufactured to give you
dependable operation. The Taylor Model 432, when
properly operated and cared for, will produce a
consistent quality product. Like all mechanical
products, it will require cleaning and maintenance. A
minimum amount of care and attention is necessary
if the operating procedures outlined in this manual
are followed closely.
This Operator's Manual should be read before
operating or performing any maintenance on your
equipment.
Your Taylor freezer will NOT eventually compensate
for and correct any errors during the set-up or filling
operations. Thus, the initial assembly and priming
procedures are of extreme importance. It is strongly
recommended that personnel responsible for the
equipment's operation, both assembly and
disassembly, sit down together and go through
these procedures in order to be properly trained and
to make sure that no misunderstandings exist.
In the event you should require technical assistance,
please contact your local authorized Taylor
Distributor.
Note: Your Taylor warranty is valid only if the parts
are authorized Taylor parts, purchased from the
local authorized Taylor Distributor, and only if all
required service work is provided by an authorized
Taylor service technician. Taylor reserves the right
to deny warranty claims on units or parts if
non-Taylor approved parts or incorrect refrigerant
were installed in the unit, system modifications were
performed beyond factory recommendations, or it is
determined that the failure was caused by abuse,
misuse, neglect, or failure to follow all operating
instructions. For full details of your Taylor Warranty,
please see the Limited Warranty section in this
manual.
Note: Constant research results in steady
improvements; therefore, information in this
manual is subject to change without notice.
If the crossed out wheeled bin symbol is
affixed to this product, it signifies that this product is
compliant with the EU Directive as well as other
similar legislation in effect after August 13, 2005.
Therefore, it must be collected separately after its
use is completed, and cannot be disposed as
unsorted municipal waste. The user is responsible
for returning the product to the appropriate collection
facility, as specified by your local code.
For additional information regarding applicable local
laws, please contact the municipal facility and/or
local distributor.
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this unit are
warranted for the term stated in the Limited
Warranty section in this manual. However, due to
the Montreal Protocol and the U.S. Clean Air Act
Amendments of 1990, many new refrigerants are
being tested and developed, thus seeking their way
into the service industry. Some of these new
refrigerants are being advertised as drop-in
replacements for numerous applications. It should
be noted that in the event of ordinary service to this
unit's refrigeration system, only the refrigerant
specified on the affixed data label should be
used. The unauthorized use of alternate refrigerants
will void your Taylor compressor warranty. It is the
unit owner's responsibility to make this fact known to
any technician he employs.
It should also be noted that Taylor does not warrant
the refrigerant used in its equipment. For example, if
the refrigerant is lost during the course of ordinary
service to this machine, Taylor has no obligation to
either supply or provide its replacement either at
billable or unbillable terms. Taylor does have the
obligation to recommend a suitable replacement if
the original refrigerant is banned, obsoleted, or no
longer available during the five year warranty of the
compressor.
Taylor will continue to monitor the industry and test
new alternates as they are being developed. Should
a new alternate prove, through our testing, that it
would be accepted as a drop-in replacement, then
the above disclaimer would become null and void.
To find out the current status of an alternate
refrigerant as it relates to your compressor warranty,
call the local Taylor Distributor or the Taylor Factory.
Be prepared to provide the Model/Serial Number of
the unit in question.

5
Model 432 Tim Hortons Safety
131009
Section 3 Safety
We, at Taylor Company, are concerned about the
safety of the operator when he or she comes in
contact with the freezer and its parts. Taylor has
gone to extreme efforts to design and manufacture
built-in safety features to protect both you and the
service technician. As an example, warning labels
have been attached to the freezer to further point
out safety precautions to the operator.
IMPORTANT - Failure to adhere to the
following safety precautions may result in
severe personal injury or death. Failure to
comply with these warnings may damage the
machine and its components. Component
damage will result in part replacement expense
and service repair expense.
DO NOT operate the freezer without
reading this Operator Manual. Failure to follow this
instruction may result in equipment damage, poor
freezer performance, health hazards, or personal
injury.
This unit is to be used only by trained
personnel. It is not intended for use by children or
people with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge.
Where limited equipment operation is allowed for
public use, such as a self-serve application,
supervision or instruction concerning the use of the
appliance by a person responsible for their safety is
required. Children should be supervised to ensure
that they do not play with the appliance.
This unit is provided with an equipotential
grounding lug that is to be properly attached to the
rear of the frame by the authorized installer. The
installation location is marked by the equipotential
bonding symbol (5021 of IEC 60417-1) on both the
removable panel and the equipment's frame.
DO NOT operate the freezer unless it is
properly grounded.
DO NOT operate the freezer with larger
fuses than specified on the freezer data
label.
All repairs must be performed by an
authorized Taylor service technician. The
main power supplies to the machine must
be disconnected prior to performing any
repairs.
Cord Connected Units: Only Taylor
authorized service technicians may install a
plug on this unit.
Stationary appliances which are not
equipped with a power cord and a plug or
another device to disconnect the appliance
from the power source, must have an
all-pole disconnecting device with a contact
gap of at least 3 mm installed in the external
installation.
Appliances that are permanently connected
to fixed wiring and for which leakage
currents may exceed 10 mA, particularly
when disconnected or not used for long
periods, or during initial installation, shall
have protective devices, such as a GFI, to
protect against the leakage of current,
installed by authorized personnel to the local
codes.
Supply cords used with this unit shall be
oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or
other equivalent synthetic
elastomer-sheathed cord (Code designation
60245 IEC 57) installed with the proper cord
anchorage to relieve conductors from strain,
including twisting, at the terminals and
protect the insulation of the conductors from
abrasion.
If the supply cord is damaged, it must be
replaced by an authorized Taylor service
technician in order to avoid a hazard.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
Distributor for service.

6Model 432 Tim HortonsSafety
131009
DO NOT use a water jet to clean or rinse
the freezer. Failure to follow these instructions may
result in serious electrical shock.
DO NOT allow untrained personnel to
operate this machine.
DO NOT operate the freezer unless all
service panels and access doors are
restrained with screws.
DO NOT remove any internal operating
parts (examples: freezer door, beater,
scraper blades, etc.) unless all control
switches are in the OFF position.
Failure to follow these instructions may result in
severe personal injury to fingers or hands from
hazardous moving parts.
This unit has many sharp edges that can
cause severe injuries.
DO NOT put objects or fingers in the door
spout. This may contaminate the product
and cause severe personal injury from blade
contact.
USE EXTREME CAUTION when removing
the beater asssembly. The scraper blades
are very sharp.
This unit must be placed on a level surface.
Extreme care should be taken when moving the unit
for any reason. Two or more persons are required to
safely move this unit. Failure to comply may result in
personal injury or damage to the unit.
Access to the service area of the unit must
be restricted to persons having knowledge and
practical experience with the unit, in particular as far
as safety and hygiene are concerned.
Cleaning and sanitizing schedules are
governed by your state or local regulatory agencies
and must be followed accordingly. Please refer to
the cleaning section of this manual for the proper
procedure to clean this unit.
This unit is designed to maintain product
temperature under 41°F (5°C). Any product being
added to this unit must be below 41°F (5°C). Failure
to follow this instruction may result in health hazards
and poor freezer performance.
DO NOT run the unit without product. Failure to
follow this instruction can result in damage to the
unit.
DO NOT obstruct air intake and discharge openings:
A minimum of 6” (152 mm) on both sides is required.
It is recommended to place the rear of the unit
against the wall. Failure to follow this instruction may
cause poor freezer performance and damage to the
machine.
For Indoor Use Only: This unit is designed to
operate indoors, under normal ambient
temperatures of 70 - 75 F (21 - 24 C). The
freezer has successfully performed in high ambient
temperatures of 104 (40 C) at reduced capacities.
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of
1.0 meter from the surface of the machine and at a
height of 1.6 meters from the floor.

7
Model 432 Tim Hortons Safety
Notes

8Model 432 Tim HortonsOperator Parts Identification
150123
Section 4 Operator Parts Identification
432 Exploded View
Figure 1

9
Model 432 Tim Hortons Operator Parts Identification
141219
432 Exploded View Parts Identification
ITEM DESCRIPTION PART NO.
1 COVER A.-HOPPER X52452
2 PANEL-SIDE-LEFT *432* 66396
3 PANEL-REAR *432* 52363
4 SCREW-10-32X1/2 SLTD TRUSS 37734
5 PANEL A.-DUCT RT
W/GASKETS X52635SSP
6 SCREW-10-32X3/4 SLTD OVAL 001086
7 PANEL A.-UPPER FRONT X66410-SP
8 SPINNER A.-PANEL MOUNT X82387-27
9 SCREW-10-32X3/8 SLTD TRUSS 24298
10 GASKET-BASE PAN *432* 052377
ITEM DESCRIPTION PART NO.
11 SHELF-DRIP TRAY 068600
12 COLLAR-HOLDING .730DX.072 46551
13 SCREW-10-32X3/4 SLTD OVAL 001086
14 TRAY-DRIP *432* HORTON 68581
15 SHIELD-SPLASH*432*HORTON 68584
16 PAN-DRIP 17-1/4"LONG 27504
17 SPINNER A.-PANEL MOUNT X82388-27
18 LENS-DECORATIVE PLATE 52359
19 PANEL A.-FRONT *432* LOWER X68385-SP
20 PANEL A.-SIDE RT W/GASKETS X52634

10 Model 432 Tim HortonsOperator Parts Identification
150123
Beater Door Assembly
Figure 2

11
Model 432 Tim Hortons Operator Parts Identification
141219
Beater Door Assembly Parts Identification
ITEM DESCRIPTION PART NO.
1 DOOR A.-SLUSH-PARTIAL X83427SER2
2 HANDLE A. DRAW X47384
3 O-RING-.563 OD X .070W-#013 043758
4 PLUG-PRIME 050405
5 NUT-STUD 029880
6 BUSTER - ICE 047735
7 O-RING - .291 OD X .080 W 018550
8 O-RING - 1" OD X .139 W 032504
9 VALVE DRAW - SLUSH 047734
10 PIN A.-VALVE HANDLE X25929
ITEM DESCRIPTION PART NO.
11 ARM - TORQUE 052450
12 TORQUE ASSEMBLY X50382
13 BEARING - GUIDE 014496
14 O-RING 7/8 OD X .139 W 025307
15 BLADE - SCRAPER PLASTIC 081094
16 GASKET-DOOR 5.200"ID 021662
17 BEARING - FRONT 013116
18 BEATER A. - 4 QT. 1 PIN X49490
19 SHAFT - BEATER 035418
20 SEAL - DRIVE SHAFT 032560

12 Model 432 Tim HortonsOperator Parts Identification
141219
Accessories
Figure 3
ITEM DESCRIPTION PART NO.
1 KIT A.-TUNE UP X50413A
2 BRUSH-MIX HOPPER 3 X 7 023316
3 PAIL-10 QT. 013163
4 BRUSH-DOUBLE ENDED 013072
ITEM DESCRIPTION PART NO.
5 BRUSH-REAR BEARING
1 X 2 X 14 013071
6 BRUSH-DRAW VALVE
1-1/2 X 3 014753

13
Model 432 Tim Hortons Important: To the Operator
Section 5 Important: To the Operator
Figure 4
ITEM DESCRIPTION
1POWER SWITCH
(SWITCH-TOGGLE - 3 PDT)
2RESET BUTTON
(SWITCH-PUSH BUTTON - SPST)
3DISPLAY LIGHT SWITCH
(SWITCH-TOGGLE-SPST 3/4 HP 250V)
4SPINNER INDICATOR LIGHT
(LIGHT-GREEN-RECT 125V SPINNER)
5ADD MIX INDICATOR LIGHT
(LIGHT-AMBER-RECT-12VDC ADD MIX)
6MIX OUT INDICATOR LIGHT
(LIGHT-AMBER-RECT-12VDC MIX OUT)
7VISCOSITY ADJUSTMENT
(BUSHING A.-TORQUE)
The following chart identifies the symbol definitions
used on the operator switches.
= ON/AUTO
= OFF
= WASH

14 Model 432 Tim HortonsImportant: To the Operator
Power Switch
The center position is “OFF”. The left position is
“WASH”, which activates only the beater motor. The
right position is “AUTO”, which activates the beater
motor and the refrigeration system.
Reset Button
If an overload condition occurs, the freezer will
automatically stop operating. To properly reset the
freezer, place the toggle switch in the “OFF”
position. Wait two or three minutes and then press
the reset button. Place the power switch in the
“WASH” position and observe the freezer's
performance. Place the power switch in the “AUTO”
position.
Note: If the freezer is unplugged from the wall
receptacle, it will be necessary to press the reset
button for the freezer to operate once power is
re-established.
Display Light Switch
The display light switch is located under the control
channel. The left position is “OFF”. The right position
is “ON” and activates the display light.
Indicator Light - Spinner
The spinner indicator lights are located on the front
of the machine above the spinner assemblies. The
spinner indicator light is activated by pressing the
spinner motor switch. The light illuminates for 15
seconds, indicating the proper blend time.
Indicator Light - “Add Mix”
The ADD MIX indicator lights are located on the
front of the machine. An ADD MIX indicator light will
flash and an audible tone will sound when a mix
hopper has a low supply of product. Refill the hopper
as soon as possible.
Indicator Light - “Mix Out”
The MIX OUT indicator lights are located on the
front of the machine. When a MIX OUT indicator
light is flashing, it indicates that the hopper is empty
and the mix supply needs to be replenished. To
prevent damage to the unit, refrigeration stops
automatically. Refrigeration will restart 30 seconds
after the mix supply is replenished.
Viscosity Adjustment
The viscosity (thickness) of the slush can be
adjusted by turning the viscosity adjustment screw,
located under the control channel. Turn the viscosity
adjustment screw clockwise for a thicker product, or
counterclockwise for a thinner product. After making
an adjustment, allow the refrigeration system to
cycle 2 or 3 times to accurately evaluate the
viscosity.

15
Model 432 Tim Hortons Operating Procedures
Section 6 Operating Procedures
The Model 432 freezer is designed to produce slush
product at the desired thickness. This unit has a four
quart freezing cylinder.
We begin our instructions at the point where we
enter the store in the morning and find the parts
disassembled and laid out to air dry from the
previous night's brush cleaning.
These opening procedures will show you how to
assemble the parts into the freezer, sanitize them,
and prime the freezer with fresh mix in preparation
to serve your first portion.
If you are disassembling the machine for the first
time or need information to get to this point in our
instructions, turn to page 23, “Disassembly”, and
start there.
Assembly
Note: When lubricating parts, use an approved food
grade lubricant (example: Taylor Lube).
MAKE SURE THE POWER SWITCH IS IN
THE “OFF” POSITION! Failure to follow this
instruction may result in severe personal injury from
hazardous moving parts.
Step 1
Lubricate the groove on the drive shaft and slide the
o-ring in place. Lubricate the o-ring and shaft portion
that comes in contact with the bearing. DO NOT
lubricate the square end of the drive shaft.
Lubricate the boot seal groove and slide the boot
seal over the shaft and groove until it snaps into
place. Fill the inside portion of the seal with 1/4”
more lubricant and evenly lubricate the end of the
seal that fits onto the rear shell bearing.
Figure 5
Note: To ensure that mix does not leak out of the
back of the freezing cylinder, the middle section of
the boot seal should be convex or extend out from
the seal. If the middle section of the boot seal is
concave or extending into the middle of the seal,
invert the seal.
Figure 6

16 Model 432 Tim HortonsOperating Procedures
131009
Step 2
Insert the beater drive shaft into the rear shell
bearing and engage the square end firmly into the
female socket of the drive unit. Be certain that the
drive shaft fits into the drive coupling without
binding.
Figure 7
Step 3
Check the scraper blade for any nicks or signs of
wear. If any nicks are present, replace the blade. If
the blade is in good condition, install it on the beater
assembly. Be sure the holes in the blade are
securely positioned over the beater pin.
Figure 8
Step 4
Holding the beater securely, slide the beater into the
freezing cylinder and align the hole at the rear of the
beater with the flats on the end of the drive shaft.
Slide the beater the remainder of the way into the
freezing cylinder and over the end of the drive shaft.
The beater assembly should not protrude beyond
the front of the freezing cylinder.
Figure 9
Step 5
Install the white plastic guide bearing on the short
end of the torque rotor. Slide the o-ring into the
groove on the long end of the torque rotor and
lubricate the o-ring. Do not lubricate the guide
bearing.
Figure 10
