Honeywell VisionPRO TH8000 Series User manual

A BE CAREFUL! Never use sharp instruments, such as a pencil
~
or pen, to press touchscreen keys. To prevent damage to the
thermostat, always press keys with your fingertip.
This manual covers the following models
TH8110U: For 1 Heatl1 Cool systems
TH8320U: For up
to 3 Heat/2 Cool systems
TH8321U: Forup
to 3 Heat/2 Cool systems with dehumidification
(Pull thermostat from wallplate and turn over to find model number)
This thermostat contains a Lithium battery which may contain Perchlorate material.
Perchlorate
Material-special handling may apply,
See www.dtsc.ca.govlhazardouswaste/perchlorate
Need Help?·
. For; assistance with this product please visit http://yourhome.honeywell.com
·or.call Honeywell Customer Care toll-free at 1-800-468-1502
Read and save these instructions.
® u.s. Registered Trademark.
US Patent No. 6595430, 0509151 and otherpatents pending.
Copyright © 2007 Honeywell International Inc. All rights reserved.

VisionPRO®THBOOO Series

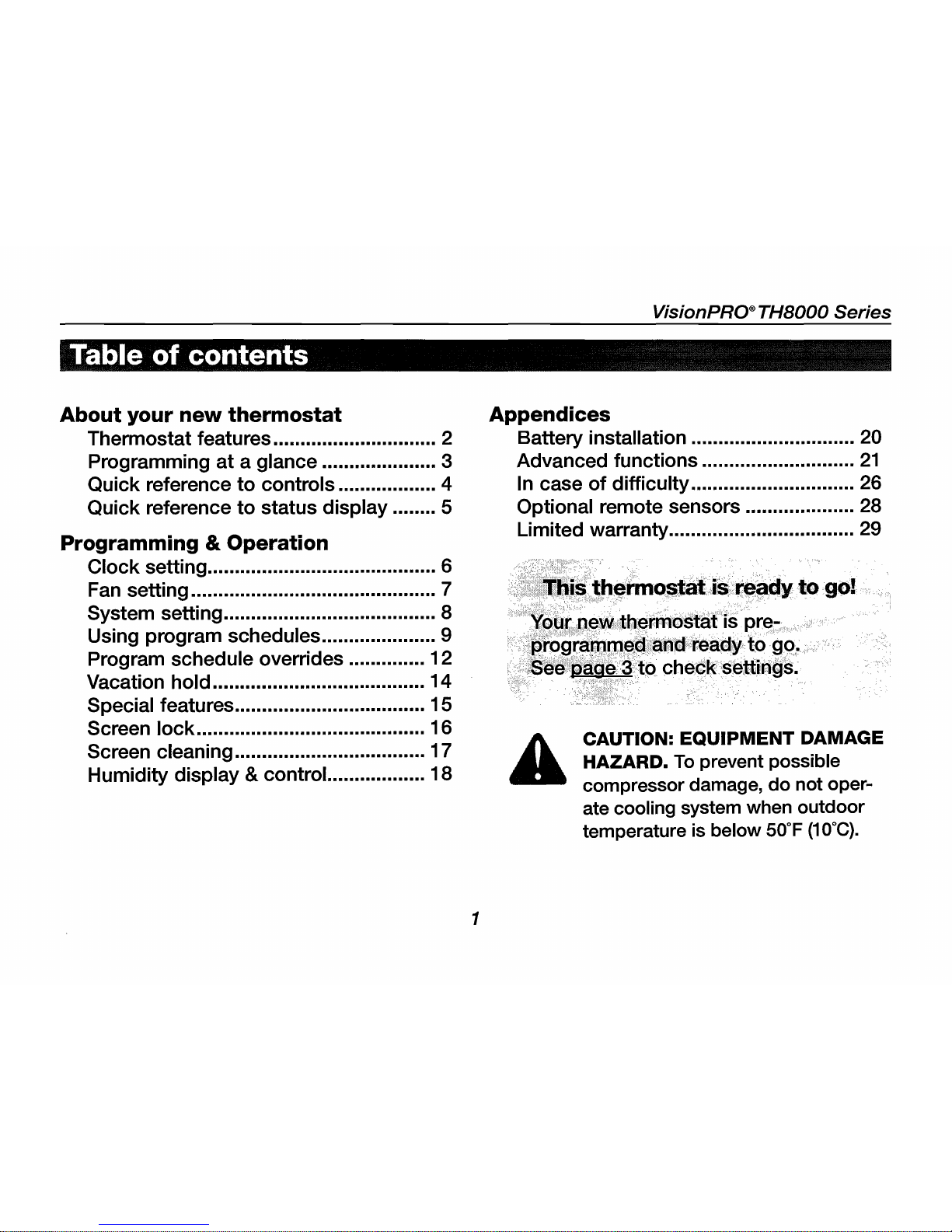

Table of contents
About your new thermostat
Thermostat features.............................. 2
Programming at a glance ..................... 3
Quick reference to controls.................. 4
Quick reference to status display ........ 5
Programming & Operation
~Iock setting.......................................... E)
Fan setting............................................. 7
~ystem setting....................................... ~
Using program schedules..................... 9
Program schedule overrides .............. 12
Vacation hold....................................... 14
~pecial features................................... 15
~creen lock .......................................... 1 E)
~creen cleaning................................... 17
Humidity display & control.................. 1
~
Appendices
E3attery installation .............................. 2{)
Advanced functions ............................ 21
In case of difficulty.............................. 2E)
Optional remote sensors .................... 2~
L.imited ~arranty .................................. 29
<e ••
",~~;0f~:;·"'T~'~ .. th~rmostat' •• ls,··'reaCW .. to 'go!
.Xq~tngW.thermostat is pre~
("l:gi:~~oa~~~~::~fng~:
.. c~::~/~:>j: :,~,,'.'~:. ,: > '
A CAUTION:
EQUIPMENT DAMAGE
HAZARD. To prevent possible
compressor damage, do not oper-
ate cooling system when outdoor
temperature is below 50°F (10°C).
1

Operating Manual
;ill)out ••..•• your new.thermostat
Congratulations! You've just purchased the world's most advanced, easy-to-use ther-
mostat. It has been designed
to give you many years of reliable service and touch-
screen climate control.
Features
• 7-day program schedules maximize comfort and economy.
• Armchair programming:
Just pull thermostat from the wall to set schedules.
• EnergyStar® compliant
to greatly reduce your heating/cooling expenses.
• One-touch temp control overrides program schedule at any time.
• Precise
comfort control keeps temperature within 1°F of the level you set.
• Change/check reminders let you know when
to service or replace filters,
batteries and other critical components.
• Large touchscreen display with backlight is easy
to read-even in the dark.
• Select models display and control summer humidity.
• Select models accommodate optional
outdoor or indoor remote sensors.
2

VisionPRO® TH8DDD Series
Your new thermostat is pre-programmed and ready to go. Just set the time and day.
Then
check the settings below and change if needed:
1. Set clock ........................................................................................................See page 6
2. Select fan setting: Preset to Auto..............................................................See page 7
3. Select system setting: Preset to Heat ......................................................See page 8
4. Program schedules: Preset to energy-saving levels
while you're at
work or asleep (assumes you
wake at 6 am, leave at 8 am, return
at 6 pm
and
go to bed at 10 pm).......................................................................See pages 10-13
A ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time,
U and manually adjust the temperature (see pages 12-14).
3

Operating Manual

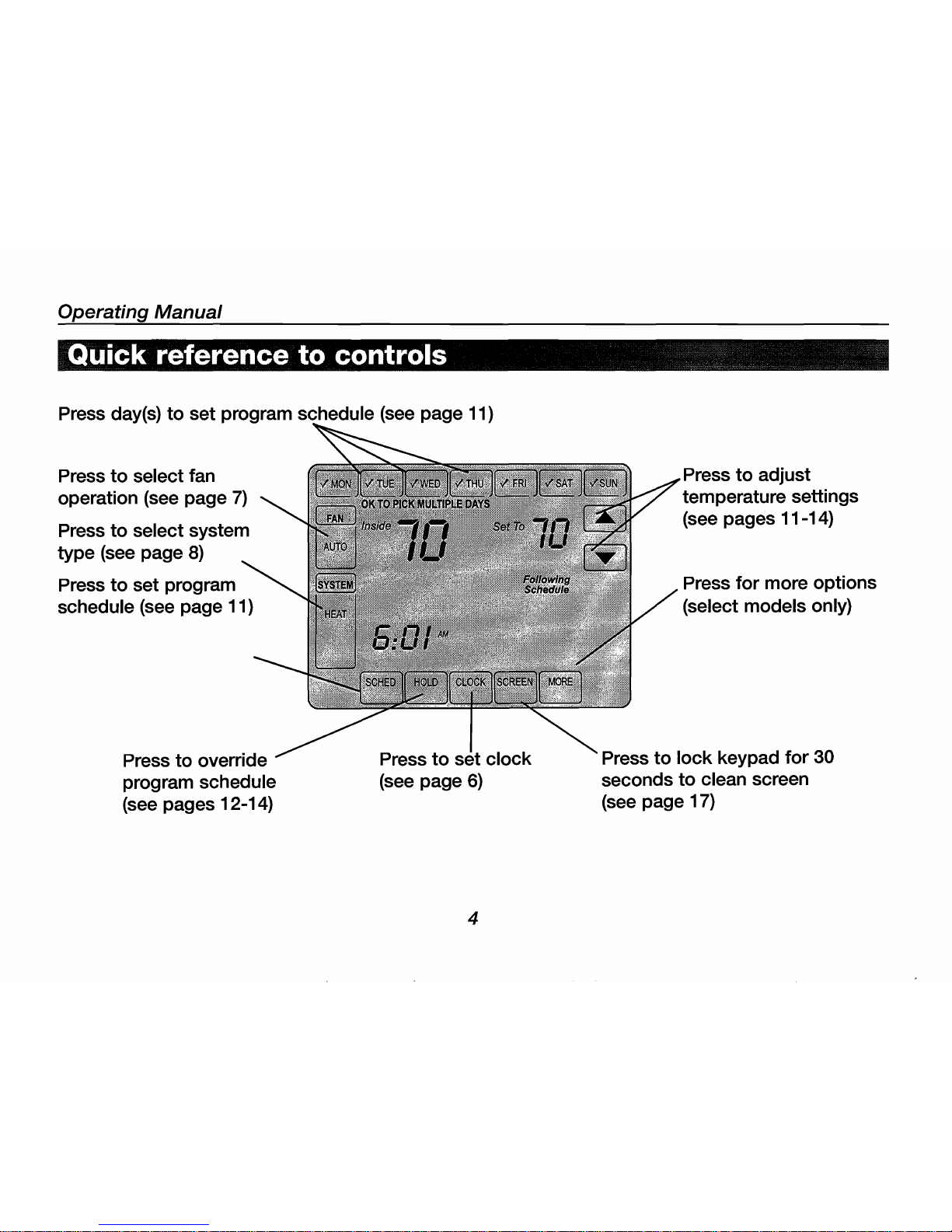

Press day(s) to set program schedule (see page 11)
Press
to select fan
operation (see page
7)
Press to select system
type (see page 8)
Press to set program
schedule (see page 11)
Press to override Press
to set clock
program schedule (see page
6)
(see pages 12-14)
Press to adjust
temperature settings
(see pages 11-14)
Press
for more options
(select models only)
Press
to lock keypad for 30
seconds to clean screen
(see page 17)
4

VisionPRO® THBDDD Series
Current inside temperature Current day
of week Temperature setting
Fan setting Program schedule on
(does not display
System setting when off)
Current time Adaptive Intelligent
Recovery in effect
(see page 15)
Other display messages:
•
CoolOn: Cooling system is activated
• Heat On: Heating system is activated
• Aux Heat On: Auxiliary heating system is activated
5

Operating Manual

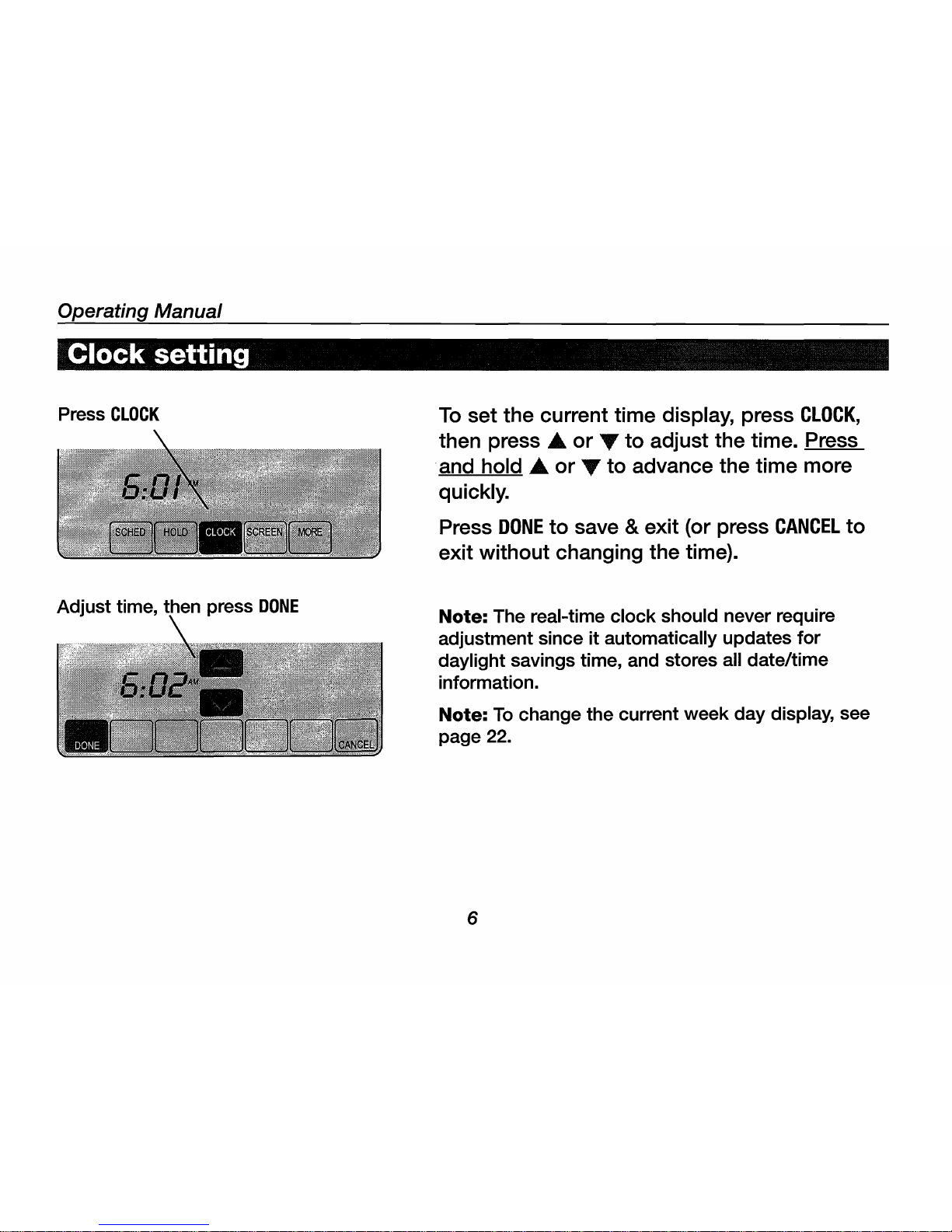

~Io~ksetting
Press CLOCK
Adjust time, t.hen press DONE
To set the current time display, press CLOCK,
then press'" or T to adjust the time. Press
.and hold ....
or T to advance the time more
quickly.
Press
DONE to save &exit (or press CANCEL to
exit without changing the time).
Note: The real-time clock should never require
adjustment since
it automatically updates for
daylight savings time, and stores all date/time
information.
Note: To change the current week day display, see
page 22.
6

VisionPRO® TH8DDD Series
Press FAN
Note: If a fan schedule is programmed,
"Auto" will run the fan schedule.
Press FAN to select fan operation, then press
DONE.
• On: Fan is always on.
• Auto: Fan runs only when the heating or
cooling system is on.
• eire: Fan runs randomly, about 35% of the
time, not counting any run time with the
heating
or cooling system.
You can press FAN to override the fan settings
you've programmed
for different time periods
(see page 11). Ifyou select On
or Circ, the
setting you select will remain active until you
press
FAN again to select Auto (see page 27
for more information).
7

Operating Manual
$Y$t$msetting
Press the SYSTEM button to select, then press
DONE.
• Heat: Thermostat controls only the
heating system.
• Cool: Thermostat controls only the
cooling system.
• Off: Heating and cooling systems are off.
• Auto: Thermostat automatically selects
heating
or cooling depending on the
indoor temperature.
**
• Em Heat (only for heat pumps with
auxiliary heat): Thermostat controls
Emergency and Auxiliary Heat.
Compressor is locked out.**
** Select models only
8

VisionPRO® THBDDD Series
It's easy to program your system for maximum energy savings. You can program four
time periods each day, with different settings for weekdays and weekends.
~
)
....
II. OJ OJI
WAKE
6:00 am
70
0
LEAVE
8:00 am
,- JO
01::.
RETURN
6:00 pm
70
0
SLEEP
10:00 pm
,- JO
DC
Set to the time you awaken and the temperature you want
during the morning, until you leave for the day.
Set
to the time you leave home and the temperature you
want while you are away (usually an energy-saving level).
Set
to the time you return home and the temperature you
want during the evening, until bedtime.
Set
to the time you go to bed and the temperature you want
overnight (usually an energy-saving level).
9

Operating Manual

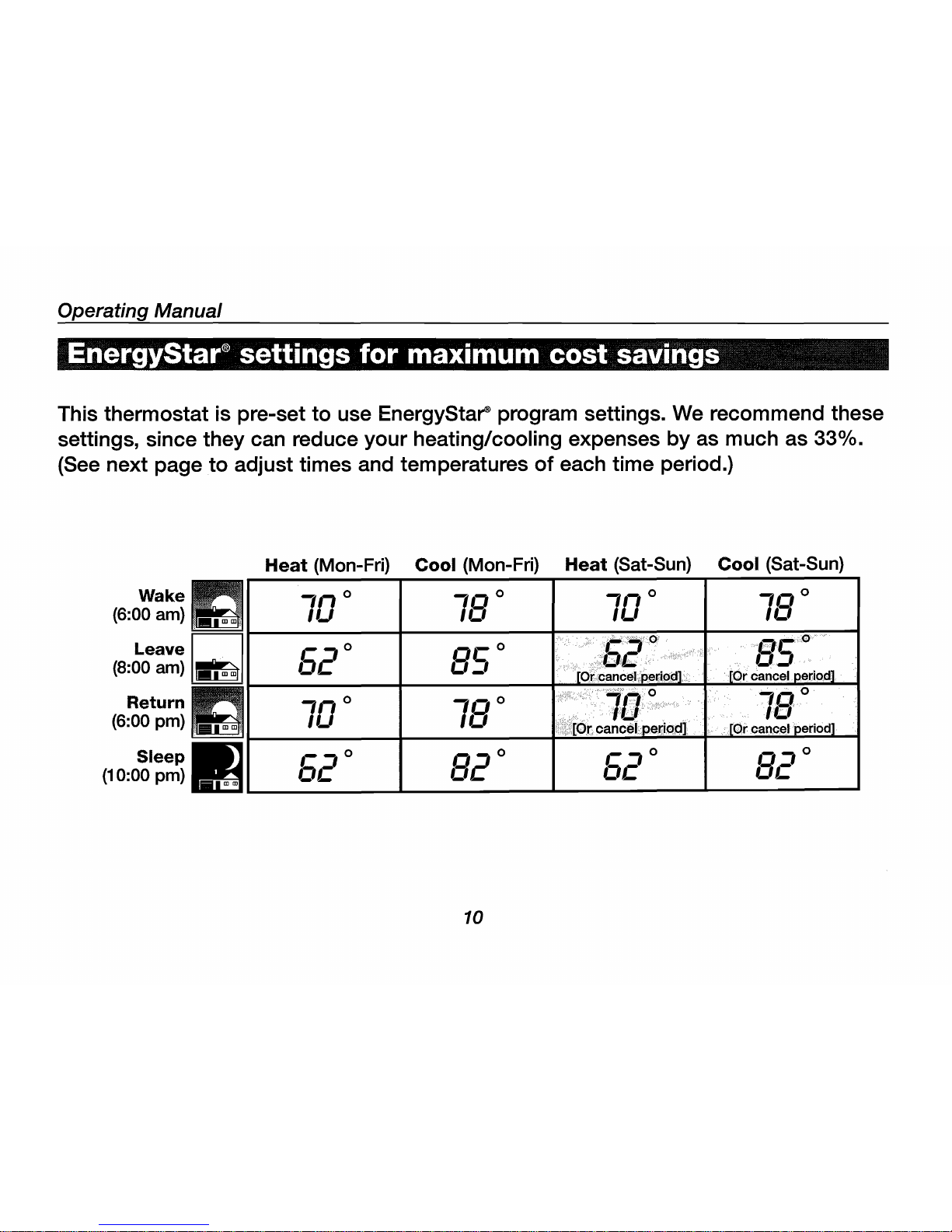

This thermostat is pre-set to use EnergySta~ program settings. We recommend these
settings, since they can reduce
your heating/cooling expenses by as much as 33%.
(See next page
to adjust times and temperatures of each time period.)
Heat (Mon-Fri)
Cool (Mon-Fri)
Heat (Sat-Sun)
Cool (Sat-Sun)
wake~
(6:00 am).. [I] [1]1
70
0
7°0
L'
70
0
7°0
D
0 850
i~J'O'
9
Lo
62
"DC
L=»
I·· [Or-cancel
Return~1
./.,'i"· .... :' '.", :'0
70
0 1
00
7[1'
(6:00 pm), !!!i!!ll [I] [I] i CI "
~,
.. [0,1:: cancel,. period]
sleep.1
,- J 0 0
LJ
o
I~JO
82
(10:00 pm) ____
DL
DC
elC
10

VisionPRO® TH8DDD Series
Press SCHED
1. Press SCHED, then EDIT.
2. Press day buttons (MON-SUN) to select
day(s).
3. Press
... or ". to set Wake time for selected
Press EDIT
day(s).
4. Press
... or ". to set Heat and Cool
temperature
for this time period.
Select day(s) Set heat/cool levels
5. Press other time periods (LEAVE, RETURN,
SLEEP) to set time and temperatures for
each.
6. Press DONE to save & exit (or press CANCEL
to exit without saving changes).
Note: You can press CANCEL PERIOD to eliminate any
unwanted time period.
Note: Press FAN to customize fan settings for any
time period (see page
7).
11
Set time
for program
period
to start

Operating Manual
;""()gram •••• sci1edu·.IEJ.override .•.. (tem
Adjust temperature
Press
to set timer
Press
CANCEL (or SCHED) to
resume program schedule
Press .A. or T to immediately adjust the tem-
perature. This will temporarily override the
temperature setting
for the current time period.
The new temperature will be maintained only
until the time you set. When the timer expires,
the program schedule will resume and set the
temperature
to the level you've programmed
for the current time period.
To cancel the temporary setting at any time,
press
CANCEL (or SCHED). The program schedule
will resume.
12

VisionPRO® TH8DDD Series

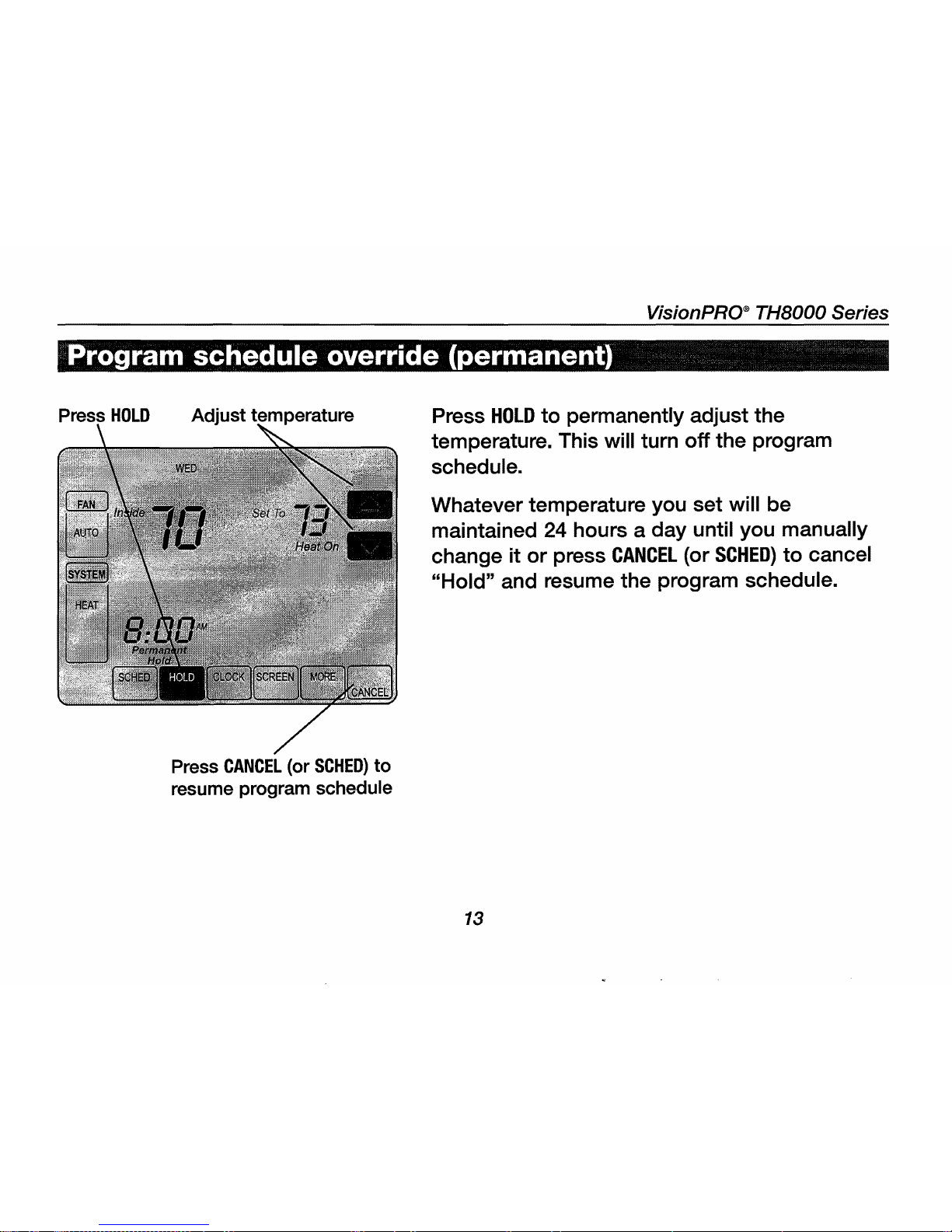

:IiI;F'rpg~am···s¢tjf)dule· ••••• ·()verride··· •• (perl11ar1el1t).
Press HOLD Adjust t~mperature
Press HOLD to permanently adjust the
temperature. This will turn
off the program
schedule.
Whatever temperature you set will be
maintained 24 hours a
day until you manually
change
it or press CANCEL (or SCHED) to cancel
"Hold" and resume the program schedule.
Press CANCEL (or SCHED) to
resume program schedule
13

Operating Manual

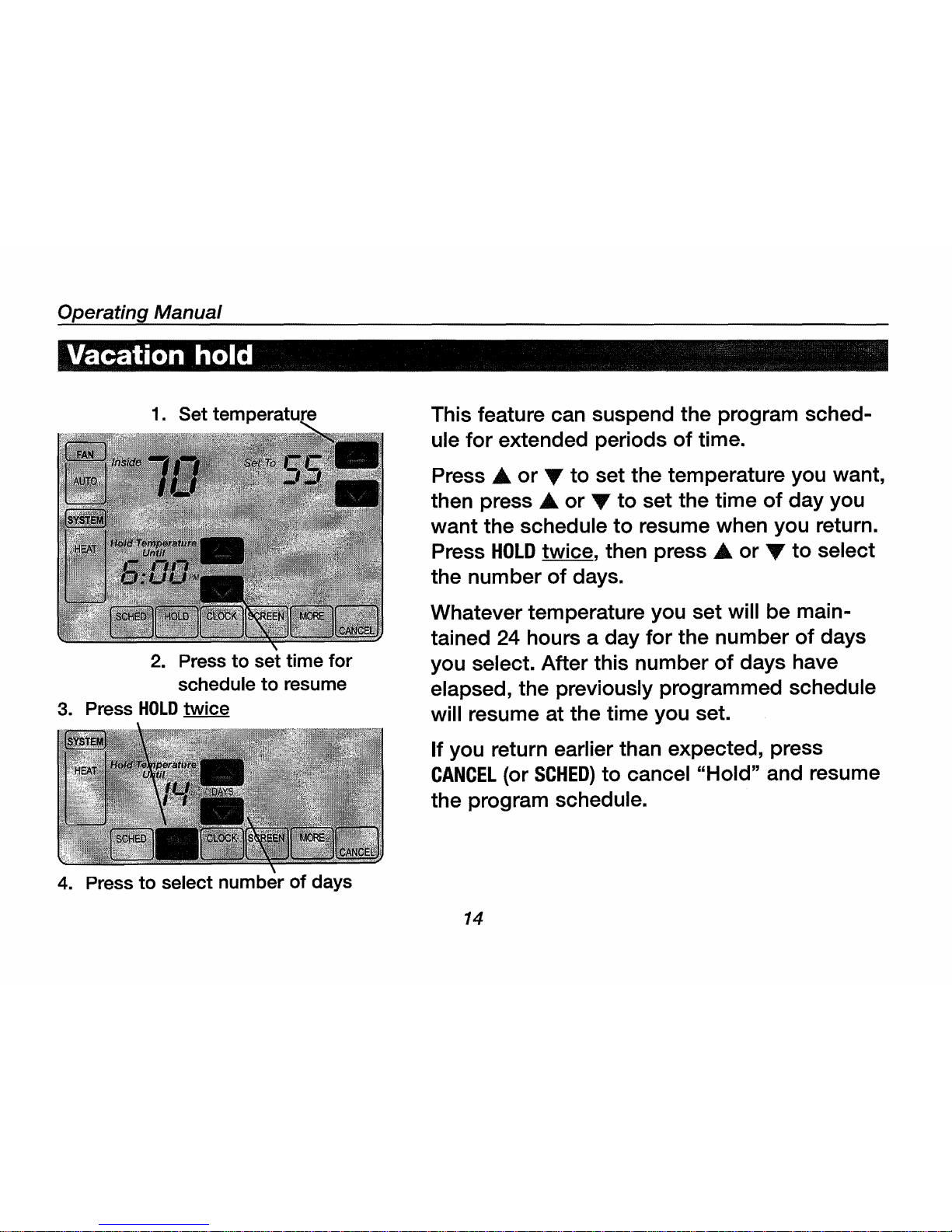

Ii.Vacation hold
2. Press to set time for
schedule
to resume
3. Press HOLD twice
4. Press to select number of days
This feature can suspend the program sched-
ule
for extended periods of time.
Press
.... or T to set the temperature you want,
then press
.... or T to set the time of day you
want the schedule
to resume when you return.
Press
HOLD twice, then press .... or T to select
the number
of days.
Whatever temperature you set will be main-
tained 24 hours a day
for the number of days
you select. After this number
of days have
elapsed, the previously programmed schedule
will resume at the time you set.
If you return earlier than expected, press
CANCEL (or SCHED) to cancel "Hold" and resume
the program schedule.
14

VisionPRO® THBDDD Series
Auto Changeover: When set to Auto, the thermostat automatically selects heating or
cooling depending on the indoor temperature.
Adaptive Intelligent Recovery: This feature allows the thermostat to "learn" how
long the furnace and air conditioner take to reach programmed temperature settings,
so the temperature is reached at the time you set. For example: Set the Wake time
to
6 am, and the temperature to 70°. The heat will come on before 6 am, so the tempera-
ture is 70°
by the time you wake at 6. The message "Recovery" is displayed when the
system is activated before a scheduled time period.
Compressor Protection: This feature forces the compressor to wait a few minutes
before restarting,
to prevent equipment damage. During the wait time, the message
"Wait" is displayed on screen.
15

Operating Manual

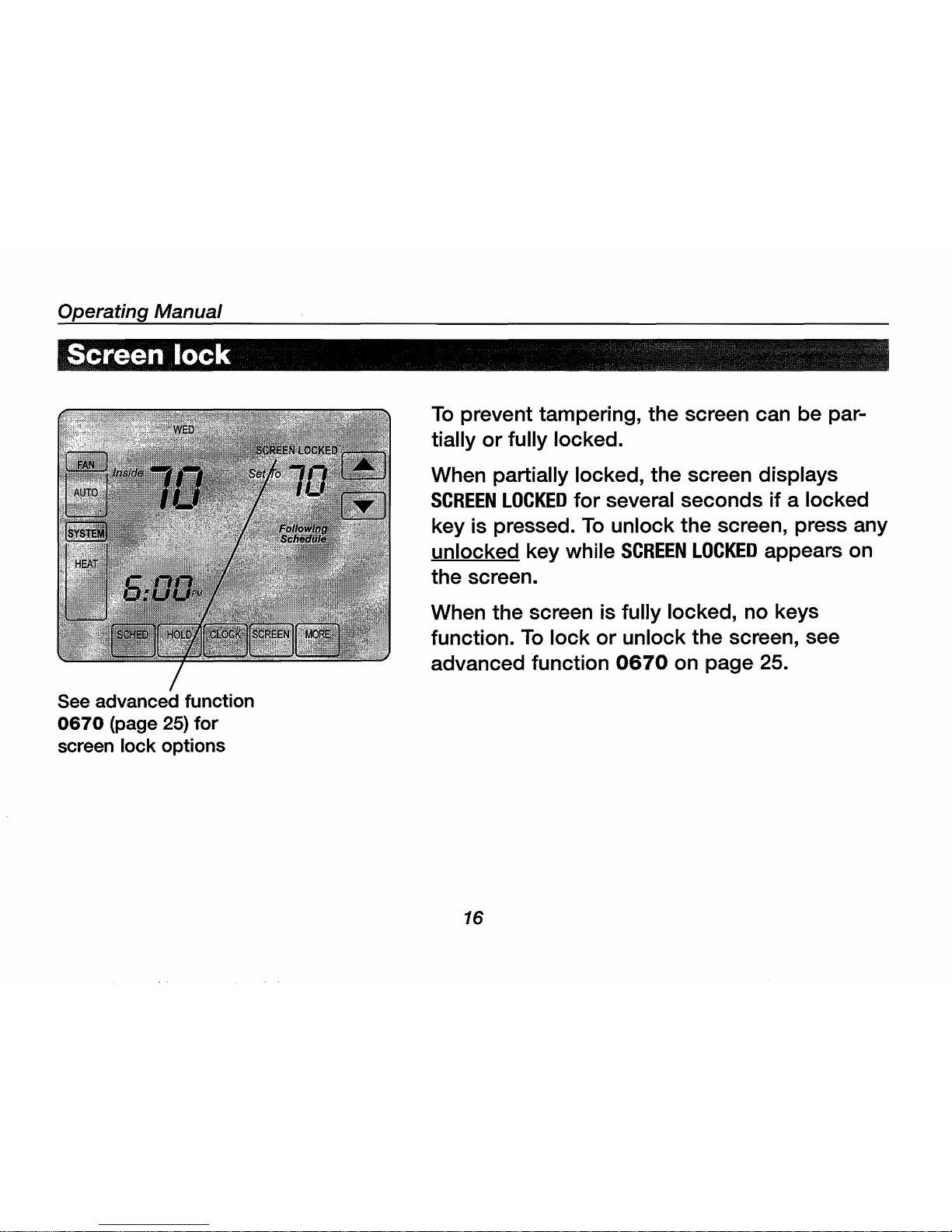

See advanced function
0670 (page 25) for
screen lock options
To prevent tampering, the screen can be par-
tially
or fully locked.
When partially locked, the screen displays
SCREEN LOCKED for several seconds if a locked
key is pressed.
To unlock the screen, press any
unlocked key while
SCREEN LOCKED appears on
the screen.
When the screen is fully locked, no keys
function.
To lock or unlock the screen, see
advanced function
0670 on page 25.
16

VisionPRO® TH8DDD Series
Press SCREEN
Screen lock timer (30 seconds)
Press SCREEN to lock the screen for cleaning.
The screen will remain locked
for 30 seconds
so you can clean the screen
without changing
any settings.
After 30 seconds, press
DONE to resume normal
operation,
or press SCREEN again if you require
more time
for cleaning.
Note: Do not spray any liquid directly on the
thermostat. Spray liquids
onto a cloth, then use
the damp cloth
to clean the screen. Use water or
household glass cleaner. Avoid abrasive cleansers.
17

Operating Manual
Select models can display the current indoor
humidity level.
(If
an optional outdoor sensor is installed,
the
outdoor temperature is shown instead of
the humidity level. Press MORE to display the
humidity level.)
Indoor humidity level
18
