Hope SSTB User manual

HA17051E
TYPE SSTB
SILENT BLOWER INSTRUCTION MANUAL
IE3 motor (compact low-pressure three-phase squirrel cage induction motor)
IPM motor (permanent magnet synchronous motor)
YOKOI KIKAI KOSAKUSHO CO.,LTD.
2720-1 OHORAGUCHINAKASHIDAMI MORIYAMA-KU NAGOYA 463-0002 JAPAN
TEL [phone]
FAX [phone]

IE3 motor (compact low-pressure three-phase squirrel cage induction motor)
Table of Contents
1．Inspection confirmation at the time of purchase ................................... 1
2．Outline ..................................................................................................... 1
3．Precautions when using .......................................................................... 2
4．Specification ............................................................................................. 3
5．Safety precautions .................................................................................. 4
6．Please be sure to read ............................................................................ 5
7．Transportation method ............................................................................ 6
8．Installation ............................................................................................... 6
9．Piping ........................................................................................................ 6
10．Wiring connection of the Motor ............................................................ 7
11．Star delta starting ................................................................................... 8
12．Starting current and starting time......................................................... 9
13．About electromagnetic contactor, switch, thermal relay ..................... 10
14．Before getting into operation ................................................................ 11
15．Maintenance inspection ........................................................................ 11
16．Roll filter ................................................................................................ 12
17．Disassembly method ............................................................................ 13
18．Precautions in assembling .................................................................. 13
19．Structure drawing .......................................................................... 13,14
IPM motor (permanent magnet synchronous motor)
Table of Contents
1．Inspection confirmation at the time of purchase .................................. 1
2．Outline .................................................................................................... 1
3．Precautions when using.......................................................................... 2
4．Specification ............................................................................................ 3
5．Safety precautions ................................................................................. 4
6．Please be sure to read ........................................................................... 5
7．Transportation method ........................................................................... 6
8．Installation .............................................................................................. 6
9．Piping ....................................................................................................... 6
10．Wiring connection of the Motor ............................................................ 7
11．
12．
13．
14．Before getting into operation ................................................................ 11
15．Maintenance inspection......................................................................... 11
16．Roll filter ............................................................................................... 12
17．Disassembly method............................................................................ 13
18．Precautions in assembling.................................................................. 13
19．Structure drawing .......................................................................... 13,14

- 1 -
Thank you very much for your purchase of SSTB type silent blower. This instruction manual is for your safety when using IE3 motor (small low-voltage three-
phase cage induction motor) or IPM motor (permanent magnet synchronous motor) (hereinafter referred to as IE3 motor or IPM motor) And instructions for
handling. In the text, the content that distinguishes IE3 motor and IPM motor is described in IE3 motor (left side) and IPM motor (right side) either separately
or together. Please read this against the corresponding motor.
For IPM moto r, re ad thi s blow er instru c tion manu al and the ins truc tio n man ual for the ded ica ted inv e rte r uni t (Tosh ib a
inv erte r) re quir ed whe n d rivin g the mot or, and us e i t pr ope rl y.
Please read this manual for the perfect capability to be assured and also for its maintenance and inspection.
Please be sure to deliver this instruction manual not only to the contractor but also to the end user.
1．Inspection confirmation at the time of purchase (IE3 motor)
Please check with the nameplate of the blower and the specification table
below to see if it is the product you ordered.
Especially depending on the area, there is a distinction of 50 · 60 Hz so
please check. Also please check for damage etc. during transportation.
1．Inspection confirmation at the time of purchase (IPM motor)
Please check with the nameplate of the blower and the specification table
below to see if it is the product you ordered.
For inverter drive there is no distinction of 50 · 60Hz depending on the
region. Also please check for damage etc. during transportation.
2．Outline(IE3 motor, IPM motor)
This is a “low noise type blower” realized by improving the air pressure characteristics and suppressing noise of our long-reputed WTB Series.
Owing to the roll filter employed, the filter can be replaced easily with no need of cleaning the filter.

- 2 -
3．Precautions when using (IE3 motor)
・Because IE3 suppresses generation loss, rotation speed generally becomes
faster than IE 1 (up to now motor). When IE1 (standard motor) is replaced
with IE3 (high efficiency motor), the output of the motor increases as this
rotational speed increases. Motor efficiency is high, but as the output
increases, power consumption may increase.
・Also, since the (primary and secondary) resistors are lowered to reduce
copper losses, the starting current is higher for IE1 (up to now motor), and
it is necessary to change wiring breaker, electromagnetic switch, thermal
relay, etc. It may become.
3．Precautions when using (IPM motor)
・IPM motors can not be operated by directly connecting a commercial power
supply (50/60 Hz).Drive with the inverter for IPM motor operation. In
particularly important equipment, it is recommended to prepare an
inverter spare in case of failure.
・Since an IPM motor needs to be controlled based on the position of the rotor,
it is not possible to operate multiple IPM motors with one inverter.
・If you combine an IPM motor with an inverter from different manufacturers,
the inverter or motor may malfunction, or reverse operation depending on
the machine may cause unexpected behavior.
・When the rotor of the IPM motor is mechanically rotated externally, the
magnetic field of the permanent magnet generates an induced voltage
between the motor terminals. Therefore, the inverter may be damaged
depending on the risk of electric shock and the rotational speed at the time
of power off.
・If the cable between the IPM motor and the inverter is long, it may not be
able to operate normally due to the increase of inverter surge and the
attenuation of sensor signal.
・The IPM motor has a permanent magnet inside, which requires careful
handling. Please contact the manufacturer you purchased for maintenance.

- 3 -
4．Specification(IE3 motor, IPM motor) * 1: The air volume, static air pressure, and noise value for an IPM motor are commercial power supplies (50 Hz / 60 Hz) input to the inverter.
SSTB-S Standard type
Type
Air quantity
(m3/min) *1
Static pressure
(kPa) *1 Motor
power
(kW)
Rated current (A)
Connection
Revolution per minute (min-1)
A Sound level
(dB) *1 Weight (kg)
50Hz 60Hz 50Hz 60Hz
IE3
50Hz
IE3
60Hz
IPM 180Hz
200V/400V
IE3
50Hz
IE3
60Hz
IPM 50Hz 60Hz IE3 IPM
3S 5 4 6.0 6.5 1.5 6.2 6.2 6.40/3.20 80A 2890 3460
3600
62 63 225 219
4S 9 9 6.0 6.0 2.2 9.2 9.0 9.00/4.50 100A 2875 3445 65 66 246 235
5S 17 16 6.5 6.5 3.7 14.4 14.2 15.2/7.60 125A 2910 3490 67 68 319 306
6S 25 26 6.5 6.5 5.5 21.4 21.0 23.0/11.5 150A 2920 3500 69 71 348 317
8S 35 34 7.0 7.0 7.5 29.8 28.6 31.0/15.5 200A 2920 3505 71 73 448 416
10S 54 55 6.0 6.0 11.0 44.0 43.0 45.0/22.5 250A 2940 3520 73 74 548 506
12S 70 70 6.5 6.5 15.0 58.8 56.8 60.0/30.0 300A 2940 3525 75 76 608 561
12SH 75 80 7.0 7.0 18.5 72.4 71.0 74.0/37.0 300A 2940 3525 78 79 649 592
SSTB-H High pressure type
Type
Air quantity
(m3/min)
Static pressure
(kPa) *1 Motor
power
(kW)
Rated current (A) *1
Connection
Revolution per minute (min-1)
A Sound level
(dB) *1 Weight (kg)
50Hz 60Hz 50Hz 60Hz
IE3
50Hz/200V
IE3
60Hz/200V
IPM 180Hz
200V/400V
IE3
50Hz
IE3
60Hz
IPM 50Hz 60Hz IE3 IPM
3H 5 4 7.5 8.5 2.2 9.2 9.0 9.00/4.50 80A 2875 3445
3600
65 66 246 235
4H 10 9 7.5 9.5 3.7 14.4 14.2 15.2/7.60 100A 2910 3490 67 69 259 246
5H 17 17 8.5 9.5 5.5 21.4 21.0 23.0/11.5 125A 2920 3500 70 72 348 317
6H 24 25 8.5 9.5 7.5 29.8 28.6 31.0/15.5 150A 2920 3505 73 74 358 326
8H 36 36 8.5 9.5 11.0 44.0 43.0 45.0/22.5 200A 2940 3520 74 75 518 476
10H 50 50 8.5 9.5 15.0 58.8 56.8 60.0/30.0 250A 2940 3525 75 76 568 521
12H 70 70 8.0 9.5 18.5 72.4 71.0 74.0/37.0 300A 2940 3525 77 78 639 582

- 4 -
5．Safety precautions(IE3 motor, IPM motor)
Be sure to thoroughly read this instruction manual and other attached documents before installation work, test operation adjustment, maintenance and
inspection, familiarize all about equipment knowledge, safety information, and precautions before using. In this instruction manual, the rank of safety
precautions is classified as "danger", "warning", "caution".
Meaning of indication
Indication 表示の意味
DANGER
Indicates contents that could result in death or serious injury if you handle it with the contents of this indication ignored.
WARNING
Indicates contents that could result in serious injury if you handle it with the contents of this indication ignored.
CAUTION
Indicates the possibility of being subject to moderate injury or minor injury, and handling that ignores the contents of this
indication, and it is supposed to cause physical damage.
Meaning of drawing
Drawing mark Meaning of drawing
INSTRUCTION
This is to tell that there is indication to instruct compulsorily your action.
Contents of the instruction must be described definitely nearly.
PROHIBITION
This is to tell the prohibited action.
Specifically prohibited action are described.
CAUTION
This is to tell that three is a thing to be at attended.
The specifically attended thing is described nearly.

- 5 -
5．Safety precautions(IE3 motor, IPM motor)
DANGER
PROHIBITION
Do not drive beyond the capability of the equipment
This machine is designed so that the current value does not exceed the rated current value during operation at the rated flow rate. If the
discharge flow rate exceeds the rated flow rate due to, for example, no resistance at the outlet or downstream from the outlet, the
overcurrent could cause failure or seizure of the motor. Be sure to use the burner in a manner that the rated current value and rated flow
rate are not exceeded.
ELECTRIC
SHOCK
Electric shock attention
When you remove the cover of a terminal box, please be sure to carry out after shutting off a former power supply.
PROHIBITION
Do not disassemble
Because you might be hurt with a turning impeller please never remove Looking cover while driving.
COMPULSON
Please fix a blower with an anchor bolt on the stable foundation.
COMPULSON
To fix the piping from the blower be sure to provide independent supports.
PROHIBITION
Do not use the attached gasket for sealing this blower.
Put the replaced old gaskets pouch and throw away them according to the waste disposal regulation or 「the waste cleaning regulation」.
Never burn up them.

- 6 -
7．Transportation method (IE3 motor, IPM motor)
As for lifting, please use the eyebolt (3 places)which is assembled to the main body as shownon the right.
Never use the handle of the silent cover.
8．Installation (IE3 motor, IPM motor)
・Secure a space at least 1m around the blower in consideration of disassembly cleaning and repair.
・Please avoid the place described below.
･Places sucking the corrosive gases.
･Place with much dust.
･Place that gets wet with rainwater.
･Place where the circumference will be 40 ℃ or more.
・Fix to the stable foundation firmly with an anchor bolt.
When you install on a steel-materials structure unavoidably, please use the rubber mount of an option.
・In order to prevent offset load, please install so that a blower axis becomes horizontal.
9．Piping(IE3 motor, IPM motor)
・For the piping, be sure to provide independent supports for fixing, and use the accompanying rubber joints to protect the blower from the direct impact of
load and vibration from the piping.
・Piping size should be the same diameter as the blower, or larger size.
・ A straight part of a blower exit pipe more than three times longer than pipe diameter is required.

- 7 -
10．Wiring connection of the Motor(IE3 motor)
Please check the specification of a motor with the name plate stuck on the external
terminal box.
The standard motor is 3 ratings of 200V-50 Hz, 200V/220V-60 Hz of single voltage.
As a special motor, there is also different voltage, such as 380V, 400V, and 440V.
Lead wire
Number of
terminals
Motor
power
kW
Lead wire connection method
Applicable standard
JIS JEC
3
1.0
3.7
6
5.5
18.5
Applicable standard
6
5.5
18.5
10．Wiring connection of the Motor (IPM motor)
Please check the specification of a motor with the name plate stuck on the external
terminal box.
The standard motor is 2 ratings of 200V-180 Hz, 400V-180 Hz of single voltage.
Connect the commercial power supply to the terminal block of the inverter.
Inverter is three-phase 200-240V-50 / 60Hz
It is two models of three-phase 380-500V-50 / 60Hz.
Lead wire
Number of
terminals
Motor
power
(kW)
Lead wire connection method
3
1.5
～
18.5
※Please connect so that there is no short circuit between wires.
※Ground the earth terminal securely.
※Please do not remove the short circuit board.
※Please connect so that there is no short circuit between wires.
※Ground the earth terminal securely.
※When connecting to the star delta starter please remove the short circuit plate.
(Star delta starting is possible for models with 5.5 kW or more)
󰵉
󰵉
󰵉

- 8 -
11．Star delta starting(IE3 motor)
1). Notes on star delta start
There are three electromagnetic contactor type and two magnetic contactor type in the star delta starting method. 2 Electromagnetic contactor type circuit
is simple and economical, but since voltage is constantly applied to the windings of the motor even when the motor is stopped, safety during maintenance
and inspection, dust and humidity are high Because it is necessary to pay attention to insulation degradation between the windings of each motor phase
winding and winding to ground at the place, 3 electromagnetic contact type is recommended.
2). Current detection method of thermal relay
As shown in the figure below, the thermal relay at the star delta start has the line current detection method and the phase current detection method, and
the selection of the heater rating is different. In the line current detection method, the heater rating is selected based on the motor full load current. On the
other hand, in the phase current detection method, the heater rating is selected based on the current of 1 / √3 of the full load current of the motor. In this
method, the frame size of the thermal relay can be made smaller than that of the line current detection method, but since the wiring size of the motor circuit
does not change in any detection method, in the case of the phase current detection method, Since it is necessary to consider whether wire connection is
possible or not, the line current detection method is recommended.
Line current detection method Phase current detection method

- 9 -
12．Starting current and starting time(IE3 motor)
SSTB-S Standard type
Type
Motor power
(kW)
Starting current (A) Start time (s)
Direct Star delta Direct Star delta
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
3S 1.5 44.8 42.2 - - 13.57 12.86 - -
4S 2.2 63.7 61.4 - - 10.03 9.69 - -
5S 3.7 101.5 101.1 - - 8.84 7.80 - -
6S 5.5 153.2 145.9 76.3 63.2 6.21 5.51 24.4 23.9
8S 7.5 217.0 199.7 108.0 86.4 3.97 3.87 14.9 15.5
10S 11.0 304.1 295.8 151.4 128.0 4.00 3.98 16.3 17.8
12S 15.0 407.8 390.6 203.0 169.1 3.60 3.80 14.1 16.0
12SH 18.5 505.4 492.5 251.6 213.2 3.31 3.34 12.5 13.5
SSTB-H High pressure type
Type
Motor power
(kW)
Starting current (A) Start time (s)
Direct Star delta Direct Star delta
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
3H 2.2 61.8 57.9 - - 13.78 13.68 - -
4H 3.7 84.1 97.1 - - 9.26 12.33 - -
5H 5.5 139.1 140.1 69.3 60.6 7.62 5.11 30.0 22.1
6H 7.5 188.0 194.0 93.6 84.0 5.26 3.35 19.7 13.4
8H 11.0 303.5 290.8 151.1 125.9 5.91 5.39 24.1 24.1
10H 15.0 423.6 387.7 210.9 167.8 4.55 3.80 17.7 16.0
12H 18.5 510.4 481.9 254.1 208.6 3.47 3.60 13.1 14.6

- 10 -
MCM：Electromagnetic contactor for power
MC△：Electromagnetic contactor for delta
MCS：Electromagnetic contactor for star (star short circuit)
13．About electromagnetic contactor, switch, thermal relay(IE3 motor)
※Compared with conventional motors, the IE3 motor increases the starting current by 15 to 30%.The startup time also tends to become longer.
1). Main circuit voltage 200 to 220 V direct startup (by Fuji Electric)
※ Please use late type thermal relay for thermal relay.
※ When the thermal relay trips, increase the set value of the thermal relay to 5%
We recommend you to.
Type
Motor power
(kW)
Electromagnetic switch type
Therm
al type
Settling
range (A)
3S 1.5 SW-0/2L Main circuit AC☐V 1.5kW
Coil AC☐V 1a(1b)
TR-
0NL
5～8(5)
3H
4S
2.2 SW-0/2L Main circuit AC☐V 2.2kW
Coil AC☐V 1a(1b)
TR-
0NL
7～11(7)
4H
5S
3.7 SW-4-1/2L Main circuit AC☐V 3.7kW
Coil AC☐V 1a(1b)
TR-5-
1NL
12～
18(12)
5H
6S
5.5 SW-N1/2L Main circuit AC☐V 5.5kW
Coil AC☐V 2a2b
TR-
N2L
18～
26(18)
6H
8S
7.5 SW-N2/2L Main circuit AC☐V 7.5kW
Coil AC☐V 2a2b
TR-
N2L
24～
36(24)
8H
10S
11.0 SW-N2S/2L Main circuit AC☐V 11kW
Coil AC☐V 2a2b
TR-
N3L
34～
50(34)
10H
12S
15.0 SW-N3/2L Main circuit AC☐V 15kW
Coil AC☐V 2a2b
TR-
N3L
45～
65(45)
12S
H
12H
18.5 SW-N4/2L Main circuit AC☐V 18.5kW
Coil AC☐V 2a2b
TR-
N5L
53～
80(53)
2). Main circuit voltage 200 to 220 V Star delta starting (by Fuji Electric)
For the selection in the table below, the thermal relay uses line current detection
and the star electromagnetic switch is selected by the star short circuit method.
※ Please use late type thermal relay for thermal relay.
※ When the thermal relay trips, increase the set value of the thermal relay to 5%
We recommend you to.
Type
Motor power
(kW)
Electromagnetic switch type
Thermal
type
Settling
range (A)
5H
6S
5.5
MCM:SC-4-0 Coil AC☐V 1a
MC△:SC-4-0 Coil AC☐V 1b
MCS:SC-5-1 Coil AC☐V 1a1b
TR-N2LH
18～
26(18)
6H
8S
7.5
MCM:SC-4-1 Coil AC☐V 1a
MC△:SC-4-1 Coil AC☐V 1b
MCS:SC-N1 Coil AC☐V 2a2b
TR-N2LH
24～
36(24)
8H
10S
11.0
MCM:SC-N2 Coil AC☐V 2a2b
MC△:SC-N2 Coil AC☐V 2a2b
MCS:SC-N1 Coil AC☐V 2a2b
TR-N2LH
34～
50(34)
10H
12S
15.0
MCM:SC-N2 Coil AC☐V 2a2b
MC△:SC-N2 Coil AC☐V 2A2b
MCS:SC-N2 Coil AC☐V 2a2b
TR-N3LH
45～
65(45)
12SH
12H
18.5
MCM:SC-N2S Coil AC☐V 2a2b
MC△:SC-N2S Coil AC☐V 2a2b
MCS:SC-N2 Coil AC☐V 2a2b
TR-N3LH
53～
80(53)

- 11 -
14．Before getting into operation(IE3 motor)
＜Check of direction of rotation＞
1）Rotate the impeller slowly by turning ON/OFF the started switch instantaneously.
2）Looking through the rotation instruction cover, check whether the rotation confirmation mark (yellow) on the spindle shows the same direction as the
direction of the arrow. If not, turn OFF the main power immediately, and correct the connection.
＜Starting operation＞
1）Turn on the start switch of a blower.
2）When the blower becomes steady, increase the load to the maximum level, and check whether the current value of the motor is not above the rated value.
(Never run the motor under overloaded condition.)
3）If the operating air quantity is reduced excessively, a surging phenomenon (pressure fluctuation like waving) may occur. If such phenomenon occurs, it is
advisable to provide a vent valve on the delivery side.
15．Maintenance inspection(IE3 motor)
Please inspection and maintenance in the following way.
1）Even if there is not abnormality, please do the inspection in the main body of impeller and blower once a year.
2）Occasionally check the tightening of the bolts of each part.
3）Always pay attention to the abnormal sound, vibration, overheat of the blower body and any other abnormality.
4）Please rolling up the dirty roll filter and clean it.

- 12 -
16．Roll filter(IE3 motor, IPM motor)
Please check the filter periodically, and before it starts decreased pressure
by the clog of dust etc., Rolling up a roll filter.
The roll filter is supposed to be replaced by rolling up once every week or
so, but this replacement frequency may be adjusted according to the usage
and the environment.
One roll filter lasts for about one year.
●Rolling up the roll filter
1）Loosen the wing nut B.
2）Release the latch to open the presser foot.
3）Rolling up one circumferential amount of the filter.
4）Put the presser foot back to the former state with the latch.
5）Cut off the soiled portion of the filter.
6）Tighten the wing nut B.

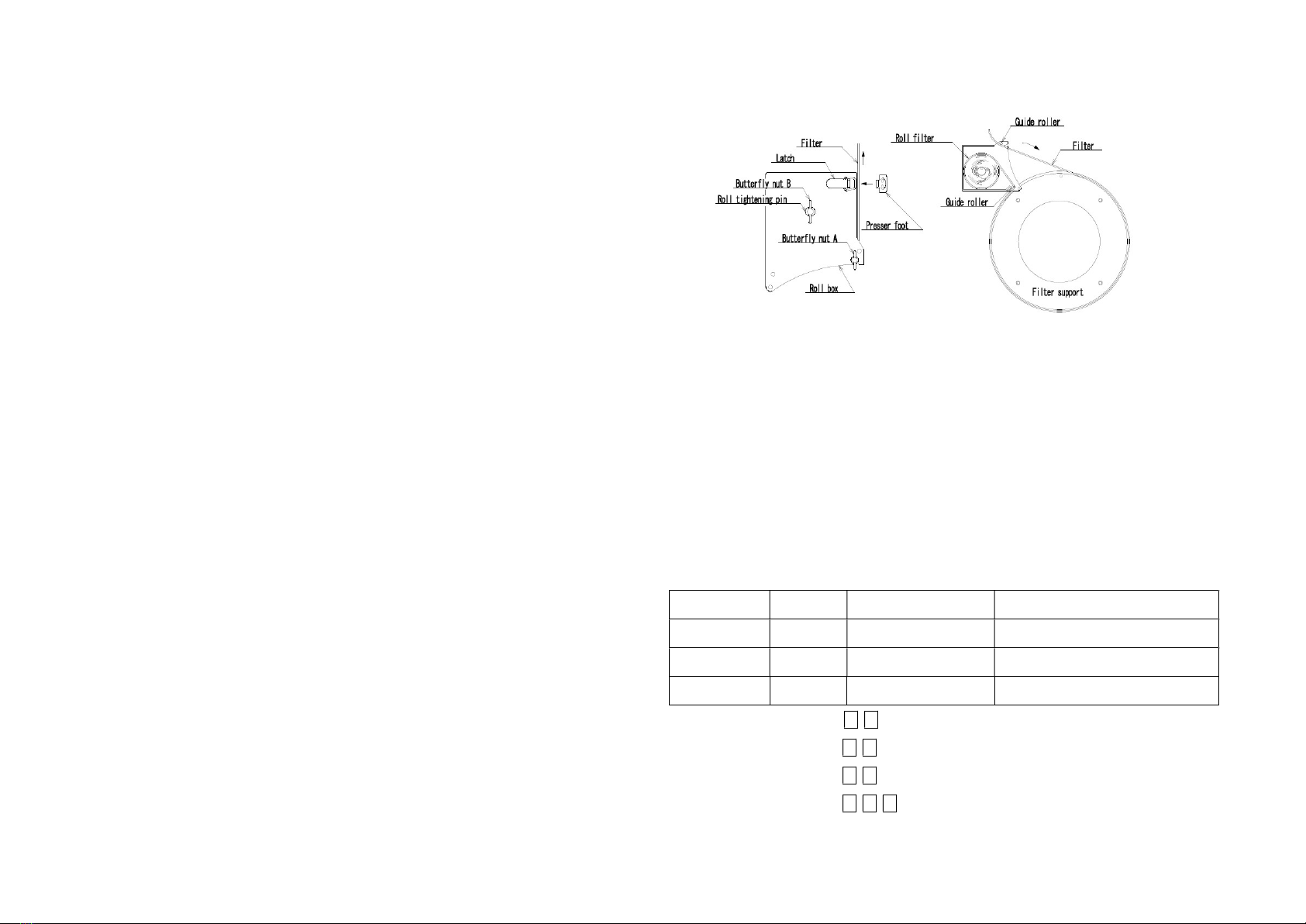

＜Detailed view of roll filter ＞
●Exchange of a roll filter
1）Loosen the wing nut A and open the roll box.
2）Remove the wing nut B and pull out the roll receiving pin.
3）Insert a new roll filter and insert the roll receiving pin.
4）Tighten with the wing nut B and fix.
5）Pass the tip of the filter through the inside of the guide roller as
shown in the figure.
6）Return the roll box to its original position.
7）Tighten the wing nut A and fix the roll b
●A filter kind and pressure loss
There are 3 filter types as listed below Please use properly according to
usage environment.
As of shipping from our facilities, the filter of medium roughness (RF-M)
type has been provided.
※Pressure loss (Maximum) is a value at the time of the maximum air
quantity in each model. When ordering, make an entry in the ☐☐ spaces
as follows.
Type Model Sieve opening（mm）
Pressure loss (Maximum)※
Coarse mesh
RF-☐☐-L
2.5 Less than 0.06kPa
Medium mesh
RF-☐☐-M
1.3 Less than 0.10kPa
Fine mesh RF-☐☐-S 0.6 Less than 0.20kPa
ＳＳＴＢ－３，４ →３ ４
ＳＳＴＢ－５，６ →５ ６
ＳＳＴＢ－８，１０ →８ １
ＳＳＴＢ－１２ →１ ２ ０

- 13 -
17．Disassembly method(IE3 motor, IPM motor)
<Blower body inside side>
1）Pass a wire or the like through the eye bolts② attached to the cover⑫,
hoist the blower body①, and fix the blower body① in the hoisted position
2）Remove the bolts from the cover⑫, and separate the cover⑫ from the
blower body①.
3）Release the fixing teeth of the bearing washer⑩, and remove the bearing
washer⑩ together with the bearing nut⑪ and the collar⑨.
4）Remove the impeller⑧, and remove the key⑦.
5）Remove the positioning collar⑥.
<Silent cover side>
1）Remove the Wing nut㉑ and pull out a Filter support⑱than a Rod bolt⑯.
2）Disconnect the wiring and remove the Terminal box○
A.
3）Remove the Bushing○
C and Lock nut ○ D from the Connector○ E, push the
Plica tube○
F to the inside of the cover.
4）Remove the bolt from the cover support㉕ and silent cover⑮, and separate
the silent cover⑮ from the blower body① by using the cover knob.
Now, the disassembly of the inside of the main body and silent cover unit
is completed.
In the case of assembling, please go in the inverse order mentioned above.
18．Precautions in assembling(IE3 motor, IPM motor)
1）Never scratch or bruise the shafts and meshing parts.
2）Apply high quality machine oil to the shaft, etc., after cleaning.
3）Tighten the bearing nuts firmly and fix them bending the pawls of the
bearing washers.
4）Upon completion of assembly turn the blower shaft by a hand to confirm
that it moves as smoothly as before disassembly.
19．Structure drawing(IE3 motor, IPM motor)
<Terminal box>
A Terminal box
B Box support
C Bushing
D Lock nut
E Connector
F Plica tube

- 14 -
<Roll filter type>
1 Blower body 16
Rod bolt
2 Eye bolt 17
Silent pad
3 Base 18
Filter support
4 Motor support 19
Cover support
5 Motor 20
Roll filter
6 Positioning collar 21
Punching metal
7 Key 22
Wing Nut
8 Impeller 23
Gauge plate
9 Collar 24
Butterfly spindle
10
Bearing washer 25 Butterfly handle
11
Bearing nut 26 Rubber joint
12
Cover 27 Mate flange
13
Rotation instruction cover 28 Packing
14
Rotation instruction label 29 Roll receive pin
15
Silent cover 30 Roll box
<Wire mesh type>
1 Blower body 15
Silent cover
2 Eye bolt 16
Rod bolt
3 Base 17
Silent pad
4 Motor support 18
Filter support
5 Motor 19
Cover support
6 Positioning collar 20
Filter
7 Key 21
Filter presser
8 Impeller 22
Wing Nut
9 Collar 23
Gauge plate
10
Bearing washer 24 Butterfly spindle
11
Bearing nut 25 Butterfly handle
12
Cover 26 Rubber joint
13
Rotation instruction cover 27 Mate flange
14
Rotation instruction label 28 Packing
Specifications are subject to change without notice for improvement. 2019.7
