Horticat U80 User manual

USER MANUAL
U80 Ultrasonic Humidification System
INTRODUCTION

-1-
The Leader of Ultrasonic Misting
Technology
Thank you for choosing the Horticat U80 Ultrasonic Humidifier!
This unit is designed for easily and efficiently adding humidity to any environment
that requires on demand humidity frequently. Ideal for controlled growing or
manufacturing needs.
This unit will disperse up to 80 pints of humidity per day. Depending on how tightly
sealed your environment is or how much humidity is lost or removed, this unit can
humidify up to 2000 sq.ft. of space. Additional units can be added for larger demands.
Page Index

-2-
The Leader of Ultrasonic Misting
Technology
1Product Overview .....................................................................2
1.1 Appearance ........................................................................................2
1.2 Product Features.................................................................................3
1.3 Package Listing...................................................................................4
2 Product Specifications.............................................................5
2.1 Specifications......................................................................................6
2.2 How it Works.......................................................................................6
3 Installation Guideline................................................................7
3.1 Installation ..........................................................................................7
3.2 Connecting The Unit ...........................................................................7
4 Getting Started ..........................................................................8
4.1 Steps to Success................................................................................8
4.2 Multi Unit Example............................................................................10
5 Maintenance ..............................................................................9
5.1 Air Filter Maintenance.........................................................................9
5.2 Ultrasonic Plate Maintenance ...........................................................10
6 Trouble Shooting ....................................................................10
1 Product Overview
1.1 Appearance

-3-
The Leader of Ultrasonic Misting
Technology
1.2 Product Features
A Large Volume Output & Ultra-fine Mist Particle Size
Ultrasonic mist output up to 80 pints per day. Ultra-fine mist droplets of ≤5μ with high
gasification rate up to 80% to enhance humidification effectiveness.
B Convenient Autofill
Directly connects to water source and fills itself as needed with the built-in float
mechanism.
D Intelligent Auto-control
With built-in humidistat for precise control of humidity range from 20-80%.
E Overflow / Loss of Water Protection

-4-
The Leader of Ultrasonic Misting
Technology
In the event the float valve gets stuck open, there is an overflow drainage outlet to
protect the unit from overflowing and causing internal damage to the unit.
In the event of loss of water pressure or the float valve is stuck closed, the unit will
stop functioning to protect itself from internal overheating and damage to the ultrasonic
plate.
F Energy Saving & Ultra Quiet
Unit only uses 120 Watts while running at full output capacity. Much more quiet than
centrifuge humidifiers while producing humidity levels much faster without the mess.
G Antibacterial & Easy to clean
The ultrasonic chamber uses silver ion antibacterial technology for hygienic mist. It
is recommended to clean the unit every six months or as needed. It is very easy to open
and clean.
H Simple Installation
Easy wall-mount installation, push-fit connectors and do it yourself water line
connection valve allows for very fast and easy installation
.
1.3 Package Listing
Product/Pic
QTY
Product/Pic
QTY
Product/Pic
QTY

-5-
The Leader of Ultrasonic Misting
Technology
U80 Unit
1
SET
Saddle Valve
1
pc
Push-fit connector
1
set
1/2" to 1/4" Push-fit
connector
PE shut off valve
1
pc
1/2" to 1/4" Push-fit
connector
1
pc
1/2" to 3/8" Push-fit
connector
1
pc
1/4" & 3/8" pipe
50ft
of
each
Hose nail for 1/4" &
3/8" pipe
5pcs of
each
¢5X80
expansion screws
2
pcs
（Optional accessories)
filter
1
pc
1/4" Push-fit connector
2
pcs
Mounting clip /¢5X30
expansion screw
2pcs
of
each
2Product Specifications

-6-
The Leader of Ultrasonic Misting
Technology
2.1 Specifications
2.2 How It Works
Chart 2.1
3Installation Guideline
3.1 Installation
Mount securely to wall or structure that can support at least 30lbs. The unit includes some
basic mounting hardware, but it may not be suitable to your exact needs. The unit projects
humidity up and outward, be careful to allow proper space so humidity does not collect on
ceiling or objects nearby.
Input Voltage
110AC
50/60Hz
N.W
9.9 lbs
Ambient
Temperature
≤50℃
Power
120 W
G.W
14.33 lbs
Ambient
Humidity
≤80%RH
Mist Output
80 pints day
Dimension
14.25x8x21.5
inches
Atomizing
Media
Tap-water
Mist Particle
Dia（D50）
≤5μm
Max
Atomizing
Distance
10ft throw
Water
Temperature
50~130 °F

-7-
The Leader of Ultrasonic Misting
Technology
3.2 Connecting the Unit
A. Overflow and Drain Connections
Connect the tubing as shown in the picture. Be sure to insert the rubber rings
(washers). Connect supplied tubing and run to the nearest drain, this U shaped piping
assembly connection is for draining the unit to clean and to provide over flow outlet in
case of float device malfunction.
B. Water Input
Thread the supplied ½ threaded to ¼ push fitting adapter to the inlet port on the side
of the unit. Be sure to use the supplied rubber washer and be careful not to over tighten
and damage the unit.
You may alter your layout / connections / fittings to customize to your needs. The
only required connection above is the water supply in and a shut off fitting on the drain
outlet. The optional filter shown in the above diagram is recommended as it will remove
excess minerals in the water. Without any pre-filter you may get calcium and other
mineral deposits built up in the unit and the surrounding area. The most common
(optional)
to water supply (saddle valve)
to drain

-8-
The Leader of Ultrasonic Misting
Technology
4Getting Started
4.1 Steps to Success
Note: The unit will not produce ultrasonic mist until the tank has reached its required
water fill level.
4.2 Multi Unit Example
Chart 3.5
1. Be sure the drain
valve is closed
3. Open outlet port
cover
4. Ensure unit
is plugged into
power source
5. Power unit on
6. Adjust to desired
humidity level
Chart 4.2 combined use
2. Turn on
water source

-9-
The Leader of Ultrasonic Misting
Technology
Note:
When using multiple units they should each be connected to the water supply separately, drain
separately and have one filter for each unit as shown in chart 4.2.
5Maintenance

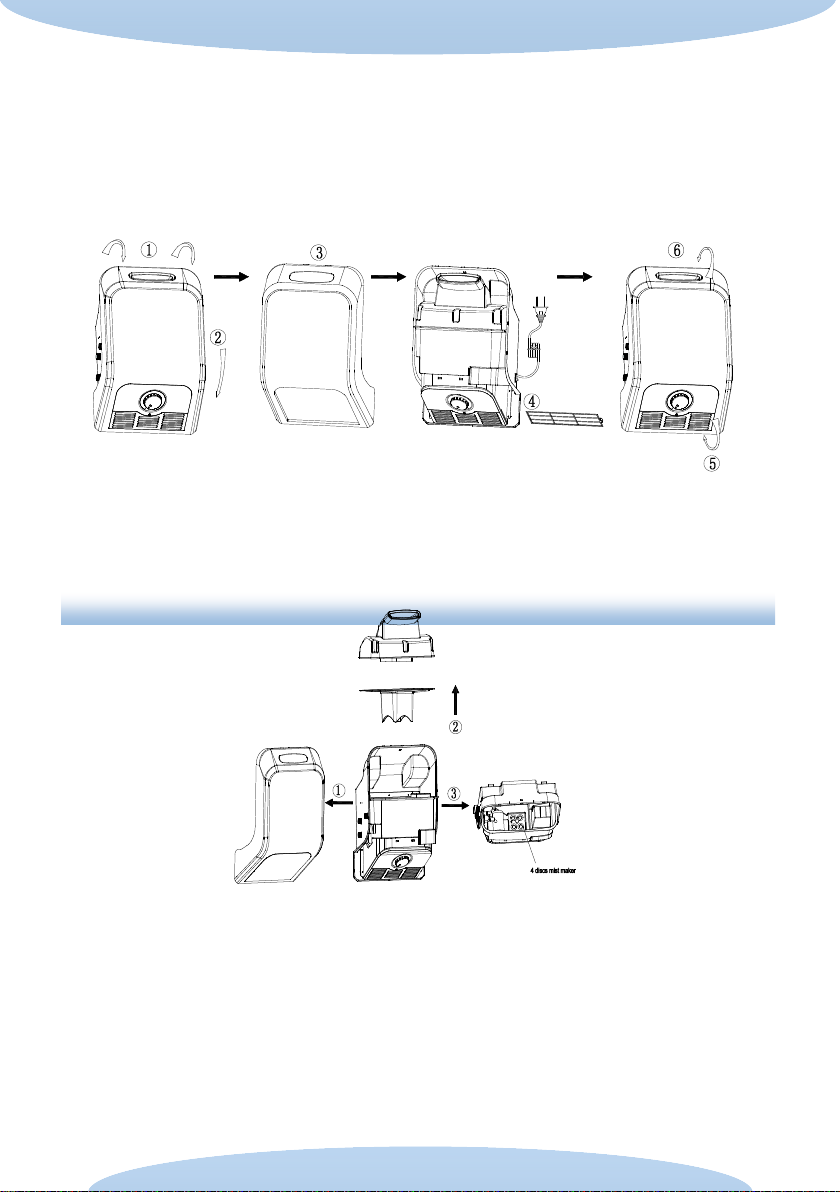

5.1 Air Filter Maintenance
5.2 Ultrasonic Plate Maintenance
The air filter should be cleaned every six months or as needed. To do so, remove
the front cover as shown in illustration, slide air filter to the right, rinse and replace.

-10-
The Leader of Ultrasonic Misting
Technology
6Troubleshooting
Problem
Causes
Treatment
Low output
1. Basin water level too high。
2. Buildup on ultrasonic plate.
Adjust the float valve.
Clean the ultrasonic plate and
chamber.
No output
1. Basin water level too low。
Verify unit is powered on.
Verify water source is on.
Check drain valve is closed.
Adjust the float valve.
Water overflow
1. Float valve malfunction.
Adjust and clean the float valve.
Verify valve shuts off when in up
position.
Ultrasonic mist low
projection
1. Dirty air filter or covered.
Clean the air filter.

-11-
The Leader of Ultrasonic Misting
Technology

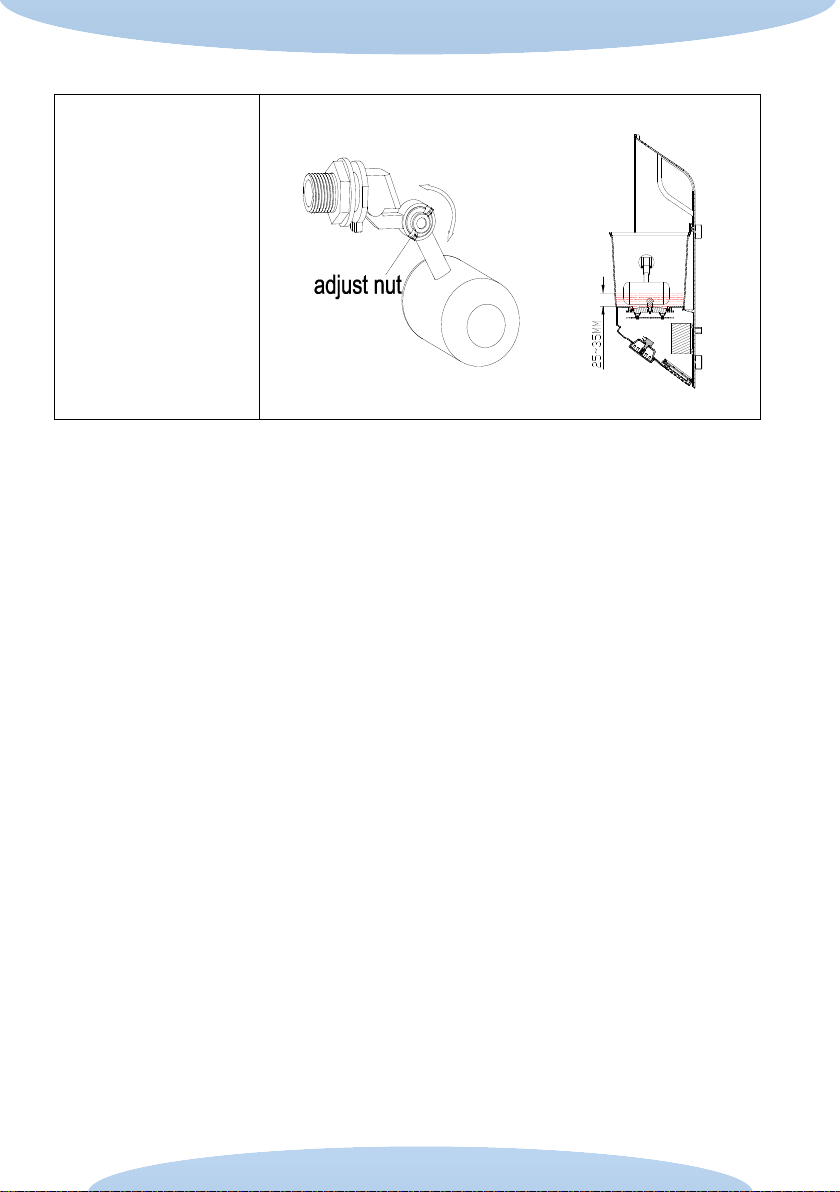

Note:
The float valve should be
about 1 inch above the
ultrasonic plate, when the
basin fills and the float
valve closes there should
be approximately 2 inches
of water.

-12-
The Leader of Ultrasonic Misting
Technology
7Warranty and Customer Service
The U-80 carries a 6-month limited manufacturer warranty.
For support you may contact your local dealer or reach us directly at
1-800-259-3743 or e-mail us at [email protected].
Horticat Grow Technologies
5656 Opportunity Drive Unit 5 Toledo, Ohio 43612
Email：[email protected] Phone : [phone]
www.horticat.com
