Horticat U80PRO User manual

USER MANUAL
U80PRO Ultrasonic Humidification System

-1-
The Leader of Ultrasonic Misting
Technology
INTRODUCTION
Thank you for choosing the Horticat U80PRO Ultrasonic Humidifier!
This unit is designed for easily and efficiently adding humidity to any environment
that requires on demand humidity frequently.
This unit will disperse up to 80 pints of humidity per day. Depending on how tightly
sealed your environment is or how much humidity is lost or removed, this unit can
humidify up to 2000 sq.ft. of space.Additional units can be added and linked together for
larger demands. We highly suggest having our units connected to a reverse osmosis or a
water source under 200ppm.

-2-
The Leader of Ultrasonic Misting
Technology
Page Index
1Product Overview .....................................................................3
1.1 Appearance ..........................................................................................3
1.2 Product Features ..................................................................................3
1.3 Package Listing.....................................................................................5
2 Product Specifications.............................................................6
2.1 Specifications........................................................................................6
3 Installation Guideline................................................................7
3.1 Installation.............................................................................................7
3.2 Connecting the Unit ..............................................................................7
4 Getting Started..........................................................................9
4.1 Steps to Success..................................................................................9
4.2 Features................................................................................................9
4.3 Setting the Humidity Levels ……………………………………………. 10
5 Maintenance............................................................................12

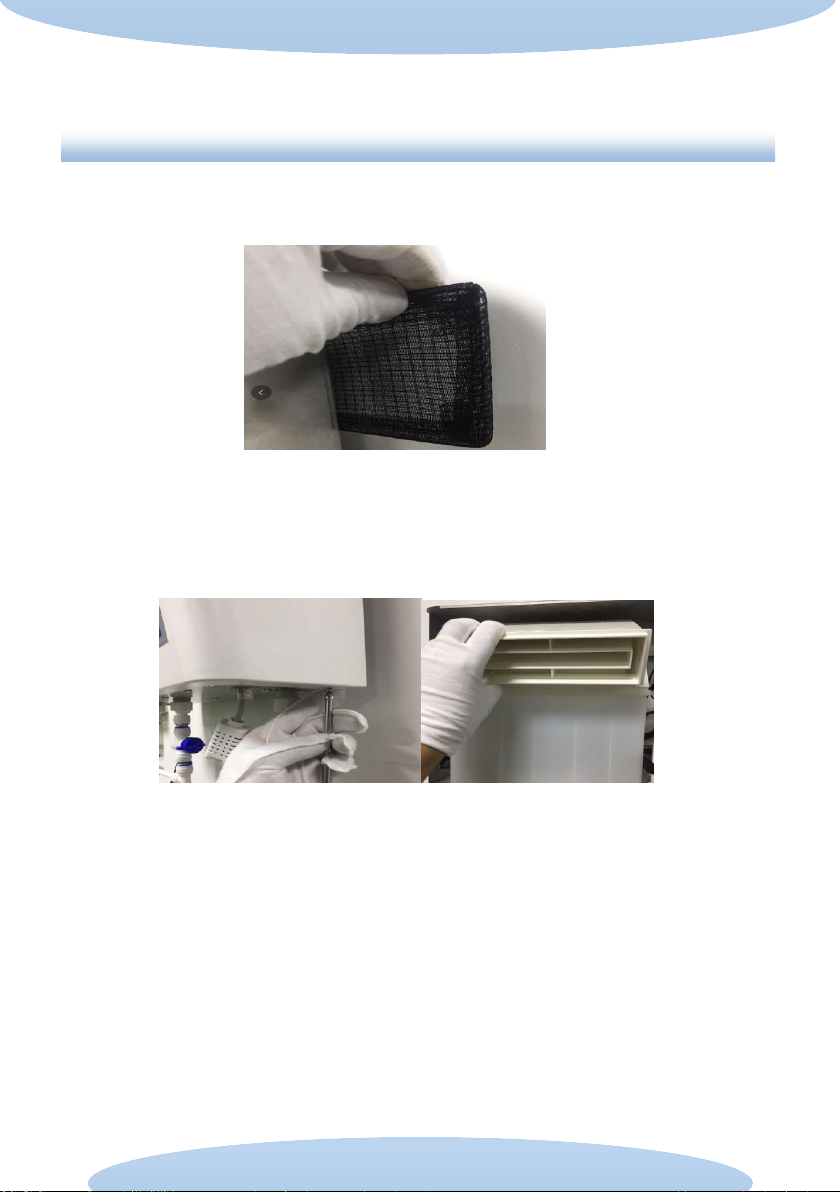

5.1 Air Filter Maintenance.........................................................................12
5.2 Ultrasonic Plate Maintenance ………………………………………….. 12
6 Trouble Shooting .................................................................... 13

-3-
The Leader of Ultrasonic Misting
Technology
1 Product Overview

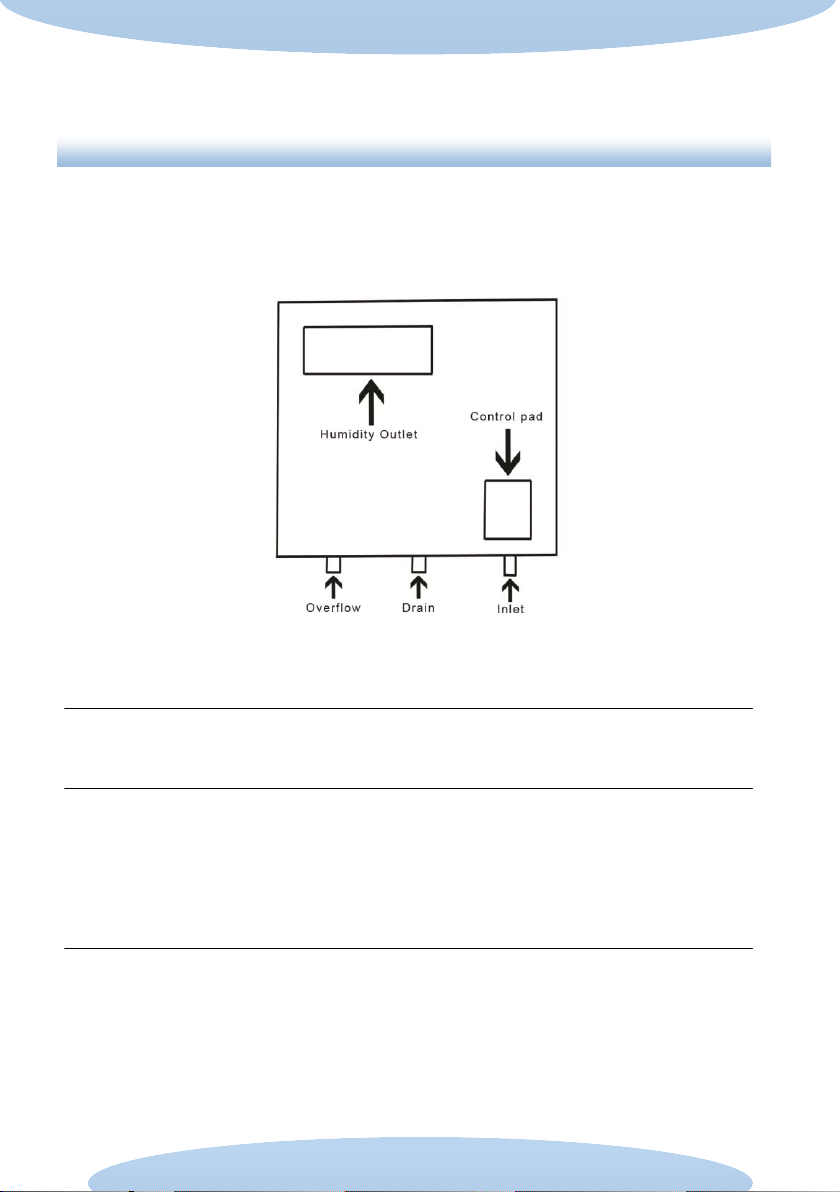

1.1 Appearance
1.2 Product Features
A Large Volume Output & Ultra-fine Mist Particle Size
Ultrasonic mist output up to 80 pints per day. Ultra-fine mist droplets of ≤5μ with high
gasification rate up to 80% to enhance humidification effectiveness.
B Convenient Autofill
Directly connects to water source and fills itself as needed with the built-in float
mechanism.

-4-
The Leader of Ultrasonic Misting
Technology
D Intelligent Auto-control
With built-in humidistat for precise control of humidity ranging from 35-85%.
E Overflow / Loss of Water Protection
In the event the float valve gets stuck open, there is an overflow drainage outlet to
protect the unit from overflowing and causing internal damage to the unit.
In the event of loss of water pressure or the float valve is stuck closed, the unit will
stop functioning to protect itself from internal overheating and damage to the ultrasonic
plate.
F Energy Saving & Ultra Quiet
Unit only uses 130 Watts while running at full output capacity. Much more quiet than
centrifuge humidifiers while producing humidity levels much faster without the mess.
G Antibacterial & Easy to clean
The ultrasonic chamber uses silver ion antibacterial technology for hygienic mist. It
is recommended to clean the unit every two months or as needed. It is very easy to open
and clean.
H Simple Installation
Easy wall-mount installation, push-fit connectors and do it yourself water line
connection valve allows for very fast and easy installation.
.

-5-
The Leader of Ultrasonic Misting
Technology

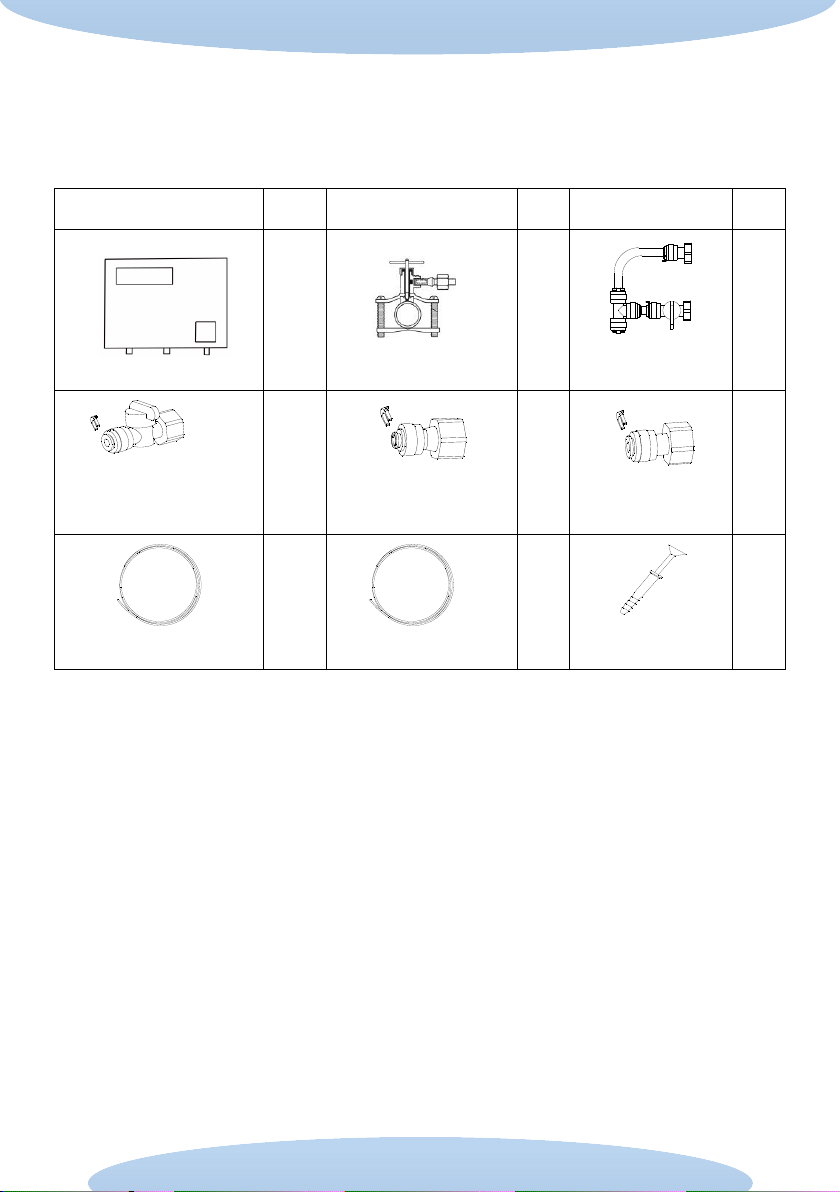

1.3 Package Listing
Product/Pic
QTY
Product/Pic
QTY
Product/Pic
QTY
U80PRO Unit
1
SET
Saddle Valve
1
pc
Push-fit connector
1
set
1/2" to 1/4" Push-fit
connector PE shut
off valve
1
pc
1/2" to 1/4" Push-fit
connector
1
pc
1/2" to 3/8" Push-fit
connector
1
pc
1/4”black tubing
25ft
3/8”white tubing
25ft
Expansion screws
6
pc

-6-
The Leader of Ultrasonic Misting
Technology
2Product Specifications
2.1 Specifications
Input Voltage
110AC
50/60Hz
N.W
9.9 lbs
Ambient
Temperature
≤50℃
Power
130 W
G.W
14.33 lbs
Ambient
Humidity
≤85%RH
Mist Output
80 pints day
Dimension
16.5x11.75x6.25
inches
Atomizing
Media
Tap-water
Mist Particle
Dia（D50）
≤5μm
Max
Atomizing
Distance
10ft throw
Water
Temperature
50~130 °F

-7-
The Leader of Ultrasonic Misting
Technology
3Installation Guideline
3.1 Installation

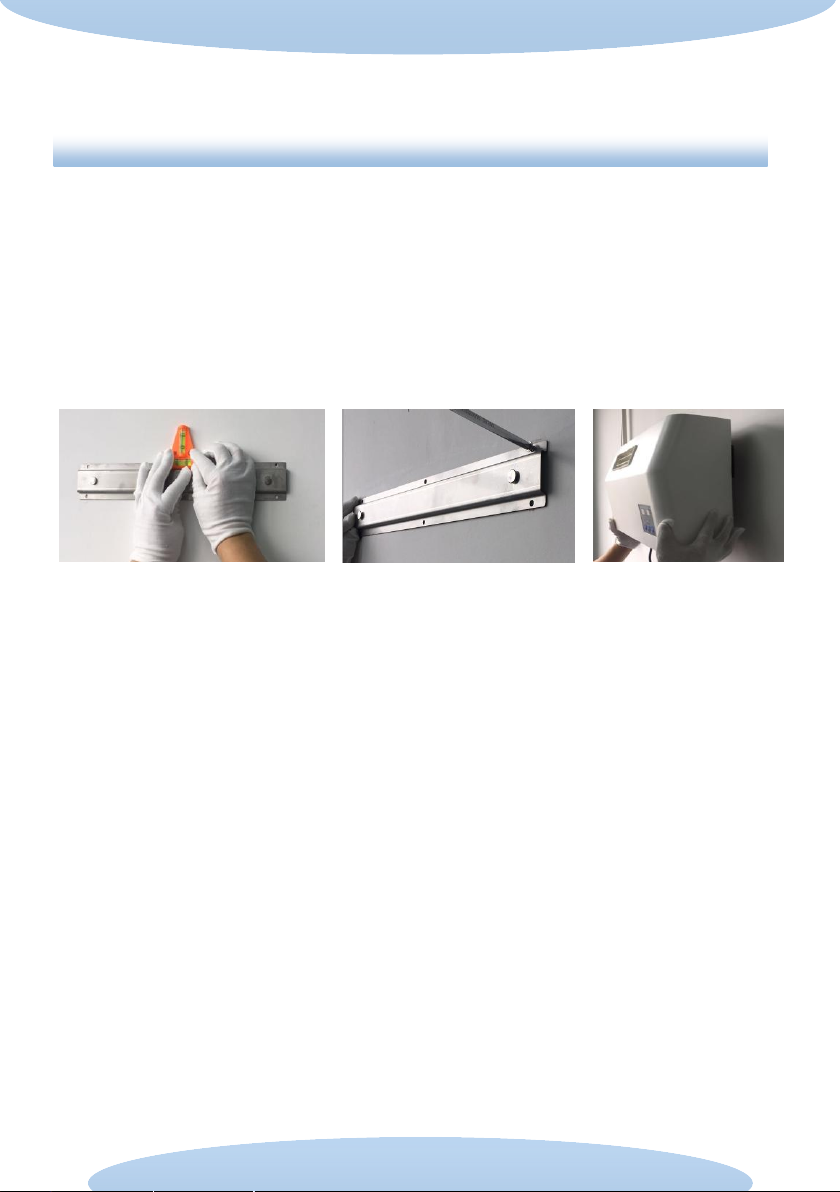

Mount securely to wall or structure that can support at least 30lbs. Please use the level
ruler to position the wall mount panel on the wall, mark the holes, install the wall panel on
the wall using anchors, and then hang the machine on the wall panel as shown below:
3.2 Connecting the Unit
A. Overflow and Drain Connections
Connect the tubing for the overflow and drain outlet, do not over tighten as you can
damage the tank inside. The drain outlet should be the connection with inline open/close
valve. Be sure to insert the rubber rings (washers). Connect supplied 3/8” tubing and run
to the nearest drain, this U shaped piping assembly connection is for draining the unit to
clean and to provide over flow outlet in case of float device malfunction.

-8-
The Leader of Ultrasonic Misting
Technology
B. Connecting the Humidistat
Plug in the supplied humidistat into the rj45 port next to the water inlet on the bottom
of the unit. The humidistat is tucked into the foam in the box for shipping purposes, this
humidistat can be extended by an rj45 extension to be hung anywhere you desire for a
better relative humidity reading. The humidifier will not work if the humidistat is not
plugged in or will go to sub mode and use the master unit settings if connected wirelessly
in the room.
C. Water Input
Thread the supplied ½”threaded to ¼”push fitting adapter to the water inlet port on
the bottom of the unit. Be sure to use the supplied rubber washer and be careful not to
over tighten and damage the unit.
You may alter your layout / connections / fittings to customize to your needs. The
only required connection is the water supply in and a shut off fitting on the drain outlet.We
suggest running this unit on a RO water system and/or with the use of an inline filter and
supplied water is under 200ppm. Without any pre-filter you may get calcium and other
mineral deposits built up in the unit and surrounding area. The most common connection
is to your buildings water supply lines with the use of the included ¼” saddle valve. We
have included in the box a step by step installation sheet for the saddle valve installation,
if you don’t feel comfortable with installing it please contact a local plumber.

-9-
The Leader of Ultrasonic Misting
Technology
4Getting Started
4.1 Steps to Success
1) Be sure the drain inline valve is closed
2) Make sure sensor is plugged in via rj45 port by the water inlet on bottom side
3) Turn on your water source
4) Ensure the unit is plugged into power source
5) The unit is powered on
6) Adjust to desired humidity levels
Note: The unit will not produce ultrasonic mist until the tank has reached its required
water fill level which could take a couple of minutes.
4.2 Features
1) The humidity controller responds to environmental temperature changes in real
time.
2) The controller has a built-in light sensor, which can automatically identify the
light intensity and allows for two operating parameter settings for day and night
modes.
3) According to your different humidity needs, the humidity upper limit and humidity
over limit can be set (for humidity lag and calibration). The settings are
automatically saved.
4) Multiple humidifiers can be operated as one unit with the built in wireless signal
with master-sub mode.
