Horwin EK3 User manual
1
EK3 User Manual
Welcome to join HORWIN family! We will guide you to understand
every function of EK3 electric motorcycle and use EK3 electric
motorcycle correctly and safely. To ensure your safety, please read
this manual carefully before riding and ensure that you always comply
with the following requirements:
Fully understand information in this manual, including but not limited
to relevant instructions, precautions and warning information.
Fully understand the operation and emergency measures for EK3
electric motorcycle.
Pay attention to warning labels of EK3 electric motorcycle.
HORWIN will not assume any responsibility arising from
unauthorized modification, failure to use original accessories, or
installation of components that affect the performance and safety of
the motorcycle.
Please contact HORWIN Customer Service Center at Email:
Should you have any problem on this motorcycle. we will always at
your service. Wish you a safe and happy journey!
2
Safety Instructions
Please read this product manual carefully, and please do not use this
product until you have known the characteristics of the electric
two-wheeled motorcycle.
Please abide by traffic rules, do not retrograde or run red lights and do
not use mobile phone while riding the motorcycle.
Please don't use third-party accessories or disassemble, crack and
modify the motorcycle without authorization, otherwise the losses
arising therefrom will be borne by you, and you will lose the right to
enjoy our warranty service.
Due to the continuous improvement of the product, the vehicle you
purchased may be slightly different from the vehicle described in this
manual, and the actual motorcycle shall prevail. If you are unclear
about the use, repair and installation of this vehicle, please contact our
dealer.
For the safety of you and others, please read the following
instructions carefully:
The rider should abide by traffic rules and pay attention to the traffic
safety.
Before riding the motorcycle, please carefully read the Product
Manual and carefully check whether all parts are in good condition, so
as to guarantee the traffic safety. If any problems are found, please
contact the dealer in time.
To ensure your safety, please wear safety helmet, gloves and other
protective equipment when driving motorcycles. Please don't wear
loose clothes, otherwise you will be uncomfortable and unsafe when
driving the motorcycle.
3
Please make sure that you are in good health and not tired, so that you
can control the vehicle in a good state. Please don't ride the
motorcycle after taking drugs, medicines and drinking alcohol.
This motorcycle can resist rain and snow, but can't excessively wade
into the water. When the water level exceeds 20 cm, if the motorcycle
wades into water, all electrical components and lines may be
short-circuited!
Please obey the traffic rules, and slow down the electric motorcycle
when the weather is rainy or snowy or the road is slippery. When
braking the motorcycle, the braking distance should be increased to
ensure safety.
Please do not disassemble the components and parts by yourself.
Do not park the electric motorcycle on the hall, escape stair,
passageway or safety exit;
Please do not charge or park the electric motorcycle in the residential
building. When charging an electric motorcycle, the electric
motorcycle should be kept away from combustibles and the charging
time should not be too long.
Product Overview
Thank you for purchasing the EK3 electric two-wheeled motorcycle,
which is hereinafter referred to as EK3.
Schematic Diagram of Body and Components:
4
Description of Parts
Left Side
①Headlamp ②Rearview mirror ③Left combination switch
④Saddle ⑤Tail lamp ⑥Rear fender ⑦Middle stand
⑧Side stand ⑨Front fender ⑩Front shock absorber
⑪Storage box (inbuilt USB)
5
Right Side
①Throttle ②Right combination switch ③Ignition lock
④Steering lamp ⑤Footboard ⑥Rear shock absorber
⑦Rear armrest ⑧Reflector ⑨Rear fork decorative cover
Instrument and Combination Switch
6
1. Left turn signal
Turn on the left turn signal lamp, the indicator flashes.
2. Right turn signal
Turn on the right turn signal lamp, the indicator flashes.
3. Current display bar
Display the current real-time current of the controller.
4. Speed per hour
Display current speed.
5. Parking light
Indicates that the vehicle has entered a state ready to ride. Rotate the
speed control handle to move the vehicle forward.
6. Gear display
Display the current gear
The top speed in the first gear is 45KM/H
The top speed in the second gear is 75KM/H
The top speed in the third gear is 95KM/H
7. Low battery indicator
When the power is less than 20%, the indicator lights up
7
8. OBD icon
When a fault occurs, this icon will light up
9. Single mileage
Display the single mileage
10. Total mileage
Display the total mileage
11. Battery Indicator
Display the current battery status in percentage,up to 100%.
12. High beam
The indicator will light up when the high beam is turned on.
13. Double flashing indicator
Press the double-flash switch, then the left and right turn signals will
light up and the icon will light up.
14. Cruise Control
The vehicle keeps running at the current speed. After pressing the
cruise control button or accelerating/braking the motorcycle, the
cruise control state can be released.
8
15. Reverse Display
Press and hold the reverse button, the vehicle enters reverse mode. Th
en turn the throttle, the vehicle goes backward.
16. Sliding Screen
When the distance between the electronic key and the vehicle is less
than 1.2 meters, swipe the screen to the right, start the motorcycle,
swipe the screen to the left and stop the motorcycle.
Schematic Diagram of Combination Switch
Left hand combination
switch
①High/low beam
Turn the switch upward, the light
is high beam; Turn the switch
downward, the light is low beam
Right hand combination
switch
⑤Motorcycle lamp switch
Turn the button to the lower side,
all the lamps are turned off
Turn the button to the upper side,
the headlamp is turned on.
9
②Steering lamp
Turn the switch to the left to turn
on the left turn signal;
Turn the switch to the left to turn
on the left turn signal;
Turn the switch to the middle
position to reset the switch, and
turn off the left/right turn signal.
⑥Gear mode
Press the left, middle and right
buttons to adjust the gear
③Horn
After pressing the horn button,
the horn rings; after releasing the
horn button, the horn stops
ringing.
⑦Warning Lamp(double
flash)
Press the button, then the left and
right turn signals flash
④Cruise Control
Press the button to keep the
motorcycle running at the current
speed
To release this state, press this
button again or accelerate/brake
the motorcycle.
⑧Start\ reverse switch
Click the button to enter the
Ready state
Press the button to enter the
reverse mode, and release the
button to enter the forward mode
10
1. Anti-theft button: Press the button gently, then
the vehicle will enter the anti-theft alarm state.
When the electronic key is more than 1.2 meters
away from the motorcycle, the motorcycle will
automatically enter the anti-theft state.
2. Defense cancel button: slightly press to release
the vehicle from anti-theft alarm state.
3. Startup button: double click; the vehicle can
turn on the whole-vehicle power supply without
key.
Key and Remote Control
Electronic Key
When using the electronic key, it is necessary to ensure that the
battery is correctly installed inside the motorcycle, and the effective
remote control distance shall be no more than 50M. When matching
the electronic key with the motorcycle, the distance between the
electronic key and the motorcycle should be less than 1.2m
11
Mechanical Key
Open the saddle
Front lock
Off
Start
Keyhole
Ignition
lock
Front lock
Turn the head to the
leftmost position, then
press and rotate the
key counterclockwise
to "lock" position
Start the
motorcycle
Open the
saddle
12
Open the saddle
When the distance between the remote control key and motorcycle is
less than 1.2m, Press inward with a "click" sound and loose the button,
then turn the key left to "open" position to open the saddle.
Insert the mechanical key, turn it to "open" position, and open the
saddle.
Battery and Charger
Battery Use Instructions
The vehicle has two charging modes: battery charging and body
charging.
External charging mode
Charging
interface
13
Take out the battery, plug the charger into the charging interface, then
plug into the socket and press the battery start button. Then the power
indicator will light up and display the real-time power.

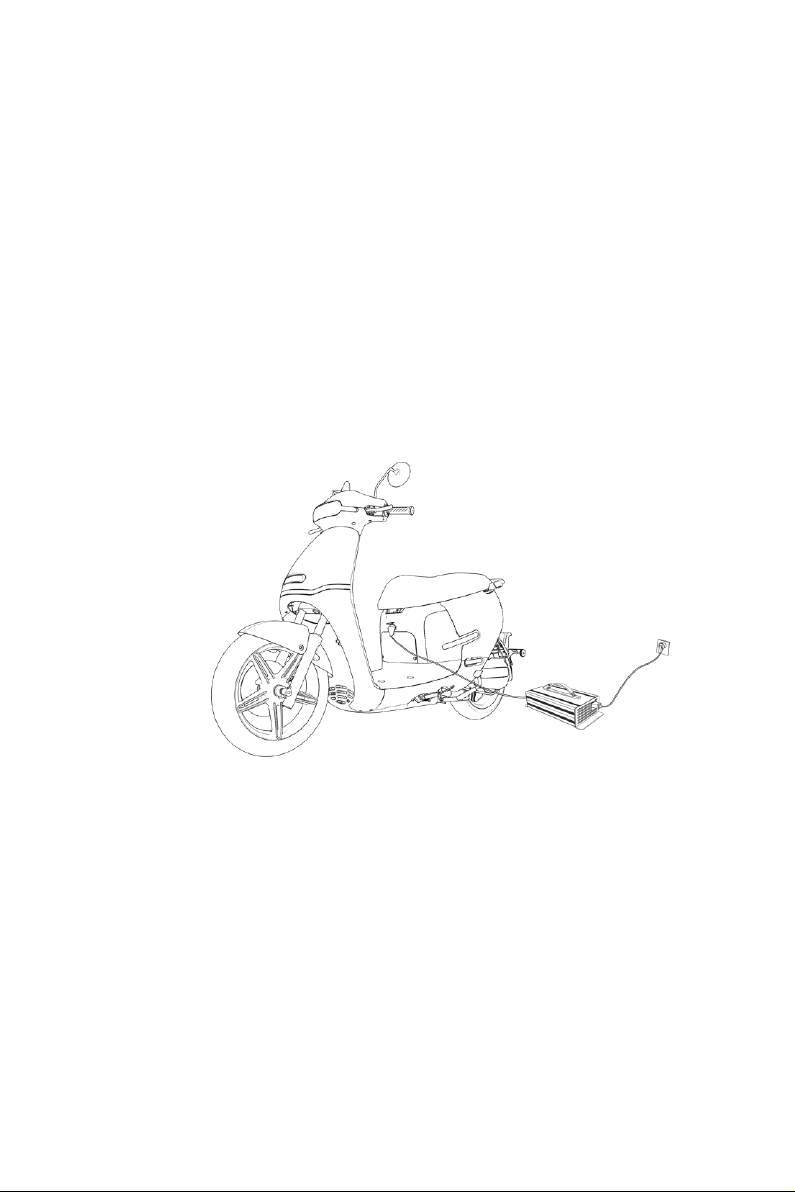

Vehicle Charging Mode
Put the battery into the battery compartment, connect the vehicle
power plug to the battery, and then insert the charger charging plug
into the charging interface above the footboard to charge the
motorcycle. Then the charger indicator will light up and the battery
will display the real-time power.
Charging interface
Description of battery power indicator
In the charging state, the indicator light shows the battery power.
After the battery is fully charged, all indicator lights are normally on
and will no longer flash.
14
In the Non-Charging state, press the power display button:
In the normal state, the indicator shows the battery power.
Each grid displays 20% of power.
Battery Manual
Before using the battery, please make sure that the battery is the
original battery, and do not use other brand or type of battery.
Check whether the appearance of the battery is intact, and ensure that
there are no obvious phenomena such as damage, liquid leakage,
overheat, water immersion and smoke.
In order to ensure transportation safety, the power of the battery when
leaving the factory is about 50% (when transported by air, the power
Indicator
15
of the battery leaving the factory is about 30%). Due to
self-consumption factors such as transportation cycle and storage
cycle, when using the battery for the first time, the battery will have
low or no power, which is a normal phenomenon. Please don't worry,
just charge it according to the charging instructions.
Waste batteries shall not be dismantled without authorization, and
shall be recycled by relevant professional department.

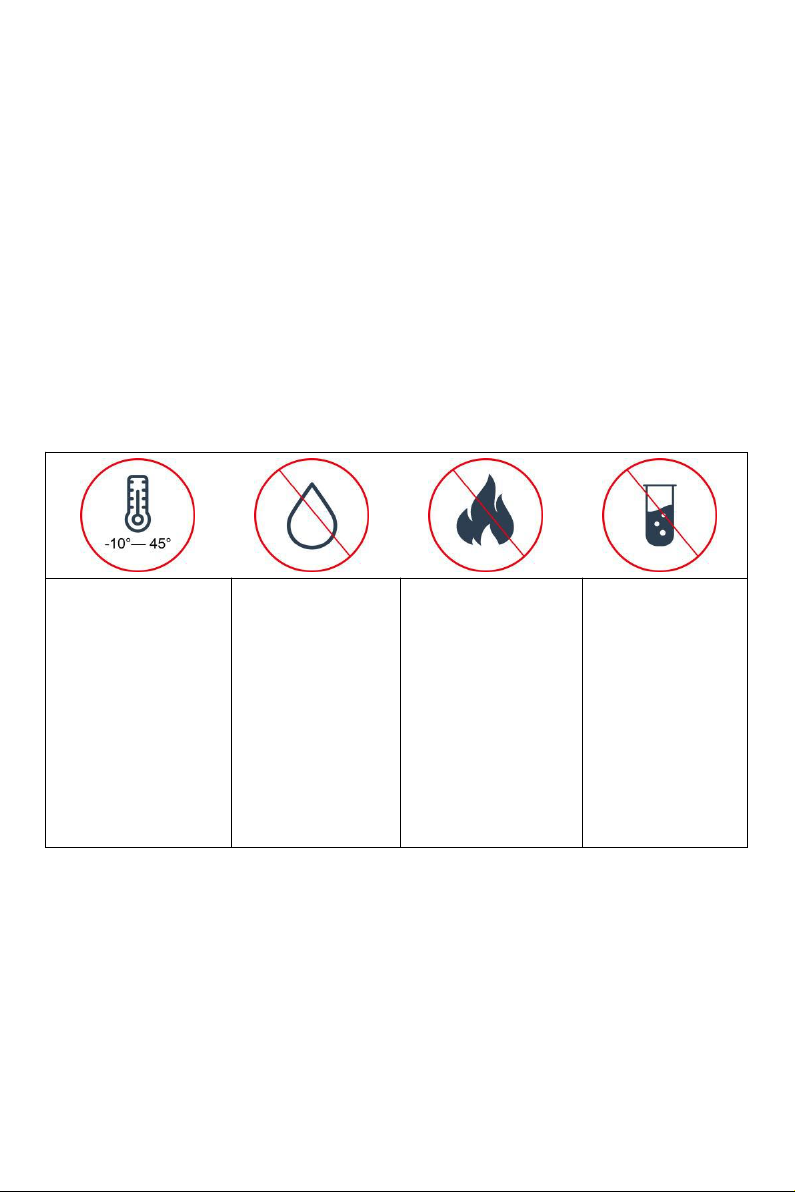

Use Environment
Please use the
battery
at-10℃-45℃
Please avoid
the battery
being soaked
by liquid such
as water,
beverage and
corrosive
liquid
Please avoid
keeping the
battery close to
heat source,
open flame and
inflammable
and explosive
gas (liquid)
Please avoid
metallic
foreign body
from entering
the battery
box
At low temperature, the available capacity of the battery will decline
in different degrees. For example: the available capacity is 70%
at-10℃, 85% at 0℃ and 100% at 25℃.
In case of abnormal conditions such as peculiar smell, overheat and
deformation, please stop using the battery immediately, stay away
from the battery and contact the dealer.
16
The battery is not the component that can be repaired by the user. In
case of abnormal phenomenon, please contact the dealer. If the battery
is disassembled without permission, the user will not enjoy the
three-guarantee service, and the battery may be heated, smoked, on
fire or exploded.
Charging Environment
Please use the
original charger to
charge the battery,
and do not use other
brand or type of
charger to charge the
battery.
Please charge the
battery at the ambient
temperature of
0℃~35℃
Please do not charge
the battery for more
than 8 hours,
otherwise the service
life of the battery will
be affected.
In the early stage, the charging speed is fast, and in the later stage,
the charging speed is slow, which is because that the procedure is
set for charging safety and belongs to the normal condition.
In the winter, if the outdoor temperature is low and below 0℃,
the charging will be suspended, which is a normal phenomenon.
Please charge the battery at a suitable ambient temperature to
ensure the charging effect.
During charging, some aluminum shell chargers have the thermal
effect, and the surface temperature is high, which is a normal
phenomenon, so please feel free to use the charger. Please avoid
children touching the charger.
17
Precautions for Charger Use
The charger can only be used indoor.
It is strictly forbidden to charge the battery in a confined space or
in the high temperature environment, and the battery shall not be
placed in the seat bucket or tail box during charging.
During charging, plug the battery, then connect the charger to the
commercial power; After the battery is fully charged, cut off the
commercial power and then unplug the battery.
When the green light is on, please cut off the power in time. It's
forbidden to connect the charger to the AC power for a long time
when the battery is not being charged.
In the charging process, if the indicator is abnormal, the charger
has peculiar smell or the charger shell is overheated, please
immediately stop charging the battery and repair or replace the
charger.
Please do not disassemble the charger or replace the components
in the charger by yourself.
When the charger is replaced, the new charger should match the
battery model.
Storage Environment
If the battery is placed on the vehicle, the battery power will be
consumed in real time due to the operation of the alarm system.
After being placed on the vehicle for a period of time, the
instrument shows that the electric quantity is reduced, and this is
normal.
Please store the battery in an environment at 0℃~25℃, and do
not store the battery in the environment at the temperature higher
18
than 40℃, otherwise the capacity of the battery will be
irreversibly attenuated.
In winter, summer or other special circumstances, if the vehicle is
not used for a long time, the battery must be taken out of the
vehicle, stored separately, maintained and charged regularly,
otherwise the battery may be completely drained and irreversibly
damaged. With regard to such problems, the battery failure will
not be covered under warranty.
When the battery is stored for a long time, the most suitable
battery power is 50%. If the battery power is lower than 10% or
higher than 90%, the battery capacity will be irreversibly
attenuated.
With regard to the self-consumption protection mode when the
lithium battery is stored safely, the technical standards are as
follows:
1. If the battery is not used for a long time, it can be stored on the
vehicle (the battery plug is not unplugged) and the maximum safe
storage period is 15 days, otherwise the battery feeding may be
caused and the battery cannot be restored.
2. If the battery is not used for a long time, the power is no less than
50% and the battery is stored separately and stored on the vehicle
(the battery plug is unplugged), the maximum safe storage period
shall be 2 months, otherwise the battery feeding may be caused
and the battery cannot be restored.
Please do not store the battery in a place with the falling risk,
otherwise the battery will be damaged uncontrollably and the
battery will be leaked, heated, smoked, on fire or exploded.
Undervoltage and feeding of the battery caused by improper use
will not be covered under warranty.
19
Precautions for Battery Use:
When using the battery for the first time, please drain the battery
as much as possible, then fully charge it before formally using it,
so as to ensure that the actual capacity of the battery is as accurate
as the electric quantity displayed on the instrument.
In the later period, please keep the battery power at least 20% and
charge the battery in time, so as to prolong the service life of the
battery.
When riding a motorcycle normally, it is recommended to control
the speed at the middle speed. When starting the motorcycle,
please slowly operate the throttle handle and gradually accelerate
the motorcycle, thus extending the battery life.
When the battery is used for many times, there will be a deviation
between the actual capacity of the battery and the electric quantity
displayed on the meter. Please charge and discharge the battery
completely at regular intervals (no more than 3 months). The
internal battery core and intelligent system can automatically
calibrate the electric quantity of the battery, thus improving the
experience effect.
It is recommended to check the power plug of the battery every
two months, and confirm whether the contact reed has the
phenomena such as carbon deposition and oxidation (blackening).
In case of these phenomena, please contact the dealer for
maintenance.
The battery shall not be caught in the rain or flushed by water,
and shall not be soaked in water. If the vehicle wades into the water,
the water level shall not exceed the height of the battery compartment,
otherwise the water will enter into the battery and the battery will be
short circuited, thus causing the permanent battery failure. In this case,
it is forbidden to charge the whole vehicle or battery again, otherwise
Table of contents
Other Horwin Motorcycle manuals
