Hotel Fitness HF-RB9800-E User manual

USERʼS ANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, please see
HOW TO CONTACT CUSTOMER
CARE on the back cover of this
manual.
www.HotelFitness.com
odel No. HF-RB9800-E.0
Serial No.
Write the serial number in the
space above for reference.

2
HOTEL FITNESS is a registered trademark of Hotel Fitness Club, Inc.
FREEMOTION is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACE ENT
TABLE OF CONTENTS
WARNIN DECALPLACEMENT..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBE IN ......................................................................4
ASSEMBLY...............................................................................5
HOWTOUP RADETHECONSOLE ..........................................................8
HOWTOSETUPTHEEXERCISECYCLE ......................................................9
MAINTENANCEANDTROUBLESHOOTIN ...................................................26
EXERCISE UIDELINES ...................................................................27
PARTLIST ..............................................................................28
EXPLODEDDRAWIN ....................................................................30
HOWTOCONTACTCUSTOMERCARE ...............................................BackCover
LIMITEDWARRANTY ..............................................................BackCover
This drawing shows the location(s) of the warning decal(s). If a decal is
missing or illegible, see the back cover of this manual and request
a free replacement decal. Apply the decal in the location shown.
Note: The decal(s) may not be shown at actual size.

3
I PORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise cycle before using your exercise cycle.
Hotel Fitness and Free otion Fitness assume no responsibility for personal injury or property dam-
age sustained by or through the use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are ade-
quately informed of all precautions.
3. Keep the exercise cycle indoors, away from
moisture and dust. Do not place the exer-
cise cycle in a garage or covered patio or
near water.
4. Place the exercise cycle on a level surface.
To protect the floor or carpet from damage,
place a mat beneath the exercise cycle.
ake sure that there is at least 2 ft. (0.6 m) of
clearance around your exercise cycle.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your exercise cycle at all times.
7. Your exercise cycle should not be used by
persons weighing more than 350 lbs.
(159 kg).
8. Wear appropriate exercise clothes while
exercising; do not wear loose clothes that
could become caught on your exercise
cycle. Always wear athletic shoes for foot
protection.
9. Hold the handgrip pulse sensor or the han-
dlebars when mounting, dismounting, or
using your exercise cycle.
10. Keep your back straight while using your
exercise cycle; do not arch your back.
11. The pulse sensor is not a medical device.
Various factors, including the userʼs move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
14. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
15. Use your exercise cycle only as described in
this manual.

4
Accessory Tray
Console
Leveling Foot
Handgrip Pulse Sensor
Seat Back
Seat
Wheel
Pedal
Adjustment Latch
BEFORE YOU BEGIN
Thank you for selecting the revolutionary HOTEL
FITNESS®HF-RB9800-E exercise cycle. Cycling is an
effective exercise for increasing cardiovascular fitness,
building endurance, and toning the body. The HF-
RB9800-E exercise cycle provides an impressive
selection of features designed to make your workouts
at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please see the back cover of
this manual. To help us assist you, note the product
number and serial number before contacting us. The
model number and the location of the serial number
are shown on the front cover this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.

5
M8 x 20mm
Screw (57)–4
3/8" x 3/4" Button
Screw (65)–4
M8 x 20mm Flat
Head Screw (56)–4
M10 x 12mm
Screw (77)–6
M10 Flat
Washer (80)–4
ASSE BLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
As you assemble the exercise cycle, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware kit, check
to see if it has been preassembled.

6
1
2. Attach the Seat Frame (8) to the Seat Carriage
(7) with six M10 x 12mm Button Screws (77). 2
1.
Identify the Rear Stabilizer (3) and orient it as
shown. Insert a Stabilizer Plate (89) into the
Rear Stabilizer.
Insert the Rear Stabilizer (3) into the Frame (1).
Tighten the four Stabilizer Set Screws (9)
located in the Rear Stabilizer. Then, attach the
Rear Stabilizer with four 3/8" x 3/4" Button
Screws (65) and four M10 Flat Washers (80).
Tighten two Leveling Feet (47) into the under-
side of the Rear Stabilizer (3).
80
65
65
47
47
80
89
3
1
9
9
77
77
7
8
To make assembly easier, read the
information on page 5 before you begin.

7
3
4
Avoid pinching
the wires
Wire Tie
Frame
Wires
Frame
Wires
56
56
1
4
20
4
3. Slide the Upright Cover (20) onto the Upright
(4). ake sure that the Upright Cover is ori-
ented as shown. Then, slide the Upright Cover
upward toward the top of the Upright.
Have a second person hold the Upright (4) near
the Frame (1). Locate the wire tie (see the inset
drawing) in the Upright. Tie the lower end of the
wire tie to the frame wires. Next, pull the upper
end of the wire tie upward out of the top of the
Upright. Then, untie and discard the wire tie.
Tip: Do not allow the ends of the frame wires
to fall into the Upright. Use a piece of tape or
an elastic band to hold the wires in place
until step 4.
Tip: Avoid pinching the frame wires. Slide the
Upright (4) onto the Frame (1). Attach the
Upright with four M8 x 20mm Flat Head Screws
(56).
Then, slide the Upright Cover (20) downward to
the bottom of the Upright (4).
4. While a second person holds the console
assembly near the Upright (4), connect the con-
sole pulse wires to the frame pulse wires. Then,
connect the console wires to the frame wires.
Tip: Avoid pinching the wires. Attach the con-
sole assembly to the Upright (4) with four M8 x
20mm Screws (57).
Console
Assembly
Console
Wires
Frame
Wires
57
Console
Pulse Wires
Frame Pulse
Wires
Avoid pinching
the wires
5. ake sure that all parts of the exercise cycle are properly tightened. Note: Some hardware may be left
over after assembly is completed. To protect the floor or carpet from damage, place a mat under the exercise
cycle.

8

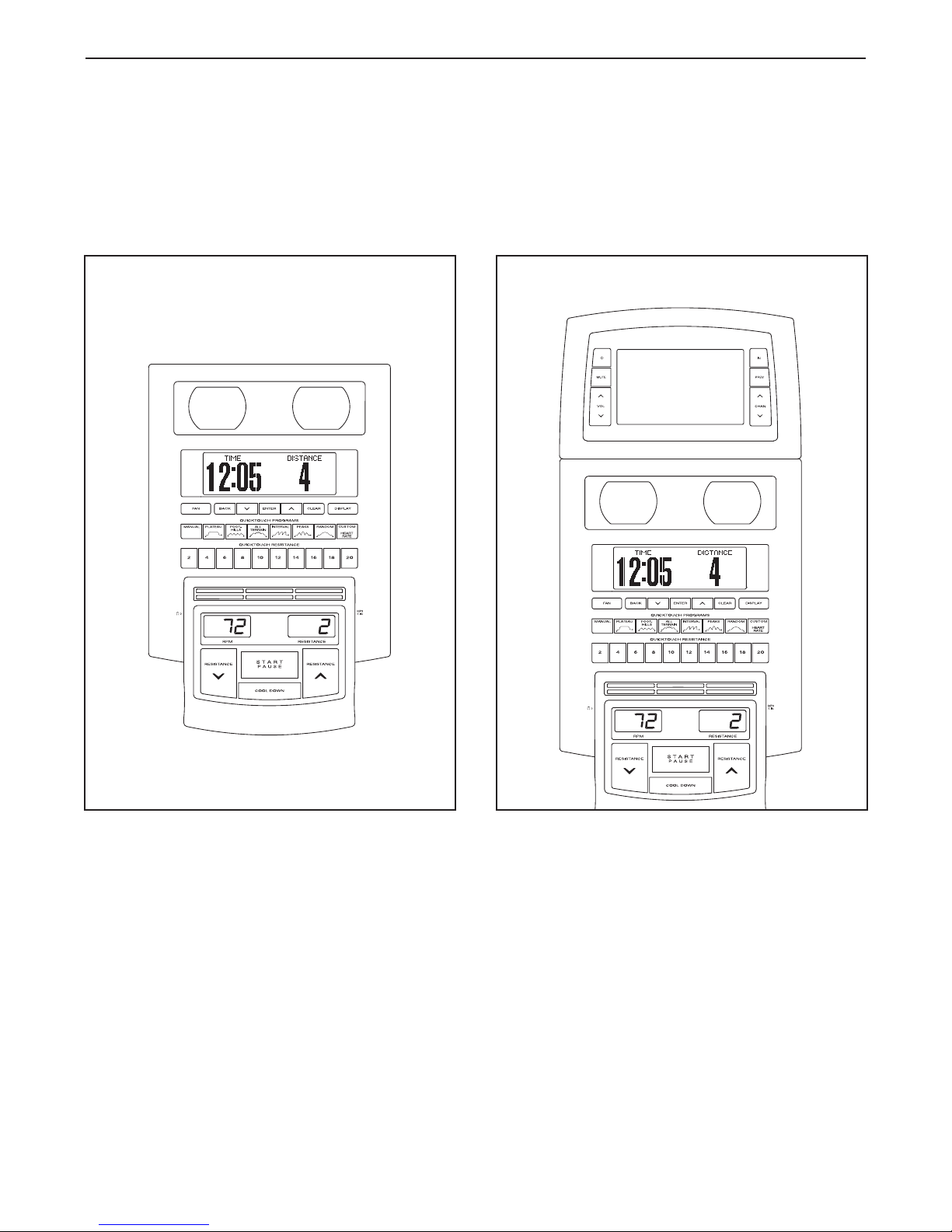

Your exercise cycle has been preconfigured to operate with a Basic console and a Workout TV console (see the
drawings below). To learn about the features of the Basic console, see page 11. To learn about the features of
the Workout TV console, see the userʼs manual included with the Workout TV console.
To upgrade your console and expand the capabilities of your exercise cycle whenever you choose,
please see the back cover of this manual.
Basic
Console
Workout TV
Console
HOW TO UPGRADE THE CONSOLE

9
HOW TO OVE AND LEVEL THE EXERCISE
CYCLE
Before moving the exercise cycle, make sure
that the power cord is unplugged. Note: If a
CATV cable is connected to the exercise cycle, it
may be necessary to disconnect the cable if the
exercise cycle will be moved far.
Due to the size and weight of the exercise cycle,
moving it requires two persons. While one person
lifts the indicated end, firmly hold the handlebar and
tip the exercise cycle forward until it rolls on the front
wheels. Carefully move the exercise cycle to the
desired location and then lower it to the level posi-
tion. CAUTION: To reduce the risk of injury, use
extreme caution while moving the exercise
cycle. Do not attempt to move the exercise cycle
over uneven surfaces.
If the exercise cycle rocks slightly during use, turn
the leveling feet under the front and rear of the
frame until the rocking motion is eliminated.
HOW TO ADJUST THE SEAT
To adjust the seat, pull the adjustment latch, slide
the seat forward or backward to the desired position,
and then release the adjustment latch.
HOW TO PLUG IN THE POWER CORD
If the exercise cycle has a Basic console, it can be
used with or without the included power cord. If the
exercise cycle has a Workout TV console, the power
cord must be used for the TV to be operated.
To use the power cord, first plug one end of the
power cord into the jack on the front of the exercise
cycle. Plug the other end of the power cord into an
appropriate outlet that is properly installed in accor-
dance with all local codes and ordinances.
Adjustment Latch
Lift
Here
Lift
Here
Wheels
Handlebar
Power Cord
Jack
Leveling
Feet
HOW TO SET UP THE EXERCISE CYCLE

10
HOW TO CONNECT A CATV CABLE
If your bike has a Workout TV console, a CATV cable must
be connected to the bike for cable TV stations to be viewed.
Locate the cable jack on the front of the bike. Connect the
CATV cable to the cable jack.
A satellite receiver, VCR, or DVD player can also be con-
nected to the bike. Connect a CATV cable from the coaxial
output on your equipment (usually labeled TV OUT or RF
OUT) to the cable jack on the bike.
A VCR or DVD player can also be connected to the bike with an RCA component audio/video cable. Connect one
end of an RCA component audio/video cable to your VCR or DVD player. Connect the other end of the RCA
component video cable to the audio/video input jack on the bike.
Cable Jack Audio/Video
Jack
Jack to External
Speaker System

11

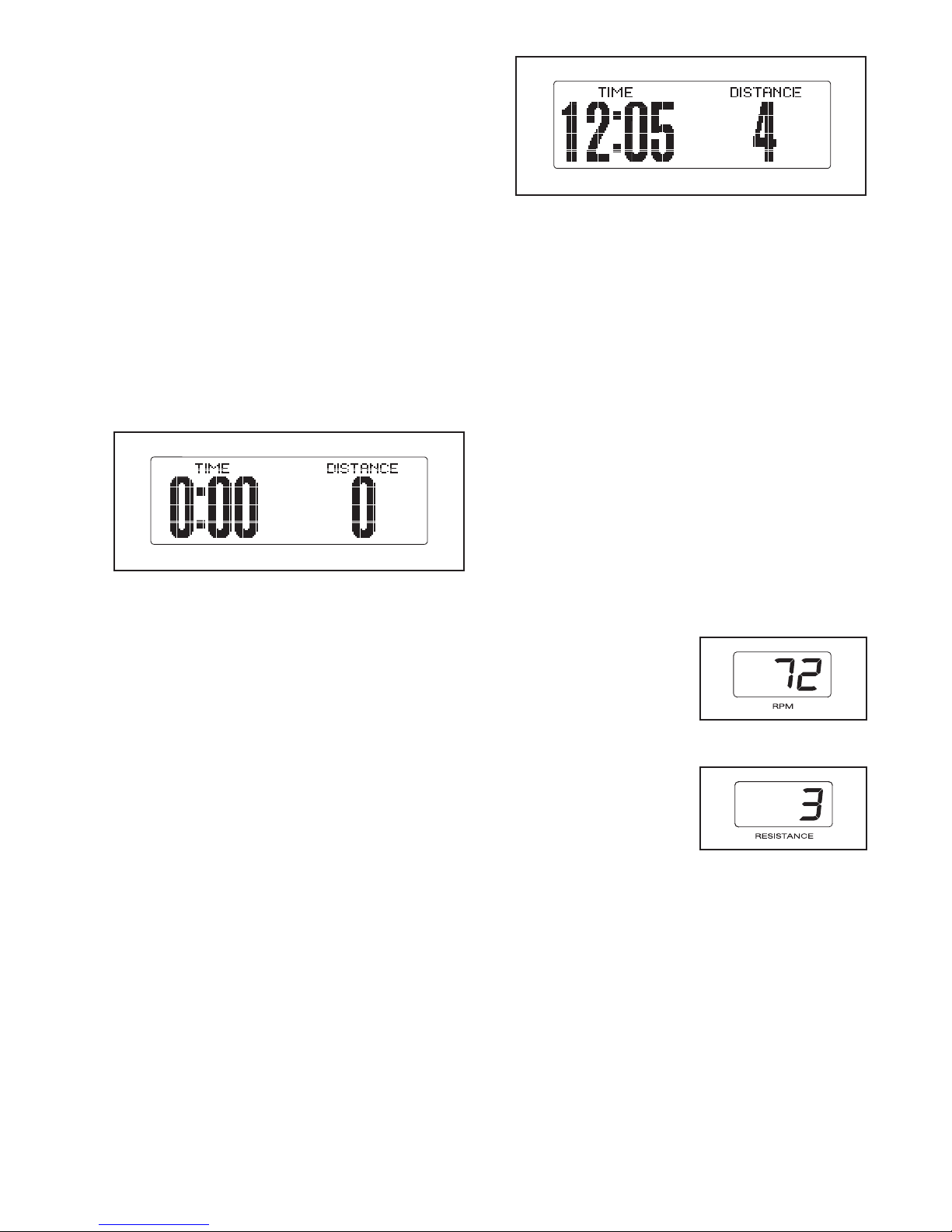

FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable. When you use the quick start mode of the
console, you can change the resistance of the pedals
with the touch of a button. As you exercise, the con-
sole will provide continuous exercise feedback. You
can even measure your heart rate using the handgrip
pulse sensor or the optional chest pulse sensor. Note:
For information about the optional chest pulse
sensor, see page 25.
The console offers twenty-three preset programs.
Each program automatically changes the resistance of
the pedals and prompts you to maintain a target pace
as it guides you through an effective workout.
The console also offers three manual programs that
allow you to set your own time, distance, or calorie
goal for the workout.

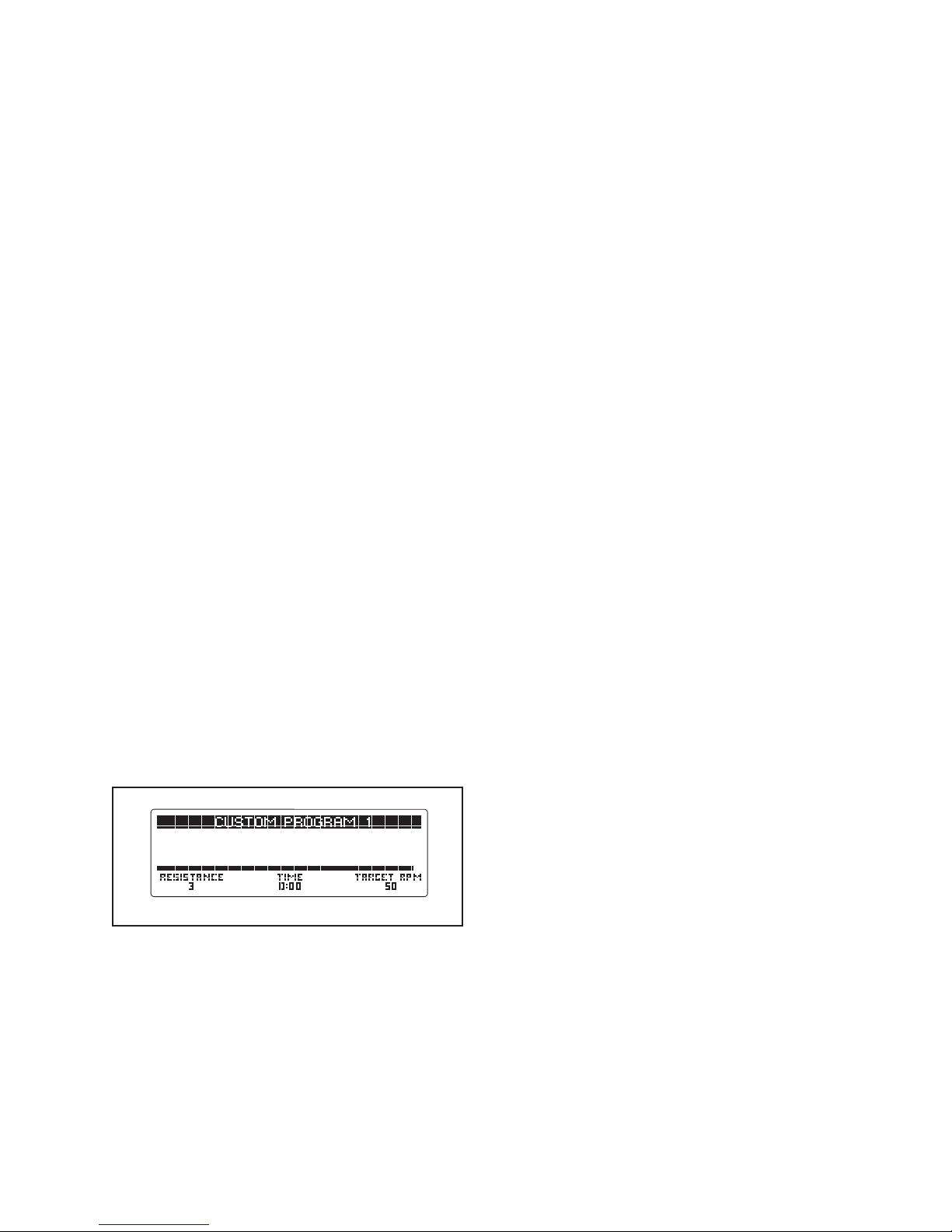

In addition, there are two custom programs that allow
you to create your own workouts and store them in
memory for future use. Also, when you have finished
exercising, you can use the cool down mode to help
you recover from your workout.
The console also provides two heart rate programs
that automatically adjust the resistance of the pedals to
keep your heart rate near a target level during your
workouts.
The console features the new iFit Interactive Workout
System. The iFit Interactive Workout System enables
the console to accept iFit cards containing workouts
designed to help you achieve specific fitness goals.
For example, lose unwanted pounds with the 8-week
Weight Loss workout. To purchase iFit cards, please
see the back cover of this manual or go to
www.iFit.com. iFit cards are also available at select
stores.
You can even connect your MP3 player or CD player
to the consoleʼs stereo sound system and listen to your
favorite workout music or audio books while you exer-
cise.
To use the quick start mode, see page 13. To use a
ANUAL program, see page 15. To use a preset
program, see page 17. To create a CUSTO pro-
gram, see page 19. To use a CUSTO program, see
page 20. To use a HEART RATE program, see page
22. To use the COOL DOWN mode, see page 23. To
use the maintenance mode, see page 24. To use an
iFit workout, see page 25. To use the stereo sound
system, see page 25.

12
HOW TO ACTIVATE THE CONSOLE
If the exercise cycle has a Basic console, it can be
used with or without the included power cord. To use
the power cord, see HOW TO PLU IN THE POWER
CORD on page 8. To use the exercise cycle without
the power cord, simply begin pedaling at a pace of
about 25 revolutions per minute (rpm) or faster. The
main display will light and the console will be ready for
use. As you pedal, power will be supplied by a genera-
tor; remember to continue pedaling while using the
exercise cycle.
If the exercise cycle has a Workout TV console, the
included power cord must be used for the TV to oper-
ate. See HOW TO PLU IN THE POWER CORD on
page 8. When the power cord is plugged in, the main
display will light and the console will be ready for use.
I PORTANT: If the exercise cycle has been
exposed to cold temperatures, allow it to warm to
room temperature before turning on the console. If
you do not do this, the console displays or other
electronic components may become damaged.
HOW TO TURN OFF THE CONSOLE
If the power cord is not being used, and if the ped-
als are not moved for a short period of time, the
console will turn off automatically.
If the power cord is being used, and if the pedals are
not moved for a short period of time, the console will
enter an idle mode and a screen saver will appear in
the main display. Unplug the power cord while the
exercise cycle is not in use.

13
HOW TO USE THE QUICK START ODE
If you do not plan to use a program, the quick start
mode will allow you to start exercising and adjust the
resistance of the pedals manually.
1. Press any button or begin pedaling to activate
the console.
See HOW TO ACTIVATE THE CONSOLE on page
12.
2. Select the quick start mode.
When you activate the console, the quick start
mode will be selected. If you have selected a pro-
gram, reselect the quick start mode by pressing
any of the QUICKTOUCH PRO RAMS buttons
repeatedly until zeros appear in the display.
3. Press the START button to start the quick start
mode and change the resistance of the pedals
as desired.
As you pedal, change the resistance of the pedals
by pressing the RESISTANCE increase and
decrease buttons or the numbered QUICKTOUCH
RESISTANCE buttons. There are twenty resis-
tance levels. Note: After you press a
RESISTANCE button, it will take a moment for the
pedals to reach the selected resistance level.
4. Follow your progress with the displays.
The main display–This display will show the
elapsed time and the distance you have pedaled.
Note: While a preset program, a custom program,
or the MANUAL TIME program is selected, the dis-
play will show the time remaining in the program
instead of the elapsed time.
The main display will also show your heart rate (in
beats per minute) when you use the handgrip
pulse sensor or the optional chest pulse sensor
(see step 5 on page 14).
You can also view selected information at a larger
size. Press the DISPLAY button repeatedly to view
the elapsed time, the distance that you have ped-
aled, or the approximate number of calories that
you have burned.
To view the elapsed time, your exercise intensity in
mets, the approximate number of calories you
have burned, the distance, your power output in
watts, the approximate number of calories you are
burning per hour, and your heart rate in one dis-
play, press the DISPLAY button again.
To view the elapsed time, the distance you have
pedaled, and the approximate number of calories
you have burned in one display, press the DIS-
PLAY button again.
To again view the elapsed time and the distance
that you have pedaled, press the DISPLAY button
again.
The lower left
display–This display
will show your pedaling
pace in revolutions per
minute (rpm).
The lower right dis-
play–This display will
show the resistance
level of the pedals.
Press the PAUSE button to pause the quick start
mode at any time. Simply resume pedaling or
press the START button to restart the quick start
mode. Press the CLEAR button to reset the dis-
plays.
Note: The main display may be able to display text
messages in any of six languages (see step 6 on
page 24).

14
5. easure your heart rate if desired.
You can measure your heart rate using either the
handgrip pulse sensor or the optional chest pulse
sensor (see page 25 for information about the
optional chest pulse sensor).
If there are sheets of
clear plastic on the
metal contacts on the
handgrip pulse sen-
sor, remove the
plastic. In addition,
make sure that your
hands are clean. To
measure your heart
rate, hold the handgrip
pulse sensor with your
palms resting against
the metal contacts. Avoid moving your hands or
gripping the contacts tightly.
When you hold the handgrip pulse sensor, a small
heart symbol will appear in the display. Then, when
your pulse is detected, your heart rate will be
shown in the display next to the heart symbol. For
the most accurate heart rate reading, hold the con-
tacts for at least 15 seconds.
If your heart rate is not shown, make sure that your
hands are positioned as described. Be careful not
to move your hands excessively or to squeeze the
metal contacts tightly. For optimal performance,
clean the metal contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
6. Turn on the fan if desired.
The fan has high and low speed settings. Press the
FAN button repeatedly to select a fan speed or to
turn off the fan. Note: If the pedals do not move for
about thirty seconds, the fan will turn off automati-
cally.
Pivot the fan louvers upward or downward to direct
the airflow from the fan.
7. When you are finished using the exercise
cycle, the console will automatically turn off or
enter an idle mode.
See HOW TO TURN OFF THE CONSOLE on
page 12.
Contacts

15
HOW TO USE A ANUAL PROGRA
A MANUAL program allows you to set a time, distance,
or calorie goal for your workout as you control the
resistance of the pedals.
1. Press any button or begin pedaling to activate
the console.
See HOW TO ACTIVATE THE CONSOLE on page
12.
2. Select a ANUAL program.
To select one of the three MANUAL programs, first
press the MANUAL button repeatedly until the
words MANUAL TIME, MANUAL DISTANCE, or
MANUAL CALORIES appear in the main display. A
profile of the resistance settings of the program
and the program goal will also appear in the dis-
play. Then, press the ENTER button to confirm
your selection.
3. Enter your age.
A moment after you select a MANUAL program,
the words “ENTER A E” and an age setting of 35
will flash in the main display. To enter your age,
press the increase and decrease buttons beside
the ENTER button. Then, press the ENTER button.
4. Enter your weight.
Next, the words “ENTER WEI HT” and a weight
setting of 185 pounds (US) will appear in the main
display. To enter your weight (1 kilogram = 2.2
pounds), press the increase and decrease buttons
beside the ENTER button. Then, press the ENTER
button.
5. Enter a goal for the program.
If you selected the ANUAL TI E program, the
words “ENTER WORKOUT TIME” and a time set-
ting of 30 minutes will appear in the main display.
To change the length of time that the program will
last, press the increase and decrease buttons
beside the ENTER button. You can enter a pro-
gram time between 10 and 90 minutes. Then,
press the ENTER button.
If you selected the ANUAL DISTANCE pro-
gram, the words “ENTER WORKOUT DISTANCE”
and a distance setting of 1,500 revolutions will
appear in the main display. To change the distance
goal for the program, press the increase and
decrease buttons beside the ENTER button. You
can enter a distance goal between 500 and 5,000
revolutions. Then, press the ENTER button.
If you selected the ANUAL CALORIES pro-
gram, the words “ENTER WORKOUT CALORIES”
and a calorie setting of 300 calories will appear in
the main display. To change the calorie goal for the
program, press the increase and decrease buttons
beside the ENTER button. You can enter a calorie
goal between 100 and 600 calories. Then, press
the ENTER button.
Profile

16
6. Press the START button or begin pedaling to
start the program.
Each program is divided into several one-minute
segments. During the program, the program profile
will show your progress (see the drawing in step 2
on page 15). The flashing segment of the profile
represents the current segment of the program.
The height of the flashing segment indicates the
resistance level for the current segment. At the end
of each segment of the program, a series of tones
will sound and the next segment of the profile will
begin to flash.
As you pedal, change the resistance of the pedals
as desired by pressing the RESISTANCE increase
and decrease buttons or the numbered QUICK-
TOUCH RESISTANCE buttons. There are twenty
resistance levels. Note: After you press a RESIS-
TANCE button, it will take a moment for the pedals
to reach the selected resistance level. The default
resistance level for the MANUAL programs is resis-
tance level 3.
The program will continue in this way until the last
segment of the profile flashes. To stop the program
at any time, stop pedaling or press the PAUSE but-
ton. To restart the program, simply resume
pedaling or press the START button. To exit the
program at any time, press the CLEAR button.
7. Follow your progress with the displays.
During a MANUAL program, the main display will
show the time, your exercise intensity in mets, the
approximate number of calories you have burned,
the approximate number of calories you are burn-
ing per hour, and the distance you have pedaled.
The main display will also show your heart rate
when you use the handgrip pulse sensor (see step
5 on page 14) or the optional chest pulse sensor
(see page 25).
If you selected the ANUAL TI E program, the
main display will count down the time remaining in
the program. If you selected the ANUAL DIS-
TANCE program, the main display will count down
the distance in total revolutions. If you selected
the ANUAL CALORIES program, the main dis-
play will count down the approximate number of
calories you are burning.
To view the time, your exercise intensity in mets,
and your power output in watts, press the DIS-
PLAY button.
To view the time, the approximate number of calo-
ries you have burned, and the distance you have
pedaled, press the DISPLAY button again.
To again view the time, your exercise intensity in
mets, the approximate number of calories you
have burned, the approximate number of calories
you are burning per hour, and the distance you
have pedaled, press the DISPLAY button again.
8. easure your heart rate if desired.
See step 5 on page 14.
9. Turn on the fan if desired.
See step 6 on page 14.
10. When you are finished using the exercise
cycle, the console will automatically turn off or
enter an idle mode.
See HOW TO TURN OFF THE CONSOLE on
page 12.

17
HOW TO USE A PRESET PROGRA
A preset program will automatically change the resis-
tance of the pedals and prompt you to maintain a
target pace while guiding you through your workout.
1. Press any button or begin pedaling to activate
the console.
See HOW TO ACTIVATE THE CONSOLE on page
12.
2. Select a preset program.
To select one of the twenty-three preset programs,
first press the PLATEAU, FOOTHILLS, ALL TER-
RAIN, INTERVAL, PEAKS, or RANDOM button
repeatedly until the name of the desired preset pro-
gram appears in the main display. A profile of the
resistance settings of the program, the maximum
resistance level, the program time, and the maxi-
mum rpm setting for the program will also appear
in the display. Then, press the ENTER button to
confirm your selection.
3. Enter your age.
A moment after you select a preset program, the
words “ENTER A E” and an age setting of 35 will
flash in the main display. To enter your age, press
the increase and decrease buttons beside the
ENTER button. Then, press the ENTER button.
4. Enter your weight.
Next, the words “ENTER WEI HT” and a weight
setting of 185 pounds (US) will appear in the main
display. To enter your weight (1 kilogram = 2.2
pounds), press the increase and decrease buttons
beside the ENTER button. Then, press the ENTER
button.
5. Press the START button or begin pedaling to
start the program.
Each preset program is divided into 20 or 30 one-
minute segments. One resistance level and one
target rpm (pace) setting is programmed for each
segment. Note: The same resistance setting and/or
target rpm may be programmed for consecutive
segments.
During the program, the program profile will show
your progress (see the drawing to the left). The
flashing column of the profile represents the cur-
rent segment of the program. The height of the
flashing column indicates the resistance level for
the current segment. At the end of each segment
of the program, a series of tones will sound and the
next segment of the profile will begin to flash. If a
different resistance level is programmed for the
next segment, the resistance level will appear in
the display for a few seconds to alert you. The
resistance of the pedals will then change.
As you exercise, keep
your pedaling pace
near the target rpm set-
ting for the current
segment, which is
shown in the main dis-
play.
I PORTANT: The target rpm settings are
intended only to provide motivation. Your
actual pace may be slower than the target rpm
settings. ake sure to pedal at a pace that is
comfortable for you.
Profile

18
If the resistance level for the current segment is too
high or too low, you can manually override the set-
ting by pressing the RESISTANCE buttons.
However, when the current segment ends, the
pedals will automatically adjust to the resistance
level for the next segment.
The program will continue in this way until the last
segment of the profile flashes. To stop the program
at any time, stop pedaling or press the PAUSE but-
ton. To resume the program, simply resume
pedaling or press the START button. To exit the
program at any time, press the CLEAR button.
6. Follow your progress with the displays.
During a preset program, the main display will
show the elapsed time, your exercise intensity in
mets, the approximate number of calories you
have burned, the approximate number of calories
you are burning per hour, and the distance you
have pedaled. The main display will also show
your heart rate when you use the handgrip pulse
sensor (see step 5 on page 14) or the optional
chest pulse sensor (see page 25).
To view the time, your exercise intensity in mets,
and your power output in watts, press the Display
button.
To view the time, the approximate number of calo-
ries you have burned, and the distance you have
pedaled, press the DISPLAY button again.
To again view the time, your exercise intensity in
mets, the approximate number of calories you
have burned, the approximate number of calories
you are burning per hour, and the distance you
have pedaled, press the DISPLAY button again.
7. easure your heart rate if desired.
See step 5 on page 14.
8. Turn on the fan if desired.
See step 6 on page 14.
9. When you are finished using the exercise
cycle, the console will automatically turn off or
enter an idle mode.
See HOW TO TURN OFF THE CONSOLE on
page 12.

19
HOW TO CREATE A CUSTO PROGRA
A custom program allows you to create your own work-
outs and store them in memory for future use.
1. Press any button or begin pedaling to activate
the console.
See HOW TO ACTIVATE THE CONSOLE on page
12.
2. Select the maintenance mode.
Hold down the CLEAR button and the ENTER but-
ton simultaneously for a few seconds to select the
maintenance mode. Note: For more information
about the maintenance mode, see page 24.
When the maintenance mode is selected, the
words “MAINTENANCE MODE SCREEN 1” will
appear in the main display. Press the DISPLAY
button repeatedly until the words “MAINTENANCE
MODE SCREEN 4” and a menu of custom pro-
grams appears in the main display. You can now
select and change the settings for a custom pro-
gram.
3. Select a custom program.
To select one of the two custom programs, press
the DISPLAY button repeatedly until the name of
the desired custom program is highlighted, and
then press the ENTER button. The name of the
custom program and a profile of the resistance set-
tings for the program will then appear in the main
display. The resistance level, the program time,
and the target rpm will also appear in the main dis-
play.
4. Program the desired program settings.
Each custom workout is divided into 30 one-minute
segments. You can program one resistance level
and one target rpm (pace) setting for each seg-
ment.
To program a resistance level for the first segment,
simply adjust the resistance of the pedals by press-
ing the RESISTANCE increase and decrease
buttons or the numbered QUICKTOUCH RESIS-
TANCE buttons.
To program a target rpm setting for the first seg-
ment, press the increase and decrease buttons
beside the ENTER button. Then, press the ENTER
button to move to the next segment of the profile.
Program a resistance level and a target rpm setting
for the second segment as described above.
Continue to program resistance levels and target
rpm settings until all segments of the custom pro-
gram have been programmed.
Note: While programming segments, press the
ENTER button to move to the right in the profile;
press the BACK button to move to the left in the
profile.
5. Exit the custom program and program other
custom programs as desired.
When you program settings for the last segment of
the program and press the ENTER button, the con-
sole will automatically exit the custom program and
return to the menu of custom programs.
Repeat steps 3 and 4 to select and program
another custom program, if desired.
6. Exit the maintenance mode.
Press the DISPLAY button repeatedly to exit the
maintenance mode. When you exit the mainte-
nance mode, the custom program will be saved in
memory.

20
HOW TO USE A CUSTO PROGRA
1. Press any button or begin pedaling to activate
the console.
See HOW TO ACTIVATE THE CONSOLE on page
12.
2. Select a custom program.
To select one of the two CUSTOM programs, first
press the CUSTOM/HEART RATE button repeat-
edly until the name of the desired custom program
appears in the main display. A profile of the resis-
tance settings of the program, the maximum
resistance level, the program time, and the maxi-
mum rpm setting for the program will also appear
in the display. Then, press the ENTER button to
confirm your selection.
Note: If only a level row of indicators appears
in the program profile, see HOW TO CREATE A
CUSTO PROGRA on page 19.
3. Enter your age.
A moment after you select a CUSTOM program,
the words “ENTER A E” and an age setting of 35
will flash in the main display. To enter your age,
press the increase and decrease buttons beside
the ENTER button. Then, press the ENTER button.
4. Enter your weight.
Next, the words “ENTER WEI HT” and a weight
setting of 185 pounds (US) will appear in the main
display. To enter your weight (1 kilogram = 2.2
pounds), press the increase and decrease buttons
beside the ENTER button. Then, press the ENTER
button.
5. Press the START button or begin pedaling to
start the program.
Each CUSTOM program is divided into 30 one-
minute segments. One resistance setting and one
target rpm (pace) is programmed for each seg-
ment. Note: The same resistance setting and/or
target rpm may be programmed for consecutive
segments.
During the program, the program profile will show
your progress (see the drawing to the left). The
flashing column of the profile represents the cur-
rent segment of the program. The height of the
flashing column indicates the resistance level for
the current segment. At the end of each segment
of the program, a series of tones will sound and the
next segment of the profile will begin to flash. If a
different resistance level is programmed for the
next segment, the resistance level will appear in
the display for a few seconds to alert you. The
resistance of the pedals will then change.
As you exercise, keep
your pedaling pace
near the target rpm set-
ting for the current
segment, which is
shown in the main dis-
play.
I PORTANT: The target rpm settings are
intended only to provide motivation. Your
actual pace may be slower than the target rpm
settings. ake sure to pedal at a pace that is
comfortable for you.
Profile
