Hotpoint Ariston ARMXXL125EU Operating and installation instructions

Indesit Company UK Ltd
© 2007 Reg. Office: Peterborough PE2 9JB Registered in London: 106725
Service
Information
WASHER
DRYER
Model Comm.
Covered Code
ARMXXL125EU 47554
5407384 Issue 1 Oct. 2007

2 of 26
Service Manual UK
Indesit Company
English
SAFETY NOTES & GENERAL SERVICING ADVICE
1. This manual is NOT intended as a comprehensive repair/maintenance guide to the appliance.
2. It should ONLY be used by suitably qualified persons having technical competence applicable
product knowledge and suitable tools and test equipment.
3. Servicing of electrical appliances must be undertaken with the appliance disconnected (unplugged)
from the electrical supply.
4. Servicing must be preceded by Earth Continuity and Insulation Resistance checks.
5. Personal safety precautions must be taken to protect against accidents caused by sharp edges on
metal and plastic parts.
6. After servicing the appliance must be rechecked for Electrical Safety. In the case of appliances
which are connected to a water supply (i.e.: Washing Machines, Dishwashers & Food Centres etc.)
checks must be made for leaks from seals gaskets and pipe work and rectification carried out where
necessary.
7. It can be dangerous to attempt 'DIY' repairs / maintenance on complex equipment and the Company
recommends that any problem with the appliance is referred to its own Service Organisation.
8. Whilst the Company has endeavoured to ensure the accuracy of the data within this publication they
cannot hold themselves responsible for any inconvenience or loss occasioned by any error within.
SERIAL NUMBER / INDUSTRIAL CODE EXPLANATION
Serial Number Example
3 10 02 0895
Four remaining digits = Build number that day 895th built
Third two digits = Day of manufacture 2nd of month
Second two digits = Month of manufacture October
First digit = Year of manufacture 2003
Industrial Code Example
37 24455 0010
Last four digits = 0000 original production.
Second five digits = COMMERCIAL CODE*
First two digits = Factory of origin
* Vital for correct model information and system identification
Other numbers denote major production changes

3 of 26
Indesit Company
Service Manual UK English
INDEX
Safety & Servicing Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Manufacturing Serial Number Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Controls, Options, Drying & Drying process, Valve operation . . . . . . . . . . . . . 5 - 12
Wiring Connections and Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 14
Wiring Diagram Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Error Codes & Possible Causes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Dismantling Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 - 24

4 of 26
Service Manual UK
Indesit Company
English
SPECIFICATIONS
Model Covered ARMXXL125EU
Commercial Code: 47554
Colour White
Country of Origin Great Britain
Electrical Supply 220 - 240 Volt AC @ 50 Hz
Energy Energy Class: B
Washing Performance Class: A
Energy Consumption 1.33 kWh / Cycle @ 60°C Cotton
Water Consumption Washing Only = 62 Litres @ 60°C Cotton
Wash Load 7 kg Cottons
Washing & Drying Load 5.0 kg + 5.0 kg Cottons
Spin Speed 1200 rpm maximum
Wash Heater 1800 Watts @ 230 volts Resistance 30 Ω approx.
Dryer Heater 1200 Watts @ 230 volts Resistance 43 Ω approx.
Thermistor NTC - Wash Resistance: 20 KΩ@ 20°C
Thermistor NTC - Dryer Resistance: 26 KΩ@ 20°C
Water Supply Cold Valve - Coil Resistance 3.8 KΩ
Max Pressure = 1 Mpa (10bar)
Minimum Pressure = 0.05 Mpa (0.5bar)
Motor - Wash Single phase (52 mm stator)
Motor - Dryer Fan 230 Volt 50 Hz Resistance approx. 45 Ω
Pump 2 Pole Synchronous
220 / 240 Volt 25 Watt, Resistance = 165 Ω
Maximum Head 1.4 metres
Flow rate @ 0.9 metres / 30 Litres per minute
Door Lock P.T.C. Solenoid (Emergency door release cord if power lost)
Torque Settings Outer Drum = 8Nm
Upper Balance Weight = 24 - 26 Nm
Lower Balance Weight = 24 - 26 Nm
Heater Box to Drum = 12Nm
Heater Box Top to Bottom = 8Nm
Dimensions Height 850 mm Width 595 mm
Depth 580 mm Weight 75.5 kg

5 of 26
Indesit Company
Service Manual UK English
CONTROLS
ON-OFF / SELECTING A PROGRAMME
The machine is switched on by pressing the ON-OFF button.
All the indicator lights will light up for a few seconds.
Turn the programme selector dial to the to the desired programme.
Load the laundry and detergent.
Select the Option you require, a time will be indicated in the display window.
Press the Start / Cancel button.
A beep will be heard followed by a CLUNK from the door lock Solenoid as it locks the door, at this
stage the door locked indicator symbol will light.
TO STOP OR CHANGE A PROGRAMME
Press the ON-OFF button for approximately 3 seconds
Select PUMP OUT on the programme dial.
Switch on and re-start
When the machine has finished emptying.
Press the ON-OFF button
Select a new programme and re-start
NOTE: If you cancel a HOT wash or Dry programme, take care when removing the laundry, it may still
be VERY HOT.
PROGRESS INDICATOR LIGHTS
These lights will light up when you choose a programme, to indicate the progress of the selected
programme.
When started, the first light in the cycle will stay lit and as the programme progresses, successive lights
will come on until the programme finishes.
continued on next page.

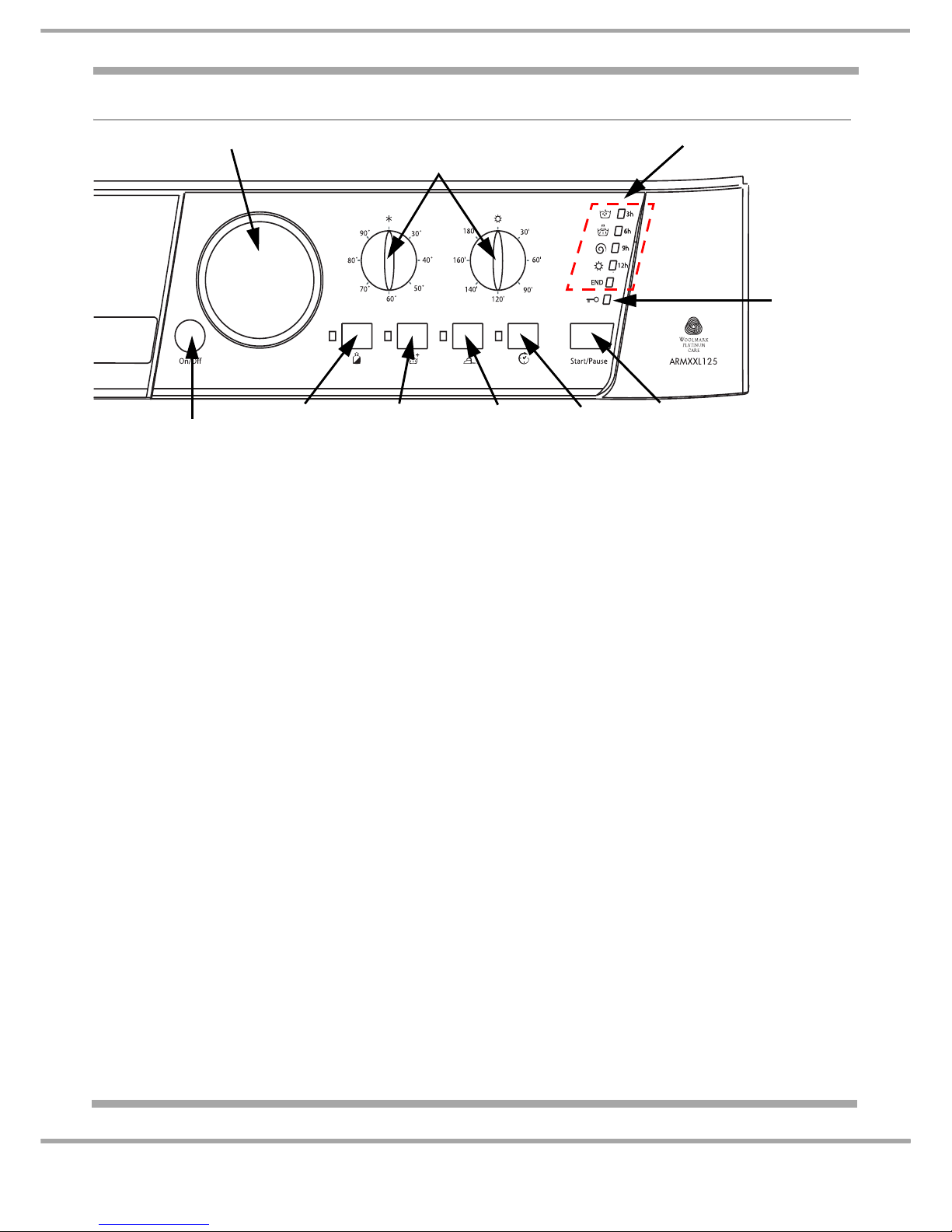

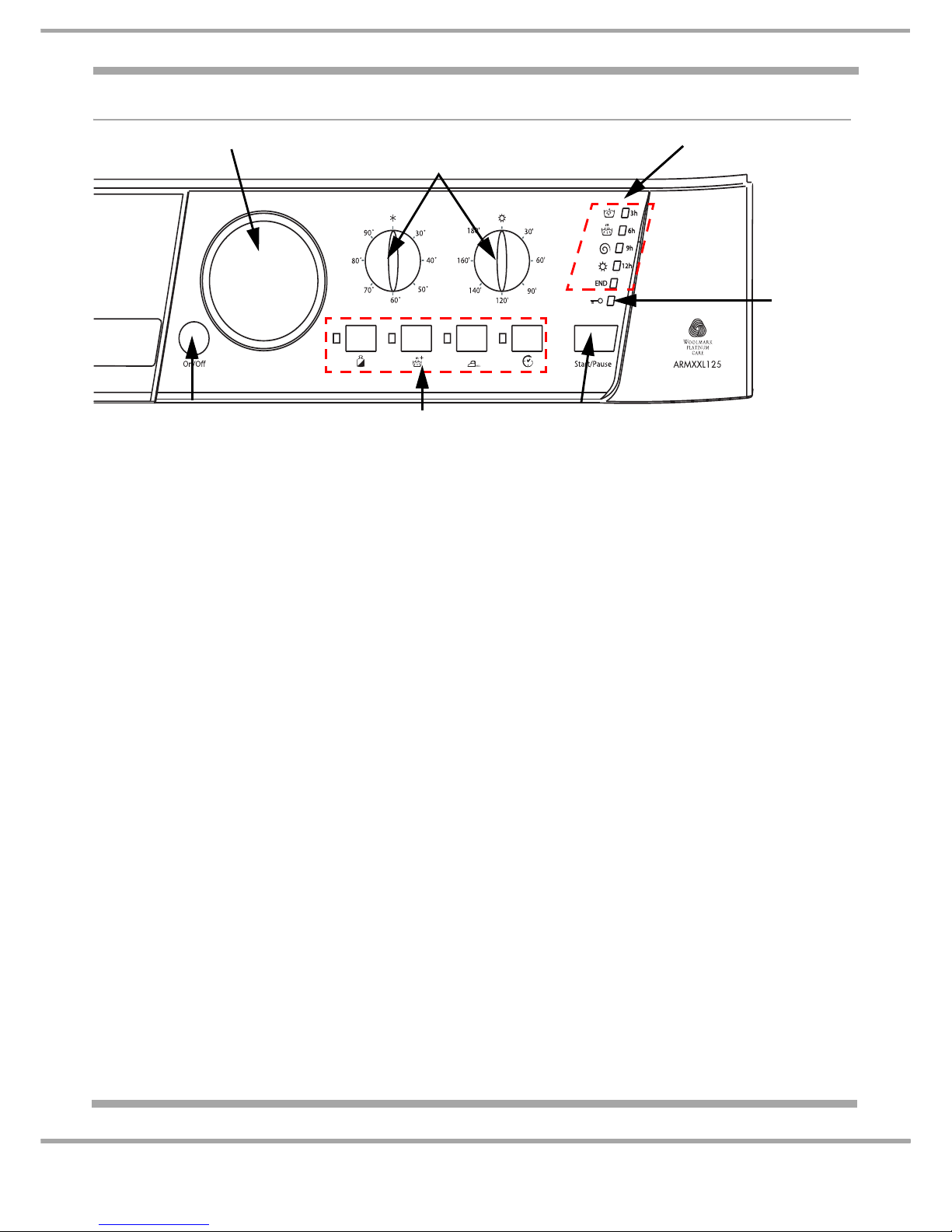

Programme Selector Dial
Variable Controls
Progress Indicator Lights
Door
Locked
Symbol
On-Off Option Buttons Start/Pause

6 of 26
Service Manual UK
Indesit Company
English
DOOR LOCKED INDICATOR LIGHT
The 'Door Locked' indicator light will come on when you press the START / PAUSE button and will stay
lit throughout the programme. When the programme has finished the indicator light will go out and you
can then open the door, a double CLUNK noise will be heard from the door lock Solenoid at this point.
If the door is not closed properly prior to starting a programme the door lock solenoid will 'CLUNK'
approximately 5 times followed by a flashing DOOR indication in the display window, every 5 seconds
from then onwards there will be an audible beep.
Push the door closed and press START / PAUSE button to commence the cycle.

7 of 26
Indesit Company
Service Manual UK English
OPTIONS
Options are selected by pressing the button and confirmed by illumination an orange LED sited in the
button.
If an option is not available with a programme, the LED will flash and a bleeping noise will be heard
when pressing the button.
MINI LOAD
For washing a smaller load.
In addition to reducing actual washing time, this option will reduce water and energy consumption by
up to 50%.
NOTE: - You can reduce the amount of detergent you use with this programme.
EXTRA RINSE
For large wash loads and items for young children or people with sensitive skin.
This option adds a rinse.
EASY IRON
To reduce creasing to a minimum and save you ironing time.
TIME DELAY
With this option you can delay the start time of the programme between 1 and 24 hours.
Programme Selector Dial
Variable Controls
Progress Indicator Lights
Door
Locked
Symbol
On-Off Mini Start/Pause
Extra Easy Time
Load Rinse Iron Delay

8 of 26
Service Manual UK
Indesit Company
English
OPTION AVAILABILITY
SPECIAL PROGRAMME DESCRIPTIONS
FRESH UP (15 MIN)
Load: 1.5 kg
Cycle duration: 15 minutes
Extra fast wash programme with the same performance of a 30º wash
SANITARY
Load: 6.5 kg
Cycle duration: 3.5 Hours
90º programme that can use bleach together with the perfect rinse to remove Bacteria
NIGHT CYCLE - Temperature 40°C - Spin 800 rpm
Load: 4.0 kg
Cycle duration: 4.0 Hours
This cycle is very silent and ideal to use at night due to the minimum use of the drain pump
and reduced drum action with the added advantage of lower energy consumption. At the end of
the cycle the washing will be suspended in water avoiding the main noise created during the
final phase.
BABY - Temperature 40°C - Spin 800 rpm
Load: 2.0 kg
Cycle duration: 1 Hour 50 minutes
This cycle will remove all residue of detergent from the clothes to cut down the risk of allergic
reactions on delicate skin. It is also designed to reduce bacteria by using more water.
PROGRAMME
NUMBER
PROGRAMME
DESCRIPTION
HALF
LOAD
EXTRA
RINSE
EASY
IRON
TIME
DELAY
1 COTTON 60º YES YES YES YES
2COTTON COLOURFAST 40º YES YES YES YES
3ACRYLICS 60º YES YES YES YES
4DELICATE 40º YES YES YES YES
5FRESHUP * * *YES
6SANITARY 90º YES YES * YES
7 NIGHT CYCLE 40º YES YES * YES
8 BABY CYCLE 40º YES YES * YES
9SILKS 30º YES YES YES YES
10 WOOL 40º YES YES * YES
11 DRY- COTTON * * * YES
12 DRY- SYTHETICS * * * YES
13 DRY- WOOL * * * YES
A HIGH RINSE YES YES YES YES
B HIGH SPIN * * * YES
C DRAIN * * * YES

9 of 26
Indesit Company
Service Manual UK English
DRYING
SETTING THE DRYING PROGRAMME
Independent Drying only Programme:
1. Remove the wet laundry and in the drum the dosing ball (if used) until the correct drying weight
load is left in the drum.
2. Close the door until it clicks shut.
3. Turn the programme selector dial to Drying Programmes 11, 12 or 13.
4. Select Auto or time dry as required, by pressing the button advancing through the settings
available.
5. When all selections have been made press the Start/Cancel button. A bleep will be heard followed
by a 'CLUNK' from the door lock solenoid and the door will lock.
6. When the programme has finished the DOOR LOCKED indicator light will go out and a CLUNK will
be heard as the door lock solenoid disengages. The door can now be opened.
Drying Options
You can select the length of drying time suitable for the load.
NOTE: - The machine display shows hours, the selector knob indicates in minutes.
Fabric
Type
Selected
Programme
Drying Programme
Type Time Displayed
Cotton 11 Cupboard 3.00 Hours
Cotton 11 Iron 2.40 Hours & Minutes
Cotton 11 Times Dry 180 Minutes
Cotton 11 Timed Dry 60 Minutes
Cotton 11 Timed Dry 40 Minutes
Synthetic 12 Cupboard 3.00 Hours
Synthetic 12 Iron 2.40 Hours & Minutes
Synthetic 12 Timed Dry 180 Minutes
Synthetic 12 Timed Dry 60 Minutes
Synthetic 12 Timed Dry 40 Minutes
Wool 13 Cupboard 1.41 Hours & Minutes
Wool 13 Iron 1.21 Hours & Minutes

10 of 26
Service Manual UK
Indesit Company
English
CONTROLS INFORMATION
A single control board located at the back of the machine contains all the circuitry to control the
machine and interfaces with the programme selector, option buttons and LEDs located on the console
panel. The control board has an access port to the rear of the machine.
Programmes are selected by turning the rotary switch to one of the 16 positions. Special options can
be selected by pressing the appropriate buttons and the programme process followed by LEDs.
The machine is switched on using the On/Off button and selected programmes started by pressing the
Start/Cancel button.
Automatic Features
Auto Half Load
Auto half load adjusts the amount of water in the wash load depending on the absorbency of garments
in the wash load.
Fabric Conditioner Dispensing
Dispensing of fabric conditioner is achieved by energising both the Pre-Wash and Main Wash cold
valves.
Out of Balance Protection
The machine has an inbuilt feature to prevent spinning with an unbalanced load. A calculation via the
motor tacho and control board detects the current drawn by the motor during distribution.
Before each spin, the controls senses the load within the drum and if the load is calculated to be out of
balance the machine will not automatically spin to the full speed.
There are two levels of out of balance, level 1 @ 480 grammes and level 2 @ 1030 grammes.
If the out of balance is below level 1 the machine will spin at full speed, if between level 1 and level 2
the machine will spin at the reduced speed of 600 rpm and above level 2 spin at reduced speed of 400
rpm. There are 15 attempts at level 1 with 57 attempts in total, this being the same for both cotton and
synthetic spins.
The wool spin has one level of out of balance @ 1.8 kg. The controls will make three attempts to
achieve a balance, if after three attempts a balance is not achieved; the spin is reduced to a speed of
90 rpm.

11 of 26
Indesit Company
Service Manual UK English

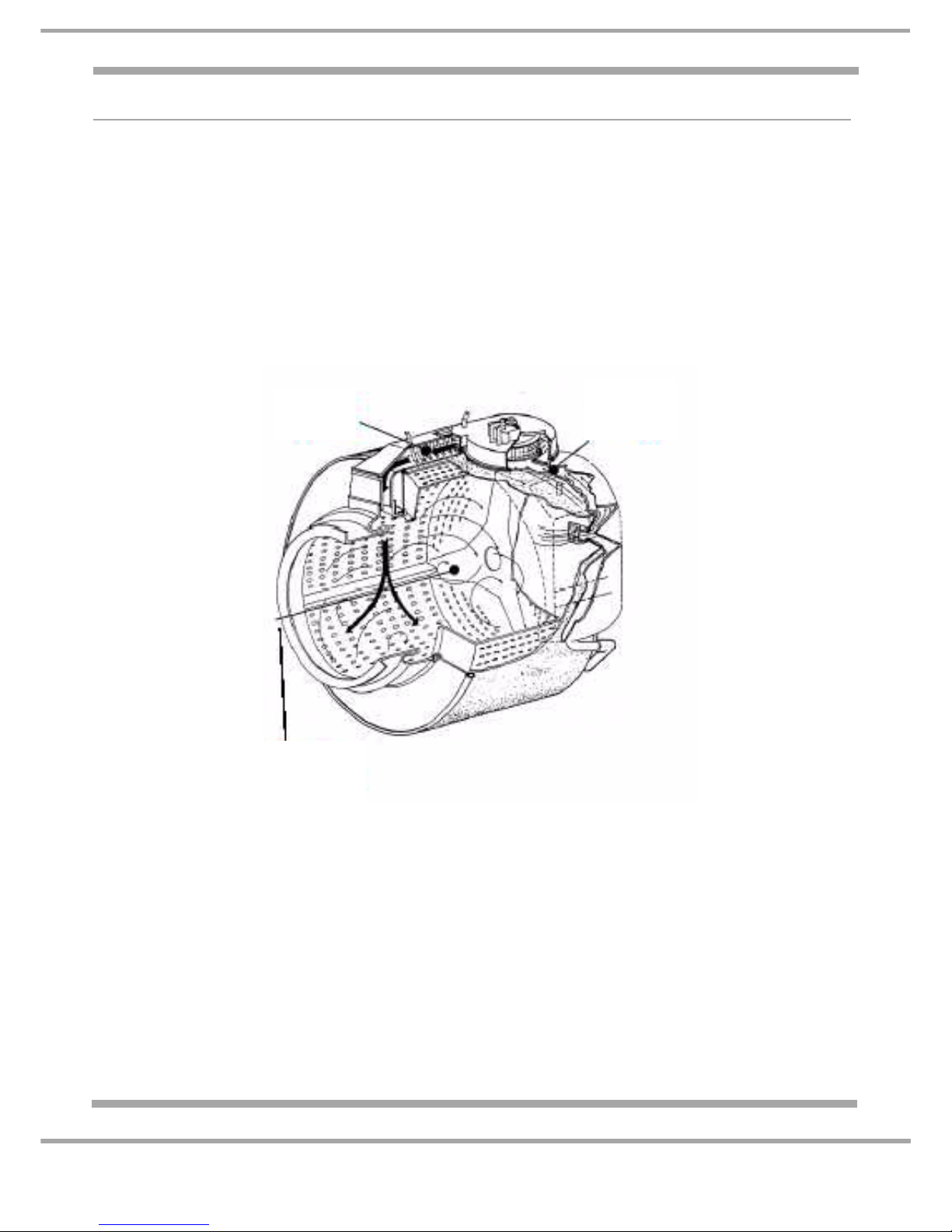

THE CONDENSER TUMBLE DRYING PROCESS
The drying process is by means of a closed air system driven by a circulating fan. Air is drawn
internally from the rear of the outer drum, passed over a heating element and returned to the front of
the drum via an inlet through the door seal. The warm air travels through the wash load collecting
moisture, the moist air then condenses on a stream of cold water running down the inner rear section
of the outer drum. The relatively dry air is then drawn back over the element to repeat the process.
The circulating fan, one shot cut-out or thermal fuse cable along with a thermistor to control the air
temperature are located in a heater box assembly attached to the top of the outer drum.
The airflow passes through a filter located within the air duct from the outer drum to the heater box
assembly. At the start of every drying program the filter is automatically cleaned by flushing water
through it by means of a fill valve wired in parallel with the hot fill valve for 5 seconds duration.
Warm Humid Air
Cold Dry Air
Warm Dry Air

12 of 26
Service Manual UK
Indesit Company
English
Flushing Valve Operation
During Rinse phase: 2 xs for 15 seconds
Drying Phase: 1 x before drying phase for 4 seconds
End cycle: After drying phase, during cool down phase
Valve Off for 118 seconds
Valve On for 2 seconds
Beginning of Drying Cycle
Wash valve: On for 1 second to put water into dispenser hose
Flushing valve: On for 4 seconds
Drain pump: On for 20 seconds
During Drying Cycle
Drain pump: On for 9 seconds and off for 21 seconds
Wash valve: On for 2 seconds and off for 510 seconds to put water into dispenser hose
Condenser valve: On continuously after thermo spin
The water supply for the condenser is by means of a direct feed from a cold inlet valve to the rear of
the outer drum and is pumped out approximately every 30 seconds.
The closed air system is sealed by a 'P' trap located within the dispenser inlet hose.
The hose is topped up with cold water every 8 minutes for a duration of 1 second.
There are two heat settings, high and low heat. The default setting is low heat, High Heat is selected
by means of a push button on the console. The drying time is selected by means of a rotary switch
also located on the console. The drying times are followed by a 20 minute cool tumble.
Thermal Spin
A thermal spin on the High Heat setting is carried at the start of the of the drying process. The load is
pre-heated to approximately 50°C by the dryer heater with normal tumble action and pump out. The
thermistor located in the wash heater will sense the load temperature and when 50°C is achieved a 5
minute Spin profile will be carried out at full spin speed.
During thermal spin the out of Balance detection will operate and maximum speed will only be
achieved depending on the out of balance condition.
On completion of the Thermal Spin, the tumble drying process will commence for the period of time
selected.
Thermal spin is NOT available when low heat is selected.

13 of 26
Indesit Company
Service Manual UK English
WIRING CONNECTION CHART
5407384wcc.ai
from 16001769800
2J14
1J14
5J13
1
3
3
1
1J13
3J13
4J13
1J1
2J1
P16
MRC
MRL
MRN
COMMON
LIVE
NEUTRAL
P11
P14
P12
R.TF.
R.R.
1J1
1J3
1J4
1J8
3J8
4J8
6J8
7J8
9J8
11J8
12J8
2J4
3J4
(BLACK WIRE)
2J3
3J3
4J3
5J3
6J3
- 4 -
- 3 -
- 2 -
- 1 -
- 3 -
- 2 -
- 1 -
3
1
1
3
1
3
- 1 -
- 1 -
2J1
FA4
FA1
J1
J2
J3
1J9
2J9
3J9
4J9
5J9
6J9
7J9
8J9
9J9
IJ11
2J11
3J11
4J11
5J11
5J15
4J15
3J15
2J15
1J15
- 7 -
- 6 -
- 5 -
- 4 -
- 3 -
- 2 -
- 1 -
- 2 -
- 1 -
J9
J11
J13
J14
J4
J8
Dryer
Heater
Motor
Pump
Display
Dryer
Valve
Dryer
Motor
Mains
Filter
Dryer NTC
Motor
Heater Box
Wash Heater
Mains
Filter
Pressure
Switch
Wash
Heater
Pre-Wash
Valve
Wash
NTC
Cold Valve
Hot Valve
(If fitted)
Live &
Neutral
DRYER HEATER
PRESSURE SWITCH
& WASH HEATER
MAINS FILTER
MOTOR & PUMP
DISPLAY
DRYER MOTOR / NTC / VALVE
EARTH CONNECTIONS
DOOR LOCK
VALVES

Indesit Company
14 of 26
Service Manual UK English
WIRING DIAGRAM
4
Vcc
GND
SCL
SDA
2
1
4321
48w
10w
10w
1A
10A
10A
12A
12A
3
2
1
2
1
3
643
234
3
2
4
1
1
C
2
1
2
1
R
A
TF
R
RA
Test
5
1
LN
EVP EVL
1
12
12
Stat.CP
Stat.CI
Stat.
1
23
4
5
67
76532121
76432
1
4
5
6a
6a
6a
6a
6a
M
T
COMUNE
13
2
1611
14
1
12
OVERFLOWW
1 2 12
10A
10A
RR
R
TF
3 2 1 4
87
2
1
*
2
1
Lav.
87
3
1
10w
3
1
3
1
5
PIENO
5
45
Feed-
back
Feed-
back
Mains Input
Filter
Tacho
Armature
Motor
Wash Valves
Wash
Thermistor
Pre
Wash
Main
Wash
Pressure
Switch
Pump
Test
Connector
Condenser Tumble Dryer
Condenser
Valve
5407376wd.ai
ARMXXF145EU
J11
43215
43215
J15
J7
12345
64
EVA EVP EVL
EVC
10w
1
3
Flushing
Valve
Wash
Heater
J1 J9 J8 J3
J11
J4 J2
J14 J13

15 of 26
Indesit Company
Service Manual UK English
WIRING DIAGRAM LEGEND
AQS Aquastop solenoid valve N Neutral or Terminal board
BBuzzer or Door lock NC No spin
BF Terminal board contacts, dryer heating
element and P Pressure switch
BP Door lock P1 Pressure switch 1st level
C Condenser P2 Pressure switch 2nd level
AC Condenser PA High speed potentiometer
DV Switch PB Low speed potentiometer
EF/CL Cold water/bleach solenoid valve PL Pure wool
EF/L Cold water/wash solenoid valve PM Motor thermoprotector
EF/P Cold water/prewash solenoid valve PR Timer programmer or Pressure switch
ER Cut-out heater PS Drain pump
ET Cut-out thermostat RHeating element
EV Solenoid valve Ras/RA Drying heater
EVA Drying solenoid valve RE Relay
EVC Hot water solenoid valve RR Heating element
EVF Cold water solenoid valve RV Speed regulator
EVL Wash solenoid valve S Indicator light
EVP Prewash solenoid valve SL Line indicator light
FA Noise filter SO Door indicator light
FD Delicate drying thermostat SR Heating indicator light
FE Intense drying thermostat ST Temperature selector or Stop with water
FRT Thermofuse resistance SV Spin speed selector
I Reverser T Timer contacts
I1..I2..3. Switches/deviators TA Drying timer contacts
IA On/Off switch TB Low temperature thermostat
IC Switch NC / 1/2 load TC Crosspiece earth
ID No spin switch TFL Flange earth
IE Water-economizer or NC Switch TG Main earth
IF Spin decrease switch TH Thermostat
IP Door switch TH1 Thermostat 1st temperature
IR Line switch TH2 Thermostat 2nd temperature
IS Water-stop TH3 Thermostat 3rd temperature
L Line or Lamp THF Work thermostat
LB Low level THR Adjustable thermostat
LN Normal level TM Motor earth
LS Indicator light TMB Base cabinet earth
M Earth symbol or Dryer motor TMP Motor thermoprotector
MC Spin motor or Spin winding TMS Thermostop
MI Induction motor TP Thermoprotector or Pump earth
ML Wash motor or Wash winding TPS Drain pump earth
MO Terminal board TR Heating element earth
MP Door microswitch TS Safety thermostat or Support earth
MR Microdelay device TT Timer earth
MT Timer motor TTH Thermostat earth
MV Fan TV Tub earth
MV - Ras Dryer fan (RA) ZBN Timer
Mzbn/M zbn timer motor

16 of 26
Service Manual UK
Indesit Company
English

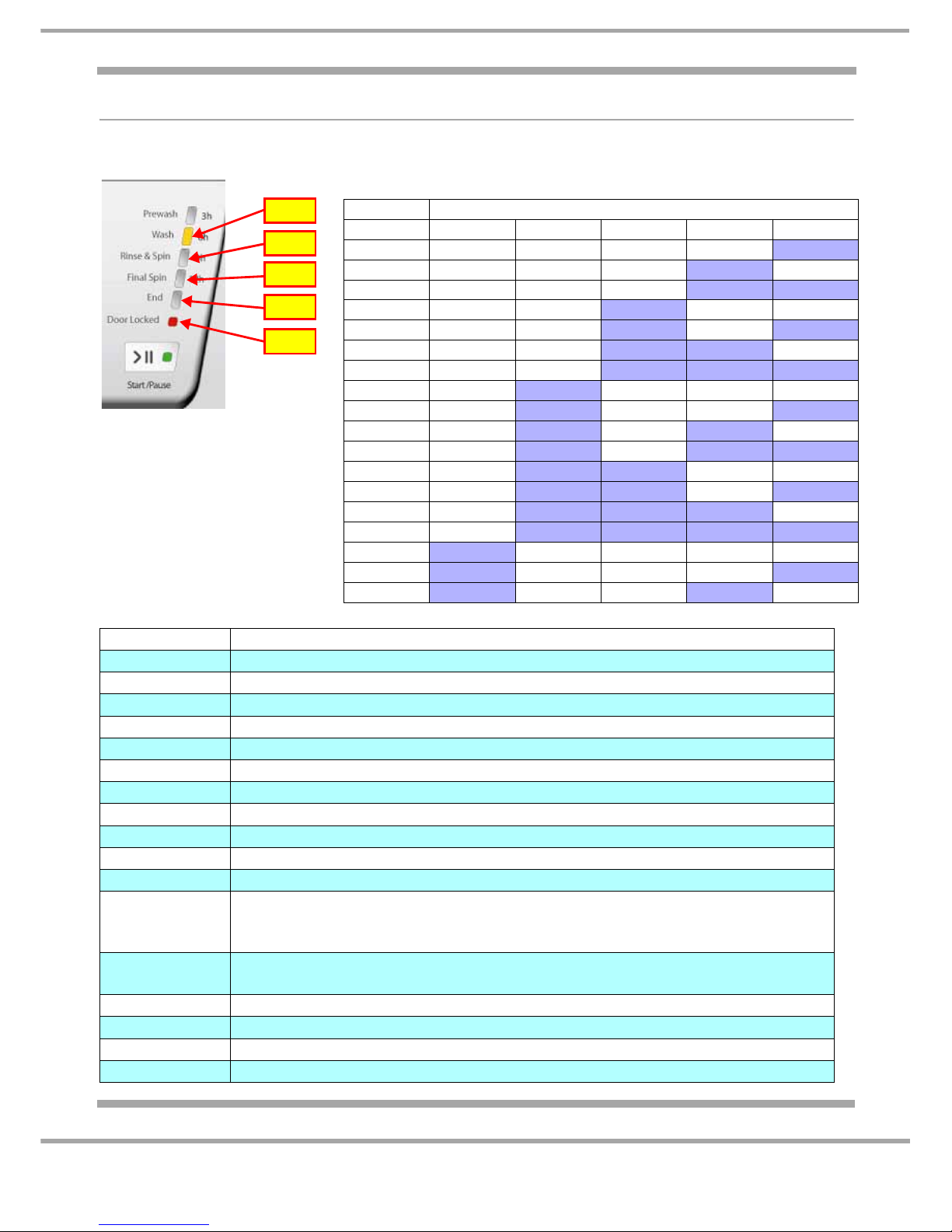

ERROR CODES & POSSIBLE CAUSES
When an error occurs the following LEDs will flash indicating a fault.
Refer to the chart below for the error code definitions.
FAULT LED COMBINATION
LED5LED4LED3LED2LED1
F01 OffOffOffOffOn
F02 Off Off Off On Off
F03 Off Off Off On On
F04 Off Off On Off Off
F05 Off Off On Off On
F06 Off Off On On Off
F07 Off Off On On On
F08 Off On Off Off Off
F09 Off On Off Off On
F10 Off On Off On Off
F11 Off On Off On On
F12 Off On On Off Off
F13 Off On On Off On
F14 Off On On On Off
F15 Off On On On On
F16 On Off Off Off Off
F17 On Off Off Off On
F18 On Off Off On Off
F01 Motor triac short circuit: Check motor and module connections
F02 Motor jammed / tacho detached: Check motor and module connections
F03 NTC short/open circuit: Check thermistor and module connections
F04 Pressure switch jammed on empty: Check switch and module
F05 Pressure switch jammed on full or pump blocked: Check pump and switch
F06 N/A
F07 Heater relay stuck: Check heater and module connections
F08 Heater relay stuck: Check pressure switch, heater and module connections
F09 Setup error: Check Eeprom
F10 Pressure switch not sensing: Check switch and module connections
F11 Pump cannot be activated: Check pump, connections and wiring
F12 No communication between cards: Check module connections
F13
High temperature Rise In Drying: Reduced air flow through dryer heater
assembly.
Check operation of fan motor and dryer filter for blockage
F14 No Heat In Drying: Check one shot thermostat. Check heater, valve and fan
motor module connections. Edge connector J10
F15 No Drying: Possibly dryer relay open circuit
F16 N/A
F17 Door lock error: Check door, door lock and module connections
F18 Communication error (3 phase motor): Replace power board
LED 1
LED 2
LED 3
LED 4
LED 5

17 of 26
Indesit Company
Service Manual UK English
DISMANTLING INSTRUCTIONS
Safety Notes
1. Ensure that the appliance is disconnected from the electrical supply before dismantling.
2. Beware of sharp edges on metal panels, plastic mouldings, and pressed parts.
3. Some fixings (especially those into plastic) must be tightened to the correct specification
using a suitable torque wrench.
4. Insulation resistance tests must be carried out with the pressure switch set to ensure that
the water heater is 'in-circuit' during the test.
A Table Top
1. Remove the 2 screws at the top rear of cabinet.
2. Slide the table top backwards to disengage the location fixings at the rear and lift off.
B Lower Rear Access Panel
1. Remove 2 screws from the lower rear access panel.
2. Pull the top edge of the panel out and disengage it from its location fixings along the bottom.
C Dispenser Drawer
1. Open the dispenser drawer fully.
2. Lift the right hand side of the dispenser. Pull forward to remove.
D Console Panel
1. Remove the table top (A) and dispenser drawer (C).
2. Remove the dispenser hinge pivot pin, slide the programme chart from the dispenser housing.
3. Remove 2 top screws securing console to cabinet and two screws securing console to dispenser.
4. Unplug wiring from console PCB.
5. Unclip 2 plastic lugs securing console panel to front panel and lift clear.
E Console PCB & Button Assemblies
1. Remove the console panel (D).
2. Remove wiring plug.
3. Remove 5 securing screws and lift away from the console. All the buttons/programme knobs will lift
clear with the PCB.
F Pressure Switch
1. Remove the table top (A).
2. Disconnect the wiring connection block and pressure hose.
3. Carefully unclip bracket from cabinet side and then unclip switch from bracket.

18 of 26
Service Manual UK
Indesit Company
English

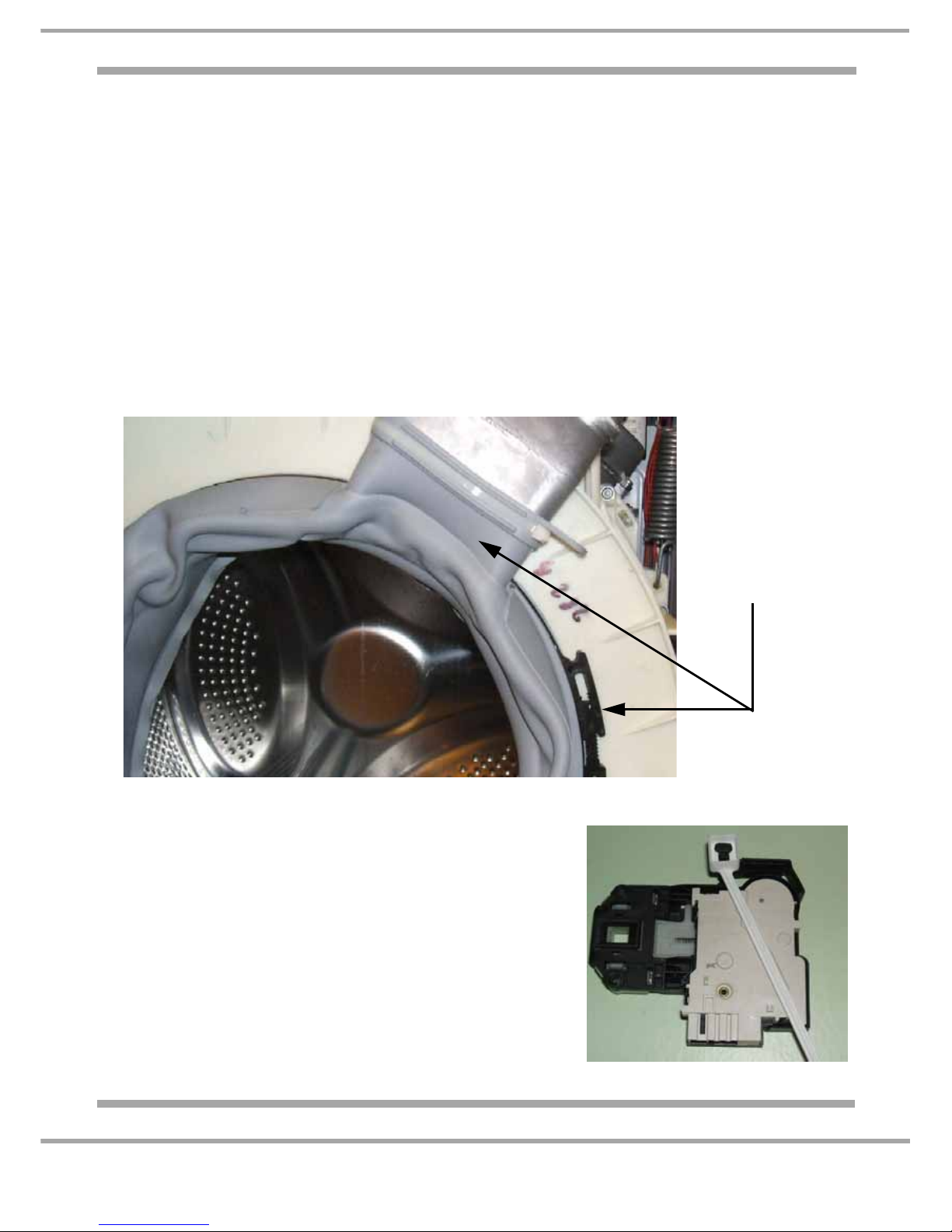

G Door Seal & Restraint:
1. Door Seal to Front Panel Fixing
The door seal is fixed to the cabinet front panel by a wire clamp and a small spring. The spring is
normally at the bottom of the door.
Carefully place a small screwdriver into one of the lugs of the spring and by stretching the spring
the wire band can be removed.
2. Drum Fixing
The door seal is fixed to the drum with a zipper retainer. After removing the front panel (J) remove
the zipper.
On refitting place the zipper retainer around the door seal and tighten. Observe correct seal and
zipper fixing positions as shown in Fig. 1.
H Door Interlock
1. Remove the door seal restraint (G).
2. Peel the door seal off the front panel, and fold it back into the
inner drum.
3. Remove 2 screws from the interlock.
4. The interlock can now be eased out, allowing access to the
wiring connection block and emergency release strap.
5. Care must be taken to ensure the correct orientation of the
wiring connection plug to prevent seriously damaging the
interlock and / or control board.
Seal to Drum fixing position
Correct Seal
& Zipper fixing
position
Fig. 1

19 of 26
Indesit Company
Service Manual UK English
J Front Panel
1. Remove the table top (A), dispenser drawer (C) and console panel (D).
2. Remove the door seal restraint (G) and door interlock (H).
3. Release the 3 clips located on the top edge of the kickstrip, tilt forward and lift clear.
4. Remove 4 front panel fixing screws (2 bottom and 2 top).
5. Lift the front panel upwards to disengage the four cabinet fixing pegs, and lift off.
K Door Seal
1. Remove the table top (A), dispenser drawer (C) and console panel (D).
2. Remove the door seal restraint (G), door interlock (H) and front panel (J).
3. Remove the drum door seal restraint (G) and lift clear.
4. Disconnect the door seal from the heater box.
LDriveBelt
1. Remove the table top (A).
2. Remove the lower rear access panel (B).
3. Carefully peel the belt off the motor pulley taking care not to trap fingers and using suitable
protection against sharp edges.
4. To refit the belt, place it round the motor pulley first, tie-wrap the belt onto the drum pulley, and
rotate the drum from the door aperture to move the belt into position.
5. Ensure any remaining tie-wraps are removed.
It is essential for continued safety that only a genuine spare is fitted. The belt is electrically
conductive and provides an electrical earth to prevent static built up on the inner drum assembly.
I Door Assembly
1. Open the door through 180° and remove four
screws securing the hinges to the front panel.
Ease the hinges from the panel.
2. The door trims can now be split. Lay the door
assembly face down on a suitably protected
surface and remove 6 screws securing the two
halves of the door.
3. Unclip the two halves at the hinge end and
separate a sufficient distance to slide out the
door glass.
4. When removing the hinges, note the
orientation. To remove, fold hinges inward,
slide towards each other to release other end.
See photo. Reassemble in reverse order.
5. To fully separate the halves, slide the front
away from the handle.
6. To remove the handle or latch, slide securing
pin out noting the position of the spring and
latch.
Top Hinge removal (shown below) -
Slide towards lower hinge, twist to the left
and slide up to release.
Lower Hinge removal - Slide upwards, twist to
the right and slide down to release.

20 of 26
Service Manual UK
Indesit Company
English
MMotor
1. Remove the lower rear access panel (B) and drive belt (L).
2. Disconnect the motor wiring connection plug and earth wire.
3. Using a 13 mm socket or ratchet ring spanner, remove both motor mount fixing screws.
4. Ease the motor off the drum mountings.
5. Prior to refitting the motor, ensure that the mounting-bush is not worn or damaged., replace if
required.
N(a) Lower Balance Weight
1. Remove the table top (A), dispenser drawer (C) and console panel (D).
2. Remove the door seal restraint (G), door interlock (H) and front panel (J).
3. Using a 10 mm socket or spanner, remove three balance weight fixing screws.
4. Pull the weight forward off its mounting lugs.
5. When refitting the balance weight it is essential to ensure that the thread forming screws are
tightened to 24 - 26Nm (using a suitable torque-wrench) and that the screws find their original
threads, otherwise the thread can be stripped from the plastic drum lug.
N(b) Top Balance Weight
1. Remove the table top (A).
2. Using a 10 mm socket or spanner, remove three balance weight fixings screws.
3. Lift the weight off the drum mountings.
4. When refitting the balance weight it is essential to ensure that the thread forming screws are
tightened to 24 - 26Nm (using a suitable torque-wrench) and that the screws find their original
threads, otherwise the thread can be stripped from the plastic drum lug.
P Heater / Thermistor
1. Remove the rear lower access panel (B).
2. Remove the heater wiring and detach the thermistor plug.
3. Slacken off the 8 mm heater fixing nut and withdraw the heater from the drum.
Q Drum Pulley - (Drum assembly will need to be removed to gain access to the pulley)
1. Remove the rear lower access panel (B).
2. Carefully peel the belt off the motor pulley taking care not to trap fingers.
3. Using a 13mm socket or spanner, remove the fixing bolt in the centre of the pulley.
4. Pull the pulley off the drum shaft.
5. To ensure adequate pulley security always fit the correct pulley bolt (high tensile with dog-point).
If refitting the original bolt apply an engineering Nutlock (Part No. C00981009) to the bolt threads.
