Hotpoint DY330GW User manual

Oven
Instructions

Thank you for choosing one of our products.
We hope you will get the very best performance from this appliance.
Before using this appliance, carefully read the warnings contained
in this instruction manual, since these are important instructions
for its safe installation, use and maintenance.
Carefully keep this manual for future consultation.
The manufacturer reserves the right to make modifications considered to
be necessary and useful, without any advance notice.
This appliance satisfies the following EC directives:
93/68/CEE : General Regulations and subsequent amendments
90/396 : Gas appliances an d subsequent amendments
2006/95/CE : Low Voltage and subsequent amendments
89/336/CEE : Electromagnetic Compatibility and subsequent amendments
This appliance is marked in compliance with European Directive
2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
By making sure that this product is properly disposed of, the user is
contributing to preventing potential environmental and health damage.
The symbol on the product, or on the documentation that goes with it,
indicates that this product must not be considered domestic waste. It must
be turned over to suitable collection centres for the recycling of electrical
and electronic equipment instead.
Dispose of it in accordance with local standards for waste disposal.
For further information on the treatment, reclamations and recycling of this
product, contact the proper local authority, the home waste collection
service or the retailer where the product was purchased.
GB
1

GENERAL WARNINGS
oTHIS PRODUCT WAS DESIGNED FOR HOUSEHOLD USE
oAfter having removed the packaging, make sure that the appliance
is in good condition. If any doubts exist, consult professionally
qualified personnel.
oThe packaging materials (for example, styrofoam, bags, etc.) can
be hazardous for children (suffocation hazard). Keep packaging
materials away from children.
oThe packaging is made of recyclable material and is marked by the
symbol . Please dispose of properly.
oThis manual forms an integral part of the appliance. We
recommend keeping it in a safe place for the entire lifespan of the
appliance and reading it carefully in order to install, use, maintain,
clean and treat the appliance.
oThese instructions are valid only for the countries of
destination in which the identification symbols appear on
the typeplate located in the instruction book and on the
appliance.
oLifting and moving of appliances weighing more than 25 kg must be
carried out using proper equipment, or by two persons, in order to
avoid risks or injuries.
oDo not leave the appliance exposed to atmospheric agents (rain,
sun, etc.).
oIf the appliance is no longer to be used, it is recommended to
render it unoperational by cutting the electric power supply cable
and disconnecting it from the gas supply. In addition, it is also
recommended to render the parts of the appliance that could be
dangerous innocuous.
GB
2

oHob accessories that could come into contact with foods are
constructed with materials that conform to the regulations outlined
in CEE Directive 89/109 of 21/12/88.
oThese appliances do not require particular maintenance,
nevertheless it is recommended to have them checked at least once
every two years. If the knobs become difficult to turn or there is a
gas odour, close the general tap and contact technical service.
oThe defective tap should be replaced together with the gasket.
GENERAL WARNINGS - INSTALLATION / REPAIRS -
oTHE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR ANY
DAMAGE TO PEOPLE OR ITEMS CAUSED BY INCORRECT
INSTALLATION OR IMPROPER, WRONG OR ABSURD USE OF THE
APPLIANCE.
oWarning: earth connection is required by law.
oWARNING: WE RECOMMEND USING ADEQUATE PREVENTION
AND PROTECTION DEVICES WHEN DISMANTLING,
MAINTAINING AND CLEANING THE APPLIANCE (GLOVES,
ETC.)
oThe installation and all the gas/electric connections must be carried
out by qualified personnel, in compliance with safety regulations
and current laws, following the manufacturer's instructions.
oThe identification plate with technical data is located in view under
the guard and annexed to this manual. The label must not ever
be removed.
oBefore installing, check that the local distribution conditions (gas
type and pressure and the electricity supply) and the adjustment
state of the appliance are compatible.
oThe appliance adjustment regulations are reported on the label (or
the data label).
GB
3

oThis appliance is not connected to an exhaust device for
combustion products. It must be installed and connected in
compliance with the regulations regarding ventilation.
oThe use of a gas cooking appliance leads to the production of heat
and humidity in the room in which it is installed. Make sure that the
kitchen is sufficiently aired: keep natural ventilation sources open
or install un mechanical ventilation device (mechanical extraction
hood).
oThe oven must be connected to the mains with a minimum 0.75
mm diameter cable, it is necessary to provide a trip device to
ensure disconnection from the mains, with an opening distance
between the contacts which enables complete disconnection in
over-voltage category III conditions, in compliance with the
installation regulations.
oThe manufacturer will in no way be held liable if accident
prevention standards are not observed.
oAny interventions must be executed with the appliance
disconnected from the electrical power and the gas supply.
oIf the oven is visibly damaged or malfunctioning, do not use it.
Disconnect it from electric power and gas supply and contact
customer services.
oThe use of adapters, multiple plugs and/or extension cords is not
recommended. If it is not possible to avoid using the above, always
remember to exclusively use extension cords and single or multiple
adapters that comply with currently enforced laws governing safety
and that do not exceed the maximum capacity indicated on the
extension cord or single adapter, or the maximum power indicated
on the multiple adapter.
oIn the event of a breakdown or if indispensable repairs are
required, contact customer services.
GB
4

oDo not modify, tamper with or attempt repairs on the appliance,
especially with tools (screwdrivers and the like).
oInappropriate repair work may cause serious accidents, damage the
appliance and equipment and lead to its improper functioning.
oAppliances repaired in technical service centres must undergo
routine testing, especially concerning the earth circuit continuity.
oIf the power cable has been damaged, it must be replaced by
customer services to prevent dangerous accidents.
GENERAL WARNINGS – FIRST USE -
oWarning: the oven must be disconnected from the electric power
supply and gas supply or unplugged, or the mains switch switched
off or the gas tap closed.
oBefore using the oven, carefully clean the inside of the oven, the
grills and the drip pan using non-abrasive soap and tepid water.
Insert the grill and drip pan in their respective tracks.
oOnce finished, connect the oven to the electrical power supply and
heat the oven to its maximum temperature for approximately 30
minutes to eliminate any residual grease, oil and manufacturing
resins that could cause unpleasant odours during cooking. Ventilate
the room.
oOnce this simple operation is complete, the oven is ready for use.
GB
5

GENERAL WARNINGS – OPERATIONS/CLEANING -
oThis appliance is to be used by adults who are familiar with these
user instructions.
oChildren are often unable to recognize the risks entailed in using
the appliance. During hob operations, make sure that children are
kept an adequate distance.
oMake sure that children do not play with the appliance.
oThe disabled must be assisted by capable adults.
oDo not use the appliance to heat the room.
oDuring its use, the hob will become very hot. Be careful not to
touch the heated parts.
oWait for a sufficient length of time before, for instance, cleaning the
oven.
oDo not touch the appliance with damp hands or feet.
oDo not pull on the power supply cable, or the appliance itself, in
order to remove the plug from the power socket.
oHot grease and fat can catch fire easily. Be careful. Never try to put
out a grease fire using water (there may be an explosion).
Suffocate the flames with wet cloths.
oThe grill, plates and cooking containers will become extremely hot.
Use protective gloves or oven pads.
oDo not use steam cleaners to clean the oven.
oAvoid cleaning parts of the appliance that are still hot.
GB
6

oPainted, chrome plated and glass parts should be washed with
warm water.
oThe parts in stainless steel, and in particular the areas with
engraved symbols, must not be cleaned using abrasive detergents
or diluents. It is preferable to use only a soft cloth dampened with
warm water or liquid dish detergent.
oDenatured alcohol may be used to clean stubborn stains.
oStainless steel may stain if it is in contact for an extended time with
water which has excessive mineral deposits or with aggressive
detergents (containing phosphorus). After cleaning is finished,
thoroughly rinse and dry using a soft cloth.
oAvoid acidic liquids on painted or enamelled parts (vinegar, lemon
juice, aggressive detergents, etc.)
oDo not use abrasive sponges or steel wool, muriatic acid or other
items that could scratch or streak.
GB
7

TECHNICAL DATA - OVEN CHARACTERISTICS
Power Supply Voltage and Frequency: 220-240 V 50/60 Hz
Electrical Part Voltage Absorption: Max 80 W
Gas Category:
Please see on the technical data label (for example, CAT.II2H3+)
Gas Fitting: Please see technical label
PRESET GAS G20 20mbar
Kit G30/G31 28-30/37 mbar
Gas Section Absorbed Power:
Natural Gas G20 – 20mbar => 5.3 kW (505 l/h)
Liquid Gas G30/G31 – 28-30/37mbar => 5.2 kW (378/371 g/h)
Liquid Gas Natural Gas
Burner Thermal Power
kW (H.s.)
By-pass
1/100
Nozzle
1/100
Flow g/h Nozzle
1/100
Flow l/h
Nominal Reduced (mm) (mm) G30 G31 (mm) G20
MAIN OVEN 2,40 0,50 36 71 (X) 175 171 113 (F2) 229
SMALL OVEN 1,60 0,50 36 62 (H2) 116 114 86 (O) 152
2,90 122 (F2) 276
GRILL
2,80 86 (H3) 204 200
5,30 505
MAXIMUM
5,20 378 371
Supply pressure
Nominal
Minimum
Maximum
28-30
20
35
37
25
45
20
17
25
GB
8

Air regulation
NOT REQUIRED
Air exchange
Minimum air exchange necessary for combustion 10.6m3/h
INSTALLATION INSTRUCTIONS
Important!
These instructions are intended for a qualified installer.
The appliance must be installed correctly and in compliance with current
regulations. Any work must be carried out with the appliance disconnected
from the electricity and gas supply.
The installation class is type 3 for the gas part (built in appliance).
To guarantee the proper functioning of the built-in appliance, the furniture
unit must have suitable characteristics:
- the panels adjacent to the oven must be constructed in heat
resistant materials;
- in the case of veneered wood furniture units, the glue must be heat
resistant to temperatures up to 100°C;
GB
9

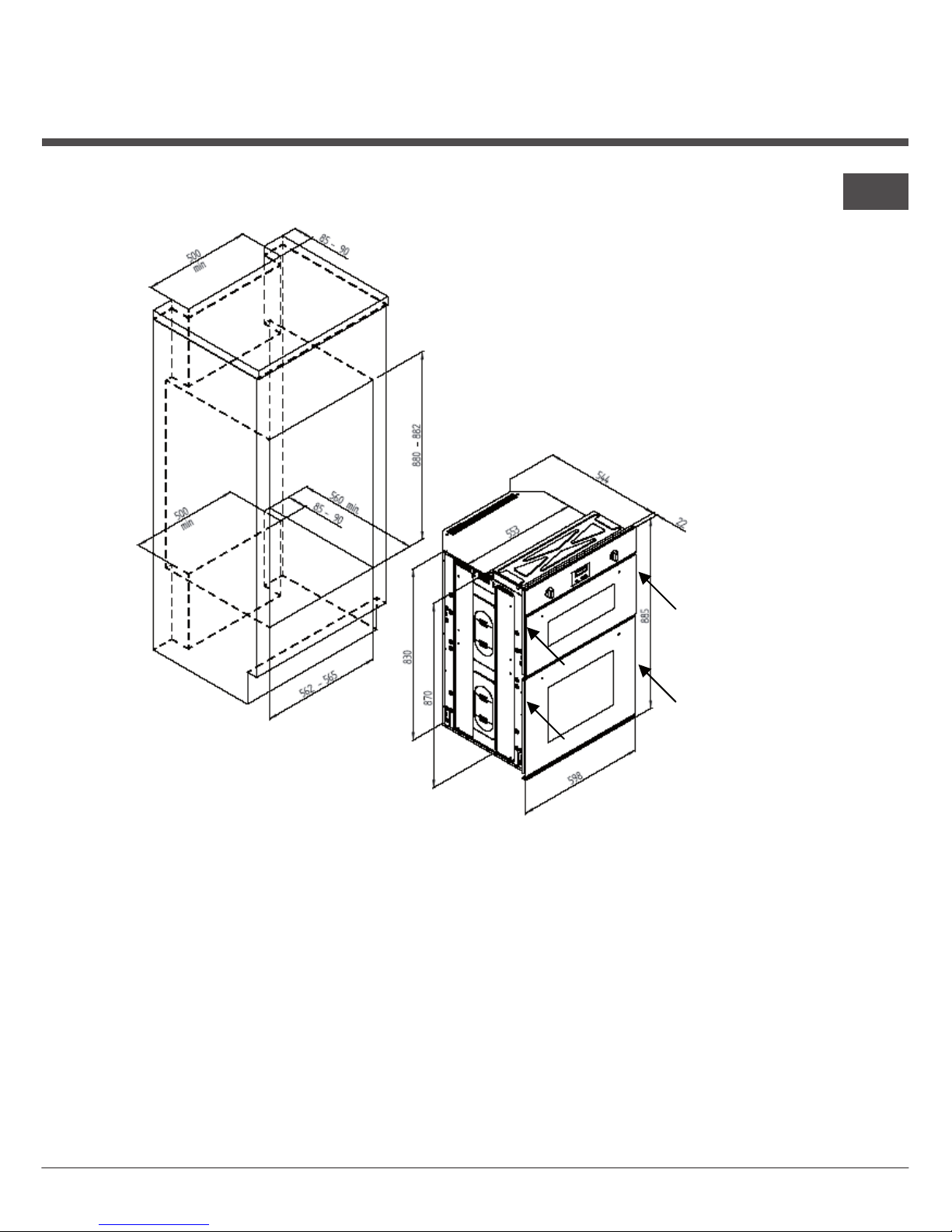

Before installing the oven into the furniture, it is necessary to assemble the
lower profile “drip-catcher” (included in the packaging). This “drip-catcher”
must be attached to the lower part using the 3 screws supplied (please see
the next figure).
The oven should be installed in an opening, as shown in fig. 1 on the
following page.
With the aim of ensuring sufficient ventilation, make an opening of at least
85 ÷90 mm as indicated in fig.1.
The oven is secured to the furniture unit by four “A” screws located in the
holes of the frame.
Make sure not to lift the oven by its door when inserting it.
Furthermore, do not place excessive pressure on the door when it is open.
GB
10

fig.1
WARNING: before placing the device in the furniture unit, removing the
side handles is recommended (they can be slid off) with the aim of avoiding
unpleasant vibrations while the oven is functioning. Keep them with the
documentation for use in any successive moving of the product.
A
A
A
A
GB
11

GB
12

1.  

2.  
 
 

3. !"#$%& 

4. &*!<?@J
5. X& 


&&&"
&
JZ[\]&



&
*!^__Z`]JJZZZ
{|{
^?Z[{^ZJ

^[{?ZZJ

*!
{

GB
13

*&}
~
&
#&
*!<<Z?J^
J
&

&
&\]
\]^Z
]
?"J
X!$%@&}?~
X!$%JJ
}J~

non corrosive soap

R228


GAS TRAIN GASKET
HOSE

GB
14
`\]

&
`

$

#$%!$$\]
&








&


GB
15

}
~&

|
}
##\$X%!~
&&



Regulating the oven burner minimum setting
The oven thermostat is equipped with a by-pass for the minimum setting,
when changing the gas type, it is necessary to adapt its regulation in the
following way:
• Turn the oven on at the maximum temperature for at least
10/15 minutes.
• Turn the indexed thermostat knob to Min, regulate the by-pass to
minimum until a reduced but stable flame is obtained. This
operation should be carried out with the oven door closed.
• Remove the A command knobs;
• Unscrew the by-pass screws using a screwdriver. In order to
regulate the minimum setting, it is only necessary to unscrew the
by-pass screws by a few degrees when changing from liquid gas
(G30/G31) to methane gas (G20). In order to function with
G30/G31 the by-pass regulation screws must be screwed right
down.
A)
GB
16


IMPORTANT: after having regulated the burners, check that the flame
remains at a minimum, by opening and closing the oven door. If the flame
goes out, regulate the by-pass.
Regulating the oven burner minimum setting
- operating instruction for glass panel models
This operation has to be performed before installing the oven in the
furniture. Be careful the oven should be not positioned on the ground, in
order to avoid damaging the lower profile “drip catcher”.
Unscrew the 2 screws, both on the left and right sides of the appliance,
which are used to keep the glass panel fixed; then leave the knobs, the
programmer keys and the glass panel.
G30/G31
G20
GB
17

Now it is possible to do the regulation of the oven burner minimum setting,
just like shown in the previous chapter.
The oven has to be linked to the electrical and gas supplies.
Once performed the setting, fix back all the pieces which has been removed
(the glass panel, the knobs and the programmer keys), then complete the
installation of the oven by fixing it to its slot.
SUBSTITUTING THE GRILL BURNER
• ensure that the oven is not connected to the mains electricity supply
• open the oven door completely
• remove the Grill burner attachment screws, at the end of burner (on the
right side when looking at the burner)
GB
18
