1. SELECTION KNOB
For switching the oven on by
selecting a function.
Turn to the position to switch
the oven off.
2. LIGHT
With the oven switched on, press
to turn the oven compartment
lamp on or off.
3. SETTING THE TIME
For accessing the cooking time
settings, delayed start and timer.
For displaying the time when the
oven is off.
4. DISPLAY
5. ADJUSTMENT BUTTONS
For changing the cooking time
settings.
6. THERMOSTAT KNOB
Turn to select the temperature you
require when activating manual
functions. Automatic functions use
.
1
2
3
4
5
7
8
6
1 32 4 5 6

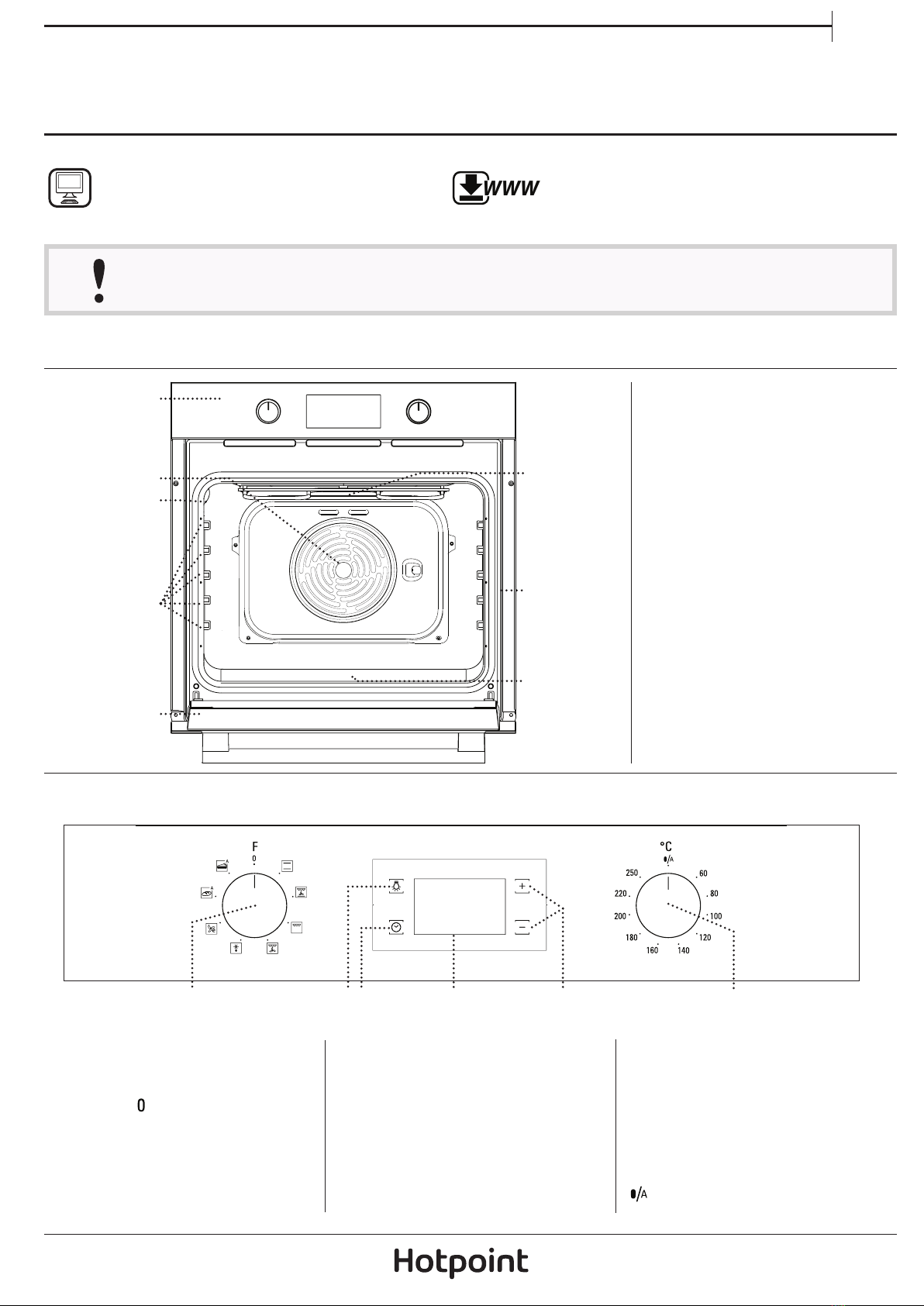

PRODUCT DESCRIPTION
DAILY REFERENCE
GUIDE
Read the safety instructions carefully before using the product
THANK YOU FOR PURCHASING AN
HOTPOINT PRODUCT
To receive more comprehensive help and
support, please register your product at
www.hotpoint.eu/register
WWW
You can download the Safety Instructions
and the Use and Care Guide by visiting our
website docs.hotpoint.eu and following
the instructions on the back of this booklet.
1. Control panel
2. Fan
3. Lamp
4. Runners for accessories
(the level is indicated on the wall
of the cooking compartment)
5. Door
6. Upper heating element/grill
7. Identification plate
(do not remove)
8. Bottom heating element
(non-visible)
CONTROL PANEL

2
* Function used as reference for the energy eciency
declaration in accordance with Regulation (EU) No. 65/2014
CONVENTIONAL*
For cooking any kind of dish on one shelf only.
CONVECTION BAKE
To cook on a maximum of two shelves at the
same time. It is a good idea to swap the position of
the baking trays halfway through cooking.
GRILL
For grilling steaks, kebabs and sausages,
cooking vegetables au gratin or toasting bread.
When grilling meat, we recommend using a drip tray
to collect the cooking juices: Position the pan on any
of the levels below the wire shelf and add 200 ml of
drinking water.
TURBO GRILL
For roasting large joints of meat (legs, roast
beef, chicken). We recommend using a drip tray to
collect the cooking juices: Position the pan on any
of the levels below the wire shelf and add 200 ml of
drinking water.
DEFROSTING
For defrosting food more quickly.
ECO FORCED AIR*
For cooking roasts and stuffed roasting joints
on a single shelf. Food is prevented from drying out
excessively by gentle, intermittent air circulation.
When this ECO function is in use, the light will
remain switched off during cooking but can be
switched on again by pressing .
WIRE SHELF BAKING TRAY
The number of accessories may vary depending on which model is purchased.
Other accessories can be purchased separately from the After-sales Service.
INSERTING THE WIRE SHELF AND OTHER
ACCESSORIES
• Insert the wire shelf onto the level you require by
holding it tilted slightly upwards and resting the
raised rear side (pointing upwards) down first. Then
slide it horizontally along the shelf guide as far as
possible.
• Other accessories, like the baking tray, are to be
inserted horizontally, letting them slide on the shelf
guides.
BREAD AUTO
This function automatically selects the ideal
temperature and baking time for bread. For best
results, carefully follow the recipe . Activate the
function when the oven is cold.
PASTRY AUTO
This function automatically selects the ideal
temperature and baking time for cakes. Activate the
function when the oven is cold.
ACCESSORIES Download the Use and Care Guide from
docs.hotpoint.eu for more information
WWW
Download the Use and Care Guide from
docs.hotpoint.eu for more information
WWW
FUNCTIONS

3
EN

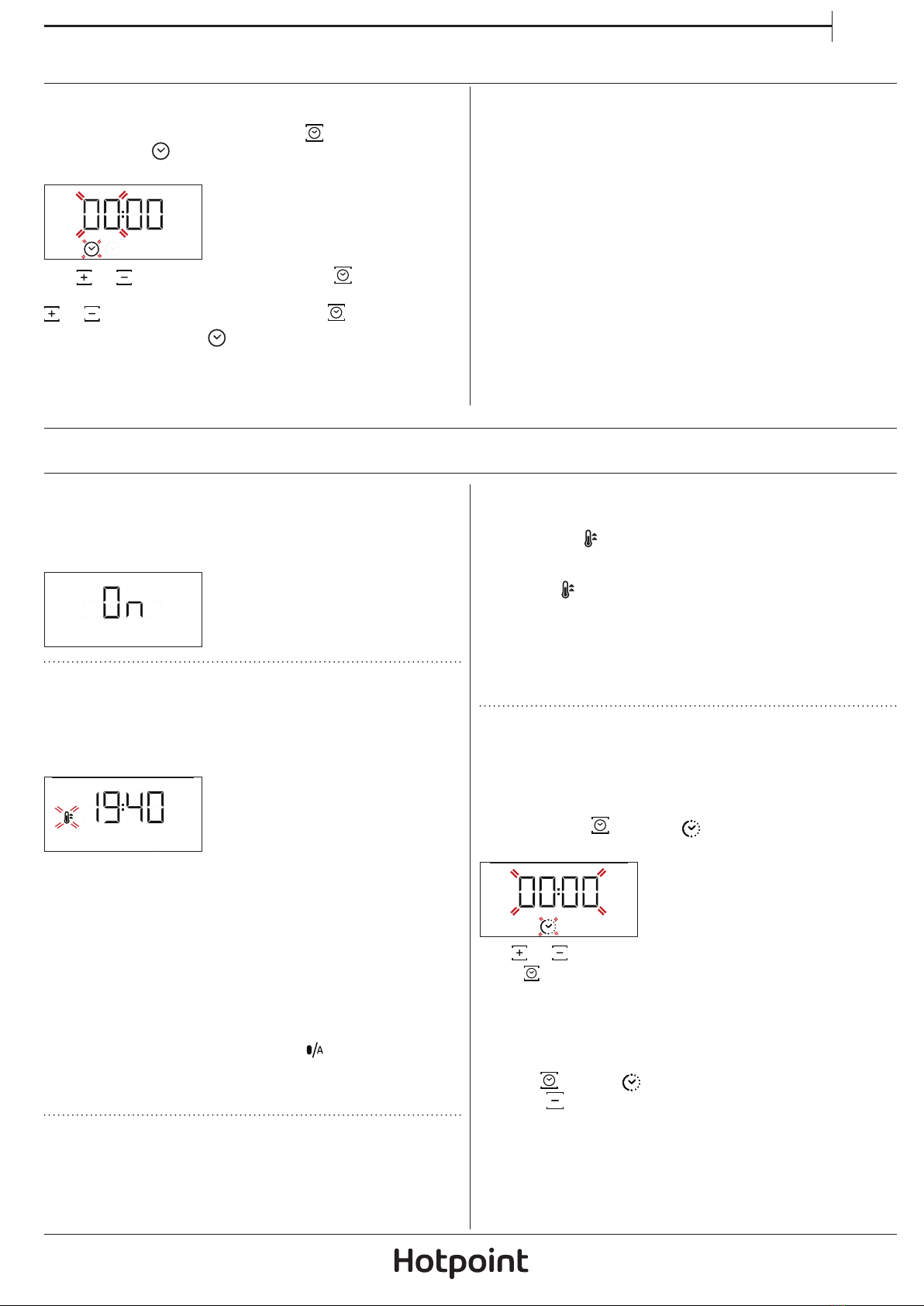

1. SETTING THE TIME
You will need to set the time when you switch on the
appliance for the first time: Press
until the icon and the current time start flashing
on the display.
Use or to set the hour and press to confirm.
The two digits for the minutes will start flashing. Use
or to set the minutes and press to confirm.
Please note: When the icon is flashing, for example
following lengthy power outages, you will need to reset the
time.
2. REHEAT THE OVEN
A new oven may release odours that have been left
behind during manufacturing: This is completely
normal.
Before starting to cook food, we therefore
recommend heating the oven with it empty in order
to remove any possible odours.
Remove any protective cardboard or transparent
film from the oven and remove any accessories from
inside it.
Heat the oven to 250 ° C for about one hour,
preferably using the “Convection Bake” function. The
oven must be empty during this time.
Follow the instructions for setting the function
correctly.
Please note: It is advisable to air the room after using the
appliance for the rst time.
1. SELECT A FUNCTION
To select a function, turn the selection knob to the
symbol for the function you require: The display will
light up and an audible signal will sound.
2. ACTIVATE A FUNCTION
MANUAL
To start the function you have selected, turn the
thermostat knob to set the temperature you require.
Please note: During cooking you can change the function
by turning the selection knob or adjust the temperature by
turning the thermostat knob.
The function will only start if the thermostat knob is on 0 °C.
You can set the cooking time, cooking end time (only if
you set a cooking time) and a timer.
AUTOMATIC
To start the automatic function you have selected
(“Bread” or “Pastry”), keep the thermostat knob at the
position for automatic functions ( ).
To finish cooking, turn the selection knob to position 0.
Please note: You can set the cooking end time and timer.
3. PREHEATING
Once the function starts, an audible signal and a
flashing icon on the display indicate that the
preheating phase has been activated.
At the end of this phase, an audible signal and the
fixed icon on the display will indicate that the oven
has reached the set temperature: At this point, place
the food inside and proceed with cooking.
Please note: Placing the food in the oven before preheating
has nished may have an adverse eect on the nal cooking
result.
.PROGRAMMING COOKING
You will need to select a function before you can start
programming cooking.
DURATION
Keep pressing until the icon and “00:00” start
flashing on the display.
Use or to set the cooking time you require, then
press to confirm.
Activate the function by turning the thermostat knob
to the temperature you require: An audible signal will
sound and the display will indicate that cooking is
complete.
Notes: To cancel the cooking time you have set, keep
pressing until the icon starts ashing on the display,
then use to reset the cooking time to “00:00”.
This cooking time includes a preheating phase.
USING THE APPLIANCE FOR THE FIRST TIME
DAILY USE

4
PROGRAMMING THE END COOKING TIME/DELAYED
START
After a cooking time has been set, starting the
function can be delayed by programming its end
time: Press until the icon and the current time
start flashing on the display.
Use or to set the time you want cooking to end
and press to confirm.
Activate the function by turning the thermostat knob
to the temperature you require: The function will
remain paused until it starts automatically after the
period of time that has been calculated in order for
cooking to finish at the time you have set.
Notes: To cancel the setting, switch the oven o by turning
the selection knob to position “ ”.
END OF COOKING
An audible signal will sound and the display will
indicate that the function has finished.
Turn the selection knob to select a different function or
to position “ ” to switch the oven off.
Please note: If the timer is active, the display will show“END”
alternately with the remaining time.
.SETTING THE TIMER
This option does not interrupt or program cooking
but allows you to use the display as a timer, either
during while a function is active or when the oven is
off.
Keep pressing until the icon and “00:00” start
flashing on the display.
Use or to set the time you require and press
to confirm.
An audible signal will sound once the timer has
finished counting down the selected time.
Notes: To cancel the timer, keep pressing until the
icon starts flashing, then use to reset the time to
“00:00”.

5
EN
COOKING TABLE
ACCESSORIES Wire shelf Baking dish or baking tray
on the wire shelf
Baking tray/oven tray on
wire shelf
Baking tray with 200 ml of
water Baking tray
FUNCTIONS
Conventional Grill Turbo Grill Convection Bake Bread Auto Eco Forced Air
RECIPE FUNCTIONPREHEAT TEMPERATURE
(°C)
DURATION
(MIN)
LEVEL AND
ACCESSORIES
Leavened cakes
Yes 160-180 30-90 2/3
Yes 160-180 30 - 90 *** 4
1
Filled cake
(cheesecake, strudel, fruit pie)
Yes 160–200 35-90 2
Yes 160–200 35 - 90 *** 4
2
Biscuits/tartlets
Yes 170 - 180 15 - 45 3
Yes 160-180 20-45 *** 4
2
Choux buns
Yes 180 - 220 30-40 3
Yes 180-190 35-45 *** 4
2
Meringues
Yes 90 150 - 200 3
Yes 90 140 - 200 4
2
Bread - - 60 2
Bread/pizza/focaccia
Yes 190-250 15-50 2
Yes 190-250 25-50 *** 42
Frozen pizza
Yes 250 10 - 15 3
Yes 250 10 - 20 *** 42
Salty cakes
(vegetable pie, quiche)
Yes 175 - 200 45 - 60 3
Yes 175 - 200 45 - 60 *** 42
Vols-au-vents/pu pastry crackers
Yes 190-200 20-30 3
Yes 180-190 15 - 40 *** 42
Lasagne/baked pasta/cannelloni/
ans Yes 190-200 45-65 2

6
* Turn food halfway through cooking
** Turn food two thirds of the way through cooking (if
necessary).
*** Switch levels halfway through cooking.
**** Estimated length of time: Dishes can be removed
from the oven at different times depending on
personal preference. Switch shelves two thirds of the
way through cooking, if necessary.
Download the Use and Care Guide from
docs.hotpoint.eu for the table of tested recipes,
compiled for the certification authorities in
accordance with the standard IEC60350-1.
The time indicated does not include the preheating phase: We recommend placing the food in the oven and
setting the cooking time only after the required temperature has been reached.
ACCESSORIES Wire shelf Baking dish or baking tray
on the wire shelf
Baking tray/oven tray on
wire shelf
Baking tray with 200 ml of
water Baking tray
FUNCTIONS
Conventional Grill Turbo Grill Convection Bake Bread Auto Eco Forced Air
RECIPE FUNCTIONPREHEAT TEMPERATURE
(°C)
DURATION
(MIN)
LEVEL AND
ACCESSORIES
Lamb/veal/beef/pork 1 kg Yes 190-200 80 -110 3
Chicken/rabbit/duck 1 kg Yes 200-230 50-100 2
Turkey/goose 3 kg -190 -200 100 - 160 2
Baked sh/en papillote (llet, whole) Yes 170 - 190 30 - 50 2
Stued vegetables
(tomatoes, courgettes, eggplants) Yes 180-200 50 - 70 2
Toasted bread 5’ 250 2 - 6 5
Fish llets/slices -230 - 250 15 - 30 * 43
Sausages/kebabs/spare ribs/
hamburgers -250 15 - 30 * 54
Roast chicken 1-1.3 kg Yes 200 - 220 55-70 ** 21
Roast beef rare 1 kg Yes 200 - 210 35-50 ** 3
Leg of lamb/knuckle Yes 200 - 210 60-90 ** 3
Roast potatoes Yes 200 - 210 35-55 ** 3
Vegetable gratin -200 - 210 25 - 55 3
Lasagne and meat Yes 200 50 - 100 **** 41
Meat and potatoes Yes 190-200 45 - 100 **** 41
Fish and vegetables Yes 180 30 - 50 **** 41
Roast meat/stued roasting joints -170 - 180 100 - 150 2

7
EN
EXTERIOR SURFACES
• Clean the surfaces with a damp microfibre cloth.
If they are very dirty, add a few drops of pH-neutral
detergent. Finish off with a dry cloth.
• Do not use corrosive or abrasive detergents. If any
of these products inadvertently comes into contact
with the surfaces of the appliance, clean immediately
with a damp microfibre cloth.
INTERIOR SURFACES
• This oven is equipped with special catalytic panels
that facilitate cleaning of the cooking compartment
thanks to their special self-cleaning coating, which is
highly porous and able to absorb grease and grime.
After every use, leave the oven to cool and then
clean it, preferably while it is still warm, to remove
any deposits or stains caused by food residues. To
1. To remove the door, open it fully and lower the
catches until they are in the unlock position.
2. Close the door as much as you can.
Take a firm hold of the door with both hands – do not
hold it by the handle.
Simply remove the door by continuing to close it
while pulling it upwards (a) at the same time until it is
released from its seating (b).
~60°
a
b
~15°
Put the door to one side, resting it on a soft surface.
3. Refit the door by moving it towards the oven,
aligning the hooks of the hinges with their seating
and securing the upper part onto its seating.
4. Lower the door and then open it fully.
Lower the catches into their original position: Make
sure that you lower them down completely.
5. Try closing the door and check to make sure that it
lines up with the control panel. If it does not, repeat
the steps above.
REMOVING AND REFITTING THE DOOR CLICK TO CLEAN  CLEANING THE GLASS
1. After removing the door and resting it on a soft
surface with the handle downwards, simultaneously
press the two retaining clips and remove the upper
edge of the door by pulling it towards you.
2. Lift and firmly hold the inner glass with both
hands, remove it and place it on a soft surface before
cleaning it.
3. To correctly reposition the inner glass, make sure
that the “R” is visible in the left-hand corner and the
clear surface (not printed) is facing up.
First insert the long side of the glass indicated by “R”
into the support seats, then lower it into position.
4. Refit the upper edge: A click will indicate correct
positioning. Make sure the seal is secure before
refitting the door.
dry any condensation that has formed as a result of
cooking foods with a high water content, leave the
oven to cool completely and then wipe it with a cloth
or sponge.
• The door can be easily removed and refitted to
facilitate cleaning of the glass. WWW
• Clean the glass in the door with a suitable liquid
detergent.
The top heating element of the grill can be lowered to
clean the upper panel of the oven. WWW
ACCESSORIES
Soak the accessories in a washing-up liquid solution
after use, handling them with oven gloves if they
are still hot. Food residues can be removed using a
washing-up brush or a sponge.
Do not use steam cleaning
equipment.
Use protective gloves during all
operations.
Carry out the required
operations with the oven cold.
Disconnect the appliance from
the power supply.
Do not use wire wool, abrasive
scourers or abrasive/corrosive
cleaning agents, as these could
damage the surfaces of the
appliance.
MAINTENANCE AND
CLEANING
Download the Use and Care Guide from
docs.hotpoint.eu for more information
WWW

8
HOW TO READ THE COOKING TABLE
The table lists the best function, accessories
and level to use to cook various different types
of food. Cooking times start from the moment
food is placed in the oven, excluding preheating
(where required). Cooking temperatures and times
are approximate and depend on the amount of
food and the type of accessory used. Use the
lowest recommended settings to begin with and,
if the food is not cooked enough, then switch
to higher settings. Use the accessories supplied
and preferably dark-coloured metal cake tins and
baking trays. You can also use Pyrex or stoneware
pans and accessories, but bear in mind that cooking
times will be slightly longer.
COOKING DIFFERENT FOODS AT THE SAME TIME
The “Convection Bake” function enables you to cook
different foods (such as fish and vegetables) on
different shelves at the same time. Switch shelves
two thirds of the way through cooking, if necessary.
Remove the food which requires a shorter cooking
time and leave the food which requires a longer
cooking time in the oven.
BREAD AUTO FUNCTION
For best results you should carefully follow the
instructions, using the recipe for mixing 1000 g of
dough: 600 g of flour, 360 g of water, 11 g of salt, 25 g
of fresh yeast (or two packets of yeast powder).
For optimal rising, allow about 90 minutes at room
temperature.
Put the dough into the (cold) oven, pour 100 cc of
cold drinking water on to the bottom of the oven and
activate the “Bread Auto” function. After cooking,
leave the dough to stand on a wire shelf until
completely cooled.
PRODUCT FICHE
WWW The product fiche with energy data of this
appliance can be downloaded from our website
docs.hotpoint.eu
HOW TO OBTAIN THE USE AND CARE GUIDE
> WWW Download the Use and Care Guide
from our website docs.hotpoint.eu (you can
use this QR code), specifying the product's
commercial code.
> Alternatively, contact our Client After-sales Service
400010871333
Printed in Italy
CONTACTING OUR AFTERSALES SERVICE
You can find our contact details in the
Model: xxxXXXXxx
X
X
X
X
X
XX
X
X
X
X
X
XX
X
X
XX
X
X
X
XX
X
X
X
X
X
X
X
X
XX
X
X
X
X
X
X
X
X
X
XX
X
X
X
X
X
XXXXXX XXXXXX XXXXX XXXXXXX
warranty
manual. When
contacting our Client
After-sales Service,
please state the codes
provided on your
product's identification
plate.
001
Problem Possible cause Solution
The oven does not work Power cut
Disconnection from the
mains
Check for the presence of mains electrical
power and whether the oven is connected to
the electricity supply.
Turn off the oven and restart it to see if the
fault persists
The display shows the letter “F”
followed by a number
Software problem Contact you nearest After-sales Service
Centre and state the letter or number that
follows the letter “F”
TROUBLESHOOTING Download the Use and Care Guide from
docs.hotpoint.eu for more information
WWW
Download the Use and Care Guide from
docs.hotpoint.eu for more information
WWW
USEFUL TIPS
