Hotpoint VVSR1040 User manual

-Part No, 175D1807P232 Pub,, No., 39-9961 10-97 CG

CongratulationM
YouAm Now Part ofthe Hotpoint Family.
Welcome to the Hotpoint family. We're
proud of our qualit 7 products and we are
committed to providing dependable service_
You'll see it in this easy-to;use Owner's
Manual and you'll hear it in the friendly
voices of our customer service department..
Best of all, you'll experience these values
each rune you use your washer., That's
important, because your' new washer will be
part of your family for many year's. And we
hope you will be part of ours for a long time
to come,
We thank you for buying HotpoinL We
appreciate your purchase, and hope you will
continue to rely On us whenever' you need
quality appliances for' your home,
Important!
Staplesalesslipor cancelled
check here.
Proof of the original purchase date
is needed to obtain service under
the wanan_
Write themodeland serial
numbershere.
#
#
Youcan find them behind the top edge
of the control panel
.2

HotFdnt& You,
AService Pa#nersh(p.
Ask any Hotpoint appliance owner and they
will tell you we stand behind our products
with unmatched quality service. However,
did you know that most questions result
from simple problems that you can easily
fix yourself in just a few minutes? This
Owner's Manual can tell you how
ReadthisManual
Inside you will fmd many
helpful hints on how to use and
maintain your washer properly,
Just a little preventive care on
yore part can save you a gn_eat
deal o[ time and money over
the life of your washer,
ReviewtheSectionon
Troubleshootingtips
You'll find many answms to
common problems here.
If you re_dew our chart of
Tloubleshooting Tips illst,
you m W not need to call fol
smMce at all.
tf YouNeedService
i1:you do need service, you can
relmx tmowing help is only a
phone call away, A list ot_toll-free
customer selwice numbers is
included in the back section,
Or you can ahvays call the
®
GE Answer Center at
800.6269-000, 9_4hours a day,
/clays a week.
Safety information....... 4-7
Operatinglnstmctions
ControlPanels.............. .8
ControlSettings............. 8
WasherFeatures........ .9,!0
LoadingandUsing
the Washer .11,

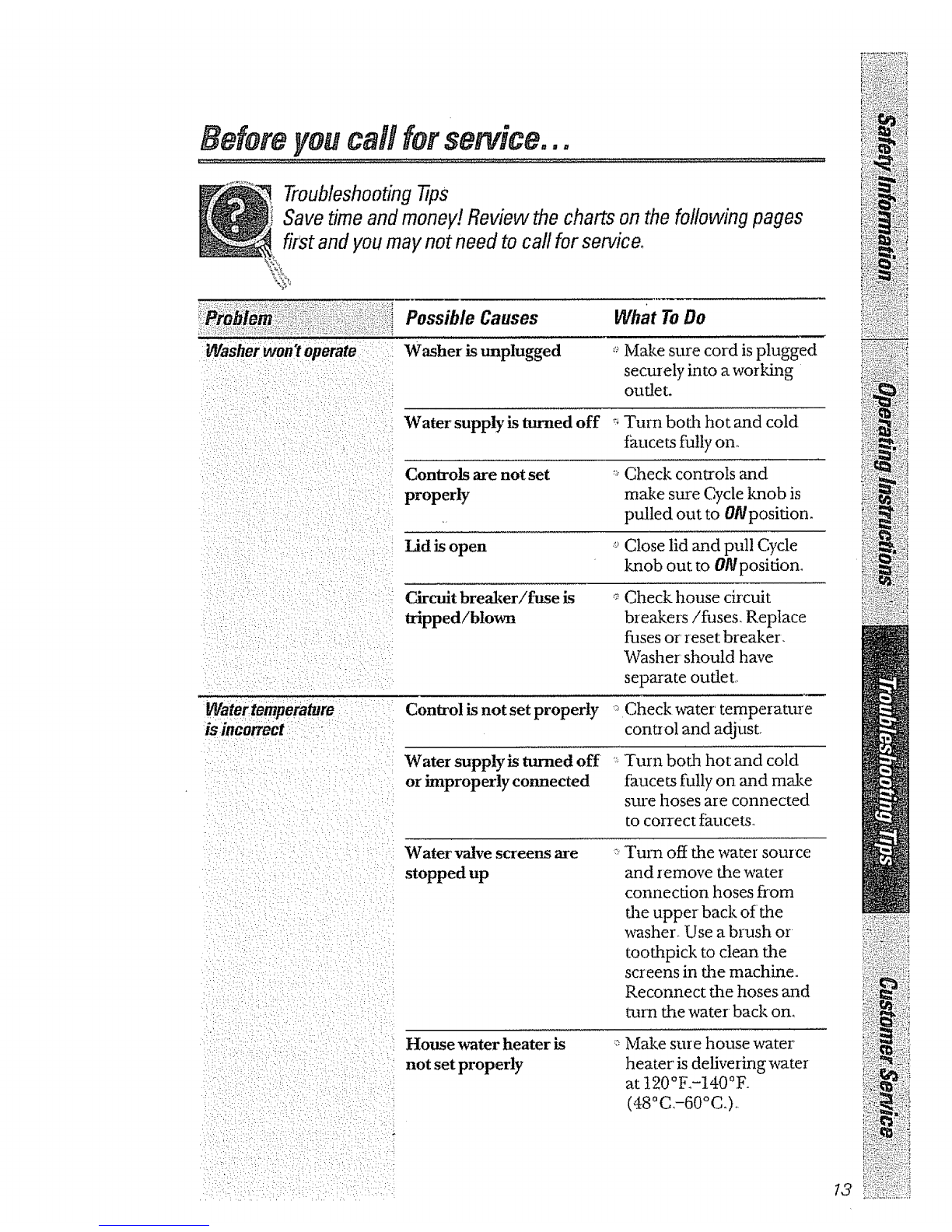

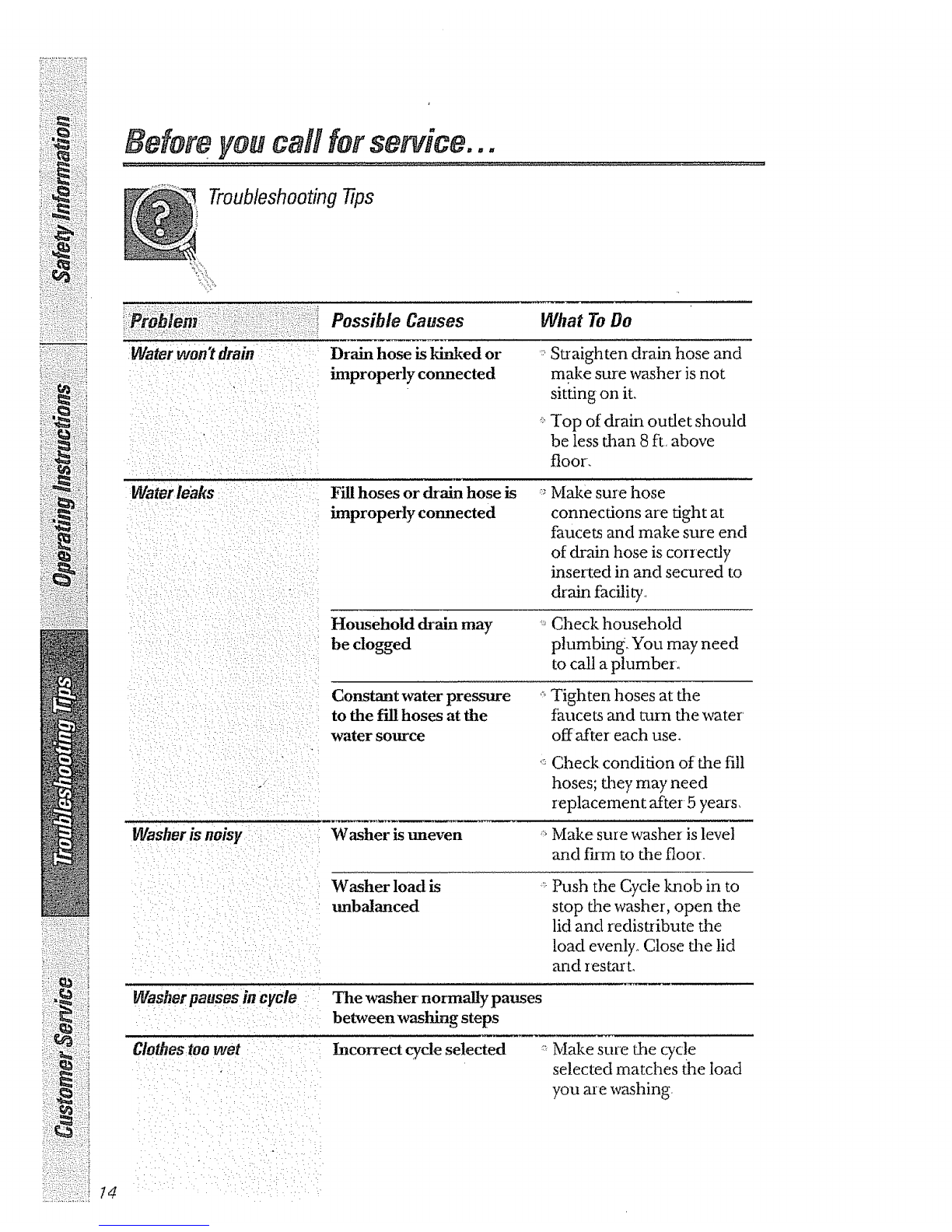

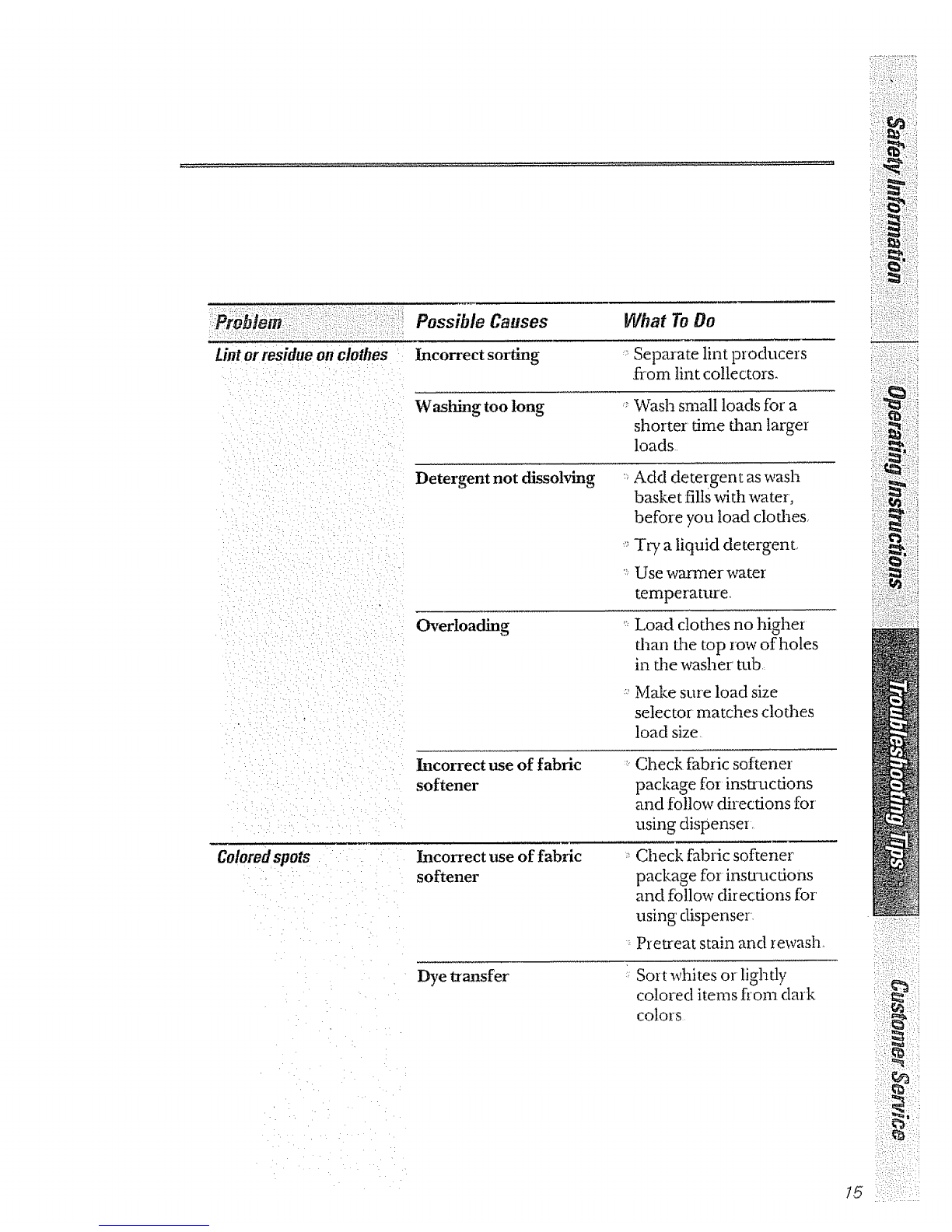

Troubleshootingtips
BeforeYou
CallForSe/_'ice......... I3-17
CustomerSerdce

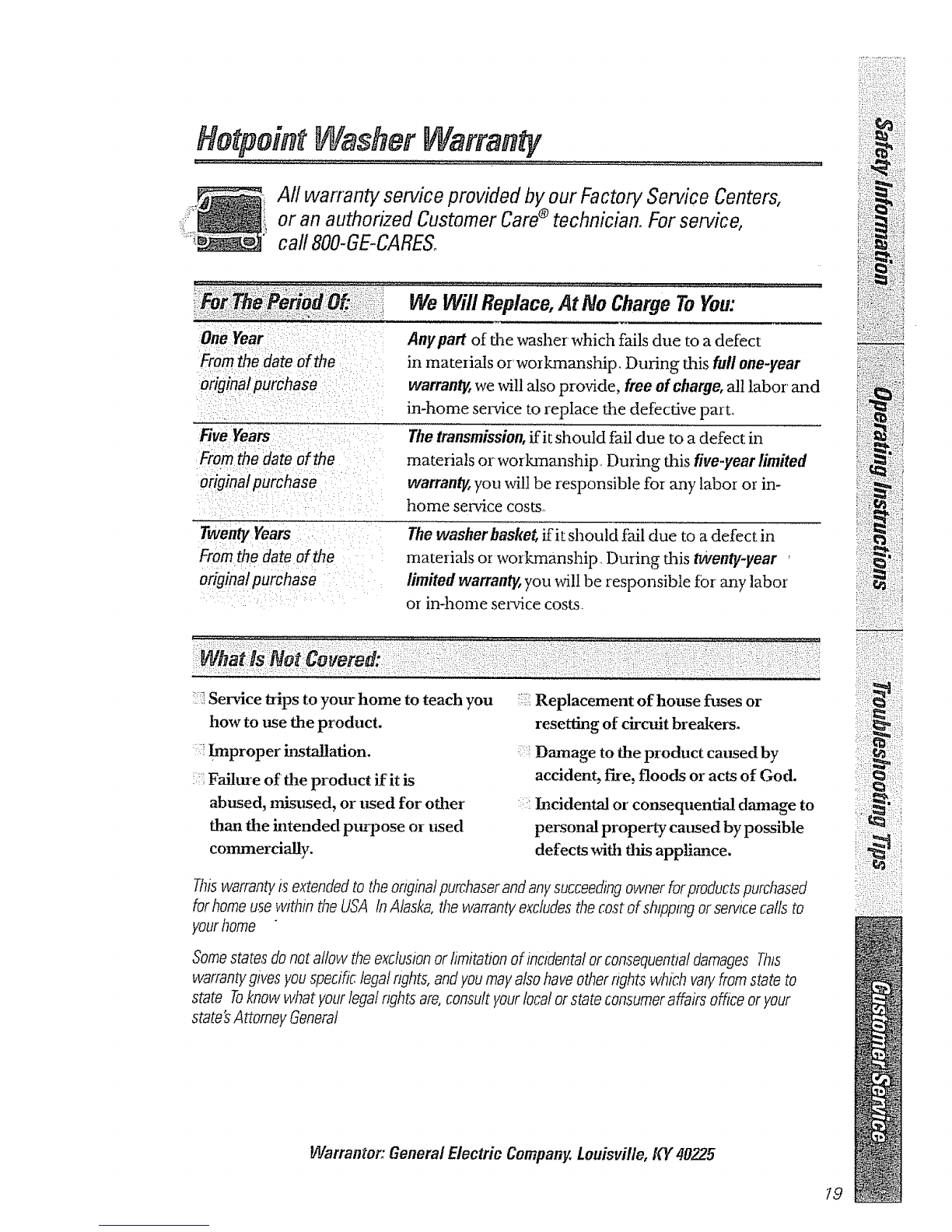

Warranty ................ t9

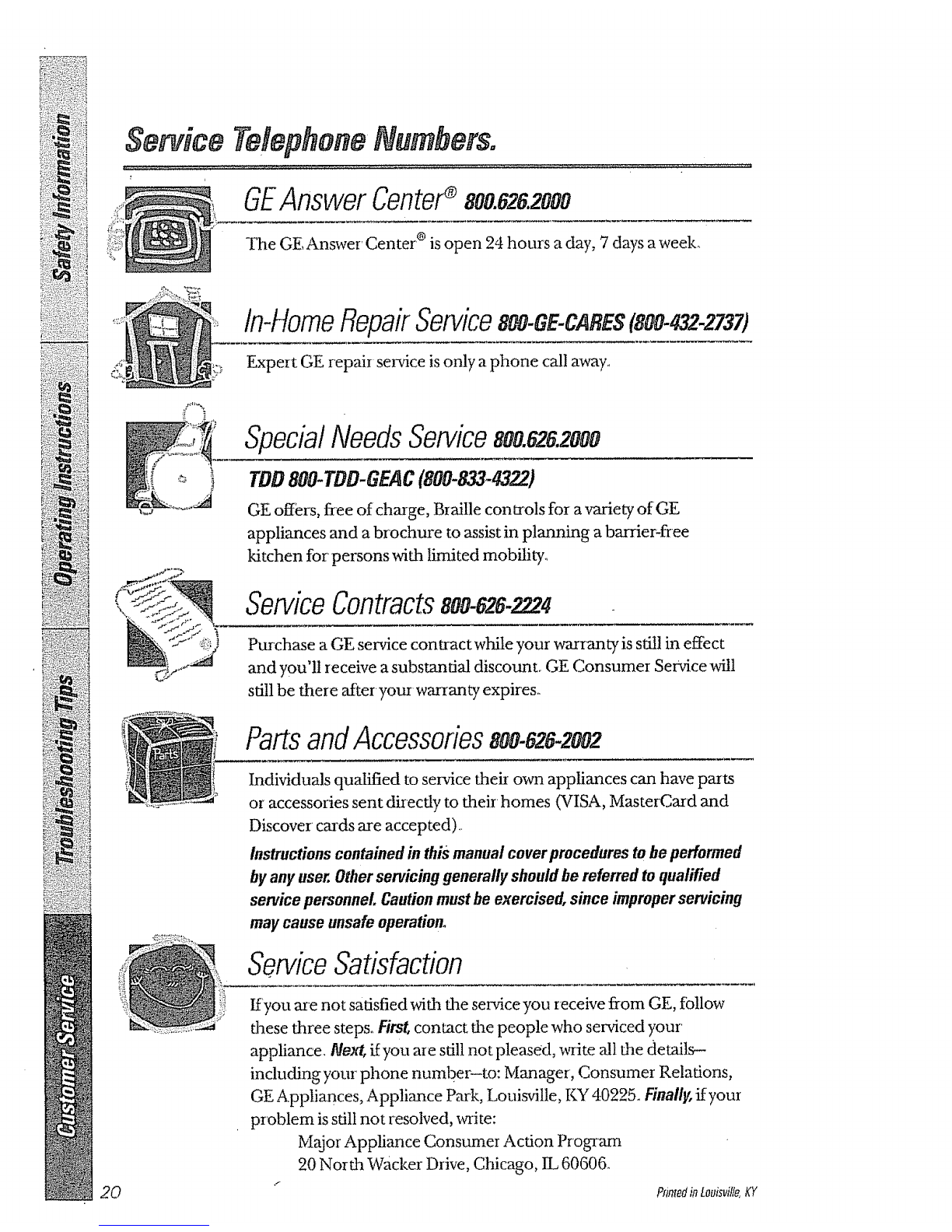

ServiceTdphone
Numbers ........... BackCover
3

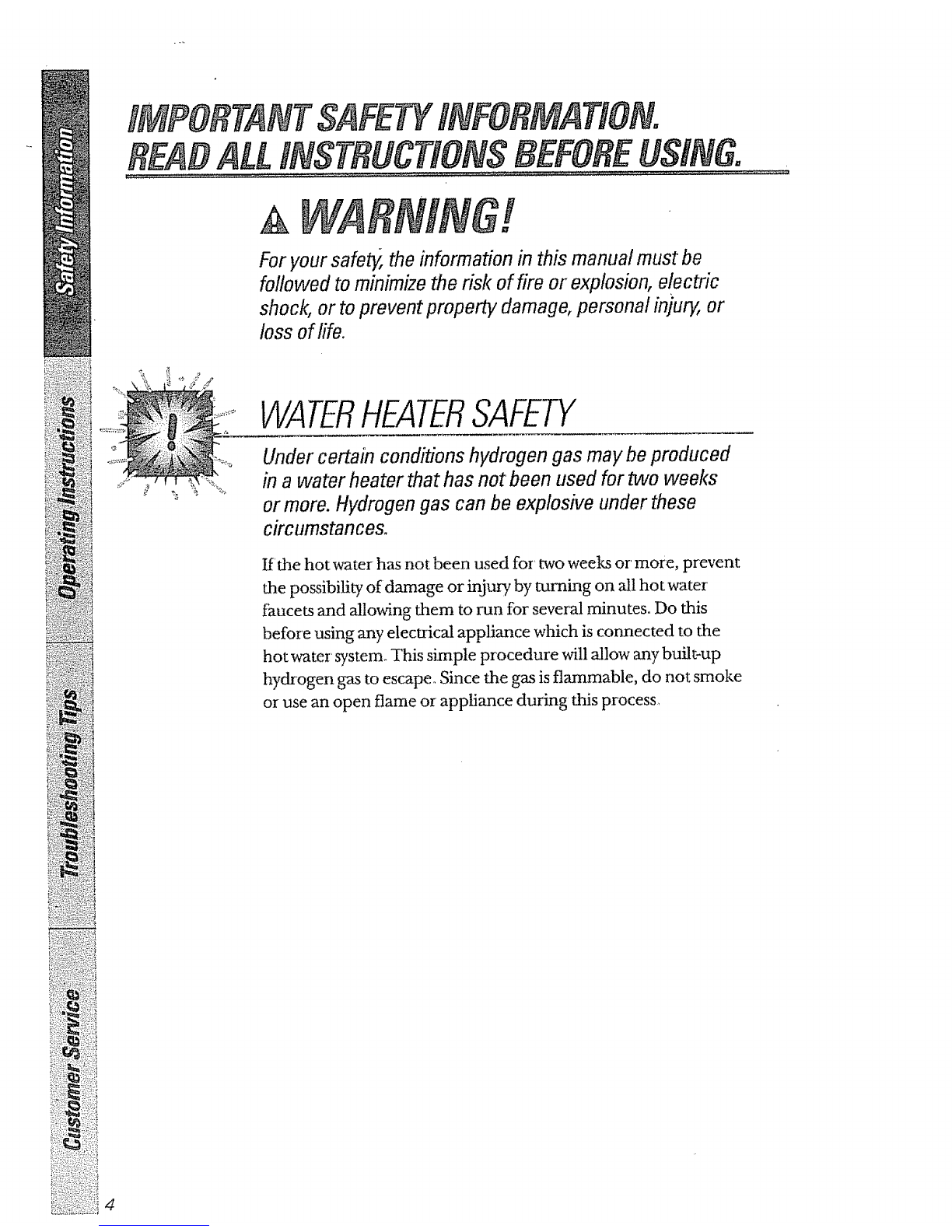

IMPO ANTSAFEW
READALLINSUCTION$ BEFOREuSING.................
AI
m
Foryour safe_ the information in this manual must be
followed to minimize the risk of fire or explosion, electric
shock, or toprevent property damage,personal in]ury,or
loss of life.
WATEl?HEATERSAFEP/
Undercertain conditions hydrogen gas may be produced
in a water heater that has not been used for two weeks
ormore. Hydrogengas can be explosive under these
circumstances.
If the hot water has not been used for two weeks or' more, prevent
the possibility of damage or injury by turning on all hot water
faucets and allowing them to run for' several minutes_ Do this
before using any electrical appliance which is connected to the
hot water system_ This simple procedure will allow any built-up
hydrogen gas to escape,, Since the gas is flammable, do not smoke
or use an open flame or appliance during this process_
ii!:i!:i!_i!iiiii!
i,:_?!!:i_ii:i:'_i
4

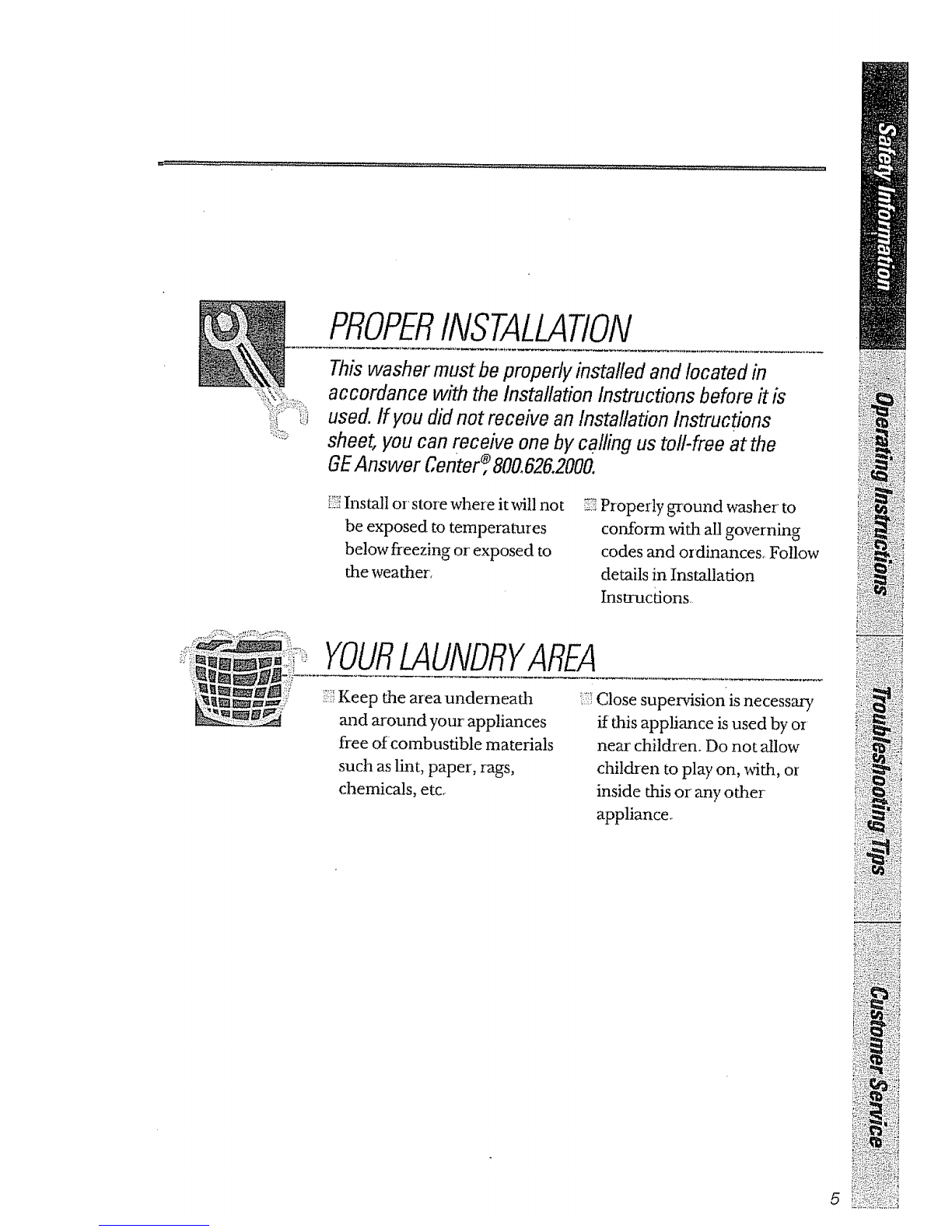

PROPERINSTALLATION
Thiswasher must beproperly installed and located in
accordance with the Installation Instructions before iris
used. ff you did not receive an Installation Instructions
sheet, you can receive one by calling us toll-free at the
GEAnswer Center_,800,626,2000,
i!;!iliInstall or store where it will not
be exposed to temperatures
below freezing or exposed to
the weather',
_?iProperly ground washer' to
conform with all governing
codes mad ordinances, Follow
details in Installation
Instructions,
YOURLAUNDRYAREA
?!i;?iKeep the area underneath
mad around your' appliances
free of combustible materials
such as lint, paper, rags,
chemicals, etc,,
i:i:'!:'iClose super'dsion is necessary
if this appliance isused by or
near children. Do not allow
children to play on, with, or
inside this or any other
appliance.
i::;;i!{i
5

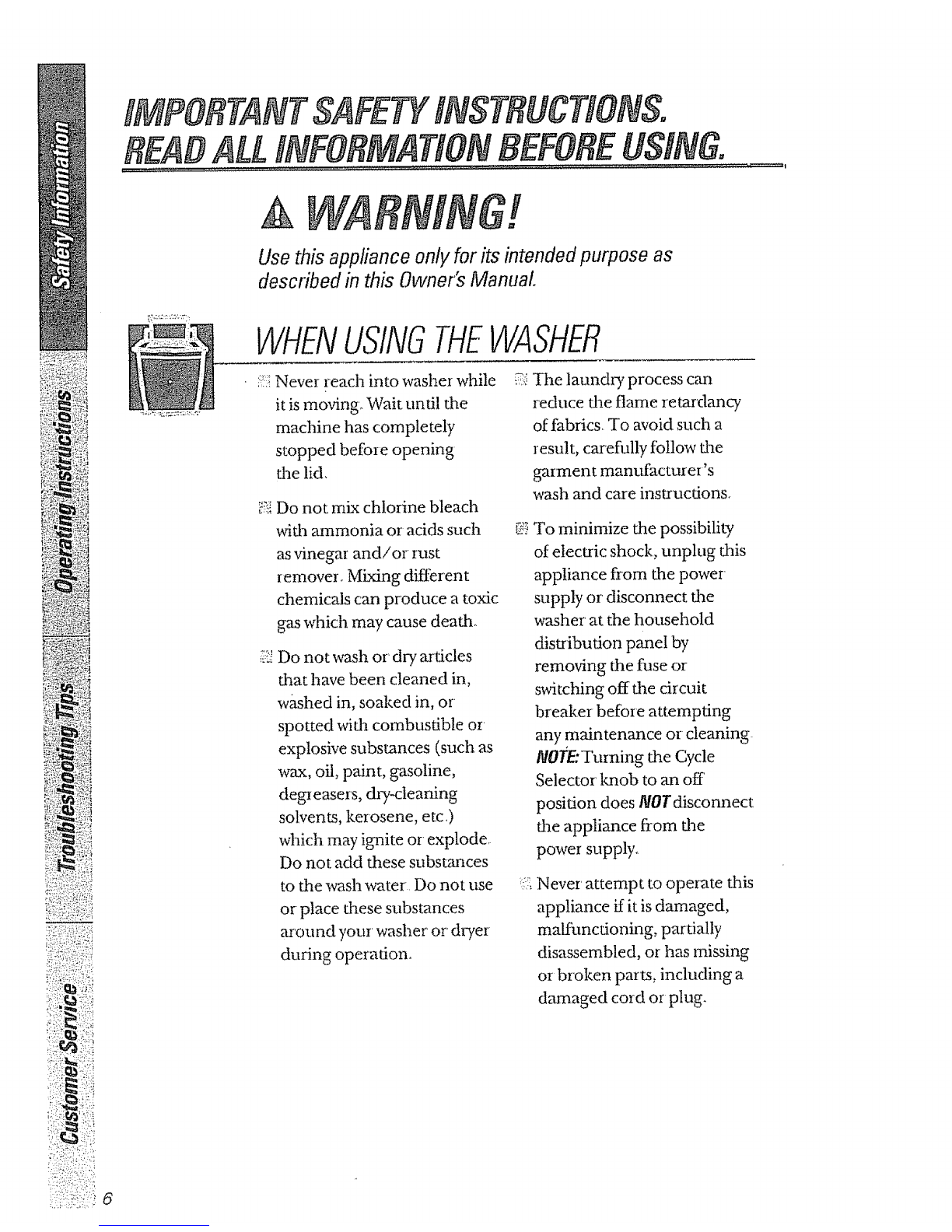

IMPORTANTSAFETYINSTRUCT!ON$,
READALLINFORMATIONBEFOREUSING.
WARNING
Usethis appfiance only for its intended purpose as
described in this Owner'sManual
WHENUSINGTHEWASHER
:?:iNever reach into washer while _:!
it is moving. Wait until the
machine has comple rely
stopped before opening
the lid.
_ Do not mix chlorine bleach
with ammonia or acids such
as vinegar and/or rest
remover. Mixing d'_erent
chemicals can produce a toxic
gas which may cause death_
_:__!
Do not wash or' dry ardcles
that have been cleaned in,
washed in, soaked in, or
spotted with combustible or
explosive substances (such as
wax, oil, paint, gasoline,
deg_easers, dry-cleaning
solvents, kerosene, etc.)
which may ignite or explode.
Do not add these substances
to the wash water. Do not use
or place these substances
around your washer or' dryer
during operation.
The laundry process can
reduce the flame retardancy
of fabrics_ To avoid such a
result, cPcr'efully follow the
garment manufacturer's
wash and care instructions.
_-:-
To minimize the possibility
of electric shock., unplug this
appliance from the power
supply or disconnect the
washer' at the household
distribution panel by
removing the fuse or
swi[ching off the circuit
breaker befbre attempting
any maintenance or cleaning.
NOTE:Turning the Cycle
Selector' knob to an off
position does NOTdisconnect
the appliance from the
power supply,.
Never attempt to operate this
appliance if it is damaged,
malfunctioning, partially
disassembled, or has missing
or broken parts, including a
damaged cord or plug.
:::::::::::::::::::::::::6

WNENNOTINUSE
Turn off water' faucets to ::;
relieve pressure on hoses and
valves and to minimize
leakage ifa break or rupture
should occur,, Check the
condition of tile fill hoses;
they may need replacement '
after 5 years,.
Before discarding a washer,
or removing it from seladce,
remove the washer lid to
prevent children from
hiding inside,
Do not attempt to repmr or
replace an}, part of this
appliance unless specifically
recommended in this
Owner's ManuN, o1 in
published user-repair
insn-uctions that you
understand and have the
sldlls to can T out,
:i!;Do not tamper with controls.
Yourcontinued health and safety are important to us.
Please read and follow this Safety Informationcarefullg
We want you to remain ahappy andhealthy part of
ourfamily.
SAVETHESEgNSTRUCTgON$
1:i:,-_:5,_:4 _r¸

,4bout ercontropana.............................................................................................
Youcan locate your model number behind the top edge of the control panel
Model WXRI040
lol_dslzlt
_,MJ.i_ tXTtIA
i< we,i'iliwaih
w_walh
_4 W_tt U
Model WSRI040
•/wntn'lw_tdl
D
i'i_i;%
N
8
ControlSettings
LoadSize
The water level should,just cover the clothes, Adjust the
load s_e accordingly_ Loosely load clothes no higher than
the top row of holes in the washer' tub.
WashCycle
Select the water temperaane for the "crash and rinse
cycles. Always follow fabric manufacturer's care label
or instructions when laundering, Follow the water'
temperature guide on washer lid.
The wash cycle controls the length of the washing pr'ocess.
The chart below will help you match the wash cycle setting
with your clothing,,
REGULARForheawto lightlysoiledcottons,householdlinens,
workandplayclothes
PERMPRESSForeasycareandwrinkle-resistantitems,

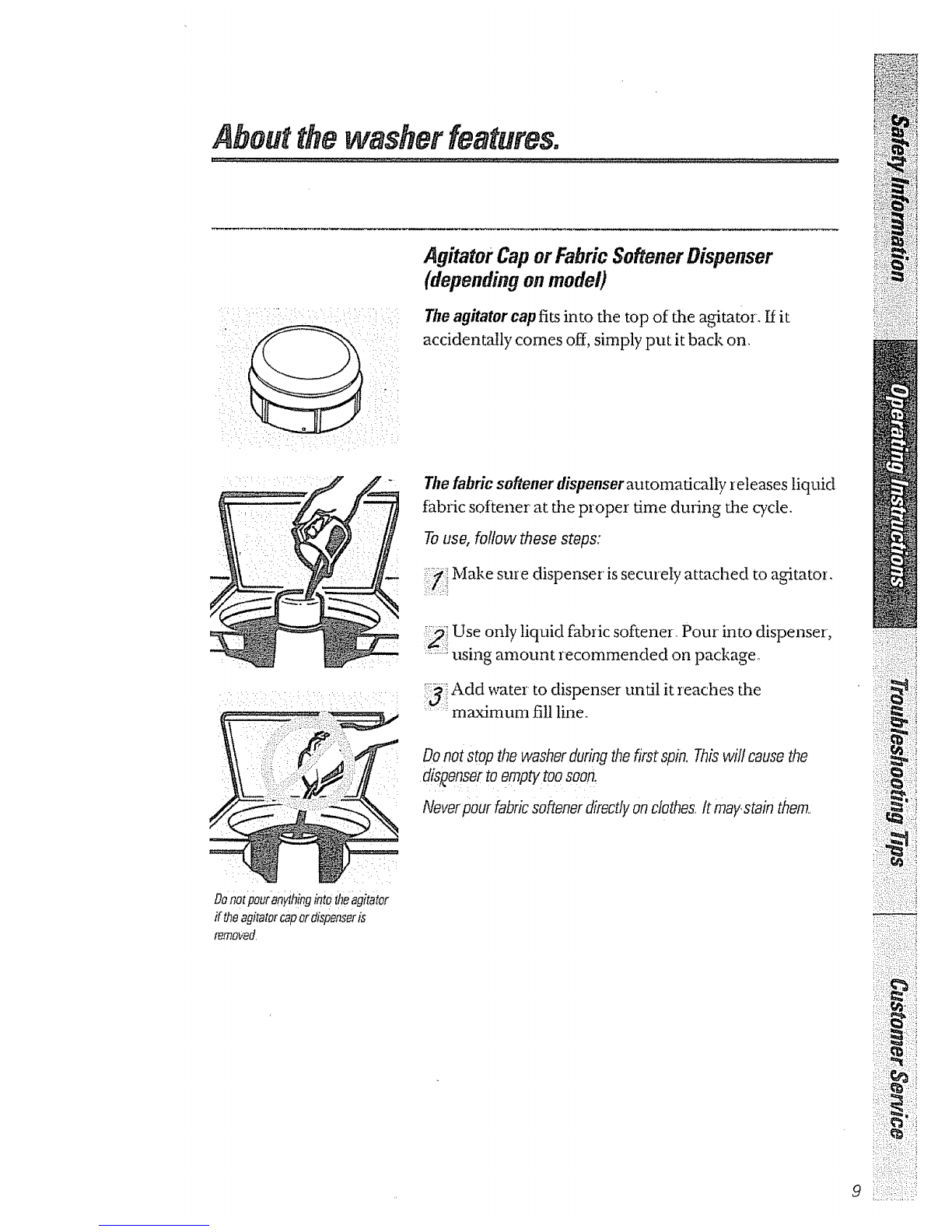

About the washer feature&
AgitatorCaporFabricSoftenerDispenser
(dependingonmodel)
Theagitatorcap fits into the top of the a_mtor. If it
accidentally comes off, simply put it back on,
The fabric softener dispenser automadcally releases liquid
f_tbric softener at the proper time during the cycle.
Touse, follow these steps:
:;_:":Make, sure dispenser' is securely attached to a_taton
_:_'',: Use only liquid fabric softener, Pour into dispenser,
...........using amount recommended on package,
i!31:i:Add water to dispenser until it reaches the
: rnaximum fill line,
Donotpouranythin9intotheagitator
if theagitatorcapordispenseris
remo_,ed,
Donot stopflTewasherduringflTefirstspin. This will causethe
disgensertoemptytoosoon.
Neverpourfabricsoftenerdirectlyonclothes,It may,stainthem.,
,9

:?ii;_i
}?'_?!?
Separatefordeanln#
10
Cleaninq the Fabric Softener Dispenser
Remove the dispenser from the top of the a_tator.
Separate the dispenser cup from the cover by
gn-aspingthe top and pushing down on the inside of
the cup with your finge_s. Dispenser cup will pop
free from the cover.
To clean dispenser, soak both the dispenser cup
and thedispenser cover in the follovdng solution:
_2!tUSgallon(38liters)warmwater
*"_;:._,:;,.t/4 cup(60mf)heavydutyfiquiddetergent
_:*_.,..,.I cup(240m!)bleach
i!!_iIf necessary, loosen build-up with a clean, soft cloth
"_" _ter soaldng Do not use a stift_brush; you may
roughen the surfb.ce ot: the dispenser.
i!5i Rinse and reassemble dispenser.. Place dispenser'
....*"-=back on the agitator'..

Always follow fabric manufacturer's care label when laundering,
Sorting
Colors
Soil
Fabric
Lint
WashLoads
Whites Lights Darks
Heavy Normal Light
Delicates EasyCare Sturdy Cottons
Lint Producers LintCollectors
ProperUseof Detergent
Always add detergent befbre adding clothes so that the detergent
can work effectively. Follow the detergent package directions.
Using too little detergent is a common cause oflaundry problems,
Use more detergent ifyou have hm-d water, large loads, _easy or
oily soils or lower water temperature.
LoadingtheWasher
Load dry items loosely, no higher d-tan the top row of holes in the
washer rob.. When loading ,,vet items make sure you set fl_e
load/water level high enough to allow the items to move fieely.
Water level should just cover' the cloLhes. To add items after washer
has started, push in Cycle k_nob and submerge additional items next
to tl_e agitator. Close the lid and pull Cycle knob out to restart,
Donot wrap large items like sheetsaround theagitator
Donot wash fabrics containing flammable materials (waxes,cleaning fluids, etc.).
Agitationwill notstartwith thelid up
_i:;:_i=:::=

Loading usi.gthewasher...............................................................
Careand Cleaningof the Washer
Wash Basket Leave the lid open after washing to allow moisture
to evaporate, Ifyou want to clean the basket use a clean soft cloth
dampened with liquid detergent, then rinse,, (D,o not use harsh or
gritty cleaners.)
Fill Hoses: Hoses connecting washer to faucet should be replaced
every 5 years.,
LintFilter: It is serf-cleaning, requires no maintenance, and is located
under the agitator.
Exterior: immediately wipe off any spills, Wipe with damp cloth,
Try not to hit surface with sharp objects.
Moving and Storage:Ask the service technician to remove water from
drain pump arid hoses, Do not store the washer where it will be
exposed to the weather° Call the GE Answer Center °, 800,626,2000
for inIormation on how to keep the mb stationary when moving the
washer_
Long Vacations: Be sure _ater supply is shut oft at faucets. Drain all
water flora hoses if weatherwii1 be below freezing°
;_i!i! ,,,i:!S_i}
ii:!!i;;_i
12

Troubleshootingtips
Savetime andmoney! Review the charts on the following pages
fir.standyou maynot need to call for service.
Possible Causes what ToDo
Washer won't operate Washer is unplugged ",'Make sure cord is plugged
securely into a working
outlet.
Water supply is turned off "_Turn both hot and cold
fa,ucets fully ono
Controls are not set
properly
:, Check controls and
make sure Cycle knob is
pulled out to ONposition.
Lid is open ._-'Close lid and pull Cyde
knob out to ONposidon,
Circuit breaker/fuse is '_ Check house circuit
tripped/blown breakers/i_ases. Replace
fuses or' reset breaker.
Washer should have
separate outlet,
Water temperature
isincorrect "Control is not set properly '_ Check water' temperature
control and adjust,
Water supply is turned off %
or improperly connected
Turn botl3 hot and cold
faucets fully on and make
sure hoses are connected
to correct fa.ucets.
Water valve screens are
stopped up
Turn off the water source
and remove the water
connection hoses from
the upper back of the
washer, Use a brush or
toothpick to clean the
screens in the machine..
Reconnect the hoses and
turn the water back on,
House water heater is
not set properly
Make sine house water
heater isdelivering water
at 120°F.-140°F.
(48°Co-60°C,).
'::iL:t
g!:;:_:=
!{}:?;:{{_
i!{):
13
t_!ii{;;i

!,;;(@:!i{;_i:i£(_i;;:i!
ii!!iiiill
ii_;,_!!:i_,i;,_
i_3_;i;::!(
!;ii!I :!_'I
;_i)_i;:2i;
!i,;!:}':
Troubleshootingtips
Xq,,.
'<i!i_,
Possible Causes What To Do
Water won't drain
Water leaks
Drain hose is kinked or
improperly connected
Fill hoses or drain hose is
improperly connected
Household drain may
be clogged
'_:_Suaighten drain hose and
make sure washer is not
sitting on it.
::"Top of drain outlet should
be less than 8 ft, above
floor,
:_Make sure hose
connections are tight at
faucets and make sure end
of drain hose is correctly
inserted in and secured to
drain facitity_
', Check household
plumbing. You may need
to call a plumber.
Constant water pressure
to the fill hoses at the
water source
'" Tighten hoses at the
f_tucets and mrn the water
off mq:er each use.
'._Check condition of the fill
hoses; they may need
replacement after5 year's,
Washer is noisy Washer is uneven _'Make sure washer is level
and firm to the floor.
Washer load is
unbalanced
Washer pauses in cycle The washer' normally pauses
between washing steps
Clothes too wet Incorrect cyde selected
Push the Cycle knob in to
stop the washer, open the
lid and redistribute the
load evenly_ Close the lid
and restmt,
:_'_Make sure the cyc!e
selected matches the load
you m*ewashing

••:5:••: : :, - ::,: -
PrOblem Possible Causes What ToOo
Lint or residue on clothes Incorrect sorting ' Sep_ate lint producers
fi-om lint collectors.
Washing too long _"Wash small loads for a
shorter time than larger
loads
Detergent not dissolving
Overloading
'_Add detergent as wash
basket fills with water',
before you load clothes,
_'_Trr, a liquid detergent,
: Use wanner water
temperature,
':_Load clothes no highm
than file top row of holes
in the washer' rob,
__Make sure load size
selector matches clothes
load size,
Colored spots
Incorrect use of fabric
softener
Incorrect use of fabric
softener
Check fabric softener
package for instructions
and follow directions for
using dispenser,
Check fabric softener'
package for instructions
and follow directions for'
using' dispense>
Pretreat stain and rewash
Dye transfer Sort whites or lightly
colored items fi'om dark
colors
:::::::i:i:i:

Troubleshootingtips
16
Possible Causes What ToDo
Vroverso. g
incorrect water leveI
Incorrect wash and
cycle
water that is too hot
Type of detergent _
Very soft water
hoofs,
buttons, belt buckles
" Avoid mixing heavy items
(like work clothes) with
light items (fike blouses).
,_Try a fabric soffener_
Load your washer so
clothes have enough room
to move freely.
Match Cycle selection to
the type of fabric you m'e
washing (especially for easy
care loads).
Wash in warm or' cold water
with plenty of detergentl
Switch to a lower sudsing
detergent brand and
follow instructions on
package.
Try less detergenL
Fasten snaps, hoolcs,
buttons, and zippers.
zippers, and sharp objects
left in pod_ets
Undiluted chlorine bleach ,':'
Remove loose items like
pins, objects in pockets
and sharp buttons°
Turn krfits (which snag
easily) inside out.
Check bleach package
instructions for proper
amount.
Never add undiluted
bleach to wash or allow
clothes to come in contact
with undiluted bleach,
CJaemicals like hair bleach _ Rinse items that may have
or dye, permanentwave chemicals on them before
solution" washing.

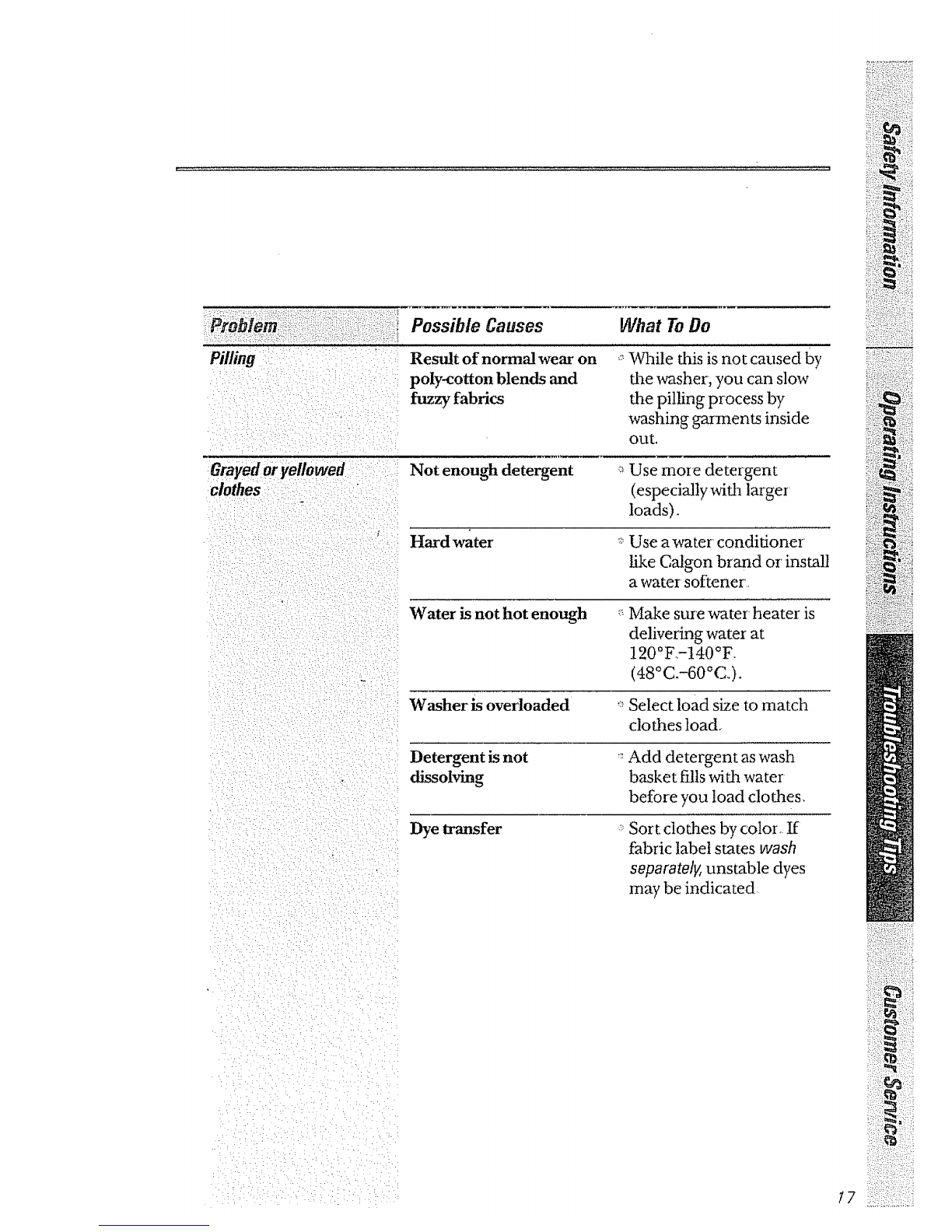

: !::5?:v,?::i •Possible Causes What ToDo
Pilling Result of normal wear on
poly-cotton blends and _."While this is not caused by
the washer', you can slow
the pilhng process by
washing garments inside
out.
Grayedor yellowed
clothes Not enough detergent
Hard_ter
Use more detergent
(especially with larger
loads).
Use a water' conditioner
like Calgon brand or' install
a water softener..
Water is not hot enough
Washer is overloaded
_ Make sure >rater heater is
delivering water at
120°F.-140°F.
(48°C.-60°C,).
•:, Select load size to match
clothes toad_
Detergent is not
dissolving _:Add detergent as wash
b_ket fills with water
before you toad clothes,
Dye transfer Sort clothes by color. If
fabric label states wash
soparotolg, unstable dyes
may be indicated
t7

ii!!i!i_!iiiiiii!i
_il_!_t_ii_ _!_i_
_i_i,_ i_ii
I8

Hotpoint Washer Warranty
All wananty service provided by our Factory Service Centers,
or an authorized Customer Care®technician. For service,
calISOO-GE-CARES_
OneYear
Fromthe dateof the
originalpurchase
Rve Years
Fromthedate of the
original purchase
TwentyYears
Fromthe date of the
originalpurchase
Anypart of the washer which fails due to a defect
in materials or workmanship, During dais full one-gear
warran_ we Mll also provide, free of charge, all labor' and
in-home service to replace the defective part,
The transmission, if it shouId fail due to a defect in
materials or workmanship,, During this five-gear limited
warranty, you will be responsible for any labor or in-
home service costs_
The washer basket, flit should fail due to a defect in
materials or workmanship, During dais twentg-year
limited warranty, you will be responsible fbr any labor
or in-home service costs,
i:::iiService trips to yottr home to teach you
how to use the product.
:::::iImproper hastallafion.
:Failm°e of the product if it is
abused, misused, or ttsed for other
than the intended ptwpose or used
commercially.
i!i Replacement of' house fl_ses or
resetting of circuit breakers°
Damage to the product cattsed by
accident, fire, floods or acts of God.
:::::iIncidental or consequential damage to
personal property caused by possible
defects with tiffs appliance.
fl#s warranty is extended to theonginal purchaserand any succeedingowner for productspurchased
forhome use within the USA fi7Alaska, the warranty excludesthe costof shlpptng or servicecalls to
yourhome
Somestates do not allow the exclusionor limitation of incidental or consequentla! damages This
warrantygives youspecific legalnghts,and youmay also haveother rights which van/from state to
state Toknow what yourlegal rights are,consult your localor state consumeraffairs office or your
state'sAztorneyGeneral
Warrantor: General Electric Company Louisville, I07 40225
:;! .....
iiii! !ilil
..........!!:ii
J
y, ";_i
i: (;';4i:
):::;:::i:....
1:::2:r::
i:!i::ii!!i:ii:!g:!i::;:ii_!
19

ServiceTelephoneN.mber&
GEAnswer Center®800.826.2000
The GE, Answer' Center .° is open 24 hours a day, 7 days a week_
In-HomeRepairServiceeOO-CE-CARES(800-432-2737)
Expert GE repair ser,Ace is only a phone call away..
2O
SpecialNeeds Service800.626.2000
TOO800-TOO-_EllC(eOO.B33-z1322)
GE offers, free of cha_ge, Braille controls for a variety o[GE
appliances and a brochure to assist in planning a barrier_free
kitchen for persons with limited mobitity_
ServiceContractse00-_2_-222_
Purchase a GE service contract while your warranty is still in effect
and you'll receive a substantial discount. GE Consumer Service will
still be there after your warranty expires_
PartsandAccessoriese00-626-2002
Individuals qualified to set,Ace their o_,m appliances can have paxts
or accessories sent directly to their homes (VISA, MasterCaxd and
Discover cards are accepted),.
Instructions contained in this manual cover procedures to be performed
by any user.Other servicing generally should be referred to quah'fied
service personnel, Caution must be exercised, since improper servicing
may cause unsafe operation.
&trice Satisfaction
ffyou are not satisfied with the service you receive from GE, follow
these three steps° First, contact dae people who serviced your'
appliance. Next, i_you are sdll not pleased, write all the details--
including your' phone numbm_to: Manager, Consumer Relations,
GE Appliances, Appliance Park, Louisville, KY 40225. Finally,ifyour
problem is still not resolved, write:
Major Appliance Consttmez Action Program
20 North Wacker Drive, Chicago, IL 60606_
RimedinLouisville,KY
