HP 5600 - Compaq TFT RKM User manual

CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: a-frnt
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/12/02 6:42 PM
HP TFT5600 Rackmount Keyboard
and Monitor (RKM)
User Guide
January 2004 (Fourth Edition)
PartNumber 229719-004

CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: a-frnt
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/12/02 6:42 PM
© 2001 Hewlett-Packard Company
Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions
contained herein. The information in this document is provided “as is” without warranty of
any kind and is subject to change without notice. The warranties for HP products are set forth
in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty.
HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide
January 2004 (Fourth Edition)
PartNumber 229719-004

HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide iii
HP CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: a-frnt
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/12/02 6:42 PM
Contents
About This Guide
Important Safety Information ........................................................................................... vii
Symbols on Equipment..................................................................................................... vii
Rack Stability..................................................................................................................... ix
Symbols in Text.................................................................................................................ix
Getting Help........................................................................................................................ x
Technical Support ........................................................................................................ x
HP Website................................................................................................................... x
Authorized Reseller..................................................................................................... xi
Chapter 1
Introduction
TFT5600 RKM Features.................................................................................................. 1-2
Components .....................................................................................................................1-4
Chapter 2
Installation
Installing the TFT5600 RKM ..........................................................................................2-1
Kit Contents.....................................................................................................................2-1
Installation Instructions....................................................................................................2-2
Accessing the TFT5600 RKM Tray ................................................................................2-8
Removing the TFT5600 RKM.........................................................................................2-8
Cable-Locking Mechanism..............................................................................................2-9
Chapter 3
Operating the TFT5600 RKM
On-Screen Display...........................................................................................................3-1

Contents
iv HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide
HP CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: a-frnt
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/12/02 6:42 PM
OSD Main Menu ............................................................................................................. 3-3
OSD Default Menu ......................................................................................................... 3-4
Auto Setup ................................................................................................................ 3-4
Brightness ................................................................................................................. 3-5
Contrast..................................................................................................................... 3-5
Image Adjust............................................................................................................. 3-6
Languages............................................................................................................... 3-13
OSD Settings .......................................................................................................... 3-13
Information ............................................................................................................. 3-16
Status Bar ......................................................................................................................3-16
Using the Keyboard....................................................................................................... 3-17
Keyboard Programming.......................................................................................... 3-18
Keyboard Hot Key Label........................................................................................ 3-19
Chapter 4
Care and Maintenance
Maintenance and Shipping Guidelines............................................................................ 4-1
Cleaning the Display................................................................................................. 4-2
Shipping the TFT5600 RKM .......................................................................................... 4-2
Moving the TFT5600 RKM Installed in a Rack ............................................................. 4-3
Appendix A
Regulatory Compliance Notices
Regulatory Compliance Identification Numbers.............................................................A-1
Federal Communications Commission Notice................................................................A-1
Class A Equipment ...................................................................................................A-2
Class B Equipment ...................................................................................................A-2
Modifications............................................................................................................A-3
Cables .......................................................................................................................A-3
Canadian Notice (Avis Canadien)...................................................................................A-4
Class A Equipment ...................................................................................................A-4
Class B Equipment ...................................................................................................A-4
European Union Notice...................................................................................................A-4
Japanese Notice...............................................................................................................A-5
Taiwanese Notice ............................................................................................................A-5
German Ergonomics Notice............................................................................................A-5

Contents
HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide v
HP CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: a-frnt
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/12/02 6:42 PM
Appendix B
Electrostatic Discharge
Precautions...................................................................................................................... B-1
Grounding Methods ........................................................................................................ B-2
Appendix C
Power Cord Set Requirements
General Requirements..................................................................................................... C-1
Country-Specific Requirements...................................................................................... C-2
Appendix D
Specifications
Index

HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide vii
HP CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: a-frnt
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/12/02 6:42 PM
About This Guide
This guide is designed to be used as step-by-step instructions for installation and as a
reference for operation, troubleshooting, and future upgrades.
Important Safety Information
Before installing this product, read the Important Safety Information document
included with the server.
Symbols on Equipment
The following symbols may be placed on equipment to indicate the presence of
potentially hazardous conditions:
WARNING: This symbol, in conjunction with any of the following symbols,
indicates the presence of a potential hazard. The potential for injury exists if
warnings are not observed. Consult your documentation for specific details.
This symbol indicates the presence of hazardous energy circuits or electric
shock hazards. Refer all servicing to qualified personnel.
WARNING: To reduce the risk of injury from electric shock hazards, do not
open this enclosure. Refer all maintenance, upgrades, and servicing to
qualified personnel.

About This Guide
viii HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide
HP CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: a-frnt
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/12/02 6:42 PM
This symbol indicates the presence of electric shock hazards. The area
contains no user or field serviceable parts. Do not open for any reason.
WARNING: To reduce the risk of injury from electric shock hazards, do not
open this enclosure.
This symbol on an RJ-45 receptacle indicates a network interface connection.
WARNING: To reduce the risk of electric shock, fire, or damage to the
equipment, do not plug telephone or telecommunications connectors into this
receptacle.
This symbol indicates the presence of a hot surface or hot component. If this
surface is contacted, the potential for injury exists.
WARNING: To reduce the risk of injury from a hot component, allow the
surface to cool before touching.
These symbols, on power supplies or systems, indicate that the
equipment is supplied by multiple sources of power.
WARNING: To reduce the risk of injury from electric shock,
remove all power cords to completely disconnect power from the
system.
Weight in kg
Weight in lb
This symbol indicates that the component exceeds the recommended
weight for one individual to handle safely.
WARNING: To reduce the risk of personal injury or damage to the
equipment, observe local occupational health and safety requirements
and guidelines for manual material handling.

About This Guide
HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide ix
HP CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: a-frnt
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/12/02 6:42 PM
Rack Stability
WARNING: To reduce the risk of personal injury or damage to the equipment,
be sure that:
• The leveling jacks are extended to the floor.
• The full weight of the rack rests on the leveling jacks.
• The stabilizing feet are attached to the rack if it is a single-rack installation.
• The racks are coupled together in multiple-rack installations.
• Only one component is extended at a time. A rack may become unstable if
more than one component is extended for any reason.
Symbols in Text
These symbols may be found in the text of this guide. They have the following
meanings.
WARNING: Text set off in this manner indicates that failure to follow directions
in the warning could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could
result in damage to equipment or loss of information.
IMPORTANT: Text set off in this manner presents essential information to explain a concept
or complete a task.
NOTE: Text set off in this manner presents additional information to emphasize or supplement
important points of the main text.

About This Guide
x HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide
HP CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: a-frnt
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/12/02 6:42 PM
Getting Help
If you have a problem and have exhausted the information in this guide, you can get
further information and other help in the following locations.
Technical Support
In North America, call the HP Technical Support Phone Center at 1-800-652-6672.
This service is available 24 hours a day, 7 days a week. For continuous quality
improvement, calls may be recorded or monitored. Outside North America, call the
nearest HP Technical Support Phone Center. Telephone numbers for worldwide
Technical Support Centers are listed on the HP website, www.hp.com.
Be sure to have the following information available before you call HP:
• Technical support registration number (if applicable)
• Product serial number
• Product model name and number
• Applicable error messages
• Add-on boards or hardware
• Third-party hardware or software
• Operating system type and revision level
HP Website
The HP website has information on this product as well as the latest drivers and flash
ROM images. You can access the HP website at www.hp.com.

About This Guide
HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide xi
HP CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: a-frnt
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/12/02 6:42 PM
Authorized Reseller
For the name of your nearest authorized reseller:
• In the United States, call 1-800-345-1518.
• In Canada, call 1-800-263-5868.
• Elsewhere, see the HP website for locations and telephone numbers.

HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide 1-1
CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: b-ch1 Introduction
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/11/02 11:10 PM
1
Introduction
The HP TFT5600 Rackmount Keyboard and Monitor (RKM) is a rack-mountable 1U
integrated flat panel monitor and keyboard with hot keys and track ball.
NOTE: 1U= 1.75 inches or 4.445 cm
Figure 1-1: TFT5600 RKM

Introduction
1-2 HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide
CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: b-ch1 Introduction
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/11/02 11:10 PM
The TFT5600 RKM is mounted on rails with space available to add a 1U switch box
behind the unit. The TFT5600 RKM can be used with all Compaq 9000 Series racks
and HP 10000 Series racks..
The TFT5600 RKM uses a 15-inch (38.1-cm) color active matrix Thin Film
Transistor (TFT) Liquid Crystal Display (LCD).
The TFT5600 RKM keyboard provides integrated hot keys for use with HP switch
box products. This function facilitates easy switching between rack-mounted devices.
The keyboard has nine programmable hot keys to provide switching functionality
between nine devices with an additional wizard key for programming.
TFT5600 RKM Features
The following table identifies the TFT5600 RKM features:
Table 1-1: TFT5600 RKM Features
Feature Description
Display 15-inch (38.1-cm) viewable area
display
Resolution 1024 x 768 resolution at 60 Hz, plus
full-screen support for lower
resolutions
continued

Introduction
HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide 1-3
CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: b-ch1 Introduction
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/11/02 11:10 PM
Table 1-1: TFT5600 RKM Features continued
Feature Description
VGA connector Plugs into a standard VGA
connector; does not require a
special graphics adapter card
Plug and play Plug and Play capability if supported
by your system
On-screen display (OSD) Available in ten languages:
• English
• Dutch
• French
• German
• Italian
• Japanese
• Portuguese
• Simple Chinese
• Swedish
• Spanish
Keyboard with hot keys and track
ball
Nine hot keys to provide switching
between nine rack-mounted devices
with an additional key for
programming
Power supply 12v DC/ 40 Watt
Display switch Turns power off to the panel when
display assembly is closed and
latched
Scroll keys Four scroll keys under track ball

Introduction
1-4 HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide
CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: b-ch1 Introduction
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/11/02 11:10 PM
Components
1
4
2
3
5
12 13
15
16
14
PROGRAM 1 2 3 4 5 6 7 8 9
6 7 8 9 10 11
Figure 1-2: TFT5600 RKM Components
Reference
Number
Component Function
1 Display release latch Pivots up, used to unlatch the
display assembly
2 Display switch Powers off the panel when the
display is closed while the computer
is still on
3 On-screen display
(OSD) scroll up button
Used to scroll up in the OSD menu
and adjust the function
4 OSD scroll down button Used to scroll down in the OSD
menu and adjust the function
5 OSD activation button • Launches OSD menus
• Selects
• Exits menus and OSD
continued

Introduction
HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide 1-5
CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: b-ch1 Introduction
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/11/02 11:10 PM
Table 1-1: TFT5600 RKM Features continued
Reference
Number
Component Function
6 Programmable wizard
key
Initiates the programming operations
mode, allows programming of nine
hot keys, and returns the hot keys to
defaults
7 Nine hot keys Allows quick access to the nine most
often used devices
8 Keyboard hot key label
(user installed)
Allows user to record programmed
hot keys
9 Number lock LED
10 Cap lock LED
11 Scroll lock LED
12 Track ball
13 Right pick button
14 Left pick button
15 Scroll up and down
button
16 Scroll left and right

HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide 2-1
CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: c-ch2 Installation
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/30/02 11:32 AM
2
Installation
Installing the TFT5600 RKM
This chapter discusses the installation and setup procedures for installing the
TFT5600 RKM.
Kit Contents
Below are the items and quantities required for assembly:
• M-6 cage nuts (2)
• M-6 screws (8)
• 6-32 screws (12)
• Mounting rails with slides (2)
• Cable management arm (1)
• Brace (1)
• TFT 5600 RKM (1)
• Lock plate (2)
• Keyboard hot key label (2)
• Rack template (1)
This kit may contain extra pieces of hardware for your convenience.

Installation
2-2 HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide
CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: c-ch2 Installation
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/16/02 1:43 PM
Installation Instructions
1. Determine the appropriate rack position for the TFT5600 RKM, generally 20U or
user preference.
Measuring from the top of the component, use the template on the front and rear
of the rack frame to mark the attachment points for the mounting brackets and
rear cage nuts.
NOTE: When using the template on the back of the rack, mark the rack at the top of the
template to help align the next component.
1

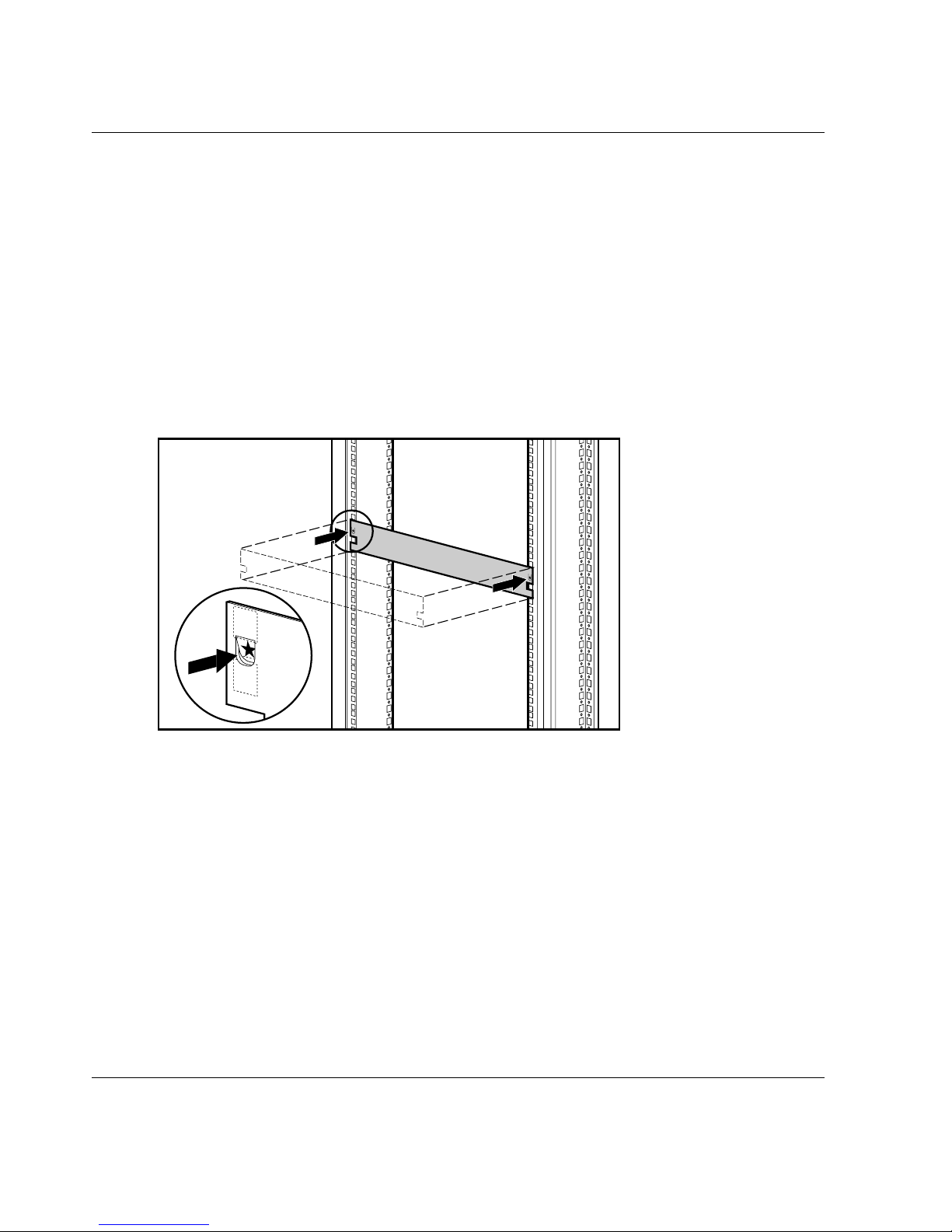

Figure 2-1: Measuring with the 1U template

Installation
HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide 2-3
CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: c-ch2 Installation
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/16/02 1:43 PM
2. Install the mounting rails with slides.
a. Insert one cage nut (1) into the hole marked with the rack template on the
rear of the rack.
b. Hook the tabs on the mounting rail into the appropriate holes on the rear of
the rack, and insert one screw (2).
IMPORTANT: Be sure to align the front screw holes when attaching the mounting rail to
the rear of the rack.
c. Insert two M-6 screws into the holes at the front of the rack, and then
tighten (3).
d. Repeat steps 2a through 2c to install the other mounting rail.
2
1
3

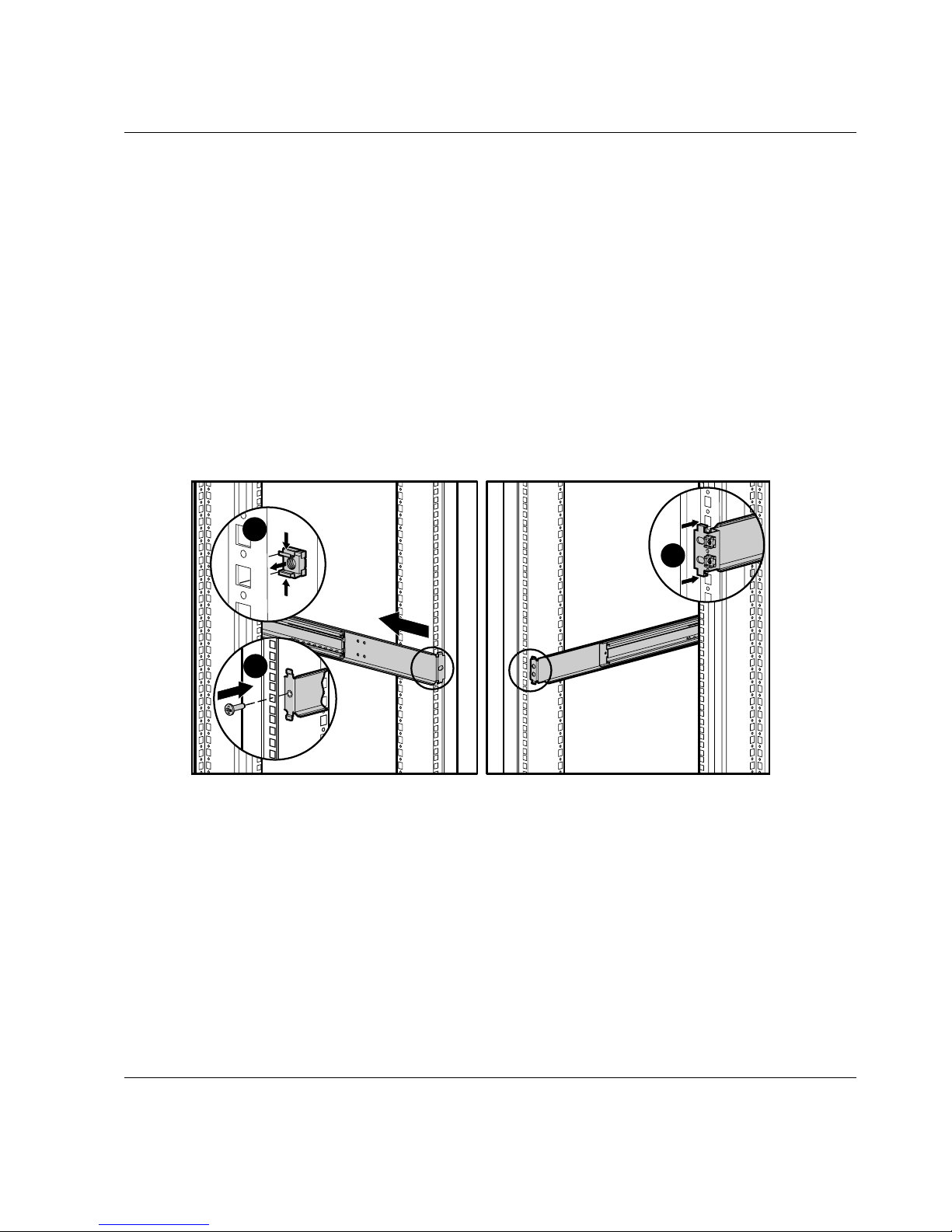

Figure 2-2: Installing mounting rails to the rear and
front of the rack

Installation
2-4 HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide
CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: c-ch2 Installation
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/16/02 1:43 PM
3. Attach the brace assembly to each mounting rail with the cable access hole facing
the right side of the rack.
a. Flex the rail out slightly to allow the brace to be inserted. Align the screw
holes on the brace with the screw holes on the rails (1).
b. Insert one 6-32 screw (2) on each side.
c. Tighten the screws (3).
1
3
2
Figure 2-3: Attaching the brace to the mounting bracket
NOTE: Make sure the cable access hole is positioned on the right, to allow appropriate
routing of cables.

Installation
HP TFT5600 Rackmount Keyboard and Monitor (RKM) User Guide 2-5
CONFIDENTIAL
Writer: Amy Laffitte - John Turner File Name: c-ch2 Installation
Codename: RUGER Part Number: 229719-003 Last Saved On: 8/30/02 11:32 AM
4. Install the tray assembly.
a. Fully extend the sliding rails until locked (1).
b. Place the tray assembly on the rails, aligning the screw holes on the tray with
the tabs on the rails (2).
c. Secure with two 6-32 screws on each side (3).
3
3
31
1
3
2

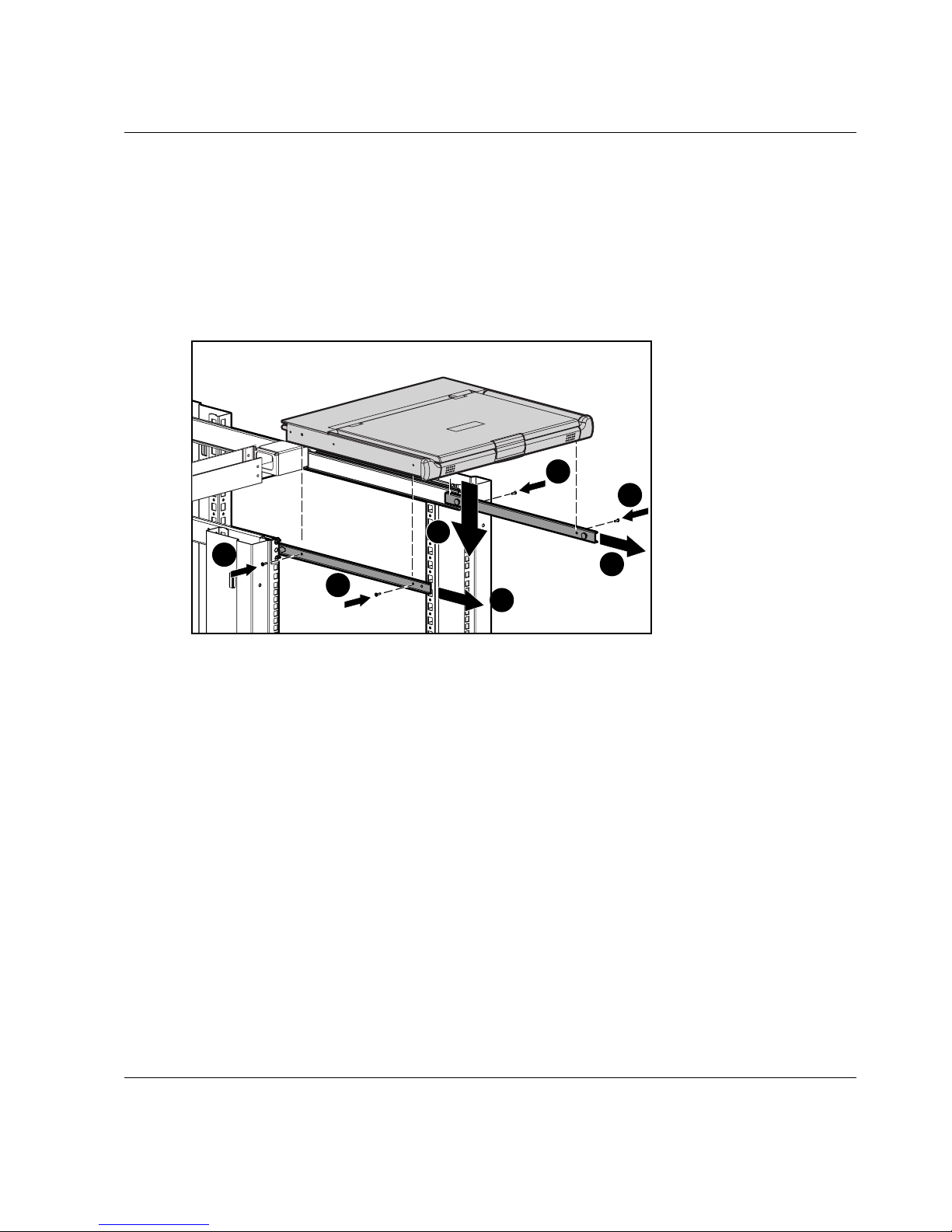

Figure 2-4: Installing the tray assembly
