HP 8904A
MULTIFUNCTIONSYNTHESIZER
(Including Options 001, 002, 003, 004, 005 and 006)
Operation and Calibration Manual
SERIAL NUMBERS
This manual applies directly to instruments with
serial numbers prefixed
2712A and all MAJOR changes that apply to your instrument.
rev. 01 JUL91
For additional important information about serial
numbers, refer
to “INSTRUMENTSCOVERED BY
THIS MANUAL” inSection 1.
ThirdEdition
This material may be reproduced by or for the U.S.
Government pursuant to the Copyright License un-
der the clause at DFARS 52.227-7013 (APR 1988).
Copyright@ HEWLETT-PACKARDCOMPANY 1989
EAST 24001 MISSION AVENUE, TAF C-34, SPOKANE, WASHINGTON, U.S.A. 99220
Operation and CalibrationManual HP Part 08904-90007
Other DocumentsAvailiable:
Operation and Application Guide HP Part 08904-90006
Service Manual HP Part 08904-90008
MicroficheOpetationKalibration Manual HP Part 08904-90019 Printed in
U.S.A. : September 1992
HEWLETT
PACKARD
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

1 Regulatory Information
(Updated March 1999)
1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

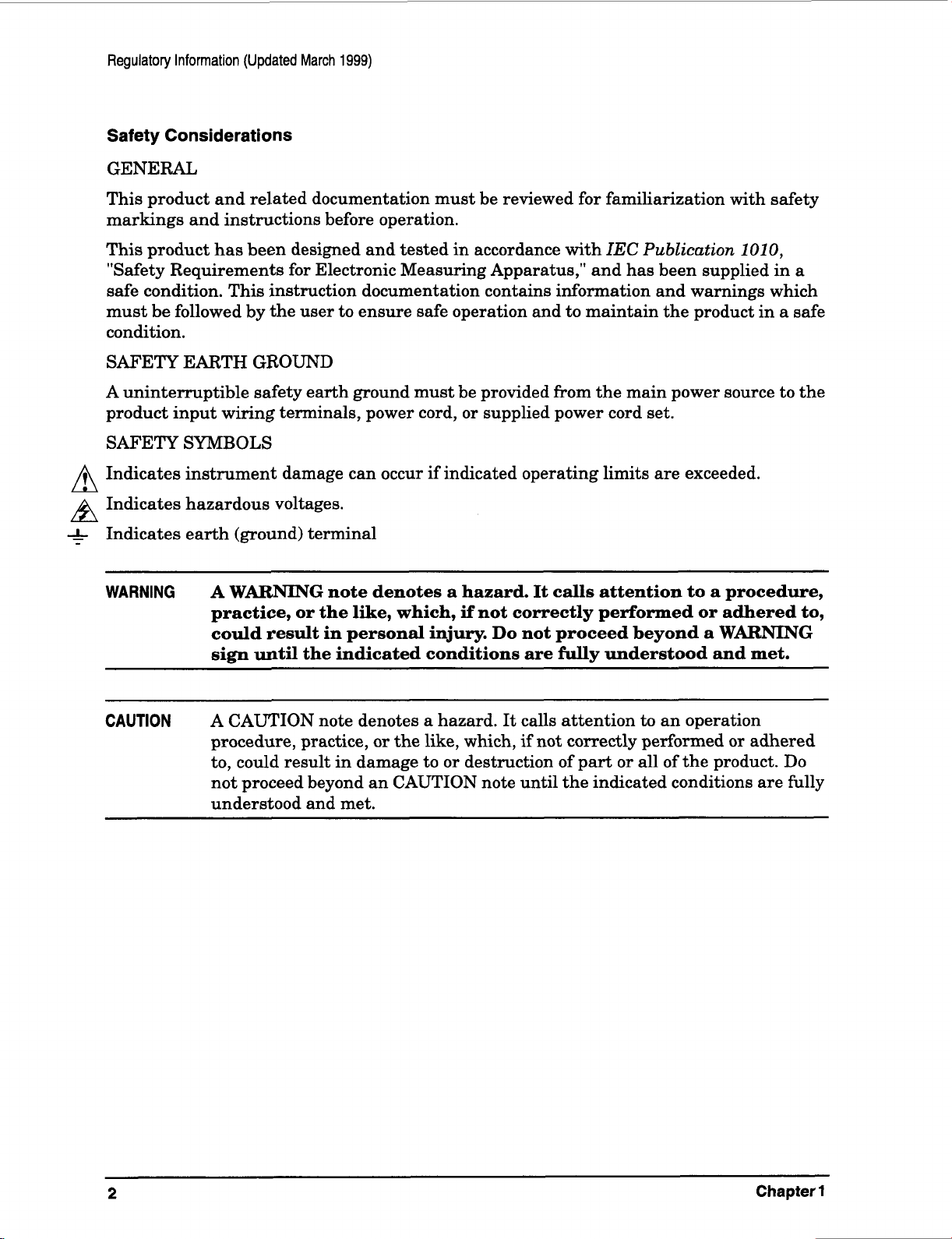

Regulatory Information(Updated March 1999)
Safety Considerations
GENERAL
This product and related documentation must be reviewed for familiarization with safety
markings and instructions before operation.
This product has been designed andtested in accordance with IEC Publication 1010,
"Safety Requirements for Electronic Measuring Apparatus," and has been supplied in a
safe condition. This instruction documentation contains information and warnings which
must be followedby the user to ensure safe operation andto maintain the product in
a safe
condition.
SAFETYEARTH GROUND
Auninterruptible safety earth ground must be provided from the main power source to the
product input wiring terminals, power cord,
or supplied power cord set.
SAFETY
SYMBOLS
A Indicates instrument damage can occur if indicated operating limits are exceeded.
A Indicates hazardous voltages.
& Indicates earth (ground)terminal
WARNING A WARNING note denotes ahazard.It calls attentionto a procedure,
practice,or the like, which,
if not correctly performedor adhered to,
couldresultin personal injury.
Do not proceedbeyond a WARNING
signuntil the indicated conditionsare
fully understoodandmet.
CAUTION
A CAUTION note denotes a hazard. It calls attention to an operation
procedure, practice, or the like, which,
if not correctly performed or adhered
to, could result in damage
to or destruction of part or all of the product. Do
not proceed beyond anCAUTION note until the indicated conditions arefully
understood and met.
2 Chapter 1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Regulatory Information(UpdatedMarch 1999)

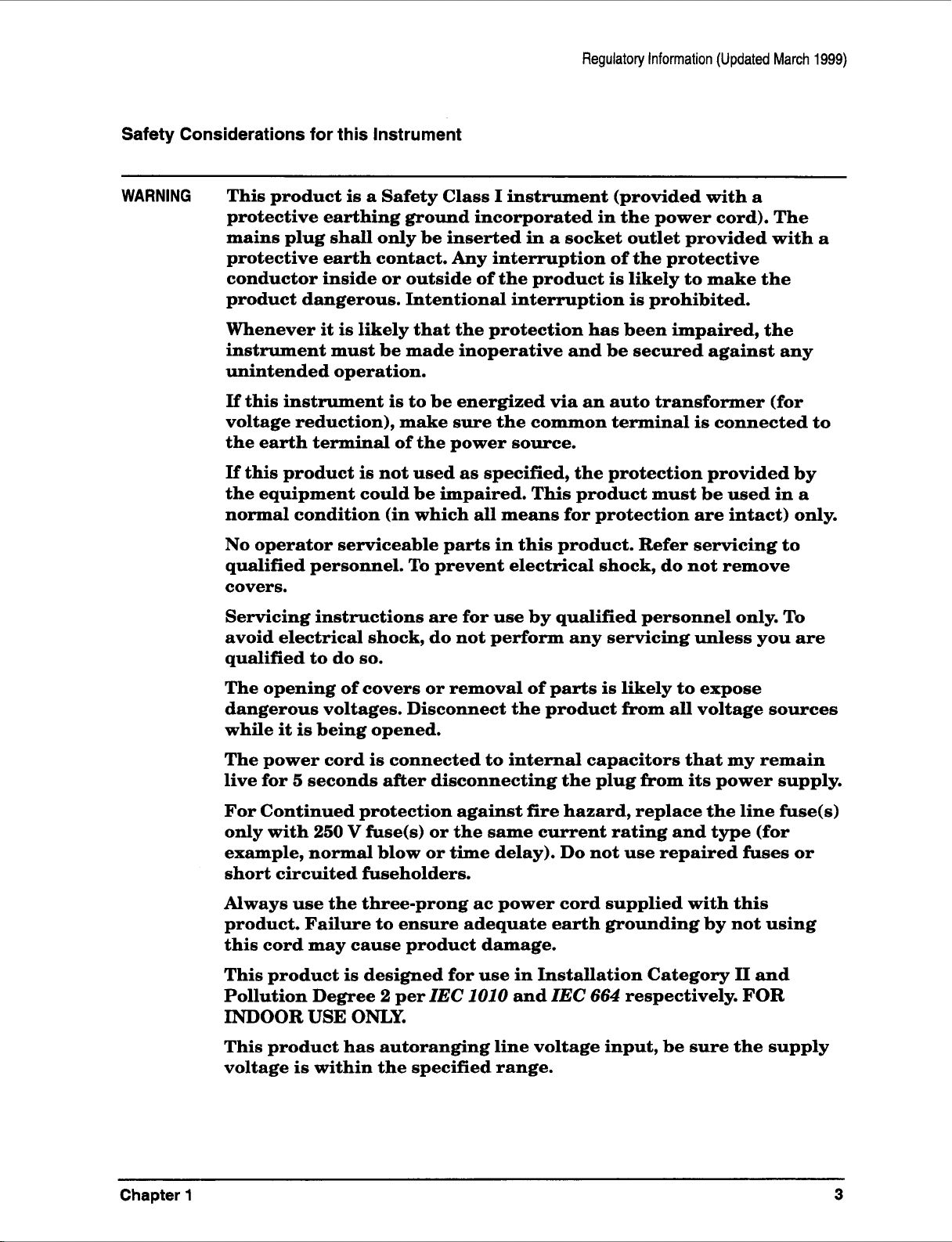

Safety Considerationsfor this Instrument
~
WARNING
This product is a Safety Class I instrument (providedwith a
protectiveearthing ground incorporated in the power cord).The
mainsplug shallonlybe insertedin
a socket outlet providedwith a
protectiveearthcontact.Any interruption of the protective
conductorinsideor outsideof the product islikely
to make the
product dangerous.Intentional interruption isprohibited.
Whenever it islikelythat the protection has been impaired,the
instrument mustbe made inoperativeand be securedagainst any
unintended operation.
If this instrument is tobe energized via anautotransformer (for
voltage reduction),make surethe common terminal
is connectedto
the earthterminal
of the power source.
If this product is not used as specified,the protectionprovidedby
the equipmentcouldbe impaired. This product must be used in
a
normal condition (inwhich all means for protection areintact) only.
No operator serviceablepartsinthis product. Refer servicingto
qualifiedpersonnel.
To prevent electricalshock,do not remove
covers.
Servicinginstructionsare for use by qualifiedpersonnelonly. To
avoid electricalshock,donot perform any servicingunless you are
qualifiedto do
so.
The opening of covers or removal of parts is likelyto expose
dangerousvoltages. Disconnectthe product from
all voltage sources
while
it is beingopened.
The power cord is connectedto internal capacitorsthat my remain
live for
5 secondsafter disconnectingthe plugfrom its power supply.
For Continuedprotectionagainstfirehazard,replacethe line fuse@)
only with
250 V fuse(s) or the same current rating and type (for
example, normalblow
or time delay).Do not use repaired fusesor
short circuited fuseholders.
Always use the three-prongac power cordsuppliedwith this
product. Failure
to ensure adequate earth groundingby not using
this cord may causeproduct damage.
Thisproduct is designed foruse in Installation Category I1 and
Pollution Degree 2 per ZEC 1010 and ZEC 664 respectively. FOR
INDOOR USE ONLY.
This product has autoranginglinevoltageinput,be surethe supply
voltage
is withinthe specifiedrange.
Chapter 1 3
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Regulatory Information(Updated March 1999)
To prevent electricalshock,disconnect instrument from mains (line)
before cleaning.
Use a dry cloth or one slightly dampenedwith water
to clean the externalcaseparts.
Do not attemptto clean internally.
VentilationRequirements:When installingthe product in a cabinet,
the convectioninto and out of theproduct must not be restricted.
The ambient temperature (outsidethe cabinet)must be less than the
maximum operatingtemperature
of theproduct by 4" C for every 100
watts dissipated in the cabinet. If thetotal power dissipated in the
cabinet is greater than
800 watts, then forced convectionmust be
used.
Product Markings
CE - the CE mark is a registered trademark of the European Community. A CE mark
accompanied by a year indicated the year the design was proven.
CSA - the CSA mark is a registered trademark of the Canadian Standards Association.
4 Chapter 1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

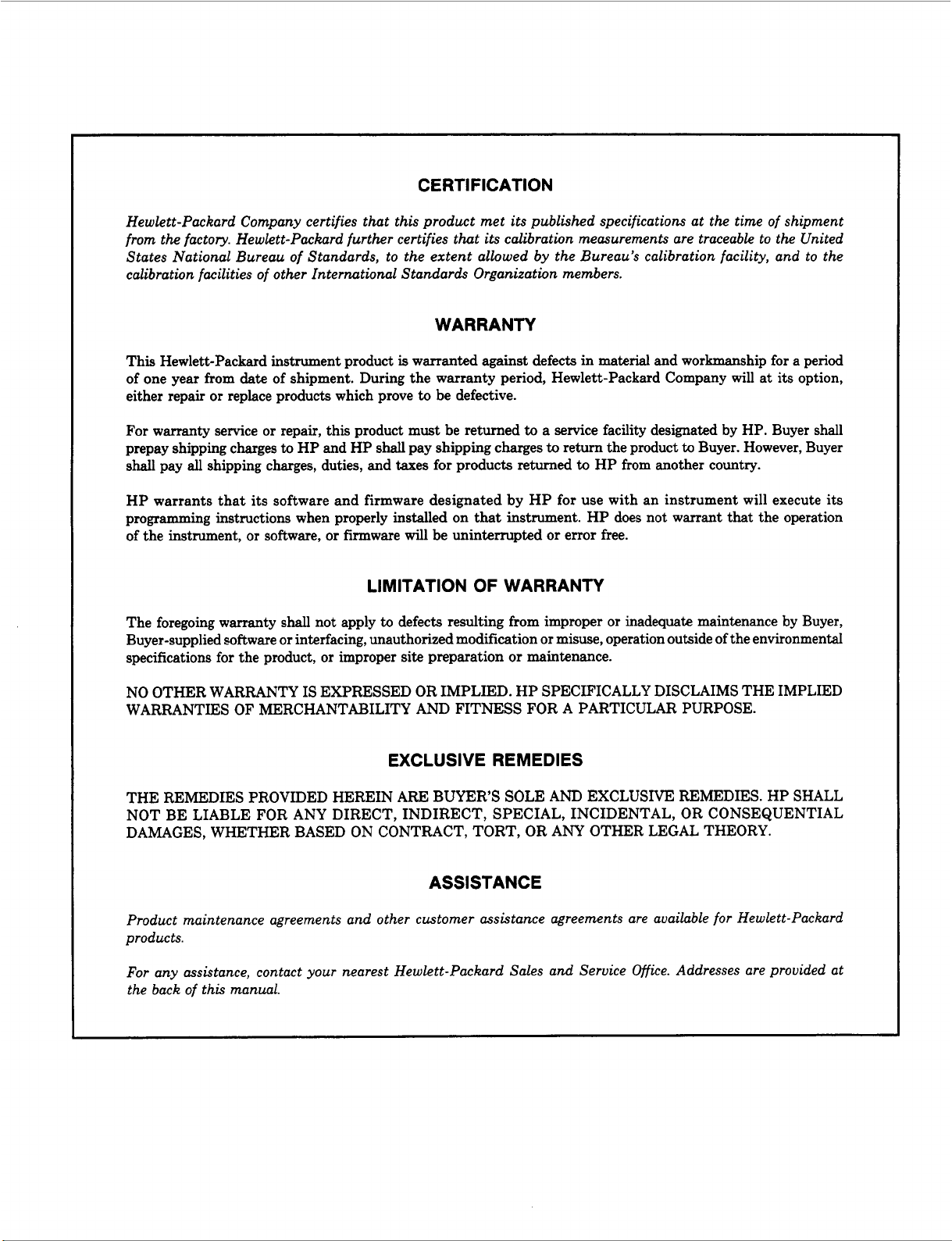

CERTIFICATION
Hewlett-Packard Company certifies thut this product met its published specificationsat the time of shipment
from the factory. Hewlett-Packard furthercertifies that its calibration measurements are traceable to the United
States National Bureau of Standards, to the extent allowed by the Bureau’s calibration facility, and to the
calibration facilities of other International Standards Organization members.
WARRANTY
This Hewlett-Packard instrument product is warranted against defects in material and workmanship for a period
of one year from date of shipment. During the warranty period, Hewlett-Packard Company will at its option,
either repair or replace products which prove to be defective.
For warranty service or repair, this product must be returned to a service facility designatedby HP. Buyer shall
prepay shippingcharges to HPand HPshallpay shippingcharges to return the product to Buyer. However,Buyer
shall pay all shipping charges, duties, and taxes for products returned to HP from another country.
HP warrants that its software and firmware designated by HP for use with an instrument will execute its
programming instructions when properly installed on that instrument. HP does not warrant that the operation
of the instrument, or software,or firmware will be uninterrupted or error free.
LIMITATION OF WARRANTY
The foregoing warranty shall not apply to defects resulting from improper or inadequate maintenance by Buyer,
Buyer-suppliedsoftwareor interfacing,unauthorized modificationor misuse,operationoutsideof theenvironmental
specificationsfor the product, or improper site preparation or maintenance.
NO OTHER WARRANTYIS EXPRESSED OR IMPLIED. HPSPECIFICALLYDISCLAIMSTHEIMPLIED
WARRANTIESOF MERCHANTABILITYAND FITNESS FOR A PARTICULAR PURPOSE.
EXCLUSIVE REMEDIES
THE REMEDIES PROVIDED HEREIN ARE BUYER’S SOLE AND EXCLUSIVE REMEDIES. HP SHALL
NOT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES, WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER LEGAL THEORY.
ASSISTANCE
Product maintenance agreements and other customer assistance agreements are available for Hewlett-Packard
products.
For any assistance, contact your nearest Hewlett-Packard Sales and Service Office.Addresses are provided at
the back of this manual.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

SAFETY CONSIDERATIONS
GENERAL
This product and related documentation must be re-
viewed for familiarization with safety markings and
instructions before operation.
This product is a Safety Class I instrument (provided
with a protective earth terminal).
BEFORE APPLYING POWER
Verify that the product is set to match the available
line voltage and the correct fuse is installed.
SAFETY EARTH GROUND
An uninterruptible safety earth ground must be pro-
vided from the main power source to theproduct input
wiring terminals, power cord,
or supplied power cord
set.
SAFETY SYMBOLS
Instruction manual symbol: the product will
A be marked with this symbol when it
is necessary for the user to refer to the instruction
manual (refer to Table of Contents).
Indicates hazardous voltages.
Indicates earth (ground) terminal.
f
VI
The WARNING sign denotes a
hazard.
It calls attention to a
procedure, practice,
or the like, which, if not correctly
performed
or adhered to, could result in personal in-
jury.
Do not proceed beyond a WARNING sign until
the indicated conditions arefully understood and met.
TheCAUTION sign denotes a haz-
ard. It calls attention to an
operating procedure, practice, or the like,which, if not
correctly performed or adhered to,could result in dam-
age to
or destruction of part or all of the product. Do
not proceed beyond a CAUTION sign until the indi-
cated conditions are fully understood and met.
Any interruption of the protective (ground-
ing) conductor (inside
or outside the instru-
ment)
or disconnecting the protective earth
terminal will came a potential shock hazard
that could result
in personal injury. (Ground-
ing one conductor of a two conductor outlet
is not sufficient protection).
Whenever it is likely that the protection has
been impaired, the instrument must be made
inoperative and be secured against any unin-
tended operation.
If this instrument is to be energized via an
autotransformer (for voltage reduction) make
sure the common terminal is connected to the
earth terminal of the power source.
Servicing instructions are for use by service-
trained personnel only.
To avoid dangerous
electric shock, do not perform any servicing
unless qualified to do
so.
Adjustments described in the manual areper-
formed withpower supplied to the instrument
while protective covers are removed. Energy
available at manypoints may, ifcontacted, re-
sult
in personal injury.
Capacitors inside the instrument may still be
charged even
if the instrument has been dis-
connected from its source of supply.
For continued protection against fire hazard,
replace the line fuse(s)only with
250V fuse(s)
of the same current rating and type (forexam-
ple, normal blow, time delay, etc.).
Do not use
repaired fuses
or short circuited
fuseholders.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

ATTENTION
Static Sensitive
Devices
This instrument was constructed in an ESD (electro-static dis-
charge) protected environment. This
is because most of the semi-
conductordevices used
in this instrument are susceptible todamage
by static discharge.
Depending on the magnitude of the charge, device substrates can
be punctured
or destroyed by contact or mere proximity of a static
charge. The results can cawe degradation of device performance,
early failure, or immediate destruction.
These charges are generated in numerous ways such as simple con-
tact, separation
of materials, and normal motions of persons
working with static sensitive devices.
Whenhandling or servicing equipment containing static sensitive
devices, adequate precautions must be taken toprevent device dam-
age
or destruction.
Only those who are thoroughly familiar with industry accepted
techniques for handling static sensitive devices should attempt to
service circuitry with these devices.
In all instances, measures must be taken to prevent static charge
build-up
on work surfaces and persons handling the devices.
For further information on ESD precautions, refer to “SPECIAL
HANDLING CONSIDERATIONS FOR STATIC SENSITIVE
DEVICES” in Section VIII Service Section.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Model 8904A Volume 1 Contents
VOLUME 1 CONTENTS
Section 1 . General Information
.....................................................
Introduction 1.1
Description . 1-2
Specifications 1.3
Options 1-7
Mechanical and Document Options and Accessories
............................... 1-7
Electrical Options
1-8
Option 001: 1-8
Option002: .................................................... 1-8
Option 003: 1-8
Option 005: 1-9
Safety Considerations ................................................ 1.2
.....................................................
.....................................................
........................................................
A
..................................................
....................................................
....................................................
....................................................
Option006 .................................................... 1-9
Hewlett-PackardInterface Bus
........................................... 1-9
Selectingthe HP-IB Address .......................................... 1-9
Accessories Supplied
.................................................
Recommended Test Equipment .......................................... 1-10
Documentation Updating
.............................................
A Description of the Manual Update Packet ................................ 1-10
Signing Up
for the Documentation Update Service ............................. 1-10
....................................................
Compatibility 1-9
1-9
1-10
Serial Numbers 1-10
................................................
Section 2 . Installation
.....................................................
...................................................
.................................................
Introduction 2.1
Initial Inspection 2.1
Preparation
For Use 2.1
Line Voltage Selectionand Fuse Replacement ................................ 2-2
Power Cables 2.2
HP-IB Address Selection 2.2
Interconnection 2.4
Mating Connectors 2.4
Operating Environment 2-4
Bench Operation 2-4
Rack Mounting 2-4
Storage And Shipment 2-4
Environment 2-4
...................................................
............................................
.................................................
...............................................
.............................................
.................................................
.................................................
................................................
...................................................
Packaging ..................................................... 2-4
rev.OlNOV89
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Volume 1 Contents Model 8904A
Section 3 . Operation
Introduction ..................................................... 3.1
Block Diagram
.................................................... 3.2
Functional Block Descriptions
......................................... 3.3
How to Create and Output
a Signal ....................................... -3-4
Instrument Functions and Operating Considerations ............................... 3-6
Standard Instrument: Creating
a Simple Signal From Digital Data ..................... 3.6
How the HP 8904A Generates
a Signal
.................................... 3.7
Operating Considerations: All Instruments
.................................. 3.7
Option 001 . Three More Channels, Summation, Modulation, and Sequencing .............. 3.9
Abbreviated Channel A Specifications ..................................... 3.8
Expanded Capabilities for Option 001 .................................... 3C-1
Operating Considerations: Option 001
.................................... 3-10
Abbreviated Specifications: Option 001
................................... 3-10
Option 002
. A Second Channel and Output ................................ 3-12
Operating Considerations: Option 002 .................................... 3-12
Abbreviated Specifications:Option 002
................................... 3-12
Option 003
. Frequency, Amplitude, and Phase Hopping .......................... 3-13
Operating Considerations: Option 003 .................................... 3-14
Abbreviated Specifications:Option 003
................................... 3-14
Di~talPo
...................................................... 3-15
General Information .............................................. 3-15
Connector hnctions
............................................. 3-15
Remote Operation ............................................ 3-18
General Information
.............................................. 3-18
Programming Considerations
......................................... 3-18
HP-IB Compatibility
............................................. 3-19
HP-IB Code Listings for the HP 8904A
................................... 3-19
Status Byte
..................................................... 3-31
General Information
.............................................. 3-31
Using the
Status Byte ............................................. 3-31
Error Isolation ................................................. 3-32
Error Codes and Help Messages ......................................... 3-34
Special Functions
.................................................. 3-37
Introduction
.................................................. 3-37
Special
0: Last State Recalled on Power Up ................................. 3-37
Special
1: Disable Automatic Phase Reset .................................. 3-37
Special
2: Disable Beeper ........................................... 3-37
Special 3: Reverse Modulating Waveforms ................................. 3-37
Special 4: Disable Output Blanking
..................................... 3-38
Special
5: Floating Outputs on Power Up: .................................. 3-38
Special
6: Enable Synchronous mode: .................................... 3-38
Special 7: Configure as Master Controller: ................................. 3-38
Operating Technical Reference
.......................................... 3-39
Waveform Jitter
................................................ 3-39
Fine Amplitude Resolution
.......................................... 3-39
Filters ...................................................... 3-41
Phase Resolution
............................................... 3-42
Phase Continuous Switching
......................................... 3-42
MenuMap ..................................................... 3-44
Selecting Menus
................................................ 3-44
Menu Changes When Using HP-IB Control
................................ 3-44
rev . 01 NOV89
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Model 8904A Volume 1 Contents
Hop RAM Sequencing .............................................. .3C.l
General Description
............................................. 3C-1
Detailed Operation
............................................. .3C.l
HP-IB Operation
.............................................. .3C.5
FM Stereo Composite Generator ......................................... 3C-7
General Description
............................................. 3C-7
Detailed Operation
............................................. .3C.7
HP-IB Operation
.............................................. 3C-10
Multi-Instrument Phase Synchronization .................................... 3A-1
Introduction
................................................ .3 A.l
General Description ............................................ .3 A.2
Electrical Connections ............................................ 3A-2
Detailed Operating Instructions
...................................... 3A-3
HP-E3 Operation
.............................................. .3A.7
Specifications
................................................ .3 A.8
High Power Balanced Output .......................................... .3B.l
Introduction
................................................ .3B.l
General Description
.............................................. 3B-1
Operating Considerations
.......................................... 3B-1
HP 8904A Option
006 Specifications .................................... 3B-2
Expanded Capabilities for Option 001 ...................................... 3C-1
Section 4 . PerformanceTests
Introduction ..................................................... 4.1
Equipment Required ................................................. 4.1
Performance Test Record
.............................................. 4.1
Calibration Cycle
................................................... 4.1
Basic hnctional Checks
............................................... 4.1
Introduction
..................................................... 4.1
Equipment Required
................................................. 4.1
Performance Test Record
.............................................. 4.1
Calibration Cycle
................................................... 4.1
Basic Functional Checks
............................................... 4.1
Performance Test
1 - AC and DC Amplitude Accuracy ............................. 4.3
Performance Test 2 - AC Amplitude Flatness .................................. 4.4
Performance Test 3 - Spectral Purity ...................................... 4-10
Performance Test 4
- Phase Accuracy ..................................... 4-14
Performance Test
5 - Channel-to-Channel Phase Accuracy (Option 001 .................. 4-17
Performance Test
6 - Output l-to-Output 2 Phase Accuracy (Option 002) ................. 4-20
Performance Test 7
- Tone Sequence Timing Accuracy (Option 001) .................... 4-22
Performance Test 8 - DTMF Sequence Timing Accuracy (Option 001) ................... 4-26
Performance Test 9
- Digital Sequence Period Accuracy (Option 001) ................... 4-30
rev.01 NOV89
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Volume 1 Contents Model 8904A
Section 5 . Adjustments
.....................................................
................................................
.................................................
Introduction 5.1
Safety Considerations 5.1
Equipment Required
5.2
Post-Repair Tests, Adjustments, and Checks ................................... 5.2
Adjustment 1 - Output Gain and Offset ..................................... 5-4
Adjustment 2 - Output Balance .......................................... 5.6
Adjustment 3 - Output Gain (Option 006) .................................... 5.7
Adjustment 4 - Sharp Cutoff Low-Pass Filter .................................. 5.8
Adjustment 5 - Sine X/X Compensation .................................... 5-11
Adjustment
6 - Display Backlighting and Contrast .............................. 5-13
Adjustment
7 - Phase Synchronization (Option 005) ............................. 5-14
rev.OlNOV89
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Model 8904A General Information
Section 1
GENERAL INFORMATION
1-1. INTRODUCTION
This manual contains information required to install, operate, test, and adjust the Hewlett-Packard
Model 8904A Multifunction Synthesizer. The
HP 8904A will generally be referred to as the
Multifunction Synthesizer throughout this manual. This manual documents standard Multifunction
Synthesizers and Multifunction Synthesizers supplied with four internal channels, Option
001, a
second outputport, Option 002, Hop Ram capabilities,Option 003, andrear panel outputs, Option 004.
Operating and reference information for other options is provided in the operating supplements at
the end of section 3.
This section of the manual describes the instruments documented by this manual; it includes an
instrument description, options, accessories, specifications, and other basic information. The other
sections contain the following information:
Section 2, Installation: provides information about initial inspection, preparation for use, HP-IB
address selection for remote operation, and storage and shipment.
Section 3, Operation: provides information about panel features and includes operator’s checks,
operating instructions for both local and remote operation, and operator’s maintenance information.
Operating information for options after Option 004 is provided in the form of separate supplements.
Section 4, Performance Tests: provides the information required to check performance of the
instrument against the critical specifications listed in table 1-1.
Section 5, Adjustments: provides the information required to properly adjust the instrument.
One copy of the operating information is supplied with the Multifunction Synthesizer.An additional
copy of the Operating Manual may be ordered separatelythrough your nearest Hewlett-Packardoffice.
Its part number is listed on the title page of this manual.
Also listed on the title page of this manual, below the manual part number, is a “Microfiche”part
number. This number may be used to order
100 x 150 millimeter (4- x 6-inch)microfilmtransparencies
of this manual. Each microfiche contains up to 96 photo-duplicates of the manual’s pages. The
microfiche package also includesthe latest Manual Updates information.
rev.OlNOV89
1-1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

General Information Model 8904A
1-2. SAFETY CONSIDERATIONS
Thisproduct is a SafetyClass I instrument, that is, one provided with a protective earth terminal. The
Multifunction Synthesizer and
all related documentation must be reviewed for familiarization with
safety markings and instructions before operation. Refer to the Safety Considerations pages found at
the beginning of this manual for a summary of the safety information. Safety information pertinent
to the
task at hand, that is, installation, operation, performance testing, and adjustments, is found
throughout this manual.
1-3. DESCRIPTION
The HP 8904A is a Multifunction Frequency Synthesizer that produces six fundamental waveforms
to create complex signals. The waveforms available are: dc, sine wave, ramp (sawtooth), triangle,
square wave, and white (Gaussian) noise. The standard instrument is equipped with a single internal
channel
and one output. The addition of available options can provide: a second signal output port,
three additional internal channels with modulation capabilities, and the ability to fast-hop between
different phase, frequency, and amplitude settings. Multi-instrument synchronization and high level
balanced output are also available.
A description of the available options is given in paragraphs 1-6 and 1-7.
1-2
reu.OlN0 V89
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

General Information
Model 8904A
1-4. SPECIFICATIONS
nble 1-1. HP 8904A Specifications (1 of 4)
HP 8904A SPECIFICATIONS
Specifications describe the instruments' warranted performance (5oR output
only unless noted) for automatic operation. Mathematically derived charac-
teristics denote parameters which can be derived
from specifications and
knowledge
of the digital generation methods used in the HP 8904A. Sup-
plemental characteristics are intended to provide information useful in
applying the instrument by giving typical, but
not warranted performance
parameters. These are noted
as 'typical ", 'normal", or 'approximate".
Frequency
Range: Sine wave: 0 Hz to 600 kHz.
Square, triangle, ramp: 0 Hz to 50 kHz.
Resolution: 0.1Hz.
Accuracy: Internal 10MHz timebase: 250 ppm.
AC amplitude (sine wave)
Range: 0 to 105 into a 5052 load.
Resolution: 3% &its.
Accuracy (amplitude >40 mVpp into 50Q):
1'30, 0.1 HZ to 100 kHz.
3%, 100 kHz to 600 kHz.
Flatness (amplitude >630 into 50Q):
+O.lYo (=0.009 dB), 0.1 HZ to 100kHz.
21.0% (r0.09 dB), 100kHz to 600 kHz.
External 10MHz timebase: Same as accuracy and
stability of external timebase.
Spectral Purity (sine wave)
THD+N (including spurs, amplitude >50 mV rms into 5052):
-63 dBc I~TLS (0.07%), 20 HZto 7.5 kHz, 30 kHz BW.
-63 dBc I~TLS (0.07%), 7.5 kHz to 20 kHz, 80 kHz BW.
-55 dBc I~TLS (0.18%), 20 kHz to 100 kHz, 750 ~HZ BW.
Phase (sine wave)
Range: 0 to 359.9O.
Resolution: 0.lo or 0.001 radians.
Increment accuracy (Relative to Oo for a fixed frequency):
20.05O, 0.1 Hz to 100kHz.
DC amplitude
Range: 0 to 21OV open circuit.
Resolution: 3% digits.
Accuracy: 520 mV or r2.1%, whichever is greater.
Spectral Characteristic: Equal energy per unit bandwidth
Amplitude range: 0 to lo\, into a 5052 load.'
Resolution: 3% digits.
Gaussian Noise
("white").
Mathematically Derived Characteristics
Noise flatness (amplitude >lo0 mVp-pinto 5052):
20.5 dB, 0.1Hz to 100kHz.
2 1.0 dB. 100kHz to 600 kHz.
1 Peak Voltage
(Crest Factor) X 2 X d-h
Noise Voltage / fi =
Supplementa 1 Characteristics
Number of channels: One standard; two with Option 002;
Standard waveforms: Sine, square, triangle, ramp, de, and
AC amplitude accuracy:
four with Option 002.
Gaussian white noise.
Typically: Square wave:
<3% at 20 kHz.
Triangle : <4%. at 20 kHz.
Gaussian noise: <5%.
Ramp: <7% at 20 kHz.
Square wave risetime/falltime: Typically <2.5 ps.
Spurious (typically the higher of):
Noise crest factor:
fypically >4.4.
Switching speed (via HP-IB): Typically <25 ms.
-50 dBc or 500 pV, 100 kHz to 600 kHz, 20 MHz BW.
."
2 -70 dB I
+
X
F -80dB
n
10Hz 100Hz 1 kHz 10 kHz 100kHz
Frequency
Typical Level Flatness (I kHz ref.) at 5Vp-p into a 50R load.
+0.1 dB I I I 1
i
LL -0.1 dB 100kHz lMHz
100Hz lkHz 10 kHz
Frequency
Typical SSB phase noise at 500 kHz.
-70'
-80
-90
2 -100
% -110
\
V
-120
-130
-1401 I I I I I
1Hz 10Hz 100Hz lkHz 10kHz 100kHz
Offset Frequency
% VPk
(4.4) x (2) x vmmi
rev.OlNOV89
1-3
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

General Information Model
8904A
Ziable 1-1. HP 8904A Specifiatwns (2 of 4)
OPTION 001 SPECIFICATIONS
(50Q outputs only)
Modulation
Modulation for channel A ONLY, and specified for
sinewave carrier and modulation. Internal channels B, C,
and D can be used to either collectivelymodulate channel
A with one modulation type, or can provide simultaneous
modulation of channel A with any of the available modula-
tion types. External modulation is NOT possible.
Amplitude Modulation (with Option 001)
Rate: 0 Hz to 600 kHz.
Depth range: 0% to 100% of carrieramplitude.
Resolution: 0.1% of carrier amplitude.
Frequency Modulation (with Option 001)
Rate: 0 Hz to 600 kHz.
Deviation range: 0 Hz up to 600 kHz, however
Resolution: 0.1 Hz or 3%digits, whichever is less.
Phase Modulation (with Option 001)
Rate: 0 Hz to 600 kHz.
Range: Oo up to 179.9O/channel, however
F,, + Fdeviation <=600 kHz.
Resolution: 0.lo or 0.001 radians.
Pulse or DSBSC Modulation (with Option 001)
Summation (with Option 001)
Rate: 0 Hz to 50 kHz (up 600 kHz for DSBSC).
Two, three, or four channels may be summed into a single
output. Two or three channels may be summed for modula-
tion of channel A. All combinations of channels are accept-
able, EXCEPT FOR: { A+C and B+D ] or { A+D and B+C ]
at the same time.
Channel-to-channelphase accuracy (equal amplitude, sine
wave signals summed into one
output): +0.lo or 30 ns ,
0.1 Hz to 100 kHz, whichever is greater.
Mathematically Derived Characteristics
AM accuracy (thehigher of): 20.024% AM or 20.20% of
setting, up to 20 kHz modulation rate and 100 kHz carrier,
1% to 99% depth.
up to 20 kHz modulation rate, 20 kHz deviahon, and where
Fcarrier+Fdeviation <=lo0 kHz.
to 20 kHz modulation rate, where:
FM accuracy (thehigher 00: 20.1 Hz or 20.28% of setting,
4M accuracy (thehigher of): +0.lo or 20.28% of setting, up
DSBSC peak envelope accuracy: Same as amplitude accuracy,
Phase accuracy when one channel is used to modulate
channel A (sine wave):
20.15O or 30 ns, whichever is greater,
up to 20 kHz modulation rate.
0.1 Hz to 100 kHz carrier frequency.
Supplemental Characteristics
VOR bearing accuracy: Typically =0.059
AM accuracy (at a 1 kHz rate and 600 kHz carrier):
FM accuracy (ata 1 kHz rate, 20 kHz deviation, and
600 kHz carrier): Typically < 2 0.2% of setting.
Pulse modulation level accuracy: Typically 5% up to 20 kHz
pulse rate.
DSBSC carrier suppression: Typically >72 dB.
Intermodulation (two equal signal summed into one output):
Typically: <-70 dBc, for frequencies up to 100 kHz.
Specifications for level accuracy, modulation accuracy, and
spectral purity are all referenced to the peak of the composite
signal less
3 dB. When signals are summed the specification for
each individual signal is degraded by its amplitude relative to the
peak
of the composite signal.
FM Stereo Mode (withOption 001)
Test signal modes: Left = Right, Left = -Right, Left only, and
Test tone frequency range: 20 Hz to 15 kHz.
Composite signal level: up to 10 Vp-p into 50Q.
Pilot tone level: 0% to 100% of composite level.
Pilot tone level resolution: 0.1% of composite level.
Pilot tone frequency range: 0.1 Hz to 600 kHz
Pilot tone phase adjustment range: 0.0 to 359.9O
Subcarrier frequency range: 0.1 Hz to 600 kHz
Preemphasis: 25 psec, 50 psec, and 75 psec.
Typically <t0.2%.
<-60 dBc, for frequencies 100 to 600 kHz.
Right only.
(default frequency 19 kHz).
(default frequency 38 kHz).
Supplemental Characteristics
FM stereo multiplex separation:
Multiplex subcarrier suppression: typically > 70 dB
Tone Sequence (withOption 001)
Number of different frequencies: 16 user definable tones
On-time duration: 0 ms, 0.80 ms to 655.35 ms.
Off-timeduration: 0 ms, 0.80 ms to 655.35 ms.
zero on time not allowed)
Timing resolution: 0.01 ms (10 ps).
Timing accuracy: 20.02 ms (220 rs).
Sequence length 750 tones, user definable from front panel
L-R: typically > 65 dB, audio frequency 20 Hz to 15 kHz.
M-S: typically > 70 dB, audio frequency 20 Hz to 15 kHz.
.
each with an individual on time and off time.
(Zerooff time
or HP-IB programmable.
DTMF sequence (withOption 001)
Number of tone pairs: 16 standard DTMF tone pairs (0-9,
A-D, #, * ). Frequencies per Bell Technical Reference
Publication 48005.
On-time duration: 0 ms, 1.00 to 655.35 ms.
Off-time duration: 0 ms, 1.00 to 655.35 ms.
Timing resolution: 0.01 ms (10 rs).
Timing accuracy: 2 1 ms.
Sequence length 750 DTMF tones, user definable from front
(Zero off time AND zero on time not allowed)
panel or HP-IB programmable.
1-4
rev. 01 NO V89
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Model 8904A
General Information
mble 1-1. HP 8904A Specifications (3 of 4)
Digital Sequence (with Option 001)
User definable:
On level (=lOV open circuit),
Off level (2 1OV open circuit),and period.
Sequence entry: Binary, octal, or hexidecimal.
Sequence length: Up to 3000 bits.
Period duration: 0.10 ms to 655.35 ms.
Period resolution: 0.01 ms (10 ps).
Period accuracy: 20.02 ms (= 20 ps).
Control modes (applies to tone, DTMF and digital sequence
modes): Manual sequence (allows stepping through sequence),
single sequence, and continuously repeat sequence.
Sequence can also be triggered by external TTL pulse.
Hop Ram Sequence (with Option 001)
Number of different States: 16user definable states each with
an amplitude, frequency, and phase value.
Waveforms: Sine, square, ramp, triangle, dc, and white
Gaussian noise.
Sequence entry: Binary, octal, or hexidecimal.
Sequence length up to 3000 tones in binary mode (two states
used), or up to 750 tones in hex mode (all 16 states used).
Sequence clock frequency range: 0.1 Hz to 10 kHz.
Sequence clock frequency resolution: 0.1 Hz.
Sequence burst range: 1 repetition up to 127.
Control modes: Manual sequence (allows stepping through
sequence),burst sequence (1 to 127), and continuously
repeat sequence. Sequence can be triggered by external TTL
pulse.
OPTION 002 SPECIFICATIONS
(5052 outputs only)
Output 1 to Output 2 phase accuracy (sine waves at the
same frequency): k0.lo or 30 ns, 0.1 Hz to ZOO kHz,
whichever is greater.
Supplemental Characteristics
Output 1 to Output 2 cross-talk (the higher OD: Typically:
-100 dB or 20 IJY-,, 0.1 Hz to 20 kHz.
-95 dB or ZOpV,, 0.1 Hz to 100 kHz.
-90 dB OT 30 pq-,, 0.1 HZ to 600 kHz.
OPTION 003 SPECIFICATIONS
(5052 outputs only)
Direct addressing of channel A Up to 16 phase-frequency-
amplitude states of channel A may be preset and directly
addressed with four TTL-compatible inputs. Timing for fast
hopping must be provided by an EXTERNAL source.
Digital modulation: By appropriately setting the 16 direct
control registers, the HP 8904A may be used as a digital
modulator. Examples of signals which can be generated
with this technique include FSK or multilevel FM (up to 16
levels), BPSK, QPSK, and QAM.
Supplemental Characteristics
Switching Speed:
Via digital port: Typically <8 CIS, <20 ps for full filter settling.
Via HP-IB: Typically <8 ms.
approximately
400 kHz.
25 ns for valid results.
Maximum switching rate (via digital control port):
Maximum allowable
address skew (via digital port):
OPTION 005 SPECIFICATIONS
(5052 outputs only)
Unit to unit phase accuracy: Additional 30 nsec error, 0.1 Hz
to 100 kHz. (Total phase error between units is then the
greater of 20.1 degree or 60 nsec, 0.1 Hz to 100 kHz.)
Maximum number of synchronized units: 8 units using
low-loss power splitters (for a total of 16 phase related
outputs if all units have Option 002).
54 units synchronized: Mini-Circuits model ZSC-4-3 or
equivalent.
18 units synchronized: Mini-Circuitsmodel ZFSC-8-1or
equivalent.
Recommended power splitters:
Supplemental Characteristics
Unit to unit phase accuracy: typically < 15 nsec additional
error, 0.1 Hz to 100 kHz. rota1 typical phase error between units
is then the greater of
20.1 degree or 30 nsec, 0.1 Hz to 100 kHz.)
OPTION 006 SPECIFICATIONS
(Sine wave only)
All specificationsfor the standard 50QHP 8904A are degraded
by the accuracy, flatness, and distortion specificationsof the
Option 006, 600Qtransformer coupled output. Because the
transformer output was designed for passing sinewaves only,
all specificationsapply to that waveform. The Option 006
output will not pass digital sequences available with Option
001. In addition, phase accuracy is degraded and therefore not
specified for Option 006.
Outputtype: fullyfloating/balanced transformercoupledoutput.
Usable output frequency range: 30 Hz to 200 kHz.
AC amplitude (sinewave only)
Range: Open circuit: 0 to 20 Vrms.
600Qload: 0 to 10 Vrms.
15052 load: 0 to 4 Vrms.
50Q load: 0 to 1.5Vrms.
Resolution: 3% digits.
Accuracy (amplitude >40 mVrms into a balanced 6000 load):
6% (0.5dB) 30 HZto 20 kHz.
12% (1.0 dB) 30 Hz to 100 kHz.
Flatness (amplitude >40 mV rms into a balanced 600Q load,
1 kHz reference):
+ 0.15 dB, -0.15 dB, 30 HZ to 20 kHz.
+ 0.15 dB, -0.75 dB, 30 HZto 100 kHz.
Spectral Purity (sine wave only)
THD + N (including spurs, amplitude 140 mVrms to
10 Vrms into a balanced 600Qload):
-46 dB (0.50%),30 Hz to 300 Hz, 30 kHz BW, amplitude
< 1 V,, into a balanced 6000 load.
-60 dB (O.lOYo), 300 HZto 7.5 kHz, 30 kHz BW.
-63 dB (0.07%),7.5 kHz to 20 kHz, 80 kHz BW.
-55 dB (0.18%), 20 kHz to 100 kHz, 750 kHz'BW.
Supplemental Characteristics
Balance: Typically >40 dB, 30 Hz to 50 kHz.
Output Impedance: Nominally
60OQ at 2 kHz.
Flatness (amplitude
>40 mV rms into a balanced 60012 load,
1 kHz reference): + 0.15 dB, -4.0 dB, 30 Hz to 200 kHz.
THD+N (including spurs, amplitude 240 mVrms to I Vrms info a
balanced
60OQ load):
<-50 dB (0.32%), 30 HZ to 300 Hz, 30 kHZ BW.
reu.01 NOV89
1-5
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

General Information Model
8904A
lbble 1-1. HP 8904A Specifications (4 of 4)
General
Store recall: 35 nonvolatile
Output type: Floating or grounded, HP-IB programmable.
Maximum float voltage (signal+float): 1OV peak maximum
Zero-crossing outputs (availablein Channel Config mode
only):
For each channel, a TTL-compatible zero-crossing
from high or low side to chassis ground.
output and polarity output are provided. The zero-crossing
output pulses high for approximately 600 ns each time the
channel phase goes through Oo or MOO. The polarity output
is high for phases of Oo to 180°, low for 180° to 360O.
Theseoutputsdonotreflect anyuser-specified phaseoffsets.
External timebase input: 10 MHz accepted at a nominal level
of 0.1 to 5V peak, automatic switching.
Timebase output: Output level >O dBm (0.3V peak) into a 50Q
load. Output signal will be the internal timebase unless an
external timebase is connected to the external timebase
input. When an external timebase is connected, it will be
routed to the timebase output connector.
Temperature: Operating, O°C to 5OOC;
Storage, -2OOC to 70OC.
Humidity range: 95% RH, O°C to 4OoC
Remote operation: HP-IB. All functions except the line switch
HP-IB compatibility: SHl, AH1, T6, TEO, L4, LEO, SR1, RL1,
Power: 100/120V (2 10%);48-440 Hz.
are remotely controllable.
PPI, DCl, DTO, CO.
220/240V (& 10%); 48-66 HZ.
80 VA maximum.
Shipping 13kg ( 28.6 lb.).
Weight: Net 5.9 kg (12.8lb.);
Dimensions: 133mm H X 213mm W X 513mm D
(5.25 X 8.36 X 20.2 inches).
HP System I1 size: 5% H X 1/z MW X 20 D.
EM1 Meets conductedand radiated interference of VDE 0871/
6.78 class B (radiated at 10 meters). Meets MIL 461B con-
ducted (CE03)and radiated (RE02)interference.
Supplemental Characteristics
Output impedance: Typically 51K2 23%, 0.1 Hz to 600 kHz.
Note: Specifications for Option 005 and above are listed in the individual option supplements at the
end
of section 3. (3A, 3B, 3C,..ETC.)
1-6 rev.01 NOV89
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
