HQUA HQUA-FS02 User manual

HQUA
Instruction Manual for
1/4 HP Floating Fountain
HQUA-FS02
Content
s
Section 1 Safety Information…………......2
Section 2 General Information………....3-8
2.1 System Components
2.2 Specifications
2.3 Prepping for the Installation
2.4 Installation
Section 3 Maintenance&WinterStorage…9
Section 4 Troubleshooting……………….10
Section 5 After-Sales Service…………...11
Our Commitment……...…………………....11
Part Number List……………………………12

Safety Information
2
Section 1 Safety Information
Before starting the installation job, it’s very important to read the entire instructions below.
Make sure that you understand these in order to avoid any potential hazards. Failure to
do so may result in serious personal injury or damage to the equipment.
Electric Shock
• To reduce the risk of electric shock, connect only to a properly grounded, grounding-type
outlet. If in doubt, have the outlet checked by a qualified electrician.
• This unit is to be used in a circuit protected by a ground fault circuit interrupter (GFCI).
• Disconnect the unit from the power source before anyone enter into water area.
• This fountain has not been investigated for use in swimming pool areas.
Safety Precautions
• NEVER run the unit out of the water. The heat would ruin the motor in a short time and
create a dangerous situation for the operator.
• NEVER lift or drag the fountain by the power cord. Fixed rope is provided for lifting and
carrying.
• If installing the fountain from a boat or raft ALWAYS wear a Coast Guard-approved life
jacket.
• ALWAYS use a qualified electrician to install a power source next to your pond
This product must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire for the electric
current. This product is equipped with a cord having a grounding wire with an appropriate
grounding plug. The plug must be plugged into an outlet that is properly installed and
grounded.

General Information
3
Section 2 General Information

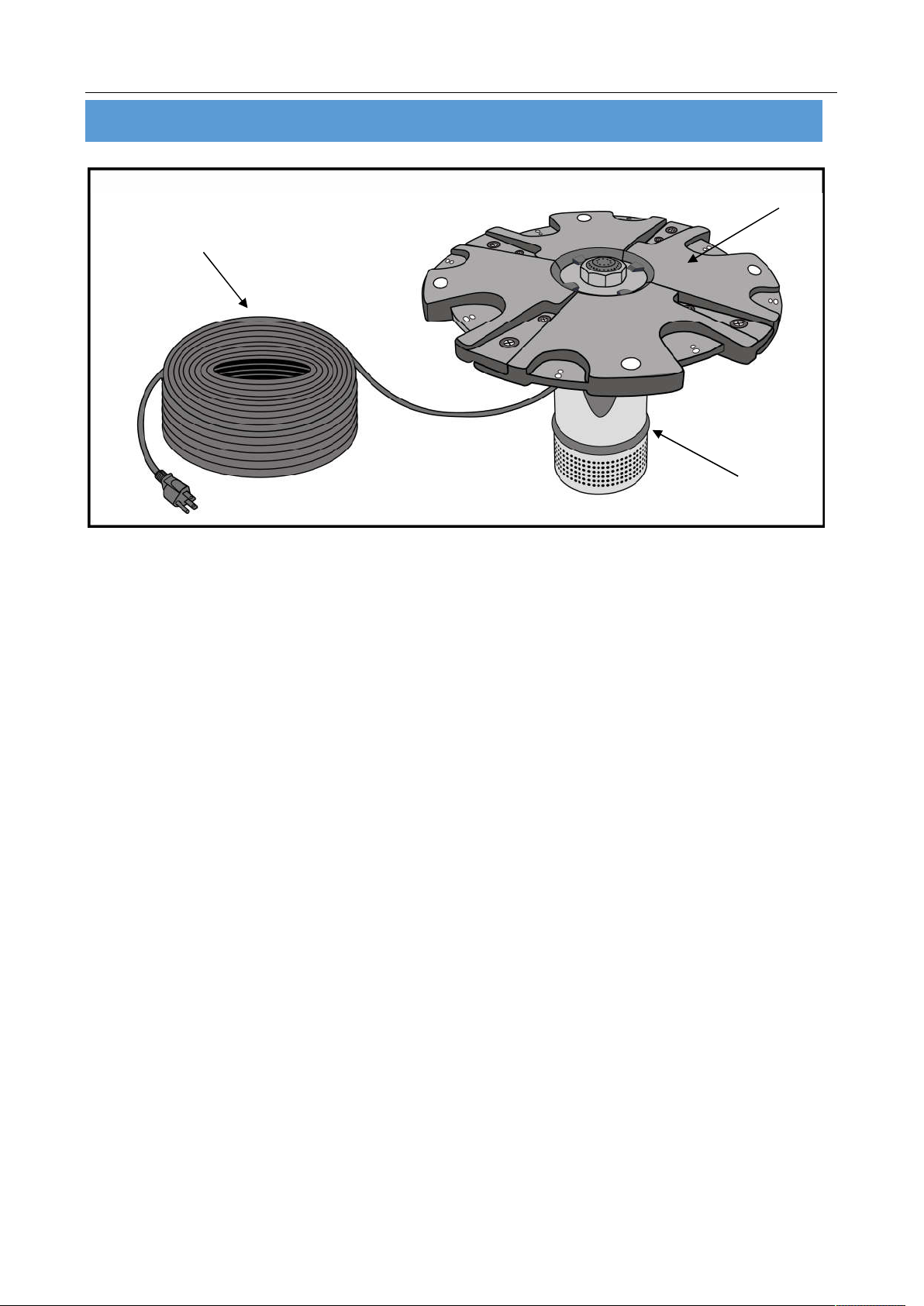

2.1 System Components
① Floating Fountain Pump HQUA-FS02P
1. Easy to Install
2. Asynchronous Water-Cooled Motor, Stainless Steel Shaft Bearing.
3. Energy Efficient, Fully Sealed Motor. 2.9A, 320W 100-120V,
4. Stainless Steel Suction Screen & Body.
5. Operates in as least 40” of Water Depth.
6. Provides aeration for ponds up to 1/8 acre, 6’ deep. Larger ponds will require larger/multiple
fountains or Our Aeration System.
Fountain: HQUA-FS01.
Pond Aerator: HQUA-SWA20; HQUA-PAS10; HQUA-PAS20.
② Float Plate HQUA-FS01F
1. Durable HDPE materials made with excellent weather resistance.
2. Great air tightness, providing enough buoyancy to support the pump body
③ Electric Parts HQUA-FS02EC
1. 100’ Weatherproof Power Cord. 4-pin. Durable and Reliable.
2. Standard 3-pin plug.
①
②
③

General Information
4
Other Accessories
S/N Descriptions Number
1 2.5” Fastener for the spray nozzle 1
2 ABS 3-layer spray nozzle 1
3 2.5” Flat Plastic Washer 1
4 8”×2.5” St. Steel Holder with 4 breaches 1
5 2.5”×4” Plastic Adapter Fitting 1
6 2” St. Steel Spring Loaded Carabiner Hook 2
7 1/8” cord locks, spring stopper, two holes 2
8 1/8”×70 Feet St. Steel Coated Wire Rope with hanging kit 2
9 3/8”×16” Tent Stake 2
①
②
③
④
⑧
⑤
⑦
⑥
⑨

General Information
5
2.2 Specification
Item Name HP
Max
Amps
Volts
Power
Cord
Max Pond
Size
Minimum
Depth
FS02 1/4 2.9 110V 100’ 1/8 Acres 40”
Pattern Size: 6’×25’
2.3 Prepping for the installation:
Tool Required:
• Hammer • Boat/Raft/Swimsuit • 3/16” Allen Wrench
• Shovel • Phillips screwdriver • Coast Guard-approved life jacket
1. Ensure you have a close power for the connection. If you don’t, we always
recommend to hire a licensed electrician to properly run power down to this unit.
2. Fix the Inlet in a position next to the power source to prevent it sink into the water.
3. Ensure you have a good spot and land to moor the stake.
2.4 Installation

General Information
6

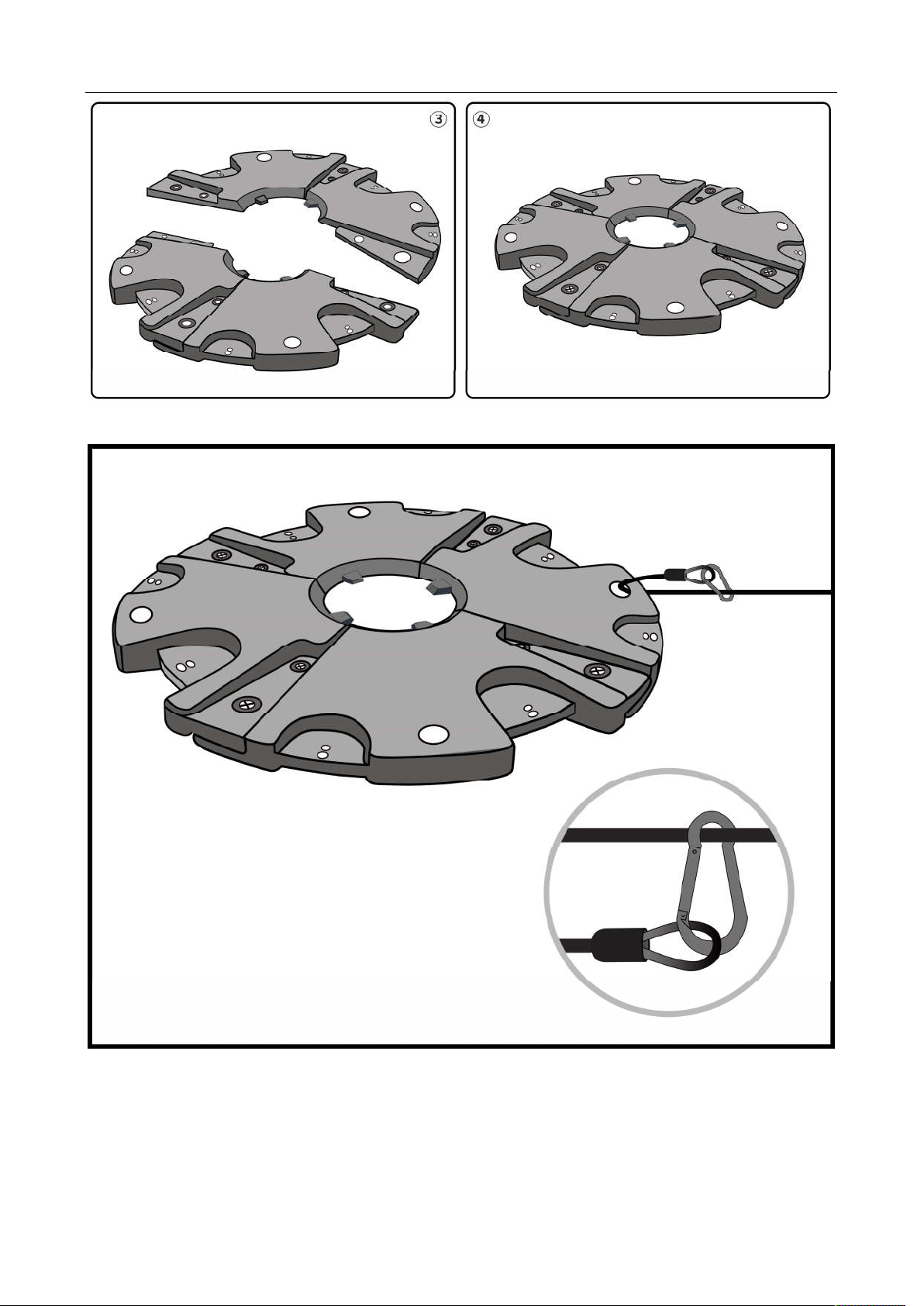

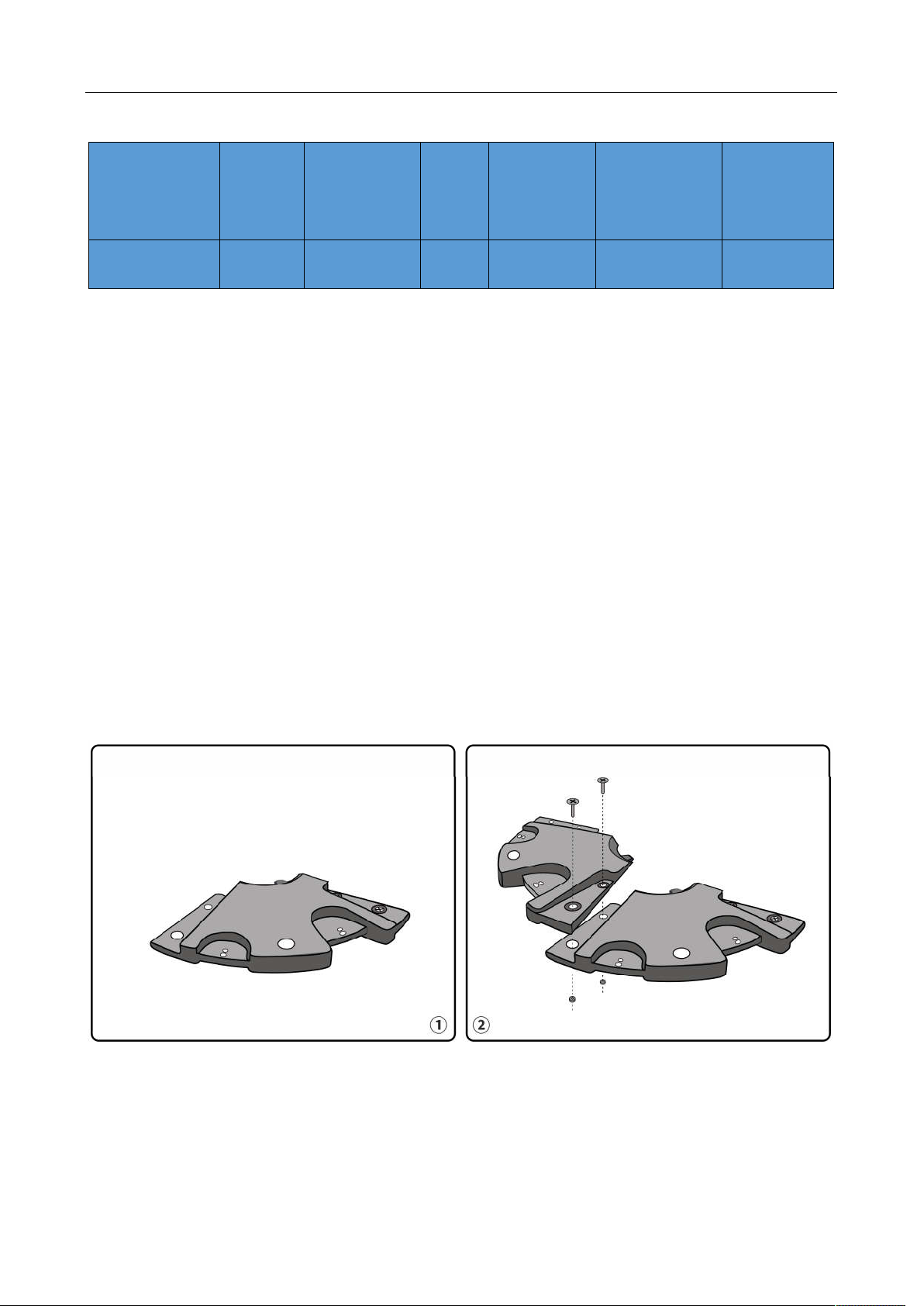

1. Use the screws and nuts that provided in the package to assemble the floating.
2. Use the two carabiners to fix the rope on the float plate

General Information
7

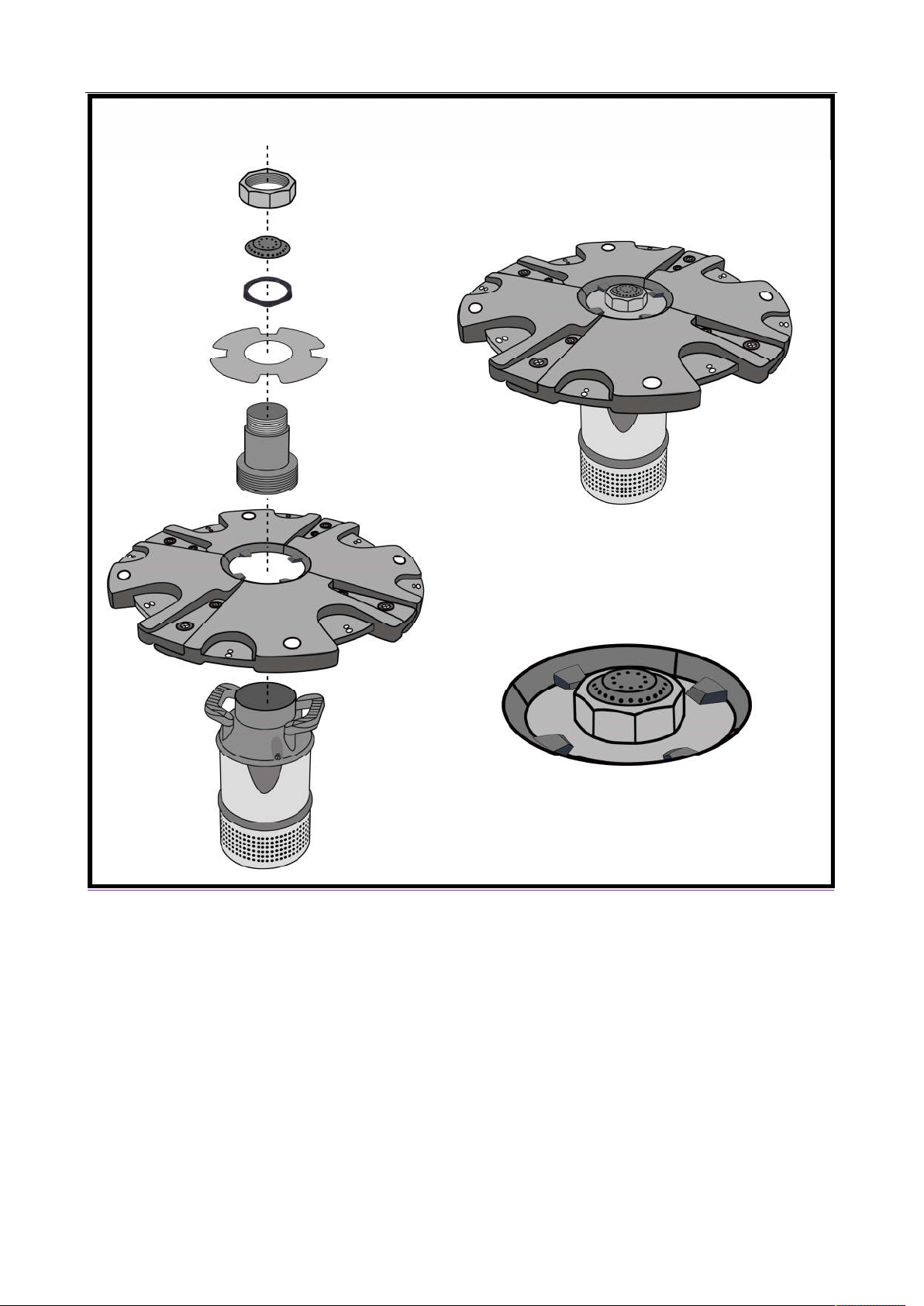

3. a, Lay the fountain pump on the ground with the open side above.
b, Assemble all the accessories according to the figure above. (Follow this:
Fastener-Spray Nozzle-Washer-Steel Holder-Adapter Fitting)-
c, Place the float plate on the center of the pump with the HQUA logo facing up and
screw the assembly in step b. Make sure the cord is below the floating.
d, Lift the float straight up. Put it into the water edge.

General Information
8
4. Fix the other side of the rope with the stakes by the cord locks. And hammer into the
stake. You could adjust the cord locks to moor the float later.
5. Put the whole fountain assembly into the water and adjust rope by the carabiners or
use a boat to help the fountain stay at your ideal position in your pond.
The wires and two ropes would work as a triangle.
Connect the power supply with the outlet timer and you are ready to go.

Maintenance & Winter Storage
9
Section 3 Maintenance & Winter Storage
Maintenance
• Always unplug system before performing any maintenance or troubleshooting.
• Always unplug system and refer servicing to a qualified electrician when: cord is
damaged or frayed, compressor, power control, compressor fan, or other electrical
components are producing unusual noises or odors.
• Periodically clean fountain intake screen of debris, algae and/or aquatic weeds.
Check that monthly to extend the lifetime of the pump.
Winter Removal & Storage
1. Remove the fountain from the pond before ice begins to form.
2. Clean or power wash any debris on the unit before storing.
Spring Installation Inspection
Before re-installing the fountain and lights in the spring, check the condition of the power
cord.

Troubleshooting
10
Section 4 Troubleshooting
IF THE PUMP IS NOT WORKING:
Check Possible Reason Solution
Check for power. Pump is not receiving power. Check the power outlet or electrical
cord.
GFCI circuit tripped. Damage to electrical cord or low
voltage from power supply. Contact a qualified electrician for
professional assistance.
GFCI circuit not
tripped. GFCI malfunction.
Outlet timer is not
working. Not working hours or defective. Test or replace a new one.
Not enough water in
the pond.
The water depth should not lower than
40”.
Stop the unit until you get enough water
depth.
Plugged. Intake Plugged or Fountain impeller
stuck.
Clean the intake. Contact HQUA if it still
cannot be fixed.
IF THE SPRAYING IS VERY SMALL:
ISSUE Solution
Intake Plugged or Fountain impeller stuck. Clean the intake. Contact HQUA if it still cannot be fixed.
Not enough water in the pond. The water depth should not lower than 40”.
Debris caught in nozzle hole or defective. Remove nozzle, clean, replace
IF THE PUMP STARTS AND STOPS FREQUENTLY:
ISSUE Solution
Intake Plugged or Fountain impeller stuck. Clean the intake. Contact HQUA if it still cannot be fixed.
Not enough water in the pond. The water depth should not lower than 40”.
IF SPRAYING RAISE AND LOWER:
ISSUE Solution
Not enough water in the pond. The water depth should not lower than 40”.
The water line is too high. Check fountain float for water, replace if any
IF THE PUMP STARTS AND STOPS FREQUENTLY:
ISSUE Solution
Intake Plugged or Fountain impeller stuck. Clean the intake. Contact HQUA if it still cannot be fixed.
Not enough water in the pond. The water depth should not lower than 40”.

After-Sales Service
11
Section 5 After-Sales Service
If you need any support, or have questions about the system, please
contact our Technical Support team via [email protected] and we will be
glad to assist you. We sincerely hope that you enjoy the benefits of clean
and beautiful floating fountain after the installation of HQUA FS02 Floating
Fountain.
Our Commitment
Two-Years Limited Warranty for HQUA FS02 Floating Fountain
HQUA warrants that the FS02 Floating Fountain is free from defects of material and
workmanship for a period of 2 years from the date of purchase. During this period, HQUA
will repair or replace, at its option, any defective HQUA UV chamber. Please return the
defective part to your dealer for claim.
Additional Warranty:
Five-Years Limited Warranty for HQUA-FS01F Float.
During this period, HQUA will repair or replace, at its option, any defective HQUA UV
chamber. Please return the defective part to your dealer for claim.

Part Number List
12
Part Number List
Part Number Description
FS02P 1/4 HP Floating Fountain Pump
FS01F HDPE Float Plate，OD 32”
FS02EC 100’ Weatherproof Electric Cord. 3-pin
Accessories
FS2001 8”×2.5” St. Steel Holder with 4 breaches
FS2002 2.5” Flat Plastic Washer
FS2003 2.5”×4” Plastic Adapter Fitting
FS1004 ABS 3-layer spray nozzle
FS1005 2.5” Fastener for the spray nozzle
FS1011 5/16”-18×2” Hex Washer Head Machine Screws
FS1012 5/16”-18 Flange Nut
FS1021 3/8”×16” Tent Stake
FS1022 1/8” ×100 Feet St. Steel Coated Wire Rope with
hanging kit
FS1023 2” St. Steel Spring Loaded Carabiner Hook
FS1024 1/8” cord locks, spring stopper, two holes
Version No.20200101
HQUA Technical Support Team At NY
..…..…………….….………….………………The End………………………………………………..
