HS GAS Select 6 User guide

RevE 18/02/14
SELECT 6
GAS STOVE
Installation and Servicing Instructions
Please leave this instruction booklet with the user after the
installation is complete. Leave the system ready for
operation and instruct the user in the correct use of the
appliance and operation of its controls.
Please refer to the appliance data plate for the specific
model type.

RevE 18/02/14
2
Contents
TECHNICAL DATA ......................................... 3
STOVE DIMENSIONS ..............................................................................................3
INSTALLING THE APPLIANCE......................... 4
PRE-INSTALLATION NOTES............................................................................................4
HEARTH .......................................................................................................................4
ADDITIONAL AIR VENTING (GB ONLY).......................................................................6
REMOVING THE STOVE BODY .......................................................................................6
Removing the Top Plate ..................................................................................6
Removing the Cast Iron Doors ......................................................................6
Removing the Stove Front...............................................................................6
Removing the Glass .........................................................................................7
Levelling the Stove ...........................................................................................7
GAS SUPPLY CONNECTIONS ........................................................................................8
INSTALLATION OF THE FIRE-BED INTO THE
STOVE............................................................ 9
Section A - Fitting the ‘Coal’ Ceramic Matrices ....................................10
Fitting the Loose Ceramic Coals ................................................................11
Section B - Fitting the ‘Log’ Ceramic Matrices .......................................13
Fitting the Loose Ceramic Logs...................................................................14
TEST FOR SPILLAGE.....................................................................................................16
SPILLAGE MONITORING SYSTEM.................................................................................16
OPERATING THE APPLIANCE.......................................................................................17
FITTING THE REMOTE CONTROL (OPTIONAL)...............................................................17
Fitting the Motor to the Valve ......................................................................17
Attaching the Remote Control Receiver Box..........................................18
SERVICING INSTRUCTIONS ......................... 18
PLEASE READ THESE INSTRUCTIONS CAREFULLY
It is important that your stove is correctly installed as HS GAS cannot
accept responsibility for any fault arising through incorrect installation.

RevE 18/02/14
3
TECHNICAL DATA
NATURAL GAS
LPG
Nominal Gas Pressure
20mBar
37mBar
Supply Gas Type/Category
G20/I2H
G31/I3P
Jet Type/Size
82/380
92/190
Heat Input (Gross)
Full
Low
6.5kW
4.2kW
6.4kW
3.7 kW
Gas Flow Rate (m3/h)
Full
0.62 m3/h
0.236 m3/h
NOxClass
3
5
Efficiency Class
2
2
Countries of Destination
GB & IE Only
GB & IE Only
STOVE DIMENSIONS
Diagram 1

RevE 18/02/14
4
INSTALLING THE APPLIANCE
Pre-Installation Notes
1. Check the stove data plate to establish the gas type required. The
data plate can be found on a chain at the top left rear corner of the
stove. Before installation check that the local distribution conditions,
nature of the gas and pressure, and adjustment of the application are
compatible.
2. A GAS SAFE REGISTERED INSTALLER or equally recognised competent
person must fit the appliance. That person is legally responsible for the
safe installation of the appliance with due regard to all relevant local
and national building regulations.
3. All outer surfaces of the stove excepting the gas control knobs are
defined as working surfaces.
4. Installation site
Any installation area previously used for a solid fuel fire or stove would
probably be deemed suitable for the appliance.
5. The stove must not be installed onto a combustible wall. Any
combustible materials must be removed from behind the appliance.
1. The appliance must be sited on a non-combustible hearth of minimum
12mm thickness.
7. The hearth should be edged or raised to prevent combustible floor
finishes (e.g. Carpet) from being laid too close to the appliance.
8. Opening clearances
For the relevant clearance distances when installing the appliance in a
non-combustible opening see diagram 2 below:
Hearth
Diagram 2

RevE 18/02/14
5
IMPORTANT NOTE! Adequate clearance must be given between the appliance
and the walls so that a satisfactory spillage test can be performed as detailed on
page 16.
FLUE ARRANGEMENT
The GAS SAFE REGISTERED ENGINEER commissioned to install this appliance is wholly
responsible for deciding the suitability of any flue arrangement to operate in conjunction
with this gas appliance.
The chimney or flue system that is to be fitted to the Select 6 gas stove must comply with
the current rules in force. (The Select 6 stove is also suitable for other specific class 2
installation arrangements: pre-cast flues, ridge-vent flues and pre-cast chimney block and
with the relevant adaption, the appliance will operate in a closure plate type installation.)
It is suggested to run flue pipe at least 615mm vertically from the unit before there are any
changes in direction of the flue system. Wherever possible horizontal runs of the flue system
should be avoided.
The flue must have a minimum of 2.6 meters of vertical height measured from the top of
the stove to the bottom of the terminal outlet. Please note for rear flue appliances it is
recommended that the vertical flue run be established as soon as is practical from the rear
flue exit. (Caution should be taken locating the exit of the flue as explained in ‘The Building
Regulations - Document J’.)
Before commencing any installation work the installing engineer must check that the flue is
free from all blockages, the chimney should be given a precautionary clean, and finally
the chimney should be smoke tested to ensure soundness. Additionally any flue dampers
must be permanently fixed open or removed altogether.
MINIMUM CLEARANCE DISTANCES TO:
DIMENSION DESCRIPTION
COMBUSTIBLE
MATERIAL
NON-COMBUSTIBLE
MATERIAL
A
Edge of stove top to wall
100mm
50mm
B
Top of stove to underside of
opening
300mm
200mm
C
Rear of stove to wall
N/A
50mm
D
Minimum fireplace
opening/Hearth dimension
825mm
775mm
E
Minimum hearth depth
515mm
515mm
F
Minimum distance for hearth
to extend in front of stove
50mm
50mm

RevE 18/02/14
6
Additional Air Venting (GB Only)
The supply gas heat input into the appliance is nominally less that 7kw, therefore
under the directives of the current gas safety installation and use regulations (1995)
No additional air vents are required in the room the appliance is situated.

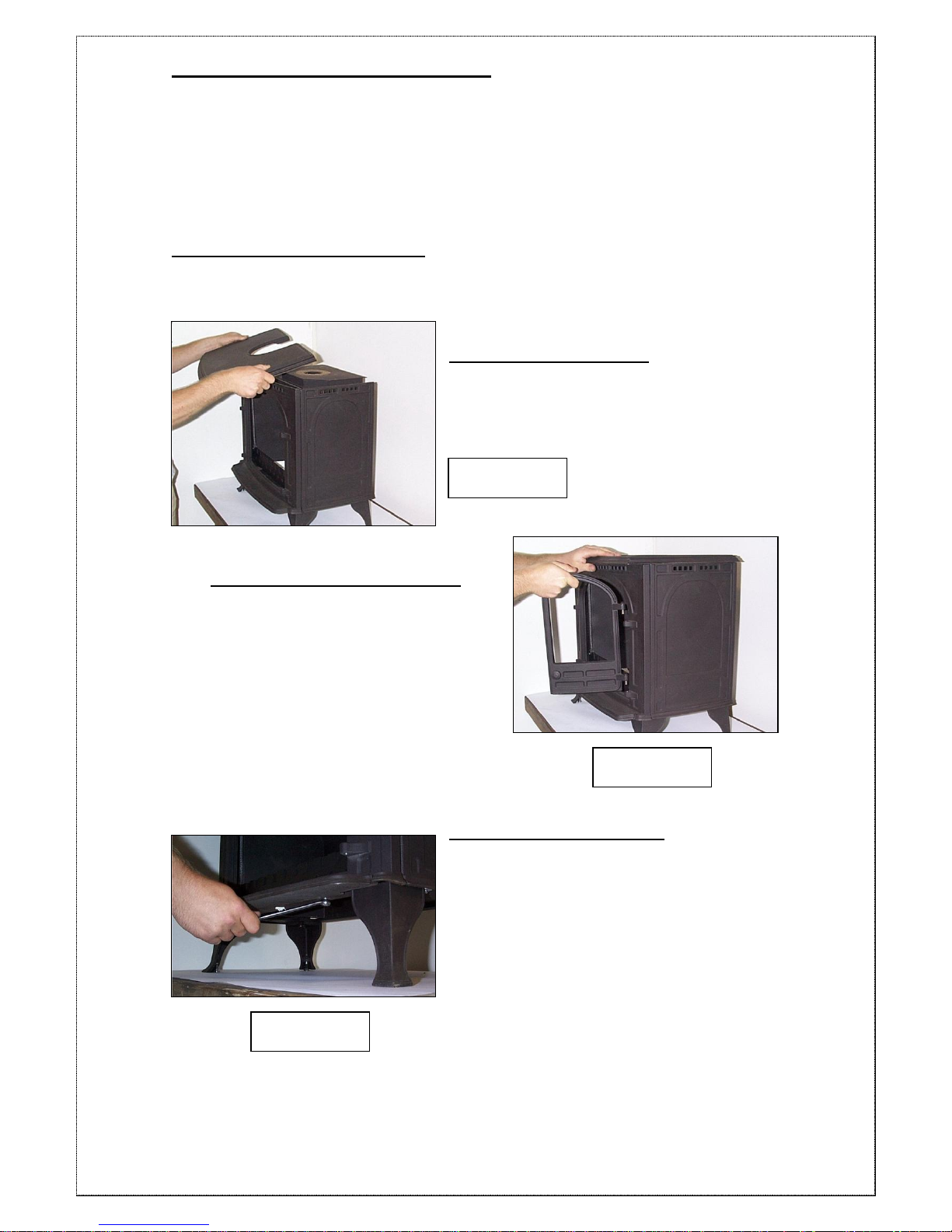

Removing the Stove Body
THE BODY OF THE STOVE IS HEAVY!TAKE CARE REMOVING STOVE PARTS.
Removing the Top Plate
Carefully lift the top off the stove as
shown in diagram 3.
Removing the Cast Iron Doors
Open the left-hand door. Gently lift
the door until the hinge pins (Top and
Bottom) are free from the hinges
(Diagram 4). Carry out the same
process for the right-hand door.
Removing the Stove Front
The stove front is secured by two
10mm bolts located on the under-side
of the front plate (Shown in diagram 5)
and by two retaining clips at the top
left and right hand side of the front
plate. Whilst holding the front section
in place, the two bolts should be
removed.
Diagram 3
Diagram 4
Diagram 5

RevE 18/02/14
7
The front section should now be lifted
forward and away from the retaining
clips (Shown in diagram 6).
Removing the Glass
The glass is held in place by 4 fixing clips,
2 at the top and 2 at the bottom. Slightly
slacken the lower two fixing screws with a
flat blade screwdriver (There is no need
to fully remove the screws). Holding the
glass with one hand, slacken off the top 2
fixing screws (Diagram 7) until the clips
have moved away from the glass panel.
The glass panel can then be lifted out.
Levelling the Stove
To achieve the optimum operating
results the stove should now be levelled
with its surroundings. This is carried out
by increasing or decreasing the length
of the 13mm levelling bolts located on
the inside of each of the stove legs
(Diagram 8).
Diagram 6
Diagram 7
Diagram 8

RevE 18/02/14
8
Gas Supply Connections
The appliance is supplied with a 8mm Bundy pipe and a 8mm
compression elbow to allow easy connection to the mains gas supply.
This supply gas pipe should incorporate a gas service isolation tap that
is situated within 1 metre of the application.
Diagram 9 shows the 8mm
Bundy pipe being fitted to the
gas inlet on the valve. The
compression joint is tightened
with a 12mm open-ended
spanner.
Testing Supply Pressure
1. Gas pressure at the appliance is measured via the rearward test
nipple (Test nipple ‘A’ in diagram 4) on the left-hand side of the
control valve. (Turning the screw approximately half a turn anti-
clockwise with a small flat-bladed screwdriver opens the test point.)
ALWAYS CLOSE TEST POINTS AFTER USE!
2. The gas pressure at the appliance is measured with the appliance
running at full rate. (For information on how to achieve ‘full rate’
read, ‘Adjusting between high and low Output Settings’ in the
‘Lighting the Appliance’ section of the User Instructions.
Burner gas pressure should be:
Natural Gas @ 19mBars
LPG @ 36mBars
Diagram 9

RevE 18/02/14
9
3. The mains supply pressure coming into the appliance can also be
checked by using Test point ‘B’, shown in diagram 10.
INSTALLATION OF THE FIRE-BED INTO THE
STOVE
IMPORTANT NOTE!!
CERAMIC COALS AND LOGS GET VERY HOT! NEVER ATTEMPT TO
HANDLE HOT COALS OR LOGS WITH BARE HANDS AND NEVER PLACE
HOT COALS OR LOGS ON OR NEAR COMBUSTIBLE SURFACES.
NO RESPONSIBILITY FOR ANY INJURY HOWEVER CAUSED WHILST
HANDLING HOT COALS, LOGS OR CERAMICS CAN BE ACCEPTED BY HS
GAS.
FIRE-BED ARRANGEMENT
This appliance can be fitted with either a ‘coal effect’ or a ‘log effect’
ceramics. If you are fitting ‘Coal’ ceramics please follow the
instructions set out in ‘Section A – Fitting the Coal Ceramic Matrices’. If
you are fitting ‘Log’ ceramics please skip ‘Section A’ and follow the
instructions set out in ‘Section B – Fitting the Log Ceramic Matrices’.
Burner Pressure Test Point
(Test Point ‘A’)
Mains/Supply
Pressure Test Point
(Test Point ‘B’)
Gas Supply Connection
(8mm Compression Fitting)
Diagram 10

RevE 18/02/14
10

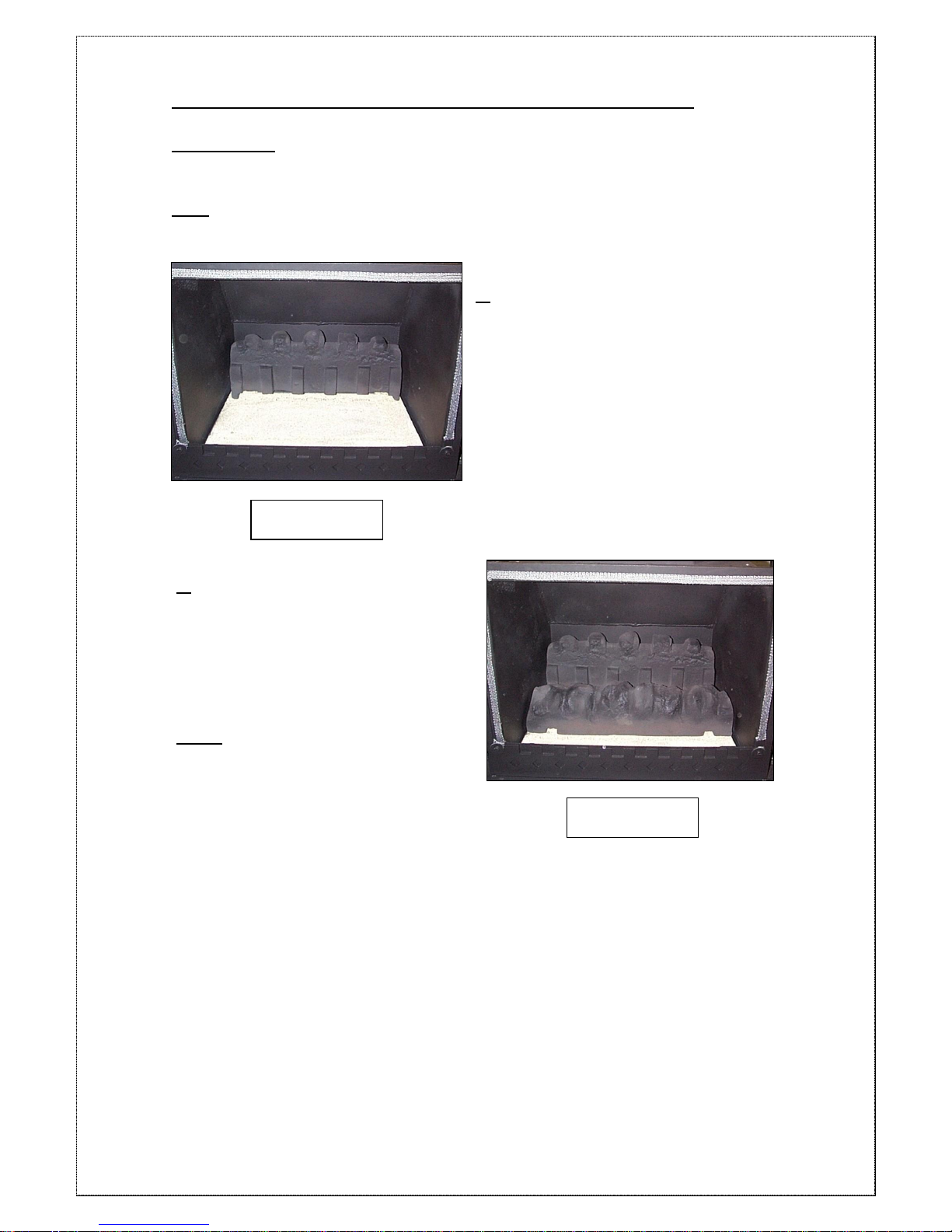

Section A - Fitting the ‘Coal’ Ceramic Matrices
NATURAL GAS:The fire-bed is constructed of 3 ceramic matrices, 4 small
coals, 10 medium coals and 4 large ‘diamond shaped’ coals.
LPG: The fire-bed is constructed of 3 ceramic matrices, 10 small coals, 4
medium coals and 4 large ‘diamond shaped’ coals.

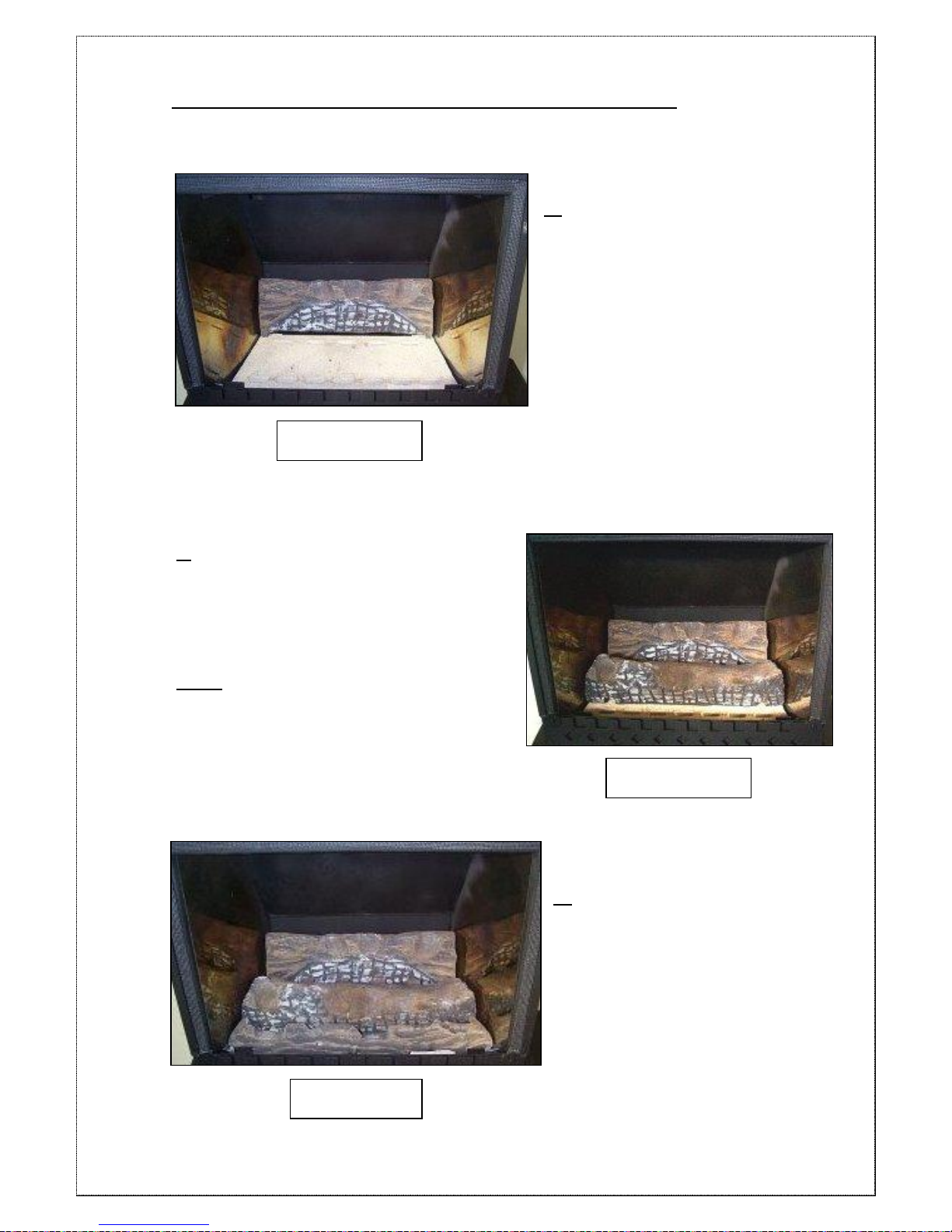

1. Place the rear ceramic matrix
into the fire as shown in diagram
11. The ceramic should sit on the
burner tray top and be placed so
that it touches the back of the
firebox (As shown in diagram 11).
2. Place the middle ceramic
matrix into the fire so that the flat
surface sits on the burner tray.
Push the middle ceramic back
until it rests against the rear
ceramic shown in diagram 12.
Note!
Make sure that the middle
ceramic does not block any of the
burner tray slots.
Diagram 11
Diagram 12

RevE 18/02/14
11
3. Place the front ceramic matrix
into the fire so that it sits between the
middle ceramic matrix and the 2
front tray supports (Steel brackets at
the front of the tray) shown in
diagram 13.
Fitting the Loose Ceramic Coals
4. The first row of coals consists
of 4 small coals and 4 large
coals. The first row of coals is
placed so that they sit on top of
the front and middle ceramic
matrices.
Starting with a large ‘diamond
shaped’ coal, place the front of
the coal on top of the left hand
support leg of the front
ceramic. The back of the coal
should rest on the middle ceramic.
Then take a small coal and place
the front of it in the first left notch on the
top of the front ceramic, the back of
the coal resting on the centre ceramic.
Continue this process, alternating the coal size until all the 8 coals are
placed as shown in Diagram 14.
Note!
Make sure that the coals do not fall down between the front and
middle matrices.
A gap must be left between the coals to allow the flames to pass
through.
Diagram 13
Diagram 14

RevE 18/02/14
12
5. The second row of coals
consists of 4 medium sized
coals. They are placed
between the large coals so that
they sit on the middle ceramic,
shown in Diagram 15.
Note!
The coals must not block the
gap between the middle
and rear ceramic matrices.
6. The third row of coals
consists of 6 medium sized
coals (6 small sized coals
for LPG stoves). The coals
are placed so that they sit
on top of the last row of
coals and into the notches
on the rear ceramic matrix,
shown in Diagram 16.
Note!
Gaps must be left between the coals for the flames to pass through.
7. The fire-bed should now be completed. The stove should be lit and
the flame picture checked with the glass panel fixed securely in place.
Any adjustments to the flame picture can then be made as required.
8. When the desired flame picture has been achieved, the stove body
should be reassembled. This should occur in the reverse order from which it
was dismantled.
Diagram 15
Diagram 16

RevE 18/02/14
13
Section B - Fitting the ‘Log’ Ceramic Matrices
The fire-bed is constructed of 3 ceramic matrices and 6 loose logs.
A. Place the rear ceramic
matrix into the fire as shown
in diagram B8.
The ceramic should sit on
the burner tray top and be
placed so that it touches
the back of the firebox. As
shown in Diagram B8.
B. Place the middle ceramic matrix into
the fire so that the flat surface sits on
the burner tray. Push the middle
ceramic back until it rests against the
rear ceramic shown in diagram B9.
Note!
Make sure that the middle ceramic
does not block any of the burner tray
slots.
C. Place the front
ceramic matrix into the
fire so that it sits between
the middle ceramic matrix
and the 2 front tray
supports (Steel brackets at
the front of the tray)
shown in diagram B10.
Diagram B8
Diagram B9
Diagram B10

RevE 18/02/14
14
Fitting the Loose Ceramic Logs
D. Starting with the Y-shaped log, place
at the angle shown in diagram B11. The
bottom of the log should sit in the cleft on
the front ceramic matrix, with the flat
underside of it resting on the flat area on
the middle matrix. Of the longer 2
branches, the tip of the right hand
branch should rest in the left hand cleft
on the rear ceramic.
E. The second log has two short
branches coming from it. It sits in the
furthest left cut-out on the front ceramic
and rests in the groove on the centre
ceramic, shown in diagram B12.
F. The third log to be
placed is the thin ‘twig’.
The ‘twig’ is placed in the
cut-out between the first
two logs. The small
branch on the twig
should sit at an angle in
the cut-out , stopping the
twig falling between the
front and centre ceramic.
The top of the twig should
rest on the large log as
shown in diagram B13.
(Make sure that the
position of the twig does
not block any of the
burner ports.)
Diagram B12
Diagram B13
Diagram B11

RevE 18/02/14
15

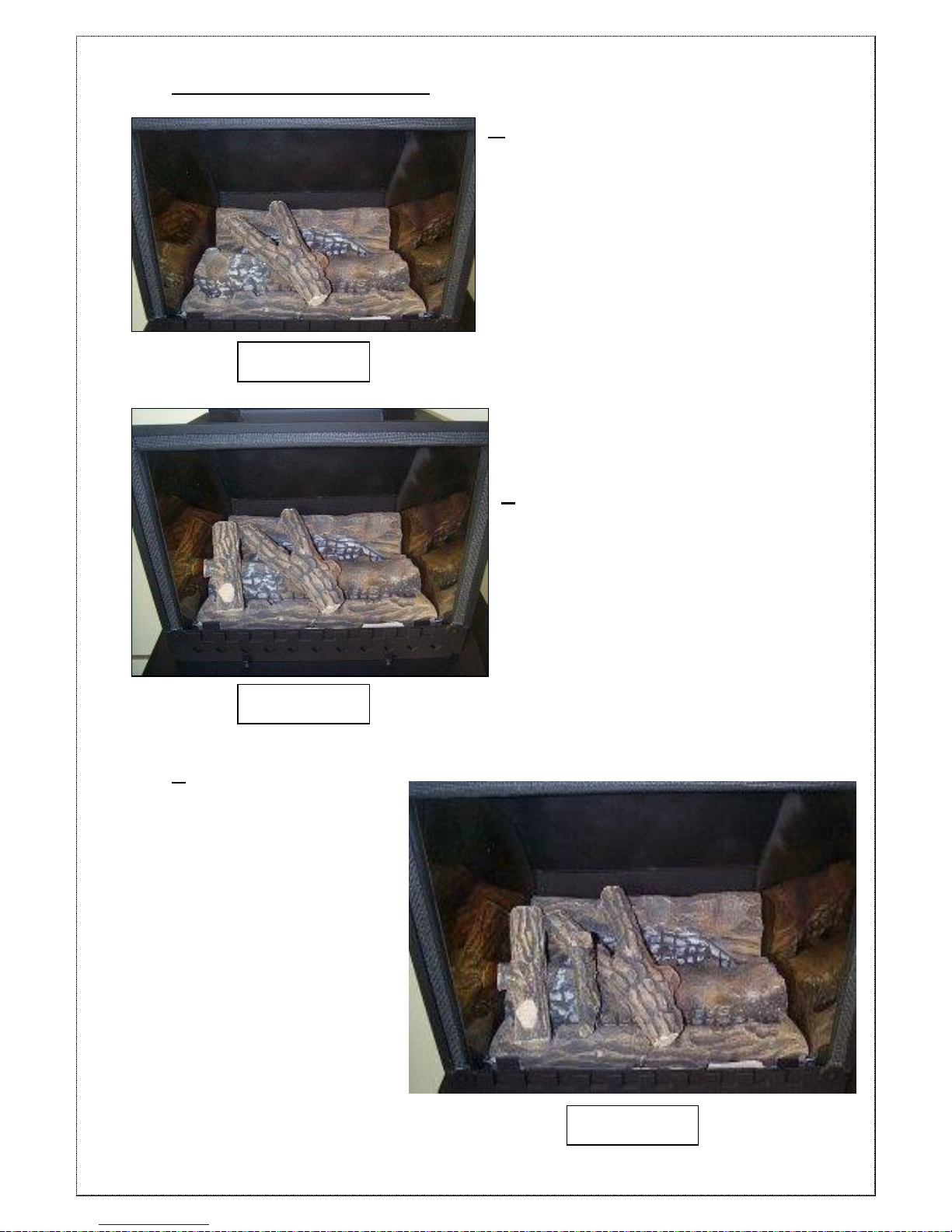

G. The fourth log is the shorter of the
two straight logs and sits in the notch
on the large log between the trunk
and the short branch, as shown in
diagram B14. The log should rest on
the middle ceramic on the flat
section to the right of the large log.
The top of the log should rest in the
groove on the rear ceramic, again
as shown in diagram B14.
H. The fifth log is the
longer of the two straight
logs, the top of this should
sit in the final groove on
the rear ceramic in
between the large log
and the shorter straight
log. The log should also
rest on the join between
the small branch on the
large log and the smaller
straight log. This can be
seen in diagram B15.
I. The sixth and final log
has a single branch
coming from it and one
end is shaped to be
parallel with the
mirrored side. It should
sit on the flat surface on
the centre ceramic as
shown in diagram B16.
J. The fire-bed should now be completed. The stove should be lit and the
flame picture checked with the glass panel fixed securely in place. Any
adjustments to the flame picture can then be made as required.
Diagram B14
Diagram B15
Diagram B16

RevE 18/02/14
16
K. When the desired flame picture has been achieved, the stove body
should be reassembled. This should occur in the reverse order from which it
was dismantled.

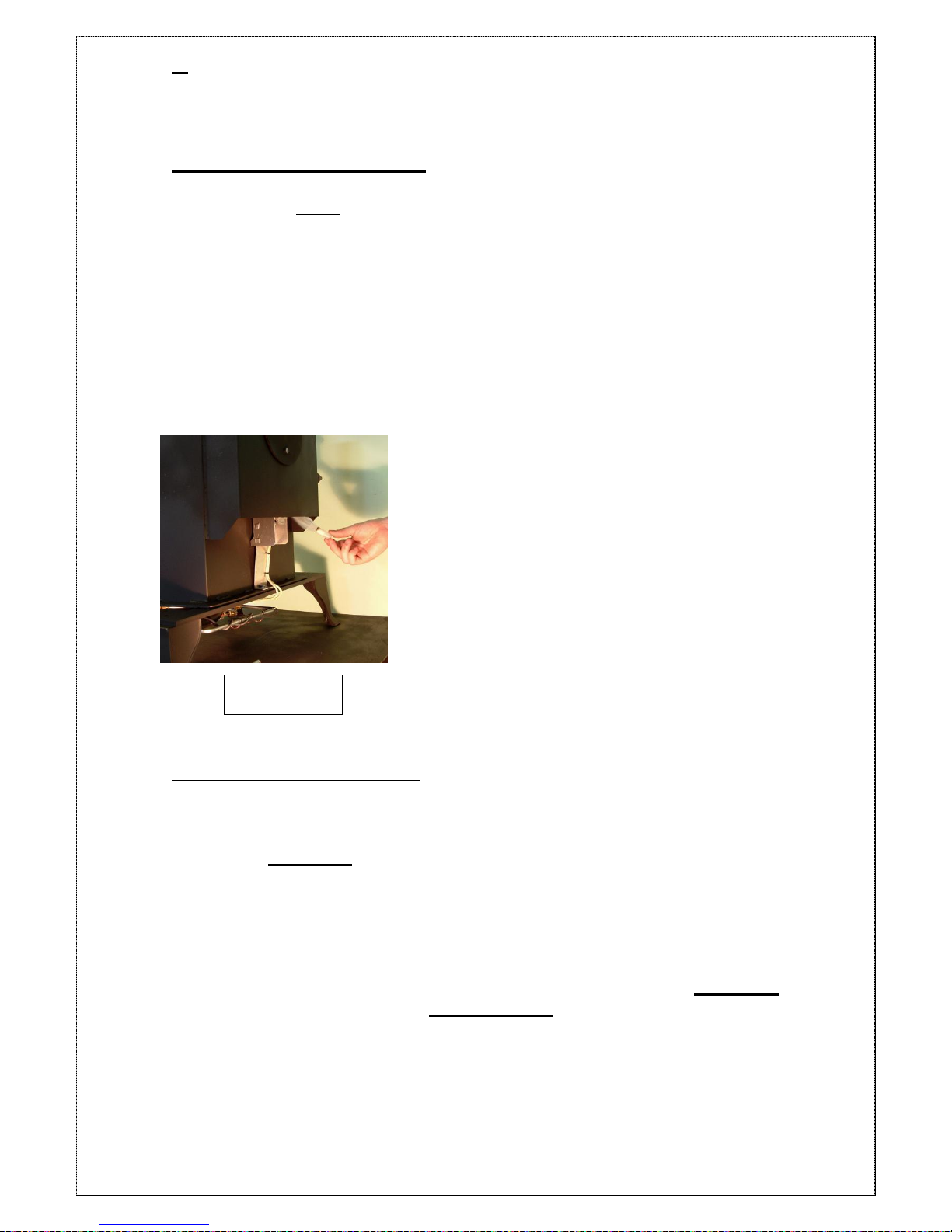

TEST FOR SPILLAGE
A Spillage test MUST be carried out before the appliance is left with the
customer.
Carry out the test by first closing all doors and windows in the room
containing the fire.
Ensure that the fire is burning at full rate for a minimum of 5 minutes.
Using a smoke match –run along the edge of the draught diverter, both
sides of the TTB Bracket as shown in diagram 17.
Most of the smoke should be drawn into the
draught diverter. If not, leave the stove
running at full rate for a further 10 minutes
and repeat the test.
If there is a fan in an adjoining room the
spillage test must be repeated with the fan
running and all connecting doors between
the fire and fan open.
If there are still problems the chimney/flue or
ventilation may require attention. The stove
should not be used until the fault is rectified.
SPILLAGE MONITORING SYSTEM
This appliance is fitted with an ‘oxygen depletion system’ (ODS) pilot
assembly which will monitor any spillage from the appliance.
The system MUST NOT be adjusted or changed by the installer.
Replacement systems must be obtained from HS Gas; no other pilot
assembly must be substituted in its place.
The appliance is also fitted with a thermostatic switch (TTB). This switch is
located in the draught diverter and shuts off the gas supply should the
flue lack sufficient flow to prevent flue gas spillage. The TTB MUST NOT
be removed or ‘bridged out’ for any reason and only genuine HS Gas
replacements should be used. Nuisance shut down may occur if the
stove is not installed in accordance with the clearance distances set
out in page 5.
Diagram 17

RevE 18/02/14
17
Operating the Appliance
FULL OPERATING INSTRUCTIONS ARE GIVEN IN THE USER INSTRUCTIONS.
Fitting the Remote Control (Optional)
Fitting the Motor to the
Valve
Un-screw the cover retaining screw
with a small Philips screwdriver
(Shown in diagram 18). Prise off the
cover at the snap connection with a
small flat-bladed screwdriver
located on the right hand side of the
valve.
Turn the main burner
control knob (Knob ‘B’ –
diagram 19) fully anti-
clockwise until the end stop
is reached.
Fit the motor as shown in diagram
20, making sure that the motor sits
on the locating pin.
Replace the valve cover and
tighten the Philips headed screw.
(Do not over-tighten the screw as
this may effect the operation of
the control). Make sure that the
snap connector has located
properly. When fitted correctly,
the valve cover holds the motor
in the correct position.
Diagram 18
Diagram 19
Diagram 20
Knob B
Motor
Diagram 20

RevE 18/02/14
18
Attaching the Remote Control Receiver Box
The control lead is then attached to the receiver box using the plastic
connector and to the valve motor by the two spade terminals.
The Remote Control Receiver Box is powered by 4 x AA batteries
(supplied). The batteries are fitted by sliding the cover off the receiver
box the orientation of the batteries shown on the diagram in the box.
Fit the 9-volt battery to the remote control handset.
Test that the remote control system is working by pressing the increase
and decrease buttons on the handset.
If the system is working correctly, the receiver box can be sited. The
ideal position for the receiver box being on the hearth, at the back of
the stove. The remote control system is ultra-sonic and hence the
receiver box does not have to be in line of sight of the remote handset.
WARNING!
The receiver box should not be sited anywhere that the temperature
will be greater than 50Celsius. High temperatures will shorten the
battery life and may cause the remote control receiver to stop
operating.
SERVICING INSTRUCTIONS
It must be understood that any recommendations made here are in
addition to the standard servicing procedures used by the servicing
engineer.
1. A GAS SAFE registered fitter using only original HS GAS parts
should carry out servicing.
2. Remove the stove body and glass as described on Page 6
(Removing the Stove Body).
3. Carefully lift-off the ceramic coals/logs and remove the 3
ceramic matrices.
4. Using a soft brush, clean away any lint or light carbon soot
deposits out of the gas ports on the burner top plate.
5. Check the TTB bracket inside the draught diverter for blockage
and clean as necessary.
6. Replace the ceramic matrices and loose coals/logs as per the
arrangement instructions (Page 9- Fire-bed Arrangement) using
all re-serviceable coals/logs and any new replacements.
Replace the glass, stove body and the doors.
7. Check the gas operating pressure and pipe work for soundness,
carry out a spillage test and check the condition of the flue
system.

RevE 18/02/14
19
SPARES LIST
PART DESCRIPTION
PART NUMBER
Bundy Tube –Main Burner
HG06/032
Bundy Tube –Pilot
HG06/033
Bundy Tube –Inlet
HG06/034
TTB Switch
HG06/200
TTB Leads
HG06/201
LPG Burner Injector
HG06083
Nat. Gas Burner Injector
HG01BU024
Flue Collar
HG06/038
Flue Blanking Plate
HG06/037
Flue Gasket
HG01CE001
Glass Panel
HG06/036
Glass Sealing Kit (Adhesive Tape)
HG06/101
Glass Clip and Screw
HHR08/046
Door Knob (Cast)
HHR08/045
Door Knob (Brass)
HHR08/045B
Natural Gas Pilot Assembly
HG06/090
LPG Pilot Assembly
HG06/085
Front ‘Coal Effect’ Ceramic Matrix
HG06/041
Middle ‘Coal Effect’ Ceramic Matrix
HG06/042
Rear ‘Coal Effect’ Ceramic Matrix
HG06/043
Small Ceramic Coal
HG06/044
Medium Ceramic Coal
HG06/045
Large Ceramic Coal
HG06/046
Front ‘Log Effect’ Ceramic Matrix
HG06/071
Middle ‘Log Effect’ Ceramic Matrix
HG06/072
Rear ‘Log Effect’ Ceramic Matrix
HG06/073
Log 1 –‘Y-shaped’
HG06/074
Log 2 –Small branch log
HG06/075
Log 3 –203 x 38mm No branch
HG06/076
Log 4 –152mm Double branch
HG06/077
Log 5 –152 x 38mm Single branch
HG06/078
Log 6 –‘Twig’
HG06/079
Right-hand Gothic Door Cross
HCG06/009
Left-hand Gothic Door Cross
HCG06/010
Right-hand Gothic Door Arch
HCG06/011
Left-hand Gothic Door Arch
HCG06/012
Aspen House, Pynes Hill, Exeter, EX2 5AZ
www.hs-gas.co.uk
