USER MANUAL SERIES-S

HSR-BENELLI SERIES-S Manual | EN - 4
Dear Customer,
We would like to thank you very much for your trust, and congratulate you for your new HSR-BENELLI
Series-S PWC! When we developed it, we made a point in creating a versatile and fast Series-S. We didn’t
forget to include a revolutionary design and a low-emission engine technology either.
Our Series-S is driven by a four-stroke natural aspirated engine, with a sound that triggers excitement and
denotes sportsmanship.
All you need to observe and know about your Series-S has been summarized in this User Manual. Observing
the service work is also a condition for safeguarding your guarantee claims.
Please make sure that any service performed in your Series-S should be exclusively done by specialists
trained by HSR-BENELLI.
This User Manual is also available in English and other languages on our homepage at: www.hsr-benelli.com.
Should you require any further information, please consult our homepage at: www.hsr-benelli.com
It is also important to observe the recommended service intervals after the seller‘s warranty. This will not only
pay off during operation, but also whenever you want to re-sell your PWC.
We wish you lots of fun with your HSR-BENELLI Series-S!
Yours truly,
HSR-BENELLI TEAM

5- EN | HSR-BENELLI SERIES-S Manual
General Introduction to the Personal Water Craft (PWC) User Manual
This User Manual has been compiled for your own safety and comfort, allowing you to get to know your PWC
and attain the most enjoyment out of it.
The Manual contains detailed information on the PWC itself, on the system, on the supplied and built-
in accessories, and as well as instructions for the operation procedures. Please read it carefully and get
familiarized with your PWC before using it.
Please note this PWC User Manual is not a course on PWC safety or seamanship. If this is your rst PWC, or if
you have changed to a PWC model that you are not yet familiar with, please make sure you learn how to handle
and operate your new craft properly before taking control. Your dealer - or the national sailing association, or
yacht club - will be pleased to provide you with information about local riding schools or experienced trainers.
Make sure that the expected wind and sea conditions comply with the design category of your PWC, and that
you are capable of handling it under these conditions.
The sea and wind conditions corresponding to the design categories A, B and C range from category A – Storm
- to the most serious conditions on category C - including risk of breaking waves or wind squalls. Even if your
PWC might resist it, these are hazardous conditions for only competent, capable and well trained riders, in
well-maintained PWCs.
The HSR-BENELLI Series-S is designed according to ISO 10240:2004 for the category: D

HSR-BENELLI SERIES-S Manual | EN - 6
This Handbook is not a detailed instruction manual for maintenance or troubleshooting, either. Should any dif-
culties arise, please consult your closest HSR-BENELLI dealer. If a Maintenance Handbook is provided, use it
to document the regular services performed on your PWC and to keep it in proper conditions.
Maintenance and repairs should only be performed by an Authorized HSR-BENELLI dealer.
Alterations which may adversely affect the safety properties of the PWC must be assessed, performed and
documented by specialists. The HSR-BENELLI Series-S builders shall not be responsible for alterations they
have not agreed to.
In some countries a driving license or an authorization is required or particular regulations apply.
Always maintain your PWC in proper condition and take note of any wearing out which may occur over time as
a result of frequent usage, or incorrect use of the PWC.
Any PWC, regardless of how strongly it is built, can experience serious damage due to incorrect handling. This
is not compliant with safe skippering. Always adjust the speed and direction of the PWC to the sea conditions.
Riders should be familiar with the manoeuvring procedures during emergencies (man-overboard rescues, etc.)
and the use of the safety equipment.

7- EN | HSR-BENELLI SERIES-S Manual
Sailing schools and clubs organize regular training courses to this end. Keep in mind that this and other equip-
ment may be compulsory in some countries.
Likewise, some countries may request a riding license or authorization according to their national regulations.
Find out these details with your local dealer, and keep in mind they will just add to your safety and comfort.
Please keep this Manual in a safe place and pass it on to the new owner when you sell the PWC.

HSR-BENELLI SERIES-S Manual | EN - 8
Clothing
The rider must wear a life jacket approved by the Coast Guard, which has been approved for use on the
Series-S . During the ride, shatter-proof protective goggles should be used. Wind, water splashes, and speed
can cause the eyes to water and reduce vision. Series-S riders must wear protective clothing.
This comprises:
Neoprene shorts or thick, close-woven and tight-tting clothing which offers sufcient protection. Thin
cycling shorts for example are not suitable. If you fall into the water or come near the jet pump nozzle, you
can incur in severe internal injuries. Normal swimwear does not provide adequate protection.
Shoes and gloves are also recommended. It is advisable to protect the feet with light and exible shoes.
This reduces the risk of injuries from hitting sharp objects under the water. For appropriate and smart
outts, please see our Water and Casual Lines catalogue by HSR-BENELLI.
1.
2.

9- EN | HSR-BENELLI SERIES-S Manual
Preparation before a ride
Note:
We recommend that recreational riders wear a helmet. If you want to take part in races, you
should wear a helmet approved for Series-S due to the increased risk of accidents from the
proximity to other riders. Read the instructions and safety directions supplied with the helmet.
Observe the safety regulations and conditions of the respective country.
Eye protection
Helmet
Life jacket
Gloves
Neprene suit or
neoprene shorts
Foot protection

HSR-BENELLI SERIES-S Manual | EN - 10

11 - EN | HSR-BENELLI SERIES-S Manual
Table of Content
1 General information and safety instructions .............................................................................................. 13
2 Features and functions.............................................................................................................................. 27
3 Operation................................................................................................................................................... 47
4 Maintenance and service........................................................................................................................... 63
5 Engine description..................................................................................................................................... 91
6 Faults and repair measures....................................................................................................................... 99
7 Appendix.................................................................................................................................................. 103

HSR-BENELLI SERIES-S Manual | EN - 12

13 - EN | HSR-BENELLI SERIES-S Manual
1 General information and safety instructions
1.1 Identication number ............................................................................................................................... 14
1.2 Engine number ........................................................................................................................................ 14
1.3 Important warnings.................................................................................................................................. 15
1.4 Position of warning stickers..................................................................................................................... 16
1.5 Safety instructions ................................................................................................................................... 17
1.6 Restrictions for operation......................................................................................................................... 19
1.7 Safety rules for riding............................................................................................................................... 20
1.8 Important information on watercraft helmets ........................................................................................... 23
1.9 Characteristics of the jet drive ................................................................................................................. 24
1.10 Breaking-in of the Series-S according to your possibilities...................................................................... 24
1.11 Warranty Policy. ....................................................................................................................................... 25

HSR-BENELLI SERIES-S Manual | EN - 14
1.1 Identication number
You will need the identication number to register your PWC. It is used to identify your PWC
in order to clearly differentiate it from other PWC of the same type. The manufacturer’s
identication is also required for ordering spare parts. In case of theft, report the manufacturer’s
identication, the exact model description and special characteristics of your PWC to the
appropriate authorities.
This makes it possible to identify your Series-S.
1.2 Engine number
A non-standard engine number with 18 digits for identication, can be found in the crankcase
housing. The production date can be determined through this number.
BH33 Engine Type
000001 Serial Number
AA808 Model and Year
AT-HSRA1001C808
Country Code
Manufacture Code
Model Code
Serial Number
Production Month
Production Year
Engine Number

15 - EN | HSR-BENELLI SERIES-S Manual
1.3 Important warnings
All warning stickers on this watercraft are shown and explained below. Every user must be
familiar with the meaning of these stickers.
The warning stickers point out important safety measures for your own protection.
These stickers must therefore remain in the places provided for them.
Missing, damaged, or illegible stickers must be replaced immediately and xed in the correct
place. You can get spare stickers from an authorized HSR-BENELLI dealer (Part Number:
HSR03_03_00_026)
When riding your Series-S, the safety lanyard must be fastened safely to the rider at all times. If
there is a fall, the safety lanyard will disconnect the contact to the engine and the PWC will stop.
If the safety lanyard is not fastened to the rider, the Series-S will not stop if he/she falls off. This
can injure or damage the rider, other people swimming around, or boats in the area.
It is absolutely necessary to read the User Manual before using the PWC. It contains important
information for safe operations.
Riders must always wear a life jacket when they are riding.

HSR-BENELLI SERIES-S Manual | EN - 16

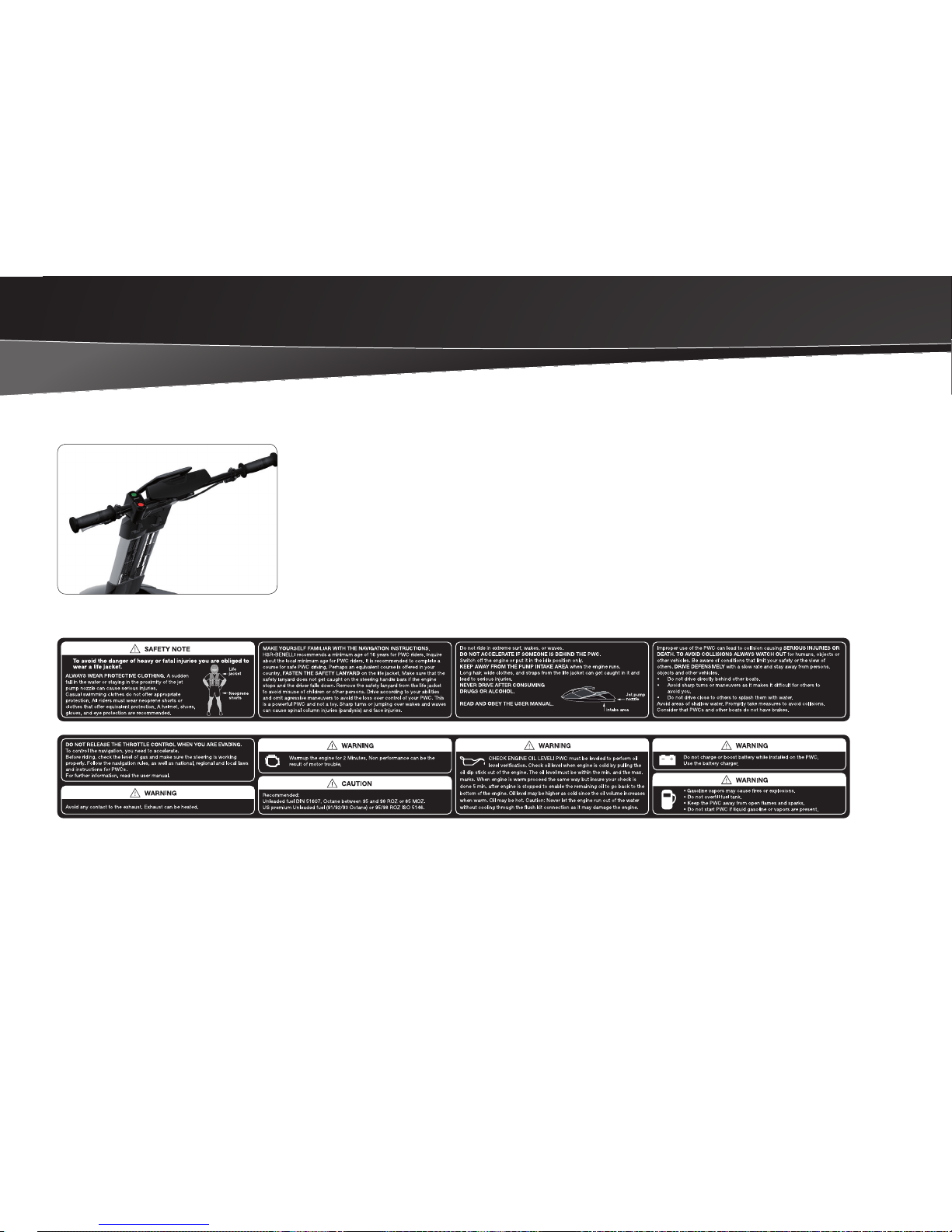

1.4 Position of warning stickers:
The warning stickers are placed on the inside of the steering column.

17 - EN | HSR-BENELLI SERIES-S Manual
1.5 Safety instructions
Riding of the Series-S by children.
The HSR-BENELLI Series-S is not a toy. It is a highly efcient watercraft meant for the transport of one person.
Underage can put themselves and others in danger with it.
HSR-BENELLI recommends a minimum age of 16 years. A PWC riding license course is highly recommended
and might be mandatory in the country of use.
Flotation
The Series-S is not designed to be left in the water for a long time. Strong movement of waves can cause water
to get into the water draining system of the engine‘s interior.
Water in the engine compartment can cause the craft to sink.
Series-S riders can fall into the water at any time, so it is absolutely necessary to be a good swimmer. Don`t ride
your Series-S further away from the point where you can swim back to the shore on your own.
Series-S riders must absolutely wear a life jacket, otherwise they may be in high risk of drowning.

HSR-BENELLI SERIES-S Manual | EN - 18
Capsizing
If your Series-S capsizes, proceed as follows:
Make sure that the engine is off. Otherwise, pull the safety lanyard immediately or press
the stop button to switch the engine off.
Swim to the rear of your Series-S.
Then grip the two rear corners of the Series-S with your hands and turn it clockwise.
Plug the safety lanyard in again and start the engine.
Climb in again
•
•
•
•
•
ALWAYS turn the Series-S clockwise!!! Turning anticlockwise can let water penetrate
into the exhaust system and damage the engine.

19 - EN | HSR-BENELLI SERIES-S Manual
1.6 Restrictions during operation
The safe use of your Series-S depends on the correct riding procedures and a good and safe assessment of
the respective situation.
Use your experience and common sense. That is the best way to avoid accidents.
Before using it, pay attention to the following points:
Never allow anyone to ride without explanation and reading of the User Manual.
An explanation of the warning instructions is absolutely necessary and guarantees a safe operation.
This Series-S is not a toy!
HSR-BENELLI recommends a minimum age of 16 years for its use.
Adults are compelled to supervise the underage.
This watercraft has been designed for the max. load of 120kg (max. 1 person).
•
•
•
•
•
•

HSR-BENELLI SERIES-S Manual | EN - 20
Please also observe the local regulations for the use of your Series-S.
You can get precise information from your authorized HSR-BENELLI dealer or from the competent maritime
authority.
•
1.7 Safety rules for riding
The competent authority will inform you if you need to register the craft (license plate).
Observe the navigation regulations applicable in the region. You can get the relevant information from the
Coast Guard or the water protection police. It is advisable to consult the local authorities on how to protect
yourself against avoidable difculties and penalties.
Ride defensively with a safe speed and always keep a necessary safety distance from other crafts in the
water.
Avoid riding directly behind other boats.
Do not splash other PWC riders with water.
•
•
•
•
•
