Globe Light
Easy to use, temporary lamp.
Code 57336
Globe Light
Operating & Safety Guide 462
Operating & Safety Guide 462
462/01
462/01
©HSS Hire Service Group Ltd 2012 No. 462/01
Group Office: 25 Willow Lane, Mitcham, Surrey CR4 4TS
Web Site: http://www.hss.com
…any comments?
If you have any suggestions to enable us to improve the
information within this guide please e-mail your comments or
write to the Safety Guide Manager at the address below
e-mail: [email protected]
... have you been trained
The law requires that personnel using this type of equipment in
the workplace must be competent and qualified to do so.
Training is available at HSS Training
0845 766 7799
In the event that the bulb fails
Never push the equipment beyond its design limits. If it
will not do what you want with reasonable ease and speed,
assume you have the wrong equipment for the job. Contact
HSS Hire for advice.
Keep the equipment clean - you will find this less of a
chore if you clean it regularly, rather than wait until the end
of the hire period.
Do not use any chemicals or solvents to clean the light,
wipe it over with a damp cloth or sponge.
When not in use, store the equipment somewhere clean,
dry and secure.
EQUIPMENT CARE
FINISHING OFF
Unplug the unit, allow it to cool and give it a clean.
Finally, neatly coil the power supply cable ready for
return to HSS Hire.

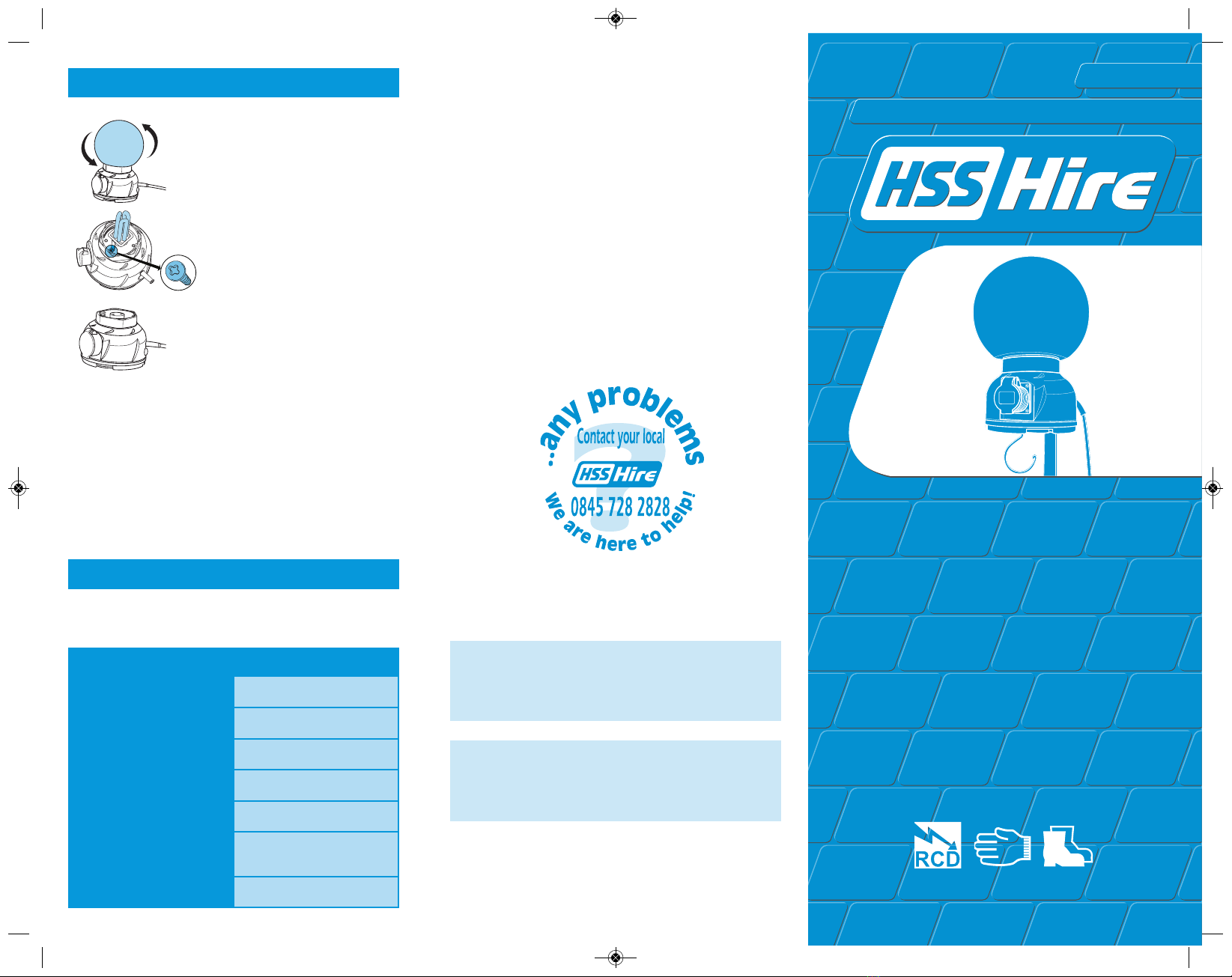

1. Secure the base and then carefully
counter clockwise rotate the diffuser
and remove carefully.
2. Loosen the lamp securing screws,
slide the lamp securing element over
the lamp
3. Gently remove the bulb and replace
with a new identical bulb, re-attach
the lamp securing device and
carefully place the diffuser over the
lamp and tighten clockwise.
Ensure a good seal is achieved.
SPECIFICATIONS
Rated Voltage: 110volt
Electronic Ballast: (PF) 0.98
Frequency: 50Hz
Power (CFL): 57watt
Lamp Holder: GX24
Protective Level: (Diffuser) IP54
(Panel Socket) IP44
Cable 1.5mm: x 5mtr
462_01_Globe Light 30/10/2012 10:59 Page 1

For advice on the safety and suitability of this
equipment contact HSS Hire.
There is a serious risk of personal injury if you do
not follow all instructions laid down in this guide.
The hirer has a responsibility to ensure that all
necessary risk assessments have been completed
prior to the use of this equipment.
This equipment should only be used by an operator
who has been deemed competent to do so by
his/her employer.
This equipment should be used by an able bodied,
competent adult who has read and understood these
instructions. Anyone with either a temporary or
permanent disability, should seek expert advice before
using it.
Keep children, animals and bystanders away from
the work area. Cordon off a NO GO area using cones
and either barriers or tape, available for hire from
HSS Hire.
Never use this equipment if you are ill,
feeling tired, or under the influence of
alcohol or drugs.
Wear practical, protective clothing, gloves.
Avoid loose garments and jewellery that could
catch in moving parts, tie back long hair.
Do not work near flammable gases or liquids, petrol
or paint thinner fumes for example. Keep
combustible materials at a safe distance – at least 5m.
Never carry or pull the equipment by its power
supply cable or pick up by the light tube.
Ensure you know how to switch the equipment OFF
before you switch it ON in case you get into difficulty.
Ensure that anyone in the immediate work area is
warned of what you are doing.
Do not look directly at the light.
Do not subject the light to any violent knocks.
Check the condition of the equipment before use. If
it shows signs of damage or excessive wear, return it to
your local HSS Hire.
GENERAL SAFETY
IDENTIFIER
ELECTRICAL SAFETY
Diffuser
GETTING STARTED
The HSS Globe Light provides glare free Omni
directional general light for a multitude of
applications.
Never use the HSS Globe Light until you have fully
read and understood this User Guide and the
machine has been properly set up using the
information it contains.
Extension leads should be fully unwound and
loosely coiled, away from the equipment. Never run
them through water, over sharp edges or where
they could trip someone.
Always remove the plug from the power socket
before undertaking any type of intervention on the
light or if it is left unattended or within children or
people’s reach not quite conscious of their own
actions.
When unplugging always pull the plug, not the
supply.
To reduce the risk of electric shock, always use a
suitable RCD (Residual Current-Operated
Device) available from HSS Hire.
Ensure the power socket is switched OFF before
plugging into the power supply.
The HSS Globe Light requires a 110V 16 Amp power
supply, obtainable from a 110V generator or from
the mains via a suitable transformer. Never connect
110V equipment directly to the 230V mains
electricity supply.
This light must be connected to grounded power
socket.
If the equipment fails, or if its power supply cable or
plug becomes damaged, return it. Never try to repair
it yourself.
Keep cables out of harm’s way, and clear of the work
area.
This lamp has a hook on the base to allow
suspension from ceiling or wall, it can be tripod
mounted with a mounting accessory or simply
placed on the floor.
The panel socket on each lamp allows them to be
linked together making them great for walk way
lighting. You can link up to 25 lights.
The light is provided by a 57 watt compact
fluorescent tube which gives off a clean white light
which helps to eliminate shadows caused by
alternative lighting. It also gives off virtually no heat so
is suited to working in confined spaces.
BASIC TECHNIQUES
Take the Globe Light to the work area and site it so
that it is away from pedestrian traffic but near enough
to the work to provide sufficient light.
Ensure that the power supply is switched OFF, then
plug the power supply cable into the power supply.
Once connected, switch ON the power. There is no
ON/OFF switch on the unit; the light is controlled
from the power supply.
The Globe Light is fitted with a 110V 16 Amp power
take off socket which can be used either to power a
hand tool, radio or additional light units dependent
on the input power
If linking a series of Uplights, the maximum quantity
you can connect together in any run is 25 lamps.
To connect a series of lamps, position all the lights
first, then connect each together starting with the one
farthest from the power supply.
When positioning one or more lights make sure
that the power supply cables are out of harms way
and that they do not cause a trip hazard. If
required, tie back cables with cable ties or clips.
Once all the lights are connected to each other, plug
the host light into the power supply and switch the
supply ON.
The lamps are designed to absorb slight knocks by
rocking on their base if they are bumped into, if used in
this manner they will continue to provide light without
any problem.
Always unplug the lights from the power supply before
moving or re-positioning them.
suspended on the tripod on the floor
110V
16 Amp
Power
socket
Suspension hook
Power supply
cable
