HUBBELL LIGHTING KIM LIGHTING PicoPrism 4348 LED User manual

4348 LED - 49” 4324 LED - 25”4336 LED - 37”

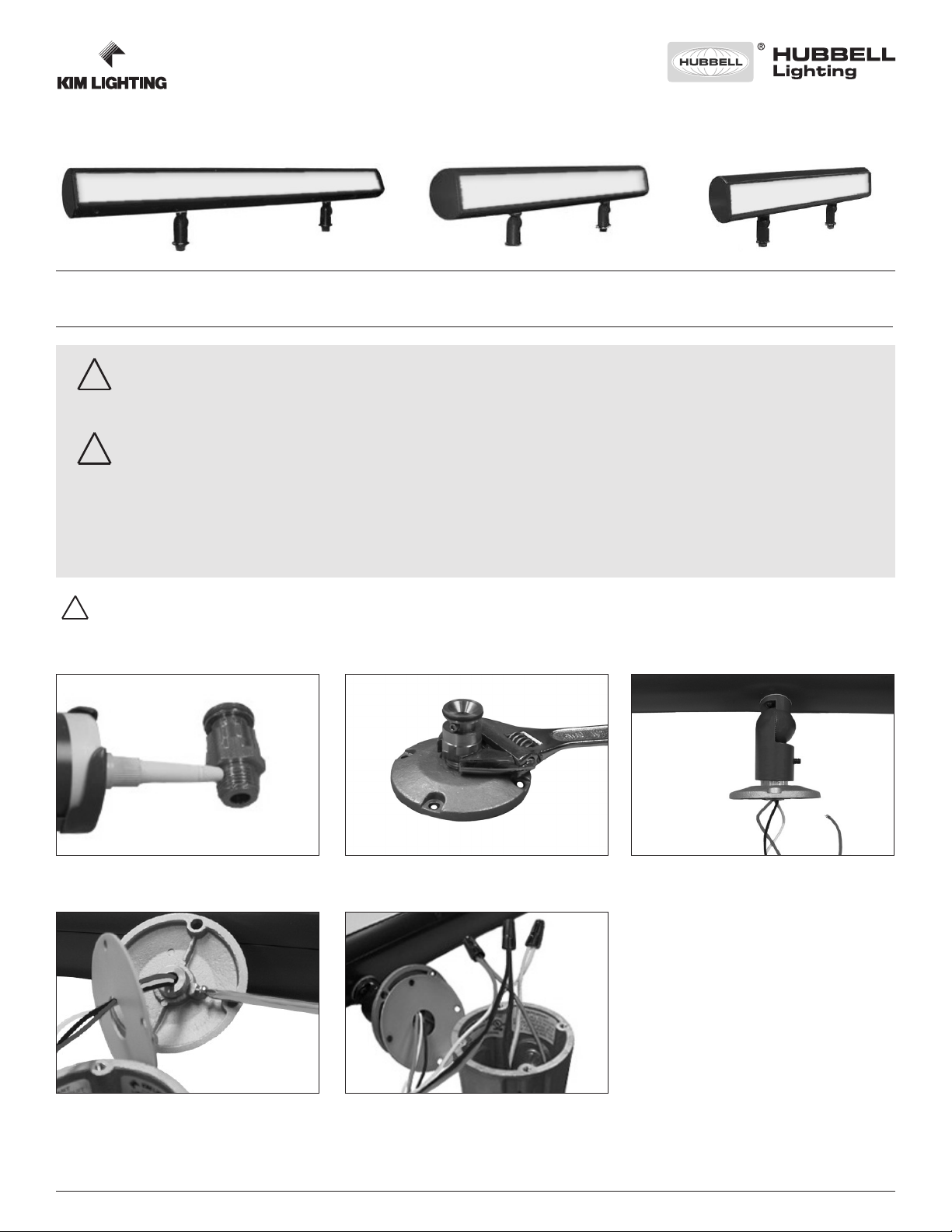

4300 Sign/Wall Lighter LED with PicoPrism™Installation Instructions
7/29/15 EC150729013 Status B Part No. 93054283
1. Coat swivel threads with thread sealant
to keep moisture from entering j-box.
2. Tighten coupling onto mounting
device.
3. Attach fixture onto coupling.
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical
Code. Portable spear mounts must be plugged into a receptacle protected by a Ground Fault Circuit
Interrupter (GFCI) in accordance with the National Electrical Code. Failure to take these steps may result in
serious personal injury. DO NOT operate luminaire with missing or damaged lens.
SAFETY WARNING: To maintain light efficiency and prevent fixture overheating, lenses must
be kept clean and free of dirt, dust, leaves, trash and mineral deposits from water. NOTE: Fixture is
approved for upward aiming only. Do not exceed listed backtilt. Fixture may be aimed downward if protect-
ed from rain and sprinklers.
This KIM fixture is supplied with K”NPT male mounting.
KEEP THIS SHEET FOR FUTURE REFERENCE.
!
!
5. Attach fixture leads to circuit leads
observing polar-ity, i.e., green ground
lead-to-circuit ground, white-to-com-
mon, and black-to-voltage.
4. Tighten set screw under j-box cover.
16555 East Gale Avenue
City of Industry, CA 91745-1788
626/968-5666 • FAX [phone]
Tools Required: qPhillips Head Screwdriver qB” Allen Wrench qThread Sealant qAdjustable Wrench
Make certain electrical supply is OFF before starting fixture installation.
!

For warranty see http://www.hubbelllighting.com/resources/warranty
© 2015 KIM LIGHTING 16555 E. Gale Ave., City of Industry, CA 91745-1788, 626-968-5666, FAX: [phone]
SWIVEL ADJUSTMENT
PAGE 2
1. Loosen set screw to adjust fixture
rotation, then tighten the set screw.
2. To adjust backtilt up to 60° maximum,
loosen swivel screws being careful not
to disengage threads. Hold fixture at
desired angle and firmly tighten swivel
screws.
4300 Sign/Wall Lighter LED with PicoPrism™Installation Instructions
Fixture
Housing
30 mA Max
Gray Dimming Lead (-)
Standard Input Black (+)
White (-)
Green (GND)
Purple Dimming Lead (+)
Driver has a 0-10V dimming interface with a
dimming range of 10-100%. Is compatible
with most control systems including Hubbell
Building Automation wiHUBB™. Approved dim-
mers include Lutron Diva DVTV, Lutron Nova
NFTV and NTFTV. Note: Not compatible with
current sourcing dimmers. Controls compatible
via Gray and Purple dimming lead.
0-10V Dimming
6. Attach fixture onto coupling. Support
opposite end by attaching swivel to
rigid pipe of appropriate length for
site local soil conditions. Remove
protective paper from lens.
J-Box Support Pipe
(By Others)
Do not aim fixture down unless
protected from direct water spray.
60°MAX.
backtilt
60°MAX.
backtilt
60°
MAX.
Down
Do not exceed 60° backtilt aiming.
Do not aim fixture down unless
protected from water spray
