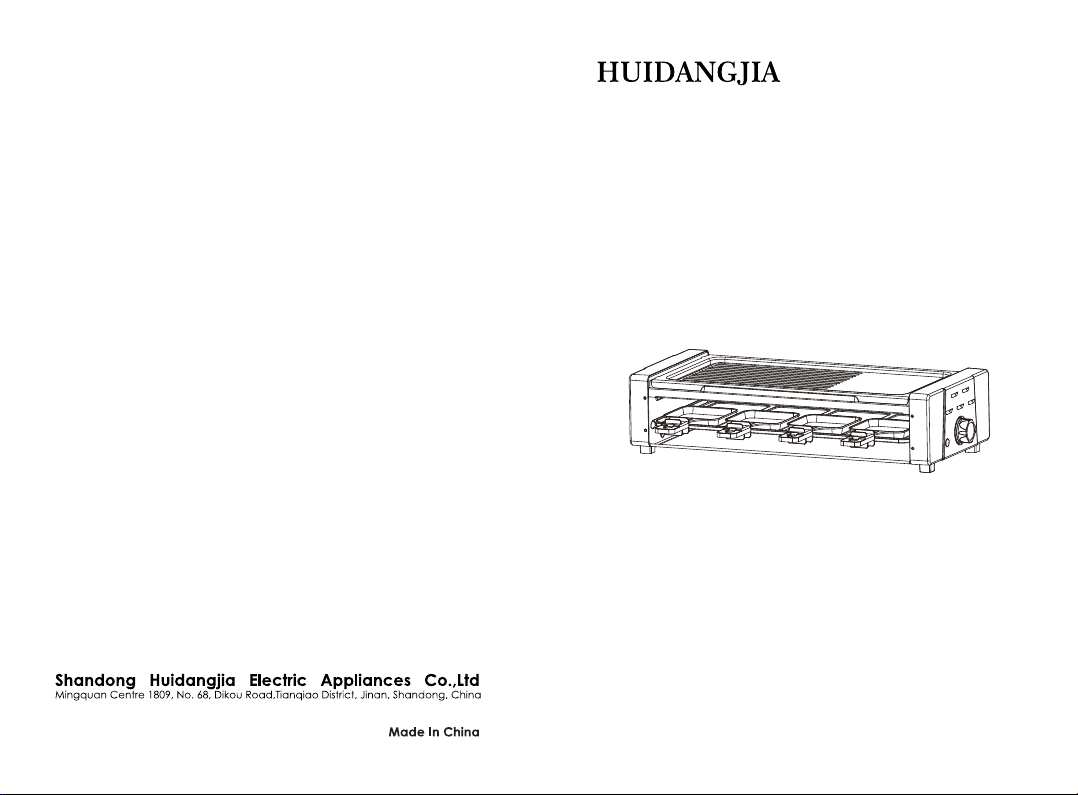

HUIDANGJIA AMR10-1027 User manual

Please read this user manual carefully before use and keep it well
If there is any deviation in product design, please take the object as the standard.
ELECTRICAL GRILL
INSTRUCTION MANUAL
MODEL:AMR10-1027

Contents
Product structure diagram and technical parameters .......02
Electrical diagram..............................................................03
The advantages of electrical grill ........................................03
First-time guide .................................................................04
Introduction of electrical grill ..............................................05
Notes.................................................................................05
Cleaning method...............................................................07
Product Structure Diagram
Technical Parameters
Cross beam
Heating tube bracket
Small frying pan
Power wire
Optional
Baking tray
Note: The above structural drawings are for reference only.
Please take the object as the standard.
Indicator
Heat tube
Grill
Oil pan
Product
Model
Product
Model
Product
Color
Rated
Voltage Rated
Power Configuration
Electrical
grill Silvery 120V~ 1500W
Main engine,
baking tray,
grill and oil
pan
2

Electrical Diagrams
Advantages of Electrical Grill
Temperature Controller
Fuse
Heat Tube
1. Multi-functional electrical barbecue grill, with baking tray,
grill, oil pan and small frying pan.
2. The baking tray is coated with high quality oil-free
coating, resistant against acid and alkali, easy to clean and
non-sticky.
3. With beautiful stripe as pattern, it is used to place food
overhead to prevent it from being repeatedly infiltrated with
dripping oil and isolate excess oil.
4. High-grade stainless steel heating tube with uniform and
high heating efficiency and service life of more than 3000
hours ensures quick heating within three minutes.
5. Stepless temperature control knob switch, built-in
temperature controller, with automatic temperature control
function and indicator.
6. With 260℃intelligent temperature control, it can be used
for baking indoors.
7. It is oil-free and easy to clean.
8. Baking tray and oil pan can be separately cleaned and
collected conveniently.
First-time Guide
1. For the first time, it is necessary to remove product
packaging and clean baking tray, hand dish, grill and drain
water.
2. It is necessary to place the electrical grill on a dry level
table resistant against high temperature, (Note: never put it
directly on the glass countertop and there should be no
inflammable articles beside it) never put it on the edge,
place wire so that people will not be tripped, place accesso-
ries according to instructions and never put hand dish on
the heating coil.
3. Plug the wire plug into 120V grounded three-wire socket,
turn the switch knob, and indicator lights up.
4. When it is used for the first time, it should be preheated
without food. It is normal for the machine to exhaust smoke,
which is evaporation of protective coating of the heating
tube, and it can be used normally after the smoke
disappears within three minutes.
5. When using the baking net, the baking net should be
placed separately above the heating tube, and the hand
dish should be placed under the baking net to prevent
dripping grease from polluting the base, and no flammable
articles should be placed under the heating tube.
6. You can place your favorite food on frying pan/grill and
hand dish after the water in the baking tray is dried, adjust
the temperature appropriately to prevent slight splash of oil
and water, and never use metal kitchen utensils such as
spades, steel chopsticks and spoons, which will scratch the
coating of metal baking tray.
7. Keep switch and power line dry, there should be no
flammable items beside the electric grill, and do not move
the electric grill in use.
8. Never touch the metal part to prevent scald as electrical
grill works with high temperature, and take good care of
3 4

Introduction of Electrical Grill
Electrical grill is a kind of direct grill with heat source acting
directly on food. It directly applies heat on food which is
produced by electric heating tube, with high efficiency and
uniform heating. Compared with traditional barbecue,
electrical barbecue grill will not produce open fire,
lampblack, exhaust gas and smoke and dust. During
barbecue, food grease drops immediately, without repeat-
edly infiltrating the food, as a result, food becomes healthier
because it contains less fat, food fried through electric
barbecue grill tastes crispy, which can retain not only water,
but also protein, carbohydrates and other nutrients in meat
to the maximum, bringing convenience and pleasure to your
Notes
1. Please read the instructions carefully when using the
product for the first time. Improper operation will shorten the
service life of product or cause accidents.
2. It is forbidden to use the product without anyone in
charge. It is forbidden to use machine and baking tray in the
inverted way.
3. When it is used for the first time, it should be preheated
without food. It is normal for the machine to exhaust smoke,
which is evaporation of protective coating of the heating
tube, and it can be used normally after three minutes.
4. It is necessary to place the product on a dry level table
resistant against high temperature, never place it on the
edge of the table, there should be no flammable articles
beside it, and do not move the machine after power-on.
5. It is necessary to prevent switches and power lines from
dripping into droplets; otherwise it will cause arcing, short
circuit and leakage due to reduction of insulation perfor-
mance. Do not operate the machine with wet hands during
barbecue.
6. After use, it is necessary to pull out the power plug from
the electrical outlet in time to avoid accidents and never
separate heating pipe from the grill only after it is cooled
without power.
7. The grid voltage used shall be in accordance with the
voltage specified in this unit, and a grounded three-wire
socket shall be used.
8. Never hang the Power wire on the edge of the table or
cabinet, otherwise, it will trip children.
9. Be more careful to use the product when there are
children around, it is forbidden for children to use it alone,
and never place barbecue grills in places within the reach of
babies.
10. It is necessary to place the grill separately above the
heating tube and place hand dish at the bottom of the
heating tube to receive dripping grease and food residue.
11. Do not touch metal parts to prevent scald as the
machine is hot in use and there is residual heat after use.
12. Qualified power sockets with not less than 13A/120VAC
load-carrying capacity must be selected for the machine,
and it is forbidden to hare one socket with other electrical
appliances.
13. Flammable, explosive and non-food items shall not be
put into barbecues, such as paper, cloth, plastics, nor shall
they be barbecued with similar fuels.
children and the elderly.
9. After use, rotate the knob until the indicator goes out and
pull out the plug in time, never separate and clean the grill
until it completely cools down and never use metal cleaning
tools such as steel wire balls to scratch grill coatings,
otherwise, it cannot be repaired.
5 6

14. Machines and spare parts cannot be cleaned immedi-
ately after barbecue. Machines cannot be put into water and
cleaned on-line and they can be cleaned after they cool
down.
15. Instruments cannot be connected to external timers or
operated under independent remote control systems.
16. If there is any damage or doubt in use of the machine,
you can contact the merchant through contact information in
the manual, and never dismantle and repair the machine
privately. If the Power wire is damaged, it must be repaired
by after-sale maintenance site or full-time maintenance
personnel designated by the manufacturer and the machine
shall not be dismantled and repaired without authorization.
1. Make sure the power is cut off before cleaning, and the
machine and parts cannot be cleaned until they completely
cool down.
2. To clean machine, you should remove removable parts,
and wipe off debris and grease with soft cloth dipped with a
small amount of water. For the part that is hard to clean,
you can clean it with soft cloth dipped with a small amount
of detergent and then clean it with water.
3. It is strictly forbidden to wash with water or dishwasher,
nor to wash it in other kinds of liquid.
4. Never clean it with metal or sharp tools (such as steel
balls), otherwise, it will scratch the non-stick oil coating on
the frying pan.
5. You can remove fried pans, hand dishes, grill and pot
caps, put into water with detergent and clean them.
6. It is forbidden to power the machine that is accidentally
wet and it cannot be used until it is dried.
7. Don't use the machine immediately after cleaning. It is
necessary to pack it properly after drying and put it in a cool
and dry place.
Warning:
If soft power wire is damaged, it must be replaced by
manufacturer, maintenance department or similar profes-
sionals to avoid danger.
Charcoal or similar fuels shall not be used for the appliance.
The surface temperature is very high during the operation of
appliance.
Cleaning Method
