Hulk HU6510 User manual

lithium-ion
jump starter
PORTABLE EMERGENCY
POWER SUPPLY
Up to
PETROL
6.0L
Up to
DIESEL
3.0L
12V
user manual
HU6510
10,400mAh
800amp

caution
Please read the user manual carefully and
use the product correctly based on the user
manual so that you can be familiar with the
product more conveniently and quickly!

caution 1, General Information
This product is capable of starting 12V petrol engines up to 6.0L and diesel
engines up to 3.0L.
2, Technical Specifications
Capacity: 10,400mAh 38.85wh
Dimensions: 158 (L) x 75 (W) x 31mm (H)
Input charging: 5V, 9V, 12V, 15V, 20V/30W PD
Output: USB - 5V, 9V, 12V/18W QC 3.0 Protocol
Type-C output - 5V, 9V, 12V/24W PD+QC 3.0 Protocol
Wireless Charging: 10 Watt (Only supports charging wireless devices)
Jump Start - 16V
Start Current: 400A
Peak Current: 800A
Cycle life: 1,000 cycles @ 80 depth of discharge degrade at low temperature.
Charging times - Wall Charger: 2 - 4 hours
2

3, Safety Information
Please read this entire manual before attempting to use the product.
WARNING
1. Do not damage, drop or crush this item. Do not attempt to use this item that has been
dropped, punctured, run over or damaged in any way.
2. Do not charge this item in wet conditions (rain, snow, damp). Do not use this product
in explosive environments (dust, gaseous flumes, or flammable materials).
3. Do not burn or incinerate this product. It may explode, causing personal injury or
damage. Toxic fumes and other potentially harmful materials are created when the
battery is burned.
4. Do not disassemble this product. It may result in risk of fire, electric shock or exposure
to battery chemicals.
5. Do not insert foreign objects into ANY input or output ports. This item may short circuit.
Any metal that comes in contact with the jumper cable port may short circuit. Short
circuiting this product will damage the battery and may cause personal injury or fire.
6. This is a Lithium-ion battery. In the unlikely event that this product leaks battery chemicals,
do not allow contact with skin, eyes or mouth as it may cause personal injury or burns.
If skin is exposed to battery chemicals, wash with soap and water and rinse with vinegar.
If your eyes come in contact with battery chemicals, immediately flush with water and
and seek medical attention.
7. When recharging this item, make sure the area is well ventilated. Please do not smoke
or allow open flames near a charging battery.
8. Never jump start a frozen battery.
9. Never reverse connect the red & black clamps when the original car battery has been
removed, or the car might be compromised.
10. Please keep product away from children.
11. Store this unit in a cool dry location. Do not expose the product to temperatures over
70˚C or below -20˚C.
3

4, Product Features
4
1. Flashlight
2. Battery terminal socket for the jump start leads
3. LED display
4. 4.5V, 9V, 12V, 15V, 20V /30W PD Input
5. Power button
6. 5V, 9V, 12V/ 18W QC 3.0 Protocol Output
7. 5V, 9V, 12V/24W PD+QC 3.0 Protocol Output
8. Wireless charging: 10W charging starter WPCI.1
9. Power ON/OFF
1234
5
6
7
9
8
Note: The jump start LED display will shut down after 20 seconds of inactivity.
Press the power button (5) to reactivate.

5, Package Contents
5
Functions on Smart Battery Cable
1) Reverse polarity connection: Solid Red LED with fast 2 short beep.
2) Short-circuit protection: Solid Red LED with long beep (Beeping as 3.3Hz Frequency).
3) Over-heat protection: Solid red LED with Long beep (Beeping as 2Hz Frequency).
4) Over-discharging protection: Solid red LED with fast 2 short beep.
5) Green/Red LED flashing: Searching for status of connection.
6) Green LED: Correct connection after one beep
Jump Starter
In Car Charger Type-c Adapter
Smart Battery Cable
Protective Carry Case

6, Quick Guide
6

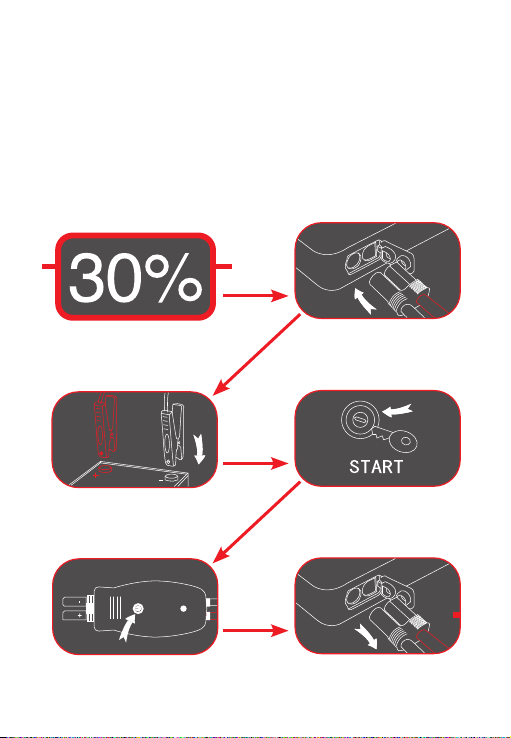

I. Jump Starting Vehicles
Before attempting to jump start your vehicle, please read your vehicle owners manual
to insure there are no specific steps needed.
DO NOT crank the engine for more than 4 continuous seconds while the unit is connected
to the vehicle. If the engine fails to crank or start, there may be a problem other than a
discharged battery.
1st step: 2nd step:
3rd step:
5th step:
4th step:
6th step:
Ensure the jump starter unit has more
than 30% capacity
Connect the red clamp to the positive “+”
terminal of the battery and the black
clamp to the negative “-” terminal of
the battery or another earth point.
Remove the battery clamps from
the jump starter and car battery
Insert the battery clamps into the
jump starter
Start engine, do not crank engine
for more than 4 seconds.
If connection fails (green LED does not
illuminate solid) press the override
button for 3 seconds to reset.

7
(1) For Cell Phones/Tablets

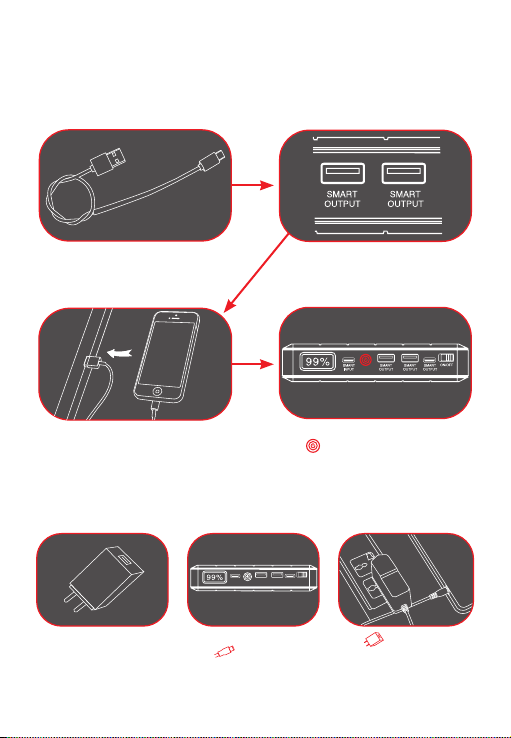

II. Charging Electronic Devices
III. Recharging the Jumpstart
Choose a cable to suit your device
1st step:
Use any 240V or 12V USB
adaptor
Insert the supplied charging
cable into the smart input
socket of the Jumpstart
Plug the other end of the
cable into the 240V or 12V
USB adaptor and charging
will commence
3rd step:
Insert the other end of the cable into the
device being charged
Insert the USB charge cable into one of
the three (3) smart output connections
2nd step:
1st step: 2nd step: 3rd step:
4th step:
Turn on/off switch to the ON position then
press the power button to start charging
your device.

8
IV. Using The Wireless Charging
1st step: 2nd step:
3rd step: 4th step:
V. Flashlight Operation
Turn the on/off switch to the “ON” position
Press and hold for 5 seconds to start flashlight
Press again to shift to SOS flashing
Press again to turn off the flashlight
7, Trouble Shooting
Problem Cause Solution
No response
when pressing the
power button
Jump start shuts down
automatically when
charging multiple
electronics devices
at the same time
Low voltage
protection of jump
start is activated
Over current
protection of jump
start is activated
Charge the unit with home
charger or car charger to
deactivate the protection
Charge the electronic
devices separately with
different USB outlets but
please keep the total
output current within 3.5A
Take a mobile phone that supports wireless charging.
(Comply with charging standard WPCI.1)
Put your phone on the top of the Car jump starter. When LED shows, is normal charging.
Turn on the Car jump starter.

9
8, Toxic & Harmful Substances
9, Warranty Information
Warranty Terms
• We offer a limited warranty for this product against any defects in material and workmanship
for a period of 12 months from the date of purchase by the end user/consumer. Return to
the place of purchase for warranty or repairs. The conditions of the warranty are as follows:
• The warranty is only valid upon presentation of the original receipt (from dealer/retailer)
by the original purchaser with the product to be repaired or replaced.
• The warranty is void if the serial number, date of purchase and label has been removed.
• The warranty does not cover damage or product failure resulting from normal wear and
tear, physical abuse, improper installation, misuse, modification or repairs by unauthorized
third parties.
• We do not assume responsibility for any loss or damage incurred during shipment or as
a result of a force majeure.
• We are not liable for any incidental or consequential damages arising from the use or
misuse of this product.
• All warranty claims are limited to repair or replacement of the defective product and at
the sole discretion of Automotive Imports.
• If we replace the product, the product will be covered for the remaining time of the original
warranty period.
• Consumable components such as batteries are not covered by the warranty.
:indicating all homogeneous materials’ hazardous substances are below
the MCV limit specified in the Standard 2002/95/EC(RoHs)
Composition and amount of toxic & harmful substances in Car Jump Starter
Pb Hg Cd Cr(Vi) PBB PBDE

10
Warranty Card
ONE YEAR LIMITED WARRANTY
Customer Name
Maintenance Date
Serial NO.
Tel
Address
Seller
Purchase Date
Model
Description of Product

Manufactured and Packaged for
Automotive Imports Pty Ltd
22 – 28 Lexton Road, Box Hill
Victoria, Australia
AUS: www.hulk4x4.com.au
NZ: www.hulk4x4.co.nz
Caution:
Please read the user manual carefully
