Hurricane 12592rb Owner's manual

WMV-Dresden

REPAIR PARTS MANUAL

MODEL NO. 12592RB (BA12592RBC)

Lawn Tractor

532 18 52-84 11.19.02 JH

PRINTED IN U.S.A.

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

2

HOW TO USE THIS MANUAL

This manual is designed to provide the customer with a means to identify the parts on his/her tractor

when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,

it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some

hardware and parts are drawn larger in order to more readily identify them.

Each tractor has its own model number.

The model number for your tractor can be found on the fender under the seat.

When ordering parts, always give the following information:

• Product - “Tractor”

• Model Number - 12592RB (BA12592RBC)

• Part Number

• Part Description

TABLE OF CONTENTS

SCHEMATIC ................................................................................................................3

ELECTRICAL............................................................................................................4-5

CHASSIS...................................................................................................................6-7

DRIVE........................................................................................................................8-9

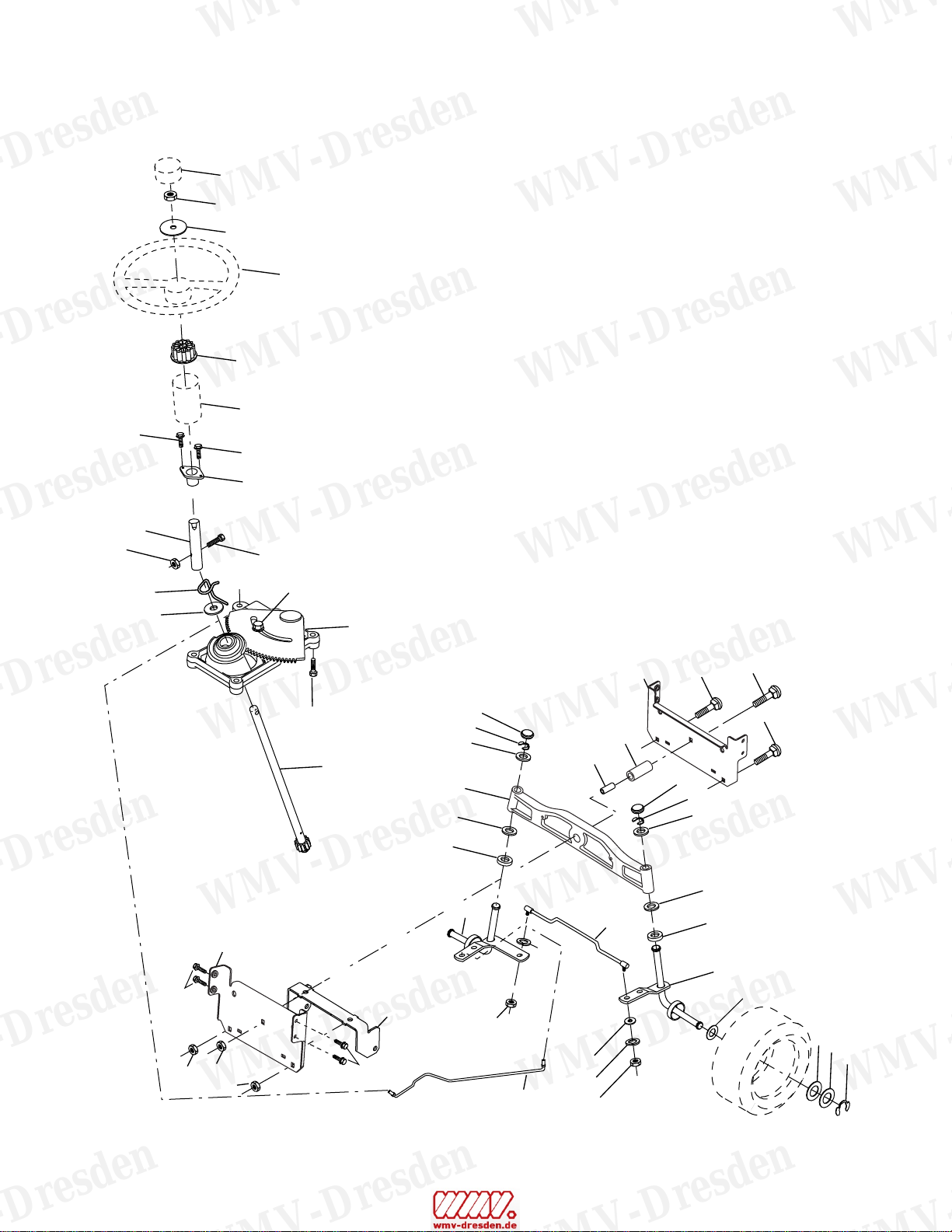

STEERING ............................................................................................................10-11

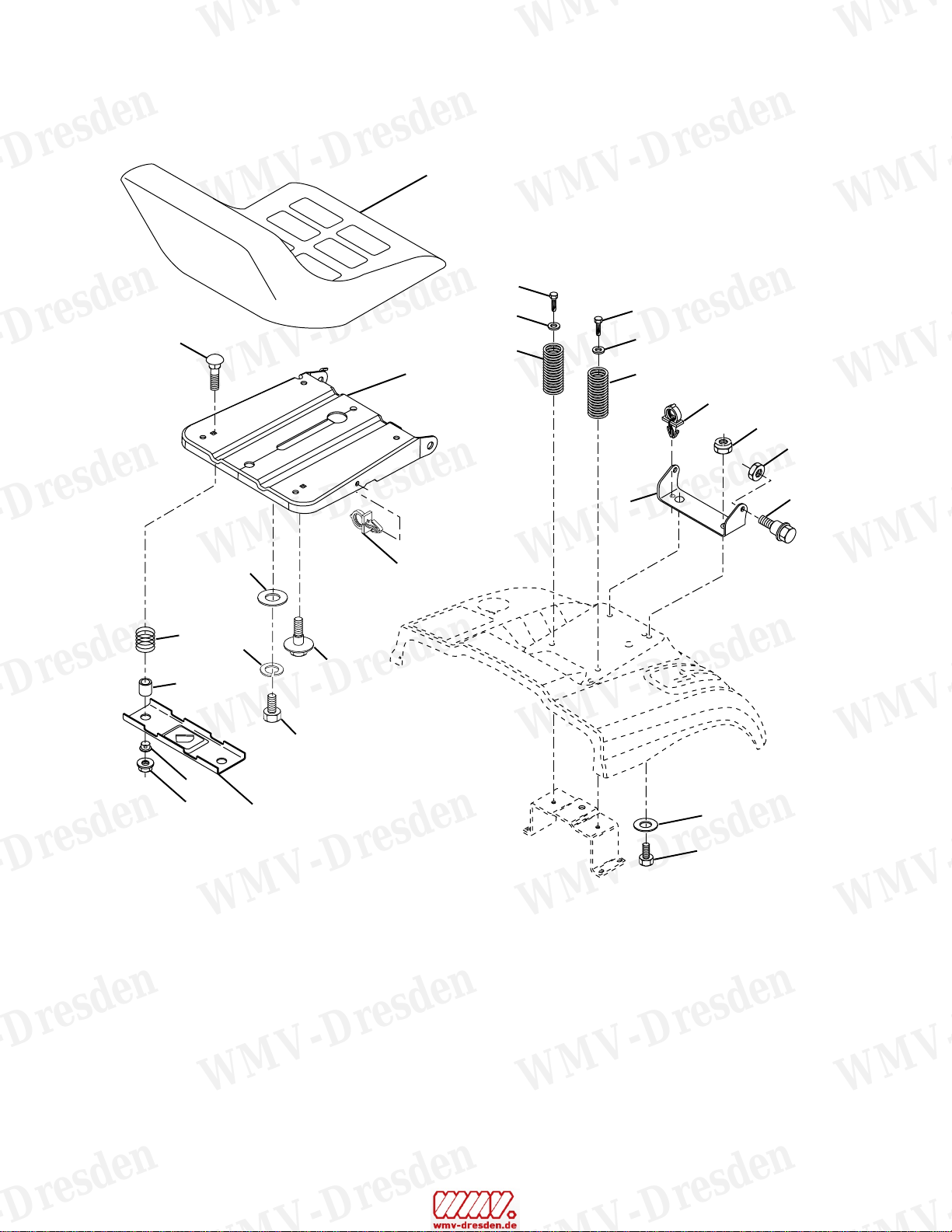

SEAT ..........................................................................................................................12

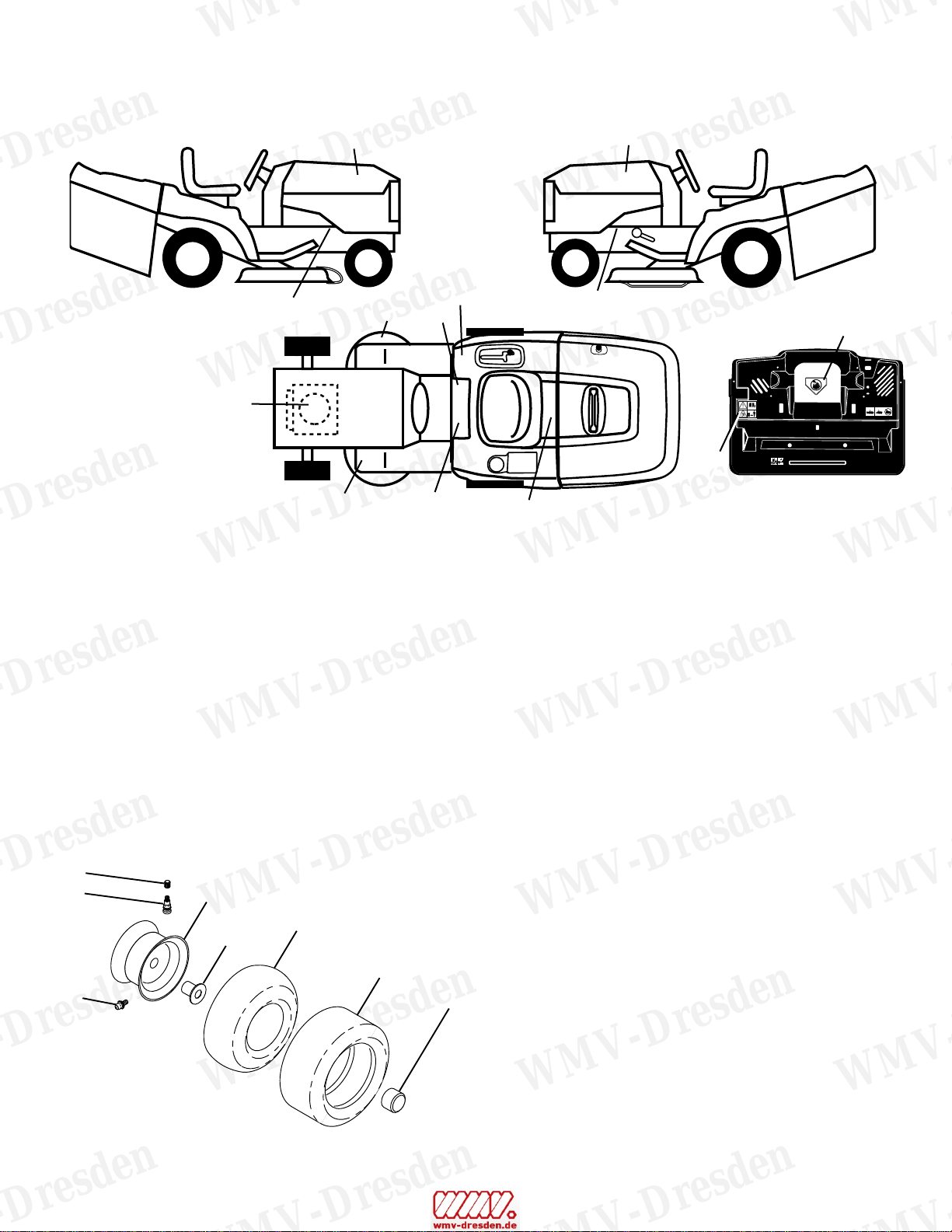

DECALS.....................................................................................................................13

ENGINE.................................................................................................................14-15

MOWER LIFT........................................................................................................16-17

MOWER DECK .....................................................................................................18-19

BAGGER...............................................................................................................20-21

WARRANTY...............................................................................................................22

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

3

BATTERY STARTER

12VDC

STARTER

M

A

AMMETER

(OPTIONAL)

FUSE

HEADLIGHTS

CARBURETOR SOLENOID

(IF SO EQUIPPED)

FUEL

LINE IGNITION

UNIT

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

CLUTCH / BRAKE

(PEDAL UP)

SOLENOID

G

B

S

M

A1

A2

L

RED RED

RED

BLUE RED

RED

GREEN

BROWN

WHITE

ORANGE

BLACK

BAGGER

INTERLOCK

(NO BAG,

CHUTE OR

PLUG)

BLACK

FBI

SWITCH

FBI BUZZER

BLACK

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

PTO SWITCH

CIRCUITPOSITION

OFF

C + F, B + E, A + DON

C + G, B + H B

A

G

H

D

FC

E

87

87A 8586

30

RELAY

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

IGNITION SWITCH

CIRCUITPOSITION

OFF

B+A1RUN/LIGHT

B + S + A1START

M+G+A1

B+A1RUN

“MAKE”

A2+L

NONE

ATT'MENT CLUTCH

(CLUTCH OFF)

OPERATOR PRESENCE

RELAY

85 86

30

87

87A

BAGGER RELAY

85 86

30

87

87A

MOWER ENGAGED

RELAY

85 86

30

87

87A

SEAT SWITCH

(NOT OCCUPIED)

LIGHTING SYSTEM

OUTPUT

5 AMP AC @ 3600 RPM

ALTERNATOR

14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)

DIODE

28 VOLTS AC MIN. @ 3600 RPM

(CHARGING SYSTEM DISCONNECTED)

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

NOTE

YOUR TRACTOR IS EQUIPPED

WITH A SPECIAL ALTERNATOR

SYSTEM. THE LIGHTS ARE NOT

CONNECTED TO THE BATTERY,

BUT HAVE THEIR OWN

ELECTRICAL SOURCE.

BECAUSE OF THIS, THE BRIGHT-

NESS OF THE LIGHTS WILL

CHANGE WITH ENGINE SPEED.

AT IDLE THE LIGHTS WILL DIM.

AS THE ENGINE IS SPEEDED UP,

THE LIGHTS WILL BECOME

THEIR BRIGHTEST.

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

SCHEMATIC

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

4

33

30

28

29

26

24

42

43

25

41

27

40

16

58

59

2

1

27

66

81

48

52

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

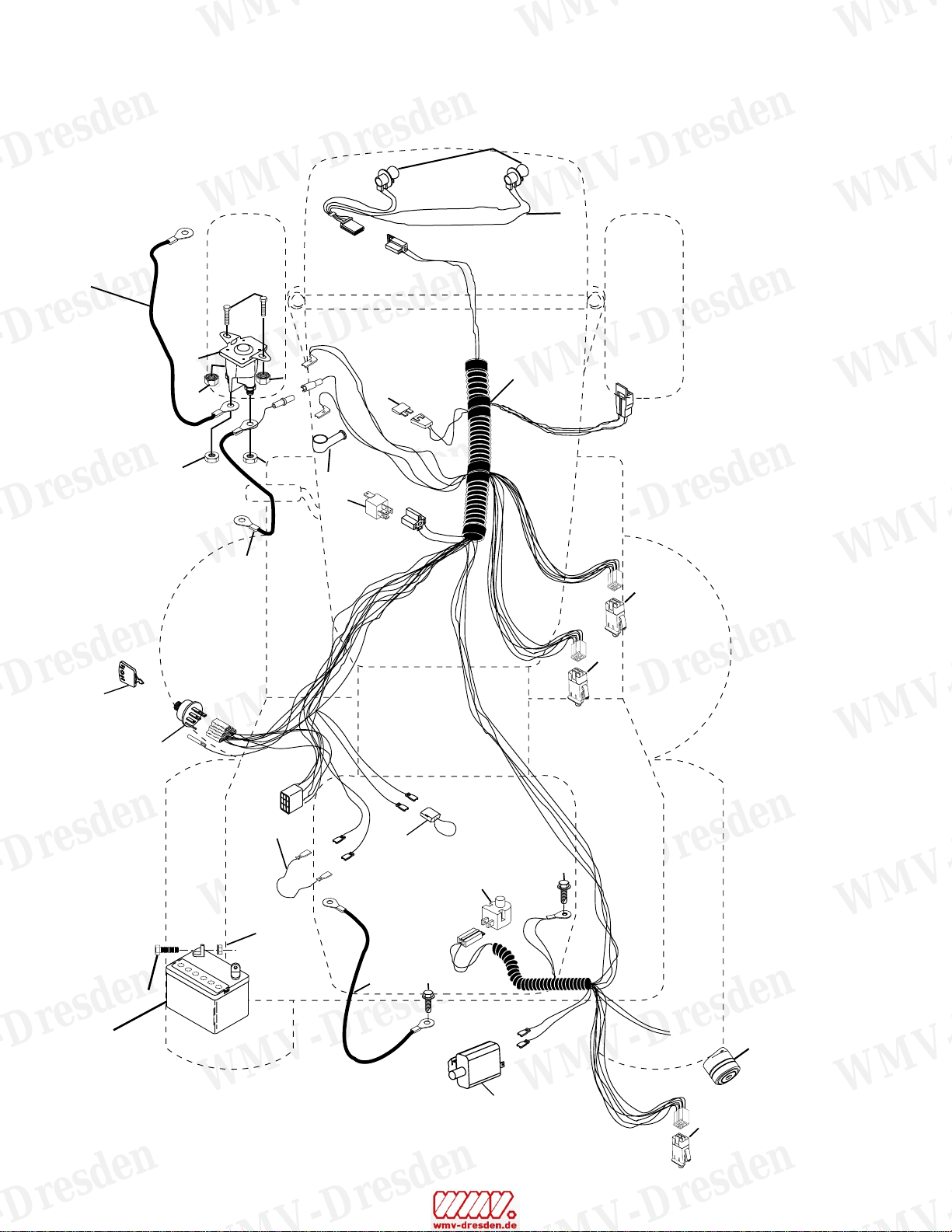

ELECTRICAL

16

22

21

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

5

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

ELECTRICAL

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Hd 1/4-20 Unc X 3/4

16 532 17 61-38 Switch Interlock Push-In

21 532 17 56-85 Harness Asm. Light

22 532 00 41-52 Bulb Light #1156

24 532 12 47-80 Cable Starter 6Ga 11" Red

25 532 16 59-87 Cable Battery Crd 56" Red

26 532 17 51-58 Fuse 20 Amp

27 873 51 04-00 Nut Keps Hex 1/4-20 Unc

28 532 12 77-25 Cable Ground 6 Ga 18" Black

29 532 16 07-84 Switch Plunger Normal Op Olive

30 532 17 55-66 Switch Ignition

33 532 14 04-01 Key Ign

40 532 17 97-28 Harness Ign

41 871 11 04-08 Bolt Flk Fin Hex 1/4-20 Unc X 1/2

42 532 13 15-63 Cover Terminal Red

43 532 17 88-61 Solenoid

48 532 14 08-44 Adapter Ammeter Rectangular

52 532 14 19-40 Protection Wire Loop

58 532 16 94-19 Buzzer Crd

59 532 18 03-79 Switch FBI CRD

66 817 49 06-08 Screw Thdrol 3/8-16 x 1/2 Ty-Tt

81 532 10 97-48 Relay Asm

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

6

162

164

3

26

24

209

163

209 24

35

3

26

35

3

26

33 10

34

1

208

11

208

13

209

8

209

6

16

9

15

209

5

145

37

17

29

28

12

51

57

53

52

54

55

58

18

205

38

212

32

3

207

175

185

214

179

26

25

26 25

24

165

24

3

31

30

89

3

256

69

184

186

187

266

265

187

189

188 188

170

171

172

173

190

171

198

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

CHASSIS AND ENCLOSURES

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

7

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

CHASSIS AND ENCLOSURES

1 532 17 46-20 Chassis

2 532 18 03-84 Drawbar

3 817 06 06-12 Screw 3/8-16 x .75

5 532 15 52-72 Bumper Hood/Dash

6 532 18 44-19 Saddle

8 532 12 64-71 Clip Insulator 13/32 Mtg. Hole

9 532 18 54-80 Dash

10 872 14 06-08 Bolt, Carriage 3/8-16 x 3/4

11 532 17 49-96 Panel, Dash, L.H.

12 532 14 56-60 Clip Tinnerman Grille P/L

13 532 18 17-19 Panel, Asm. Dash R.H.

15 874 18 05-12 Screw, Machine, Truss Head

5/16-18 UNC x 3/4

16 873 51 05-00 Nut

17 532 16 35-57 Hood Assembly

18 532 18 49-21 Bumper Hood

24 874 78 06-16 Bolt

25 819 13 13-12 Washer 13/32 x 13/16 x 12 Gauge

26 873 80 06-00 Nut

28 532 17 91-01 Grille Lens Asm

29 532 16 81-54 Lens

30 532 18 13-59 Fender

31 532 16 51-56 Bracket, Fender Support

33 532 18 11-93 Footrest, L.H.

34 532 18 11-94 Footrest, R.H.

35 872 11 06-06 Bolt

37 817 49 05-08 Screw Thdrol 5/16-18 x 1/2 TYT

38 532 18 17-48 Bracket Asm Pivot Mower Rear

51 873 80 04-00 Nut Lock w/Insert 1/4-20 UNC

52 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.

53 532 14 46-97 Bracket Grille Lh

54 532 16 14-64 Screw Hex Wshd 8-18 x 7/8

55 532 14 46-96 Bracket Grille Rh

57 874 78 04-12 Bolt, Fin Hex 1/4-20 UNC x .75

58 532 15 01-27 Duct Air Engine Pl/Lt

69 532 14 24-32 Screw Hex 1/4-1/2

89 532 18 13-88 Console

145 532 15 65-24 Rod Pivot Chassis/Hood

162 532 18 03-84 Bracket Exten Chassis Lh CRD

163 532 18 03-83 Bracket Exten Chassis Rh CRD

164 532 16 56-05 Support Battery CRD

165 532 18 13-56 Cover Battery CRD Lt

170 532 17 88-62 Backplate CRD

171 872 14 06-20 Bolt Rdhd Sqnk 3/8-16 x 2-1/2 G5

172 819 13 20-16 Washer 13/32 x 1-1/4 x 16 Ga.

173 873 51 06-00 Nut, Keps Hex 3/8-16 UNC

175 532 18 03-10 Trap Door CRD

179 532 18 03-76 Rod Pivot FBI CRD

184 532 17 46-62 Bracket Actuator Bagger CRD

185 532 18 11-01 Knob Rod

186 532 16 07-93 Latch Asm Multch Bagger

187 532 12 50-04 Nut Weld .327/.304 #10-24

188 819 06 12-16 Washer #10

189 810 07 10-00 Washer Lock #10

190 871 08 10-10 Screw Pan Hd Phillips 10-24 x 5/8

198 532 16 89-37 Nut Push

205 817 49 06-08 Screw 3/8-16 x 1/2

207 817 06 05-08 Screw 5/16-18 x 1/2

208 817 67 06-08 Screw Thdrol 3/8-16 x 1/2

209 817 00 06-12 Screw Hex Wsh Thdrol 3/8-16 x 3/4

212 532 15 62-29 Insert Lens Reﬂective

214 532 12 47-88 Retainer Spring 1"

256 532 18 13-61 Cover Fender Rack CRD

265 532 18 57-04 Seal RH Side Bagger

266 532 18 57-03 Seal LH Side Bagger

- - 532 00 54-79 Plug, Button

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

8

180

4

3

79

112

14

96

11

80

13

84

96

38

42

40

42

39

1

2

77

74

75

78

76

145

65 43

203

56

66

51

184

253

26

254

178

179

177

120

27

51

48

50

49

47

50

150

151

187

183

182

181

250

156

165

82

168

166

163

14

159

161

160

158

171

164

21

8

10

167

83

162

172

29

28

53

36 35

27

26

26 258

35

62

36

55

258

215

37

22

36

255

35

36

214

34

24

96

25

26

19

250

30

250

16

9

18

51

5

18

57

183

180

38

47

264

171

267

26

261

51

266

265

263

269

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

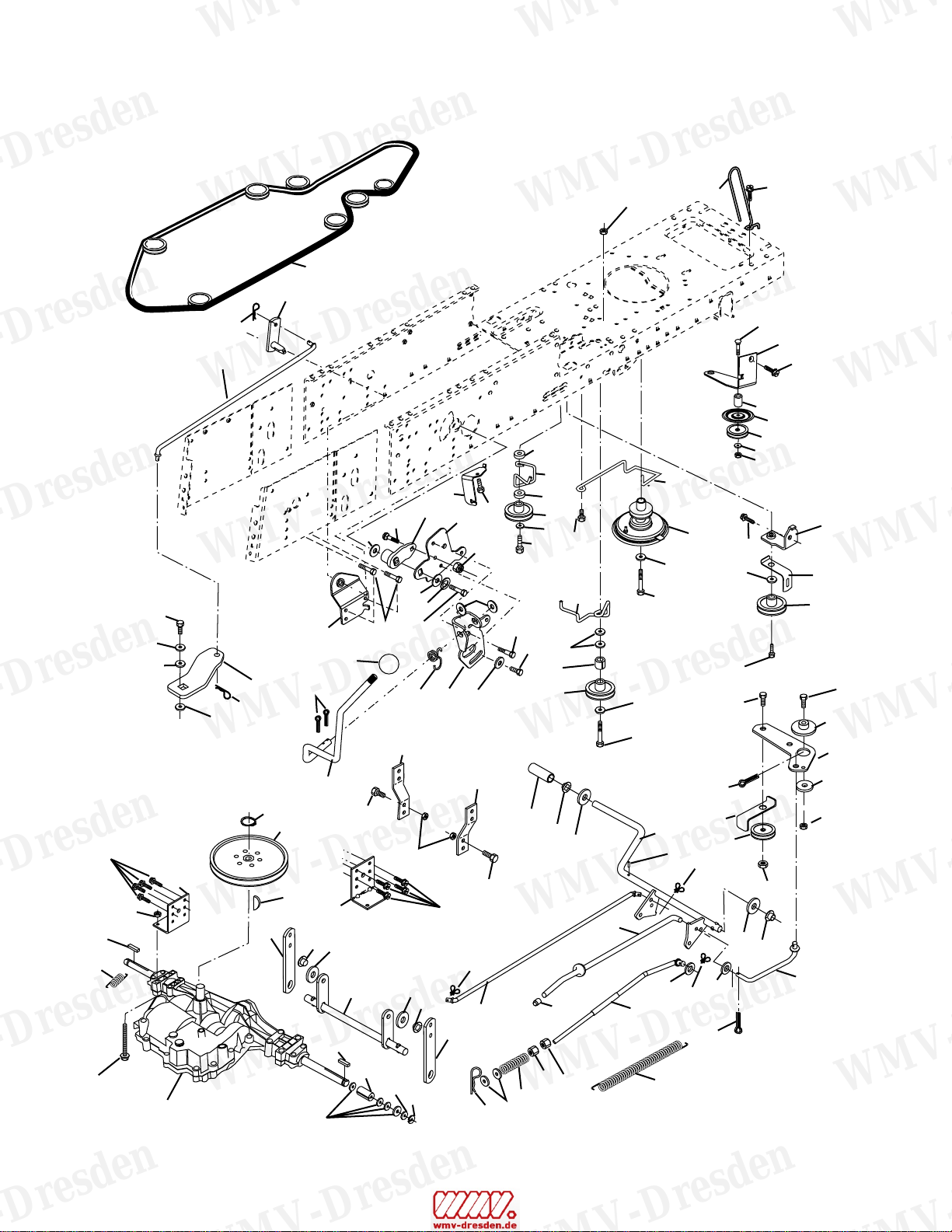

DRIVE

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

9

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

DRIVE

1 - - - - - - - Transaxle Peerless 206-546

Order parts from transaxle manu-

facturer

2 532 14 66-82 Spring Brake Return

3 532 16 59-99 Pulley Transaxle

4 812 00 00-28 Ring Retainer #5100-62

5 532 12 15-20 Strap torque 30 degrees

8 532 16 56-19 Rod Shift Fender Adjust Lt

9 532 18 03-54 Clutch Noram

10 876 02 04-16 Pin, Cotter 1/8 x 1

11 532 10 57-01 Washer Plate Shf .3888 sq hole

13 874 55 04-12 Bolt 1/4-28 Unf Gr 8 w/patch

14 810 04 04-00 Washer, Lock Hvy Helical

16 873 80 05-00 Nut, Lock Hex w/Ins 5/16-18 UNC

18 874 78 06-16 Bolt Hex 3/8-16 UNC x 1 Gr.5

19 873 80 06-00 Nut, Lock Hex w/Wsh 3/8-16 UNC

21 532 10 69-33 Knob Round 1/2-13 Unc Blk

22 532 17 56-07 Rod, Brake CRD Main

24 873 35 06-00 Nut

25 532 10 68-88 Spring, Rod, Brake

26 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

27 876 02 04-12 Pin, Cotter 1/8 x 3/4

28 532 17 57-65 Rod, Parking Brake

29 532 07 16-73 Cap, Parking Brake

30 532 17 49-73 Bracket, Mfg. Transaxle

34 532 17 55-78 Shaft, Asm Pedal Foot CRD

35 532 12 01-83 Bearing, Nylon

36 819 21 16-16 Washer 21/32 x 1 x 16 Ga.

37 532 12 49-63 Pin, Roll 3/16 x 1"

38 532 16 59-36 Pulley, Flat

39 874 76 06-44 Bolt Fin Hex 3/8-16 Unc x 2-3/4

40 532 12 49-65 Spacer, Split 395 x 59 Bzp

42 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.

43 819 11 10-12 Washer 11/32 x 5/8 x 12 Ga.

47 532 12 77-83 Pulley, Idler, V Groove Plasitc

48 532 15 44-07 Bellcrank Clutch Grnd Drv

49 532 12 32-05 Retainer, Belt Style Spring

50 872 11 06-12 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5

51 873 68 06-00 Nut, Crownlock 3/8-16 UNC

53 532 10 57-10 Link, Clutch 7.66

55 532 10 57-09 Spring, Return, Clutch

56 874 76 06-20 Bolt, Hex 3/8-16 UNC x 1-1/4

57 532 16 56-31 V-Belt Kev PMST CRD

62 532 12 48-72 Cover, Pedal

65 810 04 07-00 Washer

66 532 15 47-78 Keeper, Belt Engine F-Proof

74 532 13 70-57 Spacer Axle

75 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.

76 812 00 00-01 Ring, E

77 532 12 35-83 Key, Square

78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.

79 532 12 50-96 Key Woodruff

80 532 14 50-90 Arm Shift PMST 20" Tires

82 532 16 57-11 Spring, Torsion

83 819 17 12-16 Washer 17/32 x 3/4 x 16 Ga.

84 532 16 56-21 Link Shift CRD Pmst 18" Tires

96 532 12 47-88 Spring, Retainer 1”

112 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.

120 873 90 06-00 Nut Lock 3/8-16

145 874 49 05-40 Bolt Hex FGHD 5/16-18 x Gr 5

150 532 16 58-50 Bushing, Bellcrank Grnd Dr

151 819 13 32-10 Washer 13/32 x 2 x 10 Ga.

156 532 16 60-02 Washer Srred 5/16 ID x 1.125

158 532 16 55-89 Bracket Shift Mount

159 532 16 54-94 Hub Tapered Flange Shift Lt

160 819 29 20-16 Washer 29/32 x 1-1/4 x 16 Ga

161 872 14 04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5

162 873 68 04-00 Nut Crownlock 1/4-20 Unc

163 874 78 04-16 Bolt Hex Fin 1/4-20 Unc x 1 Gr 5

164 819 09 10-10 Washer 5/8 x .281 x 10 Ga.

165 532 16 56-23 Bracket Pivot Lever

166 532 16 68-80 Screw 5/16-18 x 5/8

167 532 16 55-88 Bracket Support Shift CRD

168 532 16 54-92 Bolt Shoulder 5/16-18 x .561

171 817 49 06-08 Screw Thdrol 3/8-16 x 1/2 Ty-Tt

172 532 16 56-35 Shaft Asm Shift Front CRD PMST

177 532 16 59-32 Keeper Flat Idler 3.06" CRD

178 532 16 59-33 Keeper Belt Idler 1.88" CRD

179 532 12 09-58 Washer Sintered

180 532 16 56-30 Pulley Flat Composite 3.06"

181 532 18 02-11 Bracket Idler Ground Drive CRD

182 532 18 26-82 Keeper Belt 2.5" Od V-Idler CRD

183 532 17 90-50 Pulley V-Idler 2.50" Od CRD

184 817 49 06-44 Screw Hexwsh Thdrol 3/8-16 x 2-

3/4

187 817 58 05-20 Screw 5/16-18 x 1.25

203 871 17 07-80 Bolt Hex 7/16-20 x 5

214 532 17 56-09 Shaft Asm. Brake

215 532 17 56-51 Rod Brake Secondary

250 817 06 06-12 Screw 3/8-16 x .75

253 532 17 50-28 Bracket Cable Chassis

254 817 00 06-16 Screw 3/8-16 x 1.0

255 532 17 56-08 Brace Shaft Brake

258 532 17 80-62 Clip Retainer

261 532 13 14-94 Pulley Idler Flat

263 817 00 06-12 Screw Hxwsh Thdr 3/8-16 x 3/4

264 532 18 19-95 Bracket Clutch Mtg.

265 532 18 20-13 Spacer Idler Chassis

266 532 18 20-61 Shield Idler

267 872 14 06-26 Bolt Rdhd Sqnk 3/8-16 x 3-1/4

269 532 18 24-02 Guard Mufﬂer OHV B&S RH

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

10

5

4

3

43

6

43

8

10

40

32

11

8

6

87

46

8

6

87

29

88

71

17

43

91

2

1

41

42

37

36

37

38

12

39

44

51 54

33

35

34

68 67

67

13

65

68

15

29

82

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

STEERING ASSEMBLY

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

11

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

STEERING ASSEMBLY

1 532 17 59-04 Steering Wheel

2 532 17 23-93 Cast Iron Axle Assembly

3 532 16 98-40 Spindle Assembly, L.H.

4 532 16 98-39 Spindle Assembly, R.H.

5 532 12 49-31 Bearing, Race, Thrust, Hardened

6 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Gauge

8 812 00 00-29 Ring, Klip

10 532 17 51-21 Link, Drag

11 810 04 06-00 Washer, Lock

12 873 94 08-00 Nut Hex Jam Toplock 1/2-20 Unf

13 532 13 65-18 Spacer Brg Axle Front

15 532 14 52-12 Nut, Hexﬂange Lock

17 532 18 06-41 Shaft Assembly, Steering

29 817 06 06-12 Screw, 3/8-16 x 3/4

32 532 17 01-62 Rod, Tie

33 819 11 12-16 Washer 11/32 x 3/4 x 16 Ga

34 810 04 05-00 Washer Lock Hvy Hlcl Spr 5/16

35 873 54 05-00 Nut Crownlock 5/16-24 Unf

36 532 15 50-99 Bushing, Steering

37 532 15 29-27 Screw TT #I0-32 x 5 x 3/8 Flange

38 532 17 59-05 Cap Wheel Steer

39 819 18 38-12 Washer 9/16 x 2-3/8

40 532 12 47-01 Nut Lock Center 3/8-24 Unf

41 532 10 07-11 Adaptor, Steering Wheel

42 532 16 96-33 Boot, Steering Dash P/L Mtl

43 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Gauge

44 532 18 06-40 Extension Steering

46 532 12 12-32 Cap, Spindle

51 873 54 04-00 Nut Crownlock 1/4-28

54 871 13 04-20 Bolt Hex 1/4-28unf x 1-1/4 Gr. 8

65 532 16 03-67 Spacer Brace Axle

67 872 14 06-18 Bolt Rdhd Sq 3/8-16 UNC x 2-1/4

71 532 17 51-46 Steering Asm.

68 532 16 98-27 Brace Axle

82 532 16 98-35 Bracket Susp Chassis Front

87 532 17 39-66 Washer Flat .781 x 1-1/2 x .14

88 532 17 51-18 Bolt Shoulder 7/16-20 Unc

91 532 17 55-53 Clip Steering

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

12

1

16

15

12

13

17

10

5

14

4

3

8

9

7

8

9

7

2

6

22

21

5

24

25

26

23

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

SEAT ASSEMBLY

1 532 14 01-16 Seat

2 532 14 05-51 Bracket Pnt Pivot Seat (blk )

3 871 11 06-16 Bolt Fin Hex 3/8-16 Unc x 1

4 819 13 16-10 Washer Flat 13/32 x 1 x 10 Ga.

5 532 14 50-06 Clip Push In Hinged

6 873 80 06-00 Nut Lock Hex 3/8-16 Unc

7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi

8 817 00 06-16 Screw 3/8-16 X 1-1/2

9 819 13 16-14 Washer 13/32 X 1 X 14 Ga

10 532 18 24-93 Pan Pnt Seat (blk )

12 532 12 12-46 Bracket Pnt Mounting Switch

13 532 12 12-48 Bushing Snap Blk Nyl 50 Id

14 872 05 04-12 Bolt Rdhd Sht Nk 1/4-20x1-1/2

15 532 13 43-00 Spacer Split

16 532 12 12-50 Spring Cprsn Plate SW 1.310 Ga

17 532 12 39-76 Nut Lock 1/4 Lge Flg Gr 5 Zinc

21 532 17 18-52 Bolt Shoulder 5/16-18 Unc-2A

22 873 80 05-00 Nut Hex Lock w/Ins 5/16-18

23 871 11 08-14 Bolt Hex Black

24 819 17 19-12 Washer 17/32 X 1-3/16 X 12 Ga.

25 532 12 70-18 Bolt Shoulder 5/16-18 X 62

26 810 04 08-00 Washer Lock Hvy Hlcl Spr 1/2

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

13

WHEELS & TIRES

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

6

2

1

5,8

4,10

3,9

11

7

MAX+

_90N MAX+

_150N

14

3

14

11

13

6

17

21

2

12 110

3

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

DECALS

1 532 14 54-98 Decal Read Owner’s Manual Sym

2 532 18 48-55 Decal Hp Engine

3 532 18 16-64 Decal Hood

6 532 18 04-32 Decal 100 DBA/CE

10 532 14 50-05 Decal Bat Dan/Poi P/L Sym Wpn

11 532 18 21-66 Decal Mower Cut Finger Symbol

12 532 15 97-37 Decal Brake/Clutch Symbol Lt

13 532 18 04-35 Decal Warn Back Plate CRD

14 532 15 97-36 Decal Chassis Hot Mufﬂer

17 532 14 08-37 Decal Saddle Brake Parking

21 532 16 62-86 Decal Hex Belt Sch 92 CRD

— 532 13 83-11 Decal Lift Handle

— 532 18 52-30 Manual Operator's (Euro)

— 532 18 52-32 Manual Operator's (Scan)

— 532 18 52-35 Manual Operator's E-Bloc

— 532 18 52-84 Manual Parts

1 532 05 91-92 Cap Value Tire

2 532 06 51-39 Stem Value

3 532 10 62-22 Tire F Ts 15 X 6 0 - 6 Service

4 532 05 99-04 Tube Inner Front #35060

5 532 18 33-37 Rim Asm 6"front Service

6 532 12 49-57 Fitting Grease

7 532 12 49-59 Bearing Flange

8 532 18 33-38 Rim Asm 8"rear Service

9 532 12 46-35 Tire R Ts 20 x 8-8 Service

10 532 12 49-26 Tube Rear 9 5 X 8 Service

11 532 17 50-39 Cap Axle Blk 1 50 X 1 00

- - 532 14 43-34 Sealant, Tire (10 oz. tube)

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

14

2

1

OPTIONAL EQUIPMENT

Spark Arrester

29

44

46

32

31

33

37

33

13 4

72

78

81

3

16

78

23

45

14

38

40

26

25

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

ENGINE

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

15

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

ENGINE

1 532 17 05-51 Control Throt /Ch

2 817 72 04-08 Screw Hex Thd Cut 1/4-20x1/2

3 - - - - - - - - Engine B&S Model 21A807

(Order Parts from Engine Manufacturer)

4 532 17 97-58 Mufﬂer Exhaust B&S Lt

13 532 16 52-91 Gasket 1 313 Id Tin Plated

14 532 14 84-56 Tube Drain Oil Easy

16 811 05 06-00 Washer Lock Ext Tooth 3/8

23 532 16 98-37 Shield Browning/Debris Guard

25 532 18 09-45 Control Choke 1 Cyl.

26 873 92 06-00 Nut Keps 3/8-24 Unf.

29 532 13 71-80 Arrestor Spark

31 532 10 92-02 Tank Fuel

32 532 14 05-27 Cap Asm Fule Top Vent N/Lany

33 532 12 34-87 Clamp Hose Blk

37 532 13 70-40 Line Fuel 20"

38 532 18 16-54 Plug Drain Oil Easy

40 532 12 40-28 Bushing Snap

44 817 67 04-12 Screw Hexwsh Thdrol 3/8-16 x 3/4

45 817 00 06-12 Screw 3/8-16 x 3/4

46 819 09 14-16 Washer 9/32 X 7/8 X 16ga

72 532 18 39-06 Screw Socket Head 5/16-18 x 1

78 817 06 06-20 Screw 3/8-16x1-1/4

81 873 51 04-00 Nut Keps Hex 1/4-20 UNC

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

16

15

20

161718 20

20

15

20

4

5

6

2

31

65

4

7

8

12

11

31

32

31

32

19

13

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

MOWER LIFT

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

17

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

MOWER LIFT

1 532 15 94-60 Washer Asm Inner Spring W/

Plunger

2 532 15 94-71 Shaft Asm. Lift

3 532 10 57-67 Pin Groove

4 812 00 00-02 E Ring #5133-62

5 819 21 16-21 Washer 21/32 x 1 x 21 Ga.

6 532 12 01-83 Bearing Nylong

7 532 10 94-13 Grip Handle Bicycle

8 532 12 45-26 Button Plunger Black

11 532 16 58-29 Link Asm Lift L.H.

12 532 16 58-31 Link Asm Lift R.H.

13 532 12 46-70 Retainer Spring

15 532 17 32-88 Link Front

16 873 35 08-00 Nut Jam Hex 1/2-13 Unc

17 532 17 56-89 Trunnion Blk Zinc

18 873 80 08-00 Nut Lock w/Wsh 1/2-13 Unc

19 532 13 98-68 Arm Suspension Mower

20 532 16 35-52 Retainer Spring

31 532 16 98-65 Bearing, Pvt. Lift.

32 873 54 06-00 Nut Crownlock 3/8-24

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

18

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

MOWER

124

131

36

22

13

2

69

14

15 2

46

45

37

40

130

1

19

5

6

3

46

44

33

32

30

28

31

21

25

21

31

32

33

30

2

18

17

27

55

124

40

37

36

26

23

124

36

84

37

40

56

61

24

21

4

21

68

32

36

32

36

11

16

161 163

8

20

9

162

2

21

35

2

118

117

116

119

34

21

117 119

116

118

152

151

153 154

157

158

67

153

156

155

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

19

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

MOWER

1 532 16 55-52 Housing Asm. Mower

2 872 14 05-06 Bolt Rdhd Sqnk 5/16-18 Unc x 3/4

3 532 16 55-69 Bracket Asm. S-Bar Chass

4 532 16 55-58 Bracket Bar Sway Deck

5 532 12 46-70 Retainer Spring

6 532 16 55-57 Bar Sway

8 532 18 17-12 Bolt 3/8-24 x 1.25 Gr8 Patched

9 810 03 06-00 Washer Lock Hvy 3/8 Unplated

11 532 17 00-37 Blade 3-1 Lh

13 532 13 76-45 Shaft Asm. W/Lower Bearing

14 532 12 87-74 Housing Mandrel Vented (Machd)

15 532 11 04-85 Bearing Ball Mandrel

16 532 17 00-38 Blade 3-1 Rh

17 872 14 06-10 Bolt Carriage 3/8-16 x 1-1/4

18 872 11 06-06 Bolt Rdhd Sqnk 3/8-16 x 1 Gr5

19 532 13 28-27 Bolt Shoulder 5/16-18 Thd Form

20 532 18 17-13 Bolt 3/8-24 x 1.25 Gr8 Ptch Lhthd

21 873 68 05-00 Nut Crown Lock 5/16-18

22 532 16 52-43 Bracket Idler Sprt RR

23 532 16 54-46 Bracket Idler Sprt RF

24 532 16 52-42 Bracket Suspension LF

25 532 16 52-44 Bracket Suspension RF

26 532 16 52-37 Brace Support Susp Frt CRD

27 532 16 55-68 Bracket Asm. Susp RR

28 532 16 55-67 Bracket Asm. Susp LR

30 532 17 39-84 Screw Thd Rolling Washer Head

31 532 12 99-63 Washer Spacer Mower Vented

32 532 15 35-31 Mandrel Pulleys 36 & 46

33 532 17 83-42 Nut Flg Top Lock

34 532 16 52-39 Bracket Gauge Wheel Lf

35 532 16 52-38 Bracket Gauge Wheel Rf

36 532 14 67-63 Pulley Idler V-Groove Dim 4.25

37 819 13 13-16 Washer 11/32 x 13/16 x 16 Ga

40 873 68 06-00 Nut Crownlock 3/8-16 Unc

44 532 17 55-38 Cover Mandrel Lh

45 532 17 55-39 Cover Mandrel Rh

46 532 13 77-29 Screw Thd Roll 1/4-20 x 5/8

55 532 16 54-45 Arm Idler

56 532 16 57-23 Spacer Retainer PM Mower

61 532 16 59-45 Spring Tension Belt

67 532 10 69-32 Knob Rd 3/8-16 Plstc Thds Blk

68 532 18 02-17 Hex-Belt 92 Mower

69 532 16 54-82 Shaft Asm W/Lwr Brg Rh Thd CRD

84 532 15 60-85 Keeper Belt Idler

116 532 18 42-19 Bolt Shoulder

117 532 13 39-57 Wheel Gage Donut Wide

118 873 93 06-00 Nut Centerlock 3/8-16 Unc

119 819 12 14-14 Washer 3/8 x 7/8 x 14 Ga.

124 872 11 06-12 Bolt Carr Sh 3/8-16 x 1-1/2 Gr5

130 872 11 05-06 Bolt Rdhdsqnk 5/16-18 Unc x 3/4

131 532 16 56-61 Chute Bagger CRD

151 532 16 96-70 Bracket Clutch Cable

152 532 17 60-74 Cable Clutch CRD Service

153 532 16 96-74 Washer Flat 3/8" Type B

154 532 16 96-75 Spring Retainer

155 532 16 96-71 Spring Retainer Lvr Cltch Cab

156 532 16 96-72 Spacer Clutch Cable

157 532 16 96-69 Rod Clutch Cable 3/8"

158 817 72 04-08 Screw Hex Thdcut 1/4-20 x 5/8

161 532 18 04-18 Blade Cross Lh 92

162 532 18 60-13 Adapter Blade Cross

163 532 18 04-19 Blade Cross Rh 92

-- 532 18 18-57 Mandrel Asm Service

-- 532 18 18-58 Mandrel Asm CRD Lh Threads SVC

-- 532 18 17-65 Replacement Mower Complete

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

WMV-Dresden

20

8

4

5

4

6

1

23

21

22

25

20

24

31

43

32

2

9

18

2

12

17

19

42

41

37

37 38

38

39

17

11

10

11

13

16

36

16

14

28

26

3

7

3

7

REPAIR PARTS

TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00

BAGGER

WMV-Dresden, Ersatzteilservice für Elektrowerkzeuge, Motor- und Gartengeräte

Hurricane 12592RB Owner's manual

Popular Lawn Mower manuals by other brands
