Husqvarna 968999175 / ZTH7226KOA User manual

Operators manual 968999175/ZTH7226KOA
968999180/ZTH5221KAA
968999181/ZTH5223KAA
968999182/ZTH5223KOA
968999183/ZTH5223KOLA
968999184/ZTH5225KOA
968999185/ZTH5225KAA
968999186/ZTH6125KAA
968999187/ZTH6125KOA
968999188/ZTH6126KOA
968999189/ZTH6123KOLA
968999201/ZTH6127KOA
968999202/ZTH7227KOA
968999203/ZTH6123KAA
Models:
Please read these instructions carefully and make
sure you understand them before using the machine.
MANUAL NO. 539105907 REV. 05 (10/10/02)

2
Congratulations on the purchase of your HUSQVARNA mower. This manual has been prepared
for the owners and operators of the models called out on the front cover of this manual. Read,
understand and follow the safety and operating instructions.
Continuous dedication to improve our products require that specifications and design are
subject to change without notice.
! WARNING
Failure to follow cautious operating practices can result in serious injury to the operator or other
persons. The owner must understand these instructions, and must allow only trained persons who
understand these instructions to operate the mower. Each person operating the mower must be of
sound mind and body and must not be under the influence of any mind altering substance.
! CAUTION
1. Keep all shields, guards and safety devices in place and in proper working condition.
2. Stop engine and remove spark plug wires or remove key before adjusting, servicing, or performing
maintenance.
TECHNICAL ASSISTANCE
If you have any questions pertaining to your mower contact your dealer. To locate the nearest dealer
please call: 1-800-HUSKY-62.
For technical assistance please write: Husqvarna, 7349 Statesville Road, Charlotte, NC, 28269 or
call: 1-800-HUSKY-MD.
WARNING: Engine exhaust, some of it’s constituents, and certain vehicle components
contain or emit chemicals known to the State of California to cause cancer and birth defects
or other reproductive harm.
WARNING: Battery posts, terminals and related accessories contain lead and lead com-
pounds, chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm. Wash hands after handling.

3
CONTENTS
SAFETY INSTRUCTIONS.................... 4
General use and safety rules...... 4,5
Driving on slopes........................ 5
Children safety............................ 5
Service safety............................. 5,6
Transportation ............................ 6
PRESENTATION................................... 7
SETUP AND ADJUSTMENTS.............. 8
Setup .......................................... 8
Cuttingheight ............................. 8
Mowerdeck leveling ................... 9
Throttle lever tension .................. 9
Reverse spring detent adj........... 9
Park brake adj............................. 10
Motioncontrol leveradj. .............. 10,11
OPERATING INSTRUCTIONS ............ 11
Starting andoperation................. 11
Controls...................................... 11,12
MAINTENANCE .................................... 13
Engineoil .................................... 13
Mowerblades ............................. 13
Safety interlock system .............. 13
Hardware.................................... 14
Airfilter........................................ 14
Hydraulic system........................ 14
Deck belt .................................... 14
Pump belt ................................... 15
Lubrication.................................. 15
Tire pressure .............................. 15
Caster wheels ............................ 15
Fuelfilter..................................... 15
Winter storage............................ 15
TORQUE SPECIFICATIONS ............... 16
MAINTENANCE SCHEDULE ............... 17
TROUBLE SHOOTING........................ 18
WIRING DIAGRAMS ............................. 19-21

4
SAFETY INSTRUCTIONS
IMPORTANT !
This cutting machine is capable of amputat-
ing hands and feet and throwing objects.
Failure to observe the following safety
instructions could result in serious injury or
death. FIG - 1
General use and safety rules:
Read , understand and follow all instructions in
the manual and on the machine before start-
ing.
Make yourself familiar with the controls and
how to stop quickly.
Only allow adults who are familiar with the
instructions and the machine to operate it.
The use of PPE’s such as (but not limited to)
protection for the eyes, ears, feet and head is
recommended.
Never use the machine barefoot or with open
toed shoes. Wear substantial footwear and
long pants.
Never wear loose fitting clothes which can
catch in rotating or moving parts.
Clear the area of objects such as rocks,
stones, toys, wire etc., which could be picked
up and thrown by the blades.
Be sure the area is clear of all people and pets
before mowing. Stop the machine if anyone
enters the area.
Never carry passengers.
Do not cut in reverse unless absolutely neces-
sary.
Always look down and behind before and
during reversing.
Be aware of the mower discharge direction and
do not direct it towards anyone.

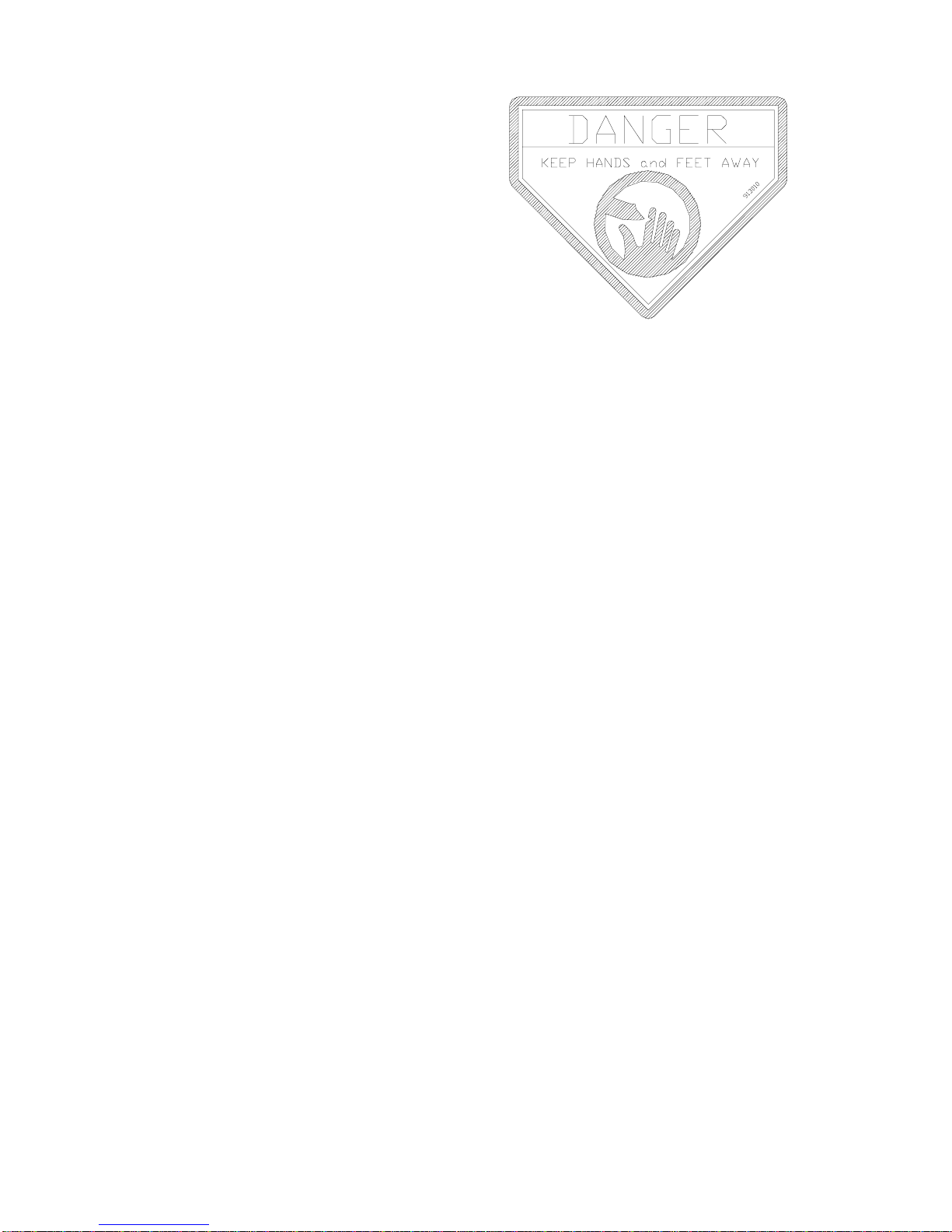

FIG - 1

5
Never operate the mower without the entire
grass catcher or discharge chute in place.
Slow down before turning.
Never leave the machine unattended when the
engine is running. Always turn off the blades,
set the parking brake, stop the engine and take
out the keys before leaving the machine.
Stop the blades when crossing surfaces other
than grass; or when traveling to and from the
area to be mowed.
Mow only in daylight or good artificial light.
Never use the machine when under the influ-
ence of alcohol or drugs.
Watch out for traffic when operating near or
crossing roadways.
Use extra care when loading and unloading the
machine onto a trailer or truck.
Never pull anything with the machine unless it
is an authorized attachment from Husqvarna. A
pull type trailer will not allow zero turn capabili-
ties and could cause serious injury or damage
to machine.
Driving on slopes
Slopes are a major factor related to loss-of-
control and tip over accidents, which can result
in serious injury or death. All slopes require
extra caution. If you cannot reverse up the
slope or you feel uncertain avoid mowing it.
Mow up and down slopes, not across.
Watch for holes, ruts or bumps. Uneven terrain
could cause the machine to overturn.
Keep all movement on slopes slow and
gradual. Do not make sudden changes in
speed or direction.
When turning on slopes always turn to the
downhill side.
Do not mow excessively steep slopes.
SAFETY INSTRUCTIONS
Use extra care when using a grass catcher on
slopes.
Avoid stopping and starting on slopes.
Do not cut wet grass. The tires will loose grip
and the machine can slide.
Children safety
Tragic accidents can occur if the driver does
not pay close attention to children in the area.
Children are often attracted to the machine and
the work of mowing. Never assume that chil-
dren stay where you saw them last.
Keep children away from the mowing area and
under adult supervision.
Be alert and turn off the machine if children
enter the mowing area.
Never allow children to ride on the machine.
Never allow children to operate the machine.
Service safety
Use extra care in handling gasoline and other
fuels. They are flammable and vapors are
explosive.
Store fuel in approved containers.
Never fill up the machine with fuel when it is
running.Allow engine to cool before refueling.
Do not smoke.
Never fill up with fuel indoors.
Never store machine or fuel containers inside
where there is an open flame.
Never run the machine inside a closed area.
Keep all nuts and bolts tight to keep machine in
safe operating condition.
Never tamper with safety devices. Check their
properoperation regularly.

6
Never operate the machine without proper
guards, covers, safety switches and devices in
place and properly functioning. Inspect these
items regularly. If their condition or operation is
questionable they must be replaced before
using the machine. FIG - 2
Keep machine free of grass, leaves and other
debris. Clean up oil, grease and fuel spills.
Stop and inspect the machine if you strike an
foreign object. Repair any damage before
restarting the machine.
Be extra careful when handling battery acid.
Acid can cause severe burns.
Never smoke when performing maintenance on
the battery. The battery can explode.
Do not alter the setting of the governor and do
not race the engine.
Never make adjustments with the engine
running.
Grass catcher components are subject to wear,
damage and deterioration, which could expose
moving parts or allow objects to be thrown.
Frequently check components and replace with
genuine parts, when necessary. FIG - 2
Mower blades are sharp and can cut. Wrap the
blades or use leather gloves. Always use
caution when handling them.
The machine is tested for safety and approved
only for equipment supplied or recommended
by Husqvarna.
Check the functioning of the brakes regularly.
Adjust and maintain them as needed.
Transportation
Use a heavy duty trailer to haul the machine.
Set parking brake, turn off fuel valve and strap
machine to trailer. NOTE: Parking brake will not
hold machine when transporting. Be sure to tie
down the machine to trailer. Back on the trailer
to prevent possible tip over.
SAFETY INSTRUCTIONS
THE MOWER SHALL NOT BE OPERATED WITHOUT
OPENING UNTIL BLADE OR BLADES HAVE STOPPED.
CHUTE DEFLECTOR FROM THE GRASS DISCHARGE
OPENING. DO NOT REMOVE THE GRASS CATCHER OR
DEFLECTOR COVERING THE GRASS DISCHARGE
EITHER THE ENTIRE GRASS CATCHER OR THE CHUTE
DANGER
!
FIG - 2

7
PRESENTATION
FUEL CAP
MOTION CONTROL
LEVERS
PARKING
BRAKE
DECK LIFT
LEVER
FOOT
PLATE
KEY SWITCH
BLADE
ENGAGEMENT
SWITCH
THROTTLE
Presentation
Thank you for buying a HUSQVARNA! Before
operating your new mower, read, understand
and follow the safety instructions and other
directions in this manual.
Lawnmowers and all power equipment, can be
potentially dangerous if used improperly.
Safety requires good judgement, careful use in
accordance with these instructions and com-
mon sense.

8
SETUP AND ADJUSTMENTS
WARNING: No settings or adjustments are to
be made unless: Engine is stopped, key has
been removed, park brake is on and battery
cable removed from battery.
Setup
Uncrate machine.
Mount rear drive wheels using the lug nuts
installed on the hubs.
Check the tire pressure in all four tires. All tires
should be 15 psi.
Remove top bolt in control arm and loosen
bottom bolt, rotate the control levers to the
upright position. Align the levers so they are
even in the neutral position. Reinstall hardware
and tighten. FIG - 3
Install seat rod to the seat frame with cotter pin
in plastic bag. Seat rod is located under the
seat in the hydraulic pump area.
Check engine oil with dip stick. Add if needed
per the engine manufactures specifications.
See engine manual for oil type and filling
specifications. FIG - 4
Loosen the discharge chute slightly and lower
into position. Chute should be snug but still
pivot freely.
Install armrests to seat. Hardware and armrests
are in the plastic bag.
Assemble the air cleaner hood to the inlet of the
air filter, (EFI models only).
Adjustments
Cutting Height
Stop the mower and disengage the blades.
Raise the deck height lever to the transport
position.
Remove the height adjustment pin and place it
in the desired cutting height hole. Lower the lift
lever down onto pin. NOTE: Anti-scalp rollers
must be in the proper position for maximum
deck floatation. See the decal on the front deck
for proper settings. FIG - 5
Lift Lever
Deck Height
Adjustment
Plates
Motion
Control
Lever
Control
Arm

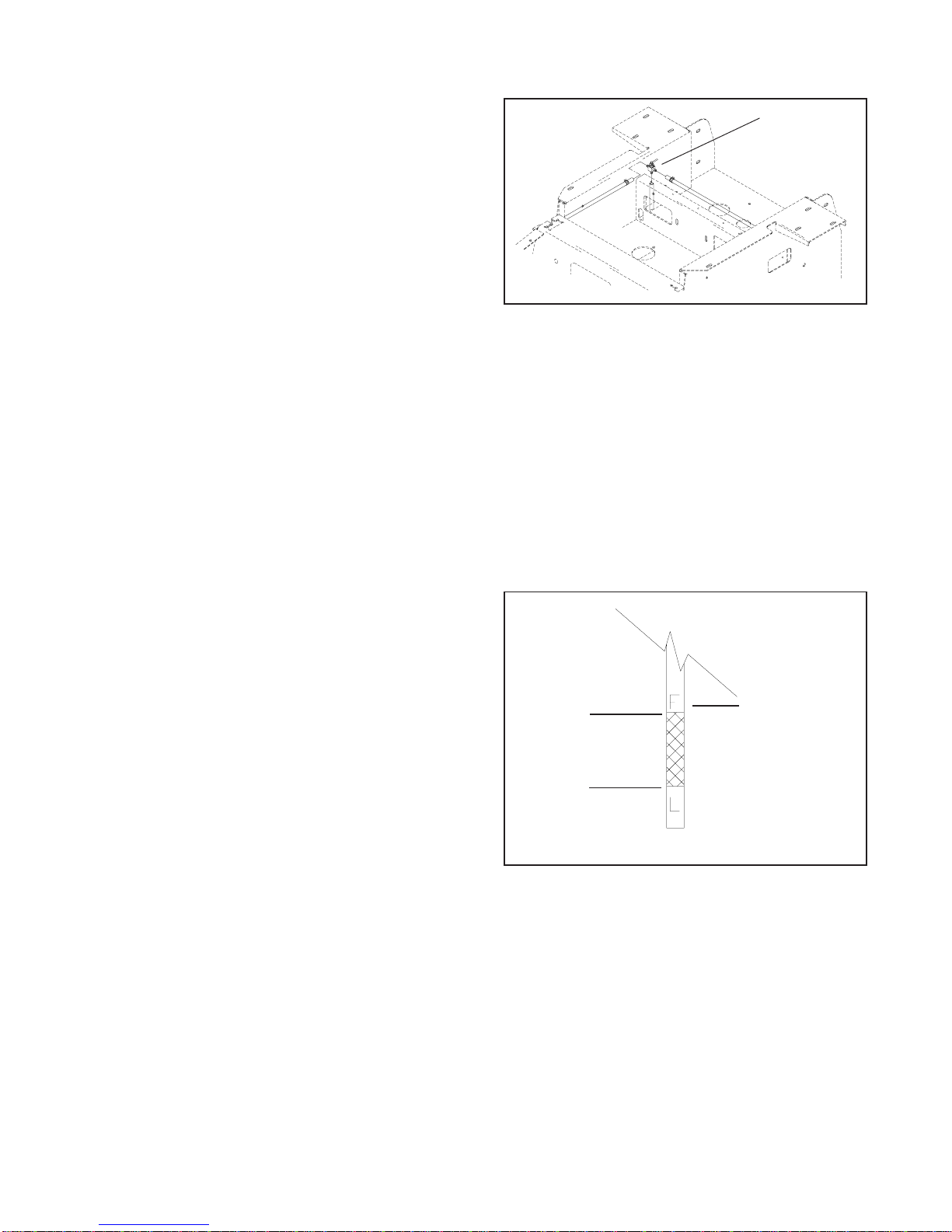

“F” Full
Mark
Operating
Range
FIG - 3
FIG - 4
FIG - 5

9
SETUP AND ADJUSTMENTS
Mower Deck Leveling
Position machine on a flat surface. Preferably
level concrete.
Check the tire pressure in all four tires. Inflation
should be 15 psi.
Place 2x4’s on edge under the cutting deck
from front to rear and lower the deck down
onto 2x4’s.
Adjust the four lower chain bolts to the center
slots on the deck. FIG - 6 NOTE: Make sure
the lift blocks under the frame are tightly bolted
to the frame.
Check the chains for equal tension. If unequal
adjust lower chain bolt in slot.
Place the deck in the 6” cutting height and
measure from the cutting edge of the blade to
the flat level surface to check the deck cutting
height.
Throttle Lever Tension
Stop engine and remove key.
Throttle lever tension may be adjusted by
tightening the pivot bolt. The pivot bolt secures
the throttle arm to the mounting bracket which
is mounted to the console. Access is gained by
removing the console.
Reverse Spring Detent Adjustment
Stop engine and remove key.
Pull the motion control lever back to the re-
verse position and release the lever. When the
lever stops it should be in line with the neutral
slot, so you can move the lever into neutral slot
with out hitting the side of the console frame.
If adjustment is required put the seat in the rear
most position on the slide, tilt the seat forward,
remove the seat rod from seat frame and fold
seat over forward onto the frame.
On the back of the console where the spring is
fastened, loosen the 3/8” nut and bolt enough
to allow the bolt to slide in the slot. FIG - 7
Motion
Control
Lever
Reverse Detent
Adjustment Slot
Reverse Detent
Spring
Deck Lift Arm
Slots For Chain
Adjustment
Rotate the motion control lever out into the
neutral slot. While the lever is swung out into the
neutral slot pull it against the back edge of the
neutral slot. Holding the lever adjust the spring
by sliding the bolt in the slot to remove all the
slop and retighten the bolt.
Check your adjustment by repeating the second
step in this process.
If no more adjustment is needed reassemble
the seat rod to the seat frame.
FIG - 6
FIG - 7

10
Motion Control Linkage Adjustment
This adjustment must be made with the rear
wheels rotating. Raise the rear of the machine
and block it up so the wheels are free to rotate.
CAUTION: Keep hands, feet and clothing
away from rotating tires.
Tilt seat forward and remove the seat rod so the
seat may rotate forward onto the frame.
Place a 2x4 board between the foot plate and
the center of the seat to engage the seat
safety switch.
Loosen the nuts directly behind each ball joint
on both rods that connect the pump arm to the
motion control assemblies. FIG - 9
Start the engine. The park brake must be
engaged and the motion control levers in the
neutral slots to start the engine. Run the en-
gine approximately half throttle
Release park brake to allow the wheels to
rotate.
SETUP AND ADJUSTMENTS
Turn Here
To Adjust
Loosen Here
Loosen Here
(Lt. Hand Thds.)
Motion
Control
Lever
Park Brake Adjustment
When park brake is in the engaged position the
distance between the trunion and the bolt head
at the rear of the assembly should measure 1/8”
to 1/4” and the spring should measure 1.25”. To
adjust the gap between the trunion and the bolt
head loosen the nut against the yoke then turn
the bolt head the proper direction to achieve the
proper gap. To adjust the length of the spring
turn the nut against the spring the proper direc-
tion to lengthen or shorten the spring. This
adjustment is the same for both sides. FIG - 8
• If brake lever trys to catch as you engage the
brake the spring needs to be tightened. When
you change the spring length you also have to
maintain the 1/8” to 1/4” gap between the bolt
head and the trunion.
NOTE: Do not force the brake lever into the on
position if it is catching this will cause damage
to the brake assembly.
• If brake squeaks while the machine is in use.
The spring may be to tight or the gap between
the bolt head and the trunion may be to large.
Loosen here
1/4” Gap
Spring
FIG - 8
FIG - 9
Begin with either side and put the motion control
lever into the neutral position.Adjust the motion
control linkage by rotating the double nuts in the
proper direction until the wheel stops rotating.
FIG - 9 Move the motion control lever forward
then into the neutral position and place it into the
neutral slot. The wheel must be stopped com-
pletely at this point. Now do the same in reverse
and release the lever. The lever should return to
neutral on its own. If not see reverse spring
detent adjustment.

11
Run engine full throttle to make sure wheels do
not rotate. Readjust if any rotation occurs.
Repeat the whole process for the opposite side
and tighten the nuts against the ball joints.
Turn machine off.
Reinstall the seat rod and check the wiring
harness to the seat safety switch for a good
connection and return the seat to the normal
position.
OPERATING INSTRUCTIONS
Starting and operation
Operator must be sitting in the seat. Engage
the park brake, blades disengaged and the
motion control levers in the neutral slots.
Set choke (if needed) turn key and release as
soon as engine starts. Adjust throttle to half
and shut choke off.
Release parking brake.
Close motion control levers.
Engage blades and set RPM to maximum.
CAUTION: Be sure all persons are clear of the
area before engaging blades.
Controls
Be familiar with all controls their function and
how to operate them before starting the ma-
chine.
Motion control levers on each side of the
console control the direction of movement. See
page 7. The left lever controls the flow of oil
from the left hydro pump to the left wheel
motor. The right lever controls the flow of oil
from the right hydro pump to the right wheel
motor.
NOTE: To begin motion the operator must be in
the seat and the parking brake disengaged
before the motion control levers can be moved
from the neutral slots or the engine will kill. FIG
- 10
Operating instructions

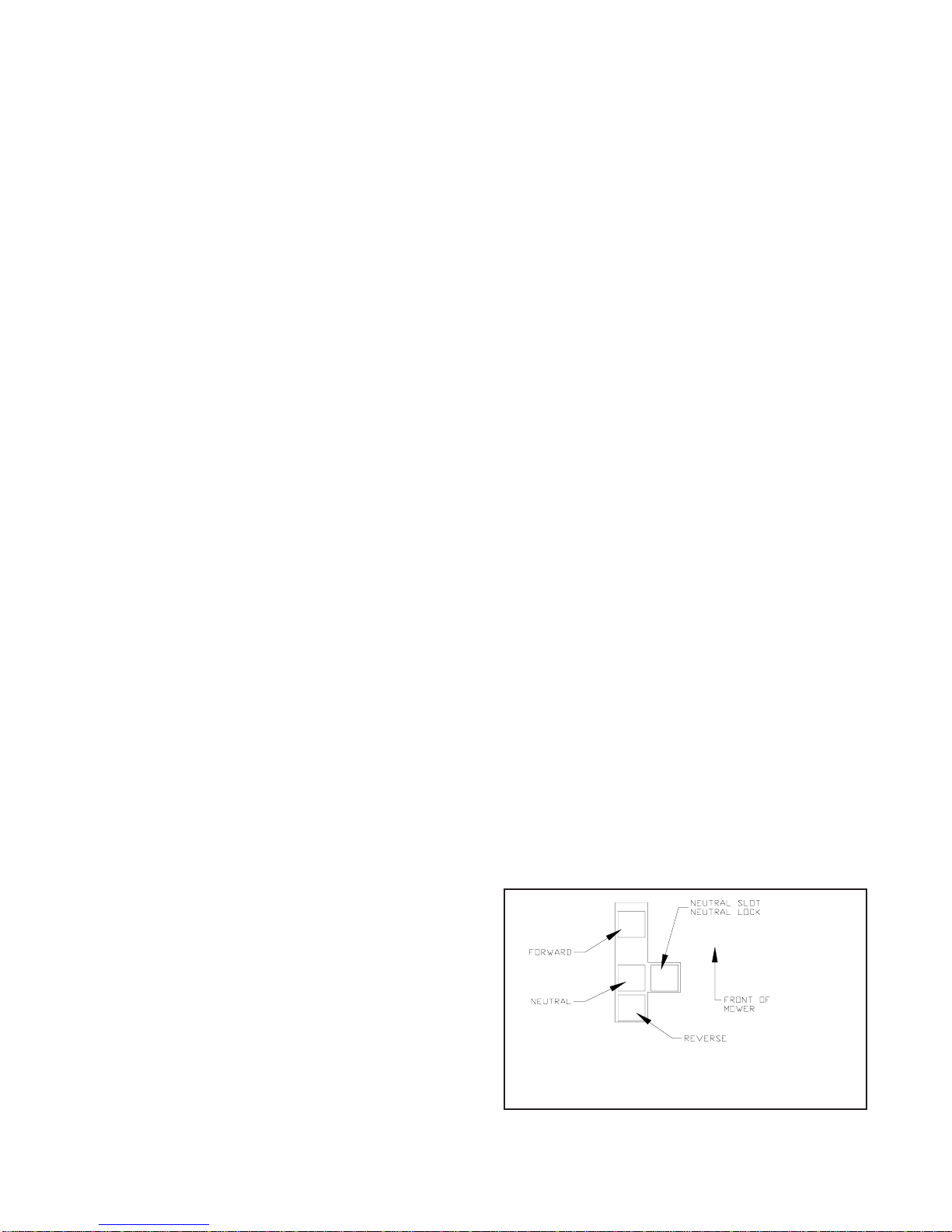

Motion Control Lever Pattern
(Right Side)
FIG - 10

12
By moving the levers an equal amount forward
or back the machine will move in a straight line
in that direction. FIG - 11
Movement of either lever forward will cause the
right or left wheel to rotate in a forward direc-
tion. To stop movement pull both levers into the
neutral position.
To turn right while moving in a forward direction
pull the right lever back towards the neutral
position, this will slow the rotation of the right
wheel and cause the machine to turn in that
direction.
To turn left while moving in a forward direction
pull the left lever back towards the neutral
position, this will slow the rotation of the left
wheel and cause the machine to turn in that
direction.
To zero turn pull one lever back beyond neutral
while holding the other slightly ahead of neu-
tral. NOTE: The direction of the zero turn will
be determined by which lever is pulled back
beyond neutral. Thus left lever back, left zero
turn and opposite for right zero turn. Use extra
care when using this maneuver the machine
can spin very rapidly if one lever is posi-
tioned to far ahead of the other.
Blade engagement switch located on the
console is engaged by pulling up on the switch
and pushed down to disengage. FIG - 12
Choke control is located on the console. To
choke engine pull knob push to release. FIG -
12
Throttle control is located on the console. Used
to control engine RPM. FIG - 12
Parking brake is located on the left side of the
machine and directly in front of the fuel tank.
Pull the lever back to engage the brake and
push lever forward to release the brake.
Key switch is located on the console. Used to
start the machine. NOTE: Do not run the starter
for more than 5 seconds at a time. If the en-
gine will not start, wait about 10 seconds
before trying again. FIG - 12
OPERATING INSTRUCTIONS
Key Switch
Throttle
Choke
Blade
Engagement
Motion Control Lever Pattern
(Right Side)
FIG - 11
FIG - 12

13
Fuel shut off valve is located at the right rear of
the seat. The valve has three positions a right
tank, left tank and center is the off position. FIG
- 13. NOTE: EFI models the left position is the
off position.
Pump release valves located at the right front
corner of the pumps. Used to release the
system so the machine may be moved by hand
when not running. Tilt seat forward to gain
access to the pumps. Use a 5/8” wrench to
open valve. NOTE: Only rotate valve 1/4 turn to
release system.
Maintenance
WARNING: No settings, adjustments or
maintenance is to be made unless: Engine
is stopped, key has been removed, park
brake is on and battery cable removed from
battery.
Annual inspection and maintenance from an
authorized Husqvarna dealer is recommended
to keep your machine in the best condition
mechanically and ensures safe operation.
Engine oil
Should be checked daily before starting the
machine. See the engine manufacturers
manual for specifications on type of oil, filling
instructions and service intervals. FIG - 14
Mower blades
Inspect blades and sharpen or replace as
needed. Check blades daily or as needed.
Bent, cracked or blades with large notches in
them should be replaced. Sharpen to an angle
of 22 to 28 degrees. Always check the balance
of the blades after sharpening to prevent
excessive vibration.
MAINTENANCE
Safety interlock system
Check daily and never operate the machine if
the system is not functioning properly. The
starter should crank only when the operator is
in the seat, the parking brake is applied, blade
switch off and the motion control levers in the
neutral slots. If the machine starts with any of
these controls in an operating position, turn the
machine off an repair the system immediately.
“F” Full
Mark
Operating
Range
Fuel Valve
FIG - 13
FIG - 14

14
Hardware
Check daily. Inspect the entire machine for
loose or missing hardware.
Air filter
See engine manufacturers specifications for
cleaning and replacement intervals.
Hydraulic system
Check oil level in tank daily. Oil level should be
3/4” to 1” below the top of the tank. Check all
fittings, hoses and lines for damage or leaks.
Replace or repair any questionable lines or
fittings.
Change the oil and filter after the first 250 hours
of operation then annually after that. Drain tank
and remove filter, be sure to clean around the
tank and filter head before removal. Replace
filter and drain plug and refill hydraulic tank. Only
use MOBIL 1 synthetic oil. FIG - 15
Raise and block up the rear of the machine so
the drive wheels can rotate freely. Start the
engine at the lowest RPM possible, move the
motion control levers forward and run machine
for several minutes. Stop engine and recheck
theoil level.
If the wheels do not respond an air lock has
occurred within the system. The system must
be bled off of air or let the machine set overnight
to allow the air time to dissipate out of the oil.
DO NOT run the machine with an air lock
serious damage can occur to the pumps and
wheel motors.
Deck belt
Check every 75 to 100 hours of operation.
Check for severe cracking and large nicks.
NOTE: The belt will show some small cracks in
normal operation.
To replace belt lower the deck to its lowest
position. Remove the foot plate and belt shields.
Use a ratchet with a 9/16” socket on the spring
idler bolt to relieve the tension on the belt. Slide
the belt off of pulley and fully remove the belt.
Reverse the procedure for installation. See the
decal on the top of deck for belt routing informa-
tion. FIG - 16.After installation is complete
check the belt for twists.
MAINTENANCE
Tri-Synthetic Formula
0
ONLY USE
FIG - 15
FIG - 16

15
MAINTENANCE
Pump belt
Check belt every 100 hours for excessive wear.
To replace belt. Relieve tension on the deck belt
and remove deck belt from clutch. See deck belt
instructions on previous page. Loosen bolt on
the clutch tie down and rotate out of the way.
Using a 1/2” drive ratchet inserted into the
square hole in the pump idler arm relieve the
tension on the pump belt and remove belt. To
reinstall belt. Swing pump idler pulley out toward
engine to route belt around it. Then route belt
around right side pulley first as you are looking
up from the underside of machine. Reinstall
idler spring and use the ratchet to rotate idler so
the belt may be installed all the way around the
lastpulley.
Lubrication
See service decal under foot plate for service
points and maintenance intervals. Clean grease
zerks thoroughly before greasing. See engine
manual for engine service. FIG - 17
Tire pressure
Check every 25 hours.All four tires require 15
psi.
Caster Wheels
Check every 200 hours. Lift front of unit off of
ground so caster wheels can rotate freely.
Tighten caster bolt then back off 1/2 turn. Check
that wheel rotates freely. If wheel does not rotate
freely back the caster bolt off in 1/4 turn incre-
ments until wheel rotates freely.
Fuel filter
Replace every 500 hours or annually. In ex-
tremely dirty conditions replacement may need
to be at shorter intervals.

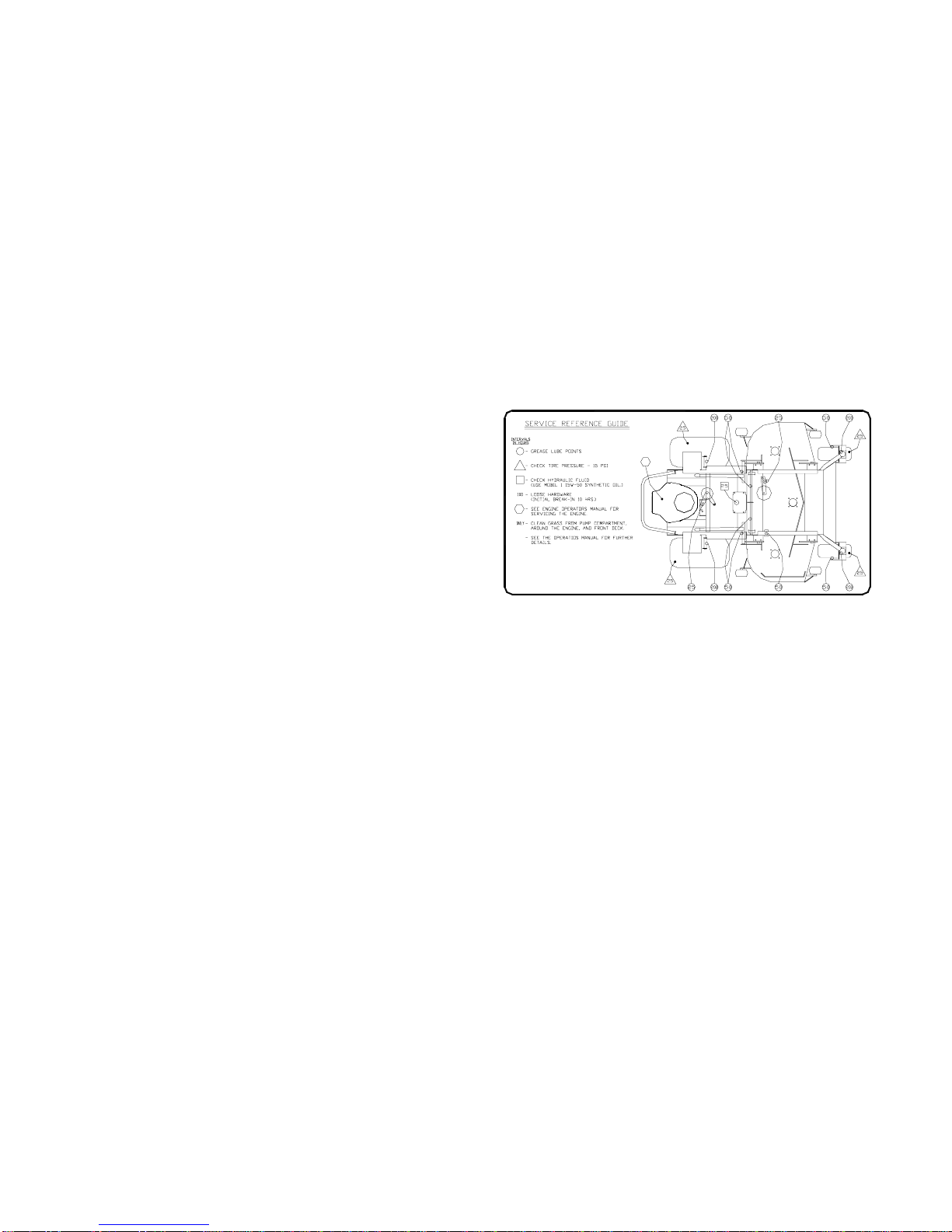

SERVICE DECAL
FIG - 17
Winter storage
To prepare the machine for storage. Clean the
machine, especially under the deck. Touch-up
the paint or spray the underside of deck with a
light coat of oil.
Inspect the machine for damage and loose
hardware.
Change the oil.
Drain the fuel system or add stabilizer to fuel.
Make sure to run the machine after to circulate
stabilizer throughout system.
Remove the plugs and add 1 tablespoon of oil in
each cylinder. Install plugs and crank the engine
two or three revolutions.
Grease all zerks.
Remove battery and store inside and protect it
from freezing temperatures.

16
Torque Specifications
·Engine crankshaft bolt 67 Nm(50 ft/lb)
·Deck pulley bolts 61 Nm (45 ft/lb)
·Hydraulic tube nuts 41 Nm (30 ft/lb)
·Wheel motor hub nut 122 Nm (90 ft/lb)
·Lug nuts 100 Nm (75 ft/lb)
·Blade bolt 122 Nm (90 ft/lb)
·Standard ¼” fasteners 12 Nm (9 ft/lb)
·Standard 5/16” fasteners 25 Nm (18 ft/lb)
·Standard 3/8” fasteners 44 Nm (33 ft/lb)
·Standard 7/16” fasteners 70 Nm (52 ft/lb)
·Standard ½” fasteners 110 Nm (80 ft/lb)
MAINTENANCE

17
Maintenance Schedule
For ZTH Riders
Maintenance Maintenance Interval (hours)
Daily 25 50 100 200 250 500
Engine (4) Checkoillevel X
Changeoilandfilter(1) X
Cleantheairfilter’s (3) X
Replaceairfilter’s(3) X
Checkforfuelandoilleakage X
Cleancoolingflanges(3) X
Check cooling air inlet X
Checkfuelpump’sair filter X
Replacefuelfilter X
Replaceplugs X
Hydraulics Checkoillevel X
Check for oil leaks X
Changehydraulicoil(2) XX
Changeoilfilter(2) XX
Electrical Checkbattery X
Check the safety system X
Lubricate Leftandrightbrakes X
Leftandright motion control shafts X
Left and right deck struts X
Deckidlerarm X
Pumpidlerarm X
Casterswivels X
Castertires X
Deckliftlever X
Throttlecable X
Chokecable X
General Check bolts and nuts X
Check cutting deck X
Cleancutting deck (3) X
Cleanpumpcompartment(3) X
Checktirepressure (15 psi) X
Check belts X
Check and adjust throttle cable X
Notes: 1.Changeengineoiland filter after first 50 hours and then every 100 hours.
2.Changehydraulic oil and filter after the first 250hoursor season and then every 500 hours.
3.Duringdustyor dry conditions cleaning and replacement should be more frequent.
4.Refertoenginemanualfor more information.
MAINTENANCE

18
TROUBLE SHOOTING
PROBLEM POSSIBLE CAUSES
ENGINE WILL NOT START.
Blade switch on.
Drive levers not in the neutral slots.
Operator not in seat.
Park brake disengaged.
Dead battery.
Fuel valve closed or in the wrong position.
No fuel.
Spark plugs defective.
Spark plug wires off.
MACHINE WILL NOT MOVE OR MOVES
SLOWLY OR HARD.
Park brake on.
Pump bypass valves open.
Pump drive belt loose or off.
Hydraulic system failure.
Air in the hydraulic system.
BLADES WILL NOT ENGAGE. Blade belt off.
Clutch unhooked form wiring harness.
Blade switch failure or unhooked from harness.
Fuse burnt out.
UNEVEN CUT
Tire pressure uneven.
Blades bent.
Deck chains uneven.
Deck lift blocks loose.
Anti-scalp rollers set uneven.
CUT IS RAGGED Blades dull.
Ground speed to fast.
Grass to long.
Grass accumulation under deck.
MACHINE VIBRATION Blades loose.
Blades unbalanced.
Engine loose from mounts.

19
WIRING DIAGRAMS

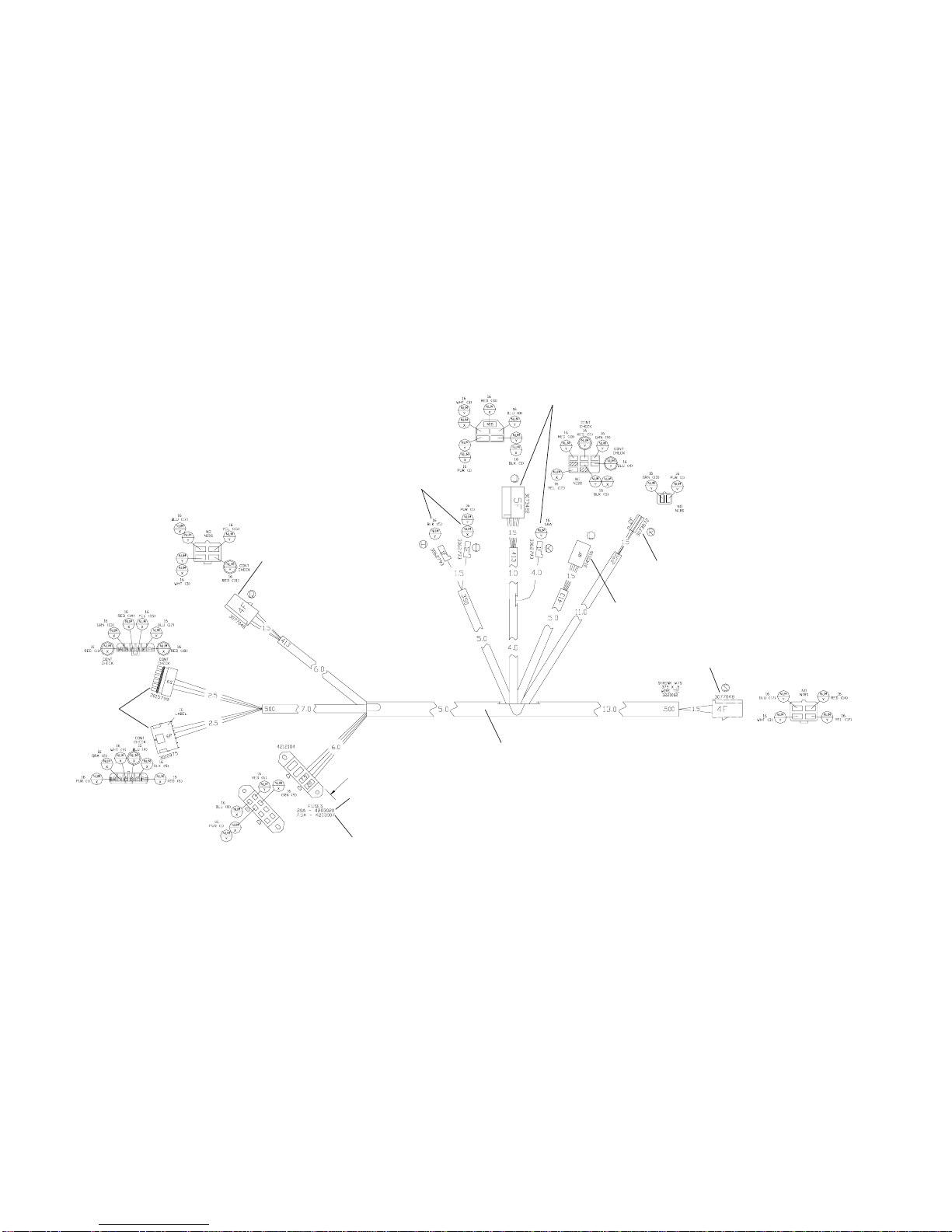

CONSOLE HARNESS
Frame
Harness
Engine
Clutch
Left
Motion
Control
Hour
Meter
Blade
Switch
Seat
Starter
Switch
Right
Motion
Control
P/N
104414

20
WIRING DIAGRAMS
CONSOLE HARNESS SCHEMATIC
