Husqvarna AUTOMOWER 435X AWD User manual

EN, English
Operator's manual
HUSQVARNA AUTOMOWER®
435X AWD
Read the operator's manual carefully and make sure that you
understand the instructions before you use the product.
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Husqvarna
AUTOMOWER 435XAWD o cerca il tuo prodotto tra le migliori offerte di Macchine Giardinaggio

Contents
1 Introduction
1.1 Support.......................................................3
1.2 Product description.....................................3
1.3 Product overview .......................................4
1.4 Symbols on the product..............................5
1.5 Symbols on the battery...............................6
1.6 Automower® Access.................................. 6
2 Safety
2.1 Safety definitions...................................... 10
2.2 General safety instructions.......................10
2.3 Safety instructions for operation...............12
3 Installation
3.1 Introduction - Installation.......................... 15
3.2 Before the installation of the product........15
3.3 Before the installation of the wires........... 19
3.4 Installation of the product......................... 20
3.5 To put the wire into position with stakes...21
3.6 To bury the boundary wire or the
guide wire....................................................... 22
3.7 To change the position of the
boundary wire or the guide wire..................... 22
3.8 To extend the boundary wire or the
guide wire....................................................... 22
3.9 To install the wheel brushes.....................22
3.10 After the installation of the product.........23
3.11 Automower® Connect.............................23
3.12 Overview of settings in Automower®
Access and Automower® Connect................. 24
3.13 To start the product for the first time...... 25
3.14 Settings in Automower® Access.............26
3.15 Settings in Automower® Connect...........26
4 Operation
4.1 To switch on the product.......................... 30
4.2 Operating modes......................................30
4.3 To stop the product.................................. 31
4.4 To switch off the product.......................... 31
4.5 To charge the battery............................... 31
5 Maintenance
5.1 Introduction - maintenance.......................32
5.2 Clean the product..................................... 32
5.3 Replace the blades...................................33
5.4 To replace the top covers.........................34
5.5 Battery...................................................... 36
5.6 Winter service...........................................37
6 Troubleshooting
6.1 Introduction - troubleshooting...................38
6.2 Error icons in the Automower®
Access display................................................38
6.3 Fault messages........................................ 40
6.4 Information messages.............................. 44
6.5 Indicator lamp in the charging station.......45
6.6 Symptoms................................................ 46
6.7 Find breaks in the loop wire..................... 47
7 Transportation, storage and disposal
7.1 Transportation.......................................... 50
7.2 Storage.....................................................50
7.3 Disposal....................................................50
8 Technical data
8.1 Technical data.......................................... 52
9 Warranty
9.1 Guarantee terms...................................... 55
10 EC Declaration of Conformity
10.1 EC Declaration of Conformity.................56
21035 - 001 - 04.02.2019

1 Introduction
Serial number:
PIN code:
The serial number is on the product rating plate and on the product carton.
• Use the serial number to register your product on www.husqvarna.com.
1.1 Support
For support about the Husqvarna product, speak
to your servicing dealer.
1.2 Product description
Note: Husqvarna regularly updates the
appearance and function of the products. Refer
to
Support on page 3 .
The product is a robotic lawn mower. The product
has a battery power source and cuts the grass
automatically. Collection of grass is not
necessary.
The operator selects the operation settings with
the jog wheel. The display shows the selected
and possible operation settings, and the
operation mode of the product.
The boundary wire and the guide wire controls
the movement of the product within the work
area.
1.2.1 Automower® Access
The user interface of the product is called
Automower® Access. It consists of the display,
the jog wheel, the LED status indicator, the
START button and the STOP button. Refer to
Automower® Access on page 6 .
1.2.2 Automower® Connect
Automower® Connect is a mobile application that
makes it possible to select the operation settings
remotely. Refer to
Automower® Connect on page
23
.
1035 - 001 - 04.02.2019 Introduction - 3

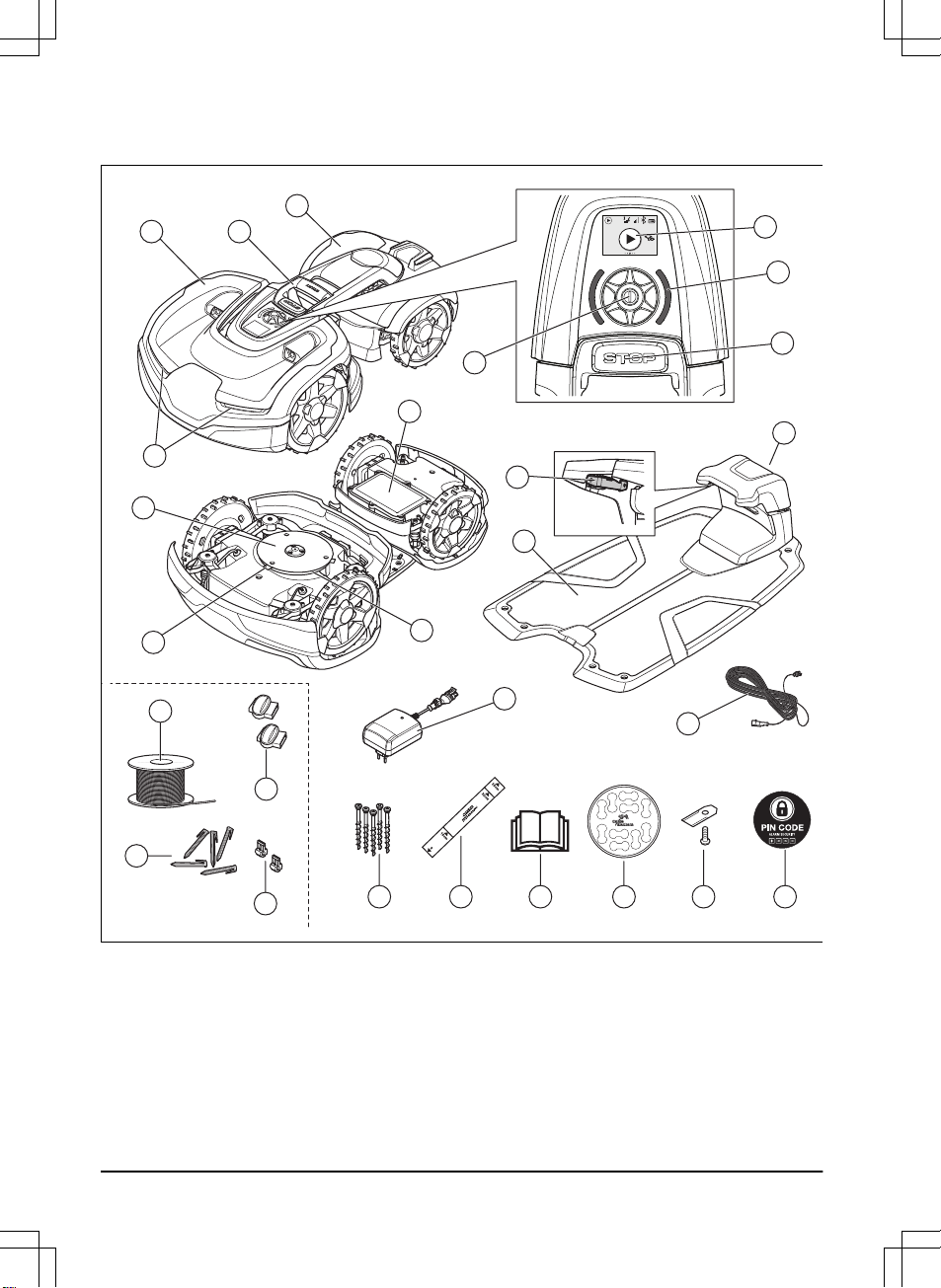

1.3 Product overview
P
3
1
3
10
6
5
8
9
2
12
11
13
14
15
4
16
17
19 182122 2023
26
24
27
25
7
1. Front top cover
2. Lifting handle
3. Rear top cover
4. Headlights
5. Display
6. LED status indicator
7. Jog wheel
8. STOP button
9. START button
10. Battery cover
11. Skid plate
12. Blades
13. Blade disc
14. LED for operation check of the charging
station and boundary wire
15. Contact strips
4 - Introduction 1035 - 001 - 04.02.2019

16. Charging station
17. Power supply (the appearance of the power
supply may differ depending on market)
18. Low voltage cable
19. Alarm decal
20. Extra blades
21. Cable markers
22. Operator’s Manual and Quick Guide
23. Measurement gauge for help when installing
the boundary wire (the measurement gauge
is broken loose from the box)
24. Screws for securing the charging station
25. Loop wire for boundary loop and guide wire
1
26. Couplers for loop wire 2
27. Stakes3
28. Connector for the loop wire 4

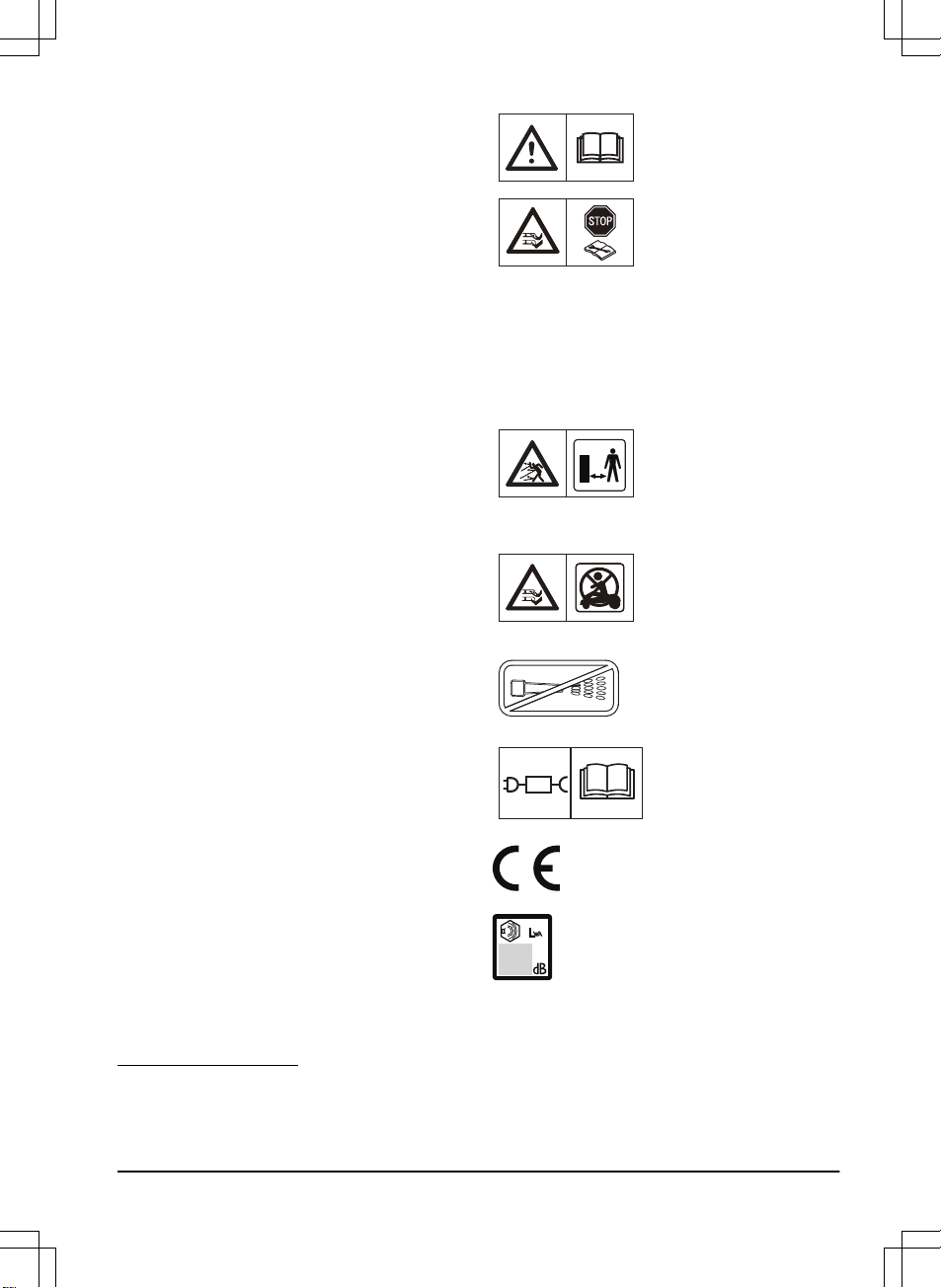

1.4 Symbols on the product
These symbols can be found on the product.
Study them carefully.
WARNING: Read the
user instructions before
operating the product.
WARNING: Operate the
disabling device before
working on or lifting the
machine.
The product can only start
when the correct PIN
code has been entered.
Switch off the product be-
fore carrying out any in-
spections and/or mainte-
nance.
WARNING: Keep a safe
distance from the ma-
chine when operating.
Keep your hands and feet
away from the rotating
blades.
WARNING: Do not ride
on the machine. Never
put your hands or feet
close to or under the ma-
chine.
Never use a high-pres-
sure washer or even run-
ning water to clean the
product.
Use a detachable power
supply as defined on the
rating label next to the
symbol.
This product conforms to the
applicable EC Directives.
Noise emission to surroundings. The
product’s emissions are set out in
Technical data on page 52 and on the
rating plate.
1Is a part of the Installation kit which is purchased separately.
2Refer to note 1
3Refer to note 1
4Refer to note 1
1035 - 001 - 04.02.2019 Introduction - 5

It is not permitted to dispose this
product as normal household waste.
Ensure that the product is recycled in
accordance with local legal
requirements.
The chassis contains components
which are sensitive to electrostatic
discharge (ESD). The chassis must
also be resealed in a professional
manner. For these reasons the chassis
shall only be opened by authorized
service technicians. A broken seal can
result in the entire or parts of the
guarantee no longer being valid.
The low voltage cable must not be
shortened, extended or spliced.
Do not use a trimmer nearby the low
voltage cable. Be careful when
trimming edges where the cables are
placed.

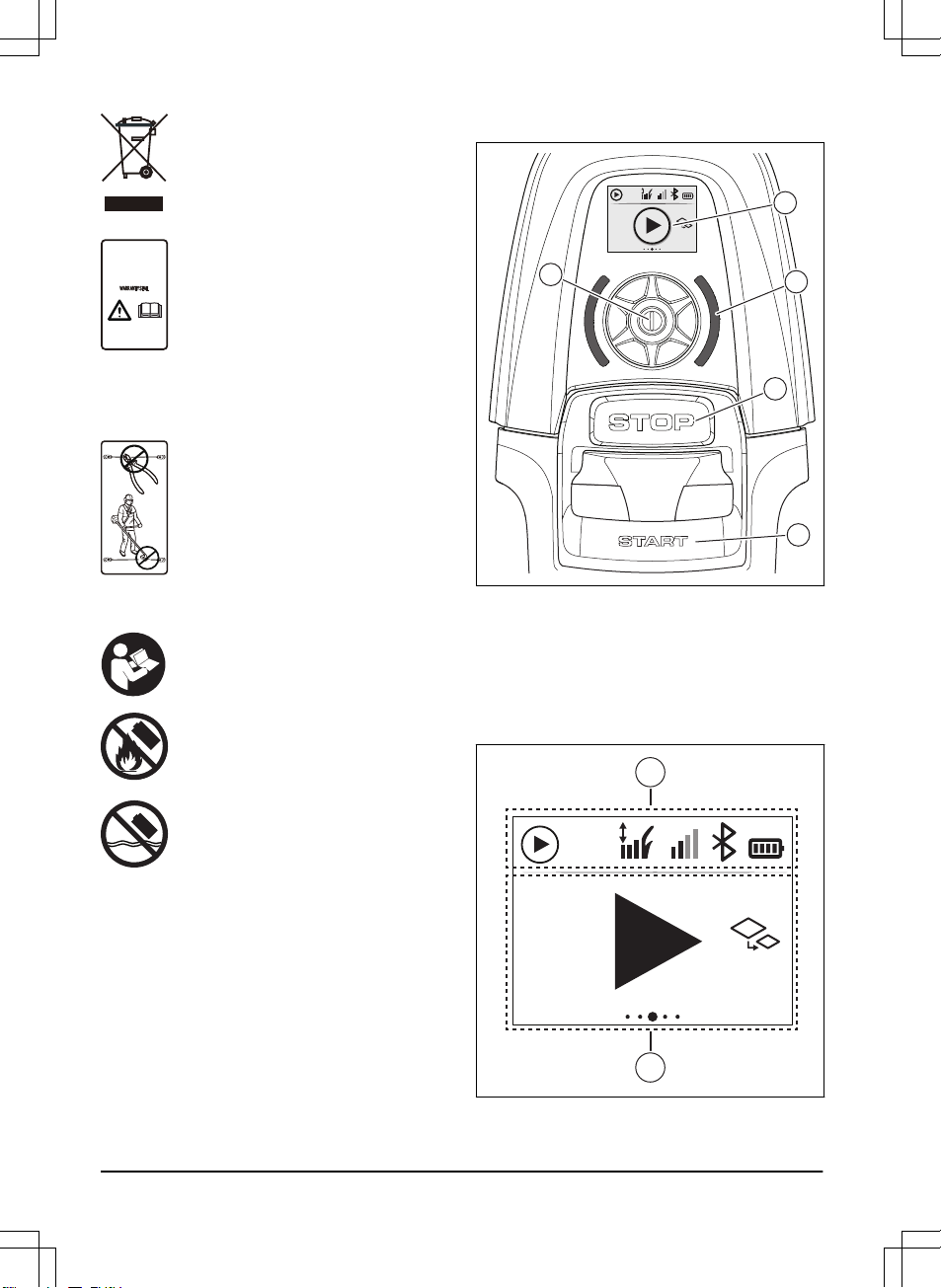

1.5 Symbols on the battery
Read the user instructions.
Do not discard the battery into fire and
do not expose the battery to a heat
source.
Do not immerse the battery into water.
1.6 Automower® Access
P
3
1
3
2
4
5
1. Display
2. Jog wheel
3. LED status indicator
4. STOP button
5. START button
1.6.1 Display
P
3
A
B
6 - Introduction 1035 - 001 - 04.02.2019

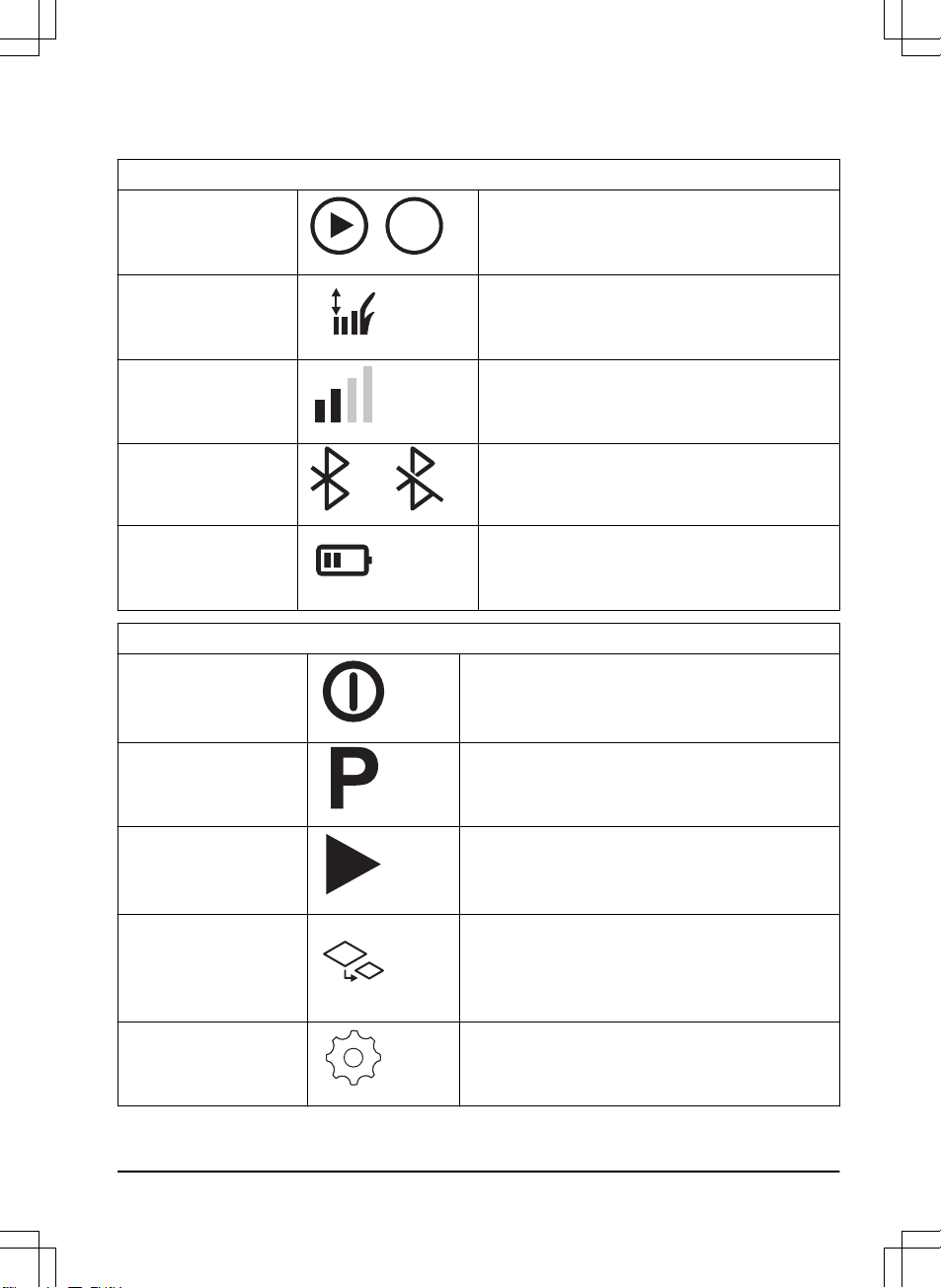

The display shows the status bar and the main
menu icons. If an error occurs, the display shows
error icons. Refer to Error icons in the
Automower® Access display on page 38 .
A. Status bar
Product activity
P
The current product activity status is shown as ei-
ther mowing or parked.
Cutting height
6
The icon shows the current cutting height.
Mobile network
The icon shows the current cellular signal
strength.
Bluetooth® status
When the Bluetooth® connection is active, the left
Bluetooth® icon is visible in the status bar.
Battery level
The icon shows the current battery status.
B. Main menu icons
On/Off
When the On/Off icon is confirmed in the main
menu, the product is switched off. For how to switch
on the product, refer to To switch on the product on
page 30 .
Park
In the Park menu it is possible to let the product park
in the charging station. For different options, refer to
Menu structure overview on page 8 .
Main area
The Main area is the standard operating mode
where the product mows and charges automatically.
For different options, refer to Menu structure over-
view on page 8 .
Secondary area
If you select the Secondary area mode, the product
must be manually moved to and from an adjacent
work area, refer to To make a secondary area on
page 18 . For different options, refer to Menu struc-
ture overview on page 8 .
Settings
In the Settings menu it is possible to adjust the cut-
ting height, and to activate Bluetooth® pairing.
1035 - 001 - 04.02.2019 Introduction - 7

1.6.2 To operate Automower® Access
For information on what is what, refer to
Automower® Access on page 6 .
If it is the first time you start the product, refer
to To start the product for the first time on page
25 .
1. Push the jog wheel to start the display. If the
product is turned off, refer to
To switch on
the product on page 30 .
2. Turn the jog wheel clockwise to move to the
right or down in the menus. Turn the jog
wheel counterclockwise to move to the left
or up in the menus.
3. Push the jog wheel to select a menu option.
1.6.3 Menu structure overview
9
8
7
6
5
4
3
2
1
90min
30min
24h
12h
6h
3h
24h
48h
12h
6h
3h
P
8 - Introduction 1035 - 001 - 04.02.2019

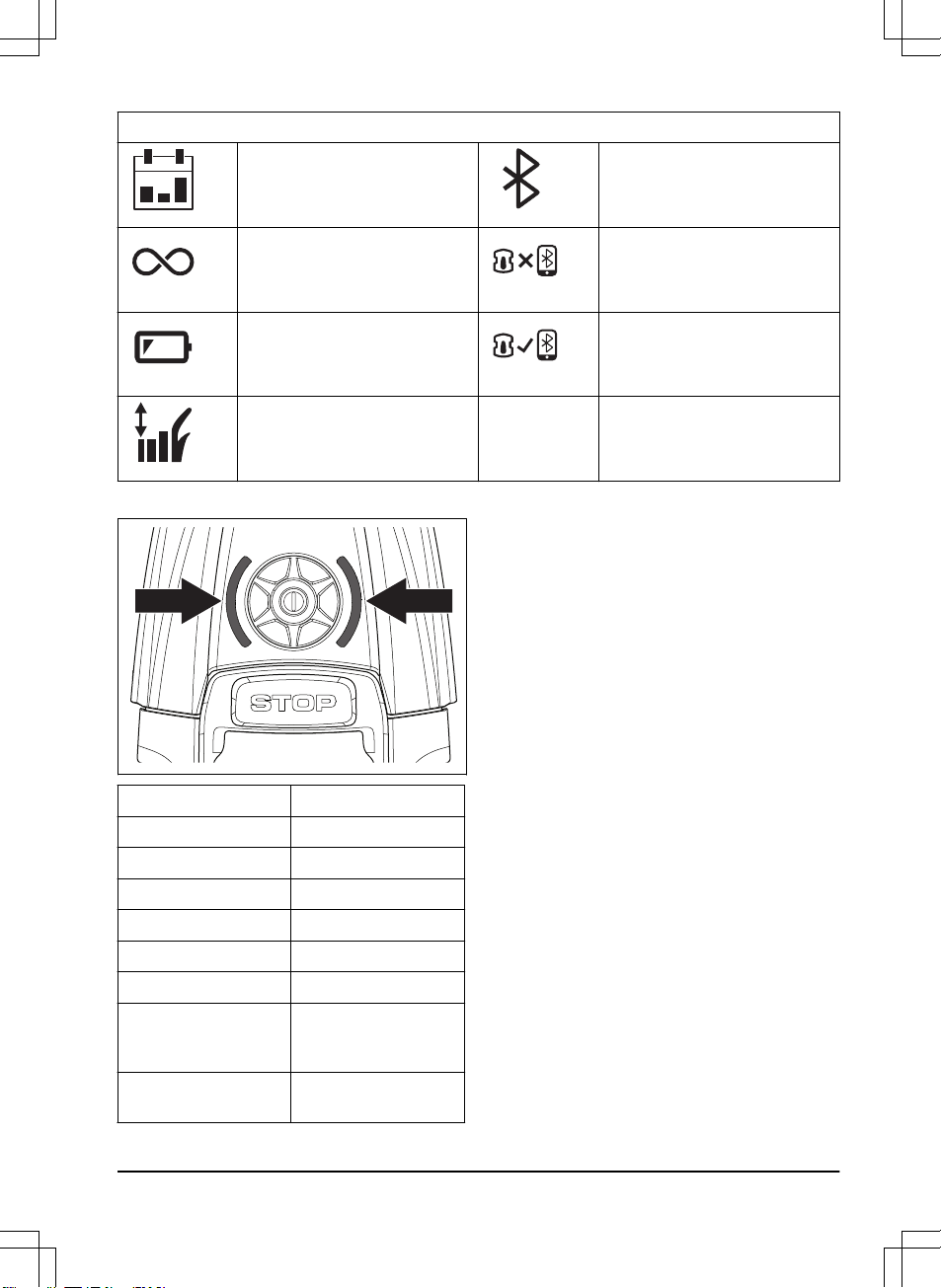

Icon description
Use the current timer settings in
the Automower® Connect app.
Activate the Bluetooth® pairing
mode.
Operate in the selected mode
until a new option is chosen.
Pairing between the product and
mobile device is not successful.
Operate in the selected mode
until the battery is empty.
Pairing between the product and
mobile device is successful.
Change the cutting height.
1.6.4 LED status indicator
LED indication Status
Green In operation
Blue Parked
Red Error
Yellow Paused/stopped
Flashing (yellow) PIN code needed
Pulsating (green/blue) Charging in progress
Flashing (green/blue) Push the jog wheel to
confirm start of opera-
tion.
Flashing (green, low-
frequent)
In an idle status (inac-
tive).
1035 - 001 - 04.02.2019 Introduction - 9

2 Safety
2.1 Safety definitions
Warnings, cautions and notes are used to point
out specially important parts of the manual.
WARNING: Used if there is a risk of
injury or death for the operator or
bystanders if the instructions in the
manual are not obeyed.
CAUTION: Used if there is a risk of
damage to the product, other materials
or the adjacent area if the instructions
in the manual are not obeyed.
Note: Used to give more information that is
necessary in a given situation.
2.2 General safety instructions
The following system is used in the Operator’s
Manual to make it easier to use:
• Text written in italics is a text that is shown
on the display of the product or is a
reference to another section in the
Operator’s Manual.
• Text written in bold is one of the buttons on
the product.
• Text written in
UPPERCASE and italics refer
to the different operating modes available in
the product.
10 - Safety 1035 - 001 - 04.02.2019

2.2.1 IMPORTANT. READ CAREFULLY
BEFORE USE. KEEP FOR FUTURE
REFERENCE
The operator is responsible for accidents or hazards occurring to
other people or property.
This appliance is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities (that
could affect a safe handling of the product), or lack of experience
and knowledge, unless they have been given supervision or in-
struction concerning use of the appliance by a person responsible
for their safety.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Local regula-
tions may restrict the age of the operator. Cleaning and mainte-
nance shall not be made by children without supervision.
Never connect the power supply to an outlet if the plug or cord is
damaged. Worn or damaged cord increase the risk of electric
shock.
Only charge the battery in the included charging station. Incorrect
use may result in electric shock, overheating or leaking of corro-
sive liquid from the battery. In the event of leakage of electrolyte,
flush with water/neutralizing agent. Seek medical help if it comes
in contact with the eyes.
Use only original batteries recommended by the manufacturer.
Product safety cannot be guaranteed with other than original bat-
teries. Do not use non-rechargeable batteries.
The appliance must be disconnected from the supply mains when
removing the battery.
1035 - 001 - 04.02.2019 Safety - 11

WARNING: The product
can be dangerous if used
incorrectly.
WARNING: Do not use
the product when
persons, especially
children, or animals, are
in the work area.
WARNING: Keep your
hands and feet away
from the rotating blades.
Never put your hands or
feet close to or under the
product when the motor
is running.
2.3 Safety instructions for operation
2.3.1 Use
• The product may only be used with the
equipment recommended by the
manufacturer. All other types of use are
incorrect. The manufacturer’s instructions
with regard to operation/maintenance must
be followed precisely.

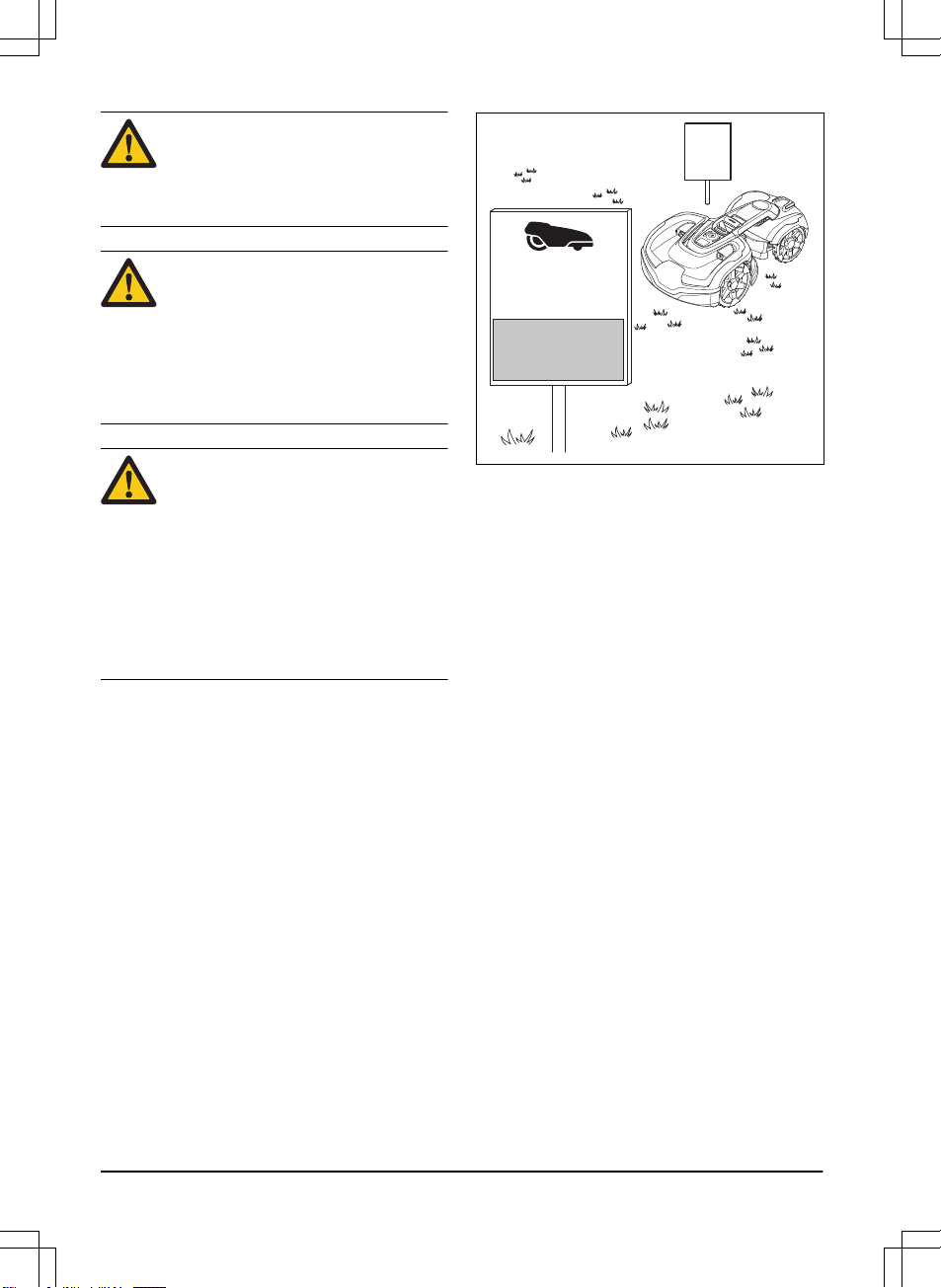

• Warning signs shall be placed around the
work area of the product if it is used in public
areas. The signs shall have the following
text: Warning! Automatic lawnmower! Keep
away from the machine! Supervise children!
WARNING!
Automatic lawnmower!
Keep away from the machine!
Supervise children!
I am a robotic lawnmower and I work here quietly
to keep the lawn in perfect condition.
I work 24/7 independently of weather conditions and do it
without releasing any exhaust emissions.
Stay a while and enjoy my work,
but please let me work in peace.
• Use the park function or switch off the
product when persons, especially children or
pets, are in the work area. It is
recommended to program the product for
use during hours when the area is free from
activity, e.g. at night. Consider that certain
species, e.g. hedgehogs, are active at night.
They can potentially be harmed by the
product. Refer to
Timer on page 26 .
• The product may only be operated,
maintained and repaired by persons that are
fully conversant with its special
characteristics and safety regulations.
Please read the Operator’s Manual carefully
and make sure you understand the
instructions before using the product.
• It is not permitted to modify the original
design of the product. All modifications are
made at your own risk.
• Check that there are no stones, branches,
tools, toys or other objects on the lawn that
can damage the blades. Objects on the lawn
can also lead to the product getting stuck.
Help may be required to remove the object
before the product can continue mowing.
Always switch off the product before clearing
a blockage.
12 - Safety 1035 - 001 - 04.02.2019

• Switch on the product according to the
instructions. When the product is switched
on; make sure to keep your hands and feet
away from the rotating blades. Never put
your hands and feet under the product.
• Never touch moving hazardous parts, such
as the blade disc, before it has come to a
complete stop.
• Never lift up the product or carry it around
when it is switched on.
• The product must never be allowed to
collide with persons or other living creatures.
If a person or other living creature comes in
the way of the product, it shall be stopped
immediately. Refer to
To stop the product on
page 31 .
• Do not put anything on top of the product or
its charging station.
• Do not allow the product to be used with a
defective guard, blade disc or body. Neither
should it be used with defective blades,
screws, nuts or cables. Never connect a
damaged cable, or touch a damaged cable
before it is disconnected from the supply.
• Do not use the product if the STOP button
does not work.
• Always switch off the product when it is not
in use. The product can only start when the
correct PIN code has been entered.
• The product must never be used at the
same time as a sprinkler. Use the timer
function so the product and sprinkler never
run simultaneously. Refer to
Timer on page
26 .
• Husqvarna does not guarantee full
compatibility between the product and other
types of wireless systems such as remote
controls, radio transmitters, hearing loops,
underground electric animal fencing or
similar.
• The built-in alarm is very loud. Be careful,
especially if the product is handled indoors.
• Metal objects in the ground (for example
reinforced concrete or anti-mole nets) can
result in a stoppage. The metal objects can
cause interference with the loop signal
which then can lead to a stoppage.
• Operation and storage temperature is 0-50
°C / 32-122 °F. Temperature range for
charging is 0-45 °C / 32-113 °F. Too high
temperatures might cause damage to the
product.
2.3.2 Battery safety
WARNING: Lithium-ion batteries can
explode or cause fire if disassembled,
short-circuited, exposed to water, fire,
or high temperatures. Handle carefully,
do not dismantle, open the battery or
use any type of electrical/mechanical
abuse. Avoid storage in direct sunlight.
For more information about the battery, refer to
Battery on page 36

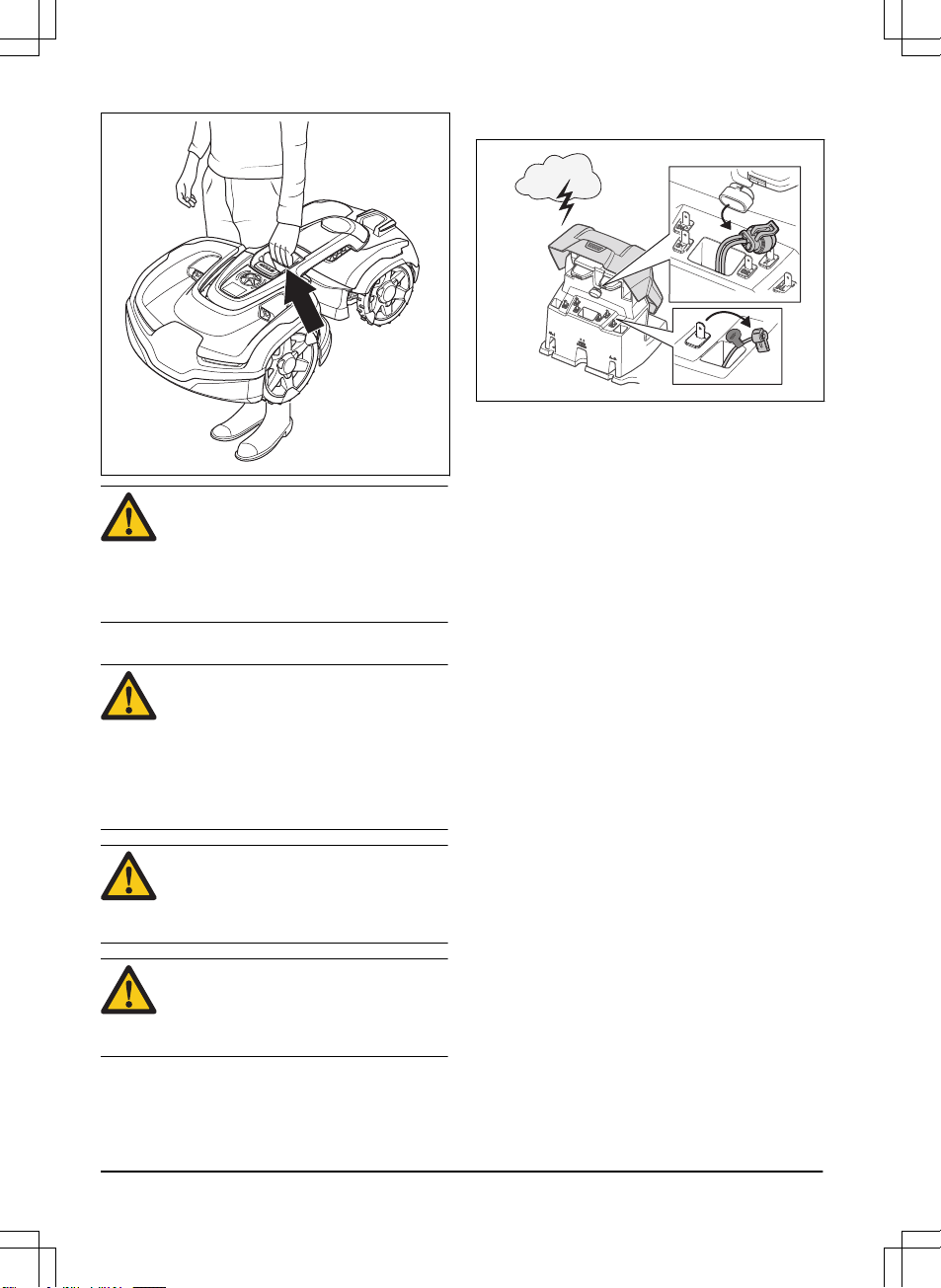

2.3.3 How to lift and move the product
To safely move from or within the work area:
1. Push the STOP button to stop the product.
2. Push the jog wheel for 3 seconds to switch
off the product.
3. Make sure that the LED status indicator is
not lit.
4. Carry the product by the lifting handle as the
illustration shows.
1035 - 001 - 04.02.2019 Safety - 13

CAUTION: Do not lift the product when
it is parked in the charging station. It
can damage the charging station
and/or the product. Push the STOP
button and pull the product out of the
charging station before lifting it.
2.3.4 Maintenance
WARNING: The product must be
switched off before it is turned upside
down.
The product must be switched off
before all work on the chassis of the
product, such as cleaning or replacing
the blades.
CAUTION: Never use a high-pressure
washer or even running water to clean
the product. Never use solvents for
cleaning.
CAUTION: Use the plug to disconnect
the charging station before any
cleaning or maintenance of the
charging station or the loop wire.
Inspect the product each week and replace any
damaged or worn parts. Refer to Introduction -
maintenance on page 32
.
2.3.5 In the event of a thunderstorm
To reduce the risk of damage to electrical
components in the product and the charging
station, we recommend that all connections to the
charging station are disconnected (power supply,
boundary wire and guide wire) if there is a risk of
a thunderstorm.
1. Mark the wires to simplify reconnecting. The
charging station’s connections are marked
AR, AL and G1. Some models have
additional guide wires (G2, G3).
2. Disconnect all connected wires and the
power supply.
3. Connect all the wires and the power supply
if there is no longer a risk of thunder. It is
important that each wire is connected to the
right place.
14 - Safety 1035 - 001 - 04.02.2019

3 Installation
3.1 Introduction - Installation
WARNING: Read and understand the
safety chapter before you install the
product.
CAUTION: Only use original spare
parts and installation material.
Note: Refer to www.husqvarna.com for more
information about installation.

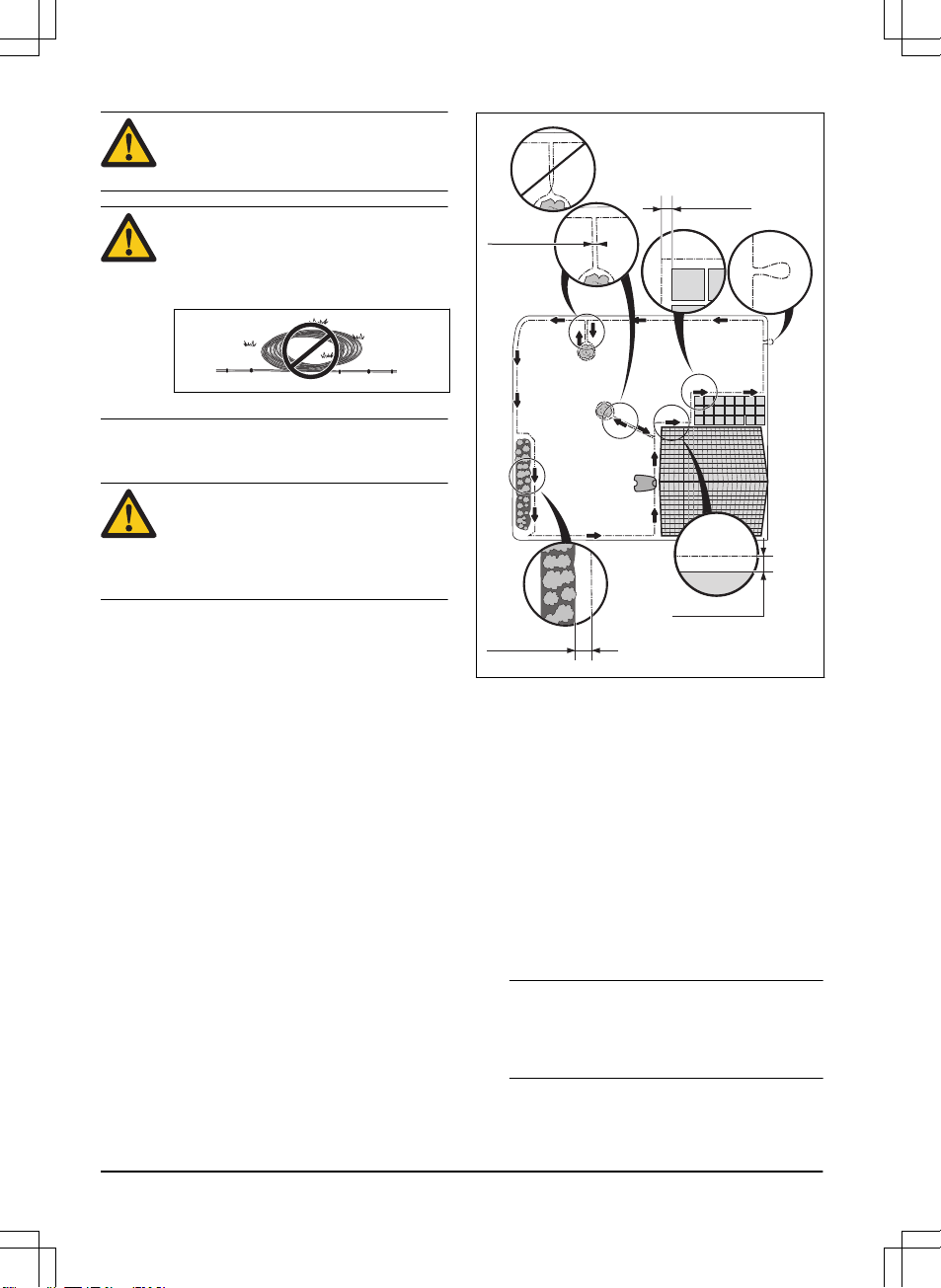

3.2 Before the installation of the
product
• Make a blueprint of the work area and
include all obstacles.
• Make a mark on the blueprint where to put
the charging station, the boundary wire and
the guide wire.
• Make a mark on the blueprint where the
guide wire connects to the boundary wire.
Refer to
To install the guide wire on page
21 .
• Fill in holes in the lawn.
Note: Holes with water in the lawn can
cause damage to the product.
3.2.1 To examine where to put the charging
station
• Keep a minimum 3 m / 10 ft. of free space in
front of the charging station.
• Keep a minimum of 1.5 m / 5 ft. of free
space to the right and to the left of the
charging station.
• Put the charging station near an outdoor
power outlet.
• Put the charging station on a level surface.
max. 5 cm / 2"
max. 5 cm / 2"
• Put the charging station in the largest open
section of the work area.
• Put the charging station in an area without
an irrigation system.
• Put the charging station in an area with
protection from the sun.
• If the charging station is installed on an
island, make sure to connect the guide wire
to the island. Refer to
To make an island on
page 17 .

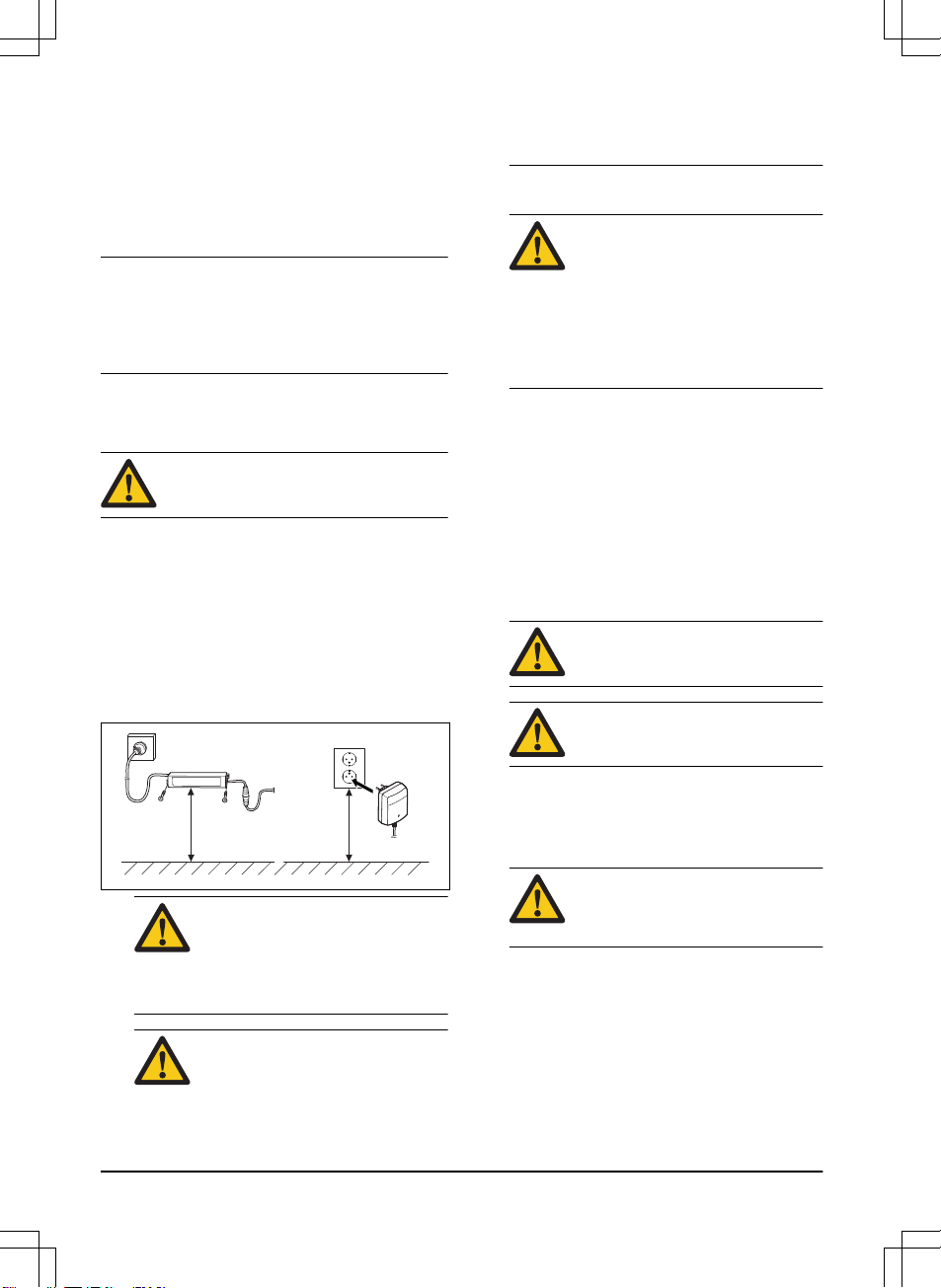

3.2.2 To examine where to put the power
supply
• Put the power supply in an area with a roof
and protection from the sun and rain.
• Put the power supply in an area with good
airflow.
• Use a residual-current device (RCD) when
you connect the power supply to the power
outlet.
WARNING: Do not change the power
supply. Do not cut or extend the low-
voltage cable. There is a risk of
electrical shock.
Low-voltage cables of different lengths are
available as accessories.
1035 - 001 - 04.02.2019 Installation - 15

CAUTION: Make sure that the blades
on the product do not cut the low-
voltage cable.
CAUTION: Do not put the low-voltage
cable in a coil or below the charging
station plate. The coil causes
interference with the signal from the
charging station.
3.2.3 To examine where to put the
boundary wire
CAUTION: If the work area is adjacent
to water bodies, precipices or a public
road, the boundary wire must have a
protective wall. The wall must be
minimum 15 cm / 6 in. in height.
10 cm / 4"
0 cm / 0"
30 cm / 12"
35 cm / 14"
C
B
E
D
F
A
• Put the boundary wire around all of the work
area (A). Adapt the distance between the
boundary wire and obstacles.
• Put the boundary wire 35 cm / 14 in. (B)
from an obstacle that is more than 5 cm / 2
in. high.
• Put the boundary wire 30 cm / 12 in. (C)
from an obstacle that is 1-5 cm / 0.4-2 in.
high.
• Put the boundary wire 10 cm / 4 in. (D) from
an obstacle that is less than 1 cm / 0.4 in.
• If you have a paving stone path that is in
level with the lawn, put the boundary wire
below the paving stone.
Note: If the paving stone is minimum 30 cm /
12 in. wide, use the factory setting for the
Drive Past Wire function to cut all the grass
adjacent to the paving stone.
16 - Installation 1035 - 001 - 04.02.2019

CAUTION: Do not let the product
operate on gravel.
• If you make an island, put the boundary wire
that runs to and from the island near
together (E). Put the wires in the same
stake.
• Make an eyelet (F) where the guide wire is
to be connected to the boundary wire.
CAUTION: Do not make sharp
bends when you install the
boundary wire.
CAUTION: For careful operation
without noise, isolate all obstacles
such as trees, roots and stones.
3.2.3.1 To put the boundary wire in a slope
> 1.5 m / 5 ft
> 1.5 m / 5 ft
0% - 50%
50% - 70%
> 1.5 m / 5 ft
• For slopes up to 50% steep inside the work
area, the product will operate normally.
Keep a distance of 1.5 m / 5 ft between the
boundary wire and obstacles, or between
obstacles.
• For slopes between 50-70% steep, make
sure that there are no obstacles in the slope.
There must be a distance of 1.5 m / 5 ft from
the bottom of the slope to the boundary wire.
• For slopes adjacent to a public road, put a
fence or a protective wall along the outer
edge of the slope.
3.2.3.2 Passages
A passage is a section that has boundary wire on
each side and that connects 2 work areas. The
passage must be a minimum of 60 cm / 24 in.
wide.
Note: If a passage is less than 2 m / 6.5 ft. wide,
install a guide wire through the passage.
A dead end must be a minimum of 2.5 m / 8.5 ft.
wide.
>2 m / 7 ft
>2.5 m / 8.5 ft
>2 m / 7 ft
Max.
distance
>60 cm / 12"
>30 cm / 12"
Note: Make sure that the guide wire has as much
free area as possible to the left of the guide wire
when facing the charging station. Minimum
distance between the guide wire and boundary
wire is 30 cm / 12 in.
3.2.3.3 To make an island
• Put the boundary wire to and around the
obstacle to make an island.
• Put the 2 sections of boundary wire that run
to and from the obstacle together.
1035 - 001 - 04.02.2019 Installation - 17

• Put the 2 sections of boundary wire in the
same stake.
• Make sure that there is a minimum of 1.5 m /
5 ft of empty space before an obstacle.
0 cm/0"
1.5 m/ 5 ft 1.5 m/ 5 ft
CAUTION: Do not put a section of
boundary wire across the other. The
sections of boundary wire must be
parallel.
CAUTION: Do not put the guide wire
across the boundary wire, for example
a boundary wire that goes to an island.
3.2.3.4 To make a secondary area
Make a secondary area if the work area has 2
areas that are not connected with a passage.
• Put the boundary wire around the secondary
area (B) to make an island. The work area
with the charging station is the main area
(A). Refer to
Main area on page 30 .
B
A
Note: When the product cuts grass in the
secondary area, the
Secondary area mode
must be selected. Refer to Secondary area
on page 30
.
3.2.4 To examine where to put the guide
wire
Depending on product model, the product can
have up to 3 guide wires. Use the same
approach for all guide wires.
• Put the guide wire in a line at a minimum of
2 m / 7 ft. in front of the charging station.
• Make sure that the guide wire has as much
free area as possible to the left of the guide
wire when facing the charging station.
• Put the guide wire minimum 30 cm / 12 in.
from the boundary wire.
• Do not make sharp bends when you install
the guide wire.
• If the work area has a slope, put the guide
wire in a straight line from the bottom of the
slope to the top of the slope. If it is not
possible to make a straight line, put the
guide wire diagonally across the slope.
18 - Installation 1035 - 001 - 04.02.2019

CAUTION: Do not put the guide
wire in parallel with the slope, as
the illustration shows. This can
increase the wear on the grass.
3.2.5 Work area examples
B
D
A
C
• If the charging station is put in a small area
(A), make sure that the distance to the
boundary wire is at a minimum 3 m / 10 ft.
• If the work area has a passage (B), make
sure that the distance to the boundary wire
is at a minimum 2 m / 6.5 ft. If the passage is
smaller than 2 m / 6.5 ft., install a guide wire
through the passage. Minimum passage
between the boundary wire is 60 cm / 24 in.
• If the work area has areas which are
connected by small passages (C), you can
change the settings of Lawn Coverage.
Refer to
Lawn coverage on page 27 .
• If the work area includes a secondary area
(D), refer to
To make a secondary area on
page 18
. Put the product in the secondary
area and select Secondary area mode , refer
to
Secondary area on page 30 .
3.3 Before the installation of the wires
You can select to attach the wires with stakes or
bury them. You can use the 2 procedures for the
same work area.
1035 - 001 - 04.02.2019 Installation - 19

• Bury the boundary wire or the guide wire if
you are going to use a dethatcher on the
work area. If not, attach the boundary wire
or guide wire with stakes.
• Cut the grass before you install the product.
Make sure that the grass is maximum 10
cm / 4 in.
Note: The first weeks after installation the
perceived sound level when cutting the grass
may be higher than expected. When the product
has cut the grass for some time, the perceived
sound level is much lower.
3.4 Installation of the product
3.4.1 To install the charging station
WARNING: Obey national regulations
about electrical safety.
1. Read and understand the instructions about
the charging station. Refer to To examine
where to put the charging station on page
15
.
2. Put the charging station in the selected area.
3. Connect the low-voltage cable to the
charging station.
4. Put the power supply at a minimum height of
30 cm / 12 in.
min 30 cm / 12”
WARNING: Do not put the power
supply at a height where there is a
risk it can be put in water. Do not
put the power supply on the
ground.
WARNING: Do not encapsulate
the power supply. Condensed
water can harm the power supply
and increase the risk of electrical
shock.
5. Connect the power supply cable to a
100-240V outdoor power outlet.
WARNING: Applicable to USA/
Canada. If power supply is
installed outdoors: Risk of Electric
Shock. Install only to a covered
Class A GFCI receptacle (RCD)
that has an enclosure that is
weatherproof with the attachment
plug cap inserted or removed.
6. Put the low-voltage cable in the ground with
stakes or bury the cable. Refer to To put the
wire into position with stakes on page 21
or
To bury the boundary wire or the guide wire
on page 22 .
7. Connect the wires to the charging station.
Refer to
To install the boundary wire on
page 20
and To install the guide wire on
page 21 .
8. Attach the charging station to the ground
with the supplied screws.
CAUTION: Do not make new
holes in the charging station plate.
CAUTION: Do not put your feet on
the charging station.
3.4.2 To install the boundary wire
1. Put the boundary wire around all of the work
area. Start and complete the installation
behind the charging station.
CAUTION: Do not put unwanted
wire in a coil. The coil causes
interference with the product.
2. Open the connector and put the boundary
wire in the connector.
20 - Installation 1035 - 001 - 04.02.2019
