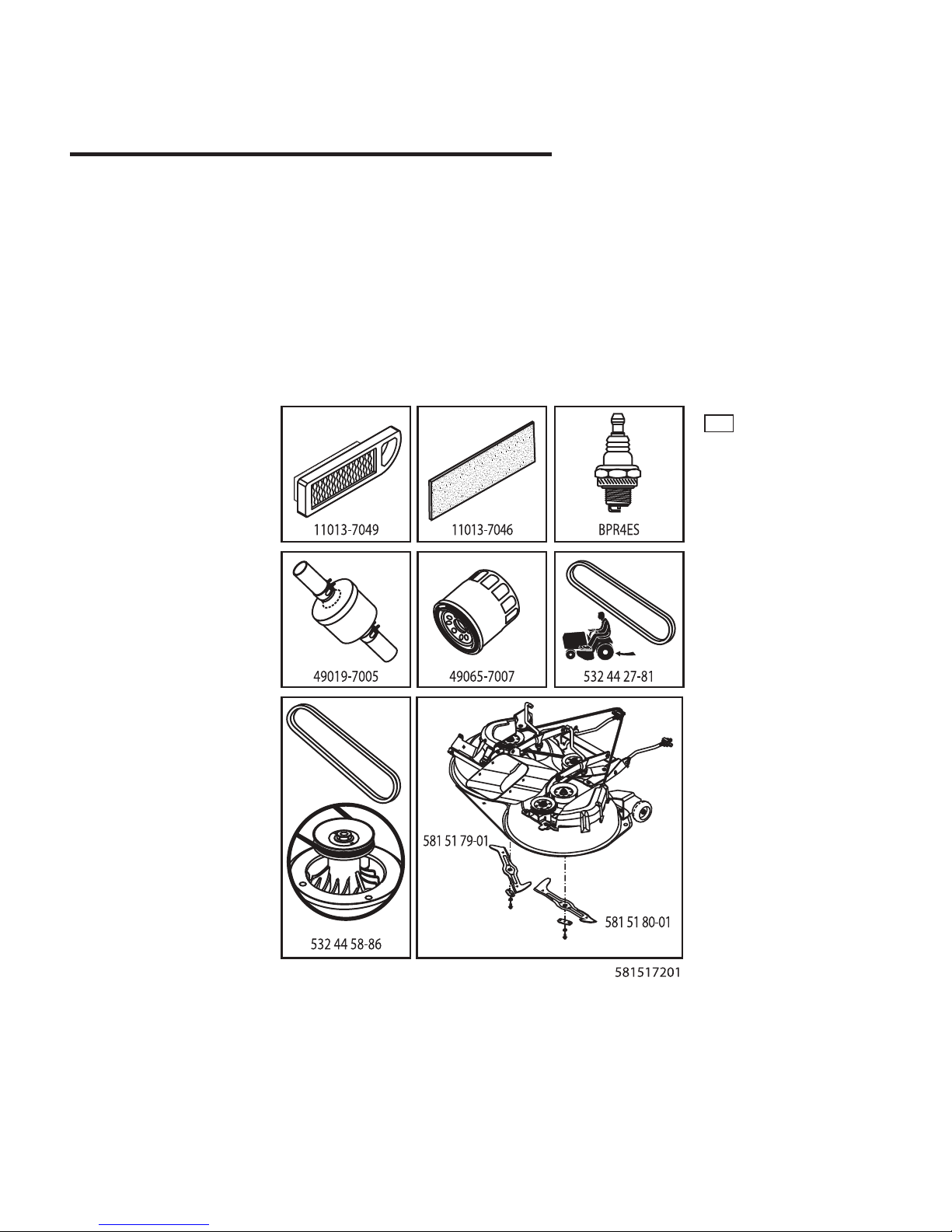

Husqvarna CTH 224T Setup guide

ILLUSTRATED PARTS LIST
MFG. ID NO. 96051007800
CUSTOMER CATALOG NO. CTH 224T
PRODUCT NO. 960 51 00-78
581 92 86-26 Rev. 6
47
47

2
MAX
+
_90N MAX
+
_150N
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Front
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire Front 15 x 6.0-6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 42 05-31 Tire R 18 x 9.5-8
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78

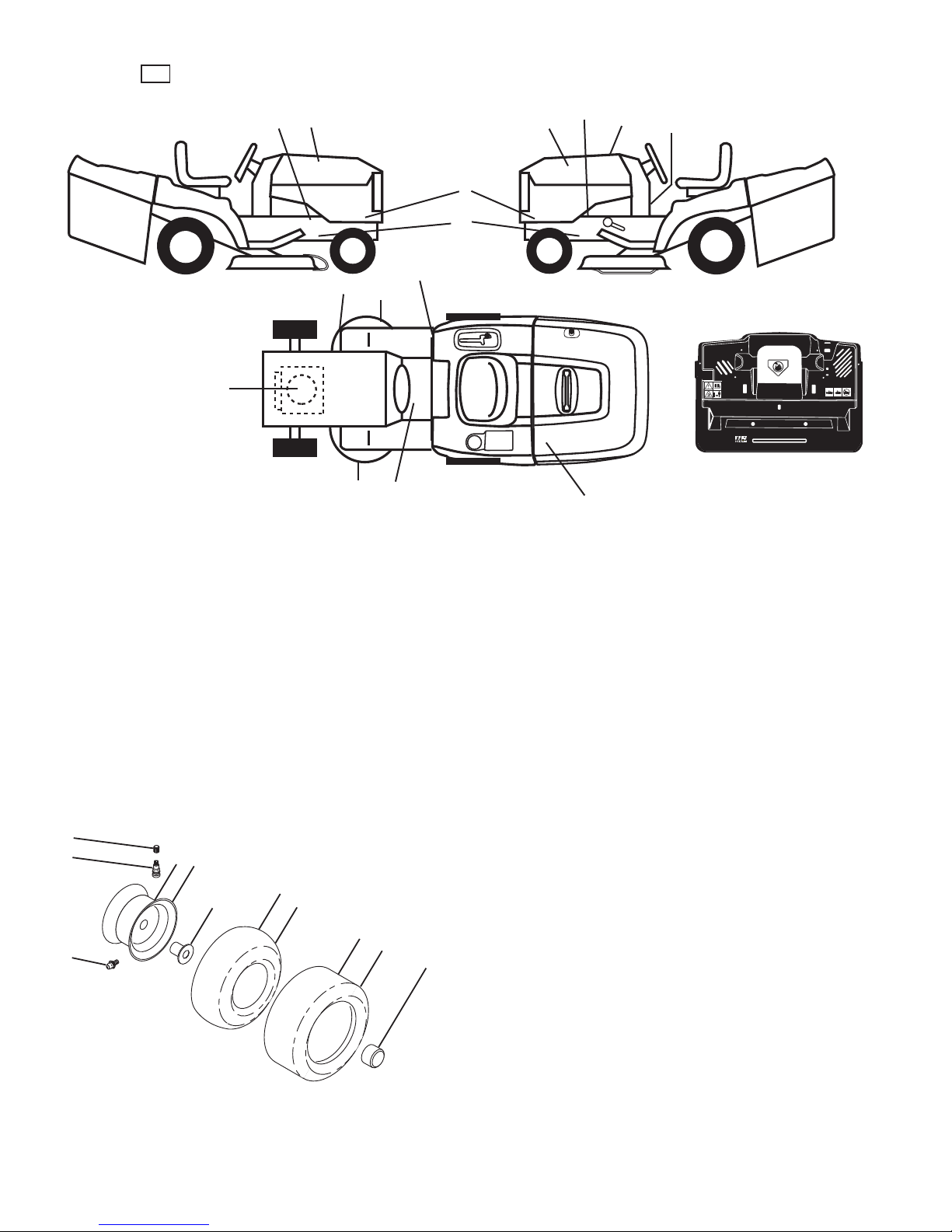

DECALS
27
27
KEY PART
NO. NO. DESCRIPTION
1 532 44 55-03 Decal, Warning
2 532 19 68-41 Decal, Warning Eng. Sym.
3 581 62 73-01 Decal, Hood
4 581 51 72-01 Decal, Replacement
6 532 18 04-32 Decal, 100 DBA
7 532 44 02-47 Decal, Lower Dash
8 532 44 71-60 Decal, Side Panel
9 532 43 26-41 Decal, Warn CRD Bagger Elec Dump
10 532 40 11-46 Decal, Warning Ser/Fire
11 532 18 21-66 Decal, Cut finger
14 532 15 97-36 Decal, Chassis Hot Muffler
21 532 44 11-89 Decal, Belt
- - 532 44 46-19 Decal, Bypass
- - 532 44 54-93 Decal, Warning Combined
- - 532 44 51-02 Decal, Battery Door
- - 532 44 14-09 Pad Footrest LH
- - 532 44 14-10 Pad Footrest RH
- - 581 59 26-40 Manual Operator's (Euro)
- - 581 59 26-50 Manual Operator's (Scan)
- - 581 59 26-20 Manual Operator's (E-Bloc)
- - 581 59 26-30 Manual Operator's (Baltic)
KEY PART
NO. NO. DESCRIPTION
9
314
21 6
1
3
14 47
11
2
11
8
10

3
M

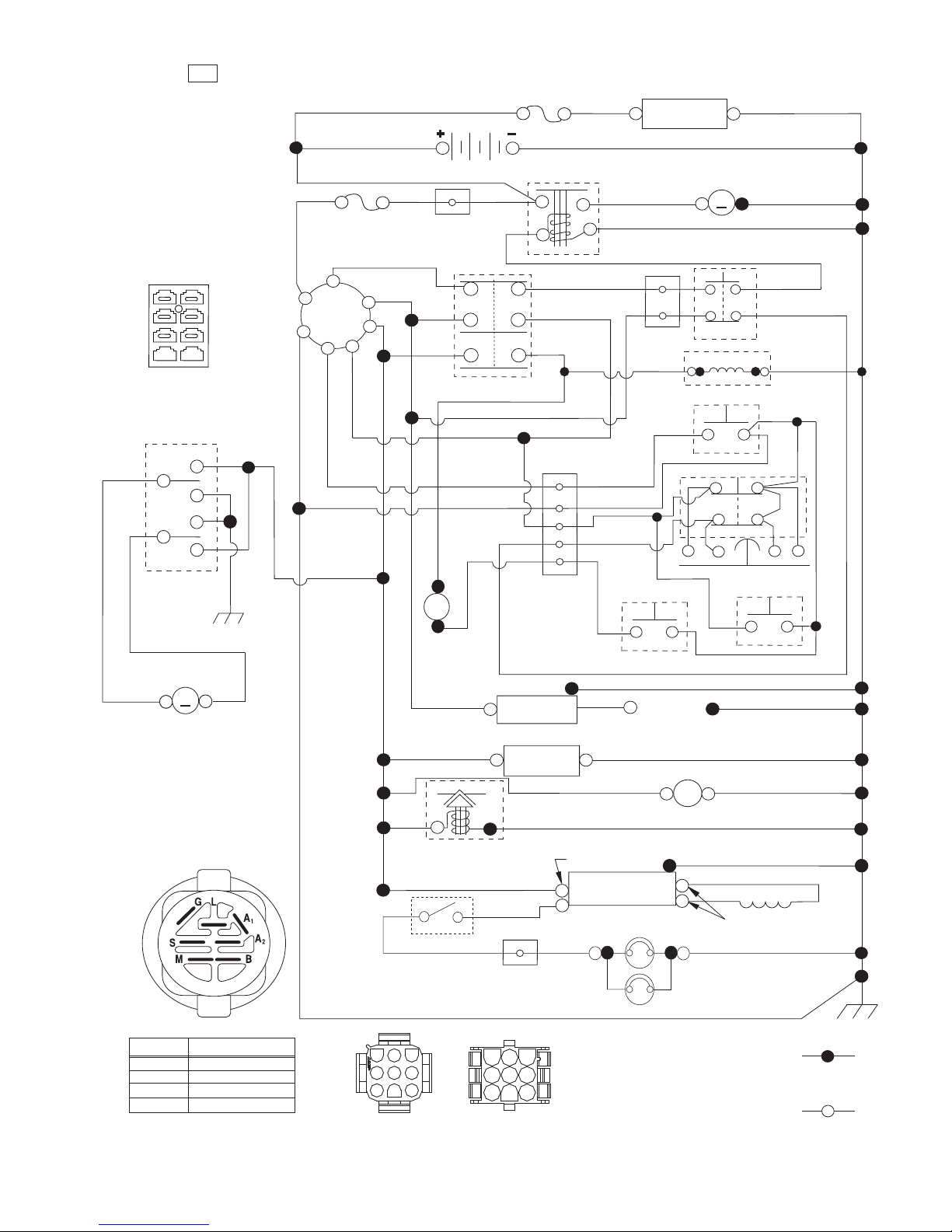

FUSE
STARTER
SOLENOID
BATTERY
REVERSE SWITCH (NOT IN REVERSE)
SEAT SWITCH (NOT OCCUPIED)
FULL BAG
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR (C1)
(MATING SIDE)
DASH HARNESS
CONNECTOR (C1)
(MATING SIDE)
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
C1
S
M
B
G
L
2
3
1
6
A2
A1
M
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH25
IGNITION SWITCH
CIRCUITPOSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
PTO SWITCH
(DISENGAGED)
BLACK
BLACK /WHITE
BLUE
BLUE BLACK
GREEN
BLACK
YELLOW
BLK/WHT
BLACK
BLK/WHT
DER
WHITE
WHITE
GRAY
GRAY
BLACK
YELLOW
POWER OUTLET
(OPTIONAL)
12V
BLACK
BLUE
BLACK
BROWN
HEADLIGHTS
LIGHT SWITCH
ORANGE
CLUTCH/BRAKE
(PEDAL UP)
WHITE
GREEN
GREEN
BLUE RED
BAG PRESENT SWITCH
(BAG ATTACHED)
SHORTING CONNECTOR
BAG FULL SWITCH
(NOT FULL)
9
BUZZER
BLACK
BLACK
BLACK
BLUE BLACK
5
6
C1
4
C1
BROWN
8
C1
DER RED
1
2
3
654
98
123
456
89
ELECTRIC CLUTCH
BLACKRED
REGULATOR STATOR
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
9-16AMPDC@3600 RPM
BLUE
RED
BLACK
3
2
4
ELECTRIC DUMP
SWITCH
4
3
2
ELECTRIC DUMP
SWITCH CONNECTOR
BLACK
6
1
5
M
ELECTRIC DUMP
ACTUATOR
M
1
6
5
7
7
FUSE
CHARGE
INDICATOR
(OPTIONAL)
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78
SCHEMATIC
38
38

4
30
33
34
22
79 21
26
40
71
16
TC10S
28
55
With Service Minder Option
4646
43
27
99
25
108
83
107
2
102
105
29
75
With Charge Indicator Option
142
143
(+) (-)
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78
ELECTRICAL
32
32

5
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78
ELECTRICAL
32
32
KEY PART
NO. NO. DESCRIPTION
1 532 43 71-57 Battery
2 532 44 09-23 Screw Hex Hd Cap M6 x 1.12MM
16 532 17 61-38 Switch Interlock Push-In
21 532 40 02-52 Harness Light w/4152J
22 532 00 41-52 Bulb Light
25 532 44 13-82 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 44 13-83 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ign
33 532 41 19-35 Key/Chain
34 532 11 07-12 Switch Light/Reset
40 581 68 64-01 Harness Ign. Dash/Lift
43 532 19 25-07 Solenoid
46 532 40 17-63 Gauge Serviceminder Hrmtr
50 532 17 46-51 Switch PTO
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT
71 581 68 64-02 Harness Ignition Chassis/Lift
75 532 44 45-34 Switch Bag Dump
79 532 17 52-42 Socket Asm. Bulb
83 532 43 67-74 Nut Square M6 x 1.8.5 x 11MM
99 817 72 04-08 Screw 1/4-20 x 1/2
102 532 44 12-62 Harness Jumper
105 532 40 75-68 Switch Reverse
107 532 18 03-79 Switch Full Bagger
108 532 42 10-62 Switch Snapmount
142 532 44 80-57 Harness Jumper CTEK
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78

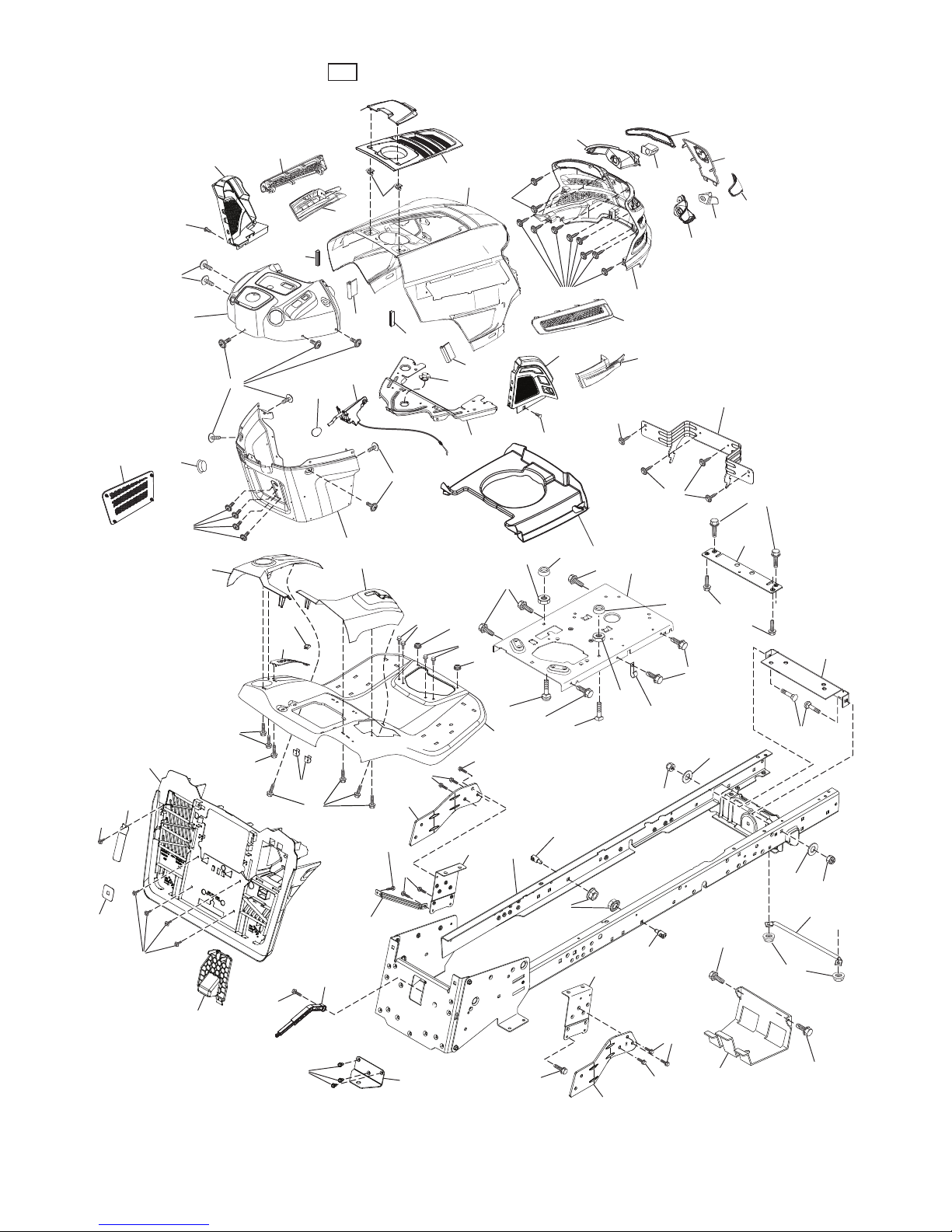

CHASSIS AND ENCLOSURES
39
39
68
68
68
68
183
183
236
236 34
343
235
235
68
68
213
218
282
162
287
162
284
283
199
194
194
36
36
37
198
chassis-TexCrd-Gen2_TEX GT HUSQ II_9_r1
177
175
130
130
151
176
5
345
344
176
176
182
195
176
178
14
202
203
208 15
25
207
205
206
3
297
191
18
130
130
234
234
137
137
150
350
335
350
336
214
204
229
180
159
159
152
228
228
194
339
338
347
189
52
217
319
309
130
340
368
308
342
189
159
159
366
367
189
130 342
349
159
159
62
334
118
119
118
119

7
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78
CHASSIS AND ENCLOSURES
39
39
KEY PART
NO. NO. DESCRIPTION
3 532 43 97-52 Applique
5 532 43 74-84 Dash
14 532 44 11-77 Hood
15 532 43 97-33 Lens LH
18 532 43 77-62 Grille
25 532 44 33-85 Lens RH
34 580 91 09-01 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 44 14-19 Fender
52 873 68 05-00 Nut Lock 5/16-18
62 872 11 06-08 Bolt RdHd Sqnk 3/8-16 x 1 Gr. 5
68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
118 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
119 873 68 06-00 Nut Crownlock 3/8-16 unc
130 532 41 63-58 Screw #10 x 0.750
137 532 40 75-90 Bumper Dash
150 532 43 97-74 Air Duct
151 532 43 66-70 Bracket Pivot
152 532 43 98-70 Shield Browning
159 817 00 06-12 Screw Hexwsh Thrd 3/8-16 x 3/4
162 532 14 24-32 Screw
175 532 19 63-04 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8
177 532 19 52-27 Bushing Steering
178 532 19 97-82 Cargo Asm. Net
180 583 90 27-01 Chassis
182 532 43 89-67 Dash Lower
183 874 52 05-20 Bolt 5/16-18 x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
191 532 43 74-55 Insert Reflective RH
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
195 532 40 41-37 Plug Hole Dash Lower
198 532 44 15-52 Indicator Deck Lift
199 532 41 87-39 Plate Deck Lift
202 532 43 97-28 Vent Side Hood RH
203 532 43 97-27 Vent Side Hood LH
204 532 44 06-65 Vent Top Hood
205 532 43 97-30 Skirt Hood Side RH
206 532 43 97-29 Trim Side LH
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
207 532 43 97-34 Bezel RH
208 532 43 97-35 Bezel LH
213 874 76 05-12 Bolt 5/16-18 x 3/4
214 532 19 91-45 Clip Retainer Tinner
217 532 40 91-67 Rod Pivot
218 532 19 63-95 X-Piece Hood Stop
228 532 19 51-61 Stud Fastner
229 532 44 14-63 Lid Ext
234 532 40 47-42 Bumper Hood
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Lock 5/16-18 unc
282 532 41 41-10 Clip Retainer
283 532 44 72-12 Console Deck Lift LH
284 532 44 73-17 Console Shft RH
287 817 60 04-06 Screw 1/4-20 x 3/8
297 532 43 74-56 Insert Reflective LH
308 532 17 18-77 Bolt 5/16-18 unc x 3/4
309 581 32 89-02 Backplate
319 581 31 39-05 Lever Bag Presence
334 532 44 25-37 Bracket Engine
335 532 44 82-04 Cover RH Lower Close Out
336 532 44 53-09 Cover LH Lower Close Out
338 532 43 66-40 Bolt Shoulder
339 532 18 03-79 Lever Bagger Full
340 581 32 90-01 Door Battery
342 532 43 59-38 Supprt Fender
343 532 44 07-49 Clip
344 532 43 89-70 Control EZ Mulch
345 532 44 06-39 Knob
347 532 44 28-87 Hitch Tow
349 532 43 66-06 Bracket Support
350 532 44 51-43 Clip X-Mas Tree
366 581 31 46-02 Bracket RH Front Bagger
367 581 31 45-02 Bracket LH Front Bagger
368 581 42 48-01 Full Lever Bagger
- - 532 43 18-82 Kit Guard Brush
KEY PART
NO. NO. DESCRIPTION

8
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78
DRIVE
40
40
351
116
103
161
125
99
125
17
33
205
205
183
37
2
205
61
205
37
2
1
33
183
73
185
29
30
159
6
125
355
339
125
125
339
226
227
56
116
35
184 221
drive-TexCrd-Gen2_K46_pedal_6_r3
315
143 280
335
362
364
195
143
186
189
49
314
52
51
50
90
27
359 335
363
352
342
342
359
197
196
160
208
210
214
211
125
215
166
211
222
163
42
188
64
159
160
167
203
30
125
209
213
221
160
206
26
207
92
116
38 175
360
279
360
311 312
140
313
309 143

9
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 – – – – – – Transaxle, TUFFTORQ K46DF
(446488) (Order parts from trans-
axle manufacturer.)
2 532 12 35-83 Key Square
6 532 12 40-28 Bushing Snap
17 532 43 62-27 Spring Brake K46
26 532 19 96-79 Spring Return Cruise
27 817 49 05-28 ScrewHexwshThd5/16-18x1-3/4
29 532 44 27-95 Rod, Brake
30 819 13 16-16 Washer
33 812 00 00-01 Ring E
35 583 86 45-01 Rod, Brake, Park
37 532 18 89-67 Washer Harden .793 x 1.063 x 060
38 532 16 96-13 Nyliner Bushing
42 532 12 48-74 Cover, Foot Pedal
49 872 11 06-14 Bolt Rdhd 3/8-16 unc x 3/4 Gr. 5
50 532 19 43-27 Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove
56 532 44 27-81 V-Belt, Drive
61 532 44 51-51 Pulley Transaxle K46
64 532 19 78-65 Shaft Asm. Pedal Brake Control
73 874 49 05-44 Bolt Flanged
90 532 44 36-05 Keeper Belt Clutching
92 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25
99 532 44 39-47 Rod Spring Bypass
103 873 35 05-00 Nut Hex Jam 5/16-18
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
140 810 04 04-00 Washer Lock Hvy Helical 1/4
143 817 49 05-08 Screw 5/16-18 x 1/2
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
163 532 44 27-93 Rod Control
166 532 42 91-64 Nut Push
167 532 40 52-57 Latch Brake Parking
175 532 42 93-59 Shaft Asm Crosshift Rear Crd
183 532 13 70-57 Spacer Axle
184 532 44 14-55 Handle Parking Brake
185 872 11 06-22 Bolt 3/8-16 unc x 2-3/4 G5
186 532 19 43-21 Spacer Retainer
188 532 19 43-23 Link Clutch
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
189 532 43 36-11 Bellcrank Ground Drive
195 580 45 69-01 Bracket Rod Brake CRD Tex
196 817 00 06-16 Screw 3/8-16 x 1 Smgml Tap/R Blk
197 532 19 58-04 Link Clutch Anti-Rotation
203 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.
205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
206 532 44 85-96 Bracket Mount Latch Cruise
207 532 19 78-68 Latch Control Cruise
208 532 19 78-69 Gear Sector Control Cruise
209 532 19 95-92 Rod Control Cruise
210 532 40 09-80 Rocker Asm. Pedal Control
211 532 12 01-83 Bearing Nylon
213 532 40 31-19 Knob Control Cruise
214 532 42 12-63 Pedal Forward
215 532 41 94-82 Pedal Reverse
221 532 40 31-87 Retainer Spring Clip Handle
222 879 21 20-10 Washer 21/32 x 1-1/4 10 Ga.
226 532 40 15-64 Bracket Strap Torque
227 817 49 05-12 Screw
279 532 44 42-83 Link Shift
280 819 11 10-12 Washer 11/32 x 5/8 x 12 Ga.
309 532 16 55-81 Plate Fstnr Cross Shf
311 532 16 98-45 Washer Nylon
312 532 16 56-14 Hub Tapered
313 874 78 04-16 Bolt Hex Fin 1/4-20 unc x 1 Gd5
314 532 44 47-13 Keeper Belt
315 817 58 05-20 Screw Thdrol 5/16-18 x 4.25
335 532 19 95-34 Pulley V-Idler
339 532 43 68-67 Strap Torque K46 CRD Tex
342 532 18 26-82 Keeper Belt 2.5" STL V-Idlr CRD
351 532 43 69-98 Bracket 97 CRD Deck Sway
352 532 43 56-45 Bracket Idler CRD Tex
355 532 43 56-69 Bracket
359 817 49 06-10 Screw Thdrol 3/8-16 x 5/8
360 532 44 47-14 Nut 5/16-24 UNF
362 532 43 68-12 Idler Flat
363 532 44 27-80 Spacer 343 x 63 x .62
364 532 44 30-32 Bracket Idler CRD Tex
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78
DRIVE
40
40

10
1
92
12
11
41
42
85
9
29
SPARK ARRESTER KIT
92
45
90
37
28
37
21
20
22
62
70
71
86
69
87
2
engine-tex_Kawa-2cyl_19
81
15
97
96
137
18
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78
ENGINE
24
24

11
KEY PART
NO. NO. DESCRIPTION
1 – – – – – – Engine Kawasaki Model No. FS651V-BS50 (437951)
(Order parts from engine manufacturer.)
2 532 44 59-62 Muffler
9 532 19 43-20 Keeper Belt Engine
11 532 40 00-08 Clutch Electric
12 532 40 50-97 Pulley Engine
15 532 43 58-16 Tank Fuel
18 532 44 14-62 Fuel Cap
20 532 41 21-65 Control Throttle
21 532 41 63-58 Screw # 10 x 0.750
22 532 18 95-41 Control Choke
28 532 13 70-40 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
41 532 12 61-97 Washer 1-1/2 OD x 15/32 ID x .250
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
62 532 43 40-17 Shield Heat Muffler
69 532 17 81-51 Gasket
70 532 42 47-65 Tube Exhaust LH
71 532 42 47-66 Tube Exhaust RH
81 532 14 84-56 Tube Drain Oil Easy
85 532 17 39-37 Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr
86 532 18 43-62 Nut Hex Flange Toplock M8-1.25
87 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
90 817 00 06-16 Screw 3/8-16 x 1
92 817 12 06-16 Screw 3/8-16 x 1
96 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
97 817 67 04-12 Screw 1/4-20 x 3/4
137 532 44 14-61 Spill Cup
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78
ENGINE
24
24
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

12
19
60
59
58
70
68
69
16
28
28
13
22
64
35
67
63
57
63
1
21
6
15
14
5
81
13 13
8
53
62
81
61
82
15
14
14
14
15
80
85
14
15
80
82
80
6
4
15
14
86
9
8
9
8
67
66
7
7
118
2
80
45
26
51
steering-tex_TTR_9
118
118
122
122
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78
STEERING ASSEMBLY
41
41

13
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78
STEERING ASSEMBLY
41
41
1 532 43 97-40 Wheel, Steering
2 532 43 68-70 Axle Asm., Front
4 532 43 68-73 Spindle Asm., LH
5 532 43 68-74 Spindle Asm., RH
6 532 12 49-31 Washer Thrust 0.75 x 1.23
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 44 42-12 Shaft Steering
19 532 19 47-29 Plate Steering
21 532 43 77-47 Adapter, Wheel Steering
22 532 19 48-45 Bushing, Strg. Blk
26 532 43 97-43 Insert, Wheel Steering
28 817 00 06-12 Screw 3/8-16 x 3/4
35 532 44 07-70 Gear, Sector Plate
45 819 18 38-12 Washer 9/16 ID x 2-3/8 OD x 12 Ga.
51 873 94 08-00 Nut Hex Jam Toplock 1/2-20 UNF
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 43 68-84 Draglink, LH
62 532 43 68-85 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 19 61-97 Bracket Deck Susp. Front
80 532 00 13-70 Washer
81 532 43 68-87 Link Cross RH
82 532 43 68-77 Pivot Bolt
85 532 44 18-73 Pivot RH
86 532 44 18-72 Pivot LH
118 532 40 60-13 Bushing Axle
122 532 44 49-62 Cap Gear Sector

14
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78
MOWER DECK
44
44
43
102
120
114
115
119
117
19
121
115
119
111
110
110
23
97
75
14
84
20
99
100
100
127
16
91 128
1
127
128
91
16
20 20
154
154
98
3
98
32
127
128 91 16
20
127 128
91
16
19
17
43
27
18
20
250
250
250
250
250
96
101
117
113
112
116
101
16 17
75
14
13
118
11
13
125
42
95
75
14
16
76
11
94
5
129
130 131
163
161
117
163
162
117
117
163
160
117
163
159
117
104
2
11
105
2
11
36
124
45
34
33
35
85
87
88
86
tex-deck_TexCRD-Gen2_49
146
143
144
145
72

15
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78
MOWER DECK
44
44
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 580 97 33-01 Deck Weldment
2 532 42 30-62 Palnut 1/4
3 873 90 05-00 Nut Lock Hex Flange 5/16 - 18
5 817 00 05-10 Bolt 5/16-18
11 532 13 77-29 Screw Thd Roll 1/4 - 20 X 5/8
13 872 11 06-12 Bolt Carr Sh 3/8 - 16 X 1-1/2 Gr. 5
14 532 15 60-85 Keeper Belt Idler
16 873 90 06-00 Nut Lock FlG 3/8 - 16 unc
17 532 40 02-34 Nut Flange Lock Top
18 532 18 76-90 Washer Spacer Mandrel
19 532 11 04-85 Bearing Ball Mandrel
20 532 17 39-84 Screw Thread Roll
23 817 49 06-28 Screw Thdrol 3/8 - 16 X 1-3/4
27 532 44 58-86 V-Belt Drive
32 532 44 62-05 Spring Drive
33 580 79 61-01 Mandrel Asm. Tall
34 580 85 47-01 Shaft Asm Mndrl N/Greaseable38
35 581 51 79-01 Blade Mower LH
36 532 19 30-03 Bolt/Washer Asm 7/16 - 20 unf
42 817 00 05-12 Screw 5/16-18 x 3/4
43 532 44 32-39 Pulley Mandrel
45 581 65 08-01 Mandrel Asm. Short
72 581 45 41-01 Chute Upper
75 532 13 14-94 Pulley Idler Flat
76 532 41 55-98 Washout Port
84 532 44 32-35 Keeper Belt LH Mandrel
85 581 51 80-01 Blade Mower RH
86 532 18 17-13 Bolt 3/8-24 x 1.50 Gr. 8
87 810 03 06-00 Washer Lock Hvy. 3/8
88 532 14 02-96 Washer Hard
91 819 13 20-12 Washer 13/32 x 1-1/4 x 12 Ga.
94 532 19 72-50 Bracket Clutch Cable
95 817 00 06-12 Screw 3/8-16 x 3/4
96 532 40 02-71 Spacer
97 532 18 20-61 Shield Idler Mower
98 532 19 51-61 Stud Fastener
99 532 19 51-86 Arm Suspension Mower Rear
100 532 19 65-39 Bolt Shoulder
101 873 68 09-00 Nut Crownlock 9/16 - 18 unc
102 532 40 25-11 Spacer Bearing Swing Plate
104 581 71 40-01 Mandrel Cover RH
105 532 44 47-55 Mandrel Cover LH
110 532 41 53-56 Gear Output
111 532 43 69-79 Gasket Gearcase
112 532 44 38-52 Shaft Gearcase Adapter
113 532 43 85-33 Plug Oil
114 532 43 85-34 Valve Relief
115 818 03 10-16 Screw Torx #10-24 x 1
116 872 11 04-14 Bolt 1/4-20 x 1.75 Gr. 5
117 873 90 04-00 Nut Hex Flange 1/4-20 unc
118 532 44 32-32 Arm Clutching
119 532 43 81-66 Gearcase Subasm
120 532 44 32-36 Keeper Belt RH
121 532 43 69-85 Washer
124 581 65 07-01 Non Greasable Mandrel Shaft
125 532 44 04-20 Bracket Idler Chassis
127 532 19 34-06 Bolt Shoulder 3/8-16 x 3-5/8 Gr. 5
128 532 17 48-73 Wheel Gauge
129 532 44 32-37 Rod Anti-Sway
130 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
131 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
143 532 43 81-97 Door Mulch
144 532 43 58-61 Pin Hinge
145 532 43 79-88 E-Ring 5/16"
146 532 44 58-96 Spring
154 532 19 98-55 Screw Thd Roll 1/4-20 x 1/2
159 581 48 72-02 Plate 107 CRD LH Side
160 581 48 71-02 Plate 107 CRD LH Front
161 581 48 73-02 Plate 107 CRD RH Front
162 581 48 74-02 Plate 107 CRD RH Side
163 872 11 04-06 Bolt
250 819 11 12-12 Washer 11/32 x 3/4 x 12 Ga.
- - 580 85 60-01 Mandrel Assembly Tall (Includes
Housing (key # 33), Shaft As-
sembly (key # 34), And Bearing
Only (key # 19) - Pulley/Nut/
Washer And Blade Bolt/Washers
Not Included.)
- - 581 65 05-01 Mandrel Assembly Short (In-
cludes Housing (key # 45), Shaft
Assembly (key # 124), And Bear-
ing Only (key # 19) - Pulley/Nut/
Washer And Blade Bolt/Washers
Not Included.)
- - 581 92 84-02 Replacement Mower Complete
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION

16
7
3
87
10
88
2
89
90 98
97
97
lift-tex_17_r3 *Key 91 may be substituted for Key 101
91
101*
87
100
89
89
87
2 532 43 69-96 Deck Lift Weldment
3 532 19 52-31 Lever Asm., Lift RH
7 580 96 23-01 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 44 54-96 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
91 532 19 51-81 Link Lift Susp Mower Rear
97 817 49 06-08 Screw 3/8-16 x 1/2
98 532 19 52-70 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Center Lock 3/8-16 unc
101 532 40 70-03 Link Asm Lift Fixed
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78
MOWER LIFT
45
45

17
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 42 40-71 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
seat-tex_6.5SL_3
44
43
8
8
6
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78

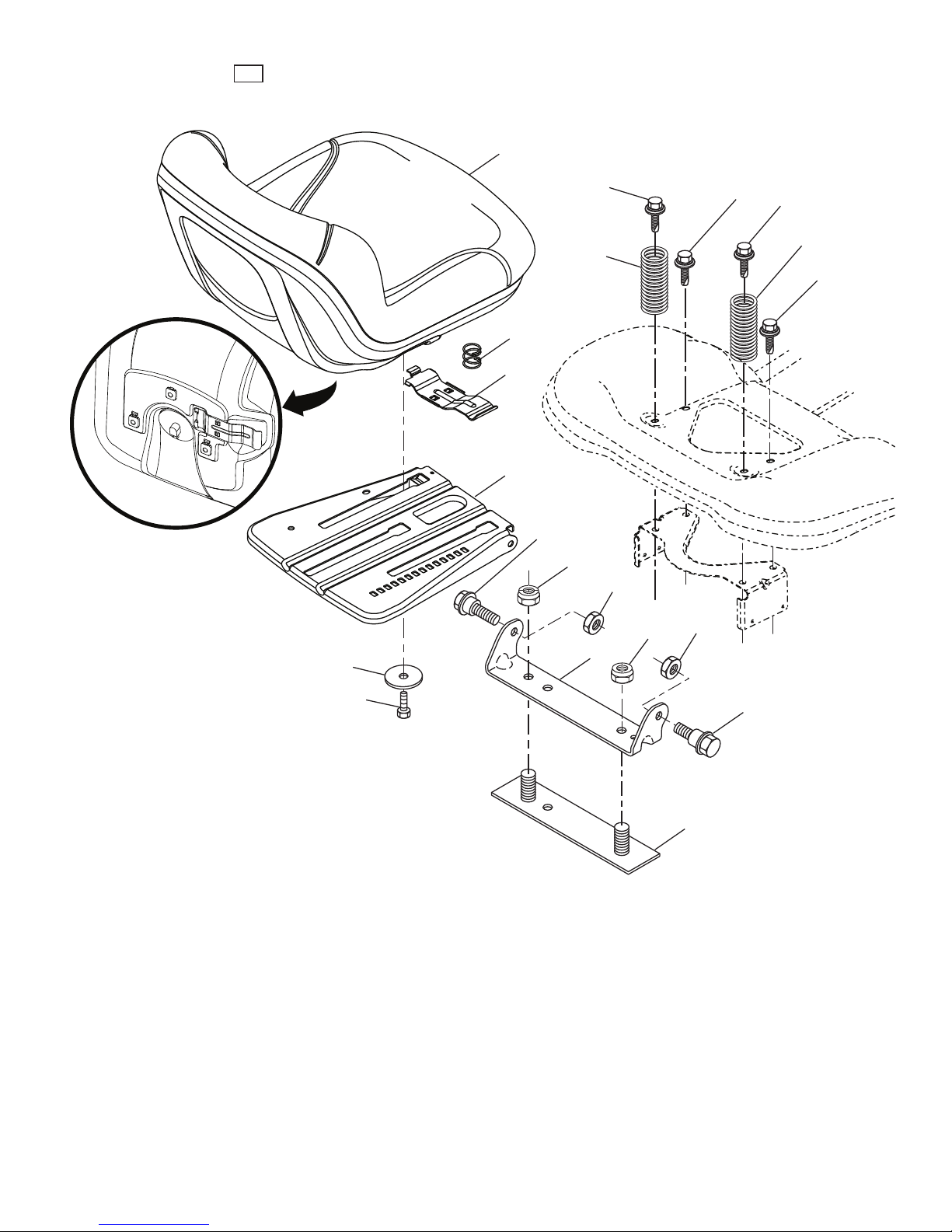

SEAT ASSEMBLY
42
42

18
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78
BAGGER
46
46
2
54
8
21
69
50
50 49
5
49
80
80
71
72
72
73
73
42
47
3
3
44
44
55 44
52 52
58
56
56
59
58
59
58
10
55
52
51
45 48
44
3
3
42 46
42
52
65
51
52
64
74
74
ElecBa
gg
er TexCRD-Gen2 3
51
86
52
51
52 52
52
88
89 85
51
51
87
90
52
51
52
91
65
7
7
25
26
79
78

19
TRACTOR - MODEL NO. CTH 224T (96051007800), PRODUCT NO. 960 51 00-78
BAGGER
46
46
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2 532 44 75-72 Applique
3 532 17 48-14 Clip
5 532 44 52-48 Bagger Cross Tube
7 873 90 04-00 Nut Hex Flange 1/4-20 unc
8 580 43 68-01 Bagger Top
10 532 44 37-55 Frame Front
21 532 44 59-43 Bag Assembly
25 532 44 55-28 Spring Latch Bagger
26 817 49 04-12 Screw Hex Thdrol 1/4-20 x 3/4
42 532 44 04-28 Clip
44 532 19 96-87 Bolt 1/4-20
45 532 44 37-54 Upper Frame
46 532 44 55-41 Bag Corner Close Out RH
47 532 44 40-79 Bag Corner Close Out LH
48 532 44 40-80 Top Bagger Side Close Out
49 532 17 18-73 Bolt Shoulder 5/16-18
50 532 17 18-77 Bolt 5/16-18 x 3/4 W/Sems
51 872 11 05-06 Bolt 5/16 x 18 x 3/4
52 873 80 05-00 Nut Lock Hex W/Ins 5/16-18 unc
54 532 44 72-18 Bagger Top Front Handle
55 872 14 05-12 Bolt 5/16-18 x 1-1/2
56 532 42 03-06 Pin Clevis .183 x 1.26
58 532 08 51-79 Clip Retainer
59 532 44 47-63 Bagger Sprd Tube
64 532 43 04-22 Pin Clevis .375 x 2.375
65 532 12 47-88 Retainer Spring 1"
69 532 42 18-01 Screw #8 Flat Head Drill
71 532 44 52-38 Bagger Support Pivot
72 532 44 52-36 Bagger Catch Bracket
73 872 11 05-10 Bolt Carriage 5/16-18 X 1-1/4 Gr. 5
74 532 44 52-43 Upper Clevis Bracket
78 532 44 52-57 Actuator Elec Dump
79 532 44 73-68 Spacer .375 x .75 x .4375
80 873 90 05-00 Nut Lock Hex Flange 5/16-18
85 581 31 41-02 Bracket RH Pivot
86 581 31 40-02 Bracket LH Pivot
87 581 31 48-02 Bracket RH
88 581 31 47-02 Bracket LH
89 581 31 51-02 Weldment Offset
90 581 31 42-02 Bracket Ele. Dump
91 532 44 86-34 Clevis

04.16.13 CL/TH
