Husqvarna GTH26K54 User manual

GTH26K54
Owner's Manual / 96043003101
03002

29
M
FUSE
STARTER
SOLENOID
BATTERY
ELECTRIC CLUTCH
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
REGULATOR
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
LIGHT
SWITCH
HEADLIGHTS
S TATO R
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
PTO SWITCH
(DISENGAGED)
S
M
B
G
L
2
3
1
6
A2
A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
16 AMP DC @ 36 RPM
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR
WIRING.
02929-194276_Regulated-Tex
IGNITION SWITCH
CIRCUITPOSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
02929
BLACK
BLACK /WHITE
ORANGE
RED
BROWN
BLUE
BLUE
BLACK
BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
RED
RED RED
RED
WHITE
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(IF SO EQUIPPED)
12V
TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

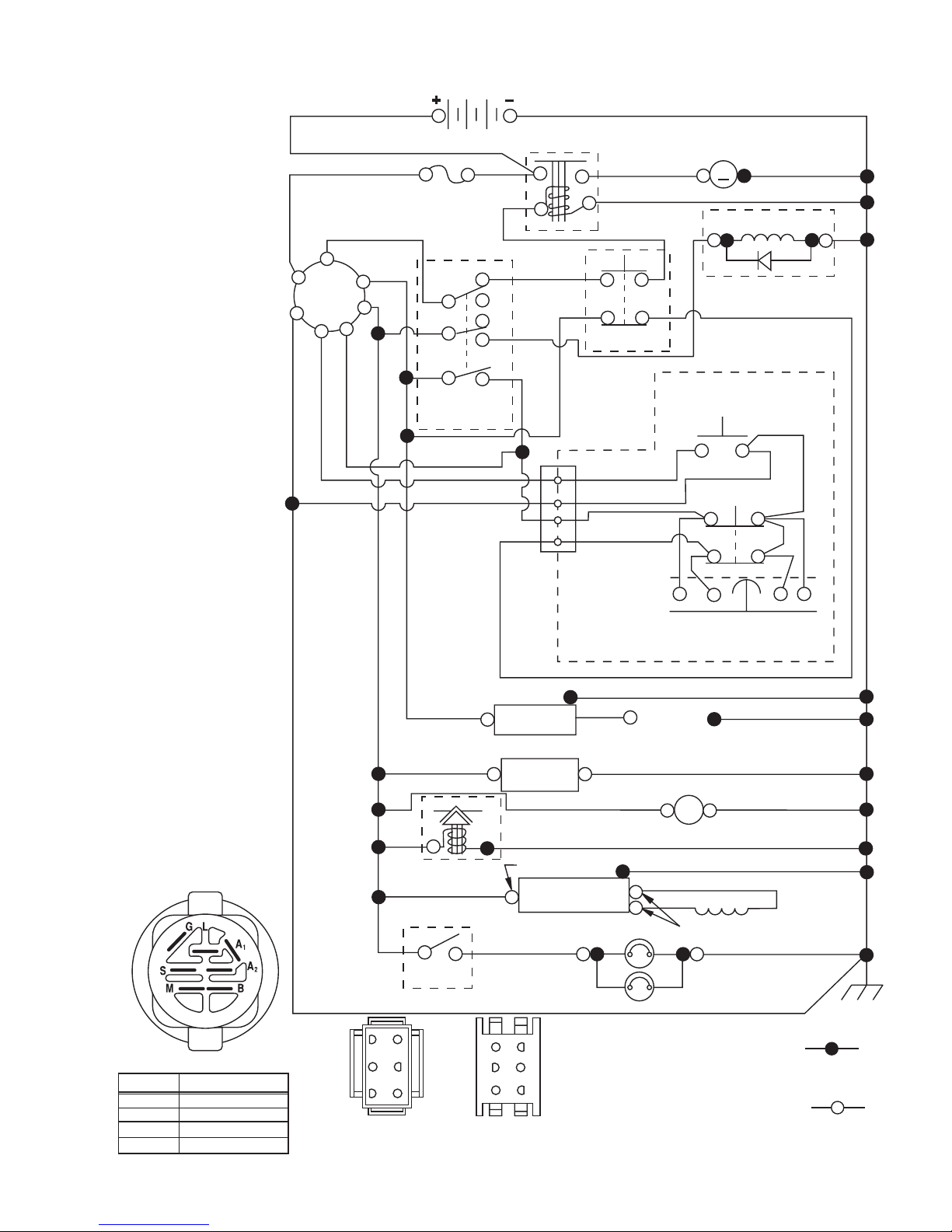

SCHEMATIC

30
TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

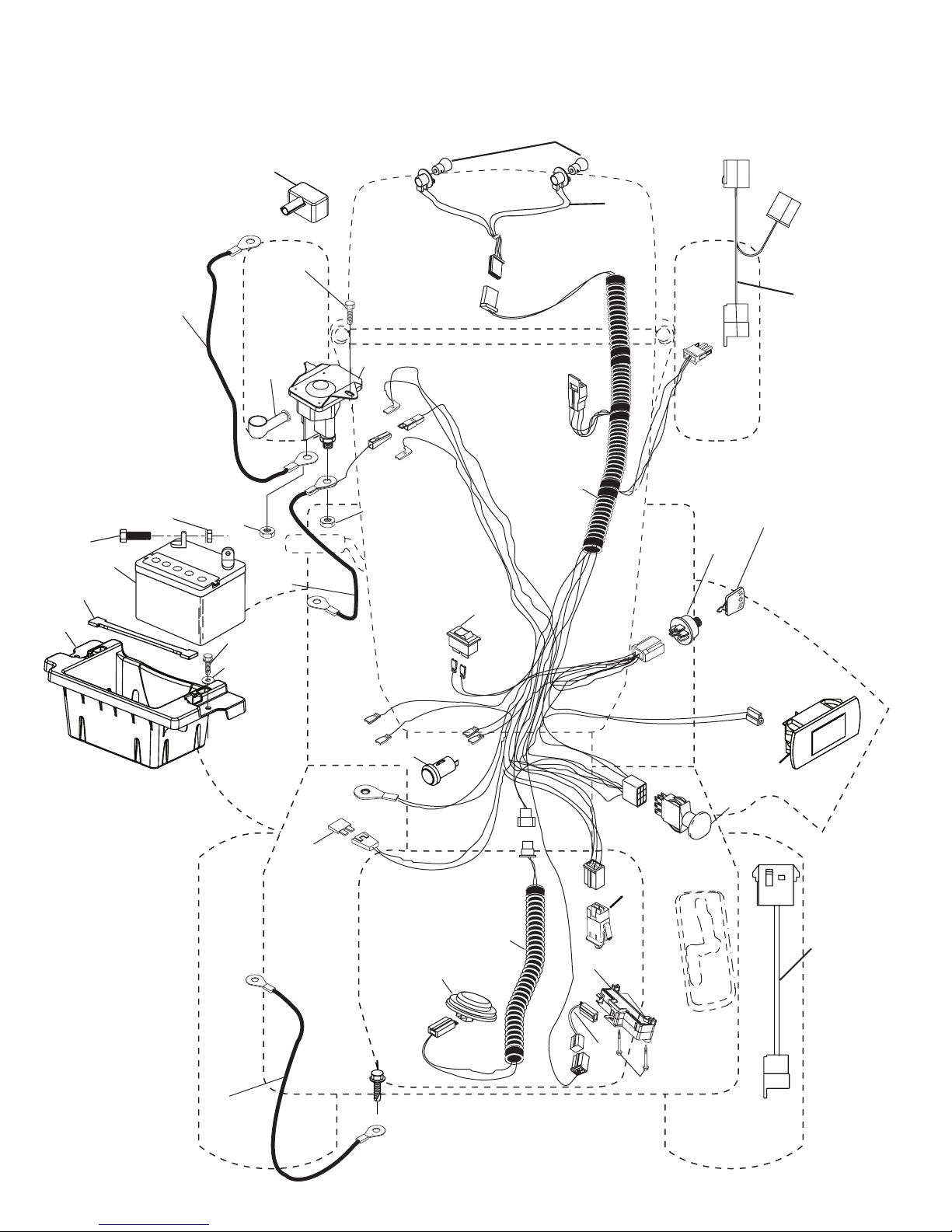

ELECTRICAL










 





 

22
21
16
55
4646
90
103
101
Battery _28
8
1
99
100
91
2
27
59

31
TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 14 49-27 Battery
2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4
8 532 18 64-91 Battery Box
16 532 17 61-38 Switch Interlock
21 532 18 37-59 Harness Socket Light
22 532 00 41-52 Bulb, Light # 1156
24 532 40 02-53 Cable Battery
25 532 19 88-93 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 14 54-91 Cable Ground 21" Blk 6 Ga.
29 532 40 15-45 Switch Seat
30 532 19 33-50 Switch Ign
33 532 14 04-01 Key Ign Molded Generic
34 532 11 07-12 Switch Light/Reset
40 532 40 11-04 Harness Ign. Dash
41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2
42 532 13 15-63 Cover Terminal Red
43 532 19 25-07 Solenoid
46 532 40 17-63 Gauge Hourmeter
50 532 17 46-51 Switch PTO
55 817 49 05-12 Screw Thdrol 5/16-18 x 3/4
59 532 40 03-03 Outlet 12-Volt
71 532 19 42-76 Harness Ign
90 532 40 07-24 Cover Terminal Battery
91 532 19 02-70 Strap Battery
92 532 19 66-15 Harness Pigtail
93 532 19 25-40 Screw Plastite 10-14 x 2.0
94 532 19 18-34 Module Reverse ROS
99 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4
100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
101 532 19 83-17 Pigtail MATNLK Harness
103 532 40 79-62 Harness Pigtail 12V outlet
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

32
TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

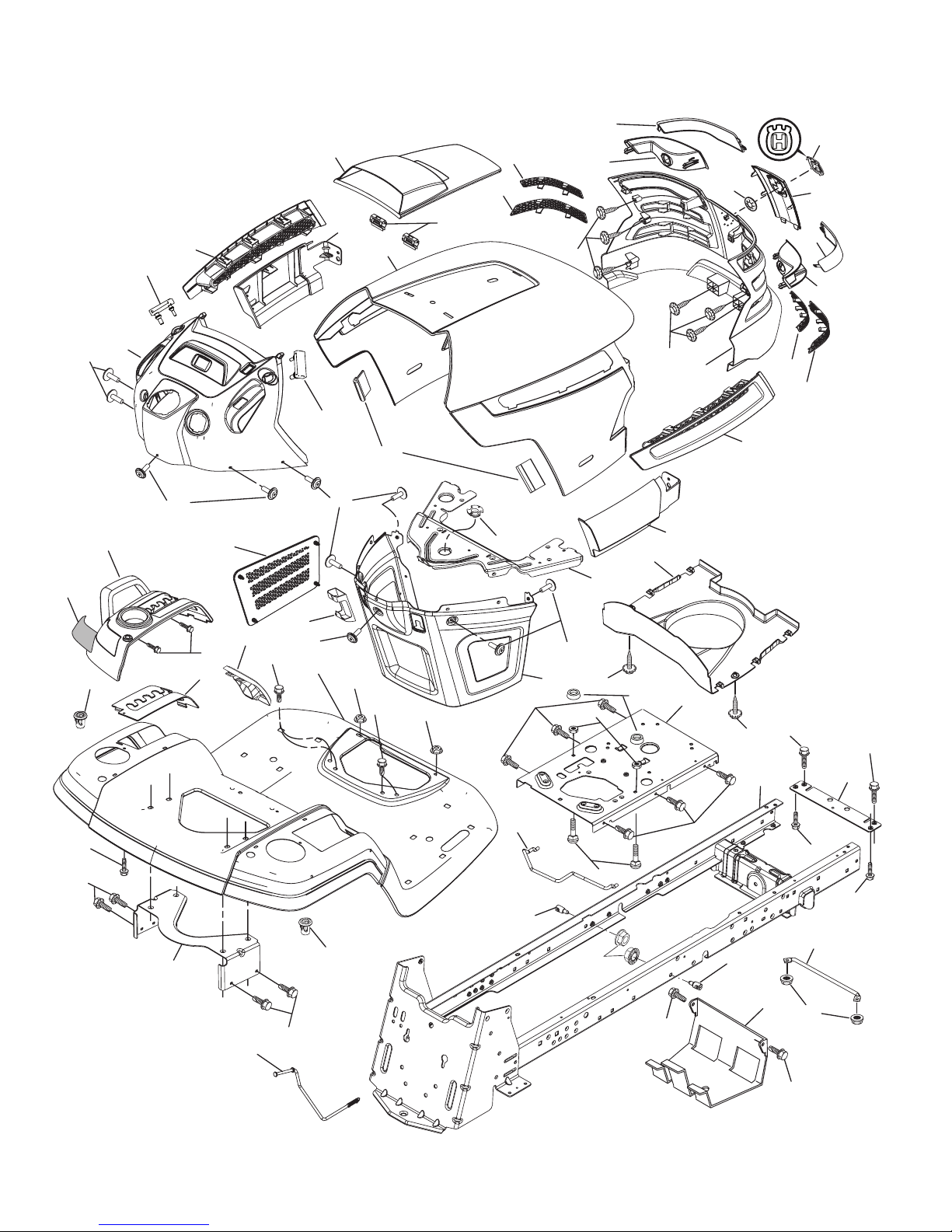

CHASSIS
37
194
194
181
181
182
176 176
175
178
195
165
228
228
194
99
150
180
130
130
161
36
36
199
162
177
196
221
162
58
189
189
chassis-tex_62-gt-husq
239 238
3
189
189
152
5
176
137
137
176
176
14
214
130
130
202
203
204 210
18
25
207
211
209
212
205
206
208
15
234
52
217
68
68
213
213
218
68
68
183
236
34
235

33
TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31
CHASSIS
KEY PART
NO. NO. DESCRIPTION
3 532 40 50-12 Logo
5 532 40 87-01 Dash
14 532 41 10-46 Hood
15 532 19 89-07 Lens LH
18 532 40 48-21 Grille
25 532 19 89-06 Lens RH
34 532 19 61-25 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 40 18-25 Fender
52 873 68 05-00 Nut Crown Lock 5/16-18
58 532 19 43-14 Bracket Fender
68 817 49 05-08 Screw 5/16-18 x 1/2
99 532 19 72-73 Rod Bypass Asm.
130 532 19 16-11 Screw 10 x 3/4 Single Lead Hex
137 532 40 75-90 Bumper Dash
150 532 19 85-12 Duct Heat Hood
152 532 19 95-35 Shield Browning/Debris
161 532 40 17-70 Console Fuel Window
162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2
165 532 19 68-26 Bracket Support Tank
175 532 19 63-04 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8 Wshd Qdrx
177 532 19 52-27 Bushing Steering
178 532 19 97-82 Cargo Asm. Net
180 532 19 54-77 Chassis
181 532 40 30-25 Bushing Mtg. Fender Crgo.
182 532 19 47-87 Dash Lower
184 532 40 61-29 Spacer Fender
185 874 78 05-20 Bolt Fin Hex 5/16-18 unc x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
195 532 40 35-71 Plug Cruise/Phone
196 532 40 02-99 Console Asm. Deck Lift
199 532 19 82-59 Plate Deck Lift
202 532 40 30-48 Vent Side Hood RH
203 532 40 30-76 Vent Side Hood LH
204 532 19 89-04 Vent Asm Hood Top
205 532 40 17-09 Skirt Hood Side RH
206 532 40 17-11 Skirt Hood Side LH
207 532 19 71-98 Bezel RH
208 532 19 71-99 Bezel LH
209 532 19 91-30 Insert Hex Top RH
210 532 19 91-31 Insert Hex Top LH
211 532 19 91-32 Insert Hex Bottom RH
212 532 19 91-33 Insert Hex Bottom LH
213 874 76 05-12 Bolt Hex Hd 5/16-18 unc x 3/4
214 532 19 91-45 Clip Retainer
217 532 15 65-24 Rod Pivot
218 532 19 63-95 Hood Stop
221 532 19 89-09 Reflector LH
228 532 19 51-61 Stud Fastener
234 532 40 47-42 Bumper Hood
236 873 93 05-00 Nut Center Lock 5/16-18 UNC
238 532 40 86-06 Trim
239 532 11 04-52 Nut Push

34
TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

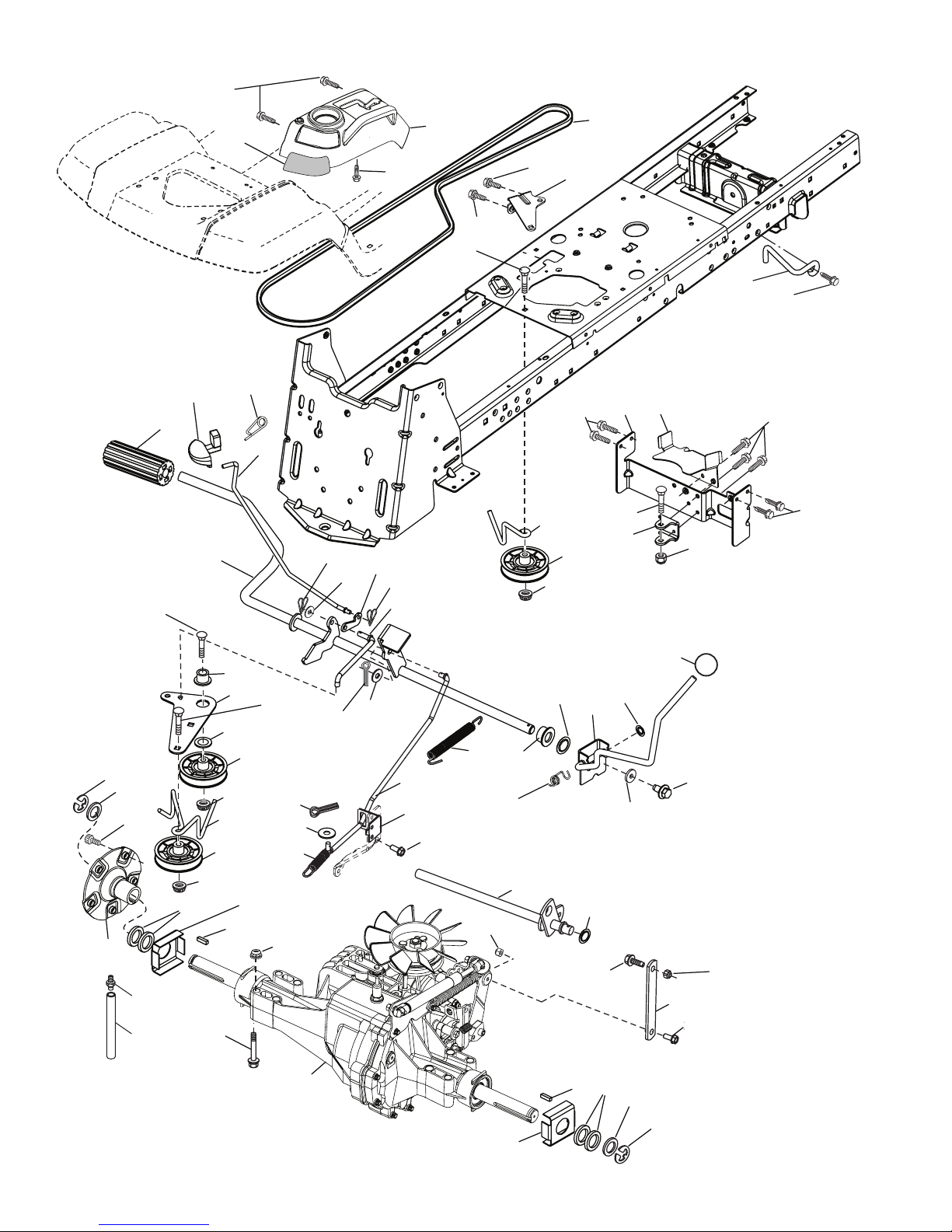

DRIVE
186
189
49
187
50
51
190
52
51
125
211
166 174
64
185 188
17
161
35
184 221
167
160
160
42
203
216
143
143
23
121
122
114
125
125
125
142 158
126
233
29
195
159
15
15
159
171
197
196
51
52
170
56
70
74
220
74
178
22
7
175
93
116
drive-tex_32-HG_3000
201
201
200
166
1
116
2
73
3145
9
69
33
2
145
33
69
3
107
106
281
wb

35
TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - Transaxle, Hydro 344-3000
(Order Parts from Transaxle
Manufacturer)
2 532 18 62-11 Key 1/4 x 2.5
3 532 00 75-63 Washer
7 532 19 98-37 Hub Asm. Wheel
9 532 14 00-80 Bolt Hub Wheel
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 19 72-96 Spring, Brake
22 532 40 05-04 Shifter Rod
23 532 14 08-45 Knob
29 532 19 72-69 Rod, Brake
33 812 00 00-53 Ring E
35 532 19 95-91 Rod, Brake, Park
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove 910" Offset
56 532 16 58-13 V-Belt, Drive
64 532 19 62-00 Shaft Asm. Pedal Brake Control
69 532 12 38-00 Washer 11/32 x 1-5/8 x 16 Ga.
70 532 40 02-98 Control Asm.
73 874 49 05-48 Bolt Hex Flghd 5/16-18 x 3.00
74 532 14 24-32 Screw 1/4 x 1/2
93 532 19 62-13 Link Shift
106 532 14 29-17 Cap Asm. Vent
107 532 41 04-81 Tube Vent
114 873 80 05-00 Nut Lock Hex w/Insert 5/16-18 unc
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
121 532 17 56-11 Bracket Strap Torque
122 872 01 05-20 Bolt 5/16 - 18 x 2.50
125 817 00 05-12 Screw 5/16-18 x 3/4
126 874 78 07-16 Bolt Fin Hex 7/16 - 14 x 1 GR5
142 532 40 44-83 Strap Torque
143 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
145 532 16 31-68 Washer Axle flange
158 532 19 43-51 Keeper Belt
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 19 54-03 Spring, Return, Clutch
166 532 19 72-90 Nut Push .625
167 532 40 52-57 Latch Brake Parking
170 532 19 43-22 Keeper Belt Centerspan
171 872 11 06-16 Bolt
174 532 19 72-89 Nut Push
175 532 19 62-04 Shaft Asm Shift
178 532 19 74-56 Spring Shift
184 532 40 31-18 Handle Parking Brake
185 872 11 06-20 Bolt Rdhd Sqnk 3/8-16 x 2-1/2
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Dr.
195 532 40 51-13 Bracket Rod Brake
196 817 00 06-16 Screw 3/8-16 x 1
197 532 19 97-69 Bracket Clutch Anti-Rotation
200 873 93 05-00 Nut Center Lock 5/16-18
201 532 16 96-12 Bolt Shoulder 5/16-18 unc
203 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.
211 532 19 62-12 Bushing
216 532 19 61-31 Bracket Pulley Idler
220 532 19 89-08 Reflector RH
221 532 40 31-87 Retainer Spring Clip Handle
233 532 40 52-96 Washer Serrated
281 532 41 15-54 Bolt Shoulder
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION

36
TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

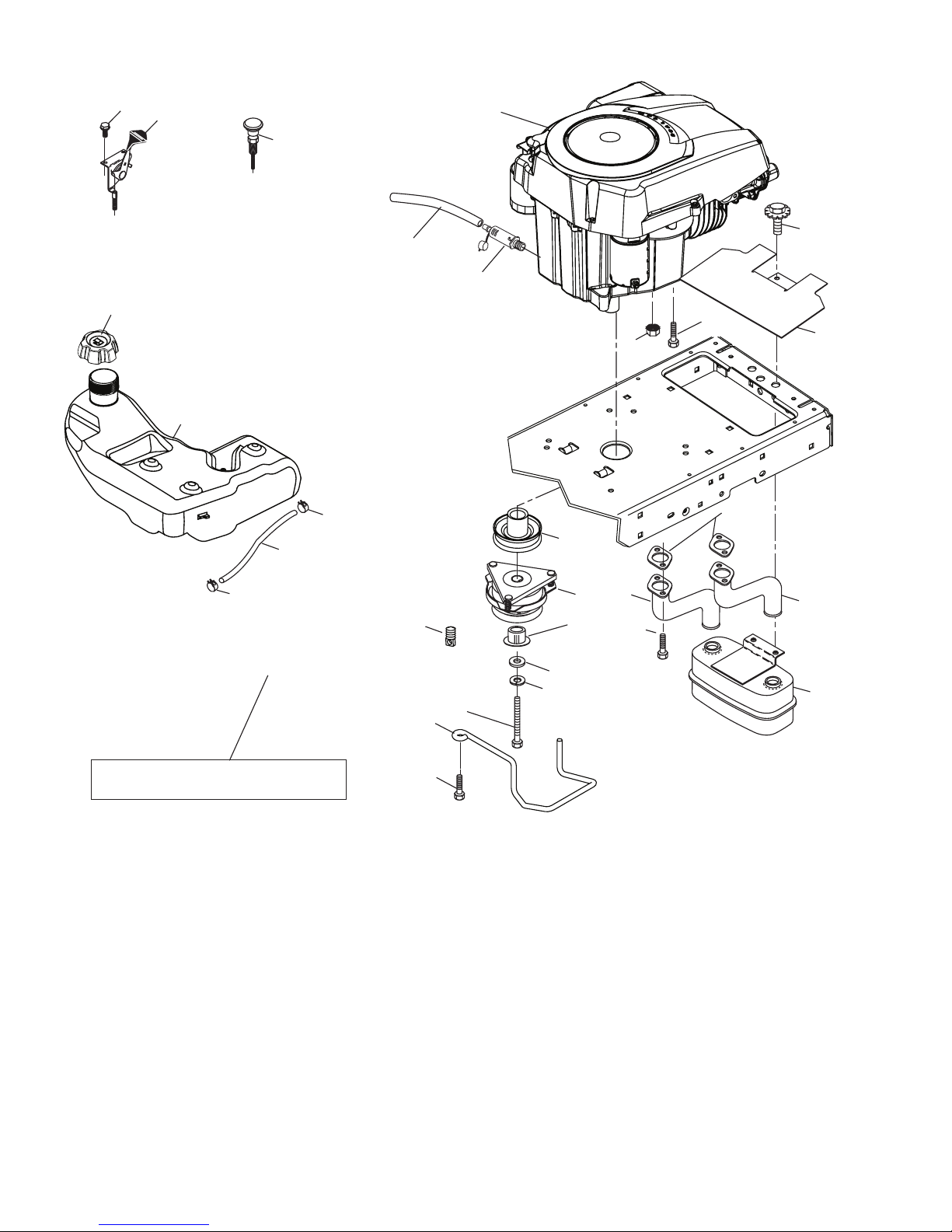

ENGINE
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
Kohler Co. 1-800-544-2444
Tecumseh Products 1-800-558-5402
Honda Engines 1-800-426-7701
Kawasaki 1-949-460-5688
1 - - - - - - - - - Engine Kohl Model No. SV735
2 532 14 97-23 Muffler
9 532 19 43-20 Keeper Belt Engine
11 532 17 93-35 Clutch Electric
12 532 19 43-43 Pulley Engine
15 532 19 34-99 Tank Fuel 4.0
18 532 19 42-67 Cap Asm
20 532 18 29-37 Control Throttle
21 532 19 16-11 Screw 10 x 3/4 Single Lead Hex
22 532 19 15-96 Control Choke
28 532 40 11-35 Fuel Line
29 532 13 71-80 Spark Arrester Kit
31 532 14 50-06 Clip Push-In
37 532 12 34-87 Clamp Hose
41 532 12 61-97 Washer 1-1/2 OD x 15/32 ID x .250
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
62 532 14 66-29 Shield Heat Muffler
69 532 18 68-54 Gasket
70 532 14 66-99 Tube Exhaust LH
KEY PART
NO. NO. DESCRIPTION
71 532 14 67-00 Tube Exhaust RH
79 532 19 23-34 Screw Socket HD 5/16 - 18 x .75
81 532 14 84-56 Tube Drain Oil Easy
82 532 18 16-54 Plug Drain Oil
84 817 12 06-16 Screw 3/8-16 x 1
85 532 17 99-53 Bolt Hex 7/16-20 x 3.75 Gr. 5
87 532 19 82-39 Bolt 5/16-18 unc x 1 w/Sems
90 817 00 06-16 Screw 3/8-16 x 1
91 532 18 74-95 Bushing
1
29
SPARK ARRESTER KIT
84
45
21 20
engine-tex_31-kohl
81
82
18
15
37
28
37
12
11
41
42
85
90
9
22
62
87
71
70
79
69
2
31 91

37
TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

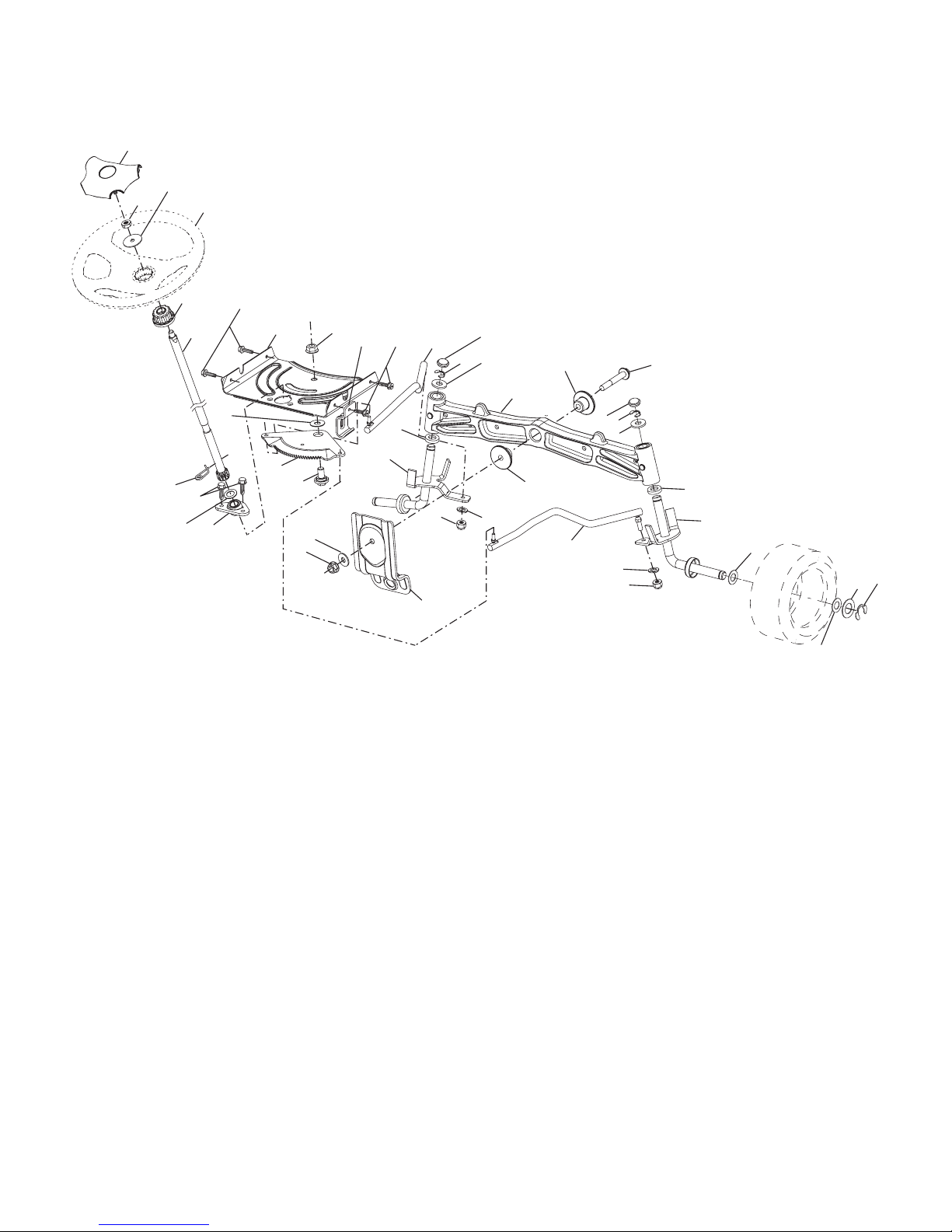

STEERING ASSEMBLY
6
5
13
13
53 8
9
9
8
8
7
7
62
4
35
16 19
63
63
57
60
59
58
28
13 22
64
70
68
69
67
67 66
15
15
14
14
21
51
26
1
45
61
2
6
steering-tex_4-husq
KEY PART
NO. NO. DESCRIPTION
1 532 19 39-43 Wheel, Steering
2 532 19 59-68 Axle Asm., Front
4 532 40 30-89 Spindle Asm. LH
5 532 40 30-90 Spindle Asm. RH
6 532 12 49-31 Bearing, Race Thrust Harden
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 19 47-46 Shaft Steering
19 532 19 47-29 Plate Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 19 48-45 Bushing, Strg. Blk
26 532 19 36-52 Insert, Wheel Steering
28 817 00 06-12 Screw 3/8-16 x 3/4
35 532 19 47-32 Gear, Sector Plate
45 819 18 38-12 Washer 9/16 x 2-3/8 x 12 Ga. NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
51 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf
53 532 18 89-67 Washer Hardened
57 532 19 72-46 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 19 61-97 Bracket Deck Susp. Front

38
TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

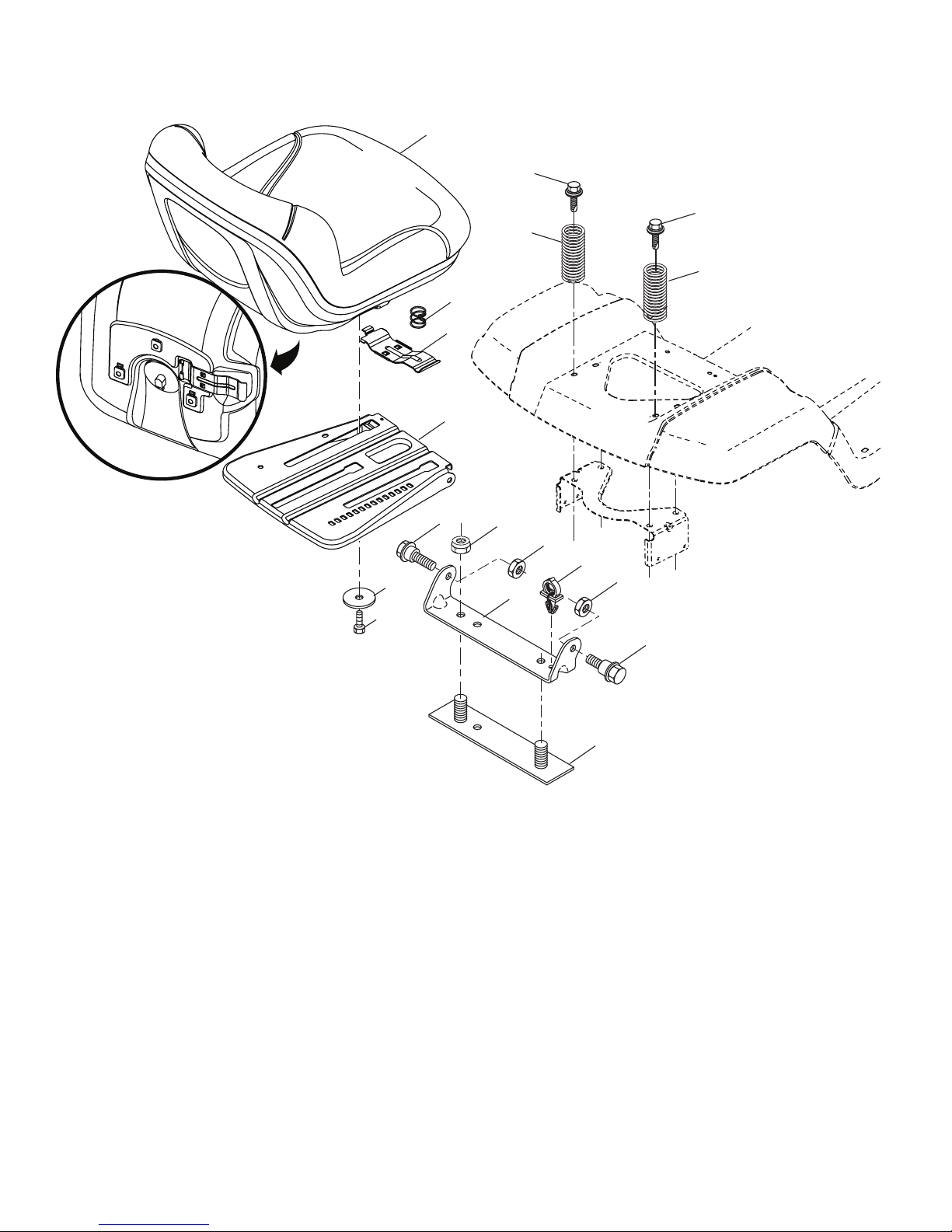

SEAT ASSEMBLY
1 532 40 66-21 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
5 532 14 50-06 Clip, Push In, Hinged
6 873 80 06-00 Nut, Lock W/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 uncx 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
44
43
3
5
41
7
8
7
8
seat-tex_5-husq

39
TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
410
59
8
7
wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
17
16 16
1 532 05 91-92 Cap, Valve, Tire
2 532 06 51-39 Stem, Valve
3 532 14 45-09 Rim Assembly, Front
4 532 05 99-04 Tube, Front (Service Item Only)
5 532 10 62-30 Tire, Front
6 532 12 49-57 Fitting, Grease (Front Wheel Only)
7 532 12 49-59 Bearing, Flange (Front Wheel Only)
8 532 17 50-39 Cap, Axle (Front Wheel Only)
9 532 10 55-88 Tire, Rear
10 532 12 49-26 Tube, Rear (Service Item Only)
11 532 14 45-10 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
14
5
2
1 532 19 91-14 Decal, Operator's
2 532 40 21-28 Decal, Hood Insert
3 532 17 05-63 Decal, Warning
5 532 17 85-02 Decal, Caution
8 532 19 87-85 Decal, Mower Sch.
9 532 14 50-05 Decal, Battery Dnge/Poi
13 532 40 44-84 Decal, Steeraing Whl
14 532 40 83-63 Decal, Panel Side
1
15 532 18 09-41 Decal, Cust. Resp.
16 532 40 28-32 Decal, Hood Logo
17 532 40 84-67 Decal, Replacement
- - 532 16 69-60 Decal, Bypass
- - 532 40 17-71 Pad, Footrest, LH
- - 532 40 17-70 Pad, Footrest, RH
- - 532 41 26-34 Manual, Owner's (Eng)
- - 532 41 26-35 Manual, Owner's (Fr)
14
13
9
38
15

40
TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31

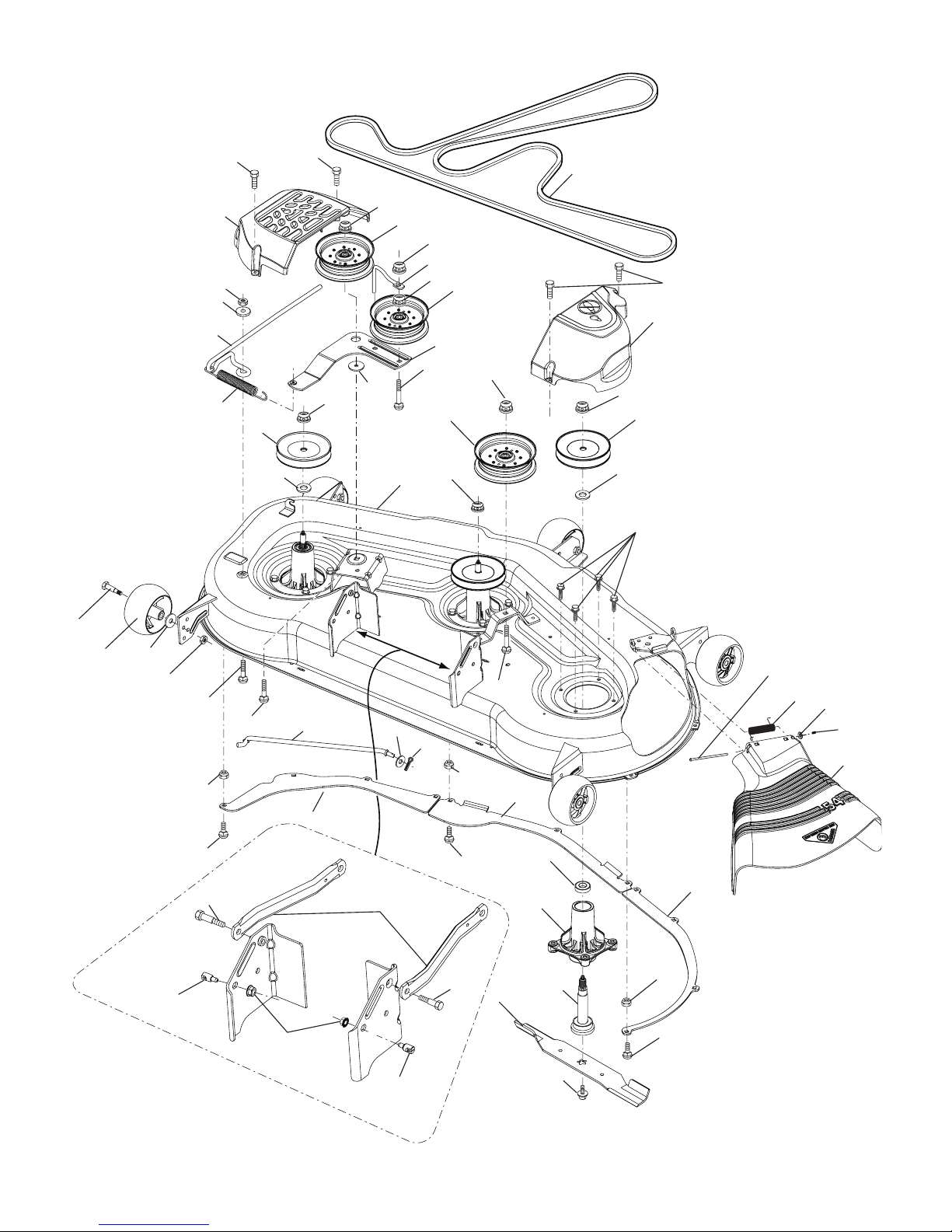

MOWER DECK
mower_deck 54-tex_3
47
7
49
46
32
33
31
30
133
52
52
43
196
97
33
192
49
34
39
185
46
46
6
21
122
114
98
31
32
25 26
24
27
58
60
59
18
21
194
113
49
187
190
184
190
187
50
120
117
116
21
18
189
21
18
13
14
15
11
8
29
12 16 19

41
TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 40 31-25 Deck Weldment Mower
6 532 19 60-66 Cover Mandrel LH
7 532 19 71-81 Cover Mandrel RH
8 532 17 43-65 Bolt 7/16 Asm. Blade
11 532 18 72-54 Blade Discharge
- - 532 18 72-55 Blade Mulching
- - 532 18 72-56 Blade Bagging
12 532 40 03-37 Bar Anti-Sway
13 532 18 72-91 Shaft Asm. w/Lower Bearing
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
16 819 13 13-12 Washer 3/8
18 872 14 05-05 Bolt RdHd 5/16-18 unc x 5/8
19 532 19 42-08 Pin Cotter 5/16 Bowtie
21 873 68 05-00 Nut, Crownlock 5/16-18 unc
24 532 10 53-04 Cap Sleeve
25 532 17 81-02 Spring, Torsion
26 532 11 04-52 Nut, Push
27 532 18 89-38 Deflector Shield
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw, Thdroll Washer Head
31 532 18 76-90 Washer, Spacer Mower Vented
32 532 17 34-36 Pulley, Mandrel
33 532 40 02-34 Nut, Flg. Top Lock
34 873 68 06-00 Nut Crownlock 3/8-46 UNC
39 532 19 61-04 Pulley, Idler, Stationary LH
43 532 19 60-65 Arm, Idler
46 532 13 77-29 Screw, Thdroll. 1/4-20 x 5/8
47 532 19 61-03 Belt Deck Drive
49 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
50 872 11 06-16 Bolt Carriage 3/8-16 x 2 Gr. 5
52 532 19 61-06 Pulley Idler
58 532 18 73-42 Baffle Right
59 532 18 73-44 Baffle Left
60 532 18 76-07 Baffle Center
97 532 17 85-15 Washer Hardened
98 532 19 61-05 Spring Drive
113 872 11 05-08 Bolt Rdhd Sqnk 5/16-18 x 3/4
114 532 18 75-56 Rod Tension Relief
116 532 19 34-06 Bolt, Shoulder
117 532 17 48-73 Gauge Wheel
120 819 13 20-12 Washer 13/32 x 1-1/4 x 12 Ga.
122 532 18 75-57 Bushing Tension Relief
185 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
187 532 19 51-61 Stud Fastener w/"D" Anti-Rotation
188 873 90 05-00 Nut Lock Hex Flange
189 532 19 51-85 Arm Susp. Mower Rear
190 532 19 65-39 Bolt Shoulder
192 532 19 84-68 Keeper Belt Idler
194 872 14 07-16 Bolt Carr Sqnk 7/16-24 x 2
196 872 14 06-20 Bolt RDHD SQNK 3/8-16 x 2-1/2 Gr. 5
- - 532 18 72-92 Mandrel Asm. Service (Includes Key
Nos. 13-15 and 33)
- - 532 19 93-00 Replacement Mower, Complete

42
TRACTOR - MODEL NO. GTH26K54 (96043003101), PRODUCT NO. 960 43 00-31
MOWER LIFT
7
3
87
10 88
2
89
90
87
98
97
97
91
lift-tex_3
89
87
89
87
2 532 19 52-23 Shaft Asm., Lift
3 532 19 52-30 Lever Asm., Lift Rh
7 532 19 64-92 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 19 53-04 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
91 532 40 34-07 Link Lift Susp Mower Rear
97 817 06 06-12 Screw 3/8-16 x .75 Smgml Tap/R.Z
98 532 19 52-64 Link Lift Susp. Front Mower
