Husqvarna PZ5426FX / 966614001 User manual

PZ5426FX / 966614001
PZ5430 / 967004001
Parts Manual
Please read the operator’s manual carefully and make sure you
understand the instructions before using the machine.
Gasoline containing up to 10% ethanol (E10) is
acceptable for use in this machine.The use of any
gasoline exceeding 10% ethanol (E10) will void
the product warranty.

©2011 All rights reserved.
Orangeburg, SC. Printed in U.S.A.
Accessories Available
Collection System ----------------------------- 966 406901
Mulch Kit 54" ------------------------------------ 966 050401
Mulch Kit 60" ------------------------------------ 966 444701
OCDC Kit 54", 60" ----------------------------- 966 488701
(Operator Controlled Discharge Chute)
Bearing Kit -------------------------------------- 574 754201
When you need spare parts or support in service
questions, warranty issues, etc., please consult
the following professional:
This Parts Manual belongs to the machine with the
manufacturing number:
Engine Transmission
The engine’s manufacturing number is stamped on
one of the valve covers.
The plate states:
• The engine’s model.
• The engine’s type.
• Code
Please have these available when ordering spare
parts.
The wheel motors and hydrostatic pumps have a
barcode decal affixed at the rear.
Manufacturing Number
The machine’s manufacturing number can be found on
the printed plate affixed to the engine compartment.
Stated on the plate, from the top are:
• The machine’s type designation (I.D.).
• The manufacturer’s type number (Model).
• The machine’s serial number (Serial no.)
Please have the type designation and serial number
available when ordering spare parts.

CONTENTS
NOTE: ALL FASTENERS ARE GRADE 5 UNLESS OTHERWISE SPECIFIED.
FRAME ...................................................................................4
ENGINE PLATE
966614001 .....................................................................6
967004001 .....................................................................8
STEERING ...........................................................................10
FUEL SYSTEM
966614001 ...................................................................12
967004001 ...................................................................14
PARKING BRAKE ................................................................16
HYDRAULIC PUMP-MOTOR
966614001 ...................................................................18
967004001 ...................................................................20
WHEELS / TIRES .................................................................22
MOWER LIFT / DECK LIFT ..................................................24
MOWING DECK / CUTTING DECK .....................................26
SEAT ....................................................................................28
DECALS ...............................................................................30
PROTECTION FRAME .........................................................32

4
FRAME
7
2
1
4
3
9
10
12
5
11
13
17
16
18
15
14
6
8
20
20
19
14
20

5
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
FRAME
1.. 574 482801 .... 1 .... FRAME w/ SAFETY DECALS
2.. 574 215602 .... 1 .... FLOORPAN
3.. 574 215702 .... 1 .... FOOTREST
4.. 522 675702 .... 1 .... BUMPER, REAR
5.. 574 221602 .... 1 .... GUARD, REAR
6.. 574 228602 .... 1 .... PLATE, SKID
7.. 510 083201 .... 4 .... MOUNT, F/F INSERT
8.. 510 040301 .... 2 .... BRACKET, REST MOUNT
9.. 575 811501 .... 2 .... BUMPER, ¼-20 STUD 3/8"
10.. 525 612801 .... 4 ....HHFS 3/8-16 x 1 HEX FLG
11.. 574 233801 .... 2 ....HHFS 5/16-18 x 2¼ HEX FLG
12.. 539 131780 .... 2 ....HHFS 5/16-18 x 3¾ HEX FLG
13.. 525 544001 .... 2 ....HHFS 5/16-18 x 1¼ TPBLT
14.. 539 990858 .... 6 ....HCS 5/16-18 x ½ SLF TAP
15.. 539 100145 .... 2 ....RHSNB 3/8-16 x 2
16.. 539 111028 .... 2 ....NUTSERT 5/16-18
17.. 521 996501 .... 7 ....NUT 3/8-16 HEX FLG NYLOC
18.. 539 108120 .... 2 ....NUT ¼-20 HEX THIN NYLOC
19.. 539 112899 .... 2 ....NUT 5/16-18 HEX FLG NYLOC
20.. 539 109600 .... 8 ....WASHER 5/16 DISC SPRING

6
ENGINE PLATE
1
21
11
16
Torque to 50-60 Ft-Lbs
14
22
13
3
17
12
97
10
6
15
8
19
18
5
4
24
23
20
25
966614001
2
21
19

7
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

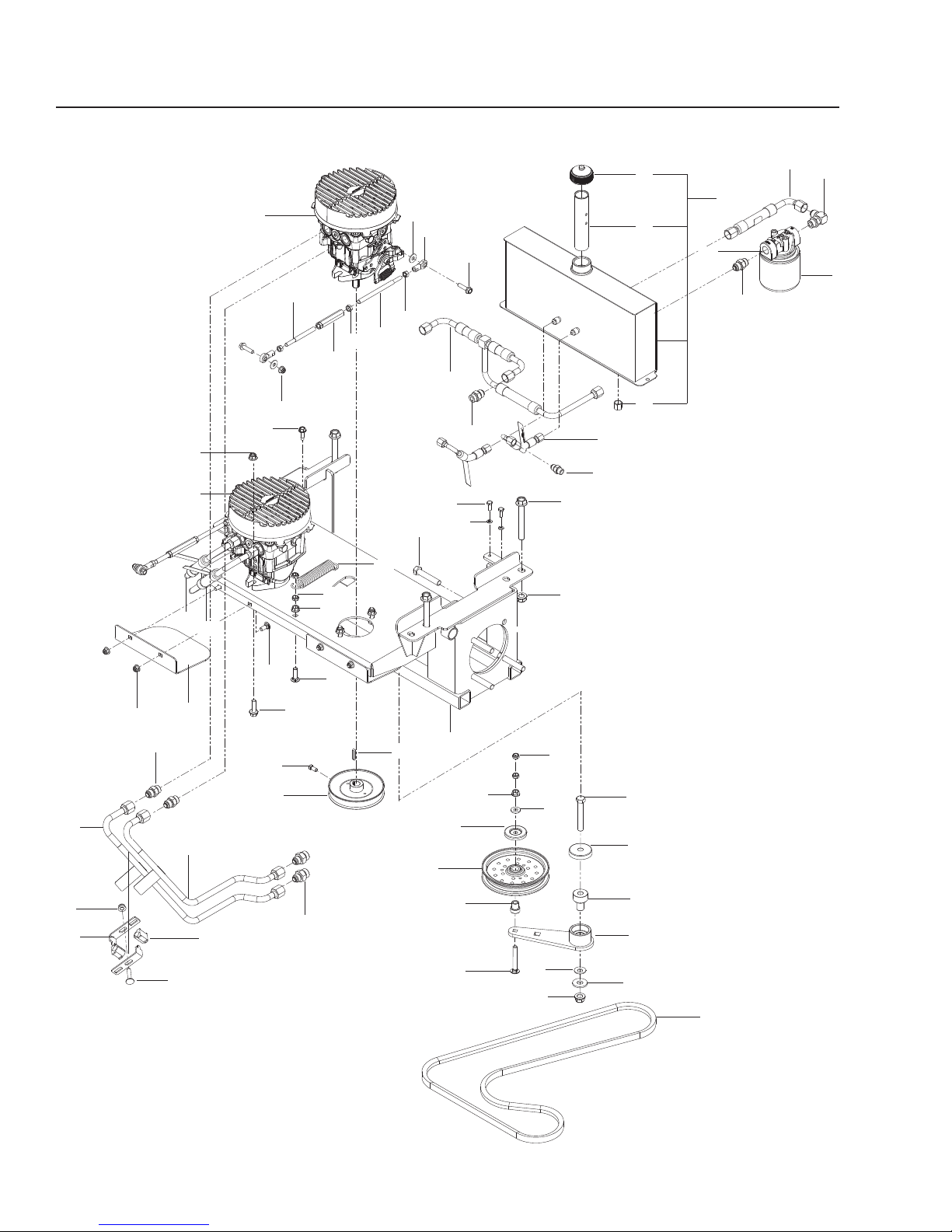

ENGINE PLATE
1.. 510 004602 .... 1 .... PLATE, ENGINE
2.. 510 019801 .... 1 .... PULLEY, ENGINE
3.. 525 750201 .... 1 .... MUFFLER
4.. 525 749501 .... 1 .... CLUTCH, GT 3.5
5.. 522 676702 .... 1 .... STOP, CLUTCH
6.. 539 119680 .... 1 .... ADAPTOR, OIL DRAIN
7.. 578 211401 .... 2 .... PIPE 3/8 NPT x 1½"
8.. 539 105072 .... 1 .... ELBOW 90O
9.. 522 837001 .... 1 .... PLUG 3/8 NPTF DRAIN
10.. 539 110425 .... 1 ....FUEL LINE 5"
11.. 525 749901 .... 1 ....KEY ¼ SQ x 3½
12.. 539 109618 .... 1 ....O-RING
13.. 539 912222 .... 2 ....CLAMP, HOSE
14.. 505 280001 .... 1 ....TIE WRAP w/ CLIP
15.. 539 100143 .... 1 ....HCS 7/16-14 x 1 HEX NYLOC
16.. 539 100141 .... 1 ....HCS 7/16-20 x 1½ HEX NYL
17.. 539 990563 .... 4 ....HCS 3/8-16 x 1 HEX NYLOC
18.. 574 233801 .... 3 ....HHFS 5/16-18 x 2¼ HEX FLG
19.. 539 990208 .... 3 ....RHSNB 5/16-18 x 1
20.. 539 103153 .... 1 ....NUT M8X1.25 NYLOC
21.. 539 112899 .... 8 ....NUT 5/16-18 HEX FLG NYLOC
22.. 539 102582 .... 1 ....NUT 7/16-14 HEX WHIZ LK
23.. 539 990247 .... 1 ....WASHER 7/16 SLW
24.. 539 102593 .... 4 ....WASHER 3/8 SPRING
25.. 539 125626 .... 1 ....WASHER, HEAVY
NOT SHOWN
525 554201 ... 1 .... ENGINE HARNESS, KAW
574 825801 ... 1 .... KIT, SPARK ARRESTOR

8
ENGINE PLATE
967004001
1
19
14
11
13
Torque to 50-60 Ft-Lbs
15
22
17
3
16
12
9
10
6
21
20
8
5
4
2
7
18
18
20
20

9
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
ENGINE PLATE
1.. 510 004602 .... 1 .... PLATE, ENGINE
2.. 510 019801 .... 1 .... PULLEY, ENGINE
3.. 525 756201 .... 1 .... MUFFLER
4.. 525 749501 .... 1 .... CLUTCH, GT 3.5
5.. 522 676702 .... 1 .... STOP, CLUTCH
6.. 539 118911 .... 1 .... PIPE 3/8 NPT x 3"
7.. 539 105072 .... 1 .... ELBOW 90O
8.. 522 837001 .... 1 .... PLUG, DRAIN, 3/8 NPTF
9.. 539 110425 .... 1 .... FUEL LINE 5"
10.. 525 749901 .... 1 ....KEY,¼ SQ x 3½
11.. 539 912222 .... 2 ....CLAMP, HOSE
12.. 505 280001 .... 1 ....TIE WRAP w/ CLIP
13.. 539 100141 .... 1 ....HCS 7/16-20 x 1½ HEX NYL
14.. 539 100143 .... 1 ....HCS 7/16-14 x 1 HEX NYLOC
15.. 574 233801 .... 3 ....HHFS 5/16-18 x 2¼ HEX FLG
16.. 525 465401 .... 4 ....HHFS 5/16-18 x 1½ HEX FLG
17.. 525 464701 .... 1 ....HHFS 5/16-18 x ¾ HEX FLG
18.. 539 990208 .... 3 ....RHSNB 5/16-18 x 1
19.. 539 102582 .... 1 ....NUT 7/16-14 HEX WHIZ LK
20.. 539 112899 .... 7 ....NUT 5/16-18 HEX FLG NYLOC
21.. 539 125626 .... 1 ....WASHER, HEAVY
22.. 539 990247 .... 1 ....WASHER 7/16 SLW
NOT SHOWN
522 795601 ... 1 .... ENGINE HARNESS, KOH
574 825801 ... 1 .... KIT, SPARK ARRESTOR

10
STEERING
14
16
12
7
6
5
4
3
2
1
9
10
13 14
15
18
19
29
21
17
23
44
27
28
32
34
35
36
37
38
39
30
41
20 31
42
33
54
51
26
44
49
50
46 48
39
44
24
25
8
11
22
56
55
52
53
44
26
40
45
43
47
47

11
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

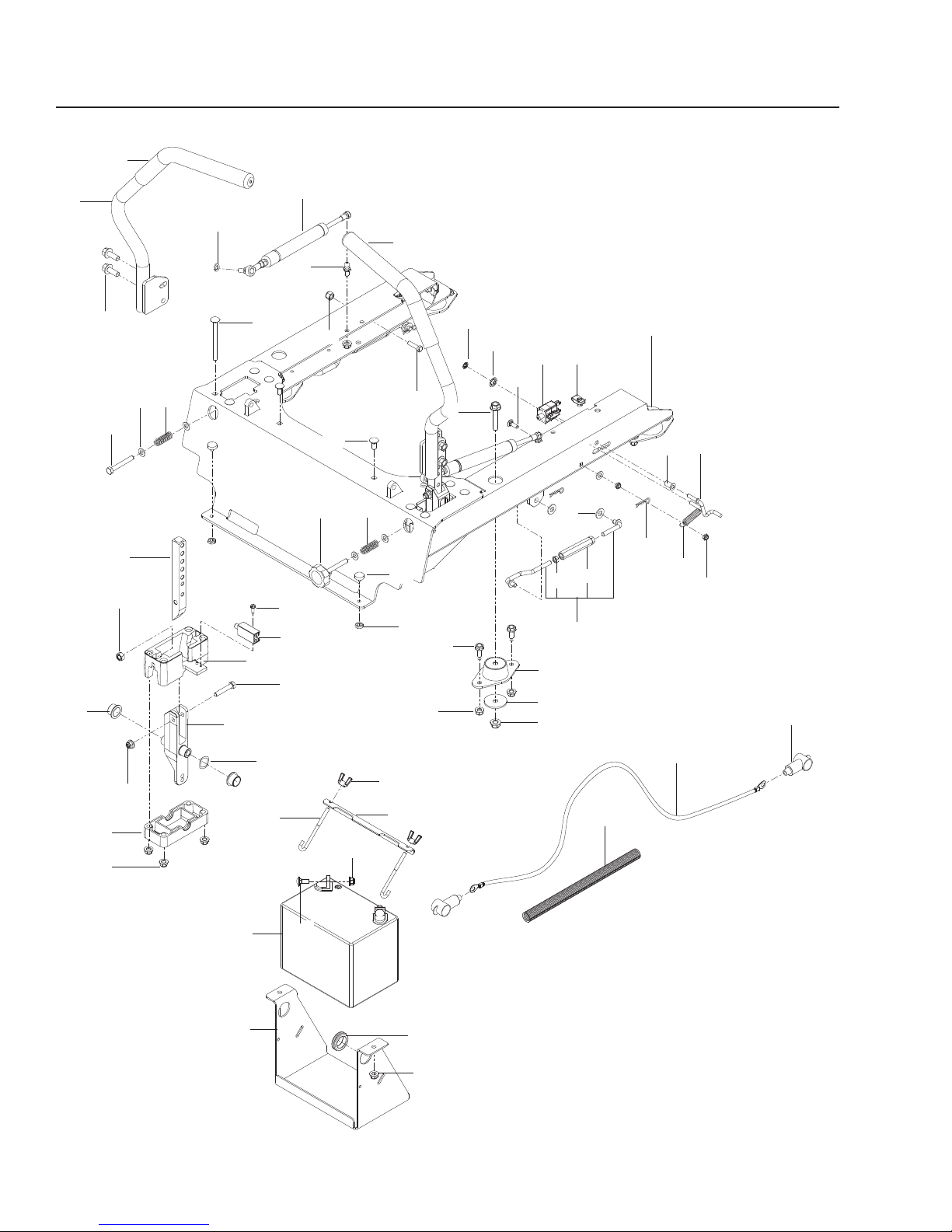

STEERING
1.. 574 189602 .... 1 .... FRAME MOUNT
2.. 539 101080 .... 2 .... SWITCH N.C.
3.. 539 113792 .... 1 .... SWITCH, BRAKE (3-POLE)
4.. 510 029902 .... 1 .... BRACKET, BATTERY
5.. 510 030001 .... 1 .... BRACKET, BATTERY MOUNT
6.. 539 102463 .... 1 .... BATTERY
7.. 574 269401 .... 2 .... LEVER, MOTION
8.. 574 262701 .... 1 .... LEVER w/ GRIP, RT
9.. 574 262702 .... 1 .... LEVER w/ GRIP, LT
10.. 539 130894 .... 2 ....GRIP, LEVER
11.. 510 113301 .... 2 ....LEVER, CONTROL w/BSHG
12.. 510 082101 .... 4 ....MOUNT, ISO
13.. 539 131799 .... 1 ....KNOB
14.. 539 101224 .... 2 ....SPRING
15.. 539 020035 .... 1 ....SPRING
16.. 510 064001 .... 2 ....J HOOK
17.. 522 718701 .... 1 ....CABLE, POSITIVE
18.. 516 020301 .... 2 ....DAMPENER ASSY
19.. 539 131517 .... 2 ....BLOCK, UPPER
20.. 539 131519 .... 2 ....BLOCK, LOWER
21.. 511 594901 .... 1 ....BUSHING ¼ FLANGE
22.. 511 595001 .... 1 ....LINK, SWITCH
23.. 539 110607 .... 2 ....BALL STUD 10MM
24.. 539 109149 .... 1 ....TURNBUCKLE 3/8
25.. 539 131518 .... 4 ....BEARING, FLANGE
26.. 539 976988 .... 4 ....HAIRPIN COTTER
27.. 539 105974 .... 1 ....GROMMET, RUBBER
28.. 525 447901 .... 2 ....STRUT, SEAT
29.. 575 811501 .... 2 ....BUMPER 1/4-20 STUD 3/8
30.. 539 102759 .... 2 ....INSULATOR
31.. 574 235301 .... 1 ....LOOM, SPLIT 5/8
32.. 539 990669 .... 2 ....HCS 5/16-18 x 1¾ HEX NYLOC
33.. 539 991034 .... 2 ....HCS 10-24 x 5/8 WSH HD
34.. 539 108396 .... 1 ....HCS 5/16-18 x 2½ HEX TPBLT
35.. 525 866201 .... 4 ....HHFS 3/8-16 x 2 HEX FLG
36.. 525 464701 .... 8 ....HHFS 5/16-18 x ¾ HEX FLG
37.. 525 612801 .... 4 ....HHFS 3/8-16 x 1 HEX FLG
38.. 574 822701 .... 2 ....SCREW 10-24 x ¾ SCKT HD
39.. 539 990316 .... 4 ....RHSNB 5/16-18 x ¾
40.. 539 131665 .... 8 ....RHSNB 5/16-18 x 3¾
41.. 539 990074 .... 1 ....RHSNB ¼-20 x ¾ GR2 RD HD
42.. 525 996501 .... 4 ....NUT 3/8-16 HEX FLG NYLOC
43.. 539 108732 .... 1 ....NUT 3/8-24 HEX JAM
44.. 539 112899 . . 25 .... NUT 5/16-18 HEX FLG NYLOC
45.. 539 990196 .... 2 .... NUT 5/16-18 HEX
46.. 539 976977 .... 2 .... NUT 10-24 HEX NYLOC
47.. 539 108120 .... 4 .... NUT ¼-20 HEX THIN NYLOC
48.. 539 913847 .... 2 .... NUT 3/8 RETAINER
49.. 539 102234 .... 1 .... NUT ¼ PUSH
50.. 539 990997 .... 2 .... NUT ¼-20 WING NYL
51.. 539 990187 .... 2 .... WASHER 5/16 SLW
52.. 539 111897 .... 4 .... WASHER 3/8 SPECIAL
53.. 539 990122 .... 4 .... WASHER 3/8 SAE FLT
54.. 539 990188 .... 5 .... WASHER 5/16 SAE FLAT
55.. 539 133007 .... 1 .... WASHER, WAVE
56.. 539 104763 .... 4 .... RETAINER, U TYPE
NOT SHOWN
510 093601 ... 1 .... HARNESS, MAIN WIRING
522 710701 ... 1 .... CABLE, NEGATIVE

12
FUEL SYSTEM
6
7
8
5
9
47
16
15
17
13
12
11
1
2
3
10
39
25
26
31
32
30
36
33
34
23
4
14
18
19
20
21 22
27
28
29
41
40
38
43
38
24
45
44
46 42
36
43
42
42
35
37
966614001

13
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
FUEL SYSTEM
1.. 576 369202 .... 1 .... TANK ASSY, RT
2.. 576 369102 .... 1 .... TANK ASSY, LT
3.. 529 280202 .... 1 .... PANEL, CONTROL
4.. 574 514001 .... 1 .... TIMER, SEAT
5.. 576 179401 .... 1 .... HOUR METER
6.. 574 455401 .... 1 .... SWITCH, IGNITION
7.. 539 131627 .... 1 .... SWITCH, PTO 10 AMP
8.. 574 455501 .... 1 .... KEY, IGNITION
9.. 574 206901 .... 1 .... CABLE, CHOKE
10.. 574 207001 .... 1 .... CABLE, THROTTLE
11.. 539 132624 .... 1 .... KNOB
12.. 575 018101 .... 2 .... CAP w/ TETHER, FUEL
13.. 576 618101 .... 2 .... VALVE, FUEL CHECK
14.. 539 102679 .... 1 .... VALVE, FUEL
15.. 539 109867 .... 1 .... CLAMP, DOUBLE TUBE
16.. 539 912222 .... 4 .... CLAMP
17.. 575 436501 .... 6 .... CLAMP, HOSE
18.. 577 103901 .... 1 .... LINE 22" FUEL
19.. 577 103902 .... 1 .... LINE 38" FUEL
20.. 576 660603 .... 1 .... HOSE 3/16 21"
21.. 576 660601 .... 1 .... HOSE 3/16 39"
22.. 576 660604 .... 1 .... HOSE 3/16 30"
23.. 576 547701 .... 1 .... VAPOR LINE ASSY
24.. 505 280001 .... 2 .... TIE WRAP w/ CLIP
25.. 577 104002 .... 1 .... BRACKET, VALVE
26.. 574 206602 .... 1 .... TEE 3/16 FUEL LINE
27.. 539 105245 .... 2 .... GROMMET, RUBBER
28.. 576 618201 .... 2 .... GROMMET, CHECK VALVE
29.. 525 865401 .... 2 .... FITTING, FUEL
30.. 529 279603 .... 1 .... MOUNT, TANK RT RR
31.. 529 279703 .... 1 .... MOUNT, TANK LT RR
32.. 529 279903 .... 1 .... MOUNT, TANK RT FRT
33.. 529 280003 .... 1 .... MOUNT, TANK LT FRT
34.. 539 102845 .... 4 .... SPRING, TANK MOUNT
35.. 539 103178 .... 1 .... CAP, IGNITION SWITCH
36.. 525 464701 .... 7 .... HHFS 5/16-18 x ¾ HEX FLG
37.. 539 990580 .... 1 .... HCS ¼-20 x ¾
38.. 574 822701 .... 4 .... SCREW 10-24 x ¾ SKT HD
39.. 539 114341 .... 3 .... SCREW 10-24 x 3/8 SKT HD
40.. 539 113226 .... 6 .... BOLT 5/16-18 x 1 THD FRM
41.. 539 108120 .... 1 .... NUT ¼-20 HEX THIN NYLOC
42.. 539 112899 . . 13 .... NUT 5/16-18 HEX FLG NYLOC
43.. 539 976977 .... 4 .... NUT 10-24 HEX NYLOC
44.. 539 990598 .... 1 .... WASHER ¼ FLAT
45.. 539 109600 .... 4 .... WASHER 5/16 DISC SPRING
46.. 539 990188 .... 4 .... WASHER 5/16 SAE FLAT
47.. 539 102502 .... 4 .... STUD, FUEL TANK

14
FUEL SYSTEM
6
7
8
5
9
47
16
15
17
13
12
11
1
2
3
10
39
25
26
31
32
30
36
33
34
23
4
14
18
19
20
21
22
27
28
29
41
40
38
43
38
24
45
44
46
42
36
43
42
42
35
37
967004001

15
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
FUEL SYSTEM
1.. 576 369202 .... 1 .... TANK ASSY, RT
2.. 576 369102 .... 1 .... TANK ASSY, LT
3.. 529 280202 .... 1 .... PANEL, CONTROL
4.. 574 514001 .... 1 .... TIMER, SEAT
5.. 576 179401 .... 1 .... HOUR METER
6.. 574 455401 .... 1 .... SWITCH, IGNITION
7.. 539 131627 .... 1 .... SWITCH, PTO 10 AMP
8.. 574 455501 .... 1 .... KEY, IGNITION
9.. 574 206902 .... 1 .... CABLE, CHOKE
10.. 574 207001 .... 1 .... CABLE, THROTTLE
11.. 539 132624 .... 1 .... KNOB
12.. 575 018101 .... 2 .... CAP w/ TETHER, FUEL
13.. 576 618101 .... 2 .... VALVE, FUEL CHECK
14.. 539 102679 .... 1 .... VALVE, FUEL
15.. 539 109867 .... 1 .... CLAMP, DOUBLE TUBE
16.. 539 912222 .... 4 .... CLAMP
17.. 575 436501 .... 6 .... CLAMP, HOSE
18.. 577 103901 .... 1 .... LINE 22" FUEL
19.. 577 103902 .... 1 .... LINE 38" FUEL
20.. 576 660601 .... 1 .... HOSE 3/16 39"
21.. 576 660603 .... 1 .... HOSE 3/16 21"
22.. 576660607 ..... 1 .... HOSE 3/16 11"
23.. 576 547701 .... 1 .... VAPOR LINE ASSY
24.. 505 280001 .... 2 .... TIE WRAP w/ CLIP
25.. 577 104002 .... 1 .... BRACKET, VALVE
26.. 574 206602 .... 1 .... TEE 3/16 FUEL LINE
27.. 539 105245 .... 2 .... GROMMET, RUBBER
28.. 576 618201 .... 2 .... GROMMET, CHECK VALVE
29.. 525 865401 .... 2 .... FITTING, FUEL
30.. 529 279603 .... 1 .... MOUNT, TANK RT RR
31.. 529 279703 .... 1 .... MOUNT, TANK LT RR
32.. 529 279903 .... 1 .... MOUNT, TANK RT FRT
33.. 529 280003 .... 1 .... MOUNT, TANK LT FRT
34.. 539 102845 .... 4 .... SPRING, TANK MOUNT
35.. 539 103178 .... 1 .... CAP, IGNITION SWITCH
36.. 525 464701 .... 7 .... HHFS 5/16-18 x ¾ HEX FLG
37.. 539 990580 .... 1 .... HCS ¼-20 x ¾
38.. 574 822701 .... 4 .... SCREW 10-24 x ¾ SKT HD
39.. 539 114341 .... 3 .... SCREW 10-24 x 3/8 SKT HD
40.. 539 113226 .... 6 .... BOLT 5/16-18 x 1 THD FRM
41.. 539 108120 .... 1 .... NUT ¼-20 HEX THIN NYLOC
42.. 539 112899 . . 13 .... NUT 5/16-18 HEX FLG NYLOC
43.. 539 976977 .... 4 .... NUT 10-24 HEX NYLOC
44.. 539 990598 .... 1 .... WASHER ¼ FLAT
45.. 539 109600 .... 4 .... WASHER 5/16 DISC SPRING
46.. 539 990188 .... 4 .... WASHER 5/16 SAE FLAT
47.. 539 102502 .... 4 .... STUD, FUEL TANK

16
PARKING BRAKE
8
7
5
4
32
1
14
13
12
11
9
26
19
15
16
25
18
21
23 22
32
31
20
6
24
10
29
17
28
30
10
13
15
27 33
3

17
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
PARKING BRAKE
1.. 525 851201 .... 1 .... SHAFT, BRAKE
2.. 510 025901 .... 1 .... ARM, RT BRAKE
3.. 510 089201 .... 2 .... BUSHING, SLEEVE ¾ x 1
4.. 539 200282 .... 6 .... NUT 3/8-16 HEX JAM NYLOC
5.. 539 110631 .... 1 .... ROLL PIN 5/16" DIA.
6.. 539 133047 .... 2 .... CALIPER
7.. 516 035501 .... 4 .... BOLT ½ x 2¼, 3/8-16 SHLDR
8.. 515 980301 .... 1 .... LINK, FOLLOWER
9.. 515 980002 .... 1 .... LEVER, BRAKE
10.. 539 132161 .... 6 .... BUSHING, BRAKE
11.. 525 490901 .... 2 .... WASHER, FRICTION
12.. 539 912063 .... 1 .... WASHER, CONE
13.. 539 133007 .... 2 .... WASHER, WAVE
14.. 539 200282 .... 3 .... NUT 3/8-16 HEX JAM NYLOC
15.. 539 100413 .... 3 .... RHSNB 3/8-16 x 1¼
16.. 539 923463 .... 1 .... HHFS 3/8-16 x 3¼ HEX NYLOC
17.. 539 976526 .... 1 .... GRIP, LEVER
18.. 525 851401 .... 1 .... SWIVEL, BRAKE
19.. 539 113952 .... 1 .... SPRING
20.. 539 977465 .... 1 .... YOKE
21.. 522 705901 .... 1 .... PIN 3/8 CLEVIS SPRING
22.. 539 104984 .... 1 .... HHFS 3/8-24 x 4½ HEX NYL
23.. 539 108732 .... 3 .... NUT 3/8-24 HEX JAM
24.. 539 990122 .... 1 .... WASHER 3/8 SAE FLT
25.. 539 115617 .... 1 .... NUT 5/16-18 HEX NYLOC INS
26.. 521 996501 .... 1 .... NUT 3/8-16 HEX FLG NYLOC
27.. 574 805202 .... 1 .... MOTOR, RT
966614001
575 224601 ... 1 .... MOTOR, RT
967004001
28.. 574 805201 .... 1 .... MOTOR, LT
966614001
539 110823 ... 1 .... MOTOR, LT
967004001
29.. 521 991101 .... 8 .... NUT ½-13 HEX FLG NYLOC
30.. 525 848701 .... 2 .... HUB, DISC BRAKE w/ STUDS
31.. 539 101173 .... 8 .... LUG NUT ½
32.. 539 102889 .... 2 .... COTTER PIN 1/8 x 2
33.. 525 851601 .... 2 .... PLATE, CALIPER

18
HYDRAULIC PUMP-MOTOR
966614001
16
7
10
24
46
26
3
14
5
13
25
8
19
9
2
12
6
20
1
23
45
50
4
31
32
29
27
28 35
34
30
44
43
41
40
39
38
37
42
55
59
21
17
22
58
49
48
56
36
18
50
11
52
51
54
21
61
60
53
50
57
47
15
33
54 55
21
49

19
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
HYDRAULIC PUMP-MOTOR
1.. 506 007902 .... 1 .... FRAME, SUB
2.. 573 978301 .... 1 .... BELT
3.. 576 035902 .... 1 .... OIL TANK ASSY
4.. 522 805401 .... 1 .... FILTER, 25 MICRON
5.. 506 120401 .... 1 .... PUMP, 16CC RT
6.. 506 120501 .... 1 .... PUMP, 16CC LT
7.. 510 019002 .... 2 .... PULLEY, PUMP, 17MM
8.. 510 019002 .... 1 .... PULLEY, IDLER
9.. 525 435601 .... 1 .... PIVOT, IDLER
10.. 510 206301 .... 1 .... PIVOT, BEARING
11.. 510 041603 .... 1 .... ARM, IDLER, w/ BEARINGS
12.. 574 398502 .... 2 .... SHIELD, PULLEY
13.. 510 254501 .... 1 .... SHIELD, DUST
14.. 539 114662 .... 1 .... SHIELD, DUST
15.. 577 437201 .... 1 .... SPRING, PUMP
16.. 576 577601 .... 2 .... RUBBER, VIBRATION ½
17.. 576 573701 .... 2 .... BRACKET, CLAMP
18.. 522 805301 .... 1 .... CAP, HYDRAULIC
19.. 539 103316 .... 2 .... CONNECTOR
20.. 539 101239 .... 4 .... CONNECTOR, STRAIGHT
21.. 539 101237 .... 7 .... CONNECTOR, STRAIGHT
22.. 510 013601 .... 1 .... LINE, HYDRAULIC, RT-A
23.. 510 013701 .... 1 .... LINE, HYDRAULIC, RT-B
24.. 510 013801 .... 1 .... LINE, HYDRAULIC, LT-A
25.. 510 013901 .... 1 .... LINE, HYDRAULIC, LT-B
26.. 510 014001 .... 1 .... LINE, HYDRAULIC, CHARGE
27.. 510 014501 .... 2 .... LINE, HYDRAULIC, CASE
28.. 510 010701 .... 1 .... LINE, HYDRAULIC, SUCTION
29.. 575 872301 .... 1 .... FILTER HEAD
30.. 522 842801 .... 2 .... LINKAGE, CONTROL, RR
31.. 522 559201 .... 2 .... LINKAGE, CONTROL, FT
32.. 539 109149 .... 2 .... TURNBUCKLE 3/8
33.. 539 101177 .... 2 .... KEY, METRIC
34.. 539 102590 .... 4 .... BALL END, RT
35.. 539 101242 .... 1 .... ELBOW 90O ADJ
36.. 522 805001 .... 1 .... TUBE, ANTI-SPLASH
37.. 539 101332 .... 8 .... HHFS ½-13 x 2¾ HEX NYLOC
38.. 525 544801 .... 4 .... HHFS ½-13 x 4 HEX FLG
39.. 525 834201 .... 4 .... HHFS 3/8-16 x 1¼ HEX FLG
40.. 539 102717 .... 4 .... HCS 5/16-18 x 5/8 SET
41.. 539 990072 .... 2 .... HCS ¼-20 x 5/8 HEX NYLOC
42.. 539 103433 .... 1 .... HCS ½-13 x 3¼ HEX NYLOC
43.. 525 544001 .... 4 .... HCS 5/16-18 x 1¼ TPBLT
44.. 539 990316 .... 4 .... RHSNB 5/16-18 x ¾
45.. 539 100413 .... 1 .... RHSNB 3/8-16 x 1¼
46.. 539 130235 .... 1 .... RHSNB 3/8-16 x 2¾
47.. 539 102933 .... 1 .... RHSNB 5/16-18 x 1½
48.. 539 113226 .... 2 .... BOLT 5/16-18 x 1 THD FRM
49.. 539 990613 .... 1 .... NUT 3/8-16 HEX WHIZLK
50.. 539 112899 .... 9 .... NUT 5/16-18 HEX FLG NYLOC
51.. 521 996501 .... 4 .... NUT 3/8-16 HEX FLG NYLOC
52.. 539 108732 .... 2 .... NUT 3/8-24 HEX JAM
53.. 539 990223 .... 4 .... NUT 5/16-24 HEX
54.. 539 200282 .... 8 .... NUT 3/8-16 HEX JAM NYLOC
55.. 521 991101 . . 13 .... NUT ½-13 HEX FLG NYLOC
56.. 539 105168 .... 1 .... CAPNUT
57.. 539 990692 .... 4 .... WASHER 5/16 STD FLT
58.. 539 990052 .... 2 .... WASHER ¼ SPLIT LOCK
59.. 539 109554 .... 1 .... WASHER ½ FLAT
60.. 522 023401 .... 1 .... WASHER 3/8 THICK
61.. 539 115528 .... 1 .... WASHER ½" BELLEVILLE

20
HYDRAULIC PUMP-MOTOR
967004001
16
7
10
25
47
27
3
14
5
1326
8
19
9
2
12
6
20
1
24
46
51
4
32
33
30
28
29 36
35
31
45
44
42
41
40
39
38
43
56
60
21
17
23
59
50
49
57
37
18
51
11
53
52
55
21
62
61
54
51
58
48
15
34
55 56
22
