Husqvarna YTA18542 / 96045005500 NO. 960 45 00-55 User manual

English/Spanish
115 77 68-26
Repair Parts Manual
Manual De Repuestos
YTA18542 / 96045005500
Please read the operator's manual carefully and make sure
you understand the instructions before using the machine.
Por favor lea cuidadosamente y comprenda
estas intrucciones antes de usar esta maquina.

2
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor when ordering repair parts. The
illustrations may or may not represent the actual assemblies; therefore, it is not recommended to use this manual as a guide to assemble
or disassemble the tractor. Some hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “TRACTOR”
• MODEL NUMBER - “YTA18542" (96045005500)”
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC .......................................................................................................................................................................3
ELECTRICAL.................................................................................................................................................................. 4-5
CHASSIS......................................................................................................................................................................... 6-7
DRIVE.............................................................................................................................................................................. 8-9

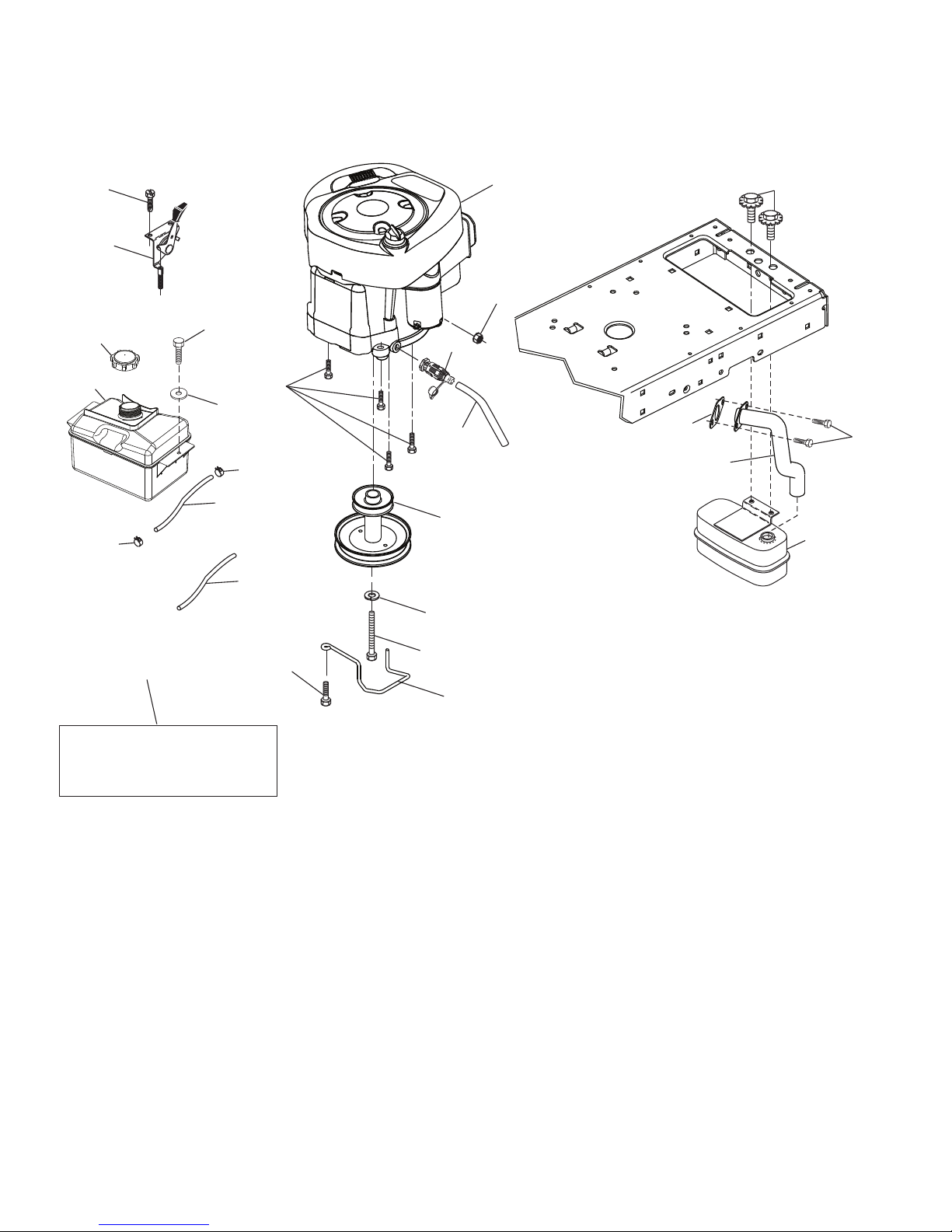

ENGINE....................................................................................................................................................................... 10-11
STEERING .................................................................................................................................................................. 12-13
MOWER DECK ........................................................................................................................................................... 14-15
MOWER LIFT....................................................................................................................................................................16
SEAT.................................................................................................................................................................................17
DECALS............................................................................................................................................................................18
COMO UTILIZAR ESTE MANUAL
Este manual está diseñado para brindarle al comprador un medio para identificar las piezas del tractor para cuando necesite hacer el
pedido de un repuesto. Las ilustraciones pueden o no representar los ensambles reales; por lo tanto, no se recomienda utilizar este
manual como una guía para ensamblar o desarmar el tractor. Algunos accesorios y piezas están dibujados en tamaños más grandes
para identificarlos con mayor facilidad.
Cada tractor tiene su propio número de modelo.
El número de modelo del tractor se encuentra en el guardabarros debajo del asiento.
Cuando haga el pedido de una pieza, siempre brinde la siguiente información:
• Producto: ”TRACTOR”
• NÚMERO DE MODELO: “YTA18542" (96045005500)”
• Número de pieza
• Descripción de la pieza
ÍNDICE
DIAGRAMA.......................................................................................................................................................................19
DIAGRAMA ELÉCTRICO........................................................................................................................................... 20-21
CHASIS....................................................................................................................................................................... 22-23
TRANSMISIÓN ........................................................................................................................................................... 24-25
MOTOR ....................................................................................................................................................................... 26-27
DIRECCIÓN ................................................................................................................................................................ 28-29
PLATAFORMA DE LA CORTADORA DE CÉSPED ................................................................................................. 30-31
ELEVACIÓN DE LA CORTADORA DE CÉSPED............................................................................................................32
ASIENTO...........................................................................................................................................................................33
CALCOMANÍAS................................................................................................................................................................34

3
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
SCHEMATIC
M
FUSE
STARTER
SOLENOID
BATTERY
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
S
M
B
G
L
2
3
1
6
A2
A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH11
IGNITION SWITCH
CIRCUIT
POSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
ATTACHMENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK /WHITE
BLUE
BLUE BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
DER
RED
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(OPTIONAL)
12V
BLACK
A
AMMETER
(OPTIONAL)
RED
BLACK
BROWN
HEADLIGHTS
LIGHT SWITCH
ORANGE
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR
BRIGHTEST.

4
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
ELECTRICAL
30
33
34
22
79 21
26
40
71
16
TR02S
90
28
55
4646
2
43
27
99
25
87
106
29
102
105
142
(+) (-)
143
Service Minder (If Equipped)
Charge Indicator (If Equipped)

5
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 19 32-28 Box Battery
16 532 17 61-38 Switch Interlock Push-In
21 532 40 02-52 Harness Socket Light w/4152J
22 532 00 41-52 Bulb Light
25 581 49 80-01 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 42 16-86 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ign
33 532 41 19-33 Key/Chain
34 532 11 07-12 Switch Light/Reset
40 581 02 31-01 Harness Ign. Dash
43 532 19 25-07 Solenoid
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4
71 581 02 30-01 Harness Chassis
79 532 17 52-42 Socket Asm Bulb Twistlock
87 532 19 78-02 Switch Interlock Clutch Cable
90 532 43 53-95 Cover, Terminal Battery
99 817 67 04-12 Screw
102 581 02 34-01 Harness Pigtail
105 532 40 75-68 Switch Reverse
106 532 17 48-14 Pal nut
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
CHASSIS
37
181
194
194
36
162
181
196
287
138
chassis-tex_GT HUSQ_II_161_r1
68
68
68
68
183
183
236
236
34
235
235
52
217
68
68
213
218
58
189
189
228
180
228
194
159
159
182
176
176
175
177
150
130
130
234
234
14
202
203
205
151
206
137
137
214
204
208
15
25
207
3
297
191
18
130
130
130
176
5
176
176
159
159
152
195
350
336
350
335

7
3 532 44 44-81 Applique Sub Asm.
5 581 46 68-01 Dash
14 532 44 11-77 Hood
15 532 43 97-33 Lens LH
18 532 44 06-53 Grille
25 532 44 33-85 Lens RH
34 580 91 08-01 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 44 12-06 Fender
52 873 68 05-00 Nut Crown Lock 5/16
58 532 41 22-80 Drawbar Upper
68 817 49 05-08 Screw THDROL 5/16-18 x 1/2
130 532 41 63-58 Screw #10 x 0.750 BOS Thread
137 532 40 75-90 Bumper Dash
138 532 43 97-47 Cupholder
150 532 43 99-21 Air Duct
151 532 43 66-70 Hood Pivot Bracket
152 532 43 98-70 Shield Browning
159 817 00 06-12 Screw Hexwash Thor 3/8-16 x 3/4
162 532 14 24-32 Screw
175 532 19 63-04 Crossmember Plate
176 532 40 07-76 Screw 10-24 x 5/8
177 532 19 52-28 Bushing Steering
180 532 41 50-63 Chassis
181 532 43 97-46 Bushing Mtg. Fender Crgo
182 586 73 86-02 Dash Lower
183 874 52 05-20 Bolt 5/16-18 x 1-1/4 Full Thd
189 817 00 05-12 Screw 5/16-18 x 3/4
191 532 43 74-55 Insert Reflective RH
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
195 532 40 41-37 Plug Dash
196 532 43 96-47 Console Asm. Deck Lift
202 532 43 97-28 Vent Side Hood RH
203 532 43 97-27 Vent Side Hood LH
204 532 43 57-14 Vent Top Hood
205 532 43 97-30 Trim Side RH
206 532 43 97-29 Trim Side LH
207 532 43 97-34 Bezel RH
208 532 43 97-35 Bezel LH
213 874 76 05-12 Bolt 5/16-18 x 3/4
214 532 19 91-45 Clip Retainer
217 532 40 91-67 Rod Pivot Hood
218 532 19 63-95 X-Piece Hood Stop
228 532 19 51-61 Stud Fastener
234 532 40 47-42 Bumper Hood
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Lock 5/16-18 unc
287 817 60 04-06 Screw Hex Washead 1/4-20 x 3/8
297 532 43 74-56 Insert Reflective LH
335 532 44 82-04 Cover RH
336 532 44 53-09 Cover LH
350 532 44 51-43 Clip X-mas Tree
- - 532 43 99-76 Dash Plug Reminder
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
CHASSIS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION

8
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
DRIVE
17
282
73
116
99
73
116
205 37
33
33 37
205
172
2
2
185
56
1
195
51
6
345
161
186
189
49
190
187
50
51
52
51
160
160
35
42
184
221
167
143
188
306
15
159
210
214
277
160
211
166
222
211
215
163 125
29
203
drive-tex_VATR_PEDAL_33
64
67
125
51
5
373
301
300
303
125
374
125
299
375
302
378
172
116

9
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
DRIVE
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 – – – – – – Transaxle, Variator SD Pedal
(580486201) (Order parts from
transaxle manufacturer.)
2 532 12 35-83 Key Square
5 874 76 06-36 Bolt 3/8-16 x 2-1/4
6 532 12 40-28 Bushing Snap
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 584 95 40-01 Spring, Brake
29 584 82 31-01 Brake VATR
33 812 00 00-01 Ring E
35 583 86 45-01 Rod, Brake, Park
37 532 18 89-67 Washer .793 x 1.637 x 060
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt 3/8-16 unc
50 532 19 43-27 Idler Flat
51 873 90 06-00 Nut Lock
52 532 19 43-26 Idler V-Groove
56 532 19 72-53 V-Belt, Drive
64 532 44 83-53 Subasm. Shaft Pedal Brake
67 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
73 874 49 05-44 Bolt Hex 5/16-18 x 3.75
99 532 43 59-35 Rod Bypass
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
143 817 49 05-08 Screw Thdrol 5/16-18 x 1/2 TYTT
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring Return Clutch
163 587 84 79-01 Rod Control
166 532 42 91-64 Nut Push .625
167 532 40 52-57 Latch Brake Parking
172 583 97 42-01 Strap Torque
184 587 65 37-01 Handle Park Brk.
185 872 11 06-22 Bolt 3/8-16 unc x 2-3/4
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer 13/32 x 2 x 10 Ga.
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper. Bellcrank
195 581 50 46-01 Bracket Brake
203 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.
205 532 12 17-48 Washer 25/32 x 1-5/8 16 Ga.
210 532 44 82-70 Rocker Asm. Pedal
211 532 12 01-83 Bearing Nylon
214 532 42 12-63 Pedal Forward
215 532 44 82-54 Pad Pedal Reverse
221 532 40 31-87 Retainer Spring
222 879 21 20-10 Washer Flat
277 532 44 85-00 Subasm Link Rocker Pedal
282 874 49 05-48 Screw Thdrol 5/16-18 x 3
299 532 41 56-83 Bracket Mount
300 532 41 56-81 Keeper Idler
301 532 41 56-80 Pulley Idler Groove
302 581 42 05-01 Puller Idler Flat
303 872 11 06-18 Bolt
306 876 02 04-16 Cotter Pin
345 872 11 06-06 Bolt 3/8-16 unc
373 581 46 18-01 Spacer Idler
374 581 47 52-01 Arm Control Brake
375 873 68 06-00 Nut Crownlock 3/8-16 unc
378 584 28 77-01 Push Nut 8 mm

10
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
ENGINE
21
20
OPTIONAL EQUIPMENT
SPARK ARRESTER
29
engine-tex_BS_77_r1
12
42
85
9
90
84
45
1
82
94
69
2
87
37
28
37
18
15
97
96
79
81
138

11
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
1 – – – – – – Engine Briggs Model No. 33R777-
0003-G1(585564601) (Order parts
from engine manufacturer.)
2 532 44 67-60 Muffler
9 584 91 16-01 Keeper Belt Engine
12 586 72 90-01 Pulley Engine
15 532 43 30-07 Tank Fuel
18 581 17 61-01 Cap Fuel
20 532 18 38-97 Control Throttle
21 532 41 63-58 Screw #10 x 0.750 BOS Thread
28 532 40 11-37 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
69 532 16 52-91 Gasket
79 532 19 23-34 Screw 5/16-18 x 3/4
81 532 14 84-56 Tube Drain Oil Easy
82 532 42 82-87 Valve Drain Oil
84 817 06 06-20 Screw 3/8-16 x 1/4
85 532 17 39-37 Bolt Hex 7/16-20 x 4 Gr. 5
87 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/sems
90 817 00 06-16 Screw 3/8-16 x 1
94 581 88 09-01 Exhaust Tube
96 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
97 817 67 04-12 Screw 1/4-20 x 3/4
138 532 41 41-19 Purge Line
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
ENGINE
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive En-
gineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and
corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower values
are derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambient operat-
ing conditions and engine-to-engine variability. Given both the wide array of products on which engines are placed and
the variety of environmental issues applicable to operating the equipment, the gas engine will not develop the rated gross
power when used in a given piece of power equipment (actual “on-site” or net power). This difference is due to a variety
of factors including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.),
application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability.
Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this
Series engine.

12
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
STEERING ASSEMBLY
steering-tex_HUSQHR_7
6
5
13
13
53 8
9
87
9
87
62
4
70
68
69
67
67 66
15
15
14
14
61
2
6
35
59
58
19 60 63
57
57
63
122
122
21
50
26
1
45
16
28
28
27
22
64
75
76

13
KEY PART
NO. NO. DESCRIPTION
1 532 43 99-97 Wheel, Steering
2 532 19 59-68 Axle Asm., Front
4 532 40 30-87 Spindle Asm., LH
5 532 40 30-88 Spindle Asm., RH
6 532 12 49-31 Bearing, Race Thrust Harden
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 587 01 60-02 Shaft Steering
19 532 19 47-29 Plate Steering
21 586 84 02-01 Adapter Wheel Steering
22 585 02 98-02 Bearing
26 532 43 97-43 Insert, Wheel Steering
27 819 21 16-16 Washer
28 817 00 06-12 Screw 3/8-16 x 3/4
35 532 19 47-32 Gear, Sector Plate
45 587 01 64-01 Washer 3/8 ID 2-3/8 OD 12 Ga. PLTD
50 873 90 06-00 Nut Lock Flg 3/8-16 unc
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink, LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 585 33 88-01 Bracket Deck Susp. Front
75 580 68 37-01 Pinion
76 580 68 36-01 Screw Head Sock
122 532 44 49-62 Cap Gear Sector
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
STEERING ASSEMBLY

14
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
MOWER DECK
68
41
43
42
60
38
63
46
147
55
64
47
192
41
41
32
38
195
122
123
195
33
34
56
56 57
59
62
188
189
1
69
40
145
42_D_man-tex_LT_66
15
14
13
11
12
21
24
25
26
27
29
23
189
188
144
36
113
113
40
57
19
19
6
6
242
241
21
21
69 69
20
117 119
116
40 117
116
40 119
70
7
7
37
67
152

15
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 43 98-17 Mower Housing
6 532 19 51-86 Arm Suspension
7 532 41 63-58 Screw #10 x .750 BOS Thread
11 532 13 89-71 Blade, 42" Hi-Lift
(For bagging or discharge)
12 584 30 93-01 Screw Sems 7/16-20 x 1 Hex Head
13 532 19 28-72 Shaft Assembly, Mandrel
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
19 532 19 65-39 Bolt, Shoulder
20 532 15 97-70 Baffle, Vortex
21 873 68 05-00 Nut, Crownlock 5/16-18 unc
23 532 19 25-57 Bracket, Deflector
24 532 10 53-04 Cap, Sleeve
25 532 19 70-26 Spring, Torsion, Deflector
26 532 11 04-52 Nut, Push
27 532 40 30-04 Shield, Deflector
29 532 13 14-91 Rod, Hinge
32 532 19 74-73 Pulley, Mandrel
33 532 40 02-34 Nut, Toplock, Flanged
34 872 11 06-12 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
36 532 19 73-79 Pulley, Idler, Flat
37 819 13 13-16 Washer
38 532 43 25-20 Keeper Belt Mandrel
40 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
41 584 95 39-01 Bolt Hex Wshrhd 313-18 x 1.19
42 532 19 84-10 Spring Torsion Brake
43 532 19 72-56 Spring Torsion Retainer
46 532 13 77-29 Screw Thd Roll 1/4-20 x 5/8
47 532 19 72-50 Bracket Clutch Cable
55 532 43 71-10 Arm, Idler
56 532 19 90-92 Spacer, Retainer
57 817 00 06-16 Screw 3/8-16 x 1
59 532 14 10-43 Guard, Tuv Idler
60 532 19 72-61 Arm Brake Mower
62 872 11 06-16 Bolt Rd Hd Sq Nk 3/8-16 unc x 2
63 532 19 94-77 Arm Brake Mower
64 532 19 99-18 Link Brake
67 532 40 30-12 Handle Clutch Cable
68 532 42 96-36 V-Belt
69 872 14 05-05 Bolt
70 532 19 99-72 Clutch Asm Manual
113 817 00 05-10 Screw 5/16-18
116 532 12 48-42 Bolt, Shoulder
117 532 18 86-06 Wheel, Gauge
119 819 12 14-14 Washer 13/32 x 7/8 x 14 Ga.
122 532 19 72-58 Keeper Belt Engine LH
123 532 19 72-59 Keeper Belt Engine RH
144 532 19 92-04 Keeper Belt
145 532 19 31-97 Pulley Idler
147 532 40 19-71 Spring Return
152 584 24 35-01 Manual Clutch Cable
188 532 19 51-61 Stud Fastener
189 873 90 05-00 Nut Lock Hex Flange
192 532 19 72-60 Bracket Brake Stand LH
195 817 00 06-12 Screw 3/8-16 x 3/4
241 532 15 29-27 Screw TT #10-32 5 3/8 Flange
242 532 41 55-98 Port Washout
- - 532 41 64-05 Coupling Quick connect
- - 587 25 33-01 Mandrel Assembly (Includes hous-
ing(Key# 14), shaft assembly (Key#
13), and bearing (Key# 15) and nut
(Key# 33) only - pulley/washer and
blade bolt/washers not included.)
- - 532 43 29-37 Replacement Mower, Complete

16
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
MOWER LIFT
2 532 42 20-27 Shaft Asm., Lift
3 532 19 52-31 Lever Asm., Lift RH
7 580 96 23-01 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
91 532 19 79-84 Link Asm Lift Rear
97 817 00 06-12 Screw Hex Wsh. THDR 3/8-16 x 3/4
98 532 42 05-25 Link Lift Susp. Front Mower
116 819 15 15-16 Washer 15/32 x 15/16 x 16 Ga.
KEY PART
NO. NO. DESCRIPTION
7
3
87
10
88
2
116
90 98
97
97
lift-tex_56
91
89
87
91
89
87

17
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
SEAT ASSEMBLY
1 532 43 98-19 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 587 61 33-01 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 587 90 78-01 Bolt, Shoulder 5/16-18 x 5/8
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 43 98-71 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
8
8
seat-tex_6-tex LT
44
43
KEY PART
NO. NO. DESCRIPTION

18
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Asm 6" Front
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire Front 15 x 6-6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle
9 532 13 84-68 Tire Rear 20 x 8-8
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 581 57 87-01 Decal, Fender Warn./Instructions
2 581 62 73-01 Decal, Hood Logo
3 532 19 15-54 Decal, Fender
4 586 28 74-01 Decal, Hood Panel
5 532 42 38-29 Decal, Customer Respons.
6 501 30 25-01 Decal, Replacement
7 584 90 46-01 Decal, Deflect. Warning
8 585 55 60-01 Decal, Engine
9 532 14 50-05 Decal, Battery Dnge/Poi
12 581 58 00-01 Decal, Mower V-Belt Schematic
- - 581 72 48-01 Decal, Bypass
- - 532 43 96-81 Pad, Footrest, LH
- - 532 43 96-82 Pad, Footrest, RH
- - 580 88 58-01 Decal, E85 Warning
- - 115 77 66-26 Manual, Operator's
(English/Spanish)
- - 115 77 68-26 Manual, Parts (English/Spanish)
- - 587 71 00-26 Manual, Quick Start Guide
(English/Spanish)
TRACTOR - - MODEL NUMBER YTA18542 (96045005500), PRODUCT NO. 960 45 00-55
DECALS
1
12
2 5 6
8
2
39
4
7

19
FUSIBLE
MOTOR DE ARRANQUE
SOLENOIDE
BATERÍA
ACCESORIO DEL EMBRAGUE
(EMBRAGUE DESCONECTADO)
EMBRAGUE/FRENO
(PEDAL HACIA
ARRIBA) INTERRUPTOR DE REVERSA
(NO EN REVERSA)
INTERRUPTOR DEL
ASIENTO (LIBRE)
CONECTOR DE
CORTOCIRCUITOS
ARNÉS DEL
CHASIS
UNIDAD DE
ENCENDIDO
INTERRUPTOR
DE LUZ
LUCES FRONTALES
LÍNEA DE
COMBUSTIBLE
SOLENOIDE DE CIERRE DE
COMBUSTIBLE (SI ESTÁ
EQUIPADO CON ESTE)
CONECTOR
DE UNIÓN
SM
B
GLA2
A1
M
14 VOLTIOS DE CC A 3600 RPM (LUCES APAGADO)
SALIDA DEL SISTEMA DE
CARGA DE 3 AMPERIOS
DE CC A 3600 RPM
SISTEMA DE LUCES
POTENCIA DE SALIDA
5 AMPERIOS AC @ 3600 RPM
28 VOLTIOS AC @3600 RPM
(SISTEMA DE CARGA
DESCONECTADO)
(OPCIONAL)
CONEXIÓN DEL
ARNÉS DEL CHASIS
(LATERAL QUE COINCIDA)
CONEXIÓN PARA EL
ARNÉS DEL TABLERO
(LATERAL QUE COINCIDA)
CONEXIONES NO
DESMONTABLES
CONEXIONES
DESMONTABLES
NOTA SOBRE LAS ABRAZADERAS DE
AISLAMIENTO DEL CABLEADO: SI SE
QUITAN LAS ABRAZADERAS DE
AISLAMIENTO DEL CABLEADO PARA
HACER EL MANTENIMIENTO DE LA
UNIDAD, SE LAS DEBERÁ INSTALAR
NUEVAMENTE PARA PROTEGER EL
CABLEADO ADECUADAMENTE.
TOMACORRIENTE DE
12 VOLTIOS (OPCIONAL)
MEDIDOR
DE AMPERIOS
(OPCIONAL)
NARANJA
ROJO
MARRÓN
AZUL
AZUL
NEGRO
NEGRO
DIODO ALTERNADOR
NEGRO
NEGRO
NEGRO/BLANCO
NEGRO
NEGRO
NEGRO
NEGRO
NEGRO
NEGRO
NEGRO
BLANCO
BLANCO
SCH11-s
GRIS
GRIS
NEGRO
NEGRO
ROJO ROJO
CONTADOR
HORARIO
SEPARACIÓN DE LAS
BUJÍAS (DOS BUJÍAS EN
LOS MOTORES BICILÍNDRICOS)
INTERRUPTOR DE ENCENDIDO
B+A1
B+S+A1
M+G+A1
B+A1 L+A2
POSICIÓN CIRCUITO «MARCA»
APAGADO
PONER EN FUNCIO-
NAMIENTO/ANULAR
PONER EN FUNCIO-
NAMIENTO
ARRANCAR
12V
NOTAS:
QUE SU TRACTOR ES EQUIPADO
CON UN SISTEMA ESPECIAL DE
ALTERNADOR. LAS LUCES NO
SON CONECTADAS A LA BATERIA,
PERO TIENEN SU PROPIA FUENTE
ELECTRICA. A CAUSA DE ESTO,
EL BRILLO DE LAS LUCES
CAMBIARA CON LA VELOCIDAD
DE MOTOR. EN LENTO, LAS
LUCES NO SON COMO
BRILLANTES. CUANDO EL MOTOR
ES ACELERADO, LA LUZ
CONSEGUIRÁ MÁS BRILLANTE.
63
52
41
6
5
4
3
2
1
TRACTOR - - MODELO NO. YTA18542 (96045005500), PRODUCTO NO. 960 45 00-55
DIAGRAMA

20
30
33
34
22
79 21
26
40
71
16
TR02S-s
90
28
55
4646
2
43
27
99
25
87
106
29
102
105
142
(+) (-)
143
Recordatorio de mantenimiento
(si está equipado)
Indicador de carga
(si está equipado)
TRACTOR - - MODELO NO. YTA18542 (96045005500), PRODUCTO NO. 960 45 00-55
DIAGRAMA ELÉCTRICO
