Husqvarna LGTH24V54 User manual

English/French
586 29 59-24
Operator’s Manual
Manuel de L’Opérateur
LGTH24V54
Gasolinecontainingupto10%ethanol(E10)isaccept-
ableforuseinthismachine. The useofanygasoline ex-
ceeding10%ethanol(E10)willvoidtheproductwarranty.
Vous pouvez utiliser de l’essence contenant jusqu’à
10 % d’éthanol (E10) avec cet appareil. L’utilisation
d’essence contenant plus de 10 % d’éthanol annulera
la garantie du produit. Please read the operator's manual carefully and make sure
you understand the instructions before using the machine.
Lisez très attentivement et soyez certain de comprende
ces instructions avant d’utiliser cette machine.

2
SAFETY RULES
Safe Operation Practices for Ride-On Mowers
DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE
TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.
• Never leave a running machine unattended. Always turn
off blades, set parking brake, stop engine, and remove
keys before dismounting.
• Disengage blades when not mowing. Shut off engine
and wait for all parts to come to a complete stop before
cleaning the machine, removing the grass catcher, or
unclogging the discharge chute.
• Operate machine only in daylight or good artificial light.
• Do not operate the machine while under the influence of
alcohol or drugs.
• Watchfor trafficwhenoperatingnearorcrossingroadways.
• Use extra care when loading or unloading the machine
into a trailer or truck.
• Always wear eye protection when operating machine.
• Data indicates that operators, age 60 years and above,
are involved in a large percentage of riding mower-related
injuries. These operators should evaluate their ability to
operate the riding mower safely enough to protect them-
selves and others from serious injury.
• Follow the manufacturer's recommendation for wheel
weights or counterweights.
• Keepmachinefree ofgrass, leavesor otherdebrisbuild-up
which can touch hot exhaust / engine parts and burn. Do
not allow the mower deck to plow leaves or other debris
which can cause build-up to occur. Clean any oil or fuel
spillage before operating or storing the machine. Allow
machine to cool before storage.
II. SLOPE OPERATION
Slopes are a major factor related to loss of control and tip-
over accidents, which can result in severe injury or death.
Operation on all slopes requires extra caution. If you cannot
back up the slope or if you feel uneasy on it, do not mow it.
• Mow up and down slopes, not across.
• Watch for holes, ruts, bumps, rocks, or other hidden ob-
jects. Uneven terrain could overturn the machine. Tall
grass can hide obstacles.
• Choose a low ground speed so that you will not have to
stop or shift while on the slope.
• Do not mow on wet grass. Tires may lose traction.
Alwayskeep themachine ingear whengoingdown slopes.
Do not shift to neutral and coast downhill.
• Avoid starting, stopping, or turning on a slope. If the tires
lose traction, disengage the blades and proceed slowly
straight down the slope.
• Keep all movement on the slopes slow and gradual. Do
not make sudden changes in speed or direction, which
could cause the machine to roll over.
• Use extra care while operating machine with grass catch-
ers or other attachments; they can affect the stability of
the machine. Do no use on steep slopes.
• Do not try to stabilize the machine by putting your foot on
the ground.
• Do not mow near drop-offs, ditches, or embankments.
The machine could suddenly roll over if a wheel is over
the edge or if the edge caves in.
I. GENERAL OPERATION
• Read, understand, and follow all instructions on the ma-
chine and in the manual before starting.
• Do not put hands or feet near rotating parts or under the
machine. Keep clear of the discharge opening at all times.
• Only allow responsible adults, who are familiar with the
instructions, to operate the machine.
• Clear the area of objects such as rocks, toys, wire, etc.,
which could be picked up and thrown by the blades.
• Ensure the area is clear of bystanders before operating.
Stop machine if anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while backing.
• Never direct discharged material toward anyone. Avoid
dischargingmaterial againstawall orobstruction.Material
may ricochet back toward the operator. Stop the blades
when crossing gravel surfaces.
• Do not operate machine without the entire grass catcher,
discharge chute, or other safety devices in place and
working.
• Slow down before turning.
WARNING: In order to prevent accidental
starting when setting up, transporting,
adjustingormaking repairs, alwaysdiscon-
nect spark plug wire and place wire where
it cannot contact spark plug.
WARNING
Engineexhaust,someof itsconstituents,andcertain
vehicle components contain or emit chemicals
known to the State of California to cause cancer
and birth defects or other reproductive harm.
WARNING
Battery posts, terminals and related accessories
containlead andleadcompounds,chemicalsknown
to the State of California to cause cancer and birth
defects or other reproductive harm. Wash hands
after handling.
WARNING: Do not coast down a hill in neut-
ral, you may lose control of the tractor.
WARNING: Tow only the attachments that
are recommended by and comply with
specifications of the manufacturer of your
tractor. Use common sense when towing.
Operate only at the lowest possible speed
when on a slope. Too heavy of a load, while
on a slope, is dangerous. Tires can lose
traction with the ground and cause you to
lose control of your tractor.

3
SAFETY RULES
Safe Operation Practices for Ride-On Mowers
• Ensure the area is clear of bystanders before operating.
Stop machine if anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while backing.
• Never carry children, even with the blades shut off. They
may fall off and be seriously injured or interfere with safe
machine operation. Children who have been given rides
in the past may suddenly appear in the mowing area
for another ride and be run over or backed over by the
machine.
• Keep children out of the mowing area and in the watchful
care of a responsible adult other than the operator.
• Be alert and turn machine off if a child enters the area.
• Before and while backing, look behind and down for small
children.

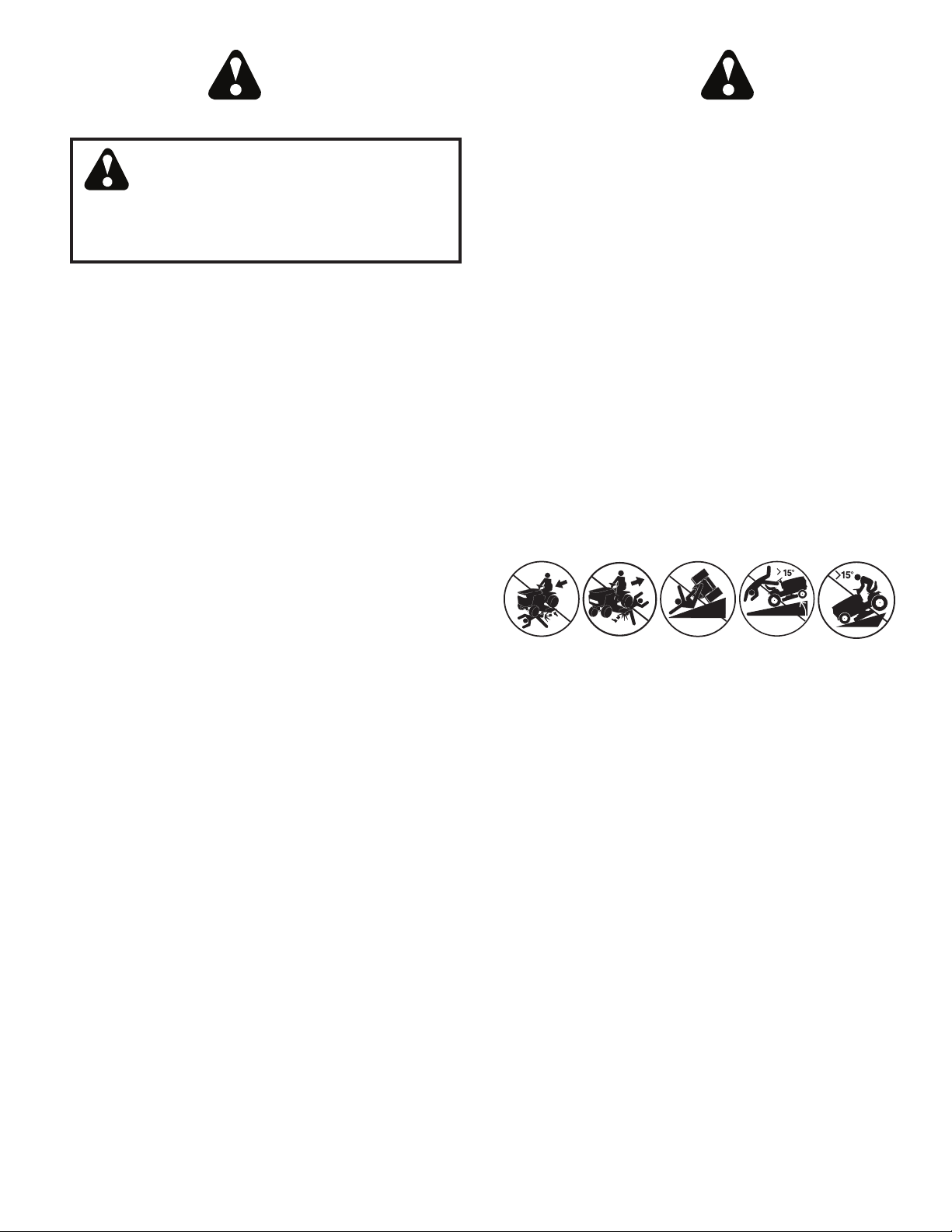

• Mow up and down slopes (15° Max), not across.
• Choose a low ground speed so that you will not have to
stop or shift while on the slope.
• Avoid starting, stopping, or turning on a slope. If the tires
lose traction, disengage the blades and proceed slowly
straight down the slope.
• If machine stops while going uphill, disengage blades,
shift into reverse and back down slowly.
• Do not turn on slopes unless necessary, and then, turn
slowly and gradually downhill, if possible.
• When loading or unloading this machine, do not exceed
the maximum recommended operation angle of 15°.
III. CHILDREN
WARNING. CHILDRENCANBEINJUREDBY
THIS EQUIPMENT. The American Academy
ofPediatricsrecommendsthat children bea
minimum of 12 year of age before operating
a pedestrian controlled lawn mower and a
minimumof 16yearsofagebeforeoperating
a riding lawn mower.
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the ma-
chine and the mowing activity. Never assume that children
will remain where you last saw them.
• Keep children out of the mowing area and in the watchful
care of a responsible adult other than the operator.
• Be alert and turn machine off if a child enters the area.
• Before and while backing, look behind and down for small
children.
• Never carry children, even with the blades shut off. They
may fall off and be seriously injured or interfere with safe
machine operation. Children who have been given rides
in the past may suddenly appear in the mowing area for
anotherrideand berunoverorbackedoverbythe machine.
• Never allow children to operate the machine.
• Use extra care when approaching blind corners, shrubs,
trees, or other objects that may block your view of a child.
IV. TOWING
• Tow only with a machine that has a hitch designed for
towing. Do not attach towed equipment except at the hitch
point.
• Follow the manufacturer's recommendation for weight
limits for towed equipment and towing on slopes.
• Never allow children or others in or on towed equipment.
• On slopes, the weight of the towed equipment may cause
loss of traction and loss of control.
• Travel slowly and allow extra distance to stop.
V. SERVICE
SAFE HANDLING OF GASOLINE
To avoid personal injury or property damage, use extreme
care in handling gasoline. Gasoline is extremely flammable
and the vapors are explosive.
• Extinguish all cigarettes, cigars, pipes, and other sources
of ignition.
• Use only approved gasoline container.
• Neverremovegascap or add fuel with the engine running.
Allow engine to cool before refueling.
• Never fuel the machine indoors.
• Never store the machine or fuel container where there
is an open flame, spark, or pilot light such as on a water
heater or other appliances.
• Never fill containers inside a vehicle or on a truck or
trailer bed with plastic liner. Always place containers on
the ground away from your vehicle when filling.
• Remove gas-powered equipment from the truck or trailer
and refuel it on the ground. If this is not possible, then
refuel such equipment with a portable container, rather
than from a gasoline dispenser nozzle.
• Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete.
Do not use a nozzle lock-open device.
• If fuel is spilled on clothing, change clothing immediately.
• Never overfill fuel tank. Replace gas cap and tighten
securely.
GENERAL SERVICE
• Never operate machine in a closed area.
• Keep all nuts and bolts tight to ensure the equipment is
in safe working condition.
• Never tamper with safety devices. Check their proper
operation regularly.
• Keep machine free of grass, leaves, or other debris build-
up. Clean oil or fuel spillage and remove any fuel-soaked
debris. Allow machine to cool before storing.
• Ifyou strike aforeignobject, stopandinspect the machine.
Repair, if necessary, before restarting.
• Never make any adjustments or repairs with the engine
running.
• Checkgrass catchercomponentsand thedischarge chute
frequentlyand replacewithmanufacturer's recommended
parts, when necessary.
• Mower blades are sharp. Wrap the blade or wear gloves,
and use extra caution when servicing them.
• Check brake operation frequently. Adjust and service as
required.
• Maintain or replace safety and instruction labels, as nec-
essary.

4
SAFETY RULES ......................................................... 2-3
PRODUCT SPECIFICATIONS....................................... 4
CUSTOMER RESPONSIBILITIES................................. 4
ASSEMBLY............................................................... 6-10
OPERATION ........................................................... 11-17
MAINTENANCE SCHEDULE ...................................... 18
MAINTENANCE..................................................... 18-22
SERVICE AND ADJUSTMENTS............................23-27
STORAGE.................................................................... 28
TROUBLESHOOTING............................................29-30
WARRANTY............................................................32-35
FRANÇAIS................................................................... 36
TABLE OF CONTENTS
PRODUCT SPECIFICATIONS
Gasoline Capacity
and type: 4 Gallons/15,14 L Regular Unleaded
Oil Type:
(API: SG-SL) SAE30 (above 32°F/0°C) SAE 5W30 (below 32°F/0°C)
Oil Capacity: W/Filter: 64 Oz./1,96 L
W/out Filter: 60 Oz./1,77 L
Spark Plug: Champion 696798
(Gap: .030"/0,76 mm)
Charging System: 16 Amps @3600 RPM
Battery: Amp/Hr: 28
Min. CCA: 230
Case size: U1R
Blade Bolt Torque: 45-55 Ft. Lbs./62-75 Nm
CONGRATULATIONS on your purchase of a new tractor.
It has been designed, engineered and manufactured to
give you the best possible dependability and performance.
Should you experience any problem you cannot easily
remedy, please contact your nearest authorized service
center/department. Wehavecompetent,well-trainedtechni-
cians and the proper tools to service or repair this tractor.
Please read and retain this manual. The instructions will
enable you to assemble and maintain your tractor properly.
Always observe the “SAFETY RULES”.
CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules.
• Follow a regular schedule in maintaining, caring for
and using your tractor.
• Followtheinstructionsinthe Maintenance and Storage
sections of this manual.
• Wear proper Personal Protective Equipment (PPE)
while operating this machine, including (at a minimum)
sturdyfootwear,eye protection, andhearingprotection.
Do not mow in shorts and/or open toed footwear.
• Always let someone know you are outside mowing.
WARNING: This tractor is equipped with an internal
combustion engine and should not be used on or near
any unimproved forest-covered, brush-covered or grass-
covered land unless the engine’s exhaust system is
equipped with a spark arrester meeting applicable local
or state laws (if any). If a spark arrester is used, it should
be maintained in effective working order by the operator.
A spark arrester for the muffler is available through your
nearest authorized service center/department.
In the state of California the above is required by law
(Section 4442 of the California Public Resources Code).
Other states may have similar laws. Federal laws apply
on federal lands.

5
(5) Large
Retainer Springs
(1) Small
Retainer Springs
61/3-1)5( srehsaW.D.O
(2) Rear
Lift Link
Assemblies
(1) Front
Lift Link
Assembly
(1) Anti-Sway Bar (1) 3/4 O.D.
Washers
(1) Small Retainer
Springs
(1) 1-1/4 O.D.
Washer
(1) Wheel (1) 3/8-16
Locknut
(1) Shoulder Bolt
Mower
If Equipped
(2) Keys
Slope Sheet
Keys
(1) Oil Drain Tube
Mower Front Wheel
Battery
(2) Hex Bolts
(2) Nut Keps
(1) Quick Connect

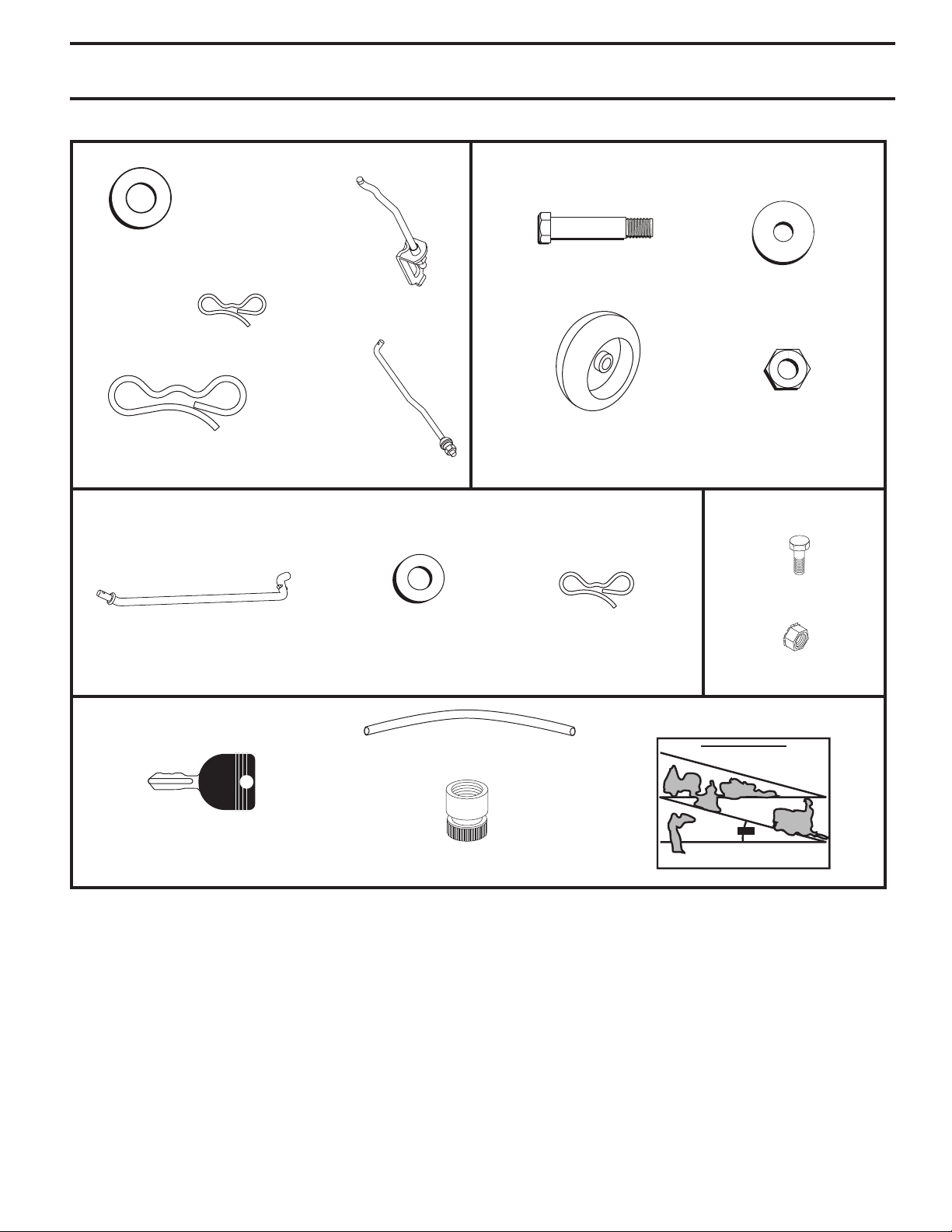

UNASSEMBLED PARTS

6

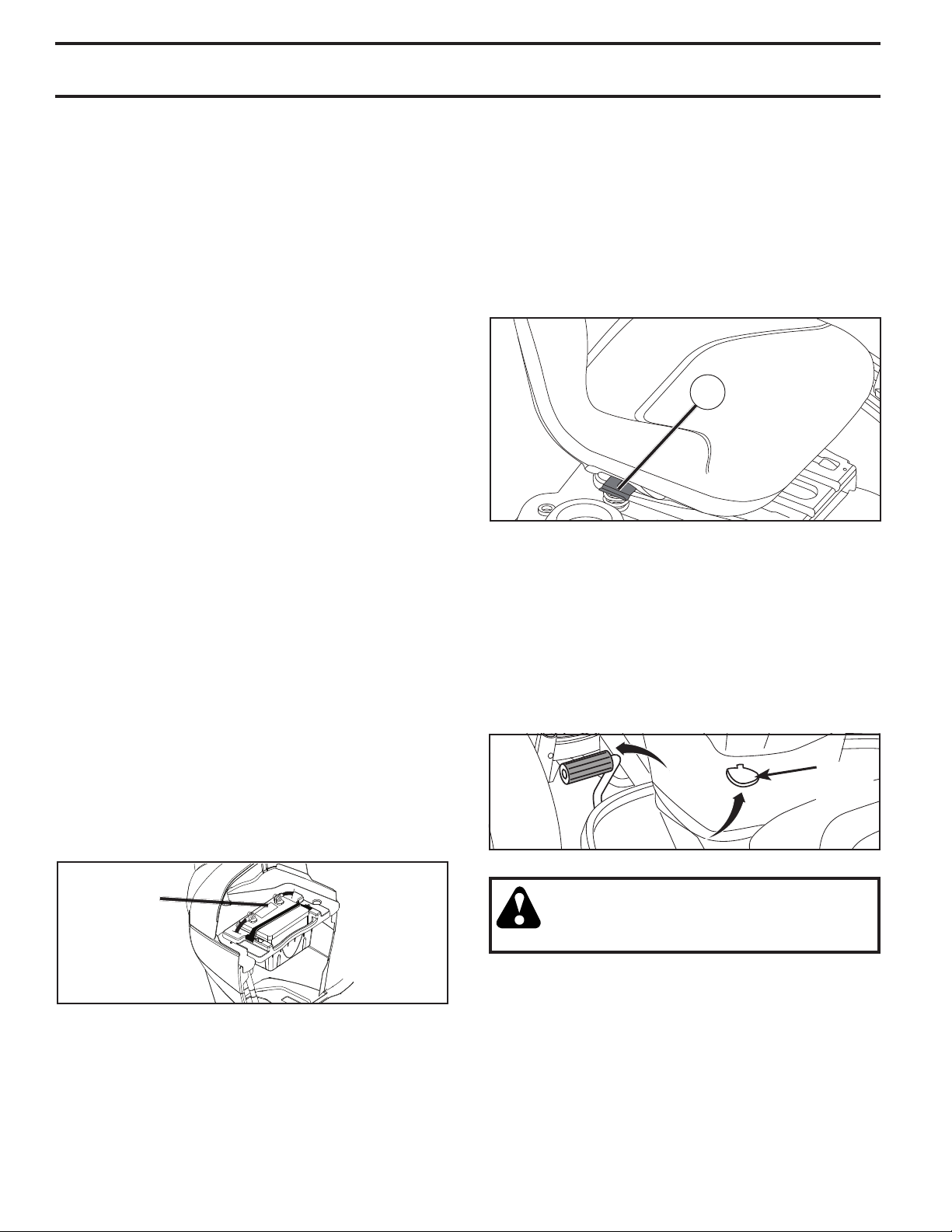

TO CHECK BATTERY (See Fig. 1)
• Lift hood to raised position.
NOTE: If this battery is put into service after month and
year indicated on label (label is located between terminals)
charge battery for minimum of one hour at 6-10 amps.
(See "BATTERY" in Maintenance section of this manual
for charging instructions).
• For battery and battery cable installation see "RE-
PLACINGBATTERY"inthe"Serviceand Adjustments"
section in this manual.
Fig. 1
LABEL
ADJUST SEAT (See Fig. 2)
• Sit in seat.
• Lift up adjustment lever (A) and slide seat until a com-
fortable position is reached which allows you to press
clutch/brake pedal all the way down.
• Release lever to lock seat in position.
Fig. 2
ASSEMBLY
TOREMOVETRACTORFROMCARTON
UNPACK CARTON
• Remove all accessible loose parts and parts cartons
from carton.
• Remove end panels and lay side panels flat.
• Check for any additional loose parts or cartons and
remove.
BEFORE REMOVING TRACTOR FROM
SKID
A
Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.
To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use
the correct tools as necessary to ensure proper tightness.
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly easier. Standard
wrench sizes are listed.
(2) 7/16" wrenches Utility knife
(1) 1/2" wrench Tire pressure gauge
(1) 3/4" wrench Pliers
(1) 3/4" socket w/drive ratchet
(1) 9/16" wrench Flashlight
Whenrightor left hand is mentionedinthismanual,itmeans
when you are in the operating position (seated behind the
steering wheel).
TO INSTALL MOWER AND DRIVE BELT
(See Figs. 3 - 15)
1. SET PARKING BRAKE LEVER AND LOWER AT-
TACHMENT LIFT LEVER (See Fig. 3 & 4)
• Depress clutch/brake pedal all the way down and hold.
• Pull parking brake lever up and hold, release pressure
from clutch/brake pedal, then release parking brake
lever. Pedal should remain in brake position. Ensure
parking brake will hold tractor secure.
PARKING
BRAKE
LEVER
Fig. 3
CAUTION: Lift lever is spring loaded. Have a
tight grip on lift lever, lower it slowly and en-
gage in lowest position. Lift lever is located
on left side of fender.

7
ASSEMBLY
TRANSAXLE
02965
FRONT
BACK
ENGINE
Q. DEFLECTOR
SHIELD
Q
Fig. 6
90° END INTEGRATED WASHER END
ANTI-SWAY BAR (S)
TOWARDS TOWARDS
TRANSAXLE MOWER DECK
• Fromrightsideofmower, firstinsert90°endofanti-sway
bar (S) into hole in transaxle bracket (T), located near
left rear tire in front of transaxle.
NOTE: Flashlight may be helpful.
5. INSTALL ANTI-SWAY BAR (S) (IF EQUIPPED)
(See Fig. 9 - 11)
Fig. 9
02965
A. MOWER SIDE
SUSPENSION
ARMS
Q. DEFLECTOR
SHIELD
Q
A
Fig. 8
4. SLIDE MOWER UNDER TRACTOR (See Fig. 8)
• Bring belt forward and check belt for proper routing in
all mower pulley grooves.
NOTE: Be sure mower side suspension arms (A) are point-
ing forward before sliding mower under tractor.
• Slide mower under tractor until it is centered under
tractor.
LIFT
LEVER
Fig. 4
H. FRONT MOWER
BRACKET
W. FRONT GAUGE
WHEEL
X. SHOULDER
BOLT
Y. 1-1/4 O.D.
WASHER
Z. 3/8-16 LOCKNUT
Fig. 5
Y
Z
W
H
X
Fig. 7
3. TURN STEERING WHEEL LEFT AND POSITION
MOWER (See Fig. 6)
• Turn steering wheel to the left as far as it will go and
position mower on right side of tractor with deflector
shield (Q) to the right.
2. ASSEMBLE FRONTGAUGEWHEEL(W)TOFRONT
OF MOWER (See Fig. 5)
A. MOWER SIDE SUSPENSION
ARMS
B. RETAINER SPRING
C. REAR LIFT LINK(S)
D. RIGHT SIDE REAR MOWER
BRACKET
E. FRONT LIFT LINK ASSEMBLY
F. FRONT SUSPENSION BRACKET
H. FRONT MOWER BRACKET
I. LEFT SIDE REAR MOWER
BRACKET
K. BELT TENSION ROD
L. LOCKING BRACKET
M. ENGINE CLUTCH PULLEY
Q. DEFLECTOR SHIELD
S. ANTI-SWAY BAR
W. FRONT GAUGE WHEEL
E
A
MF
B
K
C
C
S
W
H
Q
I
D
L

8
ASSEMBLY
6. ATTACH MOWER SIDE SUSPENSION ARMS (A) TO
CHASSIS (See Fig. 12)
• Position front hole in side suspension arm (A) over
pin on outside of tractor chassis and secure with large
washer and large retainer spring (B).
• Repeat on opposite side of tractor.
B
DA
A.MOWER SIDE
SUSPENSION
ARMS
B.RETAINER
SPRING
D.RIGHT
SIDE REAR
MOWER
BRACKET
Fig. 12
NOTE: Depending on model, bracket (T) may be differ-
ent than shown but hole for anti-sway bar will be in same
position/location.
ANTI-SWAY BAR
(S) LOCATION TRANSAXLE
BRACKET (T)
LOCATED
BETWEEN REAR
TIRES
PLACE 90° END INTO HOLE
PLACE 90° END INTO HOLE
S
TS. ANTI-SWAY BAR
T. TRANSAXLE BRACKET
Fig. 10
8 ATTACH FRONT LINK (E) (See Fig. 14)
• Turn steering wheel to position wheels straight forward.
• From front of tractor, insert rod end of front link (E)
throughfronthole in tractor frontsuspensionbracket(F).
• Move to left side of mower and and insert large retainer
spring (G) through hole in front link (E) behind front
suspension bracket (F).
• Insert other end of link (E) into hole in front mower
bracket (H) and secure with washer and small retainer
spring (J).
NOTE: Requires deck lifting.
Fig. 14
FRONT LINK
LOCATION
E
G
F
M
E. FRONT LIFT LINK ASSEMBLY
F. FRONT SUSPENSION BRACKET
G. LARGE RETAINER SPRING
H. FRONT MOWER BRACKET
J. SMALL RETAINER SPRING
M. ENGINE CLUTCH PULLEY
J
H
Fig. 13
7. ATTACH REAR LIFT LINKS (C) (See Fig. 13)
• Insert rod end of rear lift link (C) into hole (U) in tractor
lift shaft suspension arm and pivot link down to mower.
• Lift rear corner of mower and position slot in link as-
sembly over pin on rear mower bracket (D) and secure
with large washer and large retainer spring.
• Repeat on opposite side of tractor.
C. REAR LIFT LINK(S)
D. RIGHT SIDE REAR
MOWER BRACKET
U. HOLE
D
C
U
S
D
T
D. RIGHT SIDE
REAR MOWER
BRACKET
S. ANTI-SWAY BAR
T. TRANSAXLE
BRACKET
Fig. 11
• Pivot the integrated washer end of anti-sway bar (S)
towards mower deck bracket on right side of mower.
Insert integrated washer end of bar into hole in rear
mower bracket (D). Move mower as needed to insert
integratedwasher endofbar intorearmowerbracket(D).
• Secure with small washer and small retainer spring as
shown.

9
ASSEMBLY
CHECK TIRE PRESSURE
The tires on your tractor were overinflated at the factory
for shipping purposes. Correct tire pressure is important
for best cutting performance.
• Reduce tire pressure to PSI shown on tires.
CHECK DECK LEVELNESS
For best cutting results, mower housing should be properly
leveled. See“TOLEVELMOWERHOUSING”inthe Service
and Adjustments section of this manual.
CHECK FOR PROPER POSITION OF ALL
BELTS
See the figures that are shown for replacing motion and
mower blade drive belts in the Service and Adjustments
section of this manual. Verify that the belts are routed
correctly.
CHECK BRAKE SYSTEM
Afteryoulearnhow to operate your tractor,check to see that
the brake is operating properly. See “TO CHECK BRAKE”
in the Service and Adjustments section of this manual.
NOTE: You may now roll your tractor off the skid. Continue
using the instructions that follow to remove the tractor from
the skid.
WARNING: Before starting, read, understand and fol-
low all instructions in the Operation section of this manual.
Ensure tractor is in a well-ventilated area. Ensure the area
in front of tractor is clear of other people and objects.
TOROLL TRACTOROFFSKID(See Operation
section for location and function of controls)
• Raise attachment lift lever to its highest position.
• Release parking brake by depressing clutch/brake
pedal.
• Place freewheel control in "TRANSMISSION DISEN-
GAGED" position. (See “TO TRANSPORT” in the
Operation section of this manual.)
• Roll tractor forward off skid.
• Removebandingholding thedeflectorshieldup against
tractor.
Continue with the instructions that follow.

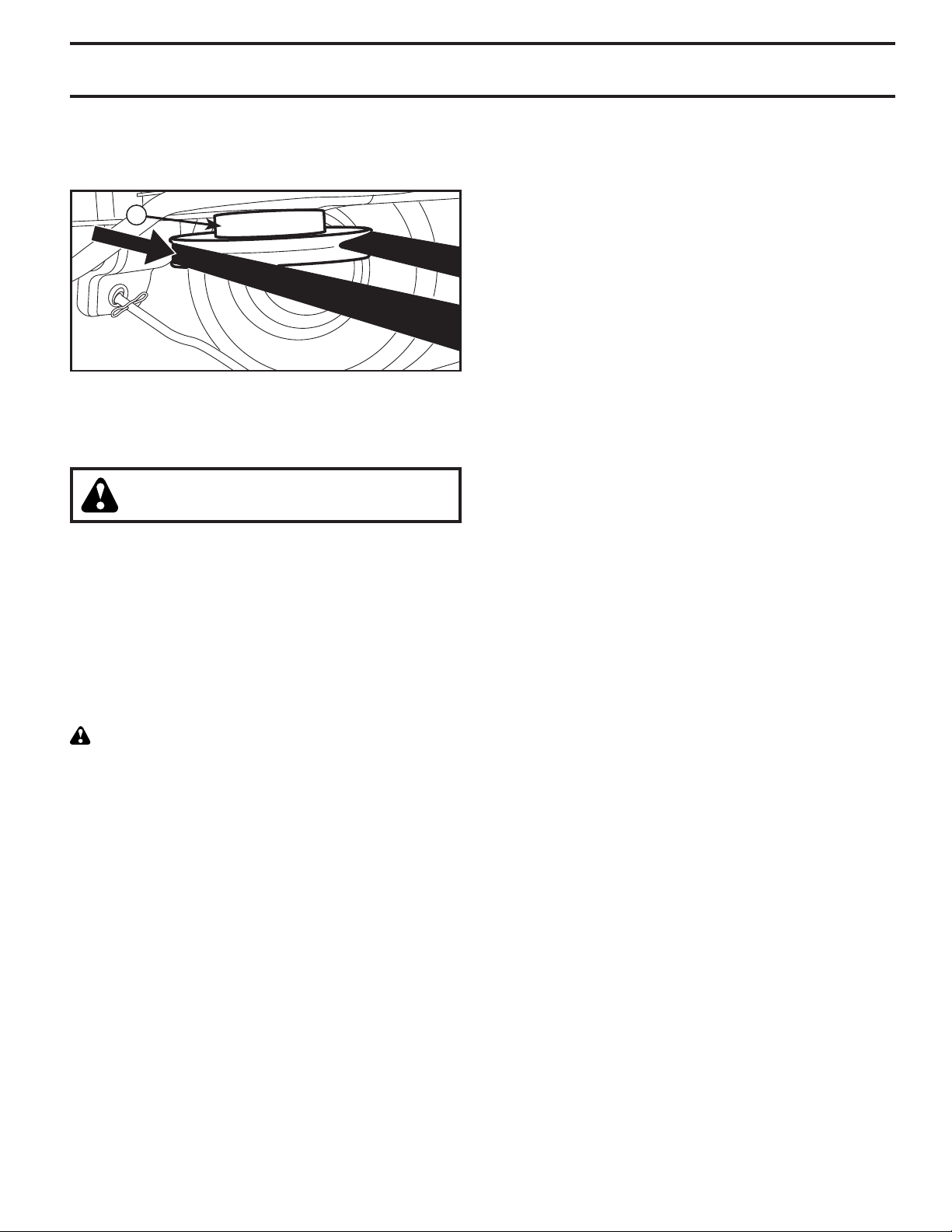

9 INSTALL BELT ON ENGINE CLUTCH PULLEY (M)
(See Fig. 7 & 15)
• Disengage belt tension rod (K) from locking bracket (L).
• Install belt onto engine clutch pulley (M).
M.ENGINE
CLUTCH PULLEY
M
Fig. 15
IMPORTANT: Check belt for proper routing in all mower
pulley grooves and under mandrel covers.
• Engage belt tension rod (K) on locking bracket (L).
CAUTION: Belt tension rod is spring loaded.
Have a tight grip on rod and engage slowly.
• Raise attachment lift lever to highest position.
• If necessary, adjust gauge wheels before operating
mowerasshown in the Operation sectionofthismanual.
MOWER DRIVE BELT INSTALLATION
Follow procedure described in “TO REPLACE MOWER
BLADE DRIVE BELT ” in the "Service and Adjustments"
section of this manual.

10
ASSEMBLY
✓CHECKLIST
BEFORE YOU OPERATE YOUR NEW TRACTOR, WE
WISH TO ENSURE THAT YOU RECEIVE THE BEST
PERFORMANCE AND SATISFACTION FROM THIS
QUALITY PRODUCT.
PLEASE REVIEW THE FOLLOWING CHECKLIST:
✓All assembly instructions have been completed.
✓No remaining loose parts in carton.
✓Battery is properly prepared and charged.
✓Seat is adjusted comfortably and tightened securely.
✓All tires are properly inflated. (For shipping purposes,
the tires were overinflated at the factory.)
✓Ensure mower deck is properly leveled side-to-side/
front-to-rear for best cutting results. (Tires must be
properly inflated for leveling.)
✓Check mower and drive belts. Ensure they are routed
properly around pulleys and inside all belt keepers.
✓Check wiring. See that all connections are still secure
and wires are properly clamped.
✓Before driving tractor, ensure freewheel control is in
“TRANSMISSION ENGAGED” position. (See “TO
TRANSPORT”intheOperation section of this manual.)
WHILELEARNINGHOWTO USEYOURTRACTOR, PAYEXTRA
ATTENTION TO THE FOLLOWING IMPORTANT ITEMS:
✓Engine oil is at proper level.
✓Fuel tank is filled with fresh, clean, regular unleaded
gasoline.
✓Become familiar with all controls, their location and
functions. Operate them before you start the engine.
✓Ensure brake system is in safe operating condition.
✓Ensure Operator Presence System and Reverse
Operation System (ROS) are working properly. (See
theOperationandMaintenance sectionsinthismanual.)
✓Itis importanttopurgethetransmissionbeforeoperating
your tractor for the first time. Follow proper starting
and transmission purging instructions. (See “TO
START ENGINE” and “PURGE TRANSMISSION” in
the Operation section of this manual.)

11
OPERATION

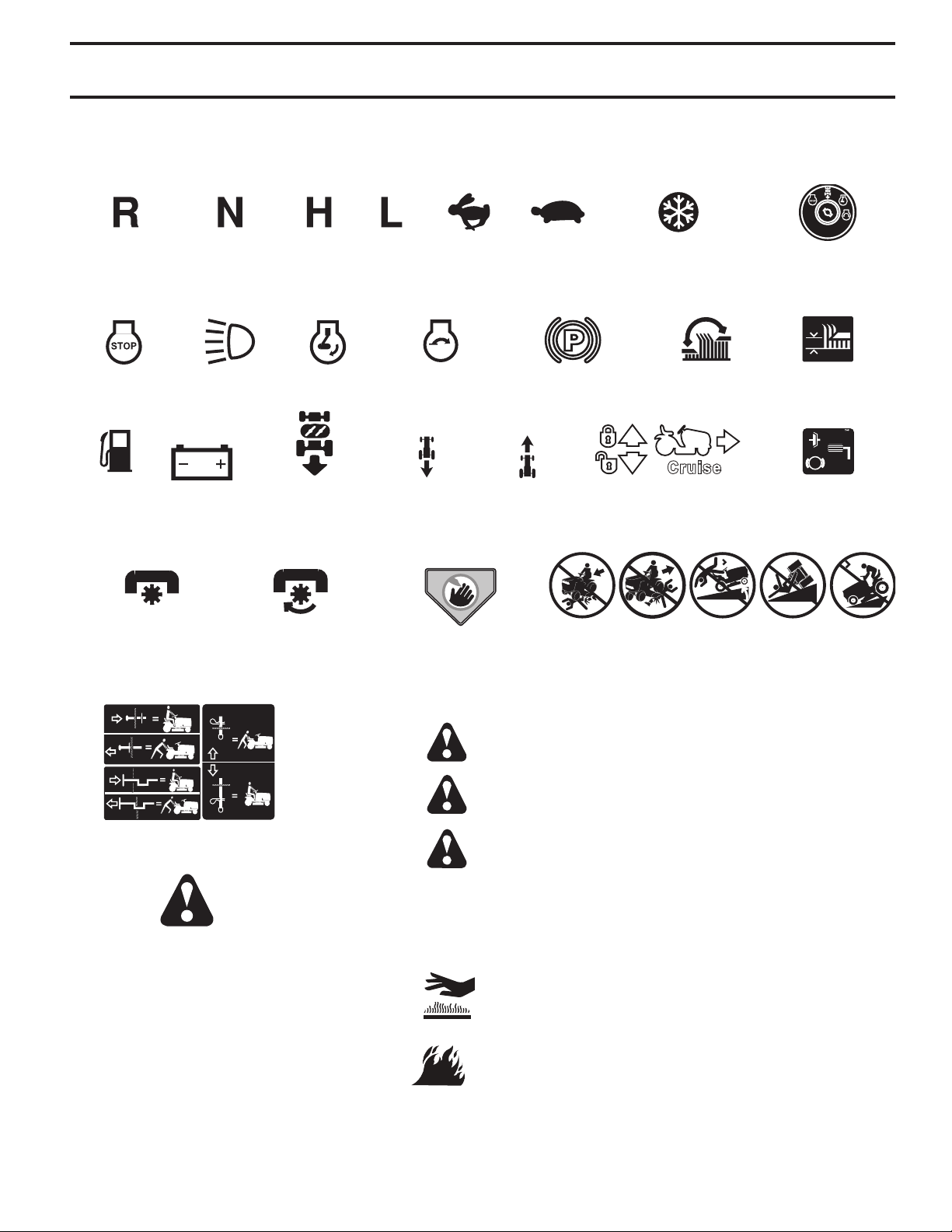

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.
FREE WHEEL
(Automatic Models only)
DANGER, KEEP HANDS
AND FEET AWAY
KEEP AREA CLEAR SLOPE HAZARDS
15
15
(SEE SAFETY RULES SECTION)
ATTACHMENT
CLUTCH ENGAGED
ATTACHMENT
CLUTCH DISENGAGED
FAST SLOWREVERSE NEUTRAL HIGH LOW
Failure to follow instructions
could result in serious injury or
death. The safety alert symbol
is used to identify safety inform-
ation about hazards which can
result in death, serious injury
and/or property damage.
DANGER indicates a hazard which, if not avoided,
will result in death or serious injury.
WARNING indicates a hazard which, if not avoided,
could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided,
might result in minor or moderate injury.
CAUTION when used without the alert symbol,
indicates a situation that could result in damage
to the tractor and/or engine.
FIRE indicates a hazard which, if not avoided,
could result in death, serious injury and/or
property damage.
HOT SURFACES indicates a hazard which,
if not avoided, could result in death, serious injury
and/or property damage.
IGNITION SWITCH
REVERSE FORWARDFUEL BATTERY REVERSE
OPERATION
SYSTEM (ROS)
CLUTCH/BRAKE
PEDAL
CRUISE CONTROL
ENGINE OFF MOWER HEIGHTENGINE ON ENGINE START MOWER LIFT
LIGHTS ON PARKING BRAKE
COLD WEATHER
STARTING
POSITION

12
OPERATION

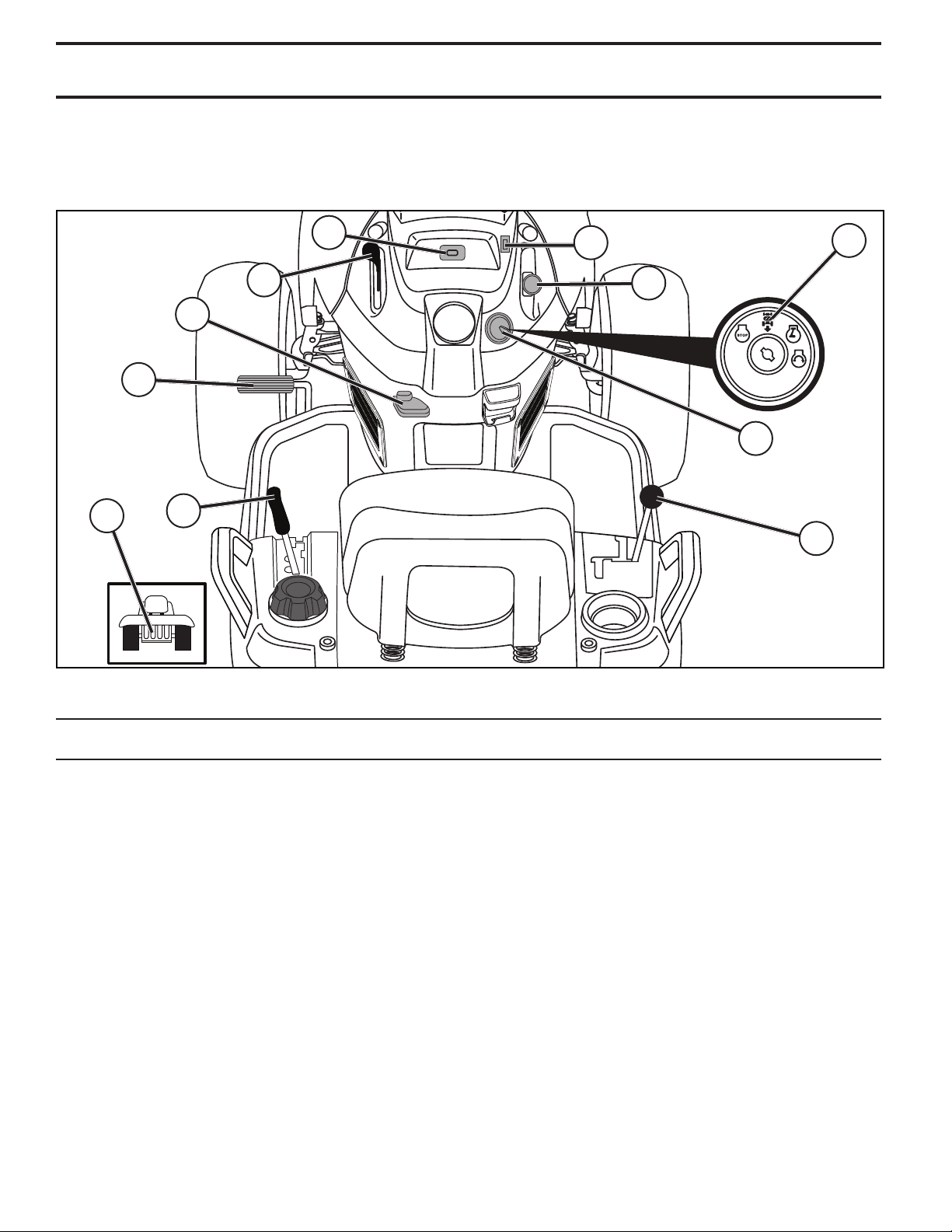

KNOW YOUR TRACTOR
READ THIS MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR
Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments.
Save this manual for future reference.
Our tractors conform to the applicable safety standards of the American National Standards Institute.
(A) ATTACHMENT LIFT LEVER - Used to raise and lower
the mower or other attachments mounted to your tractor.
(B) BRAKE PEDAL - Used for braking the tractor and
starting the engine.
(C) PARKING BRAKE - Locks clutch/brake pedal into the
brake position.
(D) THROTTLE CONTROL - Used for starting and control-
ling engine speed.
(E) ATTACHMENT CLUTCH SWITCH - Used to engage
the mower blades, or other attachments mounted to your
tractor.
(F) IGNITION SWITCH - Used for starting and stopping
the engine.
(G) REVERSE OPERATION SYSTEM (ROS) "ON" PO-
SITION - Allows operation of mower or other powered
attachment while in reverse.
(H) LIGHT SWITCH - Turns the headlights on and off.
(J) MOTION CONTROL LEVER - Selects the speed and
direction of the tractor.
(M) FREEWHEEL CONTROL - Disengages transmission
for pushing or slowly towing the tractor with the engine off.
(P) SERVICE MINDER/HOUR METER - Indicates when
service is required for the engine and mower.
Fig. 15
E
A
M
F
B
J
G
C
H
D
P

13
OPERATION
The operation of any tractor can result in foreign objects thrown into the eyes, which can result
in severe eye damage. Always wear safety glasses or eye shields while operating your tractor
or performing any adjustments or repairs. We recommend standard safety glasses or a wide
vision safety mask worn over spectacles.

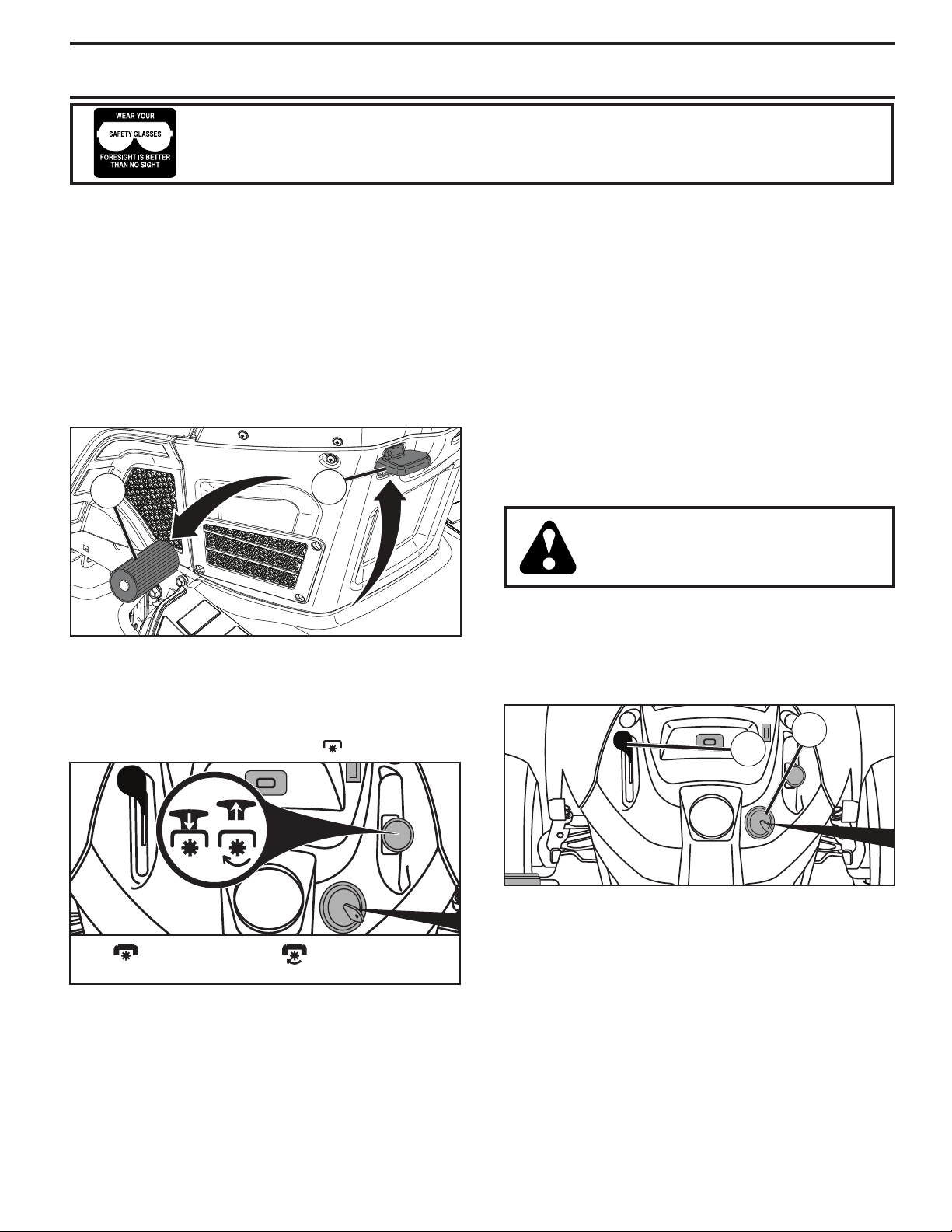

HOW TO USE YOUR TRACTOR
TO SET PARKING BRAKE (See Fig. 16)
Your tractor is equipped with an operator presence sens-
ing switch. When engine is running, any attempt by the
operator to leave the seat without first setting the parking
brake will shut off the engine.
• Depress clutch/brake pedal (B) all the way down and
hold.
• Pull parking brake lever (C) up and hold, release pres-
sure from clutch/brake pedal (B), then release parking
brake lever. Pedal should remain in brake position.
Ensure parking brake will hold tractor secure.
Fig. 17
Fig. 16
( ) ATTACHMENT
CLUTCH SWITCH
“ENGAGED”
() ATTACHMENT
CLUTCH SWITCH
“DISENGAGED”
Fig. 18
DF
TOUSETHROTTLECONTROL(D)(SeeFig.18)
Always operate engine at full speed (fast).
• Operating engine at less than full speed (fast) reduces
the engine's operating efficiency.
• Full speed (fast) offers the best mower performance.
BC
GROUND DRIVE -
• To stop ground drive, depress brake pedal all the way
down.
• Move motion control lever (J) to neutral position.
STOPPING (See Fig. 17)
MOWER BLADES -
• To stop mower blades, place attachment clutch control
in the “DISENGAGED” position ( ).
ENGINE -
• Move throttle control (D) to slow position.
NOTE: Failure to move throttle control to slow position and
allowing engine to idle before stopping may cause engine
to “backfire”.
• Turn ignition key (F) to “STOP” position and remove
key.Alwaysremove key when leaving tractortoprevent
unauthorized use.
• Never use the cold weather starting position to stop
the engine.
IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY
POSITION OTHER THAN "STOP" WILL CAUSE THE BATTERY
TO DISCHARGE AND GO DEAD.
NOTE: Under certain conditions when tractor is standing
idle with the engine running, hot engine exhaust gases
may cause “browning” of grass. To eliminate this possibility,
always stop engine when stopping tractor on grass areas.
CAUTION: Always stop tractor com-
pletely, as described above, and set
parkingbrakebeforeleaving the opera-
tor's position.

14
OPERATION
Fig. 21
Fig. 20
TO ADJUST GAUGE WHEELS (See Fig. 21)
Gauge wheels are properly adjusted when they are slightly
off the ground when mower is at the desired cutting height
in operating position. Gauge wheels then keep the deck
in proper position to help prevent scalping in most terrain
conditions.
A
TO ADJUST MOWER CUTTING HEIGHT
(See Fig. 20)
The position of the attachment lift lever (A) determines the
cutting height.
• Put attachment lift lever in desired cutting height slot.
The cutting height range is approximately 1 to 4" (25,4 to
101,6 mm). The heights are measured from the ground to
the blade tip with the engine not running. These heights are
approximate and may vary depending upon soil conditions,
height of grass and types of grass being mowed.
• The average lawn should be cut to approximately
2-1/2" (63,5 mm) during the cool season and to over 3"
(76,2 mm) during hot months. For healthier and better
looking lawns, mow often and after moderate growth.
• For best cutting performance, grass over 6" (152,4 mm)
in height should be mowed twice. Make the first cut
relatively high; the second to desired height.
3/4”
9/16”
TO OPERATE MOWER
Your tractor is equipped with an operator presence sensing
switch. Any attempt by the operator to leave the seat with
the engine running and the attachment clutch engaged will
shut off the engine. You must remain fully and centrally
positioned in the seat to prevent the engine from hesitat-
ing or cutting off when operating your equipment on rough,
rolling terrain or hills.
• Selectdesiredheightofcut.(See "TOADJUSTMOWER
CUTTING HEIGHT".)
• Start mower blades by engaging attachment clutch
control.
CAUTION: Do not operate the mower
without either the entire grass catcher, on
mowersso equipped, or thedeflectorchute
in place (See Fig. 22).
TO STOP MOWER BLADES
Disengage attachment clutch control.
Fig. 22
NOTE:Adjust gauge wheels with tractor on a flat level
surface.
• Adjust mower to desired cutting height (See “TO AD-
JUST MOWER CUTTING HEIGHT” in the Operation
section of this manual).
• With mower in desired height of cut position, gauge
wheels should be assembled so they are slightly off
the ground. Install gauge wheel in appropriate hole as
shown and tighten securely.
• Repeatforopposite side installinggaugewheelin same
adjustment hole.
Fig. 19
TO MOVE FORWARD AND BACKWARD
(See Fig. 19)
The direction and speed of movement is controlled by the
motion control lever (J).
• Starttractorwith motion control leverinneutralposition.
• Release parking brake.
• Slowly move motion control lever to desired position.
J

15

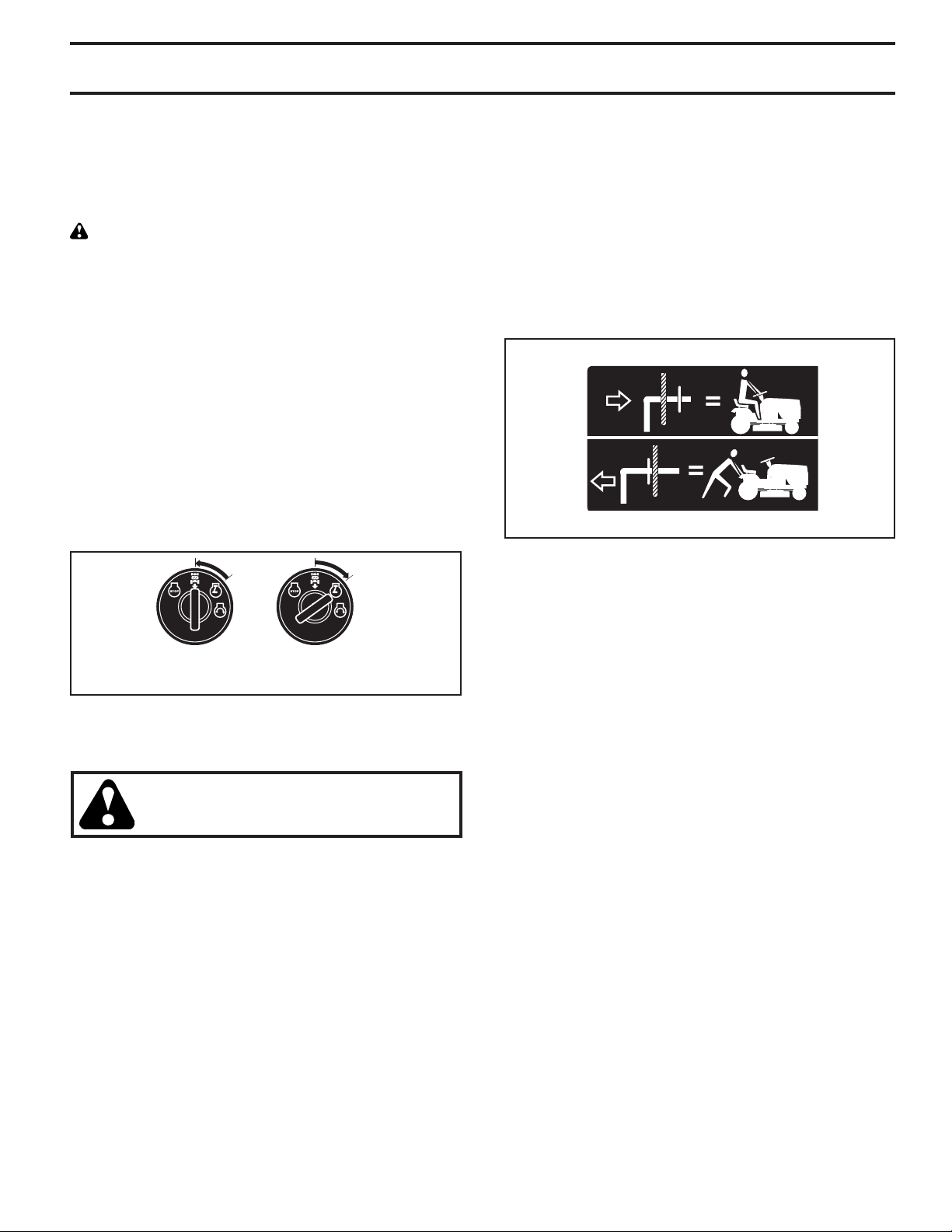

REVERSE OPERATION SYSTEM (ROS)
Your tractor is equipped with a Reverse Operation System
(ROS). Any attempt by the operator to travel in the reverse
direction with the attachment clutch engaged will shut off
the engine unless ignition key is placed in the ROS "ON"
position.
WARNING: Backing up with the attachment clutch en-
gaged while mowing is strongly discouraged. Turning the
ROS "ON", to allow reverse operation with the attachment
clutch engaged, should only be done when the operator
decides it is necessary to reposition the machine with the
attachment engaged. Do not mow in reverse unless
absolutely necessary.
USINGTHEREVERSEOPERATIONSYSTEM(SeeFig.23)
Only use if you are certain no children or other bystanders
will enter the mowing area.
• Move motion control lever to neutral (N) position.
• Withenginerunning, turn ignition key counterclockwise
to ROS "ON" position.
• Look down and behind before and while backing.
• Slowly move motion control lever to reverse (R) posi-
tion to start movement.
• When use of the ROS is no longer needed, turn the
ignition key clockwise to engine "ON" position.
OPERATION
TRANSMISSION ENGAGED
TRANSMISSION DISENGAGED
ROS "ON"
POSITION ENGINE "ON" POSITION (NORMAL OPERATING)
0
2
8
2
8
Fig. 23
Fig. 24
TO OPERATE ON HILLS
CAUTION:Do not driveupordown hills
with slopes greater than 15° and do not
drive across any slope.
• Choose the slowest speed before starting up or down
hills.
• Avoid stopping or changing speed on hills.
• If slowing is necessary, move throttle control lever to
slower position.
• If stopping is absolutely necessary, push clutch/brake
pedalquicklytobrakepositionandengageparkingbrake.
• Move motion control lever to neutral position.
IMPORTANT: THE MOTION CONTROL LEVER DOES NOT
RETURN TO NEUTRAL POSITION WHEN THE BRAKE PEDAL
IS DEPRESSED.
• To restart movement, slowly release parking brake and
clutch/brake pedal.
• Slowly move motion control lever to slowest setting.
• Make all turns slowly.
TOWINGCARTSANDOTHERATTACHMENTS
Tow only the attachments that are recommended by and
comply with specifications of the manufacturer of your trac-
tor. Use common sense when towing. Too heavy of a load,
while on a slope, is dangerous. Tires can lose traction with
the ground and cause you to lose control of your tractor.
TO TRANSPORT (See Fig. 24)
When pushing or towing your tractor, ensure transmission
is disengaged by placing freewheel control in freewheeling
position. Free wheel control is located at the rear drawbar
of tractor.
• Raiseattachment lift tohighestpositionwith attachment
lift control.
• Pull freewheel control out and into the slot and release
so it is held in the disengaged position.
• Do not push or tow tractor at more than two (2) mph
(3,2 km/h).
• To reengage transmission, reverse above procedure.
NOTE: To protect hood from damage when transporting
your tractor on a truck or a trailer, ensure hood is closed
and secured to tractor. Use an appropriate means of tying
hood to tractor (rope, cord, etc.).
SERVICE MINDER/HOURMETER
Service Minder shows the total number of hours the engine
has run and indicates when the engine or mower needs
servicing. After every 50 hours of operation the oil can
icon will stay on for 2 hours or until a manual reset occurs.
To reset the display manually turn the ignition switch to
the on position, then the off position five times (1 second
on, 1 second off). To service engine and mower, see the
Maintenance section of this manual.
NOTE: Service Minder runs when the ignition key is in any
position but “STOP”. For accurate reading, ensure key
remains in the “STOP” position when engine is not running.

16
OPERATION
BEFORE STARTING THE ENGINE
CHECK ENGINE OIL LEVEL
The engine in your tractor has been shipped from the fac-
tory already filled with summer weight oil.
• Check engine oil with tractor on level ground.
• Remove oil fill cap/dipstick and wipe clean, reinsert the
dipstick and screw cap tight, wait for a few seconds,
remove and read oil level. If necessary, add oil until
“FULL” mark on dipstick is reached. Do not overfill.
• For cold weather operation you should change oil for
easier starting. (See “OIL VISCOSITY CHART” in the
Maintenance section of this manual.)
• To change engine oil, see the Maintenance section in
this manual.
ADD GASOLINE
• Fill fuel tank to bottom of filler neck. Do not overfill.
Use fresh, clean, regular gasoline with a minimum of
87 octane. Do not mix oil with gasoline. Purchase fuel
in quantities that can be used within 30 days to ensure
fuel freshness.
CAUTION: Wipe off any spilled oil or
fuel. Do not store, spill or use gasoline
near an open flame.
IMPORTANT: WHEN OPERATING IN TEMPERATURES
BELOW32°F(0°C),USEFRESH,CLEANWINTERGRADE
GASOLINE TO HELP ENSURE GOOD COLD WEATHER
STARTING.
CAUTION: Alcohol blended fuels (called gasohol
or using ethanol or methanol) can attract moisture
which leads to separation and formation of acids
during storage. Acidic gas can damage the fuel
system of an engine while in storage. To avoid
engineproblems,thefuel systemshouldbeemptied
before storage of 30 days or longer. Drain the gas
tank, start the engine and let it run until the fuel
lines and carburetor are empty. Use fresh fuel next
season. See Storage Instructions for additional
information. Neveruseengineor carburetorcleaner
productsinthe fuel tank orpermanentdamagemay
occur. Fuel stabilizer is an acceptable alternative
in minimizing the formation of fuel gum deposits
during storage. Add stabilizer to gasoline in fuel
tank or storage container. Always follow the mix
ratio found on stabilizer container. Run engine at
least 10 minutes after adding stabilizer to allow the
stabilizer to reach the carburetor. Do not empty
the gas tank and carburetor if using fuel stabilizer.
TO START ENGINE (See Fig. 15)
The Briggs & Stratton Endurance engine equipped with
yourtractorfeatures a Ready-Startautomaticchokesystem
to provide simplified starting in normal conditions. Please
read the following starting instruction carefully.
When starting the engine for the first time or if the engine
has run out of fuel, it will take extra cranking time to move
fuel from the tank to the engine.
• Ensurefreewheel controlisin thetransmissionengaged
position.
• Sit on seat in operating position, depress brake pedal,
and set parking brake.
• Place motion control lever in neutral position.
• Move attachment clutch control to “DISENGAGED”
position.
NORMAL STARTING (32°F/0°C and above)
• Move throttle control to fast position ( ) and click into
place.
• Insert key into ignition and turn key clockwise ( ) to
“START” position and release key as soon as engine
starts.
• When engine starts, the attachments and ground drive
can now be used. If the engine does not accept the
load and shuts off, restart the engine and allow it to
warm up for one minute.
• Leavethrottlecontrolinfast position( )whilemowing.
COLD WEATHER STARTING (32°F/0°C and below)
• Move throttle control beyond fast position into the cold
weather starting position ( ).
CAUTION: Donotrunstartercontinuously for more
than fifteen seconds per minute. If the engine does
not start after several attempts, wait a few minutes
and try again.
• Insertkey intoignitionandturnkey clockwiseto“START”
position and release key as soon as engine starts.
• When the engine starts, move the throttle control back
to the fast position ( ) to warm-up. The time required
for warm-up will vary from a few seconds to a minute
depending upon conditions and temperature.
• Leavethrottlecontrolinfast position( )whilemowing.
AUTOMATIC TRANSMISSION WARM UP
• Beforedrivingthe unit in cold weather,thetransmission
should be warmed up as follows:
• Be sure the tractor is on level ground.
• Place the motion control lever in neutral. Release
the parking brake and let the clutch/brake slowly
return to operating position.
• Allow one minute for transmission to warm up. This
can be done during the engine warm up period.
• The attachments can also be used during the engine
warm-upperiodafterthe transmissionhas beenwarmed
up.

17
OPERATION
PURGE TRANSMISSION
CAUTION: Never engage or disengage free-
wheel lever while the engine is running.
To ensure proper operation and performance, it is recom-
mended that the transmission be purged before operating
tractor for the first time. This procedure will remove any
trapped air inside the transmission which may have devel-
oped during shipping of your tractor.
IMPORTANT: SHOULD YOUR TRANSMISSION REQUIRE
REMOVAL FOR SERVICE OR REPLACEMENT, IT SHOULD
BE PURGED AFTER REINSTALLATION BEFORE OPERATING
THE TRACTOR.
1. Place tractor safely on a level surface - that is clear
and open - with engine off and parking brake set.
2. Disengage transmission by placing freewheel control
in disengaged position. (See “TO TRANSPORT” in
this section of manual.)
3. Sitting in the tractor seat, start engine. After the en-
gine is running, move throttle control to slow position.
Disengage parking brake
CAUTION: At any time, during step 4, there
may be movement of the drive wheels.
4. Move motion control lever to full forward position and
hold for five (5) seconds. Move lever to full reverse
position and hold for five (5) seconds. Repeat this
procedure three (3) times.
5. Move motion control lever to neutral position. Shut- off
engine and set parking brake.
6. Engage transmission by placing freewheel control in
engaged position. (See “TO TRANSPORT” in this
section of manual.)
7. Sitting in the tractor seat, start engine. After the engine
is running, move throttle control to half (1/2) speed.
With motion control lever in neutral position, slowly
disengage clutch/brake pedal.
8. Slowly move motion control lever forward, after the
tractormovesapproximatelyfive (5) feet (1,5 m), slowly
move motion control lever to reverse position. After the
tractor moves approximately five (5) feet (1,5 m) return
the motion control lever to the neutral position. Repeat
this procedure with the motion control lever three (3)
times.
Your transmission is now purged and now ready for normal
operation.
MOWING TIPS
• DO NOT use tire chains when the mower housing is
attached to tractor.
• Mower should be properly leveled for best mowing
performance. See “TO LEVEL MOWER HOUSING”
in the Service and Adjustments section of this manual.
• Theleft handsideof mowershouldbeusedfortrimming.
• Drive so that clippings are discharged onto the area
that has been cut. Have the cut area to the right of
the tractor. This will result in a more even distribution
of clippings and more uniform cutting.
• When mowing large areas, start by turning to the right
so that clippings will discharge away from shrubs,
fences, driveways, etc. After one or two rounds, mow
in the opposite direction making left hand turns until
finished (See Fig. 25).
Fig. 25
• If grass is extremely tall, it should be mowed twice to
reduce load and possible fire hazard from dried clip-
pings. Make first cut relatively high; the second to the
desired height.
• Do not mow grass when it is wet. Wet grass will plug
mower and leave undesirable clumps. Allow grass to
dry before mowing.
• Always operate engine at full throttle when mow-
ing to ensure better mowing performance and proper
discharge of material. Regulate ground speed by
selecting a low enough gear to give the mower cutting
performance as well as the quality of cut desired.
• When operating attachments, select a ground speed
that will suit the terrain and give best performance of
the attachment being used.

18
MAINTENANCE
➀General Purpose Grease
➁Refer to Maintenance “ENGINE” Section
02501
➀MANDREL
ZERKS
➁ENGINE
➀FRONT
WHEEL
BEARING
ZERK
➀STEERING
SECTOR
GEAR
TEETH
➀FRONT
WHEEL
BEARING
ZERK
➀SPINDLE ZERK ➀SPINDLE ZERK
T
R
A
C
T
0
R
1 - Change more often when operating under a heavy load or in high ambient temperatures.
2 - Service more often when operating in dirty or dusty conditions.
E
N
G
I
N
E
3
2
2
2
2
3 - Replace blades more often when mowing in sandy soil.
4 - Not required if equipped with maintenance-free battery.
5 - See Cleaning in Maintenance Section.
1 ,
1,2
2
4
5
1,2
BEFORE
EACH
USE
EVERY
8
HOURS
EVERY
25
HOURS
EVERY
50
HOURS
EVERY
100
HOURS
EVERY
SEASON
BEFORE
STORAGE
Inspect Muffler/Spark Arrester
Clean Air Filter
Change Engine Oil (models with oil filter)
Replace Air Filter Paper Cartridge
Replace Spark Plug
Check Engine Oil Level
Clean Engine Cooling Fins
Clean Air Screen
Replace Oil Filter (If equipped)
Replace Fuel Filter
Change Engine Oil ( models without oil filter)
Lubrication Chart
Check Brake Operation
Check Battery Level
Check Tire Pressure
Clean Battery and Terminals
MAINTENANCE
SCHEDULE
Check for Loose Fasteners
Check/Replace Mower Blades
Che
Clean Debris Off Steering Plate
ck Transaxle Cooling
Che
Check Operator Presence & ROS Systems
ck V-Belts
Check Mower Levelness
LUBRICATION CHART
GENERAL RECOMMENDATIONS
The warranty on this tractor does not cover items that have
beensubjectedto operator abuse or negligence. To receive
full value from the warranty, operator must maintain tractor
as instructed in this manual.
Some adjustments will need to be made periodically to
properly maintain your tractor.
At least once a season, check to see if you should make
any of the adjustments described in the Service and
Adjustments section of this manual.
• At least once a year you should replace the spark plug,
clean or replace air filter, and check blades and belts
for wear. A new spark plug and clean air filter ensure
proper air-fuel mixture and help your engine run better
and last longer.
BEFORE EACH USE
• Check engine oil level.
• Check brake operation.
• Check tire pressure.
• Check operator presence and ROS systems for proper
operation.
• Check for loose fasteners.
IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS
WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS
LUBRICANTS WILL ATTRACT DUST AND DIRT THAT WILL
SHORTENTHE LIFEOF THESELF-LUBRICATINGBEARINGS.
IF YOU FEEL THEY MUST BE LUBRICATED, USE ONLY A
DRY, POWDERED GRAPHITE TYPE LUBRICANT SPARINGLY.

19
MAINTENANCE
Fig. 26
Fig. 27
TRACTOR
Always observe safety rules when performing any
maintenance.
BRAKE OPERATION
If tractor requires more than five (5) feet (1,5 m) to stop at
highest speed in highest gear on a level, dry concrete or
paved surface, then brake must be checked and adjusted.
(See “TO CHECK BRAKE” in the Service and Adjustments
section of this manual.)
TIRES
• Maintain proper air pressure in all tires. (See the sides
of tires for proper PSI.)
• Keep tires free of gasoline, oil, or insect control
chemicals which can harm rubber.
• Avoid stumps, stones, deep ruts, sharp objects and
other hazards that may cause tire damage.
NOTE: To seal tire punctures and prevent flat tires due
to slow leaks, tire sealant may be purchased from your
local parts dealer. Tire sealant also prevents tire dry rot
and corrosion.
OPERATOR PRESENCE SYSTEM AND REVERSE
OPERATION SYSTEM (ROS) (See Fig. 26)
Be sure operator presence and reverse operation systems
are working properly. If your tractor does not function as
described, repair the problem immediately.
• The engine should not start unless the brake pedal is
fully depressed, and the attachment clutch control is
in the disengaged position.
CHECK OPERATOR PRESENCE SYSTEM
• Whenthe engine isrunning,anyattempt bytheoperator
to leave the seat without first setting the parking brake
should shut off the engine.
• When the engine is running and the attachment clutch
is engaged, any attempt by the operator to leave the
seat should shut off the engine.
• The attachment clutch should never operate unless
the operator is in the seat.
CHECK REVERSE OPERATION (ROS) SYSTEM
• When the engine is running with the ignition switch in
the engine "ON" position and the attachment clutch
engaged, any attempt by the operator to shift into
reverse should shut off the engine.
• When the engine is running with the ignition switch
in the ROS "ON" position and the attachment clutch
engaged, any attempt by the operator to shift into
reverse should NOT shut off the engine.
BLADE CARE
Forbestresultsmowerbladesmustbe kept sharp. Replace
bent or damaged blades.
BATTERY
Yourtractorhasa batterychargingsystemwhich issufficient
for normal use. However, periodic charging of the battery
with an automotive charger will extend its life.
• Keep battery and terminals clean.
• Keep battery bolts tight.
• Keep small vent holes open.
• Recharge at 6-10 amperes for 1 hour.
NOTE: The original equipment battery on your tractor is
maintenance free. Do not attempt to open or remove caps
or covers. Adding or checking level of electrolyte is not
necessary.
TO CLEAN BATTERY AND TERMINALS
Corrosion and dirt on the battery and terminals can cause
the battery to “leak” power.
• Remove terminal guard.
• DisconnectBLACKbatterycable first then RED battery
cable and remove battery from tractor.
• Rinse the battery with plain water and dry.
• Clean terminals and battery cable ends with wire brush
until bright.
• Coat terminals with grease or petroleum jelly.
• Reinstall battery. (See “REPLACING BATTERY" in the
Service and Adjustments section of this manual.)
BLADE REMOVAL (See Fig. 27)
• Raise mower to highest position to allow access to
blades.
NOTE: Protect your hands with gloves and/or wrap blade
with heavy cloth.
• Remove blade bolt by turning counterclockwise.
• Installnew orresharpenedblade withstamped"GRASS
SIDE" facing the ground.
IMPORTANT: To ensure proper assembly, center hole in
blade must align with star on mandrel assembly.
• Install and tighten blade bolt securely (45-55 Ft. Lbs./
62-75 Nm).
IMPORTANT:SPECIAL BLADEBOLTIS HEAT TREATED.
ROS "ON"
POSITION ENGINE "ON" POSITION (NORMAL OPERATING)
CAUTION:Useonly areplacementblade ap-
proved by the manufacturer of your tractor.
Using a blade not approved by the manu-
facturer of your tractor is hazardous, could
damageyourtractorandvoidyour warranty.
BLADE
BLADE
BOLT
(SPECIAL)
CENTER
HOLE
STAR
MANDREL
ASSEMBLY

20

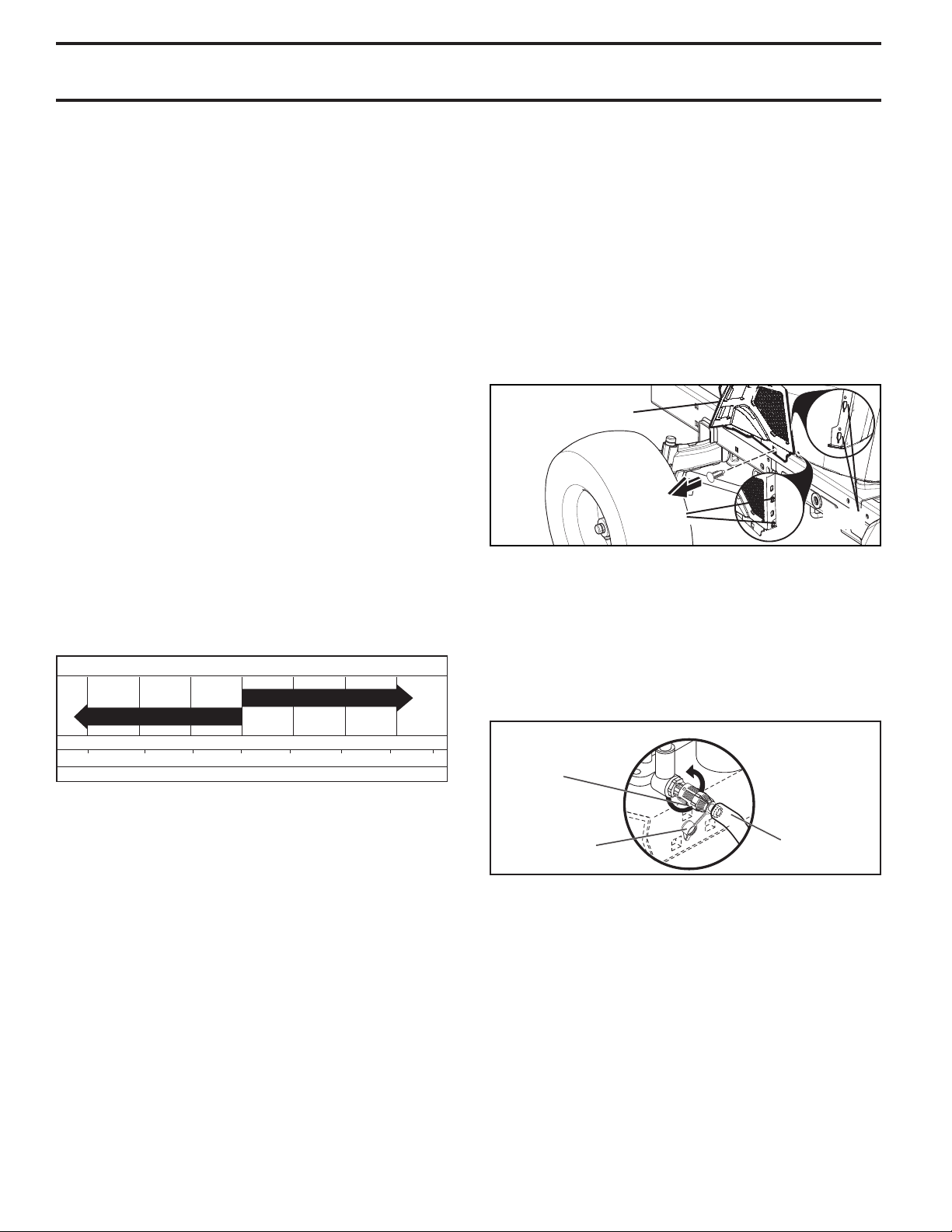

MAINTENANCE
V-BELTS
Check V-belts for deterioration and wear after 100 hours
of operation and replace if necessary. The belts are not
adjustable. Replace belts if they begin to slip from wear.
TRANSAXLE MAINTENANCE
The transmission fan and cooling fins should be kept clean
to assure proper cooling.
Do not attempt to clean fan or transmission while engine
is running or while the transmission is hot. To prevent pos-
sible damage to seals, do not use high pressure water or
steam to clean transmission.
• Inspect cooling fan to be sure fan blades are intact and
clean.
• Inspect cooling fins for dirt, grass clippings and other
materials. To prevent damage to seals, do not use
compressed air or high pressure sprayer to clean
cooling fins.
TRANSAXLE PUMP FLUID
The transaxle was sealed at the factory and fluid mainte-
nance is not required for the life of the transaxle. Should
the transaxle ever leak or require servicing, contact your
nearest authorized service center/department.
Fig. 30
Fig. 29
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
SAE VISCOSITY GRADES
-20 0 30 40 80 100
-30 -20 0 20 30 40
F
C
32
-10 10
60
5W-30
SAE 30
ENGINE
LUBRICATION
Only use high quality detergent oil rated with API service
classification SG-SL. Select the oil’s SAE viscosity grade
according to your expected operating temperature.
NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)
improvestartingincold weather,theywill result in increased
oil consumption when used above 32°F/0°C. Check your
engine oil level more frequently to avoid possible engine
damage from running low on oil.
Change the oil after every 50 hours of operation or at least
once a year if the tractor is not used for 50 hours in one year.
Check the crankcase oil level before starting the engine
and after each eight (8) hours of operation. Tighten oil fill
cap/dipstick securely each time you check the oil level.
Fig. 28
TO CHANGE ENGINE OIL (See Fig. 28-30)
Determine temperature range expected before oil change.
All oil must meet API service classification SG-SL.
• Ensure tractor is on level surface.
• Oil will drain more freely when warm.
• Catch oil in a suitable container.
LOWER DASH COVER REMOVAL
• Raise hood.
• Remove fastener from lower dash cover.
CAUTION: Remove lower dash cover carefully to ensure
cover tabs are not broken.
• Slide lower dash cover up to release cover tabs from
tapered slots in lower dash and remove.
02463
CLOSED
AND
LOCKED
POSITION
DRAIN
TUBE
OIL DRAIN VALVE
YELLOW CAP
• Remove oil fill cap/dipstick. Be careful not to allow dirt
to enter the engine when changing oil.
• Remove yellow cap from end of drain valve and install
the drain tube onto the fitting.
• Unlock drain valve by pushing inward and turning
counterclockwise.
• To open, pull out on the drain valve.
• After oil has drained completely, close and lock the
drain valve by pushing inward and turning clockwise
until the pin is in the locked position as shown.
• Remove the drain tube and replace the cap onto to the
bottom fitting of the drain valve.
• Refill engine with oil through oil fill dipstick tube. Pour
slowly. Do not overfill. For approximate capacity see
“PRODUCTSPECIFICATIONS”sectionof thismanual.
• Use gauge on oil fill cap/dipstick for checking level.
Ensure dipstick cap is tightened securely for accurate
reading. Keep oil at “FULL” line on dipstick. Tighten
cap onto the tube securely when finished.
TABS SLOTS
LOWER DASH COVER
