Huvitz HIS-5000 User manual

-----------------------------------------------------------------------------------HIS-5000 5X User Guide 1
Operator Manual
HIS-5000 5X (Huvitz Imaging System)

2HIS-5000 5X User Guide --------------------------------------------------------------------------
IMPORTANT NOTICE
This product may malfunction due to electromagnetic waves caused by portable
personal telephones, transceivers, radio-controlled toys, etc. Be sure to avoid having
objects such as, which affect this product, brought near the product.
The information in this publication has been carefully checked and is believed to be
entirely accurate at the time of publication. HUVITZ assumes no responsibility,
however, for possible errors or omissions, or for any consequences resulting from the
use of the information contained herein.
HUVITZ reserves the right to make changes in its products or product specifications at
any time and without prior notice, and is not required to update this documentation to
reflect such changes.
©2008 HUVITZ Co., Ltd.
689-3, Geumjeong-dong, Gunpo-si, Gyeonggi-do,
435-862, Republic of Korea
All rights are reserved.
Under copyright laws, this manual may not be copied, in whole or in part, without the
prior written consent of HUVITZ Co., Ltd.

-----------------------------------------------------------------------------------HIS-5000 5X User Guide 3
CONTENTS
1. INTRODUCTION............................................................................................................5
1.1. OUTLINE OF THE INSTRUMENT .......................................................................................5
1.2. CLASSIFICATION ...........................................................................................................5
2. SAFETY INFORMATION...............................................................................................6
2.1. INTRODUCTION .............................................................................................................6
3. FEATURES ....................................................................................................................7
4. SYSTEM INSTALLATION..............................................................................................8
4.1. SOFTWARE INSTALLATION..............................................................................................8
4.2. CAMERA INSTALLATION................................................................................................12
5. MAIN WINDOW ........................................................................................................... 22
5.1. USAGE OF MAIN MENU................................................................................................23
5.2. USAGE OF MAIN TOOLBAR ..........................................................................................24
6. PATIENT MANAGEMENT ...........................................................................................29
6.1. PATIENT REGISTER .....................................................................................................29
6.2. PATIENT SEARCH &OPEN ...........................................................................................31
6.3. PATIENT INFORMATION ................................................................................................32
6.4. PATIENT VISIT INFORMATION........................................................................................32
6.5. PHYSICIAN,PHOTOGRAPHER REGISTER ......................................................................34
6.6. PATIENT IMAGE FUNCTION...........................................................................................35
6.7. PATIENT EXAM DELETE ...............................................................................................37

4HIS-5000 5X User Guide --------------------------------------------------------------------------
7. MEASUREMENT .........................................................................................................38
7.1. CAMERA START...........................................................................................................38
7.2. CAMERA CAPTURE......................................................................................................40
7.3. CAMERA STOP............................................................................................................41
7.4. CAMERA RESET..........................................................................................................42
7.5. CAMERA PROPERTY....................................................................................................42
7.5. CAMERA PROPERTY....................................................................................................43
8. IMAGE MANIPULATION .............................................................................................44
8.1. ADJUST COLOR ..........................................................................................................44
8.2. OVERLAY IMAGE .........................................................................................................48
8.3. COMPARE IMAGE ........................................................................................................50
8.4. REFERENCE IMAGE.....................................................................................................52
8.5. MAKE REPORT............................................................................................................54
9. SPECIFICATION..........................................................................................................55
10. SERVICE INFORMATION............................................................................................57

-----------------------------------------------------------------------------------HIS-5000 5X User Guide 5
1. Introduction
1.1. Outline of the instrument
HIS-5000 5X (Huvitz Imaging System) is digital imaging system for slit lamp to
measure and examine patient’s eye by digital imaging from high resolution digital
camera. HIS-5000 5X has PC based imaging software, C-mount typed camera
module and some accessories like auxiliary light cable for HS-5000 slit lamp
developed by Huvitz company.
1.2. Classification
Class I

6HIS-5000 5X User Guide --------------------------------------------------------------------------
2. Safety Information
2.1. Introduction
Safety is everyone’s responsibility. The safe use of this equipment is largely
dependent upon the installer, user, operator, and maintainer. It is imperative that
personnel study and become familiar with this entire manual before attempting to
install, use, clean, service or adjust this equipment and any associated accessories. It
is paramount that the instructions contained in this manual are fully understood and
followed to enhance safety to the patient and the user/operator. It is for this reason
that the following safety notices have been placed appropriately within the text of this
manual to highlight safety related information or information requiring special
emphasis. All users, operators, and maintainers must be familiar with and pay
particular attention to all Warnings and Cautions incorporated herein.
“Warning “ indicates the presence of a hazard that could result in severe
personal injury, death or substantial property damage if ignored.
“Information” describes information for the installation, operation, or maintenance
of which is important but hazard related if ignored.
“Caution” indicates the presence of a hazard that could result in minor injury, or
property damaged if ignored.
!WARNING
!CAUTION
!INFORMATION

-----------------------------------------------------------------------------------HIS-5000 5X User Guide 7
3. Features
zHIS-5000 5X software manages patient’s eye images and examination information
using database, and supports powerful search function by multiple conditions like
diagnosis, disease, patient history, etc.
zImplemented user interface are well unified and intuitive, user can easily switch
interesting patient information and choose eye images.
zHigh quality CCD camera using progressive scan method lively shows slit lamp
imaging on PC screen, it captures frame image or movie as variable format.
zLead Tool graphic library engine applied supports advanced image processing
functions (Bright/Contrast, Color Channel, Sature, Invert, Sharpen, Red-Free, etc.)
with good performance, and saves / loads as variable formatted image file (JPG,
TIFF, RAW, etc.).
zImage manipulation functions of HIS-5000 5X software support comparing between
selected eye images, overlaying them according to time flow, making references,
etc, it helps user to fully utilize digital imaging system for effective examination.
zSpecial functions of HIS-5000 5X supports automatic report generation (Microsoft
Word format document), full screen presentation, printing just by one click, etc.

8HIS-5000 5X User Guide --------------------------------------------------------------------------
4. System Installation
4.1. Software Installation
Step 1. Running Setup Program
When HIS-5000 5X installation CD is inserted into CD-ROM, setup program
starts automatically by auto-run. If it doesn’t work or is installing from local or
network drive, manually run HIS-5000 5X.exe in folder by double click.

-----------------------------------------------------------------------------------HIS-5000 5X User Guide 9
Step 2. Setup Program Window
Click ‘Next’ button.
Step 3. End User License Agreement
After reading End User License Agreement, click ‘I Agree’ button, then click Next.

10 HIS-5000 5X User Guide --------------------------------------------------------------------------

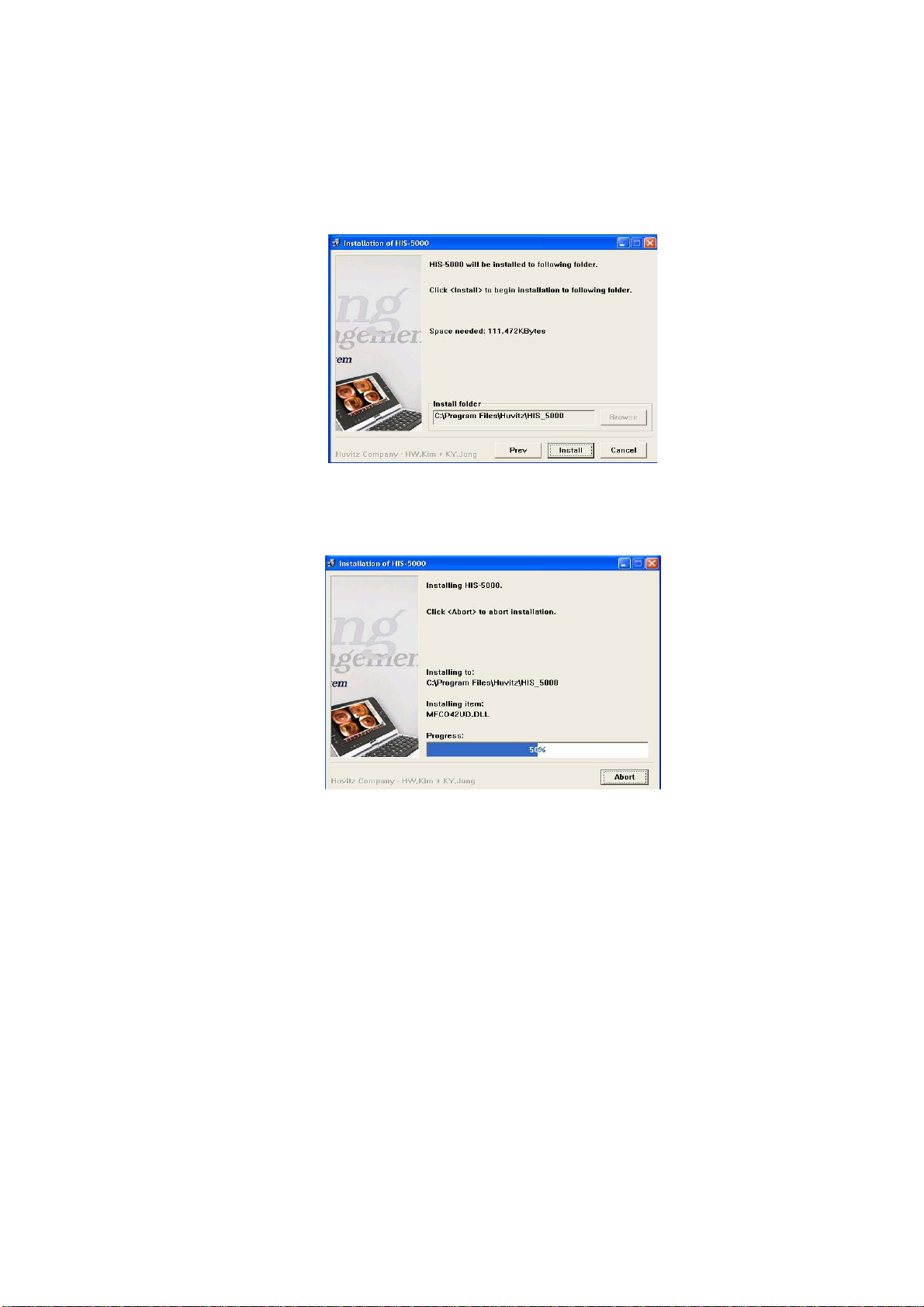

Step 4. Install Folder
Select a folder to install HIS-5000 5X software. The default path is ‘C:
\Program Files\Huvitz\HIS_5000’, click ‘Browse’ button to change it.
Click ‘Install’ button, it starts installation.
After installation completed, confirm a okay message to register Camera driver

-----------------------------------------------------------------------------------HIS-5000 5X User Guide 11
DLL.
Step 5. Running HIS-5000 5X Software
Check ‘Run application’ to start HIS-5000 5X Software immediately after
this installation, then click ‘OK’ button.

12 HIS-5000 5X User Guide --------------------------------------------------------------------------
4.2. Camera Installation
Step 1. Exiting HIS-5000 5X Software
If HIS-5000 5X software is running, it must to be stopped before starting
camera installation.
Step 2. Preparing IEEE-1394 Interface
Confirm that PC has available Fire-wire interface (IEEE-1394) port, if not, prepare
extension card and install it into your PC. Then go to Windows Device Manager,
and confirm that its driver name is “OHCI Compliant IEEE 1394 Host Controller”
under IEEE 1394 Bus host controllers.

-----------------------------------------------------------------------------------HIS-5000 5X User Guide 13

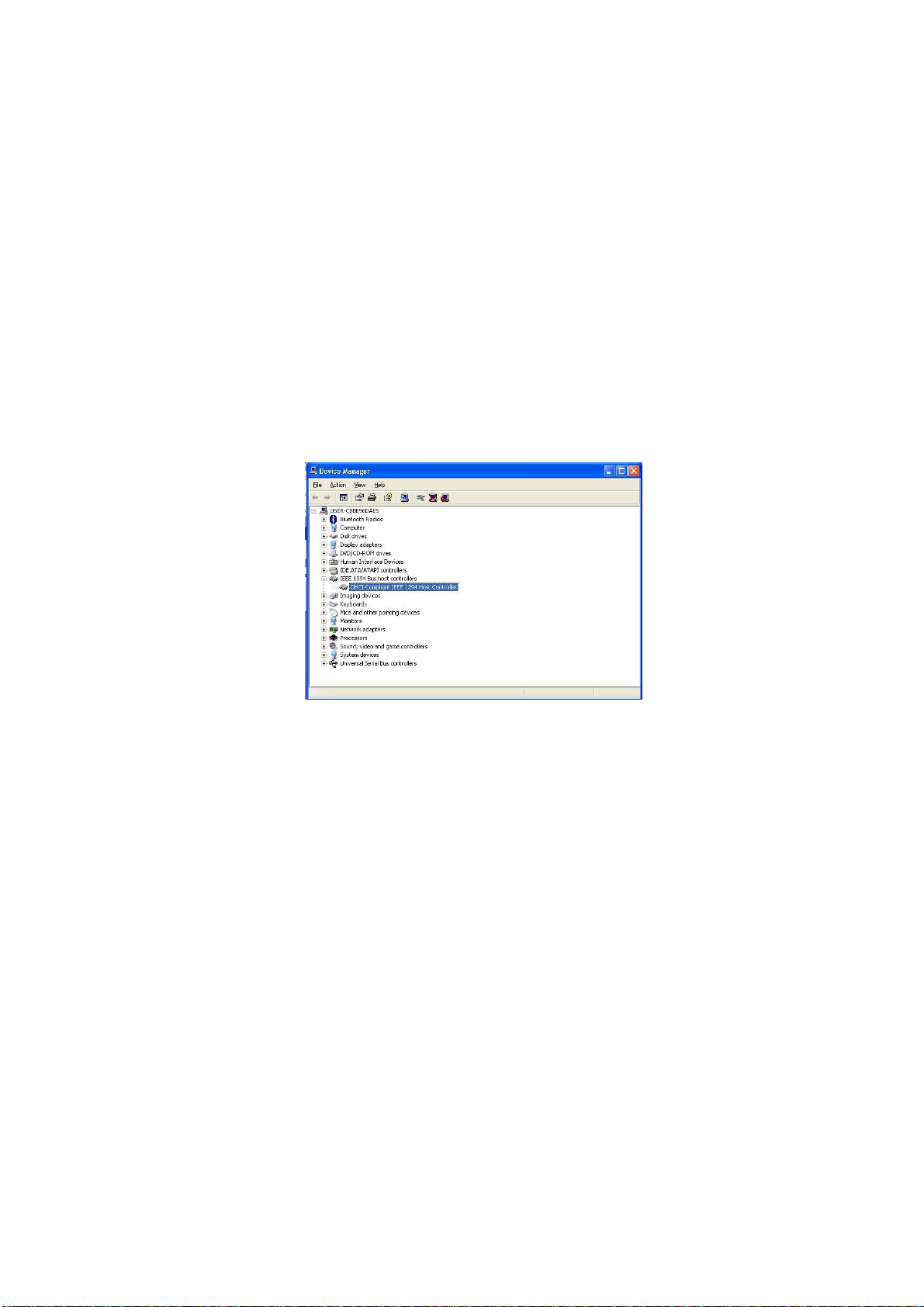

If installed driver is different, try updating it as following process. (Contact with
your PC or Fire-wire interface card maker about details.)
Select Generic 1394 host controller under IEEE 1394 Bus host controllers.
Click right button of mouse, then select ‘Update Driver…’ in popup menu.

14 HIS-5000 5X User Guide --------------------------------------------------------------------------

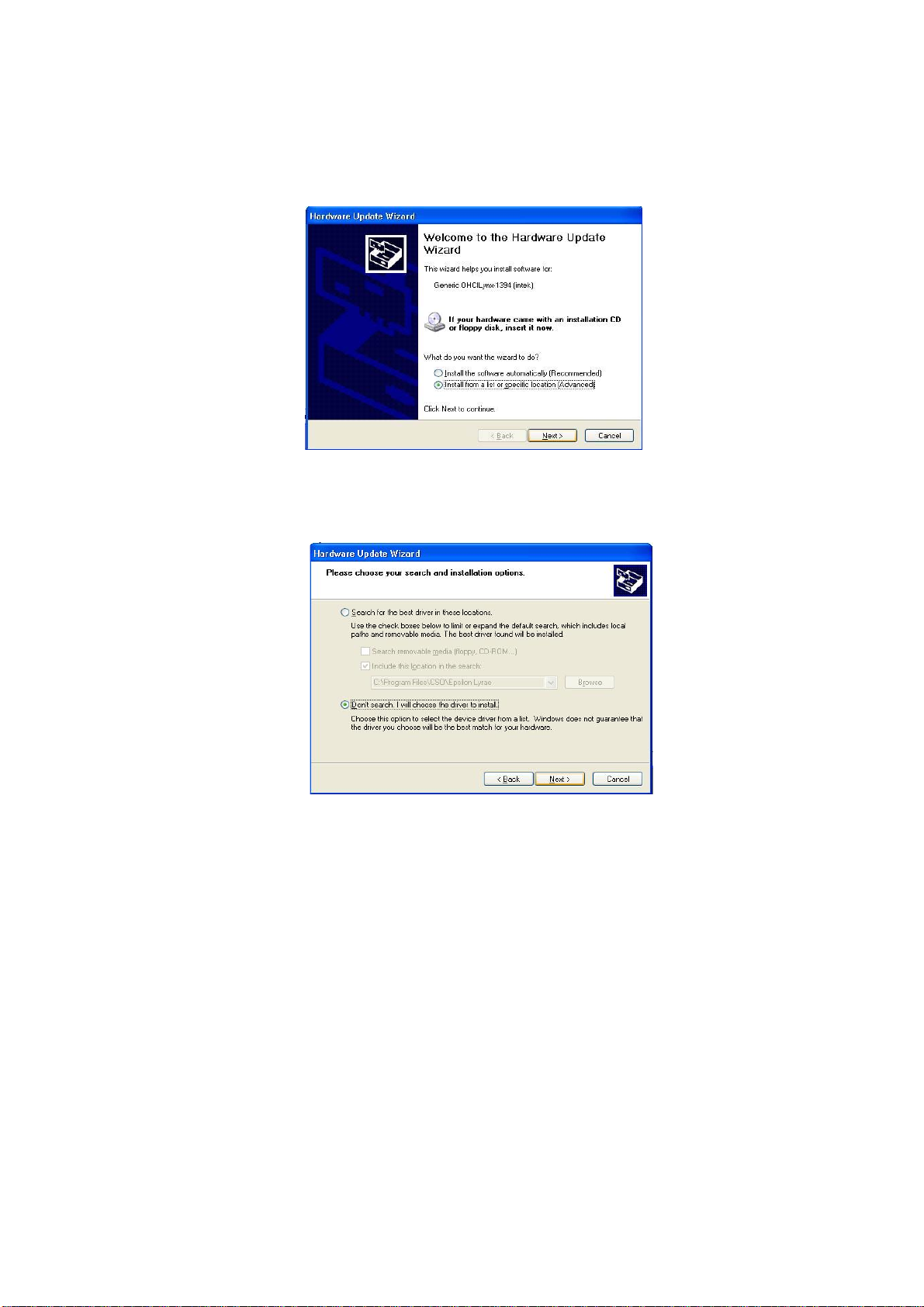

Select ‘Install from a list or specific location (Advanced) in Hardware Update
Wizard window.
Select ‘Don’t search, I will choose the driver to install’, and click ‘Next’ button.

-----------------------------------------------------------------------------------HIS-5000 5X User Guide 15
Select ‘OHCI Compliant IEEE 1394 Host Controller’ in Show compatible
hardware list, and click ‘Next’ button.
Click ‘Finish’ button to complete.

16 HIS-5000 5X User Guide --------------------------------------------------------------------------
Generally, Fire-wire interface has two types of connections, 6 pin port (with
power pins) or 4 pin port (without power pins). Camera module needs power
supply via Fire-wire connection, so if your PC has just any 4 pin port, you should
add Fire-wire expansion card having 6 pin port.
Unfortunately, if your PC is a laptop computer which PCMCIA card installed
for Fire-wire interface with 6 pin ports, that kind of extension can’t supply
sufficient power into camera, so it doesn’t work. To solve this problem, prepare
PCMCIA card having external power input port, and connect it with power jack
(Contact with your PCMCIA extension card maker about it), or prepare Fire-wire
cable itself having external power input connector, in this case, 4 pin port is also
available.
!INFORMATION

-----------------------------------------------------------------------------------HIS-5000 5X User Guide 17
Step 3. Installing Camera Driver
Connect camera module with PC via Fire-wire cable. If this connection is the first
try after software installation, then pop-up New Hardware Wizard window.
Select ‘Install from a list or specific location (Advanced)’, then click Next.
Select ‘Don’t search, I will choose the driver to install’, then click ’ Next’ button.

18 HIS-5000 5X User Guide --------------------------------------------------------------------------
Select ‘FireWire Digital Camera’ in Show compatible hardware list, then click Next
button.
Click ‘Continue Anyway’ in Hardware Installation window.

-----------------------------------------------------------------------------------HIS-5000 5X User Guide 19
Click Finish button to complete.
Go to Windows Device Manager, then confirm that camera driver name is
‘FireWire Digital Camera’ under Imaging devices.

20 HIS-5000 5X User Guide --------------------------------------------------------------------------
Step 4. Starting Camera Display
Run HIS-5000 5X software, then click ‘Start Camera’ button in menu bar.
Click ‘Start Camera’ button in camera window.
