Hydro-Force Power X Pro Spot MA51H User manual

1
MA51
Power X Pro Spot
Extractor
MA51H
Power X Pro Spot
Extractor with Heat
Operating Manual
Power X Pro Spot
Extractor
Hydro
-
Force
4282 South 590 West
Salt Lake City, UT 84 23
80 -268-2673
80 -268-3856 FAX
R
evised:
0
-
08
-
20 4

2
Power X Pro Spot Extractor Operating Manual
TABLE OF CONTENTS
TOPIC PAGE #
•Intro uction 3
•Technical Specifications 4
SECTION 1: Operational Safety
•Electrical Safety 5
•Mechanical Safety 6
SECTION 2: Operation Proce ures
•Electrical Supply 7
•Water Supply & Chemicals 7
•Solution & Vacuum Hoses 7
•Starting System - Switches 8
•Shut own Proce ures 9
•Troubleshooting 10-11
•Solution Flow Path MA51 12
•Solution Flow Path MA51H 13
•Wiring Diagrams MA51 14
•Wiring Diagrams MA51H 16
SECTION 3: Maintenance/ Technical
•Maintenance 18
•Parts 21
oMA51 22
oMA51H 27
oHoses & Tool 34
•Warranty 35

3
Introduction
Congratulations on your purchase of the Hydro-Force Power X Pro Spot
Extractor. The Power X Pro Spot Extractor is designed to combine versatility
with ease of transport. Years of experience, engineering, and planning have gone
into the design and manufacturing of the Power X Pro Spot Extractor. We take a
great deal of pride in the Power X Pro Spot Extractor; our goal is no less than
your complete satisfaction.
This manual will provide users with the knowledge required to operate the Power
X Pro Spot Extractor safely, to understand how to properly operate and maintain
the machine, and to ensure that the equipment operates at its maximum
performance level.
All users must rea an un erstan this manual completely before
operating the machine.
Always maintain this manual in legible condition adjacent to the Power X Pro
Spot Extractor, or place in a secure location for future reference.
Any questions pertaining to the operating or servicing of this unit should be
directed to your nearest Hydro-Force distributor.
This manual is written specifically for the Power X Pro Spot Extractor units
manufactured by:
Hydro-Force
4282 South 590 West
Salt Lake City, UT 84 23
80 -268-2673
80 -268-3856 FAX
Information in this manual is subject to change without notice and does not
represent a commitment on the part of Hydro-Force or its parent or affiliated
companies.

4
echnical Specifications
Power X Pro Spot Extractor Mo el MA51
Height: 19”
Length: 21”
Wi th: 10”
Weight: 18lbs.
Solution Tank Capacity: 3 gallon
Recovery Tank Capacity: 3 gallon
Power Cor : 20 foot – 16/3
Solution Outlet 1/4” Male Quick Connect
Solution Pump: Flojet ET508224-HP pump
55 psi – 0.37gpm
Vacuum Motor: AMETEK Lamb 4.8” Diameter – Peripheral ischarge
Two Stage 87.7cfm – 76.5” WC
Power Draw: 6.42 / 7.3 amps
Power X Pro Spot Extractor with Heater Mo el MA51H
Height: 24”
Length: 21”
Wi th: 10”
Weight: 30lbs.
Solution Tank Capacity: 3 gallon
Recovery Tank Capacity: 3 gallon
Power Cor : 20 foot 16/3
Solution Outlet 1/4” Male Quick Connect
Solution Pump: Flojet ET508224-HP pump
55 psi – 0.37gpm
Vacuum Motor: AMETEK Lamb 4.8” Diameter – Peripheral ischarge
Two Stage 87.7cfm – 76.5” WC
Heater: 600 Watt
Power Draw: 11.7 / 12.3 amps
Stan ar Equipment
Tool: PA205 - Stainless Steel 3.5” Detail Tool
Vacuum Hose: 7’ X 1-1/4” with 1-1/2” cuffs
HP Solution Hose: 8’ x 3/16” with 1/4” female quick connect

5
Safety
CAUTION! This machine is an electrical appliance. Care must be
taken to re uce the risk of electrical shock.
•READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE OPERATING THE POWER X
PRO SPOT EXTRACTOR.
•To reduce the risk of property damage or injury, repairs to electrical systems should only be performed by
experienced technicians. Contact your distributor for assistance. Unplug machine power cord from outlet
before performing any repairs on the extractor.
•This machine shall be grounded while in use to protect the operator from electric shock. The machine is
provided with a three-conductor cord and a three-contact grounding type attachment plug to fit the
proper grounding type receptacle. The green (or green and yellow) conductor in the cord is the grounding
wire. Never connect this wire to other than the grounding pin of the attachment plug.
•This machine is for use on a nominal 20-volt circuit and
has a grounding plug that resembles the plug illustrated in
the sketch to the right. Make sure that the machine is
connected to an outlet having the same configuration as
the plug. No plug adapter should be used with this
machine.
•The power cord supplied with this machine is properly
sized to handle the electrical load of this machine and
properly grounded as described above. Any extension
cords used with this machine must be similarly sized and
grounded to assure safe operation. A properly sized
GFCI protected cord can be used for additional protection.
•Do not use the POWER X PRO SPOT EXTRACTOR outdoors, in standing water or on wet surfaces. Do
not store the POWER X PRO SPOT EXTRACTOR in wet conditions. If extractor is leaking, unplug machine
power cords from outlets before approaching or touching machine.
•Do not unplug power cord by pulling on the cord. Grasp the plug end when unplugging the cord. Do not pull
the extractor by the cord. If cord or plug is damaged, do not use cord. Replace with new cord or repair as
needed before use.
•Overloaded circuit may not always trip circuit breaker. Reduced voltage to machine on overloaded circuit will
prevent components from operating properly.
Section
1

6
WARNING! This machine must be protecte from con itions which may
amage the pump, tank, hoses an other components.
•Freezing of water in this machine will cause serious amage. The POWER X PRO SPOT
EXTRACTOR, solution hoses, and tools must be protected from freezing temperature. Store, transport, and
use this equipment only in temperatures well above freezing. (32ºF or 0ºC). If you suspect the POWER X
PRO SPOT EXTRACTOR has been frozen, do not plug in or turn on machine until you are sure it has thawed
completely.
•If the equipment cannot be stored or transported in a warm environment, it can be guarded from freezing by
running an anti-freeze solution through the incoming water lines, chemical feed system, solution pump, solution
lines, tools and pump-out pump. The machine is filled at the factory with anti-freeze to eliminate damage during
shipment in cold weather.
oThe anti-freeze solution must be completely flushed from the machine before it is returned to service.
•The POWER X PRO SPOT EXTRACTOR must not be used to pick up flammable or combustible materials
or used in areas where these materials may be present.
•Solvent-based or water-based solutions containing solvents may damage the pump, hoses, and other
components. Do not assume chemical compatibility. Contact your distributor or Hydro-Force if you have
questions regarding the compatibility of your chemicals with the machine.
•Do not clean with solutions that are at temperatures above 00ºF.
•Rinse the solution tank, chemical system, and pump with fresh water after each day’s use.
•Do not allow pump to run dry. Always maintain adequate solution level to supply solution pump.
•Solution hoses may rupture if worn or damaged. Do not use solution hoses if hose covering is cut, bulging, or
otherwise damaged. Examine solution hoses daily and replace or repair hoses as needed.
•Keep Vacuum Filter Cap clean and check float for proper operation. Do not operate the POWER X PRO
SPOT EXTRACTOR without the Vacuum Filter Cap in place. Use efoamer to eliminate foam buil -up
uring cleaning an prevent foam/moisture from entering vacuum.
***Use common sense to protect yourself an others while using this equipment.***
•Keep pets and children away from the machine when in use.
•Keep all body parts, hair, and loose clothing away from openings and moving parts. Always wear appropriate
clothing and safety equipment when operating unit.
•Use extra care when cleaning on stairs. Wet carpet on stairs can be slippery.
•Secure latch before moving. Lift using only the appropriate handle.
•Water may be spilled, drip, or be exhausted from vacuums during operation. Place unit in area where water will
not cause damage or use drop cloth to protect surfaces.

7
Operation Procedures
Knowle ge of the proper operation of the Power X Pro Spot Extractor is
require to ensure user safety an efficient performance of the extractor.
Prior to using the Power X Pro Spot Extractor for the first time the Anti-Freeze
use to protect the unit uring shipping must be flushe from pump, hoses & tool.
Pour one quart of clean water into the solution tank, connect cor , hoses & tool.
Spray the tool into a bucket or sink to flush out the ant-freeze before using the
Power X Pro Spot Extractor for cleaning.
SET UP AND OPERATION
1. Electrical Cor :
Plug the power cord into the 20volt wall outlet. Make sure the circuit can handle the power load the
operation of the Power X Pro Spot Extractor will place on the circuit.
2. Water Supply & Chemical Mixing– Manual Fill:
•Pour up to 3 gallons of hot water into the solution tank at the front of the machine. This will fill the tank
to a level approximately 4 inches from the top of the tank.
The water temperature shoul not excee 120°
°°
°F.
•Measure and add the appropriate amount of the desired liquid chemical to the water in the solution tank.
The amount of chemical will vary depending on the type of chemical used, the amount of water in the
tank, and the material being cleaned; consult the chemical packaging for specific mixture ratios.
•Powdered chemicals should be dissolved in water in a separate container before being added to the water
in the solution tank.
3. Connection of Hose:
Connect the solution hose to the solution outlet male quick connect on the front of the machine. The other
end of the hose should always be connected to the cleaning tool.
The Vacuum Hose is connected to the barb on the recovery tank of the Power X Pro Spot Extractor. The -
/2” cuff on the vacuum hose is simply pushed onto the barb. The - /2” cuff on other end is connected to
the cleaning tool. A efoamer to the recovery tank to prevent foam buil -up in recovery tank uring
cleaning an to keep foam/moisture from entering vacuum.
Section
2

8

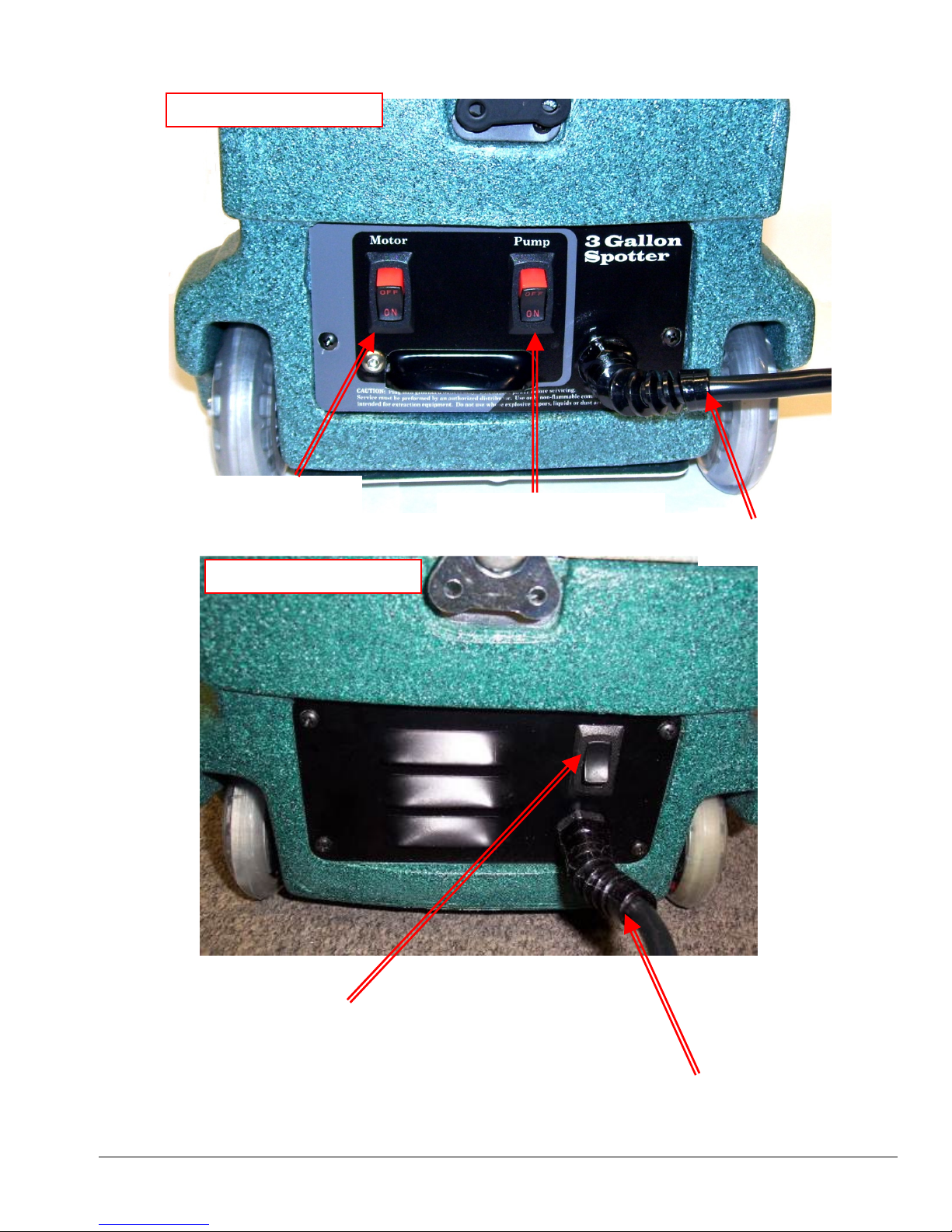

4. Starting the Spotter - Power Switches:
MA51
The new style MA5 without heat has two switches, one to turn on the vacuum motor & one to turn on the
solution pump.
(Older Power X Pro Spot Extractors without heat only had one switch for both the vacuum and the pump.)
When you are ready to start cleaning, turn the switches to the ON position. For standard cleaning turn on
both switches. For extraction only, you can turn on just the Vacuum Switch. The FloJet solution pump,
standard on the Power X Pro Spot Extractor is self-priming and usually additional priming procedures are not
required.
If the pump does not prime by itself, or if flow is low or unsteady, check the hose from the solution tank to
the pump and the filter screen for clogging, kinks, or restrictions. Clean or replace hose and/or filter and.
Turn switch ON. Check the valve operation and the jet on the tool for flow restriction that can affect
solution flow.
If you are having trouble with the pump, refer to the trouble shooting guide or contact your distributor for
advice or assistance.
MA51H
The MA5 H with heat has three switches one to turn on the vacuum motor, one for the solution pump &
one for the heater.
When you are ready to start cleaning, you should first turn the vacuum switch to the ON position. If you are
extracting only you do not need to turn on the solution pump switch or the heater switch.
If you will be spraying solution, turn the solution pump switch ON. The Flojet solution pump, standard on
the Power X Pro Spot Extractor is self-priming and usually additional priming procedures are not required.
If the pump does not prime by itself, or if flow is low or unsteady, check the hose from the solution tank to
the pump and the filter screen for clogging, kinks, or restrictions. Clean or replace hose and/or filter and.
Turn switch ON. Check the valve operation and the jet on the tool for flow restriction that can affect
solution flow.
If you are having trouble with the pump, refer to the trouble shooting guide or contact your distributor for
advice or assistance.
Once you have solution flow to the tool, you can turn the heater switch ON. Let the heater heat the solution
for about five minutes before you start spraying. For the best heater performance and maximum heat output
use the water slowly and take extra drying passes between spraying passes to give the water more time to heat
up.
5. Spotter Operation:
As you operate the spotter the water and soil you vacuum up will collect in the recovery tank. The Power X
Pro Spot Extractor is equipped with a Float Shutoff assembly which will block the vacuum air flow when the
tank is filled. The float rises with the water level in the recovery tank until it gets to the top, blocking the
vacuum air flow. When this happens you will notice a change in the sound of the vacuum motor. This is your
signal to turn off the unit and empty the recovery tank. Disconnect the hoses and drain the tank by pouring
the water out of the vacuum barb. Do not attempt to drain the recovery tank from the hatch cover opening.
Do not use the same bucket to drain the unit that you use to fill the solution tank. Add more defoamer to the
recovery tank before you resume cleaning.
After draining the tank, before you place the recovery tank back onto the spotter base, check the water level
in the solution tank and add more water and detergent as needed to complete your cleaning. Then place the
recovery tank back onto the solution tank, reconnect the hoses and resume cleaning.

9
Shut own Proce ures:
(MA5 H only) If you are using the heater turn the heater off before you make the last few cleaning passes
or spray the tool into a bucket for a minute to cool off the heater, before you turn the pump switch off.
When finished cleaning, turn off all switches.
Disconnect the power cord from the outlet.
Disconnect the solution hose and vacuum hose from the Power X Pro Spot Extractor. Pull valve trigger
to release pressure from the hose before disconnecting solution hose.
Drain any remaining water from the solution tank and the recovery tank and dispose in sanitary drain.
Drain the recovery tank by pouring the water out of the vacuum barb. Do not attempt to pour the water
out the recovery tank hatch cover opening. Do not use the same bucket to drain the tank that you use to
fill the tank.
Remove the float shutoff assembly from the recovery tank and clean filter & float as needed.
Replace shutoff assembly and tank lid.
Roll up power cord. Collect and store Power X Pro Spot Extractor, hoses, tool, and any other accessories.

10
Section
2
Troubleshooting –
Power X Pro Spot Extractor
Problem
Cause
Solution
Machine not Building circuit breaker tripped. Reset breaker or move cord to other outlet
turning on - Faulty power cord Replace cord
No power Faulty switches or internal wiring Check wiring & test switches - Repair as needed *
Solution Building circuit breaker tripped. Reset breaker or move cord to other outlet.
Pump Faulty power cord Replace cord
not running Faulty switches or internal wiring Check wiring & test switches - Repair as needed *
Pump faulty Replace Pump (AP30)
Low Solution Jet too large for pressure desired Check jet size & flow rates use smaller jets
Pressure
and/or Jet worn allowing too much flow Replace jet
Pulsation Solution inlet filter plugged Clean or replace filter
Hose from solution tank restricted Repair or replace hose
Heater Restricted with scale
(MA51H Only) De-scale or replace the heater
Pressure Relief valve stuck open
(MA51H Only) Replace the pressure relief valve
Pump intake hose or fittings
leaking Repair or replace hose. Tighten clamps or replace fittings
Solution tank empty Add water to tank - Check & repair auto fill assembly
Pump faulty Repair or replace pump (AP30)
Tool valve faulty Repair or replace valve
Quick connects or hoses
restricted Clean out or replace quick connects and/or hoses
Can't connect Pressure in lines Turn off pump - Release pressure
solution hose Quick connects faulty Replace quick connects (AH101B, AH102B)
to machine Wrong style/size quick connects Replace quick connects to match connects on machine
Heater not Faulty switches or internal wiring Check wiring & test switches - Repair as needed *
Heating
(MA51H Only) Temperature Switch tripped Reset manual reset temperature switch.
Faulty temperature switches Replace temperature switches on heater
Faulty Heater Replace heater
Flow too high for proper heating Use smaller jet or slow use of water
Water Starting out too cold Heat water before filling tank – Maximum 120˚F
* To reduce the risk of fire electrical shock or injury repairs to wiring should only be performed by
experienced service technicians.
If you are not experienced in checking electrical wiring contact your nearest authorized service
center to perform tests and repairs to wiring and switches.
roubleshooting

11
Problem
Cause
Solution
Vacuum Building circuit breaker tripped. Reset breaker or move cord to other outlet
Motor Faulty power cord Replace cord
not running Faulty switch or internal wiring Check wiring & test switch - Repair as needed *
Vacuum motor faulty Replace vacuum motor (AV06)
Loss of Vacuum motor faulty Replace vacuum motor (AV06)
Vacuum Vacuum motor gasket damaged Replace gasket (PS10-1030)
Recovery tank lid gasket damaged Replace lid assembly or gasket
Vacuum hose or tool clogged Clean out vacuum hoses and tool
Vacuum hoses or cuffs leaking Replace vacuum hoses, cuffs & connectors as needed
Recovery tank full Drain tank
Float shutoff filter clogged Clean float shutoff filter
Float shutoff stuck Repair or replace float shutoff
Recovery tank damaged Replace recovery tank
Tool won't Jet clogged Clean out or replace jet
spray - low or Inline filter clogged Clean out or replace filter if so equipped
uneven spray Jet worn Replace jet
Jet not aligned properly Re-align jet
Tool valve faulty Repair or replace valve
Quick connects or hoses restricted Clean out or replace quick connects and/or hoses
Pump not pumping See Troubleshooting sections relating to solution pump
* To reduce the risk of fire electrical shock or injury repairs to wiring should only be performed by
experienced service technicians.
If you are not experienced in checking electrical wiring contact your nearest authorized service
center to perform tests and repairs to wiring and switches.
• Contact your distributor for additional troubleshooting
assistance, to order parts, or for advice and assistance in
performing necessary repairs.

12
Solution ank
Outlet Quick
Connect
Denotes Water
flow in pressure
hose
Denotes
incoming water
flow
MA51
Solution Flow Path
Pump
AP30

13
Solution ank
Outlet Quick
Connect
Denotes Cold
Water flow in
pressure hose
Denotes
incoming water
flow
MA51H
Solution Flow Path
Pump
AP30
Denotes Heated
Water flow in
pressure hose
HEATER
PRESSURE
RELIEF
V
ALVE
Denotes Heated
Water by-pass flow
from heater
pressure relief
CHECK VALVE

14
MA51
Wiring Diagram
-
Standard
Power
Switch
POWER CORD
OLD STYLE
SINGLE SWITCH
PUMP
VACUUM
AV06
Pump
Switch
POWER CORD
NEW STYLE
DUAL SWITCH
PUMP
VACUUM
AV06
Vacuum
Switch
YELLOW
WHITE
GREEN
GROUND SCREW

15
MA51 STANDARD SWITCH PANEL:
Solution Pump Switch & Vacuum Switch
When the switch is turned to the ON position
power is supplied to the solution pump motor and
vacuum motor.
Power Cor
Old Style – Single Switch
New Style – Dual Switch
Power Cor
Vacuum Switch Solution Pump Switch

16
MA51H
Wiring Diagram with Heater
Pump
Switch
Heater
Switch
Vacuum
Switch
POWER CORD
HEATER
600w
VACUUM
AV06
PUMP
Manual Reset Hi-Limit
Temperature Switch
0
-
08 4
-
B
Auto Reset Temperature
Control Switch 0-08 4
HEATER ELEMENT – PSA 0 500B
New Style Heater Only
GROUND SCREW

17
MA51H with HEATER SWITCH PANEL:
Vacuum Switch
When the switch is turned to the ON
position power is supplied to the vacuum
motor only.
Solution Pump Switch
When the switch is turned to the ON position
power is supplied to the solution pump motor
only.
When not using solution (Extracting only), do not
turn this switch ON.
Heater Switch
When the switch is turned to the ON position power is
supplied to the solution heater only. Always turn pump
switch on first and be sure water is flowing to the tool before
turning heater ON.
Turn heater off and spray tool for a minute to cool off
heater before turning pump off.
When not using solution (Extracting only), do not turn this
switch ON.
Power Cor

18
Maintenance
Proper maintenance is require to keep the Power X Pro Spot Extractor operating
properly, prevent owntime an to exten the life of your equipment.
WARNING: Disconnect electrical power before performing any service or
maintenance insi e machine base or before testing or repairing switches or power
cor s. Failure to o so may result in severe personal injury or eath.
OPERATION INTERVAL Page #
CLEAN VACUUM SHUTOFF ASSEMBLY
Daily
–
After Each Job
9
RINSE OUT RECOVERY TANK
Daily
9
FLUSH SOLUTION TANK AND PUMP
Daily
9
CLEAN PUMP-INLET FILTER
Daily
9
DESCALING HEATER – MA5 H ONLY
As needed
20
REMOVING BASE TO ACCESS HEATER – MA5 H ONLY
As needed
20
STORAGE PREP – FREEZE PROTECTION
As needed
20
Section
3

19
CLEAN VACUUM SHUTOFF ASSEMBLY:
Inside the recovery tank, on top of the stand pipe, is the Vacuum Shutoff Assembly. It functions to prevent
debris and water from being sucked into the vacuum motors. Operating the Power X Pro Spot Extractor
without the Vacuum Shutoff Assembly or with a poorly maintained assembly will greatly decrease the life of
the vacuum motors and will void the warranty.
If debris builds up on this filter, it will reduce the vacuum air flow and may cause a significant decrease in the
rate of water recovery. If debris prevents the float from moving or seating inside the assembly, it may not
stop the airflow when the tank fill with water, and the water will be sucked into the vacuum and blown out
the exhaust. Always use efoamer to prevent foam or moisture from entering vacuums.
To clean:
. Twist to loosen and pull the assembly off of the stand pipe.
2. Pull fibers and lint off and rinse with clean water.
3. Push the assembly back onto the stand pipe and replace the recovery tank lid.
RINSE OUT RECOVERY TANK:
Clean out the tank on a regular basis to extend the life of vacuum & recovery components as well as keep the
tank smelling better.
. Remove the recovery tank lid.
2. Use a hose to rinse the dirt and debris out of the recovery tank.
3. Spray the tank with a deodorizer or disinfectant.
4. Replace the recovery tank lid.
5. Dispose of the dirty water and debris.
FLUSH SOLUTION TANK AND PUMP:
. Pour one gallon of clean water into the solution tank. Slosh the water around in the tank to clean tank
and pour water out and dispose of the dirty water.
2. Pour another gallon of clean water into the tank.
3. With Cord plugged in, connect the solution hose& tool to the solution outlet male quick connect.
4. Direct the tool into a bucket or sink and turn the solution pump ON.
5. Spray the tool into the bucket or sink until most of the water has been pumped out of the solution tank
6. Turn the pump OFF and disconnect the solution hose and tool.
7. Drain the remaining water out of the solution tank and dispose of the dirty water.
If there is a heavy chemical build-up in the machine, hoses, or tools, a mild acid can be added to the rinse
water in the previous procedure.
CLEAN PUMP INLET FILTER
A restricted Pump Inlet Filter can prevent the solution pump from providing adequate pressure for cleaning.
•Remove the stainless steel filter screen and clean as needed.
•Do not operate the machine without the pump inlet filter in place.
•Replace filter, hose & barb as needed.

20
Descaling Heater – MA51H Only:
. Pour one gallon of descaling solution into the solution tank. For light scale build-up a mild acid solution
may be sufficient. Heavier build-up may require a stronger descaling solution.
2. With Cord plugged in, connect the solution hose& tool to the solution outlet male quick connect.
3. Direct the tool into a bucket or sink and turn the Solution Pump ON. Once you have solution at the
tool, turn the Heater ON and turn the Solution Pump OFF. Wait about 5- 0 minutes and turn the
Heater OFF and turn the Solution Pump ON.
4. Spray the tool into the bucket or sink until most of the descaling solution has been pumped out of the
solution tank. Turn the pump OFF and disconnect the solution hose and tool.
5. Repeat the descaling process as needed to remove heavier scale build-up. Drain the remaining descaling
solution out of the solution tank. Rinse the solution tank, pump & heater with clean water and dispose of
the descaling solution and dirty water.
Removing Base to Access Heater – MA51H Only
To remove the base of the MA5 H to access the heater, use a 3/ 6” Allen wrench to remove the two screws
holding the base to the solution tank. One screw is located on each side of the Power X Pro Spot Extractor.
Storage Prep an Freeze Protection Proce ures:
Your Power X Pro Spot Extractor must be protected from freezing. Freezing can cause serious damage to the
pump, pump-out, auto-fill float valve, and any other component containing water. If the Power X Pro Spot
Extractor is transported or stored in freezing temperatures, the following procedures should be performed.
. In a separate container mix pint of water with pint of automotive radiator anti-freeze. (Ethylene glycol
type). Mix well and pour into the solution tank.
2. Connect the solution hose to the solution outlet male quick connect and hold the tool over a bucket.
3. Turn the solution pump switch to the ON position. Spray the tool into the bucket until you see the anti-
freeze solution coming out of the jet into the bucket.
4. Turn the solution pump off.
5. Drain the remaining anti-freeze solution from the solution tank and the machine is ready for storage.
RETURNING THE POWER X PRO SPOT EXTRACTOR TO SERVICE
AFTER STORAGE OR FREEZE PROTECTION:
To return the Power X Pro Spot Extractor to service, the anti-freeze must be flushed from the machine.
Flush the anti-freeze out of the machine by repeating the procedure above using one quart of clean water in
place of the anti-freeze solution.
Insert 3/ 6” Allen wrench here to remove
screw and remove base from solution tank.
Also remove screw on other side of base.
