HydroMist Mist-n-Go User manual

Misting Pump
User Manual

1/21
Table of Contents
1. General Information ......................................................................... 1
2. Specifications.................................................................................... 2
2.1 Dimensions ................................................................................ 3
2.2 Components............................................................................... 3
3. Quick set-up...................................................................................... 4
3.1 Installation................................................................................. 4
3.2 Misting System Example............................................................ 6
4. Operation Instructions...................................................................... 7
4.1 Dangers...................................................................................... 7
4.2 Warnings.................................................................................... 7
4.3 Cautions..................................................................................... 8
5. Operation........................................................................................ 10
5.1 LCD Control Panel .................................................................... 10
5.2 Operation Modes..................................................................... 11
5.3 Remote .................................................................................... 12
5.4 Storage..................................................................................... 12
6. Troubleshooting.............................................................................. 14
7. Maintenance................................................................................... 15
7.1 Periodic Check and Inspection ................................................. 15
7.2 Procedure for Oil Change......................................................... 16
7.3 Oil Changes and Checks ........................................................... 21
8. Warranty......................................................................................... 23

Mist-n-Go User Manual
www.HydromistUSA.com
1
1. General Information
This manual provides you with the information for proper use and maintenance
of the misting pump. Please carefully follow the instructions provided. The
manufacturer/supplier is not liable for any damage to people, goods, or to the
systemitselfiftheequipmentisuseddifferentlyfromasdescribedinthismanual.
Information provided in this manual does not replace any safety regulations.
Therefore, the user should comply with the regulations in the area where the
pump is installed, as well as following common sense rules.
Do not use the product if you notice any defect or wear that may compromise a
safe environment. The user or the maintenance technician must report any
manufacturer defects to the supplier. The machine is meant for specific misting
applicationonly.Donotmodifyand/oruseitforapplicationsotherthantheones
specified.
Instructions, drawings, tables, and all contents of this document are confidential
technical documentation and are the exclusive property of the manufacturer. No
information may be released to third parties without written permission by
HydroMist USA. Descriptions and images in this document are meant for
reference and as practical examples. They may be modified at any time and
without prior notice. If further technical and functional details are needed,
please contact the manufacturer/supplier.
IMPORTANT
nPlease read the information contained in this booklet. It will provide
information and instructions required for safe installation, use, and
maintenance.
nThe manufacturer is not liable for any damage to people, goods, or to the
machine itself if the pump is used differently from what is described in this
manual.
nKeep this booklet in a safe place to make it available for future reference.
nUpon delivery, check for any possible damages that may have resulted from
shipping and handling.

Mist-n-Go User Manual
www.HydromistUSA.com
2
2. Specifications
Mist-n-Go Pump Specifications
Model
Mist-n-Go
Part Number
F10-04-009
Operating
Pressure Max: 850 psi
Flow rate 0.132 GPM @ 1450 RPM
Motor 12 Volt DC Brushless – 150 Watts Continuous Duty
Transformer
Input: 120 Volts AC, 2.0A Max, 60Hz
Output: 12Volts DC 12A
Dimensions L×W×H: 15Î10Î12.25 in.
Weight 20 lbs.

Mist-n-Go User Manual
www.HydromistUSA.com
3
2.1 Dimensions (In Inches)
2.2 Components
Description of parts
1
Top cover
4
Carry Handle
2
High Pressure Outlet
5
Bottom cover
3
LCD Control Panel
6
Rubber feet

Mist-n-Go User Manual
www.HydromistUSA.com
4
3. Quick set-up
3.1 Installation
3.1.1 Open the box and unpack any shipping materials.
3.1.1.1 Remove the pump assembly from the box and verify all
accessories present.
3.1.1.2 Inspect the machine for any physical damage.
3.1.1.3 Inspect the pump for any signs of oil leakage. The pump ships
from the factory with oil, but if there is an unexpected leak, the
pump will need to be filled with oil before operation. (See
section 7.2)

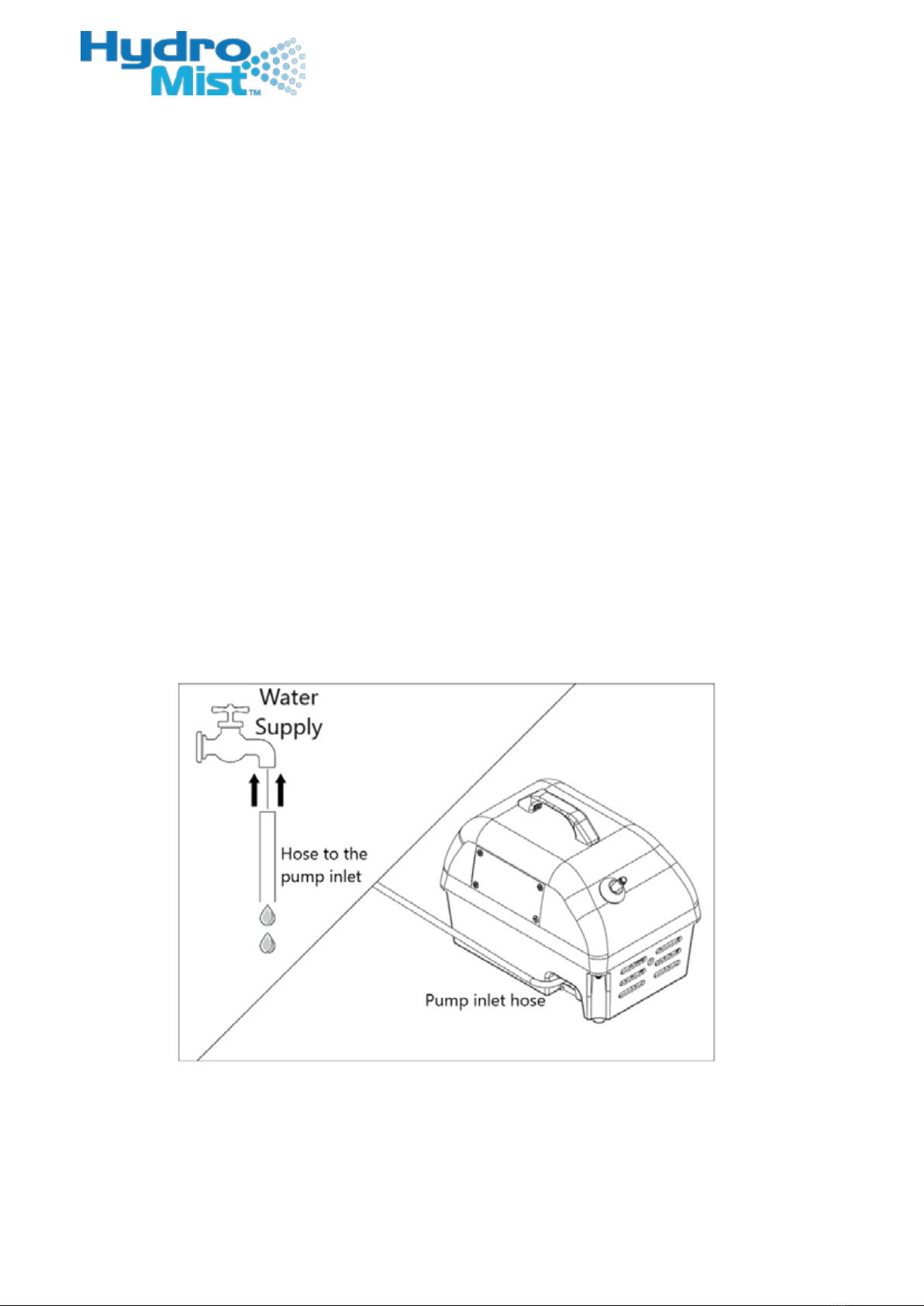

3.1.2 Connect to a water supply line. Residential pressure is sufficient
to supply the pump.

Mist-n-Go User Manual
www.HydromistUSA.com
5

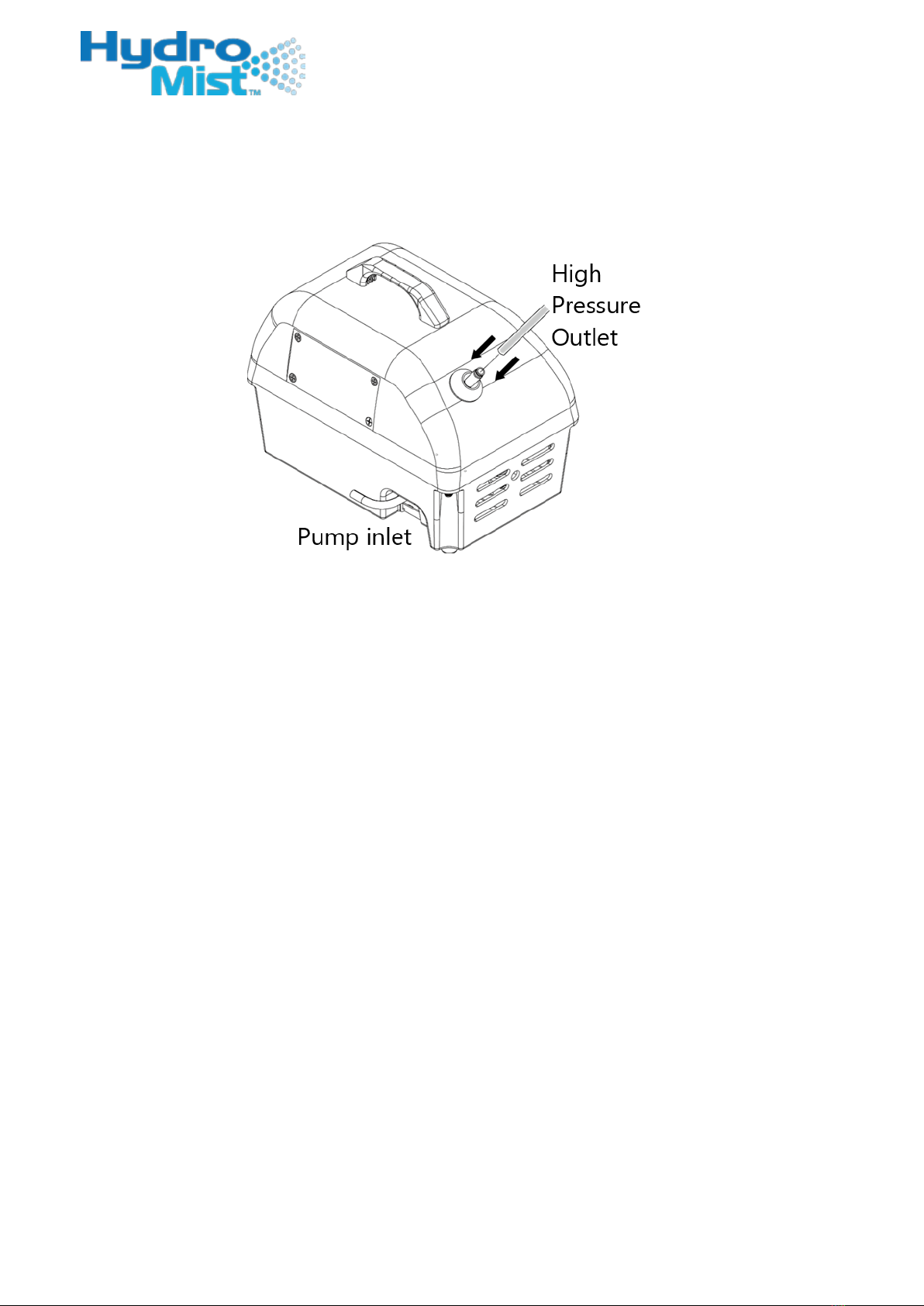

3.1.3 Connect the high-pressure outlet
3.1.3.1 Connect the nylon hose of your misting system to the slip lock
connector on the high-pressure pump outlet.
3.1.3.2 Plug in the power supply and wait for the LCD control panel
screen to power up.
3.1.3.3 Start using your misting system by selecting your desired
misting mode on the LCD control panel.

Mist-n-Go User Manual
www.HydromistUSA.com
6
3.2 A Basic Misting System Example.
Parts of a Basic Misting System
1
Water supply into misting pump
2
Misting pump assembly
3
1/4” High pressure nylon hose, connected to pump outlet
4
In-line nozzle fitting w/ slip lock connectors
5
Power transformer
6
Power cord

Mist-n-Go User Manual
www.HydromistUSA.com
7
4. Operation Instructions
4.1 Dangers
THE FOLLOWING MUST BE OBSERVED IN ORDER TO PREVENT
SERIOUS INJURY OR DEATH.
4.1.1 Do NOT use on rainy days, in wet areas, or near open bodies of
water.
4.1.2 Only trained personnel may operate this machine. Children and
adults who are not well-trained should not operate the machine.
4.1.3 Thepower source must beequipped with overload circuit breaker
protection to prevent injury from electrocution, fire, or other
unforeseen circumstances.
4.1.4 Do NOT move the machine during operation.
4.1.5 Mount the machine on a cement surface or another solid, flat
surface that provides a firm, level support. Keep the machine and
its surroundings dry.
4.1.6 Do NOT operate the machine before reading this operating
manual carefully.
4.2 Warnings
4.2.1 While the machine is in operation, do not open the cover or
touch the motor or pump.
4.2.2 Before running the machine, check that the electrical cords are in
good condition.

Mist-n-Go User Manual
www.HydromistUSA.com
8
4.3 Cautions
4.3.1 Do not operate the machine in temperatures below freezing
(0°C/32°F).
4.3.2 Before use, check for oil inside the pump. If there has been any
leakage, fill the oil.
4.3.3 Only use a power source with correct electrical voltage (V),
frequency (Hz) and current rating according to the machine
specifications.
4.3.4 Do not set up the operating pressure of the pump over 1000 psi.
4.3.5 Do not run the machine when there is inadequate water flow to
the inlet port. Insufficient water supply will damage the
componentsinsidethepumpandshortenthelifeofthemachine.
4.3.6 The water supply hose must be at least 5/16” in diameter.
4.3.7 Do NOT use a power cable longer than 30 ft. All extension cables
must be rated for the required voltage and amperage, and be
outdoor rated with a grounding prong.
4.3.8 The water pressure at the inlet port should be at least 30 psi for
continuous operation.
4.3.9 Water temperature must not exceed 50°C/120°F and must be
well-filtered.
4.3.10 The inlet water must be filtered. Sediment and contamination
will clog the pump internals as well as the misting nozzles. It is
recommended to use a water treatment or conditioning filter to
reduce and prevent the formation of solids in areas with hard
water or high mineral concentrations.
4.3.11 Beforeuse,checkthepump oilfor deterioration.Checkthatinlet
fittings and high-pressure fittings are FIRMLY attached and fully
seated.

Mist-n-Go User Manual
www.HydromistUSA.com
9
4.3.12 The number of nozzles for the best misting effect will vary
depending on the pump used. If a lower number of nozzles than
recommendedis used,thesystem willbeoverpressurized,iftoo
many nozzles are used, the pressure will drop and the
atomization effect will be poor. Please refer to catalog
specifications for details.
4.3.13 Avalve installedintheendofmisting systemisrecommended.It
will help to easily purge air from the system, especially in
extensively long installations, or with configurations where air is
easily trapped in the misting lines.
4.3.14 When misting, check all nozzles and ensure none are blocked. If
blocked, clean or change the nozzle.
4.3.15 When misting, check that all connectors are without leaks. If
there is leak, reinstall the connector or change it.
4.3.16 Forstorageduringwintermonths,orwherethepumpwillnotbe
used for an extended period of time, discharge the system
pressure and drain any standing water from the misting system.

Mist-n-Go User Manual
www.HydromistUSA.com
10
5. Operation
5.1 LCD Control Panel
NO.
Description
①
POWER
Turn the pump on or off
②
TIME
Cycle through the time intervals
③
MAINTAIN
Error indication (not a button)
④
MODE 1 (0/0)
Continuous misting mode
⑤
MODE 2 (3/10)
Interval Misting: 3 sec. / Stop: 10 sec.
⑥
MODE 3 (10/10)
Interval Misting: 10 sec. / Stop: 10 sec.
⑦
MODE 4 (20/10)
Interval Misting: 20 sec. / Stop: 10 sec.

Mist-n-Go User Manual
www.HydromistUSA.com
11
5.2 Operation Modes
5.2.1 Continuous Misting:
lPress ON/OFF button to start operation
lThe machine starts and continues operation until the mode is
changed, or powered off.
5.2.2 Intermittent Misting:
lPress the TIME button to cycle through misting modes, the
machine will start intermittent misting based on the mode
illuminated on the control panel.
Water Inlet shut-off.
lWhen the pump is turned on without a water supply, the
pump will run for two minutes and then turn off. The internal
current sensor will shut off the pump and the control panel
lights will flash.
lReset the control panel by pressing the ON/OFF button until
the flashing lights turn off.
lConnect an adequate water inlet supply.
lAfter a water supply is connected, press the ON/OFF button
again and the pump will resume operation.

Mist-n-Go User Manual
www.HydromistUSA.com
12
5.3 Remote
NO.
Description
①On Power on
②Off Power off
③Mpa Not Used
④Time Cycle Through Time Intervals
5.4 Storage
5.4.1 Please follow the steps below to drain water from the pump.
a. Disconnect the water supply to the pump.
b. Run the pump briefly to expel any water from the internal
pump cavities.
c. After water stops coming out of the pump outlet, turn the
pump off. There may be some intermittent spraying and
drainage while the pump purges water from itself.
d. Drain misting lines, pipes, and rings of standing water to
prevent cracking from freezing.

Mist-n-Go User Manual
www.HydromistUSA.com
13
•When the machine is not in use, please keep it indoors.
•If exposed to rain, stop the machine, and immediately remove the plug
to avoid electric shock or leakage.
•Use caution when disassembling the pressure hose, water pipe, nozzles,
and filter. There may be pressure (up to 1000 psi) inside and injury can
occur.
•Do not use this machine when temperature is below (0°C/32°F).
Running the pump with ice in the hoses or pump will cause damage to
the pump and can cause an over-pressure situation that may be

Mist-n-Go User Manual
www.HydromistUSA.com
14
6. Troubleshooting
Before troubleshooting, disconnect the power
source from the machine.
FAULT
CAUSE
REMEDY
No mist
comes out of
the nozzle
Ÿ
The misting nozzle is blocked.
ŸAir is in the lines.
ŸAir inside the pump.
ŸMisting nozzle is worn out.
Ÿ
Clean the nozzle. If it doesn’t work,
change the nozzle.
ŸPurge air from the lines.
ŸTighten all joints connected to the
water inlet. Make sure asteady flow
of water supply is present
ŸChange misting nozzle.
The pump
fails to pump
water
Ÿ
No water supply.
ŸThe pump is clogged.
ŸAir is in the pump.
ŸThe water filter is blocked.
ŸThe seals or packings inside the
pump are worn out.
Ÿ
Turn on thewater faucet.
ŸPurge air from the pump. Turn the
pump on/off several times without
connection to high-pressure misting
system.
ŸMake sure a steadyflow of water
supply is present.
ŸClean or replace water filters.
ŸReplace the worn-out seals or
packings.
Abnormal
noise or
vibration
Ÿ
The pump oil is burned or
worn.
ŸNylon hose and nozzle circuit is
blocked.
Ÿ
Add or change oil.
ŸClean or change nozzle and/or lines.
Oil or water
leaks
ŸThere is aclamp or fitting that is
loose or faulty.
ŸCheck the hose clamps, oil filler plug,
oil drain plug, and misting linefittings
for proper connection.
Abnormal
control panel
operation
Ÿ
Control panel is wet.
Ÿ
The control panel mustbe
completely dry for proper operation.
Dry off any moisture and reset the
panel by unplugging the power
supply for 30 seconds and plugging it
back in.
Motor
doesn’t
run
ŸThe voltage of the power
supply is not stable.
ŸThe built-in thermostatic switch
activated to protect the motor.
ŸDisconnect any extension cords and
try again.
ŸRun the machine in a well-ventilated
space or add airflow to the space.

Mist-n-Go User Manual
www.HydromistUSA.com
15
7. Maintenance
7.1 Periodic Check and Inspection
Items Interval
Before
Operation
50hr 100hr 200hr 300hr
Main Components
Check All Fittings are Tight
◆
◆
Check Water Lines for Leakage
◆
◆
Check Pump for Oil Leakage
◆
◆
Inspect Top and Bottom Covers
◆
◆
Hose/Pipe/Rings
Check Connectors and Hoses for
Damage or Loose Fittings
◆
◆
Checkand CleanInletWater Filter
◆
◆
Check Nozzles for Leaks or
Blockage
◆
◆
◆
◆
◆
Electrical
Check Power Supply for Damage
◆
◆
Check Electric Cord for Damage
◆
◆
Pump
Pressure Regulator
◆
Check Oil: Quality and Quantity
◆
◆
◆
Change Oil
◆
(Only for
the first
time)
◆
Pressure Relief Valve
◆
Oil Seals
◆
Plungers
◆
Motor
Check the Rubber Motor Mounts
◆
The above maintenance schedule is for operation at normal conditions.
Varying environmental conditions may cause excess wear on the pump or
misting system components, and your equipment may need to be
serviced more frequently.

Mist-n-Go User Manual
www.HydromistUSA.com
16
7.2 Procedure for Oil Change
Use ISO 68 oil or equivalent, available from Hydromist:
ISO68 Pump Oil, 21oz. bottle: Part# F02-06-001
Always power off the machine and disconnect power before
performing any maintenance or inspection.
—
Irregular maintenance and failure to change the oil regularly,
will cause damage to the machine parts and/or shorten the
service life.
—When changing the oil, make sure to remove the old oil
completely. Too much old oil can affect the quality of the new
oil.
—Only change the oil with the pump on a level surface.
—Do not change hot oil. Pump operation increases the oil
temperature to a dangerous level and can cause severe burns.
7.2.1 Purge pressure and water from the misting system.
7.2.2 Remove the water supply hose and high-pressure misting hose.
7.2.3 Check the bottomofthemachine tosee ifthereis anyoilleakagefromthe
pump body. Clean up any oil leaks or spills so that a leak can be detected.
7.2.4 Oil must be changed after first the 50-hour operation mark, and then be
changed every 250-300 hours of running.
The maximum oil capacity is 2 oz. (60 ml).
7.2.5 Disconnect power first to prevent electric shock.
7.2.6 Place wood blocks or similar items on both sides under the pump to raise
the body in order to facilitate easy drainage of old oil.

Mist-n-Go User Manual
www.HydromistUSA.com
17
There is an oil drain plug on the bottom side of the pump. Put a catch pan or other
small container under the valve and unscrew the bolt to start draining the oil
7.2.7 After the oil has drained, reinstall and tighten the drain plug.

Mist-n-Go User Manual
www.HydromistUSA.com
18

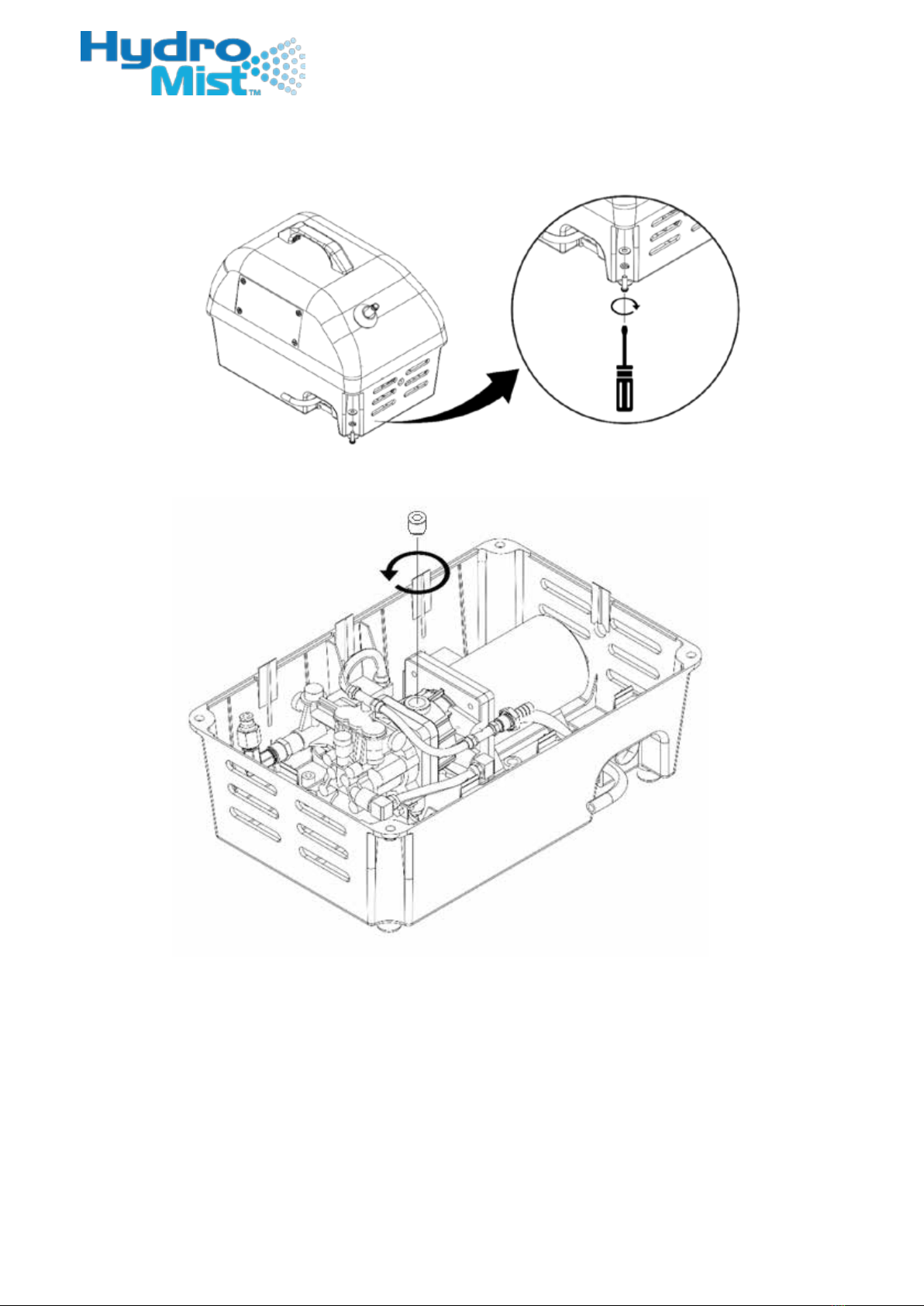

7.2.8 Loosen the screws to remove the top cover. You may need to unplug the
LCD control panel cable to fully remove the top cover.
7.2.9 Unscrew the oil fill plug on top of the pump housing.
